Desa CHL3924NR Quick start guide
For more information, visit www.desatech.com
WARNING: If the information in this manual is not fol-
— WHAT TO DO IF YOU SMELL GAS
• Do not touch any electrical switch; do not use any
-
UNVENTED (VENT-FREE) GAS LOG HEATER
OWNER’S OPERATION AND INSTALLATION MANUAL
Not Used With Hand-Held Thermostat Remote
18", 24" AND 30" REMOTE READy
(Yellow Flame Model Shown)
CCL3018NR, CCL3018PR, CCL3018NRA, CCL3018PRA
CCL3924NR, CCL3924PR, CCL3924NRA, CCL3924PRA
CHL3924NR, CHL3924PR,
CCL3930NR, CCL3930PR, CCL3930NRA, CCL3930PRA
P
I
L
O
T
O
F
F
O
N
LO
REMOTE
OFF
HI
www.desatech.com 111161-01H2
SAFETy INFORMATION
TAbLE OF CONTENTS
Safety Information ............................................... 2
Local Codes......................................................... 4
Product Identication........................................... 5
Unpacking............................................................ 5
Product Features................................................. 5
Remote Control Accessories ............................... 5
Air For Combustion and Ventilation..................... 5
Installation ........................................................... 8
Operating Heater............................................... 19
Inspecting Burners............................................. 22
Cleaning and Maintenance................................ 23
Troubleshooting................................................. 24
Illustrated Parts Breakdown and Parts List........ 28
Specications .................................................... 32
Wiring Diagram.................................................. 32
Service Hints ..................................................... 32
Technical Service............................................... 32
Replacement Parts............................................ 33
Parts Central...................................................... 33
Accessories ....................................................... 34
Warranty Information ...........................Back Cover
-
-
teration, service or main-
to this manual for correct
-
-
tance or additional infor-
is for installation only in a
-
-
installations in accor-
-
includes instructions stat-
WARNING: This is an
-
from the room in which
and ventilation air must
Air
for Combustion and Ven-
tilation
-
stalled in an aftermarket,*
-
www.desatech.com
111161-01H 3
-
known to the state of California
-
-
Early signs of carbon
monoxide poisoning resemble the u, with head-
aches, dizziness or nausea. If you have these signs,
the heater may not be working properly. Get fresh
air at once! Have heater serviced. Some people
are more affected by carbon monoxide than others.
These include pregnant women, people with heart
or lung disease or anemia, those under the inuence
of alcohol and those at high altitudes.
Natural and pro-
pane/LP gases are odorless. An odor-making agent
is added to the gas. The odor helps you detect a gas
leak. However, the odor added to the gas can fade.
Gas may be present even though no odor exists.
Make certain you read and understand all warn-
ings. Keep this manual for reference. It is your
guide to safe and proper operation of this heater.
this heater or its controls can
WARNING: Do not use a
-
1.
This appliance is only for use with the type of
gas indicated on the rating plate. This appliance
is not convertible for use with other gases.
2. Do not place propane/LP supply tank(s) in-
side any structure. Locate propane/LP supply
tank(s) outdoors (propane/LP units only).
3. To prevent performance problems, the use of
a propane/LP fuel tank of less than 100 lb.
capacity is not recommended (propane/LP
units only).
SAFETy INFORMATION
Continued WARNING: Do not allow fans
children and adults away from hot
-
dren when they are in the room
-
-
-
www.desatech.com 111161-01H4
SAFETy INFORMATION
Continued
4. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use
any phone in your building
• immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions
• if you cannot reach your gas supplier, call
the re department
5. This heater shall not be installed in a bedroom
or bathroom unless installed as a vented appli-
ance (see Installing Damper Clamp Accessory
for Vented Operation, page 11).
6.
Before installing in a solid fuel burning re-
place, the chimney ue and rebox must be
cleaned of soot, creosote, ashes and loose paint
by a qualied chimney cleaner. Creosote will
ignite if highly heated. A dirty chimney ue
may create and distribute soot within the house.
Inspect chimney ue for damage. If damaged,
repair ue and rebox before operating heater.
7. Do not burn solid-fuel in a masonry or UL127
factory-built replace in which a vent-free
room heater is installed.
8.
If replace has glass doors, never oper-
ate this heater with glass doors closed. If
you operate heater with doors closed, heat
buildup inside replace will cause glass to
burst. Make sure there are no obstructions
across openings of replace.
9. This log heater is designed to be smokeless.
If logs ever appear to smoke, turn off heater
and call a qualied service person. Note:
During initial operation, slight smoking may
occur due to log curing and heater burning
manufacturing residues.
10. To prevent the creation of soot, follow the instruc-
tions in Cleaning and Maintenance, page 23.
11. Before using furniture polish, wax, carpet
cleaner or similar products, turn heater off. If
heated, the vapors from these products may
create a white powder residue within burner
box or on adjacent walls or furniture.
12.
This heater needs fresh, outside air ventilation
to run properly. This heater has an Oxygen
Depletion Sensing (ODS) safety shutoff system.
The ODS shuts down the heater if not enough
fresh air is available. See Air for Combustion
and Ventilation, page 5. If heater keeps shutting
off, see Troubleshooting, page 24.
13. Do not run heater
• where ammable liquids or vapors are used
or stored
• under dusty conditions
14. Do not use this heater to cook food or burn
paper or other objects.
15.
Do not use heater if any part has been exposed
to or under water. Immediately call a qualied
service technician to inspect the room heater
and to replace any part of the control system and
any gas control which has been under water.
16. Do not operate heater if any log is broken. Do
not operate heater if a log is chipped (dime-
sized or larger).
17.
Turn heater off and let cool before servicing, install-
ing or repairing. Make sure the remote selector
switch is in the OFF position. Only a qualied ser-
vice person should install, service or repair heater.
18. Make sure the remote selector switch is in the
OFF position when you are away from home
for long periods of time.
19. This heater must not be connected to any
external electrical source.
20. Operating heater above elevations of 4,500
feet may cause pilot outage.
21. Provide adequate clearances around air
openings.
LOCAL CODES
Install and use heater with care. Follow all local
codes. In the absence of local codes, use the lat-
est edition of The National Fuel Gas Code, ANSI
Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
Note: Where listed vented decorative logs are
required, thermostat operation is not permitted.
State of Massachusetts: The installa-
tion must be made by a licensed plumber
or gas fitter in the Commonwealth of
Massachusetts.
Sellers of unvented propane or natural
gas-red supplemental room heaters shall
provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.
Vent-free gas products are prohibited for
bedroom and bathroom installation in the
Commonwealth of Massachusetts.
www.desatech.com
111161-01H 5
PRODUCT
IDENTIFICATION
Figure 1 - Vent-Free Gas Log Heater
(Logs May Vary By Model)
Log Set
Control
Knob
Base
Grate
Piezo
Ignitor
Optional
Remote
Control
Optional
Selector
Switch
Flame
Adjustment
Knob
UNPACkING
CAUTION: Do not remove the
1. Remove logs and heater base assembly from
carton. Note: Do not pick up heater base as-
sembly by burners. This could damage heater.
Always handle base assembly by grate.
2. Remove all protective packaging applied to
logs and heater for shipment.
3. Check all items for any shipping damage. If
damaged, promptly inform dealer where you
bought heater.
PRODUCT FEATURES
This heater is clean burning. It requires no outside
venting. There is no heat loss out a vent or up a
chimney. Heat is generated by realistic dancing,
yellow ames. This heater is designed for vent-free
operation with ue damper closed. It has been
tested and approved to ANSI Z21.11.2 standard
for unvented heaters. This heater may also be
operated as a vented decorative (ANSI Z21.60)
product by opening ue damper (non-thermostat
models only).
This heater has a pilot with an Oxygen Deple-
tion Sensing (ODS) safety shutoff system. The
ODS/pilot is a required feature for vent-free room
heaters. The ODS/pilot shuts off the heater if there
is not enough fresh air.
This heater has a piezo ignitor. This system re-
quires no matches, batteries or other sources to
light heater.
REMOTE CONTROL
ACCESSORIES
There are two optional remote controls that can be
purchased separately for this log heater:
• hand-held ON/OFF remote
• hand-held thermostat remote
See Accessories, page 34.
The hand-held thermostat may not be used where
vented decorative listing is required.
AIR FOR COMbUSTION
AND VENTILATION
WARNING: This heater shall
-
-
Today’s homes are built more energy efcient
than ever. New materials, increased insulation and
new construction methods help reduce heat loss
in homes. Home owners weather strip and caulk
around windows and doors to keep the cold air out
and the warm air in. During heating months, home
owners want their homes as airtight as possible.
While it is good to make your home energy ef-
cient, your home needs to breathe. Fresh air must
enter your home. All fuel-burning appliances need
fresh air for proper combustion and ventilation.
Exhaust fans, replaces, clothes dryers and fuel
burning appliances draw air from the house to
operate. You must provide adequate fresh air for
these appliances. This will insure proper venting
of vented fuel-burning appliances.
www.desatech.com 111161-01H6
AIR FOR COMbUSTION
AND VENTILATION
Continued
The following are excerpts from National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Section 5.3,
Air for Combustion and Ventilation.
All spaces in homes fall into one of the three fol-
lowing ventilation classications:
1. Unusually Tight Construction
2. Unconned Space
3. Conned Space
The information on pages 5 through 7 will help
you classify your space and provide adequate
ventilation.
The air that leaks around doors and windows
may provide enough fresh air for combustion and
ventilation. However, in buildings of unusually
tight construction, you must provide additional
fresh air.
construction where:
-
-112) or
and
and
If your home meets all of the three criteria
Ventilation Air From Outdoors,
If your home does not meet all of the three
Determining
Fresh-Air Flow For Heater Location
The National Fuel Gas Code, ANSI Z223.1/NFPA
54 denes a conned space as a space whose vol-
ume is less than 50 cubic feet per 1,000 Btu per hour
(4.8 m
3
per kw) of the aggregate input rating of all
appliances installed in that space and an unconned
space as a space whose volume is not less than 50
cubic feet per 1,000 Btu per hour (4.8 m
3
per kw) of
the aggregate input rating of all appliances installed
in that space. Rooms communicating directly with
the space in which the appliances are installed*,
through openings not furnished with doors, are
considered a part of the unconned space.
* Adjoining rooms are communicating only if
there are doorless passageways or ventilation grills
between them.
DETERMINING FRESH-AIR FLOW
FOR HEATER LOCATION
Use this work sheet to determine if you have a
conned or unconned space.
Includes the room in which you will install
heater plus any adjoining rooms with doorless pas-
sageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x
width x height).
Length x Width x Height =__________cu. ft.
(volume of space)
Example: Space size 20 ft. (length) x 16 ft.
(width) x 8 ft. (ceiling height) = 2560 cu. ft.
(volume of space)
If additional ventilation to adjoining room is
supplied with grills or openings, add the volume
of these rooms to the total volume of the space.
2. Multiply the space volume by 20 to determine
the maximum Btu/Hr the space can support.
__________ (volume of space) x 20 = (Maxi-
mum Btu/Hr the space can support)
Example: 2560 cu. ft. (volume of space) x 20 =
51,200 (maximum Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in
the space.
Vent-free replace ___________ Btu/Hr
Gas water heater* ___________ Btu/Hr
Gas furnace ___________ Btu/Hr
Vented gas heater ___________ Btu/Hr
Gas replace logs ___________ Btu/Hr
Other gas appliances* +___________ Btu/Hr
Total =___________ Btu/Hr
* Do not include direct-vent gas appliances. Di-
rect-vent draws combustion air from the outdoors
and vents to the outdoors.
www.desatech.com
111161-01H 7
Example:
Gas water heater __________ Btu/Hr
Vent-free replace + ________ Btu/Hr
Total = ________ Btu/Hr
4. Compare the maximum Btu/Hr the space can
support with the actual amount of Btu/Hr used.
__________ Btu/Hr (maximum the space can support)
__________Btu/Hr (actual amount of Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the space
can support)
79,000 Btu/Hr (actual amount of
Btu/Hr used)
The space in the above example is a conned space
because the actual Btu/Hr used is more than the maxi-
mum Btu/Hr the space can support. You must provide
additional fresh air. Your options are as follows:
A. Rework worksheet, adding the space of an adjoin-
ing room. If the extra space provides an unconned
space, remove door to adjoining room or add
ventilation grills between rooms. See Ventilation
Air From Inside Building.
B. Vent room directly to the outdoors. See Ventila-
tion Air From Outdoors.
C. Install a lower Btu/Hr replace, if lower Btu/Hr
size makes room unconned.
If the actual Btu/Hr used is less than the maximum
Btu/Hr the space can support, the space is an un-
conned space. You will need no additional fresh
air ventilation.
WARNING: If the area in
-
in the National Fuel Gas Code,
ANSI Z223.1/NFPA54 Section 5.3
AIR FOR COMbUSTION
AND VENTILATION
Continued
40,000
39,000
79,000
This fresh air would come from an adjoining un-
conned space. When ventilating to an adjoining
unconned space, you must provide two perma-
nent openings: one within 12" of the ceiling and
one within 12" of the oor on the wall connecting
the two spaces (see options 1 and 2, Figure 2). You
can also remove door into adjoining room (see
option 3, Figure 2). Follow the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for
Combustion and Ventilation for required size of
ventilation grills or ducts.
Figure 3 - Ventilation Air from Outdoors
Figure 2 - Ventilation Air from Inside
Building
Outlet
Air
Ventilated
Attic
Outlet
A
ir
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills
Into Adjoining
Room,
Option 1
12"
12"
Provide extra fresh air by using ventilation grills or
ducts. You must provide two permanent openings:
one within 12" of the ceiling and one within 12"
of the oor. Connect these items directly to the
outdoors or spaces open to the outdoors. These
spaces include attics and crawl spaces. Follow the
National Fuel Gas Code, ANSI Z223.1/NFPA 54,
Section 5.3, Air for Combustion and Ventilation for
required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for inlet
or outlet air into attic if attic has a thermostat-
controlled power vent. Heated air entering the attic
will activate the power vent.
www.desatech.com 111161-01H8
WARNING: Seal any fresh
air vents or ash clean-out doors
-
WARNING: Never install the
heater
unless installed as a vented
• in a recreational vehicle
• where curtains, furniture,
heater
• in windy or drafty areas
CAUTION: This heater cre-
currents move heat to wall sur-
heater next to vinyl or cloth wall
-
the air exist, may discolor walls
IMPORTANT: Vent-free heaters add moisture to
the air. Although this is benecial, installing heater
in rooms without enough ventilation air may cause
mildew to form from too much moisture. See Air
for Combustion and Ventilation, page 5.
Use the correct gas type (natural or propane/LP)
for your unit. If your gas supply is not correct, do
not install heater. Call dealer where you bought
heater for proper type heater.
INSTALLATION
NOTICE: This heater is intended
-
NOTICE: State or local codes
-
-
WARNING: Make sure the
-
-
-
www.desatech.com
111161-01H 9
-
INSTALLATION AND CLEARANCES
()
WARNING: Maintain the
Side Wall 16" Ceiling: 42"
18" 17" 13" 28" 20"
24" 17" 13" 28" 21"
30" 17" 13" 34" 24"
* Measured at 13" depth.
Carefully follow the instructions below. This will
ensure safe installation into a masonry, UL127-listed
manufactured replace or listed vent-free rebox.
Minimum Clearances for Side
A. Clearances from the side of the fireplace
cabinet to any combustible material and wall
should follow diagram in Figure 4.
Example: The face of a mantel, bookshelf,
etc. is made of combustible material and
protrudes 3 1/2" from the wall. This combus-
tible material must be 4" from the side of the
replace opening (see Figure 4).
Note: When installing your gas logs into
a manufactured firebox, follow firebox
manufacturer’s instructions for minimum
clearances to combustible materials.
B.
Clearances from the top of the replace
opening to the ceiling should not be less
than 42".
INSTALLATION
Continued
Figure 4 - Minimum Clearance for
Combustible to Wall
*Minimum 16" from Side Wall
*
Example
NOTICE: Manual control heaters
If so, you must always run heater
Installing Damper
Clamp Accessory for Vented
Operation
Clearances
Note: If using a mantel, proceed to If Using
Mantel. If not using a mantel, follow the infor-
mation below.
You must have noncombustible material(s) above
the replace opening. Noncombustible materials
(such as slate, marble, tile, etc.) must be at least
1/2" thick. With sheet metal, you must have non-
combustible material behind it. Noncombustible
material must extend at least 8" up (for all models).
If noncombustible material is less than 12", you
must install the replace hood accessory (24"
and 30" models only). See Figure 5 for minimum
clearances.
IMPORTANT: If you cannot meet these minimum
clearances, you must operate heater with chimney
ue damper open. Go to Installing Damper Clamp
Accessory for Vented Operation, page 11.
www.desatech.com 111161-01H10
INSTALLATION
Continued
Figure 5 - Heat Resistant Material (Slate,
Marble, Tile, etc.) Above Fireplace
You must have noncombustible material(s) above
the replace opening. Noncombustible materials
(such as slate, marble, tile, etc.) must be at least
1/2" thick. With sheet metal, you must have non-
combustible material behind it. Noncombustible
material must extend at least 8" up (for all models).
If noncombustible material is less than 12", you
must install the replace hood accessory (24" and
30" models only). Even if noncombustible material
is more than 12", you may need the hood acces-
sory to deect heat away from your mantel shelf.
See Figure 5 and Figures 6 and 7 on page 9 for
minimum clearances.
IMPORTANT: If you cannot meet these minimum
clearances, you must operate heater with chimney
ue damper open. Go to Installing Damper Clamp
Accessory for Vented Operation, page 11.
Material Safe Installation
Distance (A)
12" or more Noncombustible material
okay.
Between 8" Install replace hood
and 12" accessory (GA6050,
GA6052 or GA6053 see
Accessories, page 34).
Less than 8" Noncombustible material
must be extended to at
least 8". See Between 8"
and 12", above. If you
cannot extend material,
you must operate heater
with ue damper open.
Heat Resistant
Material
(A)
MANTEL CLEARANCES
In addition to meeting noncombustible material
clearances, you must also meet required clearances
between replace opening and mantel shelf. If
you do not meet the clearances listed below, you
will need a hood.
If you meet minimum clearance between mantel
shelf and top of replace opening, a hood is not
required (see Figure 6).
If minimum clearances in Figure 6 are not met, you
must have a hood. When using a hood there are
still certain minimum mantel clearances required.
Follow minimum clearances shown in Figure 7,
page 11, when using hood.
-
-
Follow all minimum clearances

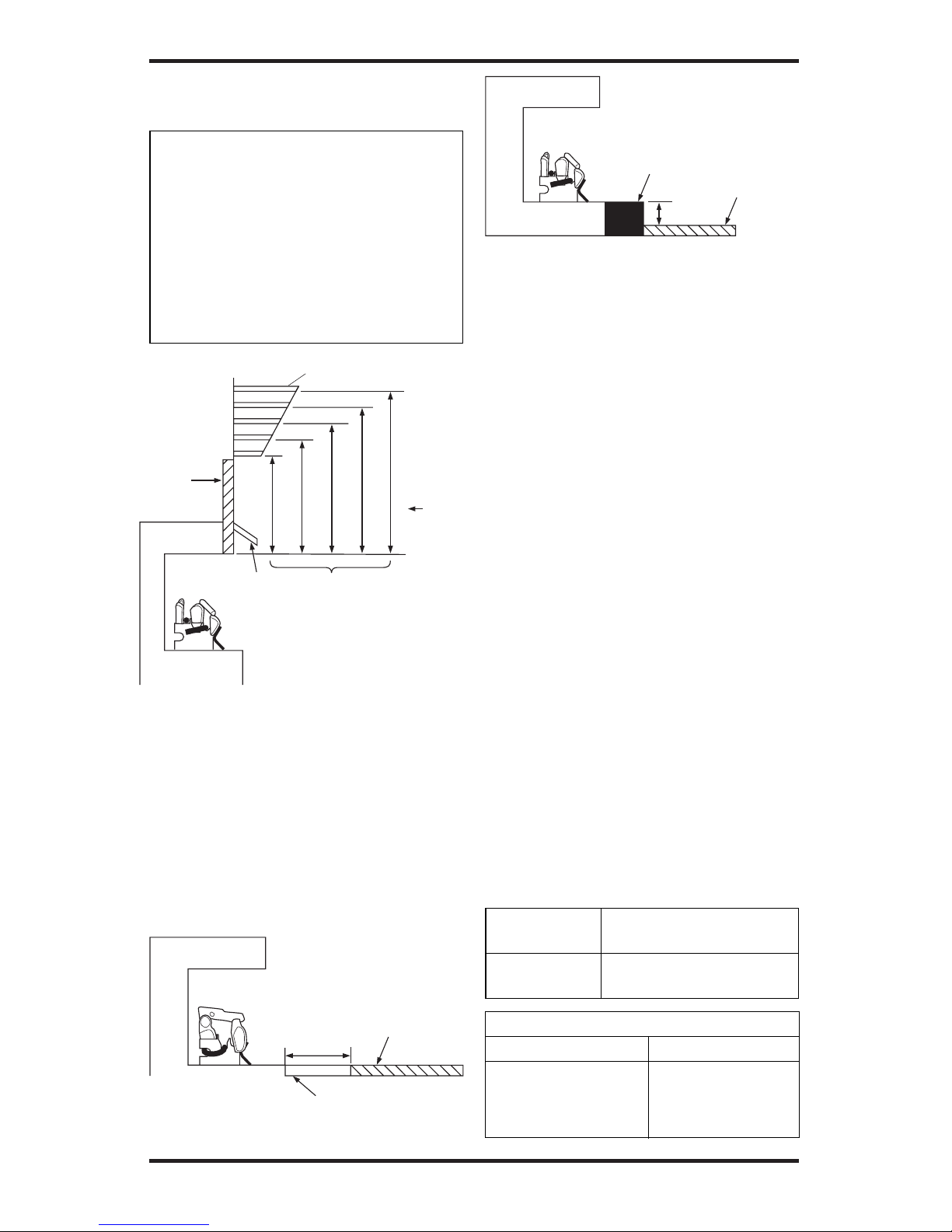

Figure 6 - Minimum Mantel Clearances
Without Using Hood
Minimum
Noncombustible
Material
Minimum
Noncombustible
Material Height
Distances to
Underside of
Mantel
Top of Fireplace
Opening
Underside
of Mantel
Shelf
Mantel Shelf
12"
8"
(A)
18"
8"
20"
14"
22"
17"
24"
20"
All minimum
distances
are in inches
Log Set
24"/30"
Models
18" Model
2
1/2
"
6"
8"
10"
www.desatech.com
111161-01H 11
Minimum
Noncombustible
Material 8"
Min.
12" 15" 18"
All minimum
distances are
in inches
Log Set
18", 24",
30" Models
20"
2
1/2
"
6"
8"
10"
12"
Distances to
Underside of
Mantel
Hood
(GA6050,
GA6052)
Top of
Fireplace
Opening
Underside
of Mantel
Shelf
Mantel Shelf
INSTALLATION
Continued
Figure 7 - Minimum Mantel Clearances
When Using Hood
All
Models
NOTICE: If your installation does
not meet the minimum clear-
ances shown, you must do one
-
FLOOR CLEARANCES
A. If installing appliance on the oor level, you
must maintain the minimum distance of 14"
to combustibles (see Figure 8).
B. If combustible materials are less than 14" to
the replace, you must install appliance at
least 5" above the combustible ooring (see
Figure 9).
14"
Min.
Combustible
Material
Noncombustible Material
Hearth
5"
Min.
Combustible
Material
Figure 9 - Minimum Fireplace Clearances
Above Combustible Flooring
Figure 8 - Minimum Fireplace Clearances
If Installed at Floor Level
Note: When used as a vented heater, appliance
must be installed only in a solid-fuel burning
replace with a working ue and constructed of
noncombustible material.
If you choose to use your heater as a manually-
controlled model (no remote control installed),
you may use this heater as a vented product. There
are three reasons for operating your heater in the
vented mode.
1. The replace does not meet the clearance
to combustibles requirements for vent-free
operation.
2. State or local codes do not permit vent-free
operation.
3. You prefer vented operation.
If reasons number 1 or 2 above apply to you, you
must permanently open chimney ue damper. You
must install the damper clamp accessory (to order,
see Accessories, page 34). This will insure vented
operation (see Figure 10, page 12). The damper
clamp will keep damper open. Installation instruc-
tions are included with clamp accessory.
See chart below for minimum permanent ue
opening you must provide. Attach damper clamp
so the minimum permanent ue opening will be
maintained at all times.

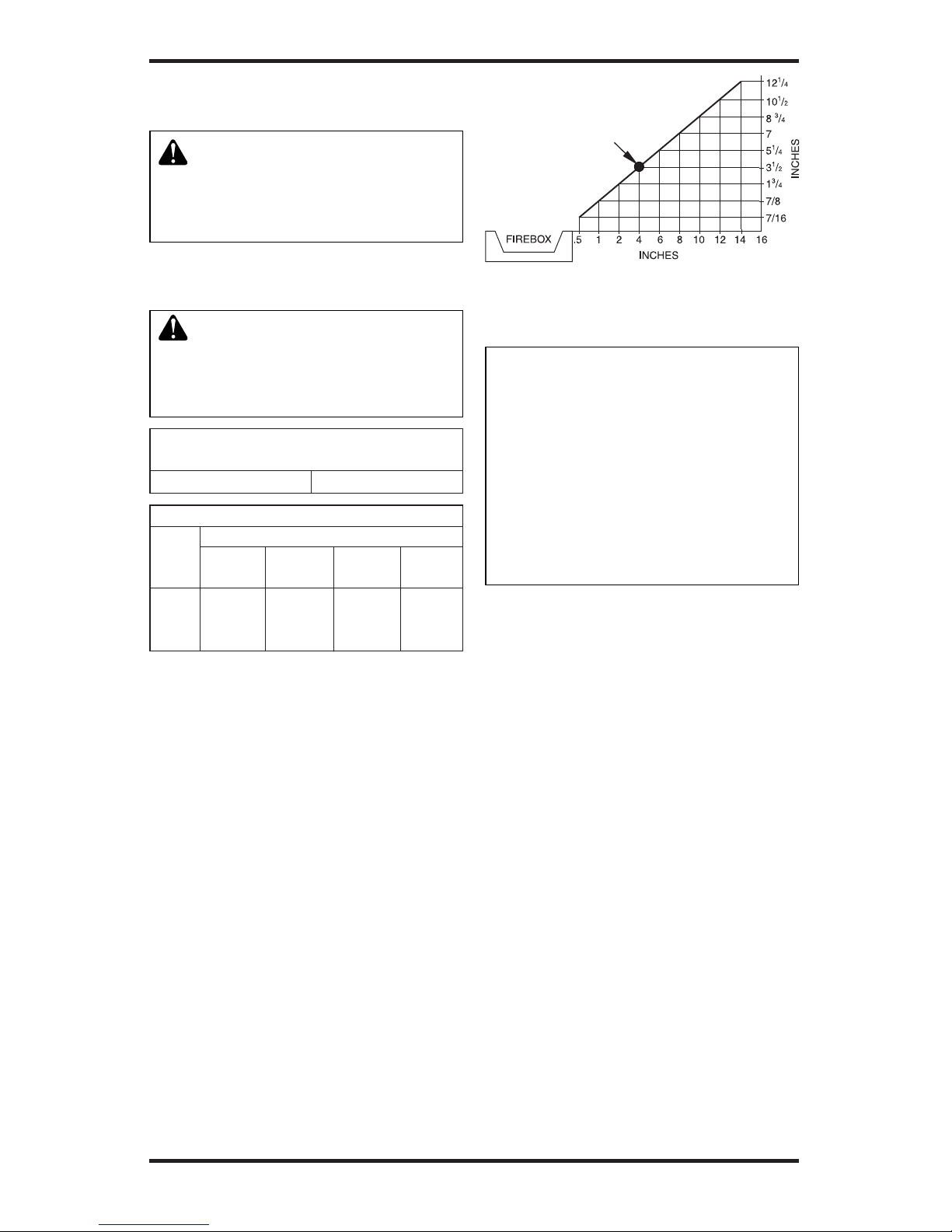

6' to 15' 39 sq. inches
15' to 30' 29 sq. inches
5 20
6 29
7 39
8 51
www.desatech.com 111161-01H12
CAUTION: Do not remove the
WARNING: You must secure
not, heater will move when you
-
-
IMPORTANT: Make sure the heater burners are level.
If heater is not level, heater will not work properly.

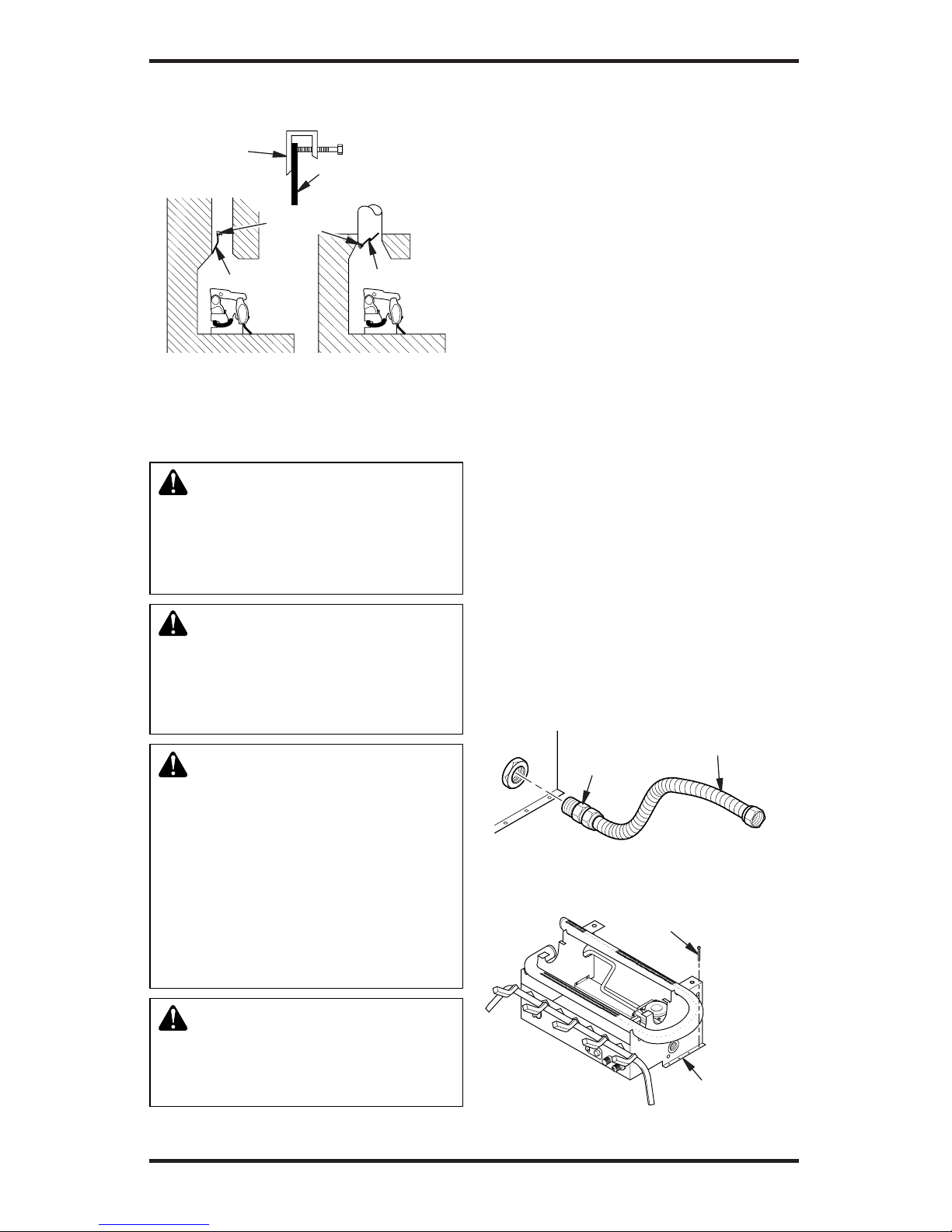

Figure 10 - Attaching Damper Clamp
Damper
Damper
Clamp
Damper
Damper
Clamp
Damper
INSTALLATION
Continued
Installation Items Needed
• hardware package (provided with heater)
• approved exible gas hose (not provided) (if
allowed by local codes)
•
sealant resistant to propane/LP gas, not provided
• electric drill with 3/16” masonry drill bit
Note: Install optional remote receiver and hand-
held remote kit (see Accessories, page 34) before
installing gas log heater. See installation instruc-
tions included with the kit.
1. Apply pipe joint sealant lightly to male threads
of the tting to be threaded into gas regulator.
Connect approved exible gas hose to gas
regulator of heater (see Figure 11).
2.
Locate masonry screws in hardware package.
3. Position heater base assembly in replace.
4.
Place logs in their proper positions on heater base.
5. Center heater base and logs front-to-back and
side-to-side in replace.
6. Carefully remove logs without moving
heater base.
7. Mark screw locations through holes in mount-
ing anges (see Figure 12). If installing in a
brick-bottom replace, mark screw locations
in mortar joint of bricks.
8. Remove heater base from replace.
9. Drill holes at marked locations using 3/16”
masonry drill bit.
10. Attach base assembly to replace oor using
two masonry screws (in hardware package)
(see Figure 12).
11. Connect to gas supply. See Connecting To Gas
Supply, page 13.
Figure 11 - Attaching Flexible Gas Hose
to Heater
Flexible Gas Hose
(if allowed by local codes)
Fitting
Figure 12 - Attaching Base Assembly to
Fireplace Floor
Masonry
Screw
Mounting
Flanges
www.desatech.com
111161-01H 13
For propane/LP units, the installer must supply
an external regulator. The external regulator will
reduce incoming gas pressure. You must reduce
incoming gas pressure to between 11" and 14" of
water. If you do not reduce incoming gas pres-
sure, heater regulator damage could occur. Install
external regulator with the vent pointing down
as shown in Figure 13. Pointing the vent down
protects it from freezing rain or sleet.
CAUTION: Use only new,
-
Installation must include an equipment shutoff
valve, union and plugged 1/8" NPT tap. Locate
NPT tap within reach for test gauge hook up. NPT
tap must be upstream from heater (see Figure 14,
page 14).
IMPORTANT: Install equipment shutoff valve
in an accessible location. The equipment shutoff
valve is for turning on or shutting off the gas to
the appliance.
Check your building codes for any special re-
quirements for locating equipment shutoff valve
to replaces.
Apply pipe joint sealant lightly to male NPT
threads. This will prevent excess sealant from
going into pipe. Excess sealant in pipe could result
in clogged heater valves.
INSTALLATION
Continued
-
CAUTION: Never connect
-
WARNING: Never connect
Installation Items Needed
Before installing heater, make sure you have the
items listed below.
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench
* A CSA design-certied equipment shutoff valve
with 1/8" NPT tap is an acceptable alternative to
test gauge connection. Purchase the optional CSA
design-certied equipment shutoff valve from your
dealer. See Accessories, page 34.
Figure 13 - External Regulator With Vent
Pointing Down
Propane/LP
Supply Tank
External
Regulator
Vent
Pointing
Down
www.desatech.com 111161-01H14
INSTALLATION
Continued
* Purchase the optional CSA design-certified
equipment shutoff valve from your dealer. See
Accessories, page 34.
** Minimum inlet pressure for purpose of input
adjustment.

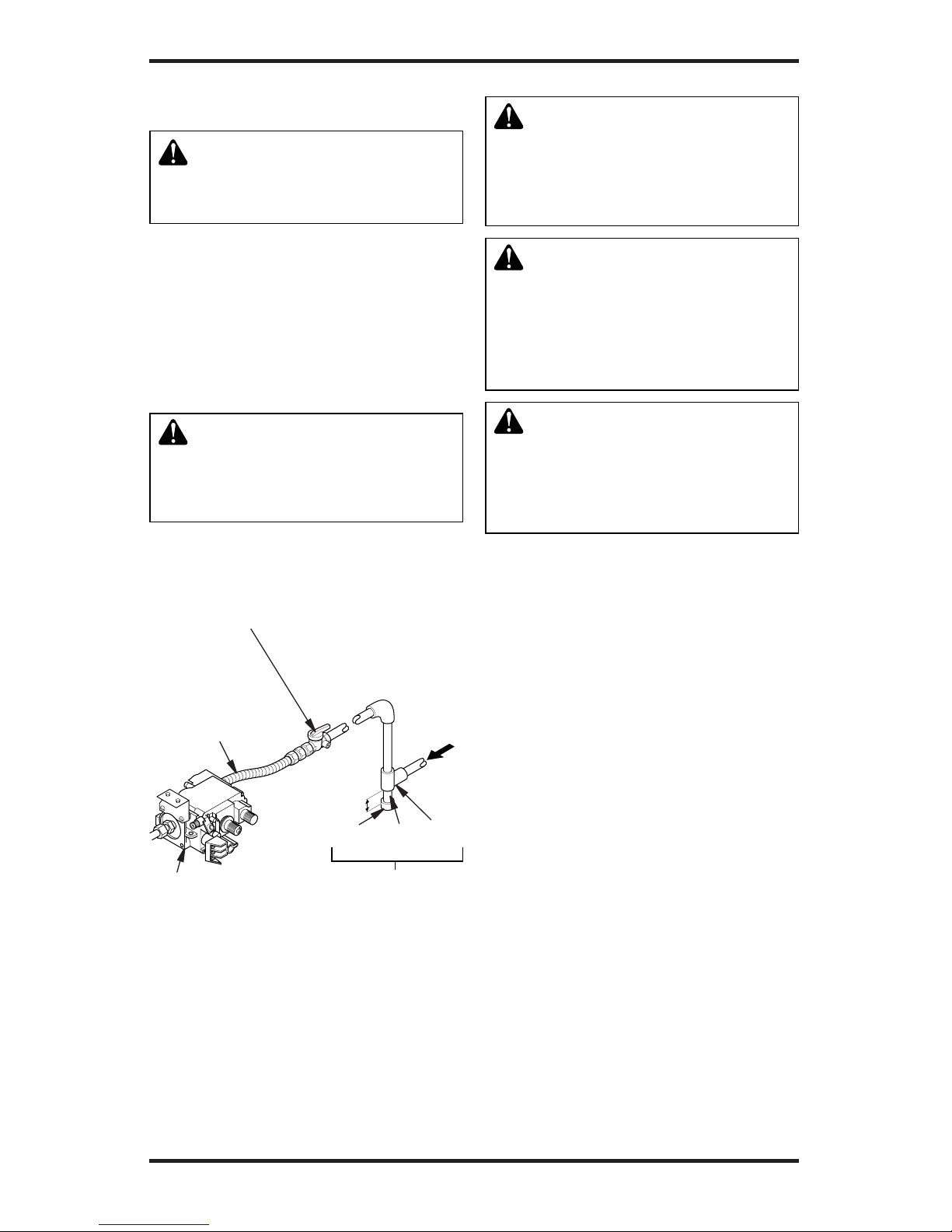

Figure 14 - Gas Connection
Gas
Control
3" Minimum
CSA Design-
Certied Equipment
Shutoff Valve With
1/8" NPT Tap*
Approved
Flexible
Gas Hose (if
allowed by
local codes)
From External
Regulator (11"
W.C.** to 14" W.C.
Pressure)
NATURAL
From Gas Meter
(5" W.C.** to
10.5" W.C.
Pressure)
Cap Pipe Tee
Nipple Joint
Sediment Trap
We recommend that you install a sediment trap in
supply line as shown in Figure 14. Locate sediment
trap where it is within reach for cleaning. Install
in piping system between fuel supply and heater.
Locate sediment trap where trapped matter is not
likely to freeze. A sediment trap traps moisture and
contaminants. This keeps them from going into
heater controls. If sediment trap is not installed or
is installed wrong, heater may not run properly.
and connections, internal and
external to unit, for leaks after
WARNING: Never use an
-
leaks at once
CAUTION: Make sure exter-
Con-
necting to Gas Supply
1. Disconnect appliance with its appliance main
gas valve (control valve) and equipment
shutoff valve from gas supply piping system.
Pressures in excess of 1/2 psig will damage
heater regulator.
2. Cap off open end of gas pipe where equipment
shutoff valve was connected.
3. Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas or opening main gas valve
located on or near gas meter for natural gas
or using compressed air.
4. Check all joints of gas supply piping system.
Apply noncorrosive leak detection uid to gas
joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6.
Reconnect heater and equipment shutoff
valve to gas supply. Check reconnected t-
tings for leaks.
www.desatech.com
111161-01H 15
INSTALLATION
Continued
1.
Close equipment shutoff valve (see Figure 15).
2. Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas or opening main gas valve
located on or near gas meter for natural gas
or using compressed air.
3. Check all joints from propane/LP supply tank
to equipment shutoff valve for propane/LP gas
(see Figure 16) or from gas meter to equipment
shutoff valve for natural gas (see Figure 17).
Apply noncorrosive leak detection uid to gas
joints. Bubbles forming show a leak.
4. Correct all leaks at once.
CONNECTIONS
1.
Open equipment shutoff valve (see Figure 15).
2. Open propane/LP supply tank valve or main
gas valve located on or near gas meter for
natural gas.
3. Make sure control knob of heater is in the OFF
position.
4. Check all joints from propane/LP supply tank
to equipment shutoff valve for propane/LP gas
(see Figure 16) or from gas meter to equipment
shutoff valve for natural gas (see Figure 17).
Apply noncorrosive leak detection uid to gas
joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Light heater (see Operating Heater, page 19).
Check all other internal joints for leaks.
7. Turn off heater (see To Turn Off Gas to Appli-
ance, page 20).
Figure 15 - Equipment Shutoff Valve
Open
Closed
Equipment
Shutoff
Valve
Figure 16 - Checking Gas Joints
Propane/LP
Tank
Equipment
Shutoff Valve
Thermostat Gas Valve or
Control Valve Location
Figure 17 - Checking Gas Joints
Gas Meter
Equipment
Shutoff Valve
Thermostat Gas Valve or
Control Valve Location
UNIT
1.
Disconnect switch wires from the con-
trol valve.
2.
Remove phillips head screws and heat shield.
3. Remove switch plate (see Figure 18). Discard
after removing.
Front
Back
Figure 18 - Switch Plate and Wiring
Harness (Switch Plate and Orientation
May Vary Depending On Model)
Wires
Screws
www.desatech.com 111161-01H16
INSTALLING WIRELESS HAND-
HELD REMOTE CONTROL
ACCESSORY
Two 9-volt alkaline batteries (not included) are
required to operate this heater with the wire-
less hand-held remote control set. One battery
must be installed in the receiver and one in the
hand-held remote control unit. Note: Only use
alkaline batteries.
1. Locate back of receiver under front burner of
heater.
2. Locate the battery clip mounted on the back
of the receiver.
3. Slide a 9-volt battery through the clip.
4. Attach the terminal wires to the battery.
INSTALLATION
Continued
Front
Back

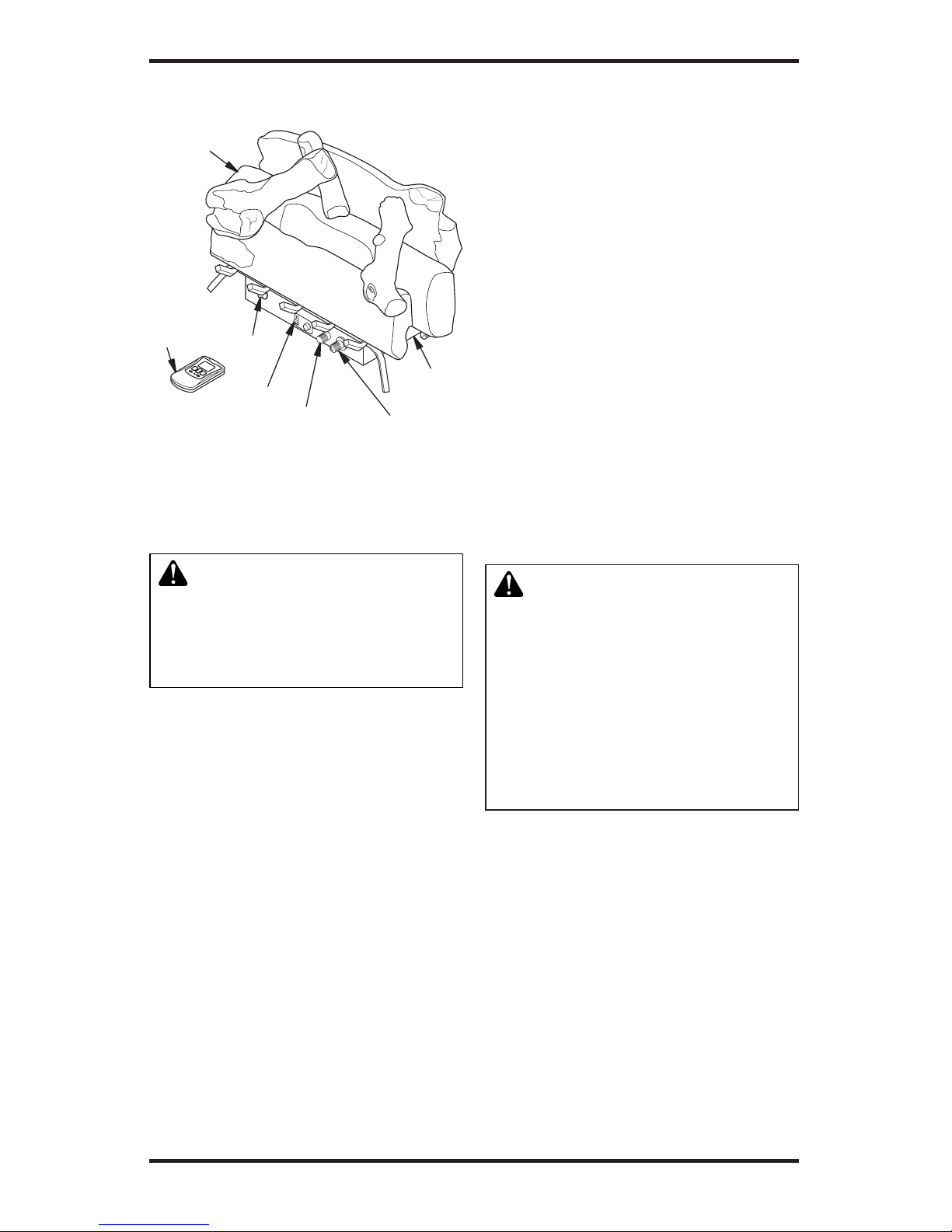

Figure 19 - Installing Remote Receiver
Remote
Receiver
Screws
Valve
White Wire From
Receiver
Figure 20 - Connecting Wires
Red Wire
From
Receiver
Figure 21 - Installing Receiver on the
Back of the Base
Battery
Clip
9-Volt
Battery
Receiver
Terminal
Wires
Hand-Held Remote Control Unit
1. Remove battery cover on back of remote
control unit.
2. Attach terminal wires to the battery. Place
battery into the battery housing.
3. Replace battery cover onto remote control
unit.
Battery
Cover
9-Volt
Battery
Terminal
Wires
Figure 22 - Installing Battery in Hand-
Held Remote Control Unit
Remote
Control Unit
Battery
Housing
4.
Install remote receiver unit onto gas log heater
base using phillips head screws (see Figure 19).
5. Connect wires as shown in Figure 20.
www.desatech.com
111161-01H 17
INSTALLATION
Continued
INSTALLING LOGS
-
CAUTION: After installa-
With the heater set to HI, check
-
Each log is marked with a number. These numbers
will help you identify the log when installing. It
is very important to install these logs exactly as
instructed. Do not modify logs. Only use logs
supplied with heater.
1.
Place the front log (#1) on the grate ngers. Make
sure the front log rests rmly between the grate
ngers and the grate base (see Figure 23).
2. Place the base of the middle log (#2) in the
U-shaped slots of the grate base. The cutout
on the right of the middle log should t over
the burner (see Figure 24). Make sure the front
of the middle log is resting on the tabs of the
grate base.
3. Locate pegs on the bottom of back log (#3).
Slide these pegs into the holes in the grate base
behind the burner (see Figure 25).
4. Locate pegs on the bottom of crossover log
(#4). Slide these pegs into the holes located in
middle log (#2) and back log (#3). See Figure
26, page 18, for placement.
AUTO
OFF
ON
Figure 23 - Installing Front Log (#1)
(CCL3930PR/NR Shown)
Front Log
(#1)
Grate
Fingers
Grate
Base
AUTO
OFF
ON
Figure 24 - Installing Middle Log (#2)
(CCL3930PR/NR Shown)
Middle Log (#2)
Tab
Burner
U-Shaped
Slot
AUTO
OFF
ON
Figure 25 - Installing Rear Log (#3)
(CCL3930PR/NR Shown)
Hole in
Grate
Base
Pegs
Burner
www.desatech.com 111161-01H18
5. Locate pegs on the bottom of crossover log
(#5). Slide these pegs into the holes located
in crossover log (#4) and front log (#1). See
Figure 27.
Locate holes on the
bottom of crossover log (#5). Slide the holes
over the left pegs on middle log (#2) and front
log (#1). See Figure 28.
6.
Locate pegs on the bottom of crossover log (#6).
Slide these pegs into the holes located in middle
log (#2) and front log (#1). See Figure 29.
7. , locate holes on the
bottom of crossover log (#7). Slide onto the
pegs located in crossover log (#6) and middle
log (#2). See Figure 30.
8. Add lava rock around base of heater if de-
sired. Do not place any lava rock on logs or
burner.
INSTALLATION
Continued
AUTO
OFF
ON
Figure 26 - Installing Crossover Log (#4)
(CCL3930PR/NR Shown)
Log #2
Log #3
Pegs
Figure 27 - Installing Crossover Log (#5)
(CCL3930PR/NR Shown)
AUTO
OFF
ON
7
Figure 30 - Installing Crossover Log
(#7) to Models CCL3930PR/PRA and
CCL3930NR/NRA Only
Middle Log
(#2)
Crossover
Log (#6)
Holes
Pegs
Figure 29 - Installing Crossover Log (#6)
(CCL3930PR/NR Shown)
AUTO
OFF
ON
Crossover
Log (#4)
Front Log (#1)
Figure 28 - Installing Crossover Log (#5)
(CCL3018PR/PRA and CCL3018NR/NRA Only)
Crossover
Log (#4)
Front Log
(#1)
AUTO
OFF
ON
6
Pegs
Log #2
Front Log (#1)
www.desatech.com
111161-01H 19
OPERATING HEATER
FOR YOUR SAFETY
WARNING: If you do not fol-
low these instructions exactly,
-
A. This appliance has a pilot which must be
lighted by hand. When lighting the pilot,
follow these instructions exactly.
B. BEFORE LIGHTING smell all around the
appliance area for gas. Be sure to smell next
to the oor because some gas is heavier than
air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the re department.
C. Use only your hand to push in or turn the
gas control knob. Never use tools. If the
knob will not push in or turn by hand, don’t
try to repair it, call a qualied service tech-
nician or gas supplier. Force or attempted
repair may result in a re or explosion.
D. Do not use this appliance if any part has
been under water. Immediately call a
qualied service technician to inspect the
appliance and to replace any part of the
control system and any gas control which
has been under water.
LIGHTING
INSTRUCTIONS
WARNING:
-
erate heater with doors closed,
•
-
Note: Home owners generally prefer to op-
erate their heater with the chimney damper
closed. This will put all the heat into the room.
However, there may be times you will desire
the full ames of the HI heat setting but will
nd the heat output excessive. You can open
the chimney damper (if you have one) fully or
partially to release some of the heat.
1.
STOP! Read the safety information, col-
umn 1.
2.
Make sure equipment shutoff valve is
fully open
.
3. Set selector switch in the OFF position.
WARNING:
come on automatically within
one minute when the selector
www.desatech.com 111161-01H20
CAUTION: Do not try to ad-
WARNING: Make sure the
selector switch is in the OFF
Heater will come on automati-
cally with selector switch in the
OPERATING HEATER
Continued
4.
Press in and turn control knob clockwise
to the OFF position (see Figure 31).
5. Wait ve (5) minutes to clear out any gas.
Then smell for gas, including near the oor.
If you smell gas, STOP! Follow “B” in the
safety information, page 19. If you don’t
smell gas, go to the next step.
6. Press in and turn control knob counter-
clockwise to the PILOT position.
Press in control knob for ve (5) seconds
(see Figure 31).
Note: You may be running this heater for
the rst time after hooking up to gas sup-
ply. If so, the control knob may need to be
pressed in for 30 seconds or more. This will
allow air to bleed from the gas system.
7. With control knob pressed in, press and
release ignitor button. This will light pilot.
The pilot is attached to the front burner. If
needed, keep pressing ignitor button until
pilot lights.
Note: If pilot does not stay lit, contact a
qualied service person or gas supplier for
repairs. Until repairs are made, light pilot
with match. To light pilot with match, see
Manual Lighting Procedure, page 21.
8. Keep control knob pressed in for 30 seconds
after lighting pilot.After 30 seconds, release
control knob.
• If control knob does not pop out when
released, contact a qualied service person
or gas supplier for repairs.
Note: If pilot goes out, repeat steps 4
through 8.
9.
Slightly push in and turn control knob coun-
terclockwise to the ON position.
10. Wait one minute and switch selector switch
to the ON position to light burners.
11. Set ame adjustment knob to any level
between HI and LO.
O
F
F
P
I
L
O
T
L
O
I
H
REMOTE
OFF
ON
O
N
Control
Knob
Ignitor
Button Selector Switch
in OFF Position
Flame Adjustment
Knob
Figure 31 - Control Knob and Ignitor
Button Location
Figure 32 - Pilot
Ignitor
Electrode
Pilot Burner
Ignitor
Electrode
Pilot Burner
Natural Gas
TO TURN OFF GAS
1. Turn control knob clockwise to the
OFF position.
2a. Set selector switch in the OFF position.
2b. Set
selector switch in the OFF position to keep
from draining battery.
You may shut off the burners and keep the pilot
lit by doing one of the following:
1. Turn control knob clockwise to the
PILOT position.
2. Use remote control manual OFF button.
3. Set selector switch in the OFF position.
This manual suits for next models
13
Table of contents
Other Desa Gas Heater manuals
Desa
Desa Vanguard VN10T Quick start guide
Desa
Desa ROPANE CONSTRUCTION HEATERS User manual
Desa
Desa Comfort Glow RFP30T Quick start guide
Desa
Desa Comfort Glow RFN30TA Quick start guide
Desa
Desa Comfort Glow CGD3924P Quick start guide
Desa
Desa Comfort Glow CGR2P Quick start guide
Desa
Desa FB-60BA Quick start guide
Desa
Desa 30LP User manual
Desa
Desa VMH3000TPA Quick start guide
Desa
Desa Comfort Glow CGS2718P Specification sheet
Desa
Desa 6000 BTU/HR Quick start guide
Desa
Desa RN30BT Quick start guide
Desa
Desa FLAME-MAX UNVENTED (VENT-FREE) NATURAL GAS LOG... Specification sheet
Desa
Desa BLP35E User manual
Desa
Desa NY100 Original instructions
Desa
Desa Comfort Glow CGN10R Quick start guide
Desa
Desa RCP275 User manual
Desa
Desa Glo-Warm FB-5B Quick start guide
Desa
Desa R Quick start guide
Desa
Desa Comfort Glow CGN12 Quick start guide
Popular Gas Heater manuals by other brands
Brivis
Brivis BX3 Series Service manual
Lennox
Lennox MERIT PLUS SERIES Homeowner's care and operation instructions
Flavel
Flavel Jazz Installation and maintenance instructions
Nortek
Nortek Reznor VRA20-4E Installation, commissioning, servicing
Empire Comfort Systems
Empire Comfort Systems VFNR-24-1 Installation instructions and owner's manual
Hunter
Hunter Falconaire PH20-30A Installation, operation & service
Archgard
Archgard 31-DVIE33C User's installation, operation and maintenance manual
HASE
HASE LUNO owner's manual
FMI
FMI HD18NRB OWNER'S OPERATION AND INSTALLATION MANUAL
FMI
FMI Vantage Hearth VS1824NM OWNER'S OPERATION AND INSTALLATION MANUAL
Comfort Glow
Comfort Glow CRP16, CRP16T, CRN18, CRN18T CRP26 installation manual
HearthStone
HearthStone Stowe owner's manual
Superior Fireplaces
Superior Fireplaces LBG18SM Assembly, installation and operation instructions
HSC
HSC ELITE user manual
Design Dynamics
Design Dynamics VTD-18NV-JHB OWNER'S OPERATION AND INSTALLATION MANUAL
Allied Air
Allied Air 506271-01 installation instructions
FMI
FMI FLAME-MAX FVFM27NR Owners manual and installation manual
Glo-warm
Glo-warm FB-20BB OWNER'S OPERATION AND INSTALLATION MANUAL
