Desa Comfort Glow CGP16RA Quick start guide

Save this manual for future reference.
OWNER’S OPERATION AND INSTALLATION MANUAL
VENT-FREE INFARED PROPANE/LP GAS HEATER
Models: CGP16RA and CGP26D
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury, or loss of life.
— Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Donottouchanyelectricalswitch;donotuseanyphoneinyourbuilding.
• Immediately call your gas supplier from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer, service
agency, or the gas supplier.
®
This appliance may be installed in an aftermarket* manufactured (mobile) home,
where not prohibited by state or local codes.
*Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer
This appliance is only for use with the type of gas indicated on the rating plate.
This appliance is not convertible for use with other gases.

2
101827
CONTENTS SECTION PAGE
Safety Information.........................................................................2
Product Identification .................................................................... 4
Local Codes ...................................................................................4
Unpacking......................................................................................4
Product Features ............................................................................ 4
Air For Combustion And Ventilation............................................5
Installing To Wall..........................................................................9
Connecting To Gas Supply............................................................14
Checking Gas Connections............................................................15
Operating Heater ........................................................................... 17
Inspecting Burner ..........................................................................20
Cleaning And Maintenance ...........................................................22
Troubleshooting.............................................................................22
Technical Service ..........................................................................25
Specifications ................................................................................ 26
Service Hints ................................................................................. 26
Replacement Parts .........................................................................26
Parts Centrals.................................................................................27
Service Publications ......................................................................27
Accessories ....................................................................................27
Illustrated Parts Breakdown and Parts List ................................... 28-31
Warranty Information ....................................................................Back Cover
SAFETY
INFORMATION WARNINGS
IMPORTANT: Read this owner’s manual carefully and completely
before trying to assemble, operate, or service this heater. Improper
use of this heater can cause serious injury or death from burns, fire,
explosion, electrical shock, and carbon monoxide poisoning.
DANGER
Carbon monoxide poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning
resembletheflu, with headaches,dizziness,or nausea. Ifyouhave thesesigns,the
heater may not be workingproperly. Get fresh airat once!Have heater serviced.
Some people are more affected by carbon monoxide than others. These include
pregnant women, persons with heart or lung disease or anemia, those under the
influence of alcohol, and those at high altitudes.
Propane/LP Gas: Propane/LP gas is odorless. An odor-making agent is added
topropane/LPgas.Theodorhelpsyoudetectapropane/LPgasleak.However,the
odor added to propane/LP gas can fade. Propane/LP gas may be present even
though no odor exists.
Make certain you read and understand all Warnings. Keep this manual for
reference. It is your guide to safe and proper operation of this heater.
Safety Information continues on next page

3
101827
SAFETY
INFORMATION
Continued
WARNINGS Continued
WARNING: Any change to this heater or its controls can be dangerous.
1. Use only propane/LP gas. Do not convert heater to use different fuel type.
2. Do not place propane/LP supply tank(s) inside any structure. Locate propane/
LP supply tank(s) outdoors.
3. This heater shall not be installed in a bedroom or bathroom.
4. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use any phone in your building
• immediately call your gas supplier from a neighbor’s phone. Follow the
gas supplier’s instructions
• if you cannot reach your gas supplier, call the fire department
5. Never install the heater
• in a recreational vehicle
• where curtains, furniture, clothing, or other flammable objects are less
than 36 inches from the front, top, or sides of the heater
• as a fireplace insert
• in high traffic areas
• in windy or drafty areas
6. Always run heater with control knob at LOW, MEDIUM, or HIGH locked
positions. Never set control knob between locked positions. Poor combustion
may result.
7. This heater needs fresh, outside air ventilation to run properly. This heater has
an oxygen depletion sensor (ODS) pilot light safety system. The ODS shuts
down the heater if not enough fresh air is available. See Air for Combustion
and Ventilation, pages 5 through 8.
8. If heater shuts off, do not relight until you provide fresh, outside air. If heater
keeps shutting off, have it serviced.
9. Do not run heater
• where flammable liquids or vapors are used or stored
• under dusty conditions
10.Never place any objects on the heater.
11.Surface of heater becomes very hot when running heater. Keep children and
adults away from hot surface to avoid burns or clothing ignition. Heater will
remain hot for a time after shutdown. Allow surface to cool before touching.
12.Carefully supervise young children when they are in same room with heater.
13.Make sure grill guard is in place before running heater.
14. Do not use heater if any part has been under water. Immediately call a quali-
fied service technician to inspect the room heater and to replace any part of the
control system and any gas control which has been under water.
15.Turn off and unplug heater and let cool before servicing. Only a qualified
service person should service and repair heater.
16.Operating heater above elevations of 4,500 feet may cause pilot outage.

4
101827

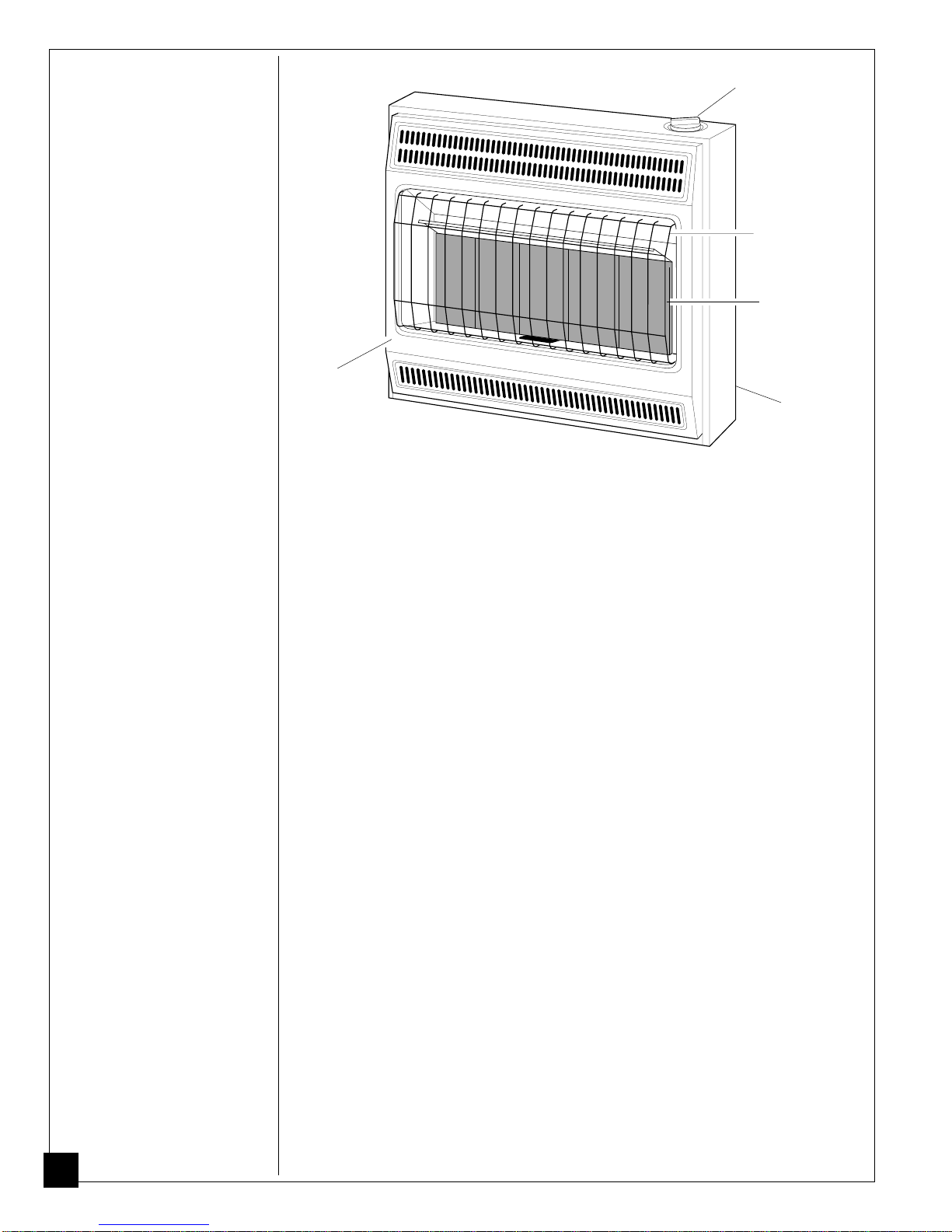

PRODUCT
IDENTIFICATION
GRH/PV 006A
COMFORT GLOW PLAQUE FRONT-NON THERMO
Burners
Heater
Cabinet
Front
Panel
Grill
Guard
PRODUCT
FEATURES
Safety Device
This heater has a pilot with an Oxygen Depletion Sensor Shutoff System (ODS).
The ODS/pilot is a required feature for vent-free room heaters. The ODS/pilot shuts
off the heater if there is not enough fresh air.
Piezo Ignition System
This heater has a piezo ignitor. This system requires no matches, batteries, or other
sources to light heater.
LOCAL CODES Install and use heater with care. Follow all local codes. In the absence of local
codes, use the latest edition of National Fuel Gas Code ANSI Z223.1, also known
as NFPA 54*.
*Available from: American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
UNPACKING 1. Remove heater from carton.
2. Remove all protective packaging applied to heater for shipment.
3. Check heater for any shipping damage. If heater is damaged, promptly inform
dealer where you bought heater.
Control Knob
Figure 1 - Vent-Free Natural Gas Heater (Model CGP26D Shown)

5
101827
Unconfined Space
The National Fuel Gas Code, ANSIZ223.1, 1992, Section 5.3 defines uncon-
fined space as having a minimum air volume of 50 cubic feet (127 cubic cm) for
each 1000 Btu/Hr input rating of all appliances in the space (cubic feet equals
length x width x height of space). Include adjoining rooms only if there are
doorless passageways or ventilation grills between the rooms.
Confined Space
The National Fuel Gas Code, ANSIZ223.1, 1992, Section 5.3 defines confined
space as having an air volume of less than 50 cubic feet (127 cubic cm) for each
1000 Btu/Hr input rating of all appliances in the space (cubic feet equals length
x width x height of space). Include adjoining rooms only if there are doorless
passageways or ventilation grills between the rooms.
AIR FOR
COMBUSTION
AND
VENTILATION
Continued
WARNING ICON G 001
WARNING
This heater shall not be installed in a confined space unless
provisions are provided for adequate combustion and ventilation
air. Read the following instructions to insure proper fresh air for
this and other fuel-burning appliances in your home.
Today’s homes are built more energy efficient than ever. New materials, increased
insulation, and new construction methods help reduce heat loss in homes. Home
owners weather strip and caulk around windows and doors to keep the cold air out
and the warm air in. During heating months, home owners want their homes as
airtight as possible.
While it is good to make your home energy efficient, your home needs to breathe.
Fresh air must enter your home. All fuel-burning appliances need fresh air for
proper combustion and ventilation.
Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from
the house to operate. You must provide adequate fresh air for these appliances.
This will insure proper venting of vented fuel-burning appliances.
PROVIDING ADEQUATE VENTILATION
The following is excerpts from National Fuel Gas Code. NFPA 54/ANSI Z223.1,
Section 5.3, Air for Combustion and Ventilation.
All spaces in homes fall into one of the three following ventilation classifications:
1. Unusually Tight Construction; 2. Unconfined Space; 3. Confined Space.
The information on pages 5 through 8 will help you classify your space and provide
adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh air for
combustion and ventilation. However, in buildings of unusually tight construction,
you must provide additional fresh air.
Unusually tight construction is defined as construction where:
a. walls and ceilings exposed to the outside atmosphere have a continu-
ous water vapor retarder with a rating of one perm or less with open-
ings gasketed or sealed and
b. weather stripping has been added on openable windows and doors and
c. caulking or sealants are applied to areas such as joints around window
and door frames, between sole plates and floors, between wall-ceiling
joints, between wall panels, at penetrations for plumbing, electrical, and
gas lines, and at other openings.
If your home meets all of the three criteria above, you must provide addi-
tional fresh air. See Ventilation Air From Outdoors , page 8 .
If your home does not meet all of the three criteria above, continue reading.

6
101827
AIR FOR
COMBUSTION
AND
VENTILATION
Continued
DETERMINING AIR FLOW FOR HEATER LOCATION
Determining if You Have a Confined or Unconfined Space
Use this worksheet to determine if you have a confined or unconfined space.
Space: Includes the room in which you will install heater plus any adjoining rooms with
doorless passageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = ___________________ cu. ft. (volume of space)
Example: Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling height) =
2560 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the
volume of these rooms to the total volume of the space.
2. Divide the space volume by 50 cubic feet to determine the maximum BTU/Hr the space
can support.
____________ (volume of space) ÷50 cu. ft. = (Maximum BTU/Hr
the space can support)
Example: 2560 cu. ft. (volume of space) ÷50 cu. ft. = 51.2 or 51,200 (maximum
BTU/Hr the space can support)
3. Add the BTU/Hr of all fuel burning appliances in the space.
Vent-free heater ___________________ BTU/Hr
Gas water heater* ___________________ BTU/Hr
Gas furnace ___________________ BTU/Hr
Vented gas heater ___________________ BTU/Hr
Gas fireplace logs ___________________ BTU/Hr
Other gas appliances* +___________________ BTU/Hr
Total =___________________ BTU/Hr
Example: Gas water heater 40,000 BTU/Hr
Vent-free heater +16,000 BTU/Hr
Total =56,000 BTU/Hr
* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
4. Compare the maximum BTU/Hr the space can support with the actual amount of BTU/
Hr used.
_________________ BTU/Hr (maximum the space can support)
_________________ BTU/Hr (actual amount of BTU/Hr used)
Example: 51,200 BTU/Hr (maximum the space can support)
58,000 BTU/Hr (actual amount of BTU/Hr used)
The space in the above example is a confined space because the actual BTU/Hr used is
more than the maximum BTU/Hr the space can support. You must provide additional fresh
air. Your options are as follows:
A. Rework worksheet, adding the space of an adjoining room. If the extra space provides
an unconfined space, remove door to adjoining room or add ventilation grills between
rooms. See Ventilation Air From Inside Building, page 7.
B. Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 8.
C. Install a lower BTU/Hr heater, if lower BTU/Hr size makes room unconfined.
If the actual BTU/Hr used is less than the maximum BTU/Hr the space can support, the
space is an unconfined space. You will need no additional fresh air ventilation.

7
101827
AIR FOR
COMBUSTION
AND
VENTILATION
Continued
Figure 2 - Ventilation Air from Inside Building
Or
Remove
Door into
Adjoining
Room,
Option 3
Ventilation Grills
Into Adjoining Room,
Option 2
12"
12"
Ventilation
Grills
into Adjoining
Room,
Option 1
Continued
WARNING ICON G001
WARNING
If the area in which the heater may be operated is smaller than
that defined as an unconfined space, provide adequate combus-
tion and ventilation air by one of the methods described in the
National Fuel Gas Code, ANSI Z223.1, 1992, Section 5.3.
VENTILATION AIR
Ventilation Air From Inside Building
Thisfresh air would come from an adjoining unconfinedspace. When ventilat-
ing to an adjoining unconfined space, you must provide two permanent
openings: one within 12" of the ceiling and one within 12" of the floor on the
wall connecting the two spaces (see options 1 and 2, Figure 2). You can also
remove door into adjoining room (see option 3, Figure 2). Follow the National
Fuel Gas Code NFPA 54/ANSI Z223.1, Section 5.3, Air for Combustion and
Ventilation for required size of ventilation grills or ducts.
WARNING ICON G001
WARNING
Rework worksheet, adding the space of the adjoining unconfined
space. The combined spaces must have enough fresh air to supply all
appliances in both spaces.

8
101827
AIR FOR
COMBUSTION
AND
VENTILATION
Continued
VENTILATION AIR (Continued)
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or ducts. You must provide
two permanent openings: one within 12" of the ceiling and one within 12" of
the floor. Connect these items directly to the outdoors or spaces open to the
outdoors. These spaces include attics and crawl spaces. Follow the National
Fuel Gas Code NFPA 54/ANSI Z223.1, Section 5.3, Air for Combustion and
Ventilation for required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for inlet or outlet air into attic if attic
has a thermostat-controlled power vent. Heated air entering the attic will
activate the power vent.
Figure 3 - Ventilation Air from Outdoors
Outlet
Air Ventilated
Attic
Outlet
Air
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic

9
101827
IMPORTANT: Vent-free heaters add moisture to the air. Although this is beneficial,
installing heater in rooms without enough ventilation air may cause mildew to form
from too much moisture. See Air for Combustion and Ventilation, pages 5 through 8.
INSTALLING
TO WALL NOTICE
Aqualifiedservicepersonmustinstallheater.Followalllocalcodes.
CHECK GAS TYPE
Use only propane/LP gas. If your gas supply is not propane/LP, do not install
heater. Call dealer where you bought heater for proper type heater.
INSTALLATION ITEMS
Before installing heater, make sure you have the items listed below.
• external regulator
• piping (check local codes)
• sealant (resistant to propane/LP
gas)
• manual shutoff valve *
• ground joint union
• test gauge connection *
(see Figure 13, page 15)
*An A.G.A. design-certifiedmanual shutoff valvewith 1/8" NPTtap is anacceptable
alternative to test gauge connection. Purchase the optional A.G.A. design-certified
manual shutoff valve from your dealer. See Accessories, page 27.
Continued
LOCATING HEATER
This heater is designed to be mounted on a wall.
WARNING
MaintaintheminimumclearancesshowninFigure4(page10).Ifyou
can, provide greater clearances from floor, ceiling, and joining wall.
You can locate heater on floor, away from a wall. An optional floor mounting
stand is needed. Purchase the floor mounting stand from your dealer. See Accesso-
ries, page 27.
WARNING
Never install the heater
• in a bedroom or bathroom
• in a recreational vehicle
• wherecurtains,furniture,clothing,orotherflammableobjectsare
less than 36 inches from the front, top, or sides of the heater
• as a fireplace insert
• in high traffic areas
• in windy or drafty areas
CAUTION
This heater creates warm air currents. These currents move heat
to wall surfaces next to heater. Installing heater next to vinyl or
cloth wall coverings or operating heater where impurities in the air
(such as tobacco smoke) exist, may discolor walls.
• sediment trap
• tee joint
• pipe wrench

10
101827
Minimum
From
Sides Of
Heater
36"
3"
FLOOR
CEILING
Minimum
Minimum To Top Surface
Of Carpeting, Tile Or Other
Combustible Material
8"
Left
Side Right
Side
Figure 4 - Mounting Clearances As Viewed From Front of Heater
INSTALLING
TO WALL
Continued
CAUTION
If you install the heater in a home garage
• heater pilot and burner must be at least 18 inches above floor
• locate heater where moving vehicle will not hit it
For convenience and efficiency, install heater
• where there is easy access for operation, inspection, and service
• in coldest part of room
An optional fan kit is available from your dealer. See Accessories, page 27. If
planning to use fan, locate heater near an electrical outlet.

11
101827
INSTALLING HEATER TO WALL

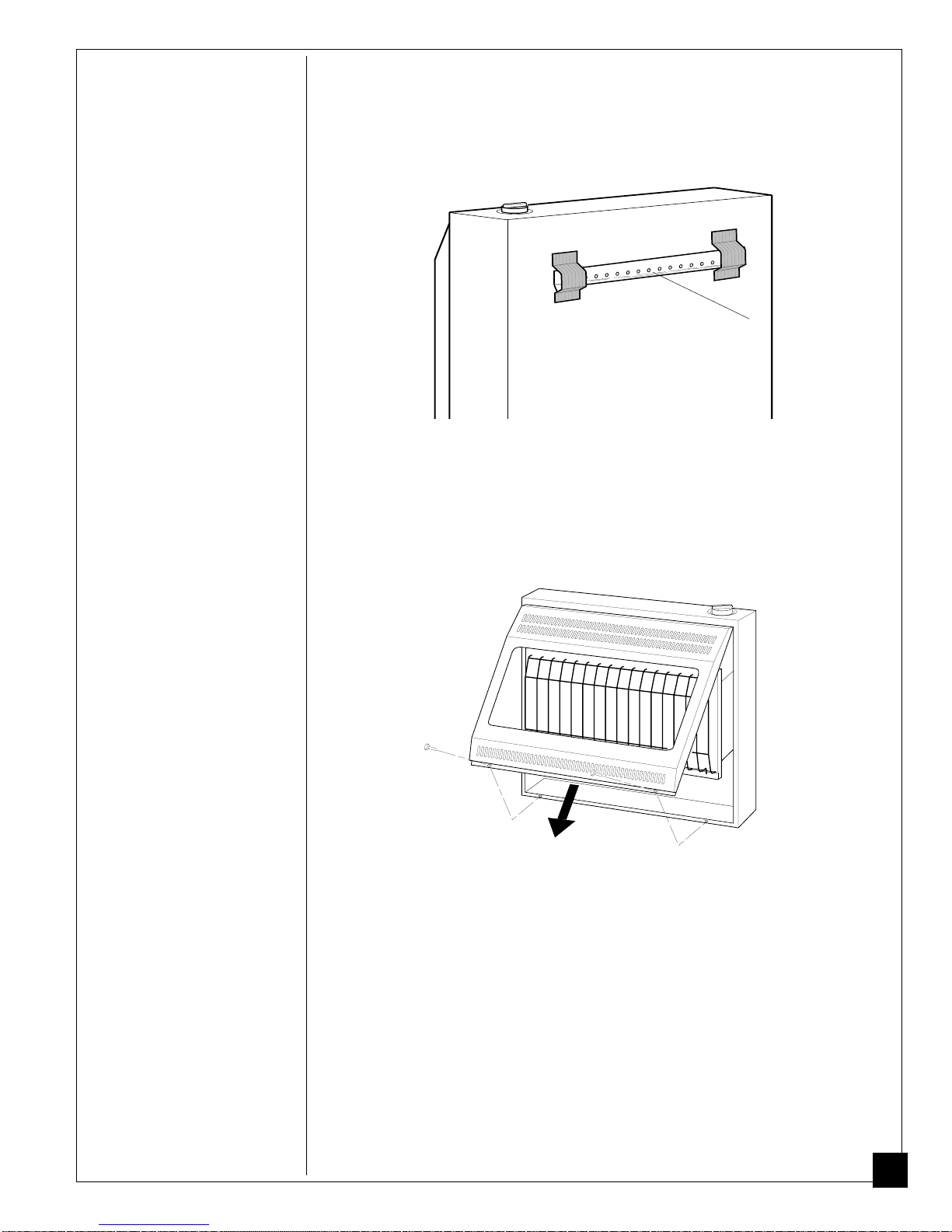

Mounting Bracket
The mounting bracket is located on back panel of heater. It has been taped there for
shipping. Remove mounting bracket from back panel.
Methods For Attaching Mounting Bracket To Wall
Only use last hole on each end of mounting bracket to attach bracket to wall. These
two holes are 16 inches apart from their centers. Attach mounting bracket to wall in
one of two ways.
1. Attaching to wall stud
2. Attaching to wall anchor
Attaching to wall stud This method provides the strongest hold. Insert mounting
screws through mounting bracket and into wall studs.
Attaching to wall anchor This method allows you to attach mounting bracket to
hollow walls (wall areas between studs) or to solid walls (concrete or masonry).
Decide which method better suits your needs. Either method will provide a secure
hold for the mounting bracket.
Figure 6 - Removing Front Panel Of Heater
Removing Front Panel Of Heater
1. Remove two screws near bottom corners of front panel.
2. Lift straight up on grill guard until it stops. Grill guard will slide up about 1/4".
3. Pull bottom of front panel forward, then down.
Mounting Bracket
INSTALLING
TO WALL
Continued
Continued

12
101827
Marking Screw Locations
1. Tape mounting bracket to wall where heater will be located. Make sure mount-
ing bracket is level.
2. Mark screw locations on wall (see Figure 7).
Note: Only mark last hole on each end of mounting bracket. Insert mounting
screws through these holes only.
3. Remove tape and mounting bracket from wall.

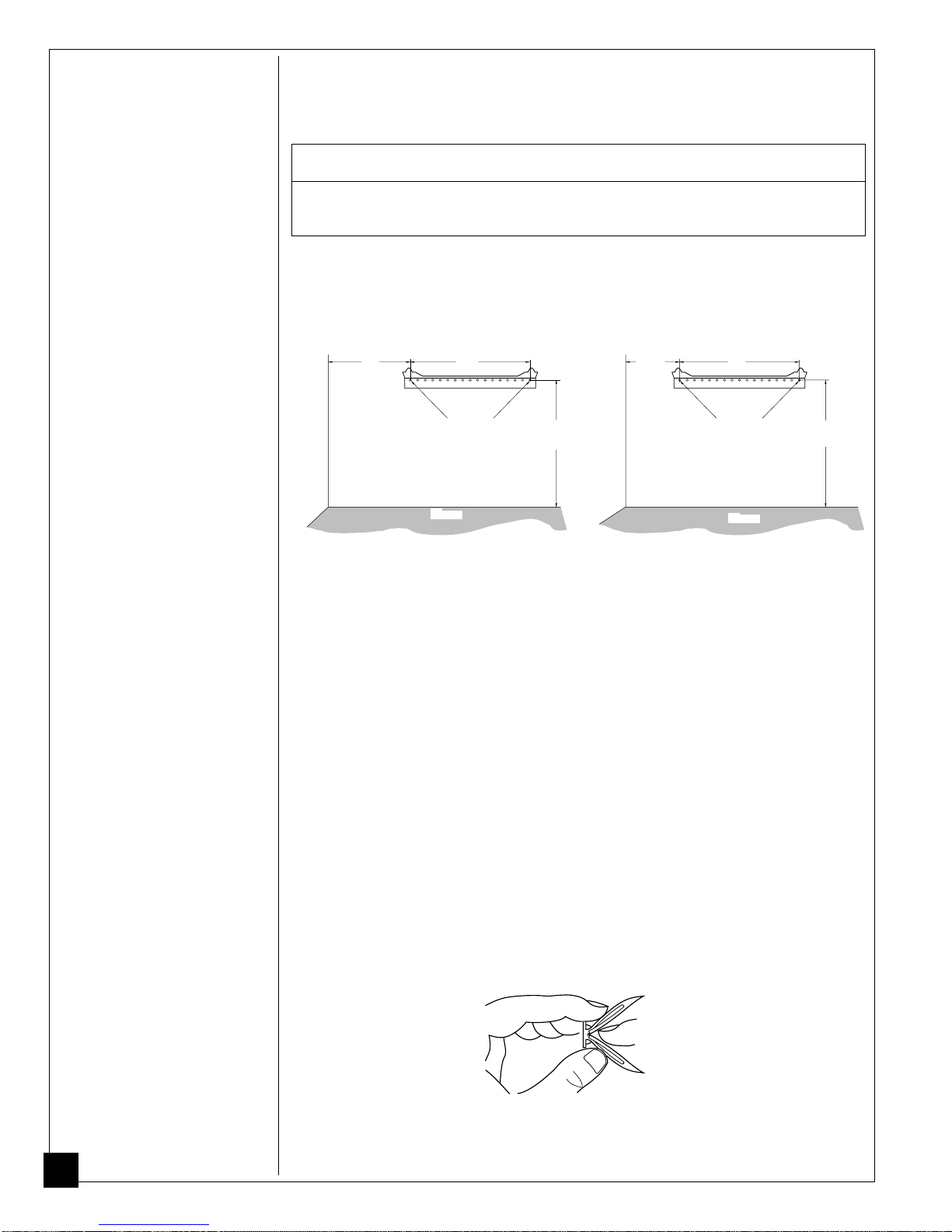

Figure 7 - Mounting Bracket Clearances
Attaching Mounting Bracket To Wall
Note: Wall anchors, mounting screws, and spacers are in hardware package. The
hardware package is provided with heater.
Attaching to wall stud method
For attaching mounting bracket to wall studs
1. Drill holes at marked locations using 9/64" drill bit.
2. Place mounting bracket onto wall. Line up last hole on each end of bracket with
holes drilled in wall.
3. Insert mounting screws through bracket and into wall studs.
4. Tighten screws until mounting bracket is firmly fastened to wall studs.
Attaching to wall anchor method
For attaching mounting bracket to hollow walls (wall areas between studs) or solid
walls (concrete or masonry)
1. Drill holes at marked locations using 5/16" drill bit. For solid walls (concrete or
masonry), drill at least 1" deep.
2. Fold wall anchor as shown in Figure 8.
3. Insert wall anchor (wings first) into hole. Tap anchor flush to wall.
Figure 8 - Folding Anchor
18 3/4"
Min.
13"
Min. 16"
18 3/4"
Min.
9 1/4"
Min.
Adjoining Wall
16"
Adjoining Wall
Only Insert Mounting
Screws Through Last
Hole On Each End
Only Insert Mounting
Screws Through Last
Hole On Each End
Floor Floor
CGP16RACGP26D
INSTALLING
TO WALL
Continued
WARNING
Maintain minimum clearances shown in Figure 7. If you can,
provide greater clearances from floor and joining wall.

13
101827
4. For thin walls (1/2" or less), insert red key into wall anchor. Push red key to
“pop” open anchor wings.
IMPORTANT: Do not hammer key!
For thick walls (over 1/2" thick) or solid walls, do not pop open wings.
Figure 9 - Popping Open Anchor Wings For Thin Walls
5. Place mounting bracket onto wall. Line up last hole on each end of bracket with
wall anchors.
6. Insert mounting screws through bracket and into wall anchors.
7. Tighten screws until mounting bracket is firmly fastened to wall.
Placing Heater On Mounting Bracket
1. Locate two horizontal slots on back panel of heater.
2. Place heater onto mounting bracket. Slide horizontal slots onto stand-out tabs
on mounting bracket.
INSTALLING
TO WALL
Continued
Figure 10 - Mounting Heater Onto Mounting Bracket
Stand-Out Tab
Horizontal Slots
Mounting Bracket
(attached to wall)
Installing Bottom Mounting Screws
1. Locate two bottom mounting holes. These holes are near bottom on back panel
of heater (see Figure 11).
2. Mark screw locations on wall.
3. Remove heater from mounting bracket.
4. If installing bottom mounting screws into hollow or solid wall, install wall
anchors. Follow steps 1 through 4 under Attaching To Wall Anchor Method,
page 12.
If installing bottom mounting screw into wall stud, drill holes at marked loca-
tions using 9/64" drill bit.
5. Replace heater onto mounting bracket.
6. Place spacers between bottom mounting holes and wall anchor or drilled hole.
7. Hold spacer in place with one hand. With other hand, insert mounting screw
through bottom mounting hole and spacer. Place tip of screw in opening of wall
anchor or drilled hole.
8. Tighten both screws until heater is firmly secured to wall. Do not over tighten.
Note: Do not replace front panel at this time. Replace front panel after making
gas connections and checking for leaks (see pages 14-16).
Figure 11 - Installing Bottom Mounting Screws

14
101827
CONNECTING
TO GAS
SUPPLY
NOTICE
A qualified service person must connect heater to gas supply.
Follow all local codes.
CAUTION
Use only new, black iron or steel pipe. Internally-tinned copper
tubing may be used in certain areas. Check your local codes. Use
pipe of large enough diameter to allow proper gas volume to
heater. If pipe is too small, undue loss of pressure will occur.

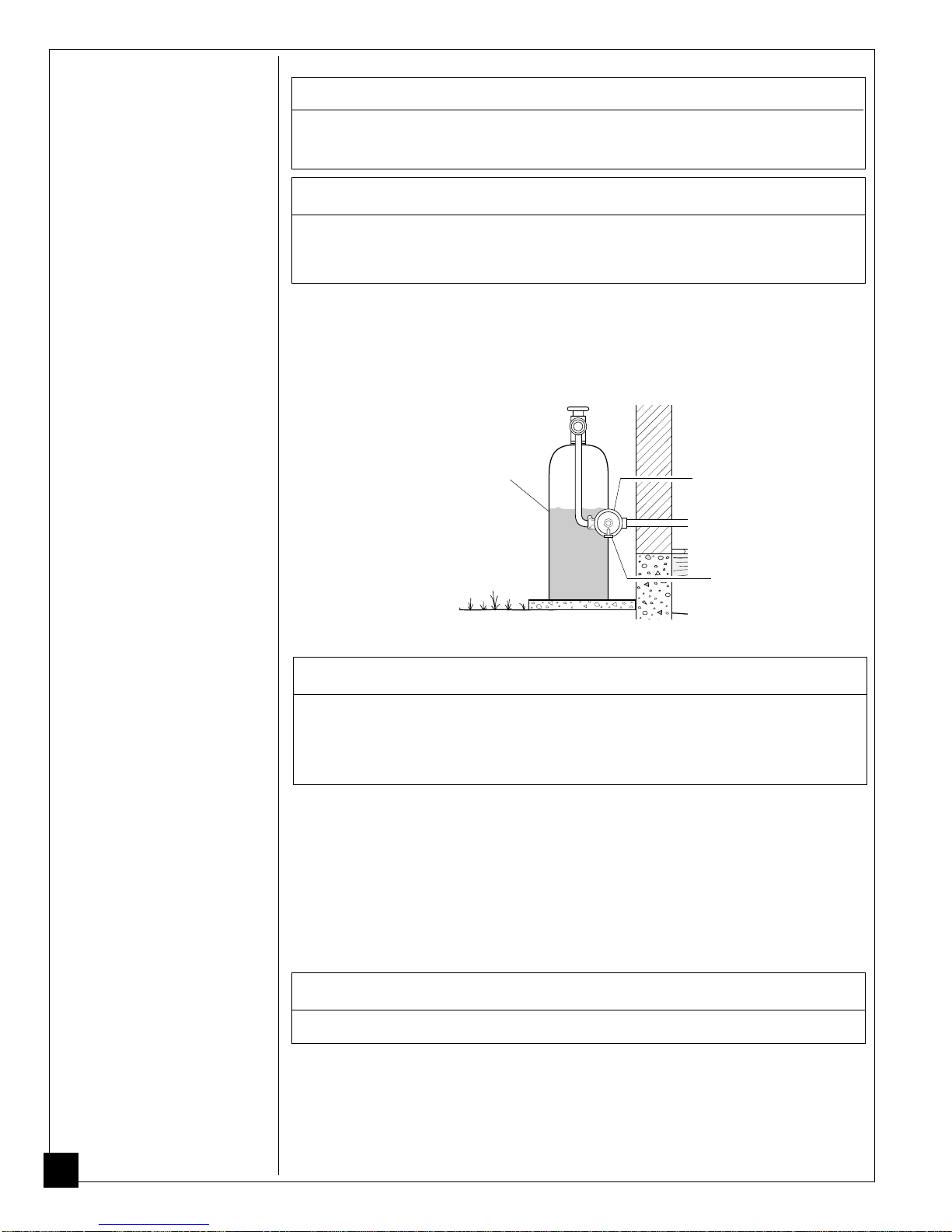

Figure 12 - External Regulator With Vent Pointing Down
External
Regulator
Propane/LP
Supply Tank
Vent Pointing
Down
CAUTION
Never connect heater directly to the propane/LP supply. This heater
requires an external regulator (not supplied). Install the external
regulator between the heater and propane/LP supply.
The installer must supply an external regulator. The external regulator will reduce
incoming gas pressure. You must reduce incoming gas pressure to between 11 and
14 inches of water. If you do not reduce incoming gas pressure, heater regulator
damage could occur. Install external regulator with the vent pointing down as
shown in Figure 12. Pointing the vent down protects it from freezing rain or sleet.
Typical Pipe Diameter
CGP16RA 3/8" or greater
CGP26D 1/2" or greater
Installation must include a manual shutoff valve, union, and plugged 1/8" NPT tap.
Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream
from heater (see Figure 13, page 15).
Apply pipe joint sealant lightly to male threads. This will prevent excess sealant
from going into pipe. Excess sealant in pipe could result in clogged heater valves.
CAUTION
Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.
Install sediment trap in supply line as shown in Figure 13, page 15. Locate sediment
trap where it is within reach for cleaning. Locate sediment trap where trapped
matter is not likely to freeze. A sediment trap traps moisture and contaminants. This
keeps them from going into heater controls. If sediment trap is not installed or is
installed wrong, heater may not run properly.

15
101827
IMPORTANT: Holdpressureregulatorwithwrenchwhenconnectingittogaspiping
and/or fittings.
Tee Joint
Reducer
Bushing to
1/8" NPT
1/8" NPT
Plug Tap
Test
Gauge
Connection *
Tee Joint
Pipe
Nipple
Cap
Manual
Shutoff
Valve *
1/2" NPT
Pipe Nipple
Heater
Cabinet
Pressure
Regulator
Figure 13 - Gas Connection
3" Minimum
Ground Joint
Union
From
External Regulator
(11" W.C. to 14" W.C. Pressure)
CHECKING
GAS
CONNECTIONS
WARNING
Test all gas piping and connections for leaks after installing or
servicing. Correct all leaks at once.
PRESSURE TESTING GAS SUPPLY PIPING SYSTEM
Test Pressures In Excess Of 1/2 PSIG
1. Disconnect heater and its individual manual shutoff valve from gas supply
piping system. Pressures in excess of 1/2 psig will damage heater regulator.
2. Cap off open end of gas pipe where manual shutoff valve was connected.
Sediment
Trap
CONNECTING
TO GAS
SUPPLY
Continued
* AnA.G.A.design-certifiedmanualshutoffvalvewith1/8"NPTtapisanacceptable
alternative to test gauge connection. Purchase the optional A.G.A. design-certified
manual shutoff valve from your dealer. See Accessories, page 27.
WARNING
Never use an open flame to check for a leak. Apply a mixture of
liquid soap and water to all joints. Bubbles forming show a leak.
Correct all leaks at once.
CAUTION
Make sure external regulator has been installed between propane/
LP supply and heater. See guidelines under Connecting to Gas
Supply , page 14.
Continued

16
101827
3. Pressurize supply piping system by either using compressed air or
opening propane/LP supply tank valve.
4. Check all joints of gas supply piping system. Apply mixture of liquid soap and
water to gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
Test Pressures Equal To or Less Than 1/2 PSIG
1. Close manual shutoff valve (see Figure 14).
2. Pressurize supply piping system by either using compressed air or opening
propane/LP supply tank valve.
3. Check all joints from propane/LP supply tank to manual shutoff valve (see
Figure 15). Apply mixture of liquid soap and water to gas joints. Bubbles
forming show a leak.
4. Correct all leaks at once.
PRESSURE TESTING HEATER GAS CONNECTIONS
1. Open manual shutoff valve (see Figure 14).
2. Open propane/LP supply tank valve.
3. Make sure control knob of heater is in the OFF position.
4. Check all joints from manual shutoff valve to control valve (see Figure 15).
Apply mixture of liquid soap and water to gas joints. Bubbles forming show a
leak.
5. Correct all leaks at once.
6. Light heater (see Operating Heater, pages 17 through 20). Check the rest of the
internal joints for leaks.
7. Turn off heater (see To Turn Off Gas to Appliance, page 20).
8. Replace front panel.
ON
POSITION
OFF
POSITION
Figure 14 - Manual Shutoff Valve
Manual
Shutoff
Valve
Open
Closed
CHECKING
GAS
CONNECTIONS
Continued
Figure 15 - Checking Gas Joints
Propane/LP
Supply Tank
Manual
Shutoff
Valve
Control Valve Location

17
101827
OPERATING
HEATER FOR YOUR SAFETY READ BEFORE LIGHTING
A. This appliance has a pilot which must be lighted by hand. When lighting
the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure
to smell next to the floor because some gas is heavier than air and will
settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your build-
ing.
• Immediately call your gas supplier from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the gas control knob. Never use
tools. If the knob will not push in or turn by hand, don’t try to repair it,
call a qualified service technician or gas supplier. Force or attempted
repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water. Immediately
call a qualified service technician to inspect the appliance and to replace
any part of the control system and any gas control which has been under
water.
WARNING
If you do not follow these instructions exactly, a fire or
explosion may result causing property damage, personal
injury or loss of life.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above.
2. Make sure manual shutoff valve is fully open.
3. Turn control knob clockwise to the OFF position.
HIGH
OFF
LOW
MED
PILOT
IGN
Control Knob
Figure 16 - Control Knob In The OFF Position
Continued

18
101827
4. Wait five (5) minutes to clear out any gas. Then smell for gas, including
near the floor. If you smell gas, STOP! Follow “B” in the safety information
at the top of page 17. If you don’t smell gas, go to the next step.
5. Press in control knob.
Note: You may be running this heater for the first time after hooking up
to gas supply. If so, you may need to press in control knob for 30 seconds.
This will allow air to bleed from the gas system.
6. Keep control knob pressed in and turn it counterclockwise to the
PILOT/IGN position. This will light pilot.
Note: You will hear a loud “click” when the control knob reaches the
PILOT/IGN position.
If pilot does not light
• turn control knob clockwise to the OFF position
• repeat steps 5 and 6
If pilot does not stay lit after several tries
• refer to Troubleshooting, pages 22 through 25
• contact a qualified service person or gas supplier for repairs
Until repairs are made, light pilot with match. To light pilot with match, see
Manual Lighting Procedure, page 20.
7. Keep control knob pressed in for 10 seconds after lighting pilot. After 10
seconds, release control knob.
• If control knob does not pop up when released, contact a qualified
service person or gas supplier for repairs.
Note: If pilot goes out, repeat steps 3 through 7.
Ignitor Electrode
Figure 17 - Pilot
Pilot Burner
Thermocouple
OPERATING
HEATER
Continued

19
101827
TO SELECT HEATING LEVEL
1. Slightly press in control knob and turn counterclockwise to the
LOW, MEDIUM, or HIGH positions.
IMPORTANT: Release downward pressure while turning control knob.
Control knob will lock at the desired position.
CAUTION
Do not try to adjust heating levels by using the manual shut-
off valve.
LOW
OFF
PILOT
IGN
MED
OFF
PILOT
IGN
HIGH
OFF
PILOT
IGN
OFF
OFF
HIGH
MED
LOW
Control
Knob CGP16RA CGP26D

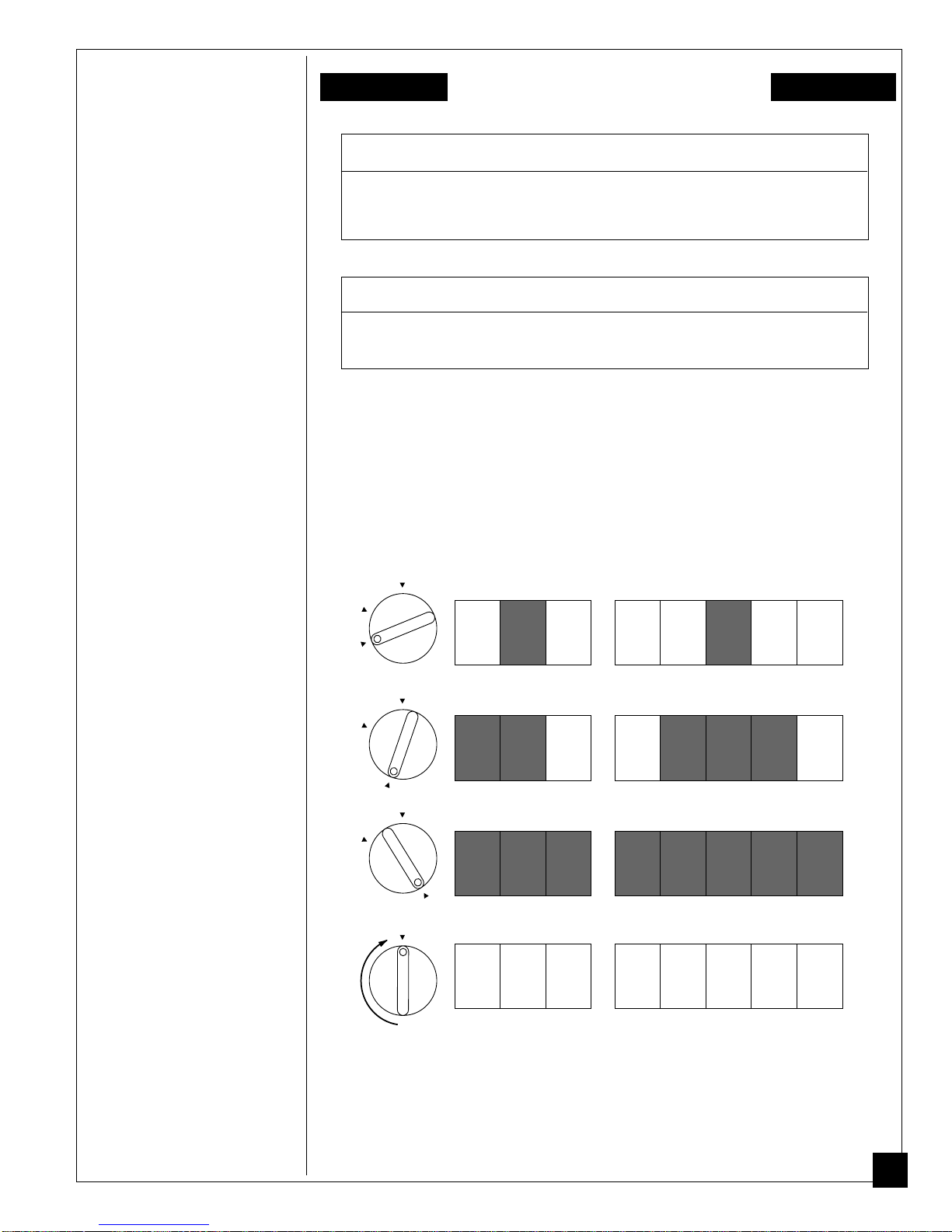

Figure 18 - Burner Patterns
OPERATING
HEATER
Continued
WARNING
When running heater, set control knob at LOW, MEDIUM, or
HIGH locked positions. Never set control knob between
locked positions. Poor combustion may result.
Continued

20
101827
Shutting Off Heater
1. Turn control knob clockwise to the OFF position.
2. Turn off all electric power to the appliance if service is to be performed.
Shutting Off Burner Only (pilot stays lit)
1. Turn control knob clockwise to the PILOT position.
MANUAL LIGHTING PROCEDURE
1. Follow steps 1 through 6 under Lighting Instructions, pages 17 and 18.
2. With control knob pressed in, strike match. Hold match to pilot until pilot
lights.
3. Keep control knob pressed in for 10 seconds after lighting pilot. After 10
seconds, release control knob.
TO TURN OFF GAS TO APPLIANCE
If pilot flame pattern is incorrect, as shown in Figure 20
• turn heater off (see To Turn Off Gas to Appliance, above)
• see Troubleshooting, pages 22 through 25
INSPECTING
BURNER
Check pilot flame pattern and burner flame pattern often.
PILOT FLAME PATTERN
Figure 19 shows a correct pilot flame pattern. Figure 20 shows an incorrect pilot
flame pattern. The incorrect pilot flame is not touching the thermocouple. This will
cause the thermocouple to cool. When the thermocouple cools, the heater will shut
down.
OPERATING
HEATER
Continued
GRH/OV 010BAD PILOT
Pilot Burner
Thermocouple
GRH/OV 009GOOD PILOT
Figure 19 - Correct Pilot Flame Pattern
Thermocouple
Pilot Burner
Figure 20 - Incorrect Pilot Flame Pattern
