FOR YOUR SAFETY
 
vapors or liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS :
 
 
 
 

 

 -






VENTED DECORATIVE NATURAL GAS LOGS
OWNER’S OPERATION AND INSTALLATION MANUAL
RGA 2-72
APPROVED
LOG SET AND BURNER MODELS
HDVSR18, HDVDR18W, HDVDR24W AND HDVTR24W

www.desatech.com 117272-01F2
SAFETy
WARNING: This product
contains and/or generates
    
of California to cause cancer or
-



-
-

    
   
   



  Early signs
of carbon monoxide poisoning resemble the
u, with headaches, dizziness or nausea. If
you have these signs, the replace may not
have been installed properly. Get fresh air at
 Have replace inspected and serviced
by a qualied service person. Some people
are more affected by carbon monoxide than
others. These include pregnant women,
people with heart or lung disease or anemia,
those under the inuence of alcohol and those
at high altitudes.
Natural Gas: Natural gas is odorless. An
odor-making agent is added to the gas. The
odor helps you detect a gas leak. However,
the odor added to the gas can fade. Gas may
be present even though no odor exists.
Make certain you read and understand all
warnings. Keep this manual for reference. It
is your guide to safe and proper operation of
this log set.
TABLE OF CONTENTS
Safety .................................................................. 2
Local Codes......................................................... 4
Unpacking............................................................ 4
Product Identication ........................................... 4
Optional Product Features................................... 4
Installation .......................................................... 5
Operation ............................................................11
Cleaning and Maintenance .................................11
Troubleshooting ................................................. 12

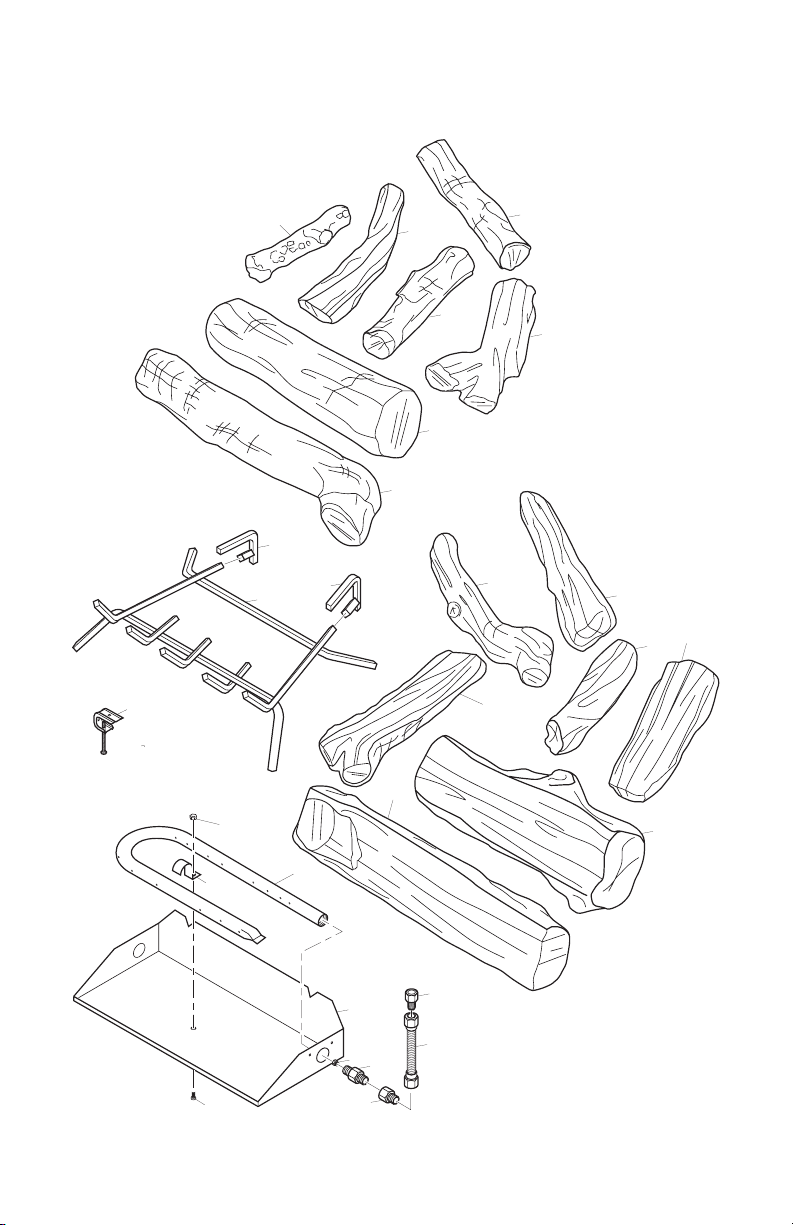

Parts .................................................................. 14
Service Hints ..................................................... 18
Technical Service............................................... 18
Replacement Parts ............................................ 18
Accessories ....................................................... 19
Warranty ..............................................Back Cover
-
  
   


installation and operational
procedures. For assistance or
  
   
agency or the gas supplier.

    
-
stalled. Provisions for adequate


National Fuel Gas Codes, ANSI
Z233.1/NFPA 54, Air for Combus-
tion and Ventilation.
WARNING: This appliance
is for installation only in a
   
  

    
     





state or local codes.
     


www.desatech.com
117272-01F 3
WARNING: Any change to


1. This appliance, as supplied, is only for use
with the type of gas indicated on the rating
plate. This appliance is convertible for use
with propane/LP, using the GA9050A or
GA9150A pilot kit.
2. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not
use any phone in your building
• immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier's instructions
• if you cannot reach you gas supplier, call
the re department.
3. Never install the log set
• in a recreational vehicle
• where curtains, furniture, clothing, or
other ammable objects are less than
42" from the front, top, or sides of the
log set
• in high trafc areas
• in windy or drafty areas
4. Before installing in a solid fuel burning re-
place, the chimney ue and rebox must
be cleaned of soot, creosote, ashes and
loose paint by a qualied chimney cleaner.
Creosote will ignite if highly heated. Inspect
chimney ue for damage. If damaged, repair
ue before operating heater.
5. You must operate this log set with a re-
place screen in place. Make sure replace
screen is closed before running log set.
6. This log set is designed to be smokeless.
If logs ever appear to smoke, turn off appli-
ance and call a qualied service person.
Note: During initial operation, slight smok-
ing could occur due to log curing and
the burning of manufacturing residues.
You may wish to add more ventilation by
opening a window.
7. To reduce the creation of soot, follow the
instructions in Cleaning and Maintenance,
page 11.
SAFETy
Continued
8. Do not allow fans to blow directly into the
replace. Avoid any drafts that alter burner
ame patterns. Ceiling fans can create
drafts that alter burner ame patterns.
Altered burner patterns can increase
sooting.
9. Do not use a blower insert, heat exchang-
er insert or other accessory not approved
for use with this log set.
10. The installation and provisions for com-
bustion and ventilation air must conform
with the National Fuel Gas Code, ANSI
Z233.1/NFPA 54, Air for Combustion and
Ventilation.
11. Do not run log set
• where ammable liquids or vapors are
used or stored
• under dusty conditions
12. Do not burn solid fuel in the replace after
installing the log set. Do not use this log
set to cook food or burn paper or other
objects.
13. Log set becomes very hot when in use.
Keep children and adults away from hot
surface to avoid burns or clothing ignition.
Log set will remain hot for a time after
shutdown. Allow surface to cool before
touching.
14. Carefully supervise young children when
they are in the room with log set.
15. Do not use appliance if any part has been
exposed to or under water. Immediately
call a qualied service technician to inspect
the room appliance and to replace any part
of the control system (if using GA9050A or
GA9150A) and any gas control which has
been under water.
16. To help prevent breakage, new logs must
be broken-in (see Curing Logs page 11).
17. Turn log set off and let cool before servic-
ing, installing, or repairing. Only a qualied
service person should install, service, or
repair log set.
18. Provide adequate clearances around air
openings.
19. This vented gas log set may not be
installed in a bedroom or bathroom in
the Commonwealth of Massachusetts.

www.desatech.com 117272-01F4
LOCAL CODES
Install and use log set with care. Follow all local
codes. In the absence of local codes, use the lat-
est edition of The National Fuel Gas Code ANSI
Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
Figure 1 - Product Identication
(Dual Burner Shown)
Hearth Kit Model ___________________
Serial Number _____________________
Log Set Model _____________________
Grate
Burner
Pan
Burner Manifold Burner Inlet
Fitting
Burner Clamp
Grate Steps
OPTIONAL PRODUCT FEATURES
PRODUCT IDENTIFICATION
UNPACkING


-

1. Remove logs, hearth kit, pan materials,
and hardware from carton.
2. Remove all protective packaging applied
to logs and base for shipment.
3. Check heater for any shipping damage.
If heater is damaged call DESA Heating,
LLC at 1-866-672-6040 for replacement
parts before returning to dealer.
ON/OFF SAFETY VALVE/PILOT kIT
AND PROPANE/LP CONVERSION
An optional valve/safety pilot kit with a piezo
ignitor is available for this appliance. This sys-
tem requires no matches, batteries, or other
sources to light. You must use this optional
system for LP conversion. See Accessories,
page 19.
REMOTE CONTROL READY

PILOT kIT
An optional millivolt valve/safety pilot kit with
a piezo ignitor is available for this appliance.
This system requires no matches, batteries,
or other sources to light. This system may
be connected to a wall switch or hand-held
wireless remote control. See Accessories,
page 19.
REMOTE CONTROL ACCESSORIES
There is an optional hand-held ON/OFF re-
mote control that can be purchased separately
for this log set. You must use the millivolt
valve/safety pilot kit to use remote acces-
sories with this appliance. See Accessories,
page 19.
A wall switch is also available for this appli-
ance. You must use the millivolt valve/safety
pilot kit to use the wall switch with this appli-
ance. See Accessories, page 19.

www.desatech.com
117272-01F 5
BURNER ORIFICE
LOG NATURAL PROPANE/LP
MODEL IN. NUM. IN. NUM.
HDVSR18
HDVDR18W
0.120 31 0.073 49
HDVDR24W 0.129 30 0.086 44
HDVTR24W 0.1405 28 0.089 43
Model
Burner
Description
Btu Input
Natural Gas
Btu Input
Propane/LP
Gas

Vent Opening
HDVSR18
HDVDR18W
18"
Dual 55,000 45,000 8" dia.
HDVDR24W 24"
Dual 60,000 55,000 8" dia.
HDVTR24W 24"
Triple 70,000 60,000 8" dia.
*Add 6" if safety valve/pilot is used
**At depth indicated
FUEL INLET PRESSURE

Min. Max.
NG 5.5" 10.5"
LP 11" 13"
Figure 2 - Technical Information Charts
MINIMUM FIREBOX SIZES
Models: HDVSR18, HDVDR18W
Front
Width*
Back
Width**
Depth Height
28" 16" 14" 18"
Models: HDVDR24W
Front
Width*
Back
Width**
Depth Height
29 3/417" 15 1/218"
Models: HDVTR24W
Front
Width*
Back
Width**
Depth Height
30" 22" 15 1/218"
CHECk GAS TYPE
Use only natural gas. If your gas supply is not
natural gas, you must install ON/OFF Safety
Valve/Pilot Kit (see Accessories, page 19).
Call dealer where you bought log set.
If the replace does not have a gas supply
shutoff valve, one must be installed.
INSTALLATION


-

WARNING: Before installing

    
-

-


    






   
   
this type of gas appliance. Only
  



    





result in a hazardous condition.
FLUE OPENING SPECIFICATIONS
Note: This vented appliance must be installed
only in a solid-fuel burning replace with a
working ue and constructed of noncombus-
tible material.
The charts in Figure 2 indicate technical
information regarding the installation of your
gas log set. Please make sure that all of the
specications shown are applicable before
installation is attempted.
The replace must include a working ue and
venting system with the minimum openings
shown in the Figure 2.

www.desatech.com 117272-01F6
INSTALLATION
Continued
Damper
Clamp
Damper
Clamp
Damper
Manufactured
Fireplace
Masonry Fireplace
Figure 3 - Attaching Damper Clamp
Damper
CONNECTING TO GAS SUPPLY
  -
    
     
local codes.

Before installing log set, make sure you have
the items listed below.
• piping (check local codes)
• sealant (resistant to Propane/LP gas)
• equipment shutoff valve
• test gauge connection
• adjustable (crescent) wrench or pliers
• sediment trap
• tee joint
• pipe wrench
    
     -


your local codes. Use pipe of




Installation must include a equipment shutoff
valve, union, and plugged 1/8" NPT tap. Locate
NPT tap within reach for test gauge hook up.
NPT tap must be upstream from log set (see
Figure 4, page 7).
IMPORTANT: Install equipment shutoff valve
in an accessible location. The equipment
shutoff valve is for turning on or shutting off
the gas to the appliance.
Apply pipe joint sealant lightly to male NPT
threads. This will prevent excess sealant from
going into pipe. Excess sealant in pipe could
result in a clogged burner injector.
    
sealant that is resistant to liquid

VENTING SPECIFICATIONS FOR
INSTALLATION
The replace chimney ue and vent must be
drafting properly. To check the vent for proper
drafting: Light a tightly rolled newspaper on
one end and place it at the inside front edge
of the replace. Observe the smoke and be
sure the vent is properly drawing it up the
chimney. If the smoke spills out into the room,
extinguish the ame and remove any obstruc-
tion until proper venting is achieved.
The chimney ue must remain open a mini-
mum of 3" at all times during the operation
of this log set.
For Massachusetts Residents Only
Installation of this vented gas log set in the
Commonwealth of Massachusetts requires
the damper be permanently removed or
welded in the fully open position.
INSTALLING DAMPER CLAMP
Secure the damper stop clamp provided to
the leading edge of the damper as shown in
Figure 3. If for any reason this clamp doesn't
work on your replace, another suitable clamp
or permanent stop must be installed, or the
damper blade must be cut or removed.

www.desatech.com
117272-01F 7
We recommend that you install a sediment
trap in supply line as shown in Figure 4.
Locate sediment trap where it is within reach
for cleaning. Install in piping system between
fuel supply and heater. Locate sediment
trap where trapped matter is not likely to
freeze. A sediment trap traps moisture and
contaminants. This keeps them from going
into log set controls. If sediment trap is not
installed or is installed wrong, log set may
not run properly.
Figure 4 - Gas Connection
* Purchase the optional CSA design-certied
equipment shutoff valve from your dealer.
** Minimum inlet pressure for purpose of input
adjustment.
3" Minimum
Sediment Trap
From Gas Meter
(5" W.C.** to
10.5" W.C.
Pressure)
CSA Design-
Certied Equipment
Shutoff Valve With
1/8" NPT Tap*
Approved Flexible Gas Hose
(if allowed by local codes)
Tee
Joint
Pipe
Nipple
Cap
INSTALLATION
Continued
CHECkING GAS CONNECTIONS
WARNING:Testallgaspiping
   

installing or servicing. Correct

WARNING: Never use an

-



PRESSURE TESTING GAS SUPPLY
PIPING SYSTEM


1. Disconnect log set and its individual equip-
ment shutoff valve from gas supply piping
system.
2. Cap off open end of gas pipe where equip-
ment shutoff valve was connected.
3. Pressurize supply piping system by either
using compressed air or opening main gas
valve located on or near gas meter.
4. Check all joints of gas supply piping sys-
tem. Apply noncorrosive leak detection
uid to gas joints. Bubbles forming show
a leak.
5. Correct all leaks at once.
6. Reconnect log set and equipment shutoff
valve to gas supply. Check reconnected
ttings for leaks.
Test Pressures Equal To or Less Than

1. Close equipment shutoff valve (see Fig-
ure 5).
2. Pressurize supply piping system by either
using compressed air or opening main gas
valve located on or near gas meter.
3. Check all joints from gas meter to equip-
ment shutoff valve (see Figure 5). Apply
noncorrosive leak detection uid to gas
joints. Bubbles forming show a leak.
4. Correct all leaks at once.
Figure 5 - Checking Gas Joints
Gas Meter
Equipment
Shutoff
Valve

www.desatech.com 117272-01F8
INSTALLATION
Continued
HEARTH kIT ASSEMBLY AND
INSTALLATION

1. Determine which side gas line will be
coming into replace.
-
  
      
-



    
    

2. Using a hammer and screw driver, remove
knockout plug from side of pan that cor-
responds to gas line (see Figure 6).
3. Unscrew burner inlet tting from burner
manifold.
Burner Inlet
Fitting
Burner Inlet
Fitting
Screw
Front
Burner
Burner
Manifold
Nut
Burner Clamp
Burner Pan
(Front)
Burner Pan
(Front)
Knockout
Plugs
Gas Connection
Must Be On
Right Side For
Triple Burner
TRIPLE-BURNER
DUAL-FLAME
Burner
Manifold
Figure 6 - Installing Burner
Figure 7 - Connecting Gas to Appliance
Adapter
Fitting
Gas
Connector
Tube
Burner Pan
Assembly
(Facing Front
of Fireplace)
4. Place burner manifold in pan with thread-
ed opening facing open knockout plug.
5. Using thread sealant (resistant to the ac-
tion of propane/LP gas) on larger end of
tting, screw burner inlet tting through
hole and into burner manifold (see Figure
6). Tighten using a wrench.
6. Using burner clamp, screw, and nut pro-
vided, assemble clamp to pan (“U” style
and triple burners only). This will hold
burner manifold in place.
7. If using optional GA9150A kit, follow in-
structions included kit for installation and
operation.
Installation and Gas Connection
1. Place burner pan assembly in center of
replace oor. Make sure front of pan
faces forward.
2. Thread gas supply tting to replace gas
supply pipe. Use thread sealant.
3. Install adapter tting onto burner inlet t-
ting using thread sealant on male threads
of burner inlet tting (see Figure 7). Adjust
to most convenient position.
4. Install gas connector tube to gas supply
tting. Carefully shape tube to attach to
adapter tting. Be careful not to cause
kinks in tube.

www.desatech.com
117272-01F 9
INSTALLATION
Continued

VALVE/PILOT kIT
For additional convenience and safety, or for
propane/LP conversion, an optional ON/OFF
safety valve/pilot kit is available. See Acces-
sories, page 19.


propane/LP conversion.
TESTING BURNER FOR LEAkS
1. Generously apply noncorrosive leak de-
tection uid to all connections.


2. Light burner with shutoff valve no more
than half open and holding a match
slightly in front of the pan (see Lighting
Instructions, page 11).
3. Inspect all connections for bubbles, raw
gas odor, or ame from any area other
than burner (leaks). If leaks are detected,
shut off gas valve immediately. Tighten,
or reassemble loose connection(s) using
pipe joint compound until burner system
is leak free.
4. When burner is tested and leak free,
observe individual tongues of ame on
burner.
Note: Burner design includes more ports
on the outside of the bar. Make sure that
all ports are clear and producing ame
evenly across burner. If any ports appear
blocked, clear them by removing burner
manifold and reaming ports with a modi-
ed paper clip or other suitable tool.
5. When nished testing, turn gas shutoff
valve OFF to extinguish all ames.
ADDING PAN MATERIAL
1. Open bag of ash bed material (vermiculite)
and spread it evenly across burner pan
to the top. You may overow the front
and sides of pan to cover the entire pan
and connecting hardware. Do not cover
GA9050A or GA9150A valve.
2. Open glowing embers and evenly cover
ash bed material (vermiculite) in burner
pan.
INSTALLING GRATE AND LOGS
1. Place grate over burner pan where two
outer horizontal supports on the grate t
into two pan positioning notches in rear
vertical edge of pan.
2. Slide two rear log grate steps over two
outer horizontal supports on grate as
shown in Figure 8.
3. Place back log on onto grate steps (see
Figure 9).
Figure 8 - Installing Grate (Pan Material
Not Shown)
Grate Grate Steps
Figure 9 - Installing Front and Back Logs
(Number and style may vary)
Kingston Oak
American Chestnut
(Shown)
Crimson Creek

www.desatech.com 117272-01F10
INSTALLATION
Continued
Figure 10 - Placement of Top Logs
Kingston Oak
American
Chestnut
24" Crimson
Creek
4. Place front log(s) on grate and slide
forward against front bars on grate (see
Figure 9, page 9).
5. Place smaller top logs onto bottom logs
(see Figure 10). Leave as much open
space between logs as possible to
minimize ame impingement and sooting.
Note: Logs may chip if they are handled
roughly or if hit together while being
placed.
18" Crimson
Creek

www.desatech.com
117272-01F 11
OPERATION
4. Light a match and lay it on top of the pan
material about 2" from the end of the sup-
ply side of the pan
5. Slowly turn the gas shutoff valve ON until
the burner ignites. If the burner doesn’t
ignite within 10 seconds with the match
burning, turn the shutoff valve OFF and
repeat steps 1 through 4 again
GAS SHUTOFF
VALVE OPERATION

Adjust the ame ON/OFF by turning the gas
shutoff valve counterclockwise to open
or clockwise to close, as necessary.
Shutting Off Appliance
Turn gas shutoff valve clockwise to
the OFF position.
CURING
LOGS
During the 2-3 hour appliance break-in period,
you may detect an odor from the appliance
as various paints and compounds used in
manufacturing of this log set cure. This is a
normal and temporary situation that is not
cause for alarm. However, you may want to
provide extra ventilation to the room during
this time.
To ensure proper curing of logs:
• Ignite a 2" flame and maintain it for 1
hour.
• Burn logs in consecutive 1 hour periods
raising ame an additional 2" to full ame
height for a total of three hours.
FOR YOUR SAFETY
READ BEFORE LIGHTING
  

WARNING: If you do not fol-
  
     
-

-



WHAT TO DO IF YOU SMELL GAS
 
 

 
     

 

LIGHTING
INSTRUCTIONS
1. STOP! Read the safety information
above.
2. Turn the gas shutoff valve to OFF.
3. Wait ve (5) minutes to clear out any
gas. If you then smell gas STOP! Follow
the safety information above. If you don't
smell gas, go on to the next step.
CLEANING AND MAINTENANCE
• Keep the area around the log set clean and clear of debris.
• Occasionally, you may use a soft bristle brush to clean logs.
• Once every year a qualied agency or certied chimney sweep should examine and clean
the venting system of the replace.

www.desatech.com 117272-01F12
TROUBLESHOOTING


Note: All troubleshooting items are listed in order of operation.
POSSIBLE CAUSE
1. Poor fuel quality
2. Fireplace venting system
not drafting properly
3. Excessive ame impinge-
ment or blockage
4. Improper fuel/air mixture
5. Excessive gas supply/
pressure
1. Passage of air/gas across
irregular surfaces
1. Incorrect gas supply or
pressure
2. Blocked burner orice or
burner manifold ports
3. Improper burner orifice
size
REMEDY
1. Contact local natural or
propane/LP gas company
2. Adjust damper wide open
and/or have replace and
venting professionally
cleaned and checked
3. Separate the logs to allow
more ame passage
4. Remove any foreign items
from the ame pattern and/
or check for proper orice
sizing
5. Preheat flue in very cold
weather
1. Relieve any tight bends or
kinks in gas supply line
1. Check for proper gas supply
pressure
2. Free burner orifice and
manifold ports of any burrs,
paint, or other blockage
3. Verify proper burner orice
sizing (see Figure 2, page 5)
OBSERVED PROBLEM
Log set is smoking/sooting
excessively
(Note: It is natural and unavoid-
able for vented gas log sets
to produce moderate levels
of carbon (soot) where ames
contact the logs. This is es-
pecially true with propane/LP
gas.)
Burner is excessively noisy
(Note: The movement and
combustion of gas will cre-
ate low, unavoidable levels
of noise.)
Burner ame is too low or
too high

www.desatech.com
117272-01F 13

 
 
 

 -

 
IMPORTANT: Operating log set where impurities in air exist may create odors. Cleaning sup-
plies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc.,
create fumes. These fumes may mix with combustion air and create odors. These odors will
disappear over time.
POSSIBLE CAUSE
1. Metal expanding while heat-
ing or contracting while
cooling
1. Log Set burning vapors
from paint, hair spray, glues,
cleaners, chemicals, new
carpet, etc. (See IMPOR-
TANT statement above)
2. Gas leak. See Warning

1. Gas leak. See Warning

2. Control valve defective
1. Gas leak. See Warning

OBSERVED PROBLEM
Log Set produces a clicking/
ticking noise just after burner
is lit or shut off
Log Set produces unwanted
odors
Gas odor even when control
knob is in OFF position
Gas odor during combustion
REMEDY
1. This is normal with most log
sets. If noise is excessive,
contact qualified service
person
1. Open flue to maximum.
Stop using odor causing
products while log set is
running
2. Locate and correct all leaks
(see Checking Gas Con-
nections, page 7)
1. Locate and correct all leaks
(see Checking Gas Con-
nections, page 7)
2. Replace control valve
1. Locate and correct all leaks
(see Checking Gas Con-
nections, page 7)
TROUBLESHOOTING
Continued

www.desatech.com 117272-01F14
PARTS

3
13
1
21
22
25
24
19
26
23
8
6
4
2
10
7
5
9
9
14
15
16
18
19
17
20
11
12
Crimson Creek
American Chestnut

www.desatech.com
117272-01F 15
PARTS
This list contains replaceable parts used in your log set. When ordering parts, follow the
instructions listed under Replacement Parts on page 18 of this manual.
kEY
NO. PART NO. DESCRIPTION QTY
1 901056-01 Brass 3/8 FLR x 1/2 FPT Adapter • • • 1
2 901059-01 Brass 3/8 FLR x 12 FPT Adapter • • • 1
3 901066-01 Brass Air Mixer-Natural Gas • • • 1
4 901064-02 Natural Gas Injector • • 1
901064-03 Natural Gas Injector • 1
5 901207-01 Burner Manifold • • 1
901207-02 Burner Manifold • 1
6 901137-01 Burner Pan • • 1
901137-02 Burner Pan • 1
7 901242-01 Damper Clamp 0 Std. Assembly • • • 1
8 101628-01 Gas Tube - 10" Flex • • • 1
9 901431-01 Grate Steps • • • 2
10 901243-01 Log Grate • • 1
901246-02 Log Grate • 1
11 901681-01 Burner Strap • • • 1
12 901078-01 Nut #8/32 • • • 1
13 901076-01 Screw #8/32 x 3/8 • • • 1
14 117017-01 Front Bottom Round HDR-18 • 1
15 117018-01 Back Bottom Round HDR-16 • 1
16 901121-01 Top Round Log VCR-12 • 1
17 901090-01 Top Split CS-16 • 1
18 110295-01 Top Round BFL-18 • 1
19 901096-01 Top Round CPR-13S • • 1
20 901130-01 Top Round FR-11 • 1
21 117019-01 Front Bottom Split HDS-18 • 1
117019-02 Front Bottom Slit HDS - 24 • 1
22 117020-02 Back Bottom Slit HDS - 20 • 1
117020-01 Back Bottom Slit HDS - 15 • 1
23 901126-01 Top Split FS-15 • • 1
24 901119-01 Top Split VS-12 • • 1
25 115050-01 Top Split LCF-10 • • 1
26 115051-01 Top Split LCF-11 • • 1
PARTS AVAILABLE NOT SHOWN
901156-01 0.125# Bag Embers • • • 1
901155-01 1.5# Bag Ash Bed Material • • • 1


HDVDR24W

www.desatech.com 117272-01F16
PARTS
MODEL HDVTR24W
3
15
1
10
8
4
2
7
12
9
6
5
11
11
17
20
16
19
22
21
18
13
14
Kingston Oak

www.desatech.com
117272-01F 17
PARTS
MODEL HDVTR24W
This list contains replaceable parts used in your log set. When ordering parts, follow the
instructions listed under Replacement Parts on page 18 of this manual.
kEY
NO. PART NO. DESCRIPTION QTY
1 901056-01 Brass 3/8 FLR x 1/2 FPT Adapter 1
2 901059-01 Brass 3/8 FLR x 12 FPT Adapter 1
3 901066-01 Brass Air Mixer-Natural Gas 1
4 901064-04 Natural Gas Injector 1
5 110331-01 1/2 MPT X 3/8 Compression Fitting 1
6 110332-02 Burner Manifold 1
7 110325-02 Front Burner 1
8 110367-02 Burner Pan 1
9 901242-01 Damper Clamp - Std. Assembly 1
10 101628-01 Gas Tube - 10" Flex 1
11 901431-01 Grate Steps 2
12 901246-02 Log Grate 1
13 901681-01 Burner Strap 1
14 901078-01 Nut #8/32 1
15 901076-01 Screw #8/32 x 3/8 1
16 117021-01 Front Bottom Split HDT-24 1
17 117022-01 Back Bottom Split HDT-20 1
18 115051-01 Top Split LCF-11 1
19 901096-01 Top Round CPR-13S 1
20 117023-01 Top Round "Knot" HDT-11 1
21 117024-01 Top "Hole" HDT-13 1
22 117025-01 Top "Y" HDT-Y 1
PARTS AVAILABLE NOT SHOWN
901156-01 0.125# Bag Embers 1
901155-01 1.5# Bag Ash Bed Material 1

www.desatech.com 117272-01F18
SERVICE HINTS

• pilot will not stay lit
• burners will have delayed ignition
• heater will not produce specied heat
• propane/LP gas supply may be low
You may feel your gas pressure is too low. If
so, contact your local propane/LP or natural
gas supplier.
TECHNICAL SERVICE
You may have further questions about installa-
tion, operation, or troubleshooting. If so, con-
tact DESA Heating, LLC at 1-866-672-6040.
When calling please have your model and
serial numbers of your heater ready.
You can also visit DESA Heating, LLC’s web
site at .
REPLACEMENT PARTS
Note: Use only original replacement parts.
This will protect your warranty coverage for
parts replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product. If
they can’t supply original replacement part(s),
call DESA Heating, LLC at 1-866-672-6040.
When calling DESA Heating, LLC, have
ready:
• your name
• your address
• model and serial numbers of your heater
• how heater was malfunctioning
• purchase date
Usually, we will ask you to return the part to
the factory.
PARTS NOT UNDER WARRANTY
Contact authorized dealers of this product. If
they can’t supply original replacement part(s),
call DESA Heating, LLC at 1-866-672-6040 for
referral information. A list of authorized dealers
can be found by visiting 
When calling DESA Heating, LLC, have
ready:
• model and serial numbers of your heater
• the replacement part number

www.desatech.com
117272-01F 19
ACCESSORIES

For decorative purposes only. Not to be used
as additional logs on unit.

For decorative purposes only. Not to be used
as additional logs on unit.

Use for additional decoration
only. (3 pine cones per box).
ASH BED MATERIAL (

  . Use for rebox decoration
only.

   Use for rebox decoration
only.

   Use for rebox decoration
only.
LAVA ROCk - GA6067A
   Use for rebox decoration
only.
DECORATIVE ASH BED CONTROL
COVER - CDABkA
An attractive way to cover control knob and
piezo ignitor.
FIRE CRACkLE - CF6-A
Creates the sound of a real
burning re.
Purchase these accessories from your local
dealer. If they can not supply these accessories
call DESA Heating, LLC at 1-866-672-6040 for
information. You can also write to the address
listed on the back page of this manual.
RECEIVER AND HAND-HELD
ON/OFF REMOTE CONTROL kIT
HRC100 SERIES
   Allows the gas log set to
be turned on and off by using the hand-held
remote control. Valve/Pilot Kit GA9150A must
be purchased to use this remote.
WALL-MOUNT ON/OFF SWITCH
GWMS2
 Allows the gas log set to be
turned on and off with a wall switch. Valve/Pilot
Kit GA9150A must be purchased to use this
remote.
MANUAL CONTROL ON/OFF SAFETY

   Contains components for
propane/LP conversion.
REMOTE CONTROL READY ON/OFF

 Required for remote control
operation. Contains components for propane/
LP conversion.

117272-01
Rev. F
09/08
117272 01
NOT A UPC
DESA Heating, LLC
2701 Industrial Drive
Bowling Green, KY 42101
www.desatech.com
1-866-672-6040
WARRANTy
kEEP THIS WARRANTy
Model ( located on product or identication tag )_____________________________
Serial No. ( located on product or identication tag )__________________________
Date Purchased __________________________
Keep receipt for warranty verication.
DESA HEATING, LLC LIMITED WARRANTIES

Standard Warranty: DESA Heating, LLC warrants this new product and any parts thereof to be free from
defects in material and workmanship for a period of one (1) year from the date of rst purchase from an
authorized dealer provided the product has been installed, maintained and operated in accordance with
DESA Heating, LLC’s warnings and instructions.
For products purchased for commercial, industrial or rental usage, this warranty is limited to 90 days from
the date of rst purchase.
Factory Reconditioned Products
 DESA Heating, LLC warrants factory reconditioned products and any parts thereof
to be free from defects in material and workmanship for 30 days from the date of rst purchase from an
authorized dealer provided the product has been installed, maintained and operated in accordance with
DESA Heating, LLC’s warnings and instructions.

The following terms apply to all of the above warranties:
Always specify model number and serial number when contacting the manufacturer. To make a claim under
this warranty the bill of sale or other proof of purchase must be presented.
This warranty is extended only to the original retail purchaser when purchased from an authorized dealer,
and only when installed by a qualied installer in accordance with all local codes and instructions furnished
with this product.
This warranty covers the cost of part(s) required to restore this product to proper operating condition and
an allowance for labor when provided by a DESA Heating, LLC Authorized Service Center or a provider
approved by DESA Heating, LLC. Warranty parts must be obtained through authorized dealers of this prod-
uct and/or DESA Heating, LLC who will provide original factory replacement parts. Failure to use original
factory replacement parts voids this warranty.
Travel, handling, transportation, diagnostic, material, labor and incidental costs associated with warranty
repairs, unless expressly covered by this warranty, are not reimbursable under this warranty and are the
responsibility of the owner.
Excluded from this warranty are products or parts that fail or become damaged due to misuse, accidents,
improper installation, lack of proper maintenance, tampering, or alteration(s).
This is DESA Heating, LLC’s exclusive warranty, and to the full extent allowed by law; this express warranty
excludes any and all other warranties, express or implied, written or verbal and limits the duration of any
and all implied warranties, including warranties of merchantability and tness for a particular purpose to one
(1) year on new products and 30 days on factory reconditioned products from the date of rst purchase.
DESA Heating, LLC makes no other warranties regarding this product.
DESA Heating, LLC’s liability is limited to the purchase price of the product, and DESA Heating, LLC shall
not be liable for any other damages whatsoever under any circumstances including indirect, incidental, or
consequential damages.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
For information about this warranty contact:
