Desa REM10PT Quick start guide

BLUE FLAME VENT-FREE
PROPANE/LP GAS HEATER
OWNER’S OPERATION AND
INSTALLATION MANUAL
For more information, visit www.desatech.com
For more information, visit www.desatech.com
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result caus-
ing property damage, personal injury, or loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Donottouchanyelectricalswitch;donotuseany
phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s in-
structions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
WARNING: Improper installation,
adjustment, alteration, service, or
maintenance can cause injury or
property damage. Refer to this
manualforcorrectinstallationand
operational procedures. For as-
sistance or additional information
consult a qualified installer, ser-
vice agency, or the gas supplier.
WARNING: This is an unvented
gas-firedheater.It uses air (oxy-
gen) from the room in which it is
installed. Provisions for ad-
equate combustion and ventila-
tion air must be provided. Refer
to Air for Combustion and Venti-
lation section on page 4 of this
manual.
This appliance is only for use with the type of gas indicated on the rating plate. This
appliance is not convertible for use with other gases.
Save this manual for future reference.
Save this manual for future reference.
REM10PT
RH10PT
10,000 Btu/Hr
Thermostatically-
Controlled Heater

110373-01D
For more information, visit www.desatech.com
For more information, visit www.desatech.com
2
TABLE OF CONTENTS
SAFETY INFORMATION ............................................................ 2
PRODUCT IDENTIFICATION ..................................................... 3
UNPACKING ............................................................................... 3
LOCAL CODES........................................................................... 4
PRODUCT FEATURES .............................................................. 4
PROPANE/LP SUPPLY .............................................................. 4
INSTALLATION ........................................................................... 4
OPERATING HEATER................................................................ 9
INSPECTING BURNER .............................................................11
STORAGE..................................................................................11
CLEANING AND MAINTENANCE ............................................ 12
TABLE OF CONTENTS
SAFETY INFORMATION
WARNINGS
IMPORTANT: Read this owner’s manual carefully and
completely before trying to assemble, operate, or ser-
vice this heater. Improper use of this heater can cause
serious injury or death from burns, fire, explosion,
electrical shock, and carbon monoxide poisoning.
DANGER: Carbon monoxide poisoning may lead
to death!
WARNING: Any change to this heater or its
controls can be dangerous.
Childrenandadultsshouldbealertedtothehazardof
high surface temperature and should stay away to
avoid burns or clothing ignition.
Do not place clothing or other flammable material on
ornearthe appliance. Neverplaceanyobjectson the
heater.
Heater will remain hot for a time after shutdown.
Allow surface to cool before touching.
Youngchildrenshouldbecarefullysupervisedwhen
they are near the heater.
WARNING: Do not use any accessory not ap-
proved for use with this heater.
When used without adequate combustion and ventilation air, this
heater may give off excessive carbon monoxide, an odorless,
poisonous gas.
WARNING: Early signs of carbon monoxide poi-
soning resemble the flu, with headaches, dizziness,
and nausea. If you have these signs, the heater may
not be working properly. Get fresh air at once! Have
heater serviced.
Somepeople,includingpregnantwomen, people withheartorlung
disease, anemia, those under the influence of alcohol, and those at
high altitudes, are more affected by carbon monoxide than others.
Propane/LP Gas: Propane/LP gas is odorless. An odor-making
agent is added to propane/LP gas. The odor helps you detect a fuel
gas leak. However, the odor added to propane/LP gas can fade.
Propane/LP gas may be present even though no odor exists.
Make certain you read and understand all warnings. Keep this manual
forreference.Itisyourguidetosafeandproperoperationofthisheater.
Due to high temperatures, the appliance should be
located out of traffic and away from combustible
materials.
SAFETY INFORMATION
This heater should be inspected before each use.
Frequentcleaningmayberequired.Thecontrolcom-
partments, burners and circulating air passageways
of the heater must be kept clean.
WARNING: If the recreational or commercial en-
closuredoesnothaveawindoworroofvent,DONOT
USE THIS HEATER inside.
TROUBLESHOOTING .............................................................. 13
ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST ....... 16
SPECIFICATIONS .................................................................... 18
TECHNICAL SERVICE ............................................................. 18
SERVICE HINTS....................................................................... 18
SERVICE PUBLICATIONS ....................................................... 18
ACCESSORIES ........................................................................ 18
REPLACEMENT PARTS .......................................................... 18
OWNER’S REGISTRATION FORM .......................................... 19
WARRANTY INFORMATION...................................... Back Cover

110373-01D
For more information, visit www.desatech.com
For more information, visit www.desatech.com
3
3
SAFETY INFORMATION
PRODUCT IDENTIFICATION
UNPACKING
1. Install and use heater with care. Follow all local ordinances
and codes. In the absence of local ordinances and codes, refer
to the Standard for Storage and Handling of Liquefied Petro-
leum Gas, ANSI/NFPA 58 and the Natural Gas Installation
Code, CAN/CGA B149.2. This instructs on the safe storage
and handling of propane/LP gases.
2. This appliance is only for use with the type of gas indicated on
the rating plate. This appliance is not convertible for use with
other gases.
3. This heater may be used in a recreational enclosure or tempo-
rary construction work enclosure with a remote refillable pro-
pane/LP cylinder ONLY when the cylinder is located outdoors
and the heater is used with the hose kit #LPA3090 (included
with this heater). NEVER bring a refillable propane/LP cylin-
der indoors. A fire or explosion can occur causing property
damage, serious injury or death.
4. Use only the hose and factory preset regulator provided with
the heater. Use only replacement pressure regulators and hose
assemblies specified in this manual. See Accessories, page 18.
5. Inspect the hose before each use of the heater. If it is evident
there is excessive abrasion or wear, or the hose is cut, it must be
replacedpriortothe heater beingputintooperation. Use replace-
ment hose assembly kit #LPA3090 (see Accessories, page 18).
6. Use only propane gas set up for vapor withdrawal.
7. This heater shall not be installed in a bedroom or bathroom.
8. This heater needs fresh, outside air ventilation to run properly.
This heater has an Oxygen Depletion Sensing (ODS) safety
shutoff system. The ODS shuts down the heater if not enough
fresh air is available.You must provide a minimum 10 square
inches of ventilation air for adequate combustion.
9. If heater shuts off, do not relight until you provide fresh, out-
side air. If heater keeps shutting off, have it serviced.
10. Keepallairopeningsinfrontandbottomofheaterclearandfree
of debris. This will insure enough air for proper combustion.
11. Do not use heater if any part has been under water. Immedi-
ately call a qualified service technician to inspect the room
heater and to replace any part of the control system and any
gas control which has been under water.
SAFETY INFORMATION
Continued
PRODUCT IDENTIFICATION
12. Turn off and let cool before servicing. Only a qualified service
person should service and repair heater.
13. Operating heater above elevations of 4,500 feet could cause
pilot outage.
14. Turn off propane/LP supply when not in use.
15. Check heater for damage before each use. Do not use a dam-
aged heater.
16. Do not alter heater. Keep heater in its original state.
17. Do not use heater if altered.
18. This heater can only be used in a recreational or commercial
enclosure with a window or roof vent. This heater is not for
outdoor use.
19. Before using the heater provide adequate ventilation. An area
of 10 square inches of opening of a window or roof vent is
needed for adequate combustion and ventilation air.

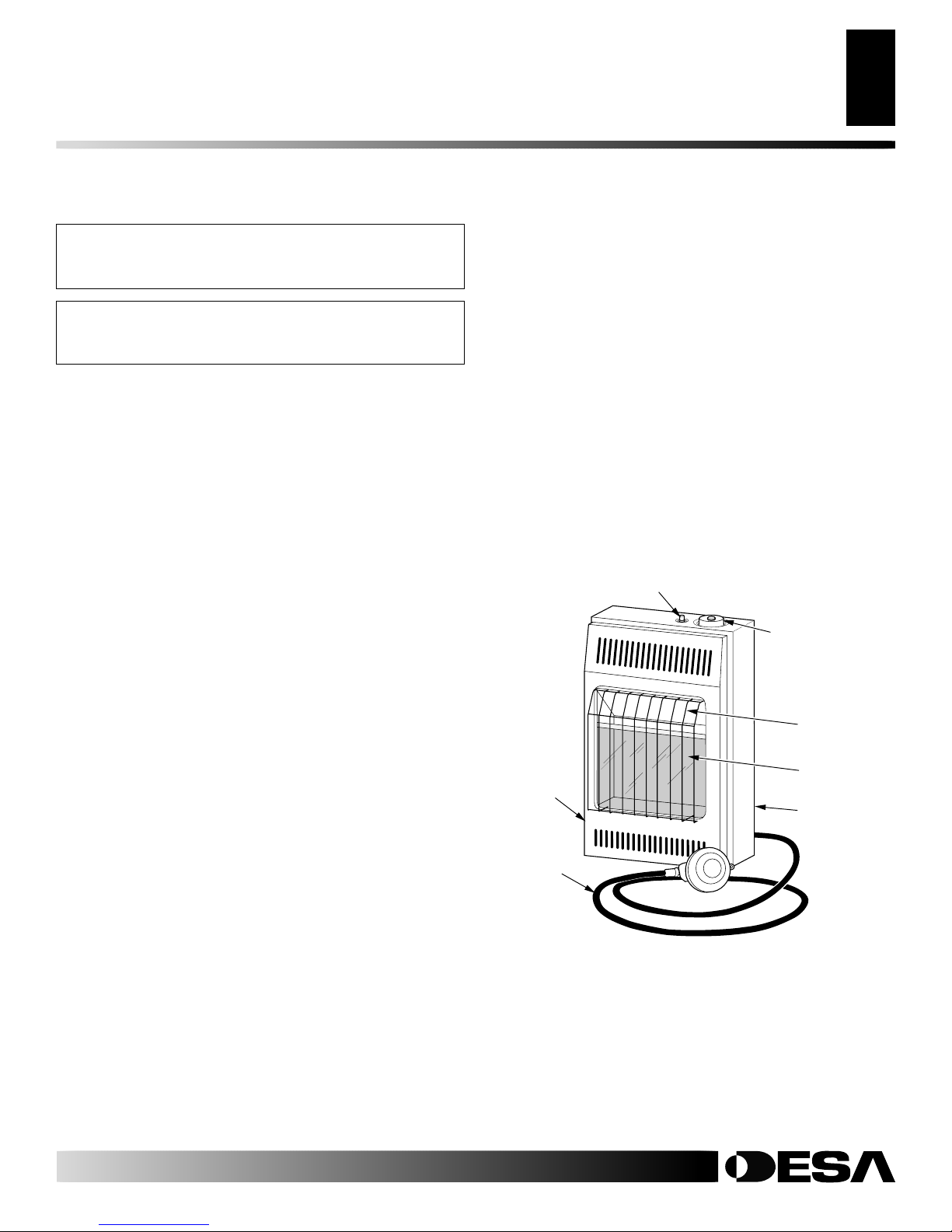

Figure 1 - Vent-Free Propane/LP Gas Heater
Heater
Cabinet
Grill
Guard
Glass
PanelFront
Panel
Control Knob
Ignitor Button
Regulator
Hose
Anysafetyscreenorguardremovedforservicingthe
appliance must be replaced prior to operating the
heater.
Keepthe appliance areaclearandfree fromcombus-
tible materials, gasoline and other flammable vapors
and liquids.
UNPACKING
1. Remove heater from carton.
2. Removeallprotectivepackagingappliedto heater for shipment.
3. Check heater for any shipping damage. If heater is damaged,
promptly return to dealer where you bought heater.

110373-01D
For more information, visit www.desatech.com
For more information, visit www.desatech.com
4
CAUTION:Ifyouinstalltheheaterinahomegarage
•heater pilot and burner must be at least 18 inches
above floor
•locate heater where moving vehicle will not hit it
For convenience and efficiency, install heater
• where there is easy access for operation, inspection, and service
• in coldest part of room
36"
3"
FLOOR
CEILING
Minimum
Minimum
Of Carpet
i
Combusti
6"
Minimum
From
Sides Of
Heater
Right
Side
Left
Side
Figure2-MountingClearancesAsViewedFromFrontofHeater
Minimum To Top Surface
Of Carpeting, Tile Or Other
Combustible Material
LOCAL CODES
Installanduseheaterwithcare.Followalllocalcodes.Inthe absence
oflocalcodes,usethelatesteditionofNationalFuelGasCode,ANSI
Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
PRODUCT FEATURES
SAFETY PILOT
This heater has a pilot with an Oxygen Depletion Sensing (ODS)
safety shutoff system. The ODS/pilot is a required feature for vent-
free room heaters. The ODS/pilot shuts off the heater if there is not
enough fresh air.
PIEZO IGNITION SYSTEM
This heater has a piezo ignitor. This system requires no matches,
batteries, or other sources to light heater.
LOCAL CODES
PRODUCT FEATURES
PROPANE/LP SUPPLY
INSTALLATION
Check Gas Type
Locating Heater
PROPANE/LP SUPPLY
Propane/LPgasandpropane/LPtank(s)aretobefurnishedbytheuser.
Thepropane/LPcylindertobeusedmustbeconstructedandmarked
in accordance with the specifications for the propane/LP gas cylin-
ders of the U.S. Department of Transportation (DOT).
Use this heater only with a propane/LP vapor withdrawal supply
system. See Chapter 5 of the Standard for Storage and Handling of
LiquefiedPetroleumGas,ANSI/NFPA58and/orCAN/CGAB149.2.
Your local library or fire department will have this booklet.
Theamountofpropane/LPgasreadyforusefrompropane/LPtanks
varies. Two factors decide this amount:
1. The amount of propane/LP gas in tank(s)
2. The temperature of tank(s)
This heater is designed for use with a 20 or 40 pound refillable
propane/LP cylinder when used as a self contained heating system
(with hose and regulator). Larger tanks may be used if installed in
a permanent gas supply system.
The propane/LP cylinder used must include a collar to protect the
cylinder valve, and a listed overfilling prevention device (OPD).
INSTALLATION
CHECK GAS TYPE
Use only propane/LP gas. If your gas supply is not propane/LP, do
not install heater. Call dealer where you bought heater for proper
type heater.
WARNING: Never install the heater
•in a bathroom
•where curtains, furniture, clothing, or other flam-
mable objects are less than 36 inches from the
front, top, or sides of the heater
•as a fireplace insert
•in high traffic areas
•in windy or drafty areas
LOCATING HEATER
WARNING: Maintain the minimum clearances
shown in Figure 2. If you can, provide greater clear-
ances from floor, ceiling, and joining wall.
CAUTION: This heater creates warm air currents.
These currents move heat to wall surfaces next to
heater. Installing heater next to vinyl or cloth wall
coveringsoroperatingheaterwhereimpurities(such
as, but not limited to, tobacco smoke, aromatic
candles, cleaning fluids, oil or kerosene lamps, etc.)
in the air exist, may discolor walls or cause odors.

110373-01D
For more information, visit www.desatech.com
For more information, visit www.desatech.com
5
5
INSTALLATION
Thermostat Sensing Bulb
Installing Heater To Wall
THERMOSTAT SENSING BULB
The thermostat sensing bulb is located inside the heater. Do not
move this bulb during installation or operation of the heater.
INSTALLING HEATER TO WALL
Marking Screw Locations
1. Determine where you will locate heater.
2. Mark two mounting screw locations on wall (see Figure 3).
Installing Two Mounting Screws
Note: Wallanchorsandmountingscrewsarein hardware package.
The hardware package is provided with heater.
WARNING: Maintain minimumclearancesshown
in Figure 3. If you can, provide greater clearances
from floor and joining wall.
Attaching To Wall Stud Method
For attaching mounting screw to wall stud
1. Drill hole at marked location using 9/64" drill bit.
2. Insert mounting screw into wall stud.
3. Tighten screw until 1/16" space (thickness of penny) is be-
tween screwhead and wall.
Attaching To Wall Anchor Method
Followinstructionsbelow toattachmountingscrews tohollowwalls
(wall areas between studs) or solid walls (concrete or masonry).
1. Drill holes at marked locations using 5/16" drill bit. For solid
walls (concrete or masonry), drill at least 1 1/4" deep.
2. Fold wall anchor (see Figure 4).

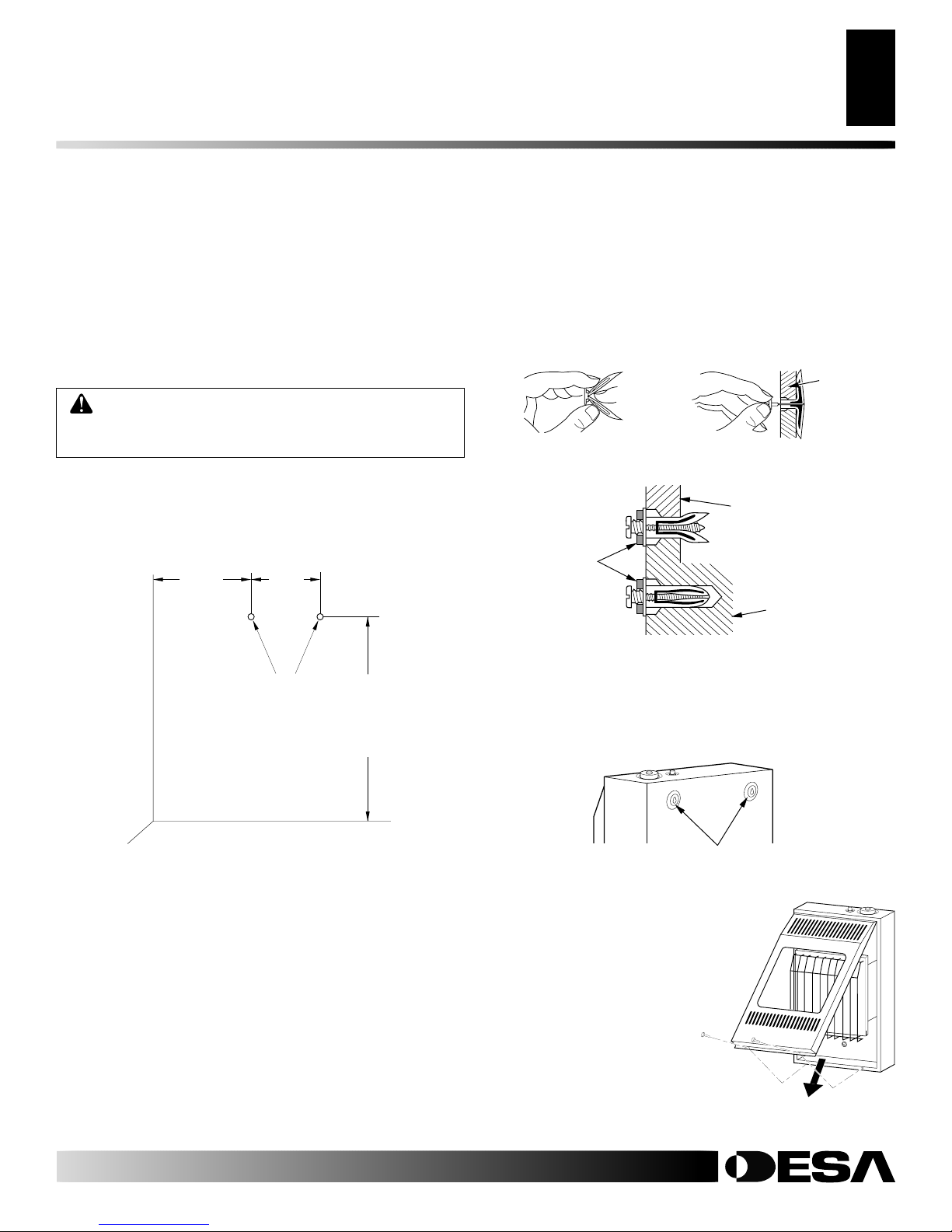

Figure 3 - Mounting Screw Locations
Mounting
Screw
Locations
8 7/8"
Minimum To
Maintain 6"
Clearance
From Wall
7 3/4"
20 1/4"
Minimum To
Maintain 3"
Clearance
From Floor
FLOOR
JOINING WALL
INSTALLATION
Continued
Figure 4 - Folding Anchor Figure 5 - Popping Open Anchor
Wings For Thin Walls
Thin Walls
(1/4" to
1/2" thick)
Figure 6 - Tightening Anchors
1/16"
Space
Thin or Thick
Wall (thick
wall shown)
Solid
Wall
3. Insertwallanchor(wings first)into hole.Tapanchorflushto wall.
4. For thin walls (1/2" or less), insert red key into wall anchor.
Push red key to “pop” open anchor wings (see Figure 5).
IMPORTANT : Do not hammer key! For thick walls (over 1/2"
thick) or solid walls, do not pop open wings.
5. Tighten two screws until 1/16" space (thickness of penny) is
between screwheads and wall (see Figure 6).
Placing Heater On Mounting Screws
1. Locate two keyhole slots on back panel of heater (see Figure 7).
2. Place large openings of slots over screwheads. Slide heater
down until screws are in small portion of slots.
Figure 7 - Location Of Keyhole Slots On Back Panel Of Heater
Keyhole Slots
Removing Front Panel Of
Heater
1. Remove two screws near bot-
tom corners of front panel.
2. Lift straight up on grill guard
until it stops. Grill guard will
slide up about 1/4".
3. Pull bottom offrontpanelfor-
ward, then down.
Figure8-RemovingFrontPanel
Of Heater

110373-01D
For more information, visit www.desatech.com
For more information, visit www.desatech.com
6
Propane/LP
Tank
Propane/LP
Supply
Valve
Regulator
Hose To
Heater
Fuel Gas
Fitting
Figure 11 - Regulator Position
Figure 10 - Gas Connection
Heater
Cabinet
Pressure
Regulator
Elbow
Hose To
Regulator
Hose Fitting
INSTALLATION
Installing Heater To Wall (Cont.)
Connecting to Portable Cylinder Gas Supply
INSTALLATION
Continued
Installing Bottom Mounting Screw
1. Locate bottom mounting hole.Thisholeisnearbottomonback
panel of heater (see Figure 9).
2. Mark screw location on wall.
3. Remove heater from wall.
4. If installing bottom mounting screw into hollow or solid wall,
install wall anchor. Follow steps 1 through 5 under AttachingTo
WallAnchorMethod, page 5. Ifinstalling bottommounting screw
into wall stud, drill hole at marked location using 9/64" drill bit.
5. Replace heater on wall.
6. Insert bottom anchor screw through back panel into bottom
anchor or drilled hole (see Figure 9).
7. Tighten screw until heater is firmly secured to wall. Do not
over tighten.
Note: Do not replace front panel at this time. Replace front
panel after making gas connections and checking for leaks (see
pages 9 and 10).
WARNING: Review and understand the warnings
in the Safety Information section, page 2. They are
needed to safely operate this heater. Follow all local
codes when using this heater.
IMPORTANT:Youmustuseapropane/LPgassupplycylinderthat
iscompatiblewiththeconnectiondeviceprovidedwiththehoseand
regulator.
WARNING: Test all gas piping and connections
for leaks after installation or servicing. Never use an
open flame to check for a leak. Apply a noncorrosive
leak detection fluid to all joints. Bubbles forming
show a leak. Correct all leaks at once.
CONNECTING TO PORTABLE CYLINDER
GAS SUPPLY
Figure 9 - Installing Bottom Mounting Screw
1. Remove 90° gas fitting from hardware bag.
2. Apply pipe joint sealant lightly to male NPT threads (see Fig-
ure 10). This will prevent excess sealant from going into pipe.
Excess sealant in pipe could result in clogged heater valves.
3. Hold gas pressure regulator with wrench when connecting the
90° gas fitting. Do not over tighten connection to regulator.
The regulator body could be damaged.
4. Provide propane/LP supply system (see Propane/LP Supply,
page 4).
5. Connect fuel gas fitting on hose/regulator assembly to pro-
pane/LP tank(s). Turn fuel gas fitting counterclockwise into
threads on tank. Tighten firmly using a wrench.
IMPORTANT:
Position regulator so that hose leaving the regulator is in a
horizontal position (see Figure 11). This places the regulator
vent in the proper position to protect it from the weather.
6. Connect hose to heater inlet. Tighten firmly using a wrench.
You must use the regulator supplied with heater.
Apply Sealant To
This End Only
WARNING: Use pipejointsealantthatis resistant
to liquid petroleum (LP) gas.

110373-01D
For more information, visit www.desatech.com
For more information, visit www.desatech.com
7
7
INSTALLATION
Connecting to Portable Cylinder Gas Supply (Cont.)
Connecting To Permanent Gas Supply
INSTALLATION
Continued
WARNING: A qualified service person must con-
nect heater to gas supply. Follow all local codes.
CAUTION: Never connect heater directly to the
propane/LP supply. This heater requires an external
regulator(notsupplied).Installtheexternalregulator
between the heater and propane/LP supply.
WARNING: This appliance requires a 3/8" NPT
(National Pipe Thread) inlet connection to the pres-
sure regulator.
CONNECTING TO PERMANENT GAS SUPPLY
If installing to a fixed fuel piping system, the installation must
conform with local codes or, in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1.
Iftheheaterwillbeconnectedtoapermanentgassource,theinstaller
mustsupplyanexternalregulator.Theexternalregulatorwillreduce
incoming gas pressure. You must reduce incoming gas pressure to
between11and14inchesofwater.Ifyoudonotreduceincominggas
pressure, heater regulator damage could occur. Install the external
regulatorwiththeventpointingdownasshowninFigure12.Pointing
the vent down protects it from freezing rain or sleet.
Installation Items
Beforeinstallingheater, makesureyouhave theitemslisted below.
• external regulator (supplied by installer)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• ground joint union
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench
* A CSA design-certified equipment shutoff valve with 1/8" NPT
tap is an acceptable alternative to test gauge connection. The
optional CSA design-certified equipment shutoff valve can be
purchased from your dealer. See Accessories, page 18.
WARNING: Use pipejointsealantthatis resistant
to liquid petroleum (LP) gas.
Installationmustincludeequipmentshutoffvalve,union,andplugged
1/8" NPT tap. Locate NPT tap within reach for test gauge hook up.
NPT tap must be upstream from heater (see Figure 13, page 8).
IMPORTANT: Install an equipment shutoff valve in an accessible
location. The equipment shutoff valve is for turning on or shutting
off the gas to the appliance.
Apply pipe joint sealant lightly to male NPT threads. This will
prevent excess sealant from going into pipe. Excess sealant in pipe
could result in clogged heater valves.
CAUTION: Use only new, black iron or steel pipe.
Internally-tinnedcoppertubingmaybeusedincertain
areas. Check your local codes. Use pipe of large
enoughdiametertoallowpropergasvolumetoheater.
If pipe is too small, undue loss of volume will occur.

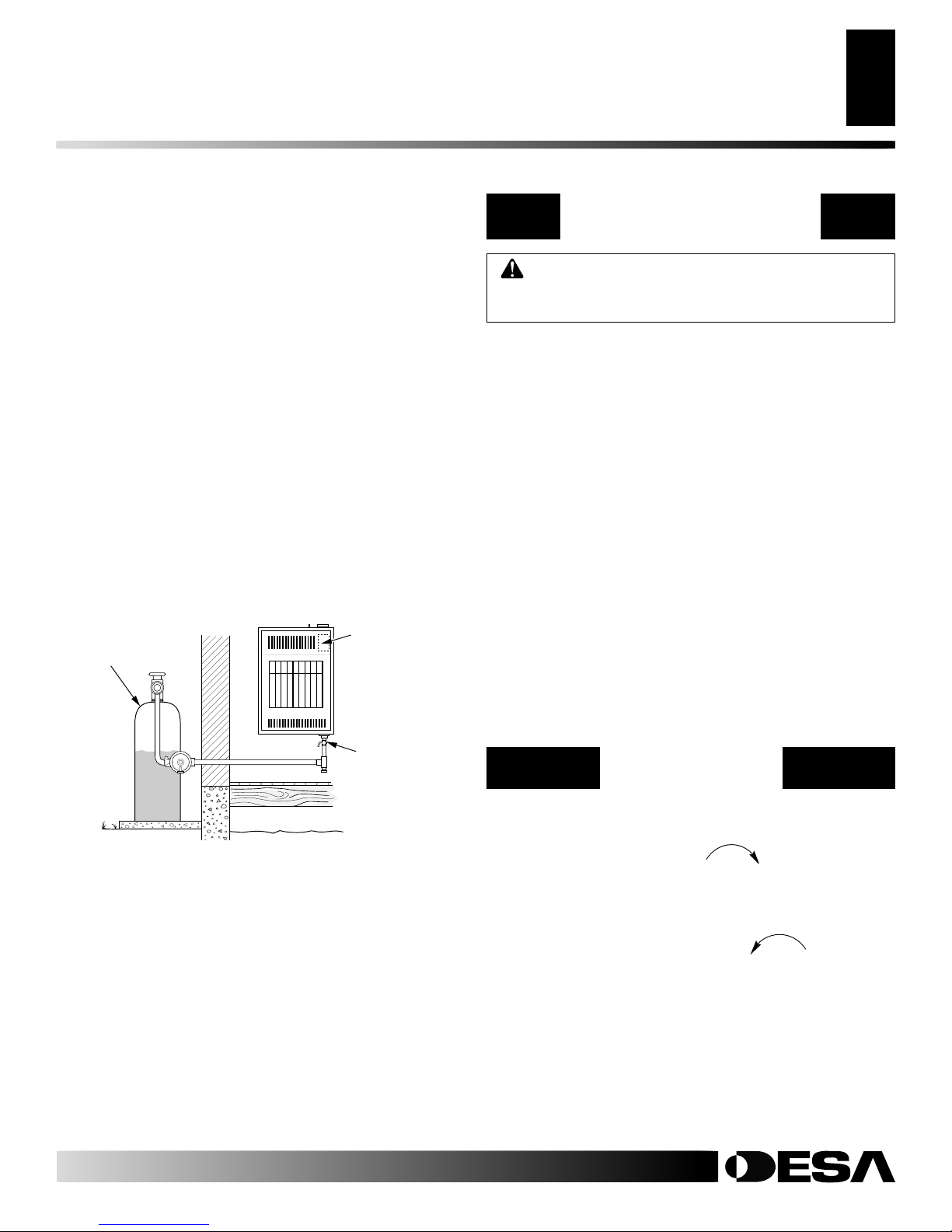

Figure 12 - External Regulator With Vent Pointing Down
External
Regulator
Propane/LP
Supply
Tank
Vent
Pointing
Down
7. Open propane/LP supply valve on propane/LP tank(s) slowly.
Note: If not opened slowly, excess-flow check valve on pro-
pane/LP tank may stop gas flow. If this happens, close pro-
pane/LP supply valve and open again slowly.
8. Check all connections for leaks. Apply a noncorrosive leak
detection fluid to gas joints. Bubbles forming show a leak that
must be corrected.
9. Close propane/LP supply valve.

110373-01D
For more information, visit www.desatech.com
For more information, visit www.desatech.com
8
Pressure Testing Gas Supply Piping System
Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)
1. Disconnect appliance with its appliance main gas valve (con-
trol valve) and equipment shutoff valve from gas supply pip-
ing system. Pressures in excess of 1/2 psig will damage heater
regulator.
2. Cap off open end of gas pipe where equipment shutoff valve
was connected.
3. Pressurize supply piping system by opening propane/LP supply
tank valve or using compressed air.
4. Check all joints of gas supply piping system.Apply a noncor-
rosive leak detection fluid to all joints. Bubbles forming show
a leak.
5. Correct all leaks at once.
6. Reconnect heater and equipment shutoff valve to gas supply.
Check reconnected fittings for leaks.
Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)
1. Close equipment shutoff valve (see Figure 14).
2. Pressurize supply piping system by either opening propane/LP
supply tank valve or using compressed air.
Figure 14 - Equipment Shutoff Valve
O
POSI
PO
Open
Closed
Equipment
Shutoff
Valve
INSTALLATION
Continued
INSTALLATION
Connecting To Permanent Gas Supply (Cont.)
Checking Gas Connections For Permanent Gas Supply
Tee Joint
Reducer
Bushing to
1/8" NPT
1/8" NPT
Plug Tap
Test
Gauge
Connection*
Heater
Cabinet
Pressure
Regulator
Tee Joint
Pipe Nipple
Cap
Ground
Joint
Union
3/8" NPT
Pipe Nipple**
Equipment Shutoff
Valve *
From External
Regulator
(11" W.C. to
14" W.C.
Pressure)
WARNING: Test all gas piping and connections,
internal andexternaltounit,for leaks after installing
or servicing. Correct all leaks at once.
WARNING:Neveruseanopenflameto check for
a leak. Apply a noncorrosive leak detection fluid to
all joints. Bubbles forming show a leak. Correct all
leaks at once.
CAUTION:Makesureexternal regulator has been
installedbetweenpropane/LPsupplyandheater.See
guidelinesunder ConnectingtoPermanentGasSup-
ply , pages 7 and 8.
Figure 13 - Gas Connection
* A CSA design-certified equipment shutoff valve with 1/8" NPT
tap is an acceptable alternative to test gauge connection. Purchase
the optional CSA design-certified equipment shutoff valve from
your dealer. See Accessories, page 18.
**The90ºelbowontheregulatorisremovedandthe3/8"NPTpipe
nipple is installed in its place.
Sediment
Trap
3" Minimum
CONNECTING TO PERMANENT GAS SUPPLY
(CONTINUED) CHECKING GAS CONNECTIONS FOR PERMANENT GAS SUPPLY
Install sediment trap in supply line as shown in Figure 13. Locate
sedimenttrapwhereitiswithinreachforcleaning.Locatesediment
trap where trapped matter is not likely to freeze. A sediment trap
traps moisture and contaminants. This keeps them from going into
heatercontrols.Ifsedimenttrapisnotinstalledorisinstalledwrong,
heater may not run properly.
IMPORTANT: Hold the pressure regulator with wrench when
connecting it to gas piping and/or fittings. Do not over tighten pipe
connection to regulator. The regulator body could be damaged.

110373-01D
For more information, visit www.desatech.com
For more information, visit www.desatech.com
9
9
CHECKING GAS CONNECTIONS FOR
PERMANENT GAS SUPPLY (CONTINUED)
INSTALLATION
Continued
INSTALLATION
Checking Gas Connections For Permanent Gas Supply (Cont.)
OPERATING HEATER
For Your Safety Read Before Lighting
Lighting Instructions
Propane/LP
Supply Tank
Equipment
Shutoff
Valve
Control
Valve
Location
Figure 15 - Checking Gas Joints
OPERATING HEATER
FOR YOUR SAFETY READ
BEFORE LIGHTING
A. This appliance has a pilot which must be lighted by hand.
When lighting the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area
for gas. Be sure to smell next to the floor because some gas
is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone
in your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire de-
partment.
C. Useonly yourhandtopush in or turnthegas controlknob.
Never use tools. If the knob will not push in or turn by
hand, don’t try to repair it, call a qualified service techni-
cian or gas supplier. Force or attempted repair may result
in a fire or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
WARNING:Ifyoudonotfollowtheseinstructions
exactly, a fire or explosion may result causing prop-
erty damage, personal injury or loss of life.
3. Check all joints from supply tank to equipment shutoff valve
(see Figure 15). Apply a noncorrosive leak detection fluid to
all joints. Bubbles forming show a leak.
4. Correct all leaks at once.
Pressure Testing Heater Gas Connections
1. Open equipment shutoff valve (see Figure 14, page 8).
2. Open propane/LP supply tank valve.
3. Make sure control knob of heater is in the OFF position.
4. Check all joints from equipment shutoff valve to thermostat
gas valve (see Figure 15).Apply a noncorrosive leak detection
fluid to all joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Light heater (see Lighting Instructions, pages 9 and 10). Check
all other internal joints for leaks.
7. Turn off heater (see To Turn Off Gas to Appliance, page 10).
8. Replace front panel.
LIGHTING
INSTRUCTIONS
1. STOP! Read the safety information above.
2. Make sure equipment shutoff valve is fully open.
3. Turn control knob clockwise to the OFF position.
4. Wait five (5) minutes to clear out any gas. Then smell for
gas, including near the floor. If you smell gas, STOP! Fol-
low “B” in the safety information above. If you don’t smell
gas, go to the next step.
5. Turncontrolknobcounterclockwise to the PILOT
position. Press in control knob for five (5) seconds (see Fig-
ure 16, page 10).
Note: You may be running this heater for the first time
after hooking up to gas supply. If so, the control knob may
need to be pressed in for 30 seconds or more. This will al-
low air to bleed from the gas system.
• If control knob does not pop up when released, contact a
qualified service person or gas supplier for repairs.

110373-01D
For more information, visit www.desatech.com
For more information, visit www.desatech.com
10
OPERATING HEATER
Continued
OPERATING HEATER
Lighting Instructions
To Turn Off Gas To Appliance
Thermostat Control Operation
Manual Lighting Procedure
CAUTION: Do not try to adjust heating levels by
using the equipment shutoff valve.
Figure 16 - Control Knob In The OFF Position
PILOT
LO
OFF
HI
IGNITOR
Ignitor Button Control Knob
Figure 17 - Pilot
TO TURN OFF GAS
TO APPLIANCE
Shutting Off Heater
1. Turn control knob clockwise to the OFF position.
2. Turn off all electric power to the appliance if service is to
be performed.
Shutting Off Burner Only (pilot stays lit)
Turn control knob clockwise to the PILOT position.
1. Remove front panel (see Figure 8, page 5).
2. Follow steps 1 through 5 under Lighting Instructions, page 9.
3. With control knob pressed in, strike match. Hold match to
pilot until pilot lights.
4. Keep control knob pressed in for 30 seconds after lighting
pilot.After 30 seconds, release control knob. Follow step 8
under Lighting Instructions.
5. Replace front panel.
THERMOSTAT CONTROL
OPERATION
The thermostatic control used on these models differs from stan-
dardthermostats.Standardthermostatssimplyturnonandoffthe
burner. The thermostat used on this heater senses the room
temperature.Thethermostatadjuststheamountofgasflowtothe
burner. This increases or decreases the burner flame height. At
times the room may exceed the set temperature. If so, the burner
willshutoff.Theburnerwillcyclebackonwhenroomtemperature
dropsbelowthesettemperature.Thecontrolknobcanbesettoany
heatlevelbetweenHIandLO.SelectingtheHIsettingwillcausethe
burnertoremainfullyonwithoutmodulatingdowninmostcases.
Note: The thermostat sensing bulb measures the temperature
of air near the heater cabinet. This may not always agree with
room temperature (depending on housing construction, instal-
lation location, room size, open air temperatures, etc.). Fre-
quent use of your heater will let you determine your own
comfort levels.
MANUAL LIGHTING
PROCEDURE
Ignitor Electrode
Pilot Burner
Thermocouple
6. With control knob pressed in, push down and release igni-
tor button. This will light pilot. The pilot is attached to the
frontofburner.Thepilotcanbe seenthroughtheglasspanel.
If needed, keep pressing ignitor button until pilot lights.
Note: If pilot does not stay lit, refer to Troubleshooting,
pages 13 through 15. Also contact a qualified service per-
sonorgassupplierforrepairs.Untilrepairsaremade,light
pilot with match. To light pilot with match, see Manual
Lighting Procedure.
7. Keep control knob pressed in for 30 seconds after lighting
pilot. After 30 seconds, release control knob.
• If control knob does not pop up when released,contact a
qualified service person or gas supplier for repairs.
Note: Ifpilotgoesout,repeatsteps 3 through7.This heater
has a safety interlock system. Wait one (1) minute before
lighting pilot again.
8. Turn control knob counterclockwise to desired
heating level. The main burner should light. Set control
knob to any heat level between HI and LO.

110373-01D
For more information, visit www.desatech.com
For more information, visit www.desatech.com
11
11
INSPECTING BURNER
Check pilot flame pattern and burner flame pattern often.
PILOT FLAME PATTERN
Figure 18 shows a correct pilot flame pattern. Figure 19 shows an
incorrect pilot flame pattern. The incorrect pilot flame is not
touching the thermocouple. This will cause the thermocouple to
cool. When the thermocouple cools, the heater will shut down.
If pilot flame pattern is incorrect, as shown in Figure 19
• turn heater off (see To Turn Off Gas to Appliance, page 10)
• see Troubleshooting, pages 13 through 15
INSPECTING BURNER
Pilot Flame Pattern
Burner Flame Heater
STORAGE
BURNER FLAME PATTERN
Figure20showsacorrectburnerflamepattern.Figure21showsan
incorrect burner flame pattern. The incorrect burner flame pattern
shows yellow tipping of the flame. It also shows the flame higher
than 1/2 the glass panel height.
WARNING: If yellow tipping occurs, your heater
couldproduce increased levelsofcarbonmonoxide.
If burner flame pattern shows yellow tipping, see the
following instructions.
NOTICE: Do not mistake orange flames with yellow
tipping. Dust or other fine particles enter the heater
and burn causing brief patches of orange flame.
If burner flame pattern is incorrect, as shown in Figure 23
• turn heater off (see To Turn Off Gas to Appliance, page 10)
• see Troubleshooting, pages 13 through 15
GRH/OV 008BAD PILOT/LP
GRH/O
V
GOOD PILOT/LP
Thermocouple
Pilot Burner
Figure 18 - Correct Pilot Flame Pattern
Thermocouple Pilot Burner
Figure 19 - Incorrect Pilot Flame Pattern
Figure 20 - Correct Burner Flame Pattern
1/2 GLASS HEIGHT
1/2 GLASS HEIGHT
Figure 21 - Incorrect Burner Flame Pattern
Yellow Tipping
STORAGE
CAUTION: Disconnect heater from propane/LP
supply tank(s).
When the propane/LP supply cylinder is not disconnected from the
heater,theheaterandthe cylindermustbestoredoutdoors,inawell
ventilatedspace,outofreachofchildren.Donotstoreinabuilding,
garage or any other enclosed area.
Storage of the heater is permissible only if the cylinder is discon-
nected and removed from the heater. Cylinders must be stored
outdoors out of reach of children. Do not store in a building, garage
or any other enclosed area.
1. Store propane tank(s) in safe manner. See Chapter 5 of Stan-
dard for Storage and Handling of Liquefied Petroleum Gases,
ANSI/NFPA 58. Follow all local codes.Always store propane
tanks outdoors.
2. Place plastic cover caps over brass fittings on inlet connector
and hose/regulator assembly.
3. Store in dry, clean, and safe place. Do not store hose/regulator
assembly inside heater combustion chamber.
4. When taking heater out of storage, always check inside of
heater. Insects and small animals may place foreign objects in
heater.
Thermocouple
Pilot Burner
Pilot
Burner
Thermocouple
Blue Flame
Yellow
Flame

110373-01D
For more information, visit www.desatech.com
For more information, visit www.desatech.com
12
CLEANING AND MAINTENANCE
ODS/Pilot and Burner
Cleaning Burner Pilot Air Inlet
Cabinet
CABINET
Air Passageways
• Use a vacuum cleaner or pressurized air to clean.
Exterior
• Use a soft cloth dampened with a mild soap and water mixture.
Wipe the cabinet to remove dust.

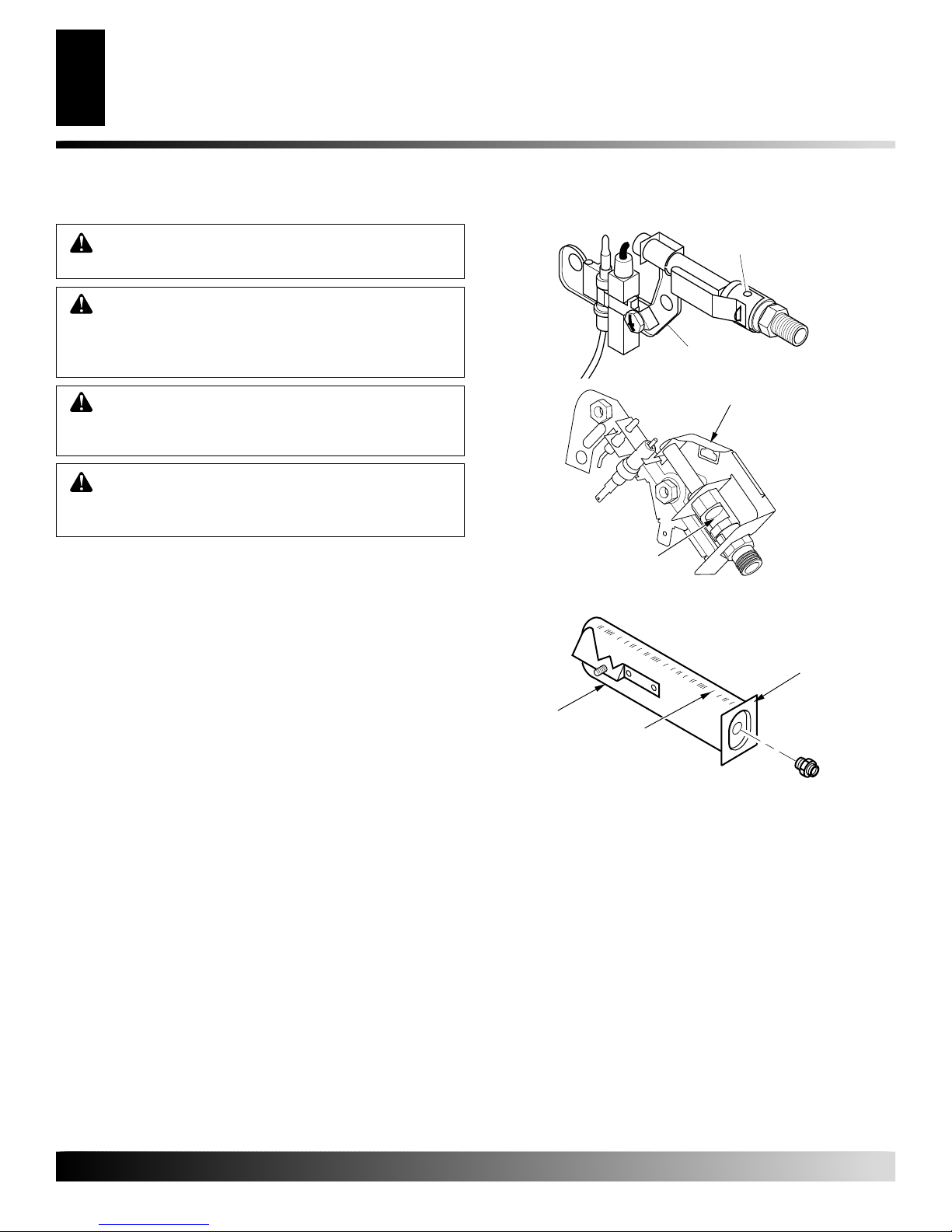

Figure 22 - Pilot Inlet Air Hole
Pilot Assembly
Pilot Air Inlet
Hole
CLEANING AND
MAINTENANCE
ODS/PILOT AND BURNER
• Use a vacuum cleaner, pressurized air, or small, soft bristled
brush to clean.
CLEANING BURNER PILOT AIR INLET
Theprimaryairinletholesallowtheproper amountofairtomixwith
the gas. This provides a clean burning flame. Keep these holes clear
of dust, dirt, and lint. Clean these air inlet holes prior to each heating
season. Blocked air holes will create soot. We recommend that you
clean the unit every three months during operation and have heater
inspected yearly by a qualified service person.
We also recommend that you keep the burner tube and pilot
assembly clean and free of dust and dirt. To clean these parts we
recommendusingcompressedairnogreaterthan30PSI.Yourlocal
computer store, hardware store, or home center may carry com-
pressed air in a can. You can use a vacuum cleaner in the blow
position. If using compressed air in a can, please follow the direc-
tionsonthecan.Ifyoudon'tfollowdirectionsonthecan, youcould
damage the pilot assembly.
1. Shut off the unit, including the pilot.Allow the unit to cool for
at least thirty minutes.
2. Inspect burner, pilot for dust and dirt.
3. Blow air through the ports/slots and holes in the burner.
4. Never insert objects into the pilot tube.
Clean the pilot assembly also. A yellow tip on the pilot flame
indicates dust and dirt in the pilot assembly. There is a small pilot
air inlet about two inches from where the pilot flame comes out of
thepilotassembly(seeFigure22).Withtheunitoff,lightlyblowair
through the air inlet. You may blow through a drinking straw if
compressed air is not available.
WARNING: Turn off heater and let cool before
cleaning.
CAUTION: You must keep control areas, burner,
and circulating air passageways of heater clean.
Inspect these areas of heater before each use. Have
heaterinspectedyearlybyaqualifiedserviceperson.
CAUTION: You must check and keep burner/
venturi tubes clean of insect and insect nest. A
clogged tube can lead to a fire.
(Propane/LP
Pilot Shown)
Pilot Assembly
Pilot Air Inlet
Figure 23 - Injector Holder On Burner Tube
Burner
Tube
Injector Holder
Ports/Slots
WARNING: Failure to keep the primary air
opening(s) of the burner(s) clean may result in soot-
ing and property damage.

110373-01D
For more information, visit www.desatech.com
For more information, visit www.desatech.com
13
13
TROUBLESHOOTING
WARNING: Turn off heater
and let cool before servicing.
Only a qualified service per-
son should service and repair
heater.
CAUTION: Never use a wire,
needle, or similar object to clean
ODS/pilot.ThiscandamageODS/
pilot unit.
POSSIBLE CAUSE
1. Ignitor electrode positioned wrong
2. Ignitor electrode broken
3. Ignitor electrode not connected to igni-
tor cable
4. Ignitor cable pinched or wet
5. Piezo ignitor nut is loose
6. Broken ignitor cable
7. Bad piezo ignitor
1. Gas supply turned off or equipment
shutoff valve closed
2. Control knob not in PILOT position
3. Control knob not pressed in while in
PILOT position
4. Air in gas lines when installed
5. ODS/pilot is clogged
6. Gas regulator setting is not correct
1. Control knob not fully pressed in
2. Control knob not pressed in long enough
3. Safety interlock system has been trig-
gered
4. Equipment shutoff valve not fully open
5. Thermocouple connection loose at con-
trol valve
6. Pilot flame not touching thermocouple,
which allows thermocouple to cool,
causing pilot flame to go out.This prob-
lem could be caused by one or both of
the following:
A) Low gas pressure
B) Dirty or partially clogged ODS/pilot
7. Thermocouple damaged
8. Control valve damaged
REMEDY
1. Replace pilot assembly
2. Replace pilot assembly
3. Reconnect ignitor cable
4. Free ignitor cable if pinched by any
metal or tubing. Keep ignitor cable dry
5. Tighten nut holding piezo ignitor to
heater cabinet. Nut is located inside
heater cabinet at top
6. Replace ignitor cable
7. Replace piezo ignitor
1. Turn on gas supply or open equipment
shutoff valve
2. Turn control knob to PILOT position
3. Press in control knob while in PILOT
position
4. Continue holding down control knob.
Repeat igniting operation until air is re-
moved
5. Clean ODS/pilot (see Cleaning and
Maintenance, page 12) or replace ODS/
pilot assembly
6. Replace gas regulator
1. Press in control knob fully
2. After ODS/pilot lights, keep control
knob pressed in 30 seconds
3. Wait one minute for safety interlock sys-
tem to reset. Repeat ignition operation.
4. Fully open equipment shutoff valve
5. Hand tighten until snug, then tighten 1/4
turn more
6. A)Contactlocalpropane/LPgascompany
B) Clean ODS/pilot (see Cleaning and
Maintenance, page 12) or replace ODS/
pilot assembly
7. Replace pilot assembly
8. Replace control valve
OBSERVED PROBLEM
When ignitor button is pressed, there is no
spark at ODS/pilot
When ignitor button is pressed, there is
spark at ODS/pilot but no ignition
ODS/pilot lights but flame goes out when
control knob is released
Note: Alltroubleshootingitemsarelistedin
order of operation.
TROUBLESHOOTING

110373-01D
For more information, visit www.desatech.com
For more information, visit www.desatech.com
14
TROUBLESHOOTING
TROUBLESHOOTING
Continued
REMEDY
1. Clean burner orifice (see Cleaning and
Maintenance, page 12) or replaceburner
orifice
2. Contact local propane/LP gas company
1. Contact local propane/LP gas company
2. Clean burner orifice (see Cleaning and
Maintenance, page 12) or replaceburner
orifice
1. Clean burner orifice (see Cleaning and
Maintenance, page 12) or replaceburner
orifice
2. Contact local propane/LP gas company
3. Replace burner
4. Replace gas regulator
1. Check burner for dirt and debris. If
found, clean burner (see Cleaning and
Maintenance, page 12)
2. Contact local propane/LP gas company
3. Replace gas regulator
1. Problem will stop after a few hours of
operation
1. Turn control knob to LO position and
let warm up for a minute
2. Operate burner until air is removed
from line. Have gas checked by local
propane/LP gas company
3. Observe minimum installation clear-
ances (see Figure 2, page 4)
4. Clean burner (see Cleaning and Mainte-
nance, page 12) or replace burner orifice
POSSIBLE CAUSE
1. Burner orifice is clogged
2. Inlet gas pressure is too low
1. Manifold pressure is too low
2. Burner orifice is clogged
1. Burner orifice is clogged or damaged
2. Inlet gas pressure is too low
3. Burner damaged
4. Gas regulator defective
1. Not enough air
2. Inlet gas pressure is too low
3. Gas regulator defective
1. Residues from manufacturing processes
1. Turn control knob to HI position when
burner is cold
2. Air in gas line
3. Air passageways on heater blocked
4. Dirty or partially clogged burner orifice
OBSERVED PROBLEM
Burner does not light after ODS/pilot is lit
Delayed ignition of burner
Burner backfiring during combustion
Yellow flame during burner combustion
Slightsmokeorodorduringinitialoperation
Heater produces a whistling noise when
burner is lit

110373-01D
For more information, visit www.desatech.com
For more information, visit www.desatech.com
15
15
TROUBLESHOOTING
WARNING: If you smell gas
•Shut off gas supply.
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in your
building.
•Immediately call your gas supplier from a neighbor’s phone. Follow
the gas supplier’s instructions.
•If you cannot reach your gas supplier, call the fire department.
TROUBLESHOOTING
Continued
IMPORTANT :Operatingheaterwhere impuritiesinair existmaycreateodors. Cleaning
supplies,paint,paintremover,cigarettesmoke, cements and glues,newcarpetortextiles,
etc., create fumes. These fumes may mix with combustion air and create odors.
OBSERVED PROBLEM
Heater produces a clicking/ticking noise
just after burner is lit or shut off
Heater produces unwanted odors
Heater shuts off in use (ODS operates)
Gas odor even when control knob is in OFF
position
Gas odor during combustion
Moisture/condensationnoticedonwindows
REMEDY
1. This is common with most heaters. If
noise is excessive, contact qualified ser-
vice person
1. Ventilate room. Stop using odor-causing
products while heater is running
2. Refill supply tank
3. Locate and correct all leaks (see Check-
ingGasConnectionsforPermanentGas
Supply, page 9)
1. Open windowand/ordoorforventilation
2. Contact local propane/LP gas company
3. Clean ODS/pilot (see Cleaning and
Maintenance, page 12)
1. Locate and correct all leaks (see Check-
ingGasConnectionsforPermanentGas
Supply, page 9)
2. Replace control valve
1. Take apart gas tubing and remove for-
eign matter
2. Locate and correct all leaks (see Check-
ingGasConnectionsforPermanentGas
Supply, page 9)
1. Provide more combustion area. A
minimum 10 square inches of ventila-
tion air must be provided for adequate
combustion.
POSSIBLE CAUSE
1. Metal expanding while heating or con-
tracting while cooling
1. Heater burning vapors from paint, hair
spray, glues, etc. See IMPORTANT
statement above
2. Low fuel supply
3. Gas leak. SeeWarning statement at
top of page
1. Not enough fresh air is available
2. Low line pressure
3. ODS/pilot is partially clogged
1. Gas leak. SeeWarning statement at
top of page
2. Control valve defective
1. Foreign matter between control valve
and burner
2. Gas leak. SeeWarning statement at
top of page
1. Not enough combustion/ventilation air

110373-01D
For more information, visit www.desatech.com
For more information, visit www.desatech.com
16
1
2
3
4
5
6
79
8
10
13
14
15
16
17
18
21 22
24
14
20
23
19
10
12
11
ILLUSTRATED PARTS
BREAKDOWN
MODELS
REM10PT
RH10PT
ILLUSTRATED PARTS BREAKDOWN
Models REM10PT and RH10PT
PILOT

110373-01D
For more information, visit www.desatech.com
For more information, visit www.desatech.com
17
17
PARTS LIST
This list contains replaceable parts used in your heater. When
ordering parts, follow the instructions listed under Replacement
Parts on page 18 of this manual.
PARTS LIST
Models REM10PT and RH10PT
KEY PART NUMBER
NO. REM10PT RH10PT DESCRIPTION QTY.
1 098304-01 098304-01 Screw, #10 x 3/8" 2
2 099467-03 099467-10 Front Panel Assembly 1
3 099318-04 099318-04 Grill Guard 1
4 101108-01 101108-01 Grill Guard Clip 2
5 102017-02 102017-02 Bottom Glass Retainer 1
6 098260-11 098260-11 Glass Panel 1
7 099319-02 099319-02 Top Glass Retainer 1
8 M11084-38 M11084-38 Screw, #8 x 3/8" 8
9 099317-02 099317-02 Deflector Unit 1
10 098271-09 098271-09 Ignitor Cable 1
11 098249-01 098249-01 Nut, M5 2
12 110803-02 110803-02 ODS/Pilot Assembly 1
13 104263-01 104263-01 Burner 1
14 099387-11 099387-11 Pilot Tubing 1
15 104259-06 104259-06 Injector, 1 Piece 1
16 NJF-8C NJF-8C Hex Nut 1
17 099415-18 099415-18 Pressure Regulator 1
18 104261-01 104261-01 Burner Tubing 1
19 104264-01 104264-01 Regulator Tubing 1
20 098522-18 098522-18 Thermostat Gas Valve 1
21 ** ** Cabinet 1
22 097159-04 097159-04 Piezo Ignitor 1
23 110701-01 110701-01 Elbow Fitting 1
24 098303-02 098303-02 Screw, #6 x 5/16" 2
PARTS AVAILABLE - NOT SHOWN
100642-02 100642-02 Assembly, Hardware 1
LPA3090 LPA3090 Hose/Regulator Assembly 1
** Not a field replacable part.

110373-01D
For more information, visit www.desatech.com
For more information, visit www.desatech.com
18
SPECIFICATIONS
REM10PT and RH10PT
Btu(Variable) 5,000/10,000
Type Gas Propane/LP Only
Ignition Piezo
Internal Regulator Setting 8" W.C.
Inlet Gas Pressure to Heater
(inches of water) 14" Max. / 11" Min.
Supply Pressure to Regulator
Min (for input adjustment) 10 psi
Max 200 psi
Heater Dimensions
(Includes knobs and grill) 21.5" (H) x 13.5" (W) x 7" (D)
Shipping Weight (pounds) 21
TECHNICAL SERVICE
You may have further questions about installation, operation, or
troubleshooting. If so, contact DESA Heating Products’ Technical
Service Department at 1-866-672-6040. When calling please have
your model and serial numbers of your heater ready.
You can also visit DESA Heating Products’ technical service web
site at www.desatech.com.
SERVICE HINTS
When Gas Pressure Is Too Low
• pilot will not stay lit
• burner will have delayed ignition
• heater will not produce specified heat
• propane/LP gas supply may be low
You may feel your gas pressure is too low. If so, contact your local
propane/LP gas supplier.
SERVICE PUBLICATIONS
Youcanpurchaseaservicemanualfromthe addresslistedon the
back page of this manual. Send a check for $5.00 payable to
DESA Heating Products.
SPECIFICATIONS
TECHNICAL SERVICE
SERVICE HINTS
SERVICE PUBLICATIONS
ACCESSORIES
REPLACEMENT PARTS
REPLACEMENT PARTS
Note: Use only original replacement parts. This will protect your
warranty coverage for parts replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealer from whom you purchased this product.
If they cannot supply original replacement part(s), call DESA
Heating Products’ Technical Service Department at 1-866-672-
6040 for referral information. When contacting your dealer or
DESA Heating Products, have ready:
• your name and address
• model and serial numbers of your heater
• how heater was malfunctioning
• type of gas used (propane/LP or natural gas)
• purchase date
Usually, we will ask you to return the part to the factory.
PARTS NOT UNDER WARRANTY
Contact authorized dealers of this product. If they cannot
supply original replacement part(s), call DESA Heating Prod-
ucts at 1-866-672-6040 for referral information. When calling
DESA Heating Products, have ready:
• model number of your heater
• the replacement part number
ACCESSORIES
Purchase this heater accessory from your local dealer. If they
cannot supply this accessory, call DESA Heating Products at
1-866-672-6040 for referral information. You can also write
to the address listed on the back page of this manual.
Part Number Description
LPA4020 Fuel Gas Connector
Connects regulator to all standard pro-
pane tanks. U.L. and A.G.A. listed.

110373-01D
For more information, visit www.desatech.com
For more information, visit www.desatech.com
19
19
1. If you bought this product yourself, did you plan to purchase this type of product before going into the store? ❍ Yes ❍ No
2. Who selected the product? ❍Male ❍Female ❍Both
3. What is the population of your area? ❍ Under 10,000 ❍ 10,000 to 25,000 ❍25,000 to 50,000 ❍ 50,000 to 100,000
❍ 100,000 to 250,000 ❍ Over 250,000
4. What is your primary source of heat? ❍ Propane (LP Gas) ❍ Fuel Oil ❍ Wood ❍ Natural Gas ❍ Electric ❍ Other
5. How was the product installed? ❍ Professional Installer ❍ Self ❍ Other
6. Cost of product excluding sales tax? $___________________
7. Cost to install product? $____________________
8. Type of store where product was purchased? ❍ Hardware ❍ Propane Dealer ❍ Natural Gas/Utility Co. ❍ Home Center/Builder’s Supply
❍ Farm Store ❍ Other
9. What motivated you to buy this product? ❍ Sudden Cold Weather ❍ Replace Older Model
❍ Heater was on Sale ❍ Energy Savings/High Efficiency ❍ Other
10. How did you learn about this product brand? ❍ Advertising ❍ Relative or Friend ❍ Store Display ❍ Other ________________________
11. Level of Education of Purchaser: ❍ Some High School ❍ Completed High School ❍ Completed College ❍ Completed Graduate School
12. Age of Purchaser: ❍ Under 20 ❍ 20 - 29 ❍ 30 - 39 ❍ 40 - 49 ❍ 50 - 59 ❍ 60 or Over
13. Buyer’s total annual household income: ❍ Under $15,000 ❍ $15,000 to $19,999 ❍ $20,000 to $34,999 ❍ $35,000 to $49,999
❍ $50,000 to $74,999 ❍ $75,000 to $99,999 ❍ $100,000 and Over
14. Store where product was purchased:
Name: ______________________________________
City: _______________________ State: __________
15. In choosing this product, how important were the following:
Availability
Price
Brand Name
Overall Quality
Heat Output
Made in USA
Warranty
Local Service
Value for Price
Prior Brand Experience
Controls Location
Thermostat, Remote, or Manual Operation
Ease of Operation
Special Features
Salesperson’s Recommendation
Friend/Relative’s Recommendation
Portability
Quiet Operation
OWNER'S REGISTRATION FORM
Please answer the following questions to register your product with DESA Heating Products:
In order to provide better customer service for this and future purchases, we recommend that you register your product with us.
You can register online at www.desatech.com.If access to our website is not available to you, please complete this Owner’s
Registration Form and mail to the address on the back of this owner’s manual. Please provide the following product information:
Not Important Somewhat Important Very Important
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
Brand: (Comfort Glow, Vanguard, etc.)
Model: (EFP33PR, VTGH33NR, etc.)
Date Purchased: Note: Keep receipt for warranty verification.
Serial Number: 7 or 9 digit number located on product or identification tag.
First Name: Last Name:
Address:
City: State: Zip: Country:
Home Phone: ( ) -
E-Mail:

110373-01D
For more information, visit www.desatech.com
For more information, visit www.desatech.com
20
2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
Postage
Required
TAPE
TAPE
