Desa BLP35ES User manual

PROPANE
CONSTRUCTION
HEATER
BAUSTELLEN-
PROPANHEIZGERÄT
OWNER’S MANUAL
BEDIENUNGSANLEITUNG
Model: BLP35ES
Modell: BLP35ES

Blank

PROPANE
CONSTRUCTION
HEATER
OWNER’S MANUAL
IMPORTANT
Read and understand this manual before assembling, starting, or servicing
heater. Improper use of heater can cause serious injury. Keep this manual
for future reference.
Model: BLP35ES

2
Safety Information.........................................................................2
Unpacking......................................................................................3
Product Identification .................................................................... 4
Theory of Operation ......................................................................4
Propane Supply..............................................................................5
Installation .....................................................................................5
Ventilation .....................................................................................6
Operation .......................................................................................6
Storage ........................................................................................... 8
Maintenance ..................................................................................8
Troubleshooting.............................................................................9
Service Procedures ........................................................................10
Electrical System..................................................................... 10
Motor.......................................................................................10

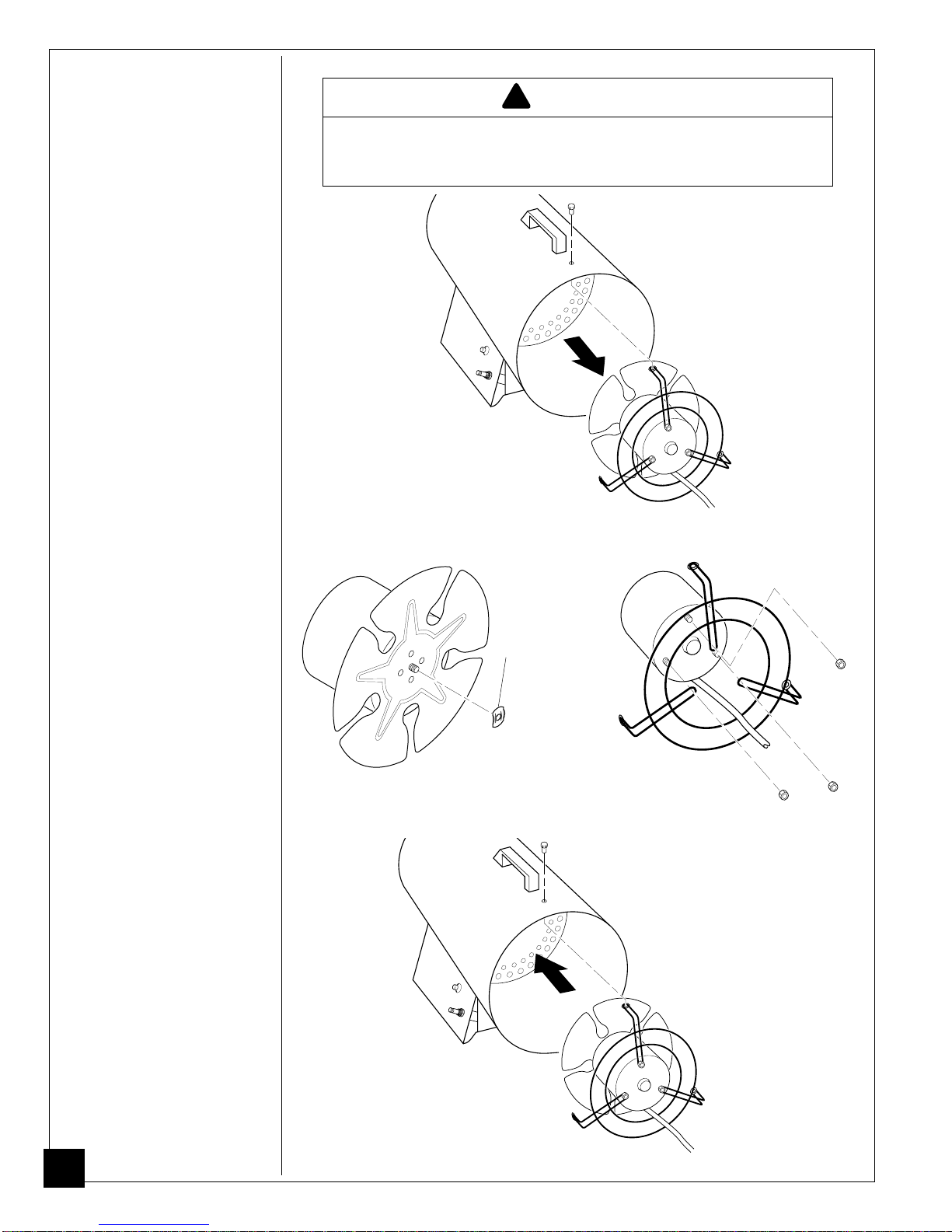

Fan........................................................................................... 11
Ignitor......................................................................................12
If Gas Leak Occurs ........................................................................13
Specifications................................................................................. 13
Illustrated Parts Breakdown and Parts List.................................... 14, 15
Warranty and Repair Service.........................................................Back Cover
SECTION PAGE
CONTENTS
SAFETY
INFORMATION IMPORTANT: Read this owner’s manual carefully and completely
beforetryingtoassemble,operate,orservicethisheater.Improperuse
of this heater can cause serious injury or death from burns, fire,
explosion, electrical shock, or carbon monoxide poisoning.
Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning
resemble the flu, with headaches, dizziness, and/or nausea. If you have these signs,
the heater may not be working properly. Get fresh air at once! Have heater
serviced. Some people are more affected by carbon monoxide than others. These
include pregnant women, people with heart or lung disease or anemia, those under
the influence of alcohol, and those at high altitudes.
PropaneGas:Propanegasisodorless.Anodor-makingagentisaddedtopropane
gas. The odor helps you detect a propane gas leak. However, the odor added to
propane gas can fade. Propane gas may be present even though no odor exists.
Makecertainyoureadandunderstandallwarnings.Keepthismanualforreference.
It is your guide to safe and proper operation of this heater.
Safety Information continues on next page
!
WARNINGS
FOR YOUR SAFETY
Do not use this heater in a space where gasoline or other
liquids having flammable vapors are stored or used.

3
SAFETY
INFORMATION
Continued
•Not for domestic use (inside living areas). Use heater for space heating only.
•Primarily intended for temporary heating of buildings under construction,
alteration, or repair.
•Install and use heater with care. Follow all local ordinances and codes.
•Use only in a well-vented area away from combustible materials.
•Provide proper ventilation. If not, excessive levels of carbon monoxide (CO)
and carbon dioxide (CO2) will form. Provide two fresh, outside air openings
for ventilation. One opening should be near the floor, the other opening near
the ceiling. Each ventilation opening must be at least 130 cm2.
•Never use heater where gasoline, paint thinner, or other highly flammable
vapors are present. Use only in places free of flammable vapors or high dust
content.
•Do not use heater below ground level. Propane gas is heavier than air. If a
leak occurs, propane gas will sink to the lowest possible level.
•Keep heater away from strong drafts, water spray, rain, or dripping water.
•Check heater for damage before each use. Do not use a damaged heater.
•Use only propane gas, I3P.
•Keep propane tank(s) below 38°C.
•Unhook heater from propane and electrical supply before moving or when not
in use.
•Use only the electrical voltage and frequency specified on model plate.
•Use only the hose and regulator provided with the heater.
•Inspect hose before each use. If cut, worn, or damaged, replace before using
heater. Use the replacement hose assembly specified in this manual.
•Keep heater at least two meters from propane tank(s). Do not point heater at
propane tank(s).
•Minimum heater clearances from combustibles:
Outlet: 3 meters Sides: 1 meter Top: 2 meters Rear: 1 meter
•Locate heater on stable and level surface if heater is hot or running.
•Keep children and animals away from heater.
•Never block air inlet (rear) or air outlet (front) of heater.
•Never move, handle, or service a hot, operating, or plugged-in heater.
•Do not alter heater. Keep heater in its original state.
•Do not use heater if altered.
•Never attach duct work to front or rear of heater.
•Use only original replacement parts. This heater must use design-specific
parts. Do not substitute or use generic parts. Improper replacement parts could
cause serious or fatal injuries.
!
WARNINGS Continued
1. Remove all packing items applied to heater for shipment. Keep packing items
and carton for storing heater.
2. Remove all items from carton.
3. Check all items for shipping damage. If heater is damaged, promptly inform
dealer where you bought heater.
UNPACKING

4
PRODUCT
IDENTIFICATION
Hot Air Outlet
(Front) Shell
Handle Motor
Fan Guard
Piezo Ignitor
Button
Heater Base
Automatic
Control Valve
Button Inlet
Connector
Hose /Regulator
Assembly

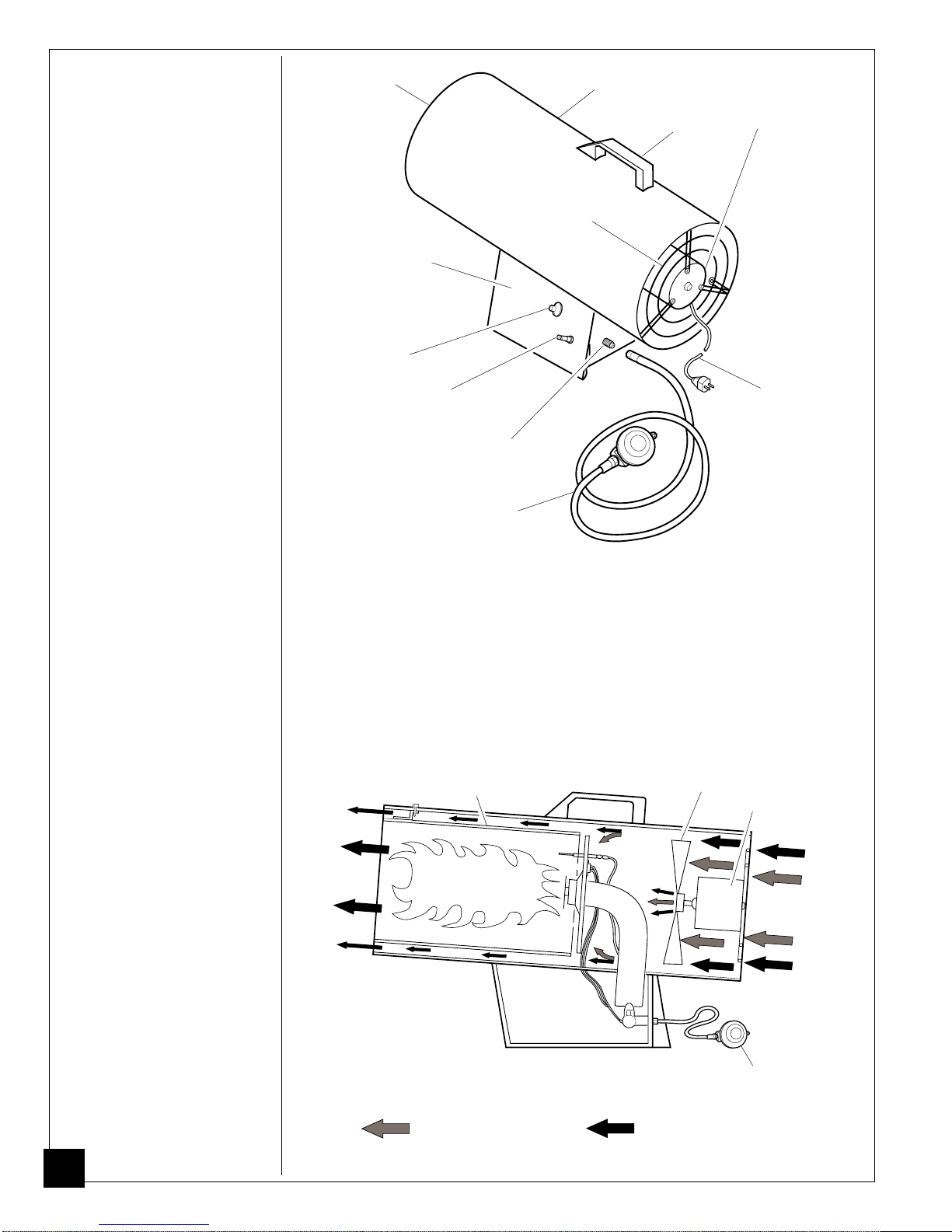

Figure 1 - Model BLP35ES
Air For Combustion Air For Heating
Clean
Heated
Air Out
(Front) Cool Air In
(Back)
Combustion
Chamber Fan Motor
Hose/Regulator
Assembly
Figure 2 - Cross Section Operational View
THEORY OF
OPERATION The Fuel System: The hose/regulator assembly attaches to the propane gas
supply. This provides fuel to the heater.
The Air System: The motor turns the fan. The fan pushes air into and around
the combustion chamber. This air is heated and provides a stream of clean, hot air.
The Ignition System: The piezo ignitor lights the burner.
The Burner Control System: This system causes the heater to shut down if
the flame goes out.
Power
Cord

5
PROPANE
SUPPLY
User must provide propane gas and propane tank(s).
Use this heater only with a propane vapor withdrawal supply system. The amount
of propane gas ready for use from propane tanks varies. Two factors decide this
amount:
1. The amount of propane gas in tank(s)
2. The temperature of tank(s)
This heater is designed to operate with a minimum 9-kg propane tank. You may
need two or more tanks or one larger tank in colder weather. Use a 45-kg tank for
longer operation or in very cold weather. Less gas is vaporized at lower tempera-
tures. Your local propane gas dealer will help you select the proper supply system.
Average Temperature (°C)
At Tank Location 5° 0° -7° -12° -18° -23° -29°
Number Of Tanks
(45-kg) 1111 1 22
INSTALLATION
!
WARNING
Review and understand the warnings in the Safety Informa-
tion Section, pages 2 and 3. They are needed to safely oper-
ate this heater. Follow all local codes when using this heater.
Test all gas piping and connections for leaks after installation
or servicing. Never use an open flame to check for a leak.
Apply a mixture of liquid soap and water to all joints. Bubbles
forming show a leak. Correct all leaks at once.
!
WARNING
1. Provide propane supply system (see Propane Supply, above).
2. Connect fuel gas connector on hose/regulator assembly to propane tank(s).
Tighten firmly using wrench.
IMPORTANT: Position regulator so that hose
leaving the regulator is in a horizontal position (see Figure 3). This places the
regulator vent in the proper position to protect it from the weather.
Propane
Tank
Regulator
Hose
Fuel Gas
Connector
Propane
Supply
Valve
Continued

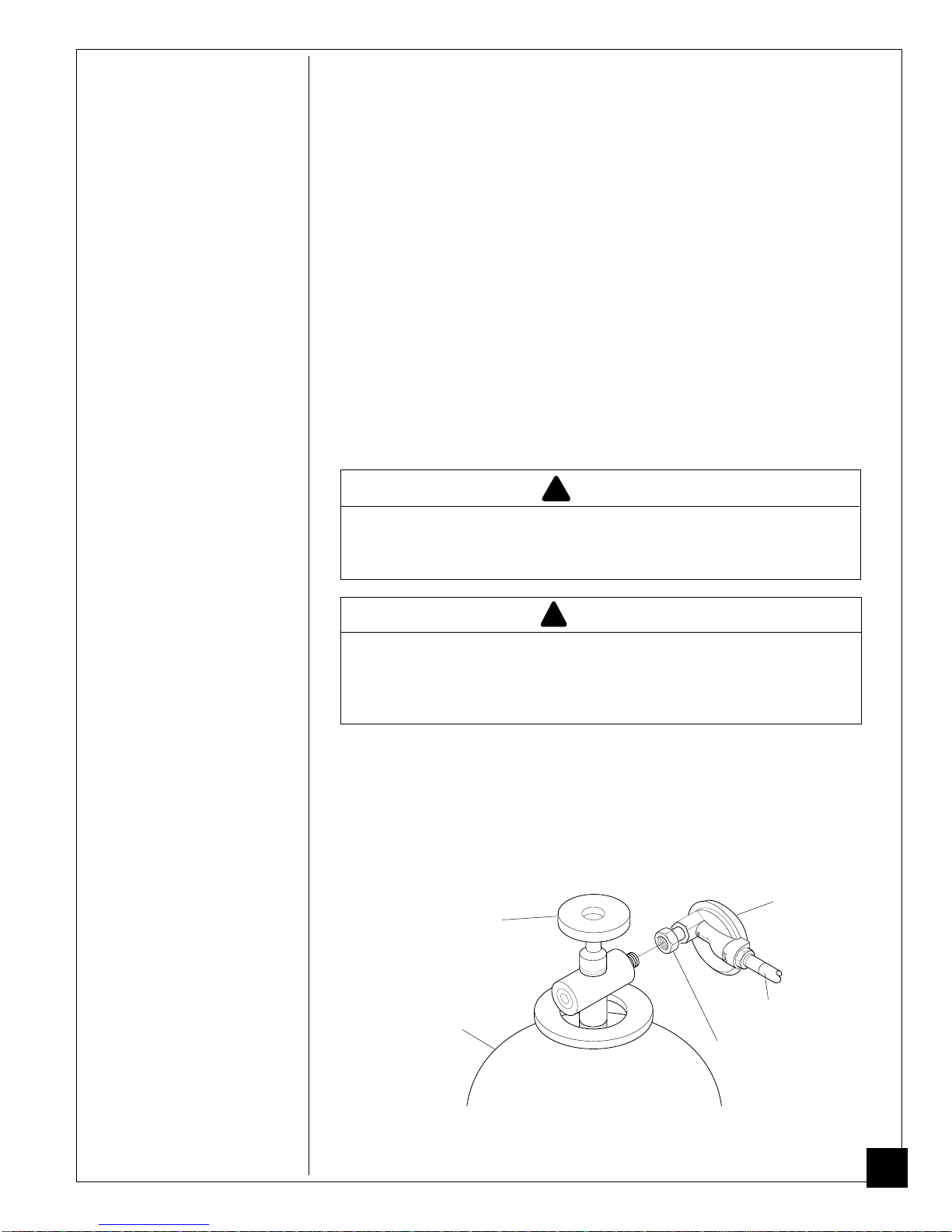

Figure 3 - Regulator Position

6
INSTALLATION
Continued
3. Connect hose to inlet connector. Tighten firmly using a wrench.
IMPORTANT: Use extra hose or piping if needed. Install extra hose or piping
between hose/regulator assembly and propane tank. You must use the regula-
tor supplied with heater.
Inlet Connector Hose
Figure 4 - Hose and Inlet Connector
4. Open propane supply valve on propane tank(s).
5. Check all connections for leaks. Apply mixture of liquid soap and water to gas
joints. Bubbles forming show a leak that must be corrected.
Never use an open flame to check for a leak. Apply a mixture
of liquid soap and water to all joints. Bubbles forming show a
leak that must be corrected. Correct all leaks at once.
6. Close propane supply valve.
!
WARNING
Provide proper ventilation. If proper fresh, outside air ventila-
tion is not provided, carbon monoxide poisoning can occur.
Provide two fresh, outside air openings for ventilation. One
opening should be near the floor, the other opening near the
ceiling. Each ventilation opening must be at least 130 cm2.
Provide proper fresh, outside air ventilation before running
heater.
VENTILATION
!
WARNING
OPERATION
Review and understand the warnings in the Safety Informa-
tion section, pages 2 and 3. They are needed to safely oper-
ate this heater. Follow all local codes when using this heater.
!
WARNING
To Start Heater
1. Follow all installation, ventilation, and safety information.
2. Locate heater on stable and level surface. Make sure strong drafts do not blow
into front or rear of heater.
3. Plug heater power cord into electrical source. Motor will start. Fan will turn,
forcing air out front of heater.
4. Open propane supply valve on propane tank(s).

7
OPERATION
Continued
Notice: If heater is unplugged or power outage occurs while heater is running, the
thermal limit device will stop fuel flow. A few seconds occur before the thermal
limit device activates. During this short time, flames may appear outside the
heater. This is normal. The flames will go out when thermal limit device activates.
To Stop Heater
1. Tightly close propane supply valve on propane tank(s).
2. Wait a few seconds. Heater will burn gas left in supply hose.
3. Unplug heater.
To Restart Heater
1. Wait five minutes after stopping heater.
2. Repeat steps under To Start Heater, page 6.
To Change Propane Tank(s)
Change propane tank(s) in a flame-free area. Use only propane gas, I3P.
1. Tightly close the propane supply valve(s) on the propane tank(s).
2. Disconnect the hose/regulator assembly from the propane tank(s).
3. Connect the hose/regulator assembly to the new propane tank(s). Tighten
firmly.
4. Check all connections for leaks.
!
WARNING
Never use an open flame to check for a leak. Apply a
mixture of liquid soap and water to all joints. Bubbles
forming show a leak. Correct all leaks at once.

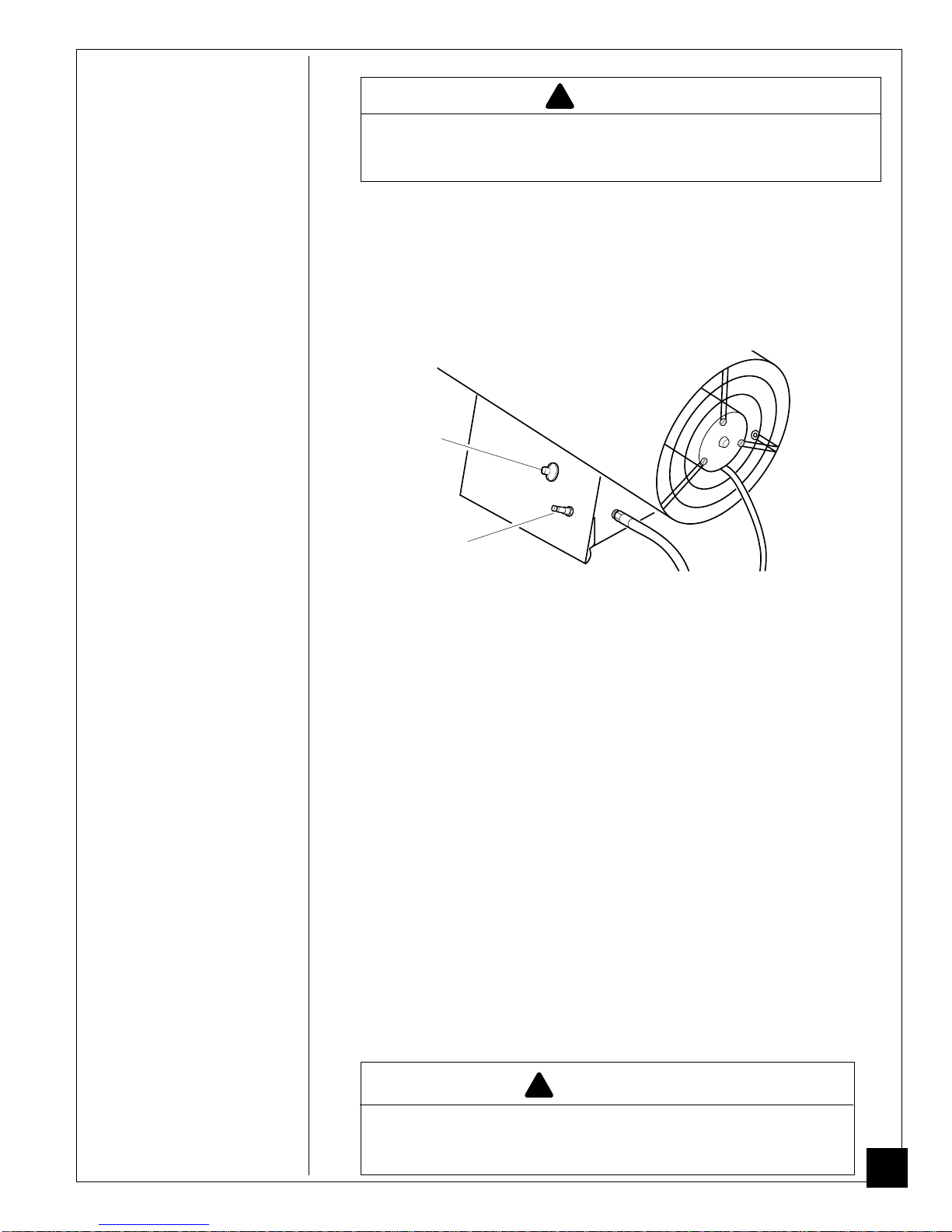

Figure 5 - Automatic Control Valve Button and Piezo Ignitor Button
Piezo Ignitor
Button
Automatic Control
Valve Button
!
WARNING
Be sure motor and fan are running before pushing in
automatic control valve button. Flames could flash outside
heater if motor and fan are not running.
5. Push in and hold automatic control valve button (see Figure 5). Push piezo
ignitor button (see Figure 5). You may need to push piezo ignitor button 3-8
times until the burner lights. When burner lights, keep automatic control valve
button pushed in for 30 seconds.
Note: If heater fails to ignite, hose may have air in it. If so, keep automatic
control valve button pressed and wait 20 seconds. Release automatic control
valve button and wait 20 seconds for unburned fuel to exit heater. Repeat step
5.

8
Disconnect heater from propane supply tank(s).
STORAGE
1. Store propane tank(s) in safe manner. Follow all local codes. Always store
propane tanks outdoors.
2. Place packing items on the heater and hose/regulator assembly. Place heater
and hose/regulator assembly into heater carton.
3. Store in dry, clean, and safe place. Do not store hose/regulator assembly inside
heater combustion chamber.
4. When taking heater out of storage, always check inside of heater. Insects and
small animals may place foreign objects in heater. Keep inside of heater free
from combustible and foreign objects. Remove motor and other internal parts
if needed to remove foreign objects (see Service Procedures, page 10).
!
CAUTION
MAINTENANCE
1. Keep heater clean. Clean heater annually or as needed to remove dust and
debris. If heater is dirty or dusty, clean heater with a damp cloth.
2. Inspect heater before each use. Check connections for leaks. Apply mixture of
liquid soap and water to connections. Bubbles forming show a leak. Correct all
leaks at once.
3. Inspect hose/regulator assembly before each use. If hose is highly worn
or cut, replace.
4. Have heater inspected yearly by service person.
5. Keep inside of heater free from combustible and foreign objects. Remove
motor and other internal parts if needed to clean inside of heater (see Service
Procedures, page 10).
6. Clean fan every 500 hours of operation or as needed.
!
WARNING
Never service heater while it is plugged in, connected to
propane supply, operating, or hot. Severe burns and
electrical shock can occur.

9
Never service heater while it is plugged in, connected to
propane supply, operating, or hot. Severe burns and
electrical shock can occur.
TROUBLE-
SHOOTING
Checkcurrent toelectricalout-
let. If current is good, check
heater power cord for breaks.
Adjustmotor/fanguardtokeep
fan from hitting inside of
heater shell. Bend fan guard if
necessary.
Replace fan. See Fan, page 11.
Replace motor. See Motor,
page 10.
Repeat installation and opera-
tion instructions. See Installa-
tion, page 5 and Operation,
page 6.
A)Checkignitorwire.Tighten
or reattach loose ignitor wire.
SeeFigure13,page12forigni-
tor wire location.
B) Set gap between ignitor
electrodeandtargetplateto4.3
mm.
C) Tighten nut holding piezo
ignitor to base of heater.
D) Replace ignitor electrode.
See Ignitor, page 12.
This can happen when running
heater in temperatures above
29°C. Run heater in cooler
temperatures.
Check heater inlet and outlet.
Remove any obstructions.
Replace fan. See Fan, page 11.
!
WARNING
Use only in areas free of
high dust content.
Clean heater. See Mainte-
nance, page 8.
No electrical power
to heater
Fan hitting inside of
heater shell
Fan blades bent
Defective motor
Userdidnotfollowinstal-
lation or operation in-
structions properly
No spark at ignitor. To
test for spark, follow step
9 under Ignitor, page 12.
If you see spark at ignitor,
have heater serviced by
qualified service person.
If no spark seen:
A) Loose or disconnected
ignitor wire
B) Wrong spark gap
C) Piezo ignitor loose
D) Bad ignitor electrode
Highsurroundingairtem-
perature causing thermal
limit device to shut down
heater.
Restricted air flow
Damaged fan
Excessive dust or debris
in surrounding area
Fan does not turn
when heater is
plugged in.
Heater will not
ignite.
Heater shuts down
while running.
OBSERVED FAULT POSSIBLE CAUSE REMEDY
!
WARNING

10
SERVICE
PROCEDURES Never service heater while it is plugged in, connected to
propane supply, operating, or hot. Severe burns and
electrical shock can occur.
Electrical System
The entire electrical system
for this heater is contained
within the motor. If any part
of the electrical system is
damaged, you must replace
motor.
Motor
1. Remove three screws that
attach fan guard to heater
shell.
2. Remove motor and fan
guard from heater shell
(see Figure 6).
3. Use pliers to remove the
fan nut from front of
motor shaft (see Figure 7).
4. Remove fan. Be careful
not to damage fan blade
pitch.
5. Remove three nuts that
attach fan guard to motor
using nut-driver. Remove
fan guard from motor (see
Figure 8).
6. Discard old motor.
7. Attach fan guard to new
motor with three nuts.
When attaching fan guard
to motor, you must
position power cord as
shown in Figure 8. Tighten
nuts firmly.
8. Place fan onto motor shaft
of new motor.
IMPORTANT: When
placing fan onto motor
shaft, make sure part
number stamped on fan is
facing motor. Attach fan
nut to end of motor shaft.
Tighten fan nut firmly.
9. Place motor and fan guard
into rear of heater shell.
Make sure power cord is
properly located (see Figure
9).
10.Insert three screws through
heater shell and into fan
Figure 6 - Removing Motor and Fan Guard from Heater
Figure 7 - Removing Fan Nut from
Motor Shaft
Fan
Nut
Figure 8 - Removing or Attaching
Fan Guard from Motor
Figure 9 - Replacing Motor and Fan Guard into Heater
!
WARNING

11
Fan Nut
Figure 11 - Removing Fan Nut from Motor Shaft
Figure 12 - Replacing Motor and Fan Guard into Heater
Fan
1. Remove three screws that
attach fan guard to heater
shell.
2. Remove motor and fan
guard from heater shell
(see Figure 10).
3. Use pliers to remove the
fan nut from front of motor
shaft (see Figure 11).
4a. If replacing fan, remove
old fan and discard. Go to
step 7 below.
4b.If cleaning fan, remove
fan. Be careful not to
damage the fan blade pitch.
5. Clean fan using soft cloth
moistened with kerosene or
solvent.
6. Dry fan thoroughly.
7. Place fan onto motor shaft.
IMPORTANT: When
placing fan onto motor
shaft, make sure part
number stamped on fan is
facing motor.
8. Attach fan nut to end of
motor shaft. Tighten fan
nut firmly.
9. Place motor and fan guard
into rear of heater shell.
Make sure power cord is
properly located (see
Figure 12).
10.Insert three screws through
heater shell and into fan
guard. Tighten screws
firmly.
Figure 10 - Removing Motor and Fan Guard from Heater

12
Ignitor
1. Remove motor and fan
guard from heater (see
Motor, page 10, steps 1 and
2).
2. Remove black ignitor wire
from piezo ignitor. Access
ignitor wire through
underside of heater base
(see Figure 13). Push wire
up through bushing in
heater shell.
3. Remove ignitor mounting
screw from rear head using
nut-driver or standard
screwdriver (see Figure 14).
4. Remove ignitor from rear
head.
5. Install new ignitor. Attach
ignitor to rear head with
ignitor mounting screw.
6. Run ignitor wire from new
ignitor through bushing in
heater shell. Attach ignitor
wire to piezo ignitor.
7. Set gap between ignitor
electrode and target plate to
4.3 mm (see Figure 15).
8. Test for spark.
WARNING: Make sure
heater is disconnected
from propane supply.
Heater could ignite
causing severe burns.
Push piezo ignitor button
and watch for spark be-
tween ignitor electrode and
target plate.
9. Place motor and fan guard
into rear of heater shell (see
Motor, page 10, steps 9 and
10).
Rear
Head
Figure 14 - Removing Ignitor Mounting Screw and Ignitor
Figure 15 - Clearance between Ignitor Electrode and Target Plate
Figure 13 - Removing Ignitor Wire from Piezo Ignitor
Ignitor Wire Bushing
Piezo Ignitor
Underside of
Heater Base
Ignitor
Ignitor
Mounting
Screw
Target
Plate
Gap
Area
Ignitor
Electrode

13
IF GAS LEAK
OCCURS
!
WARNING
If you detect a gas leak, turn off propane supply at once.
Ventilate the area. Wait until five minutes after propane odor is
not present. Follow steps below to check for gas leak.
!
WARNING
Never use an open flame to check for a leak. Apply a mixture
of liquid soap and water to all joints. Bubbles forming show a
leak. Correct all leaks at once.
1. After turning off propane supply and ventilating area, unplug heater power
cord.
2. Turn propane supply on.
3. Apply a mixture of liquid soap and water to hose and connections between
propane tank(s) and heater inlet. Bubbles forming show a leak.
4. Turn propane supply off and ventilate the area. Repair leak.
5. Wait until five minutes after propane odor is not present before restarting
heater.
6. If you cannot repair leak, contact you local service center.
SPECIFICATIONS Model BLP35ES
Electrical Input 220/240 volt, 50 hertz, 55 watts IP20
Maximum Input, net 10.3 KW at 27 millibar
Regulator Output 27 millibar
Burner Rate 10.3 KW, 796 g/hr
Supply Pressure (min.) 2 bar
Ventilation 260 cm2
Room Size 103 cubic meters
Air Delivery Class Type A
Temperature Range for Heater Operation -29°C to 29°C*
* When running heater in temperatures above 29°C, high internal temperatures
may cause thermal limit device to shut down heater.

14
ILLUSTRATED
PARTS
BREAKDOWN
1
2
3
2
4
6
7
8
9
11
21
22
23
24
25
19
20
21
5
10
27
16
12
13
14
15
Fan
Nut
Fan
Rubber
Washer
Motor
Motor
Assembly
17
26 18
26
29
28

15
PARTS LIST This list contains replaceable parts used in your heater. When ordering parts, be sure
to provide the correct model and serial numbers (from the model plate), then the part
number and description of the desired part.
KEY PART
NO. NUMBER DESCRIPTION QTY.
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 099568-01 Inner Shell (Combustion
Chamber) 1
2 M11084-26 Hex Tap Screw,
#10-16 x 3/8" 7
3 099599-01AB Outer Shell 1
4 M51104-01 Handle 1
5 099230-01 Hex Tap Shoulder
Screw 4
6 M11084-29 Hex Tap Screw,
#10-16 x 3/4" 2
7 M11084-27 Hex Tap Screw,
#10-16 x 1/2" 3
8 099237-01 Thermocouple Clip 1
9 099727-01 Burner Assembly 1
10 099539-01 Ignitor Electrode 1
11 M11084-38 Hex Tap Screw,
#8-18 x 3/8" 1
12 099537-02 Fan 1
13 100398-01 Motor Assembly (Includes
Rubber Washer and
Fan Nut) 1
14 099540-01 Fan Guard 1
15 097384-02 Captive Washer Nut 3
16 097968-05 Hex Screw, #4-40 x 1/2" 2
17 NPC-00C Hex Nut, #4-40 2
18 097952-04 Thermal Switch
Assembly 1
19 097776-01 Universal Bushing 1
20 099542-01 Wire Clip 1
21 099538-01 Thermocouple 1
22 099541-01 Valve/Orifice 1
23 097159-01 Piezo Ignitor 1
24 078978-03 Sleeve Cap 1
25 099598-01AA Base 1
26 100397-01 Lock Washer, #4 4
27 099202-02 Steel Rivet, 1/8" 1
28 098835-01 Valve Nut 1
29 099460-01 Hex Cap 1
PARTS AVAILABLE - NOT SHOWN
097647-05 Tradename Decal 2
100400-02 General Information Decal 1
100404-02 Operation Decal 1
100405-01 Notice Decal 1
100399-01 Regulator & Hose Assy. 1

WARRANTY AND REPAIR SERVICE
KEEP THIS WARRANTY
DESA International warrants this product and any parts thereof, to be free from defects in materials and workmanship for
six(6) months fromthedate of firstpurchasewhen operatedandmaintained in accordancewithinstructions. This warranty
is extended only to the original retail purchaser, when proof of purchase is provided.
Thiswarranty coversonlythe costofparts requiredto restoretheproduct toproperoperating condition.Transportation and
incidental costs associated with warranty parts are not reimbursable under this warranty.
This warranty does not cover defects resulting from misuse, abuse, negligence, accidents, lack of proper maintenance,
normalwear,alteration,modification,tampering,contaminatedfuels,repairusingimproperparts,orrepairbyanyoneother
than an authorized dealer or service center. Routine maintenance is the responsibility of the owner.
This express warranty is given in lieu of any other warranty either expressed or implied, including warranties of
merchantability and fitness for a particular purpose.
DESA International assumes no responsibility for indirect, incidental or consequential damages.
LIMITED WARRANTY
We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our
standard written warranty. We make no other warranty, expressed or implied.
2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
U.S.A.
DESA
INTERNATIONAL
For information, write: DESA International, P.O. Box 90004
Bowling Green, Kentucky 42102-9004 U.S.A.
ATTN: Customer Service Department
When writing, always include model number and serial number.
Model
Serial No.
Date of Purchase

BAUSTELLEN-
PROPANHEIZGERÄT
BEDIENUNGSANLEITUNG
WICHTIG
Bitte lesen Sie diese Bedienungsanleitung, bevor Sie das Heizgerät
zusammenbauen, in Betrieb nehmen oder warten. Bei unsachgemäßem Gebrauch
dieses Heizgeräts besteht die Gefahr ernsthafter Körperverletzungen. Heben Sie
diese Bedienungsanleitung auf, um sie bei Bedarf zur Verfügung zu haben.
Modell: BLP35ES

2
ABSCHNITT SEITE
INHALT Sicherheitshinweise ..................................................................................... 2
Auspacken ................................................................................................... 4
Produktbeschreibung ................................................................................... 4
Arbeitsweise ................................................................................................ 4
Versorgung mit Propangas .......................................................................... 5
Montage ....................................................................................................... 5
Be- und Entlüftung ...................................................................................... 6
Bedienung.................................................................................................... 6
Lagerung...................................................................................................... 8
Wartung ....................................................................................................... 8
Fehlersuche.................................................................................................. 9
Wartungmaßnahmen.................................................................................. 10
Elektrisches System................................................................................... 10
Motor ......................................................................................................... 10
Ventilator ................................................................................................... 11
Zünder........................................................................................................ 12
Maßnahmen bei Auftreten eines Gaslecks ................................................ 13
Technische Daten ...................................................................................... 13
Illustrierter Teilekatalog und Ersatzteilliste ........................................ 14, 15
Garantie und Reparaturdienst ........................... Hintere Umschlaginnenseite
ZU IHRER SICHERHEIT
Dieses Heizgerät darf nicht in Räumen verwendet werden, in
denen Benzin oder andere Flüssigkeiten gelagert oder
verwendet werden, die entzündliche Gase abgeben.
!
WARNHINWEISE
WICHTIG: Lesen Sie diese Bedienungsanleitung sorgfältig und
vollständig durch, bevor Sie versuchen, dieses Heizgerät
zusammenzubauen, in Betrieb zu nehmen oder zu warten. Bei
unsachgemäße Gebrauch dieses Heizgeräts besteht schwere oder
tödliche Verletzungsgefahr durch Verbrennungen, Feuer, Explosion,
Elektroschock oder Kohlenmonoxidvergiftung.
Kohlenmonoxidvergiftung: Die frühen Anzeichen einer
Kohlenmonoxidvergiftung gleichen denen der Grippe mit Kopfschmerzen, Schwindel
bzw. Übelkeit. Sollten Sie diese Symptome verspüren, so kann eine Störung am
Heizgerät die Ursache sein. Sofort an die frische Luft gehen! Heizgerät überprüfen
lassen. Manche Menschen reagieren besonders empfindlich auf Kohlenmonoxid, z.B.
schwangere Frauen, Personen, die unter Herz- oder Lungenkrankheiten oder Anämie
leiden, sowie solche, die unter Alkoholeinflußstehen oder die sich in großer Höhe
aufhalten.
Propangas: Propangas ist geruchlos. Daher wird ihm ein riechendes Gas zugesetzt,
mit dessen Hilfe ein Leck festgestellt werden kann. Der Geruch dieses Zusatzes kann
sich jedoch verflüchtigen, d.h. auch wenn der Geruch nicht festzustellen ist, kann sich
Propangas in der Luft befinden.
Vergewissern Sie sich, daßSie alle Warnhinweise gelesen und verstanden haben.
Bewahren Sie diese Bedienungsanleitung zum Nachschlagen auf. Es ist Ihre
Anleitung für den sicheren und vorschriftsmäßigen Gebrauch dieses Heizgeräts.
SICHERHEITS-
HINWEISE
Fortsetzung der Sicherheitshinweise siehe nächste Seite
