Desa Vanguard VVDA18R Quick start guide

GAS LOG
WARNING:Iftheinformationinthismanualisnot
followed exactly, a fire or explosion may result
causing property damage, personal injury, or
loss of life.
— Donotstoreorusegasolineorotherflammable
vaporsandliquidsinthevicinityofthisorany
other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Donottouchanyelectricalswitch;donotuse
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call
the fire department.
— Installationandservicemustbeperformedby
a qualified installer, service agency, or the
gas supplier.
WARNING: Improper installa-
tion,adjustment,alteration,ser-
vice,ormaintenancecancause
injuryorpropertydamage.Re-
fer to this manual for correct
installation and operational
procedures. For assistance or
additional information consult
a qualified installer, service
agency, or the gas supplier.
WARNING: This appliance is
for installation only in a solid-
fuelburningmasonryorUL127
factory-built fireplace, con-
structed of noncombustible
material, and connected to a
working flue. (See page 7 for
minimum flue opening.)
WARNING: This is a gas-fired appliance. It uses air (oxygen) from the room in which
it is installed. Provisions for adequate combustion and ventilation air must be
provided.Referto AirforCombustionandVentilation sectiononpage4ofthismanual.
REMOTE READY
VENTED DECORATIVE APPLIANCES
OWNER’S OPERATION AND INSTALLATION MANUAL
Convertible from Natural Gas to Propane/LP Gas
Save this manual for future reference.
Z21.60-1996
CGA 2.26-M96
APPROVED
®
®
Models VVSA18R,
VVSA24R, VVDA18R,
VVDA24R, and VVDA30R
For Use with Log Sets
Hanover Round Oak Log
Models VSLR18 and
VSLR24
Kingston Split Oak Log
Models VDLCR18, VDLCR24
(Shown), and VDLCR30

®
2
901272
VENTED GAS LOGS
1. This appliance, as supplied, is only for
use with the type of gas indicated on
the rating plate. This appliance is con-
vertible for use with propane/LP.
SAFETY
INFORMATION
Carbon Monoxide Poisoning: Early
signs of carbon monoxide poisoning re-
semble the flu, with headaches, dizziness,
ornausea.Ifyouhavethesesigns,thelogset
maynot beworking properly.Getfreshair
atonce!Havelogsetserviced.Somepeople
are more affected by carbon monoxide than
others. These include pregnant women,
peoplewithheartorlungdiseaseor anemia,
those under the influence of alcohol, and
those at high altitudes.
Natural and Propane/LP Gas: Natural
andpropane/LPgasesareodorless.Anodor-
making agent is added to the gas. The odor
helps you detect a gas leak. However, the
odor added to the gas can fade. Gas may be
present even though no odor exists.
Make certain you read and understand all
Warnings. Keep this manual for reference.
It is your guide to safe and proper operation
of this log set.
WARNING ICON G 001 WARNINGS
IMPORTANT: Read this owner’s
manual carefully and completely
before trying to assemble, oper-
ate, or service this log set. Im-
properuseofthislogsetcancause
seriousinjuryordeathfromburns,
fire, explosion, electrical shock,
and carbon monoxide poisoning.
DANGER: Carbon monoxide
poisoning may lead to death!
WARNING:Anychangetothis
log set or its controls can be
dangerous.
2. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do
not use any phone in your building
• immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions
• ifyoucannot reach your gas supplier,
call the fire department
3. Never install the log set
• in a recreational vehicle
• wherecurtains,furniture, clothing, or
otherflammable objects are less than
42inchesfromthefront,top,orsides
of the log set
• in high traffic areas
• in windy or drafty areas
4. Before installing in a solid fuel burn-
ingfireplace,thechimneyflue and fire-
box must be cleaned of soot, creosote,
ashes and loose paint by a qualified
chimney cleaner. Creosote will ignite
if highly heated. Inspect chimney flue
for damage.
5. You must operate this log set with a fire-
placescreeninplace. Makesurefireplace
screen is closed before running log set.
6. This log set is designed to be smoke-
less. If logs ever appear to smoke, turn
off appliance and call a qualified ser-
vice person. Note: During initial op-
eration,slightsmokingcouldoccur due
to log curing and the burning of manu-
facturingresidues.Youmaywishto add
more ventilation by opening a window.
7. To reduce the creation of soot, follow
the instructions in Cleaning and Main-
tenance, page 22.
8. Do not allow fans to blow directly into
the fireplace. Avoid any drafts that al-
ter burner flame patterns. Ceiling fans
can create drafts that alter burner flame
patterns. Altered burner patterns can
increase sooting.
9. Do not use a blower insert, heat ex-
changer insert or other accessory not
approved for use with this log set.
10. This log set needs fresh,outsideair ven-
tilation to run properly. See Air for
Combustion and Ventilation, pages 4
through 6.
11. Do not run log set
• where flammable liquids or vapors
are used or stored
• under dusty conditions
12. Do not burn solid fuel in the fireplace
after installing the log set. Do not use
this log set to cook food or burn paper
or other objects.
13. Log set becomes very hot when in use.
Keepchildren and adults away fromhot
surface to avoid burns or clothing igni-
tion. Log set will remain hot for a time
after shut-down.Allow surface to cool
before touching.
14. Carefully supervise young children
when they are in the room with log set.
15. Donotuseappliance ifany parthasbeen
exposedtoor under water. Immediately
call a qualified service technician to in-
spect the room appliance and to replace
any part of the control system.
16. To help prevent breakage, new logs
must be broken-in (see Curing logs
page 14).
17. Turn log set off and let cool before ser-
vicing, installing, or repairing. Only a
qualified service person should install,
service, or repair log set.
WARNING: Keep flue open
when operating unit.

3
901272
OWNER’S MANUAL
PRODUCT
IDENTIFICATION
Figure 1 - Product Identification (VVDA24 Shown)
LOCAL CODES
Install and use log set with care. Follow all
localcodes.Intheabsenceoflocalcodes,use
the latest edition of The National Fuel Gas
CodeANSZ223.1,alsoknownasNFPA54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
UNPACKING
CAUTION: Do not remove the
metal data plates from the burner
pan. The data plates contain im-
portant product information.
1. Remove logs, hearth kit, pan materials,
and hardware from carton.
2. Remove all protective packaging ap-
plied to logs and base for shipment.
3. Check all items for any shipping dam-
age. If damaged, promptly inform
dealer where you bought the product.
PRODUCT
FEATURE
REMOTE READY SAFETY
VALVE/PILOT
This unit is provided with a milivolt remote
ready control valve which may be con-
nected to optional remote accessories for
wall switch or wireless operation (see Ac-
cessories, page 22).
Unit is tested and approved to ANS Z21.60-
1996andCGA2.26-M96asaventeddecora-
tiveappliance.Itissuppliedwiththepartsand
instructionstoconverttopropane/LPgasuse.
O
F
F
P
I
L
O
T
O
N
Grate
Burner
Pan
Burner
Manifold
Burner
Clamp
Grate Steps
Hearth Kit Model ______________________________________
Serial Number ________________________________________
Log Set Model ________________________________________

®
4
901272
VENTED GAS LOGS
PROVIDING ADEQUATE
VENTILATION
The following are excerpts from National
Fuel Gas Code. NFPA 54/ANS Z223.1, Sec-
tion5.3,AirforCombustionandVentilation.
Allspacesinhomesfallintooneofthethree
following ventilation classifications:
1. Unusually Tight Construction
2. Unconfined Space
3. Confined Space
The information on pages 4 through 6 will
help you classify your space and provide
adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and win-
dows may provide enough fresh air for
combustion and ventilation. However, in
buildings of unusually tight construction,
you must provide additional fresh air.
Unusually tight construction is de-
fined as construction where:
a. walls and ceilings exposed to the
outside atmosphere have a con-
tinuous water vapor retarder with
a rating of one perm (6x10-11 kg
per pa-sec-m2) or less with open-
ings gasketed or sealed and
b. weather stripping has been
added on openable windows and
doors and
c. caulking or sealants are applied
to areas such as joints around
window and door frames, be-
tween sole plates and floors,be-
tween wall-ceiling joints, be-
tween wall panels, at penetra-
tionsforplumbing,electrical,and
gas lines, and at other openings.
If your home meets all of the three
criteria above, you must provide ad-
ditional fresh air. See Ventilation Air
From Outdoors , page 6.
If your home does not meet all of the
three criteria above, proceed to De-
termining Fresh-Air Flow For Appli-
ance Location , page 5.
Today’s homes are built more energy effi-
cient than ever. New materials, increased
insulation, and new construction methods
helpreduceheatlossinhomes.Homeowners
weatherstrip andcaulk aroundwindows and
doorstokeepthecoldairoutandthewarmair
in. During heating months, home owners
want their homes as airtight as possible.
While it is good to make your home energy
efficient,yourhomeneedstobreathe.Fresh
air must enter your home. All fuel-burning
appliances need fresh air for proper com-
bustion and ventilation.
Exhaustfans,fireplaces,clothesdryers,and
fuel burning appliances draw air from the
house to operate. You must provide ad-
equate fresh air for these appliances. This
will insure proper venting of vented fuel-
burning appliances.
AIR FOR
COMBUSTION AND
VENTILATION
WARNING: This appliance
shall not be installed in a con-
fined space or unusually tight
construction unless provisions
are provided for adequate com-
bustion and ventilation air. Read
the following instructions to in-
sure proper fresh air for this and
other fuel-burning appliances in
your home.
Confined and Unconfined Space
The National Fuel Gas Code (ANS Z223.1,
1992 Section 5.3) defines a confined space
as a space whose volume is less than 50
cubicfeetper1,000Btuperhour(4.8m3per
kw) of the aggregate input rating of all
appliances installed in that space and an
unconfined space as a space whose volume
is not less than 50 cubic feet per 1,000 Btu
per hour (4.8 m3per kw) of the aggregate
inputratingofallappliancesinstalledinthat
space.Rooms communicatingdirectlywith
the space in which the appliances are in-
stalled*, through openings not furnished
with doors, are considered a part of the
unconfined space.
This log set shall not be installed in a con-
fined space or unusually tight construction
unlessprovisions are provided for adequate
combustion and ventilation air.
*Adjoiningroomsarecommunicatingonly
iftherearedoorlesspassagewaysorventila-
tion grills between them.

5
901272
OWNER’S MANUAL
DETERMINING FRESH-AIR FLOW FOR APPLIANCE LOCATION
Determining if You Have a Confined or Unconfined Space
Use this work sheet to determine if you have a confined or unconfined space.
Space: Includes the room in which you will install appliance plus any adjoining rooms with doorless passageways or ventilation grills
between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = _________________cu. ft. (volume of space)
Example: Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling height) = 2560 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total volume of
the space.
2. Divide the space volume by 50 cubic feet to determine the maximum Btu/Hr the space can support.
_____________ (volume of space) ÷ 50 cu. ft. = (maximum Btu/Hr the space can support)
Example: 2560 cu. ft. (volume of space) ÷ 50 cu. ft. = 51.2 or 51,200 (maximum Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in the space.
Gas fireplace logs _____________ Btu/Hr
Gas water heater* _____________ Btu/Hr
Gas furnace _____________ Btu/Hr
Vented gas heater _____________ Btu/Hr
Vent-free heater _____________ Btu/Hr
Other gas appliances* + _____________ Btu/Hr
Total = _____________ Btu/Hr
* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the outdoors.
4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.
_____________ Btu/Hr (maximum the space can support)
_____________ Btu/Hr (actual amount of Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the space can support)
95,000 Btu/Hr (actual amount of Btu/Hr used)
ThespaceintheaboveexampleisaconfinedspacebecausetheactualBtu/HrusedismorethanthemaximumBtu/Hrthespacecansupport.
You must provide additional fresh air. Your options are as follows:
A. Rework worksheet, adding the space of an adjoining room. If the extra space provides an unconfined space, remove door to adjoin-
ing room or add ventilation grills between rooms. See Ventilation Air From Inside Building, page 6.
B. Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 6.
C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space is an unconfined space. You will need no
additional fresh air ventilation.
AIR FOR
COMBUSTION AND
VENTILATION
Continued
Example:
Gas water heater 40,000 Btu/Hr
Gas fireplace logs + 55,000 Btu/Hr
Total = 95,000 Btu/Hr
Continued
WARNING: If the area in which the appliance may be operated is smaller than that defined as an unconfined
spaceorifthebuildingisofunusuallytightconstruction,provideadequatecombustionandventilationairbyone
ofthe methods describedinthe NationalFuel GasCode,ANS Z223.1,1992,Section 5.3 or applicable localcodes.

®
6
901272
VENTED GAS LOGS
AIR FOR
COMBUSTION AND
VENTILATION
Continued
Figure 3 - Ventilation Air from Outdoors
Figure 2 - Ventilation Air from Inside Building
Outlet
Air Ventilated
Attic
Outlet
Air
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills
Into Adjoining
Room,
Option 1
12"
12"
VENTILATION AIR
Ventilation Air From Inside
Building
Thisfreshairwouldcomefromanadjoining
unconfined space. When ventilating to an
adjoining unconfined space, you must pro-
vide two permanent openings: one within
12" of the ceiling and one within 12" of the
floor on the wall connecting the two spaces
(seeoptions1and2,Figure2).Youcanalso
remove door into adjoining room (see op-
tion 3, Figure 2). Follow the National Fuel
Gas Code NFPA 54/ANS Z223.1, Section
5.3, Air for Combustion and Ventilation for
required size of ventilation grills or ducts.
WARNING:Reworkworksheet,
adding the space of the adjoining
unconfinedspace.Thecombined
spaces must have enough fresh
airtosupplyallappliancesinboth
spaces.
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation
grills or ducts. You must provide two per-
manent openings: one within 12" of the
ceiling and one within 12" of the floor.
Connecttheseitemsdirectlytotheoutdoors
orspacesopentotheoutdoors.Thesespaces
include attics and crawl spaces. Follow the
National Fuel Gas Code NFPA 54/ANS
Z223.1,Section5.3,AirforCombustionand
Ventilation for required size of ventilation
grills or ducts.
IMPORTANT: Do not provideopenings for
inlet or outlet air into attic if attic has a
thermostat-controlledpowervent.Heatedair
enteringtheatticwillactivatethepowervent.

7
901272
OWNER’S MANUAL
INSTALLATION
WARNING: Before installing
in a solid fuel burning fireplace,
thechimneyflueandfireboxmust
be cleaned of soot, creosote,
ashes and loose paint by a quali-
fied chimney cleaner. Creosote
willigniteifhighlyheated.Adirty
chimneyfluemaycreateanddis-
tribute soot within the house. In-
spect chimney flue for damage.
NOTICE:Installation,service,and
repair of this appliance must be
performedbyaqualifiedinstaller,
service agency, company or gas
supplier experienced with this
type of gas appliance. Only fac-
toryauthorizedcomponentslisted
intheseinstructionsmaybeused
in accordance with the
manufacturer’s instructions and
allcodes and requirementsof the
authorityhavingjurisdiction.Any
modifications to this kit, or use of
unauthorized components or ac-
cessory items will void the
manufacturer’swarranty,andmay
result in a hazardous condition.
CHECK GAS TYPE
Useonlynaturalgas.Ifyourgassupplyisnot
natural gas, you must convert the appliance
to propane/LP. Follow the instructions on
page 10.
If the fireplace does not have a gas supply
shut-off valve, one must be installed.
CAUTION: Do not remove
the metal data plates attached
totheburnerpan.Thedataplates
contain important warranty in-
formation.
FLUE OPENING
SPECIFICATIONS
Note: This vented appliance must be in-
stalledonlyinasolid-fuel burningfireplace
witha working flueand constructed ofnon-
combustible material.
The charts in Figure 4 indicate technical
information regarding the installation of
yourgas logset. Pleasemakesure thatall of
the specifications shown are applicable be-
fore installation is attempted.
The fireplace must include a working flue
andventingsystemwiththeminimumopen-
ings shown in the Figure 4. Continued
MODEL DESCRIPTION
VVSA18R 18" Single Burner 50,000 40,000
VVSA24R 24" Single Burner 60,000 50,000
VVDA18R 18" Dual Burner 55,000 45,000
VVDA24R 24" Dual Burner 65,000 55,000
VVDA30R 30" Dual Burner 70,000 60,000
Btu Input
Natural Gas Btu Input Propane/LP Gas
The minimum vent opening on all models is 8" in diameter.
MINIMUM FIREBOX SIZES
LOG FRONT BACK
SIZE WIDTH WIDTH* DEPTH HEIGHT
18" 34" 16" 14" 18"
24" 35 3/4" 17" 15 1/2" 18"
30" 42" 27" 18" 18"
*At depth indicated
Figure 4 - Technical Information Charts
VENTING SPECIFICATIONS
FOR INSTALLATION
The fireplace chimney flue and vent must be
draftingproperly.Tochecktheventforproper
drafting: Light a tightly rolled newspaper on
oneendandplaceitattheinsidefrontedgeof
thefireplace. Observe thesmoke and besure
the vent is properly drawing it up the chim-
ney. If the smoke spills out into the room,
extinguish the flame and remove any ob-
struction until proper venting is achieved.
Thechimney flue mustremain open amini-
mum of 3" at all times during the operation
of this log set (see Figure 5, page 8).
BURNER ORIFICE
LOG NATURAL PROPANE/LP
SIZE IN. NUM. COLOR IN. NUM. COLOR
18" .129 30 Green .073 49 Red
24" .141 28 Yellow .086 44 Orange
30" .157 22 Yellow/Blue .089 43 Black
FUEL PRESSURE
SPECIFICATIONS (W.C.)
Inlet Manifold*
NG 5.5"-10.5" 3.5"
LP 11"-13" 10"
* ± .2"

®
8
901272
VENTED GAS LOGS

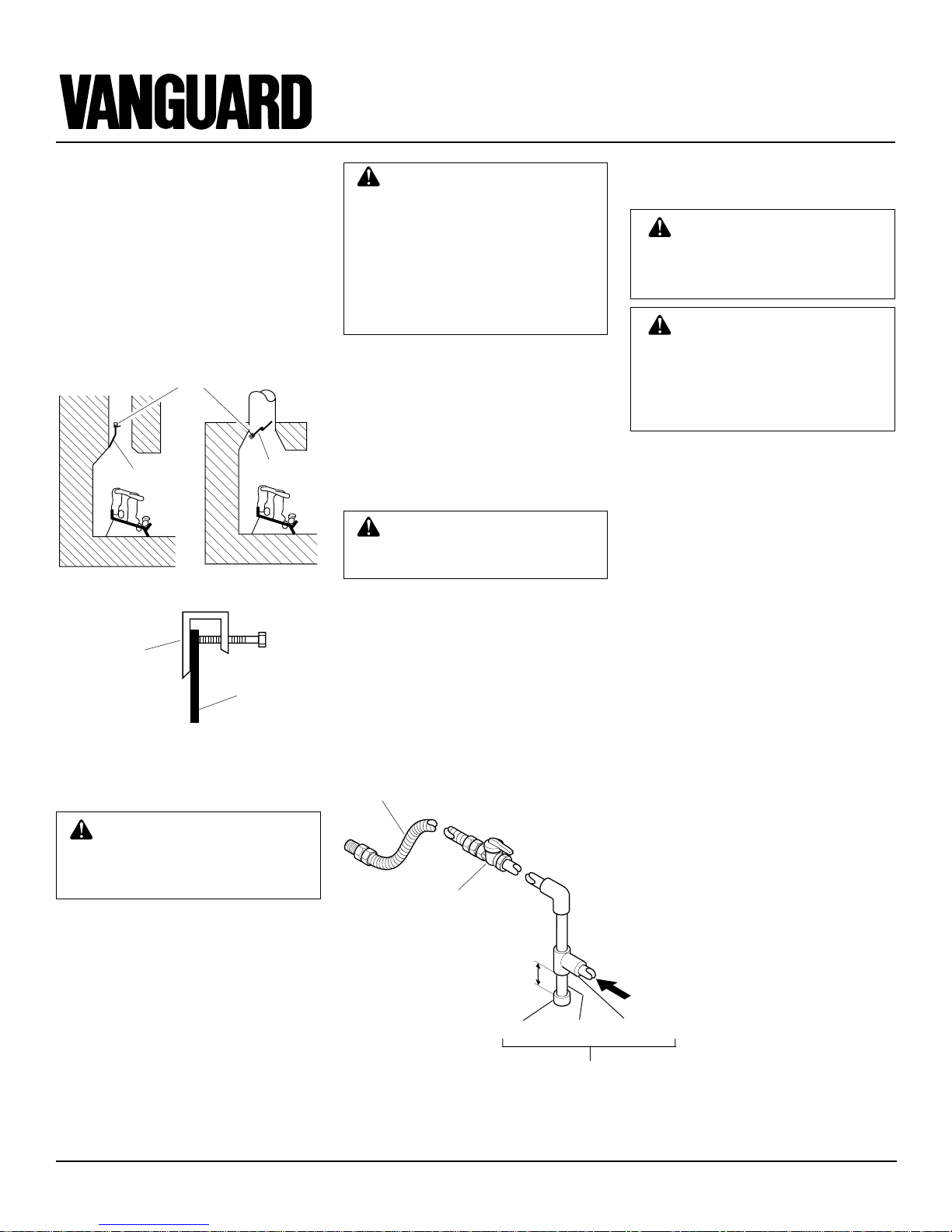

INSTALLING DAMPER
CLAMP
Secure the damper stop clamp provided to
the leading edge of the damper as shown in
Figure5.Ifforanyreasonthisclampdoesn't
work on your fireplace, another suitable
clamp or permanent stop must be installed,
orthedamperblademustbecutorremoved.
Damper Clamp
Damper
Clamp
Damper
Manufactured
Fireplace
Masonry Fireplace
Figure 5 - Attaching Damper Clamp
INSTALLATION
Continued
Damper Damper
WARNING: Test all gas pip-
ing and connections for leaks
afterinstalling orservicing.Cor-
rect all leaks at once.
WARNING: Never use an
open flame to check for a leak.
Apply a mixture of liquid soap
and water to all joints. Bubbles
forming show a leak. Correct all
leaks at once.
CHECKING GAS
CONNECTIONS
Pressure Testing Gas Supply
Piping System
TestPressuresInExcessOf1/2PSIG
1. Disconnect log set and its individual
manual shutoff valve from gas supply
piping system.
2. Cap off open end of gas pipe where
manual shutoff valve was connected.
3. Pressurizesupplypipingsystembyeither
usingcompressedairoropeningmaingas
valve located on or near gas meter.
4. Check all joints of gas supply piping
system. Apply mixture of liquid soap
and water to gas joints. Bubbles form-
ing show a leak.
5. Correct all leaks at once.
6. Reconnect log set and manual shutoff
valveto gas supply.Check reconnected
fittings for leaks.
CONNECTING TO GAS
SUPPLY
WARNING: A qualified ser-
vicepersonmustconnectlogset
to gas supply. Follow all local
codes.
Installation Items Needed
Before installing log set, make sure you
have the items listed below.
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• manual shutoff valve
• adjustable (crescent) wrench or pliers
• sediment trap
• tee joint
• pipe wrench
CAUTION: Use only new,
black iron or steel pipe. Inter-
nally-tinned copper tubing may
be used in certain areas. Check
yourlocalcodes.Usepipeof1/2"
diameter or greater to allow
proper gas volume to log set. If
pipe is too small, undue loss of
pressure will occur.
Installsedimenttrapinsupplylineasshown
inFigure 6.Locate sedimenttrapwhere itis
within reach for cleaning. Locate sediment
trap where trapped matter is not likely to
freeze. A sediment trap traps moisture and
contaminants. This keeps them from going
into log set controls. If sediment trap is not
installed or is installed wrong, log set may
not run properly.
Installation must include a manual shutoff
valve, union, and plugged 1/8" NPT tap.
Locate NPT tap within reach for test gauge
hook up. NPT tap must be upstream from
log set (see Figure 6).
Apply pipe joint sealant lightly to male
threads. This will prevent excess sealant
fromgoing into pipe. Excess sealant inpipe
could result in a clogged burner injector.
CAUTION:Usepipejointseal-
ant that is resistant to liquid pe-
troleum (LP) gas.
Figure 6 - Gas Connection
*PurchasetheoptionalA.G.A.design-certifiedmanualshutoffvalvefromyourdealer.See
Accessories, page 22.
** Minimum inlet pressure for purpose of input adjustment.
3" Minimum
Sediment Trap (Optional on Propane/LP Installation)
From Gas Meter (5" W.C.**
to 10.5" W.C. Pressure)
A.G.A. Design-Certified
Manual Shutoff Valve
With 1/8" NPT Tap*
Approved Flexible Gas Hose
(if allowed by local codes)
Tee Joint
Pipe Nipple
Cap

9
901272
OWNER’S MANUAL
INSTALLATION
Continued
Figure 7 - Checking Gas Joints
HEARTH KIT ASSEMBLY
AND INSTALLATION
Kit Assembly
Note: The following instructions apply to
both standard single bar burners, as well as
dual flame “U” style burners. Be sure all
pipe threaded connections are tight, and
have thread compound to prevent leaks.
1. Determine which side the gas line will
be coming into the fireplace.
2. Using a hammer and screw driver, re-
move knock-out plug from the side of
the pan that corresponds to the gas line
(see Figure 8).
Continued
TestPressuresEqualToorLessThan
1/2 PSIG
1. Close manual shutoff valve (see Fig-
ure 7).
2. Pressurizesupplypipingsystembyeither
usingcompressedairoropeningmaingas
valve located on or near gas meter.
3. Checkalljointsfromgasmeterto manual
shutoff valve (see Figure 7).Apply mix-
tureofliquid soapandwater togasjoints.
Bubbles forming show a leak.
4. Correct all leaks at once.
Gas Meter
Manual Shutoff Valve
Figure 8 - Knock-Out Plug Locations
Figure 9 - Installing Burner
Knock-Out Plugs
Nut
Burner
Clamp
Burner
Pan
Screw
Burner
Manifold
3. Place burner manifold in pan with
threadedopening facingopen knock-out
plug. Note: If using propane/LPgas, see
Propane/LP Gas Conversion, page 10.
4. Thread the gas control valve onto the
burner inlet fitting (see Figure 10). Use
thread sealant on the male threads of
the burner inlet fitting. Hold the burner
inlet fitting with a wrench to prevent
overtightening the connection to the
burner. Make sure the control knob is
facing the front (see Figure 10).
5. Using burnerclamp,screw, and nutpro-
vided,assemble clamp topan(“U” style
burners only). This will hold the burner
manifold in place (see Figure 9).
6. Attach the pilot gas line to the pilot
outlet of the gas control valve and
tighten. Connect the thermocouple to
the terminal block on the gas control
valve. See Figure 11. Do not over-
tighten. If using propane/LP gas, see
Changing Pilot Orifice, page 11.
Burner Pan
Assembly (Facing
Front of Fireplace)
Figure 10 - Installing Gas Control Valve
7. Install the inlet fitting into the inlet
opening of the gas control valve (see
Figure 12). Use thread sealant on the
male pipe threads.
8. Place the burner pan assembly in the
center of the fireplace floor. Make sure
the front of pan faces forward.
9. Thread the gas supply adaptor to the
fireplace gas supply pipe. Adjust to
most convenient position.
10. Install the gas connector tube to the gas
supplyadaptor. Carefullyshapetubeand
attachto gas inletfitting(see Figure 12).
Be careful not to cause kinks in tube.
11. Test for leaks following instructions
underTestingBurnerforLeaks, page11.
12. Retighten and adjust the location of the
gas control as necessary. The gas con-
trol should be level, with the control
knob to the front.
O
F
F
P
I
L
O
T
O
N
Burner Inlet Fitting
(containing orifice)
Gas
Control
Valve
Burner Pan
Assembly
Control Knob
O
F
F
P
I
L
O
T
O
N
Figure 11 - Gas Control Valve with Ther-
mocouple and Pilot
Thermocouple
and Line
Pilot and Line Gas
Control
Valve
Pressure
Tap - Out
(Manifold) Pressure Tap - In (Inlet)
Figure12-InstallingInletFittingandGas
Connector Tube
O
F
F
P
I
L
O
T
O
N
Gas Control
Valve Gas Inlet
Fitting
Gas
Connector
Tube
Inlet
Opening

®
10
901272
VENTED GAS LOGS
INSTALLATION
Continued
Propane/LP Gas Conversion
To convert to propane/LP gas, the regulator
pressuremustbereset.Also,theburnerinlet
fittingandpilotorificemustbereplaced.The
propane/LP burner inlet fitting is supplied
with the orifice installed for your log set.
Burner Inlet Fitting
1. Remove theburnerinlet fitting from the
gas control assembly (see Figure 14).
DO NOT remove the orifice from this
fitting.The propane/LP burner inlet fit-
ting is included in the hardware kit (see
Figure 15).
2. Be sureto use thecorrect orificeforyour
appliance. The orifice kit included with
this appliance contains an orifice in-
stalled in an air mixer fitting.
3. Using thread sealant (resistant to the
action of propane/LP gas) on smaller
end of fitting, screw the burner inlet fit-
ting into the outlet side of the gas con-
trol. Tighten using a wrench.
4 . Followsteps1 through 14 under KitAs-
sembly, pages 9 and 10.
Figure 15 - Burner Inlet Fittings with
Injectors
NATURAL
GAS
FITTING
PROPANE/
LP GAS
FITTING
Injector for
Natural Gas
(Factory
Installed)
Injector for
Propane/LP
Gas (Factory
Installed)

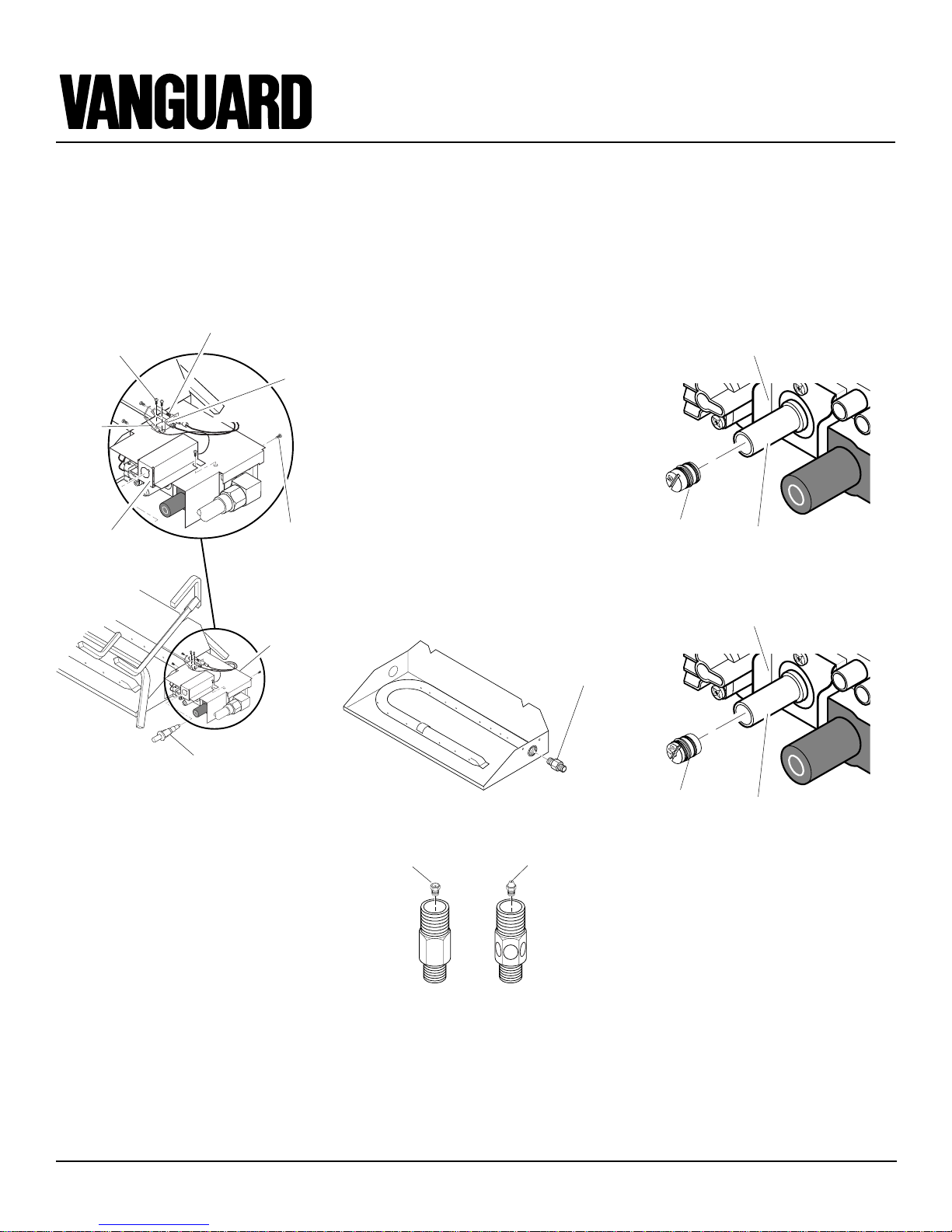

Figure 14 - Remove Burner Inlet Fitting
Burner Inlet
Fitting for
Natural Gas
O
F
F
P
I
L
O
T
O
N
O
F
F
P
I
L
O
T
O
N
Piezo Ignitor
Screw
Valve
Cover
Figure 13 - Installing Thermocouple, Pi-
lot, and Piezo Ignitor Cover
Thermocouple
Ignitor
Pilot
Piezo Ignitor
Cover Machine
Screw
13. Install cover to burner pan using screws
provided.
14. Install thermocouple, pilot, and piezo ig-
nitor cover onto valve cover as shown
in Figure 13. Use the provided screws.
Figure 16 - Removing Pressure Button
Adjusting Regulator Pressure For
Propane/LP Conversion
1. Locate the pressure button on regula-
tor tower of gas control valve.
2. Remove the pressure button from the
regulator tower (see Figure 16).
3. Reverse thepressurebutton and replace
into regulator tower (see Figure 17).
Figure 17 - Replacing the Pressure But-
ton in the Propane/LP position
O
F
F
P
I
L
O
T
O
N
Regulator Tower
Pressure
Button
Gas Control Valve
O
F
F
P
I
L
O
T
O
N
Regulator Tower
Pressure
Button
Gas Control Valve

11
901272
OWNER’S MANUAL
INSTALLATION
Continued
O
F
F
P
I
L
O
T
O
N
Figure 18 - Installing Propane/LP Pilot
Orifice
Pilot
Orifice
Changing Pilot Orifice
The pilot is provided with a natural gas
orifice installed. For propane/LP gas you
must remove it and replace it with a pro-
pane/LP orifice. The hardware kit contains
an propane/LP orifice with a red stripe for
converting the pilot.
1. Gently loosen and remove the pilot
line connection from the bracket (see
Figure 18).
2. Replace the orifice(seeFigure18) with
the propane/LP pilot orifice with the
red stripe.
3. Replace and tighten the pilot line to the
bracket.
4. Continue with step 7 under Hearth Kit
Assembly and Installation, page 9.
Note: Followthe instructions under the sec-
tion, Testing Burner for Leaks, column 3.
REMOTE CONTROL OPTIONS
GHRC
If you are using the GHRC remote control
option, you must first connect the leads of
thereceiver to theterminal block onthe gas
control (see Figure 19).
1. Connect the leads to the male fast-on
terminals marked TH and TPTH.
2. Install a 9Vbattery(referto the instruc-
tions included with the GHRC).
3. Install a 9V battery into the hand-held
transmitter.
4. Insert the receiver into the simulated
log control cover, with the raised cyl-
inder fitting into the hole in the cover.
5. The cover may be moved aside when
operationof thegas control isnecessary.
Figure 19 - Connecting Wire Terminals
Control
Valve
GWMS2
When installing the GWMS2 remote wall
switch option, follow all instructions in-
cludedwiththeaccessory.Connectwiresas
shown in Figure 19. You will need to route
thewiringawayfromthegascontrolandlog
set in a way which prevents direct radiant
heat on the wires.
No Optional Accessories
If you choose no remote accessories at this
time, the provided jumper wire must be
installed to the terminal block on the gas
control. Connect the lead to the fast-on
terminals marked TH and TPTH.
TESTING BURNER FOR
LEAKS
1. Generously apply soapy solution to all
connections.
WARNING: Never check for
gas leaks with open flame.
2. Lightthe burner with the shut-offvalve
no more than half open and holding a
match slightly in front of the pan (see
Lighting Instructions, page 13).
3. Inspect all connectionsforbubbles,raw
gas odor, or flame from any area other
than the burner (leaks). If leaks are de-
tected, shut off the gas valve immedi-
ately. Tighten, or reassemble the loose
connection(s) using pipe joint com-
pound until burner system is leak free.
4. When the burner is tested and leak free,
observe the individual tongues of flame
on the burner. Note: The burner design
includesmore ports onthe outside ofthe
bar. Make sure that all ports are clear
and producing flame evenly across the
burner.If anyports appearblocked, clear
them by removing the burner manifold
and reaming the ports with a modified
paper clip or other suitable tool.
5. When finishedtesting,turn the gasshut-
off valve OFF to extinguish all flames.
Continued
Fast-On Terminals

®
12
901272
VENTED GAS LOGS
INSTALLATION
Continued
O
F
F
P
I
L
O
T
O
N

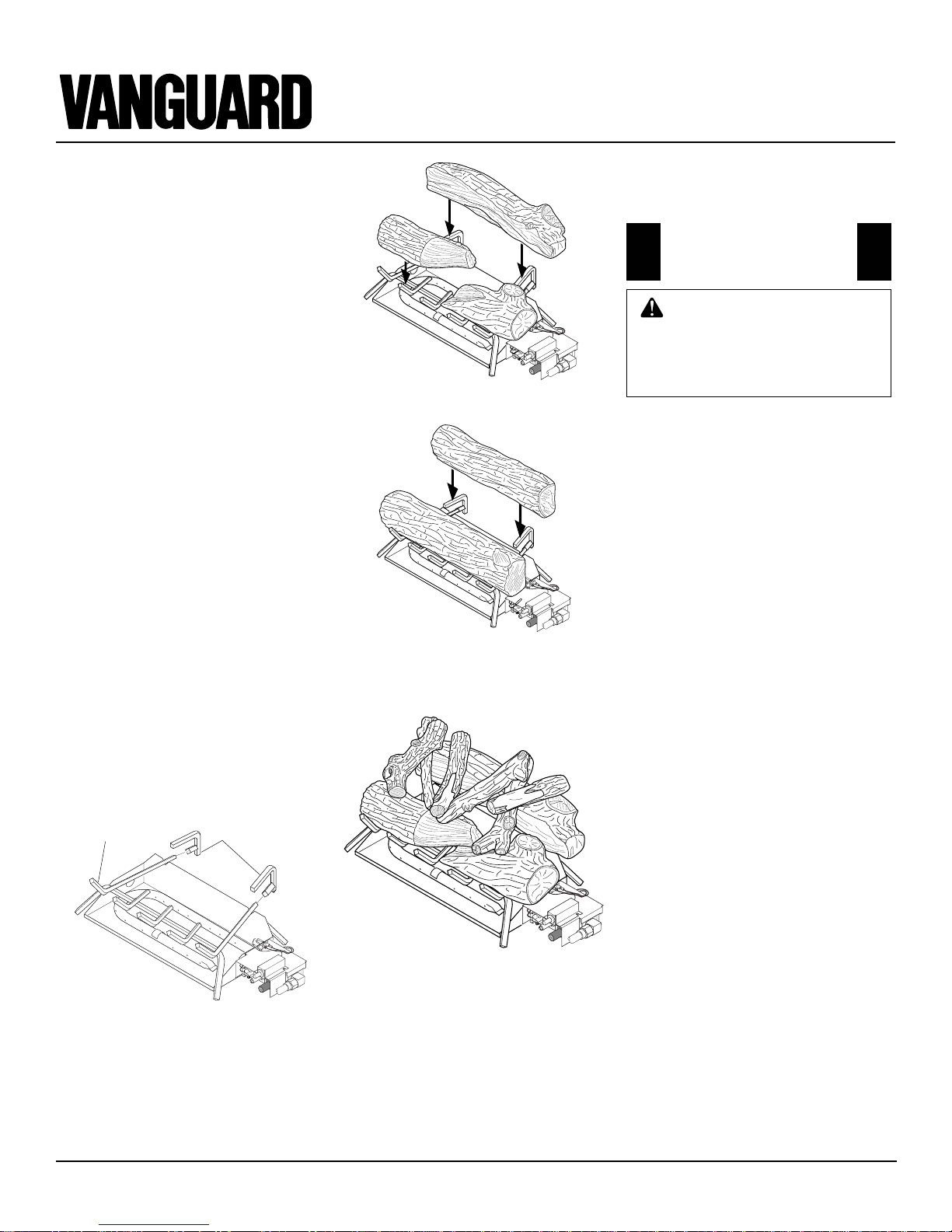

Figure 20 - Installing Grate (Pan Material
Not Shown)
Figure21-InstallingFrontandBackLogs
(Numberandstyleofyourlogsmayvary)
Figure 22 - Placement of Top Logs
(Manchester Split Oak Logs Shown)
Grate Grate Steps
O
F
F
P
I
L
O
T
O
N
O
F
F
P
I
L
O
T
O
N
O
F
F
P
I
L
O
T
O
N
Arlington Round Oak Logs
Manchester Split Oak Logs
OPERATING
APPLIANCE
FOR YOUR SAFETY
READ BEFORE
LIGHTING
WARNING: If you do not fol-
low these instructions exactly, a
fireorexplosionmayresultcaus-
ing property damage, personal
injury or loss of life.
A. Thisappliancehasa pilotwhichmust
belighted byhand.Whenlightingthe
pilot,followtheseinstructionsexactly.
B. BEFORE LIGHTING smell all
aroundtheapplianceareaforgas. Be
suretosmellnext to thefloorbecause
some gas is heavier than air and will
settle on the floor.
WHAT TO DO IF YOU SMELL
GAS
• Do not try to light any appliance.
• Do not touch any electric switch;
donotuseanyphoneinyourbuilding.
• Immediatelycallyourgassupplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas sup-
plier, call the fire department.
C. Useonlyyourhandtopushinor turn
thegascontrolknob.Neveruse tools.
If the knob will not push in or turn
by hand, don’t try to repair it, call a
qualified service technician or gas
supplier. Force or attempted repair
may result in a fire or explosion.
D. Do not use this appliance if any part
has been under water. Immediately
call a qualified service technician to
inspect the appliance and to replace
any part of the control system and
any gas control which has been un-
der water.
ADDING PAN MATERIAL
1. Open the bag of ash bed material (ver-
miculite)and spread it evenlyacrossthe
burner pan to the top. You may over-
flow the front and sides of the pan to
coverthe entire pan.Do not covervalve.
2. Open the glowing embers and evenly
cover the ash bed material (vermicu-
lite) in the burner pan.
INSTALLING THE GRATE
AND LOGS
1. Place the grate over the burner pan where
the two outer horizontal supports on the
grate fit into the two pan positioning
notchesintherearverticaledgeofthepan.
2. Slide the two rear log grate steps over
thetwoouter horizontal supports on the
grate as shown in Figure 20.
3. Place the back log on the grate onto the
grate steps (see Figure 21).
4. Place the front log(s) on the grate and
slide forward against the front bars on
the grate (see Figure 22).
5. Place the smaller top logs onto the bot-
tom logs (see Figure 22). Leave as
much open space between logs as pos-
sible to minimize flame impingement
and sooting. Note: Logs may chip if
they are handled roughly or if hit to-
gether while being placed.

13
901272
OWNER’S MANUAL
O
F
F
P
I
L
O
T
O
N
1. STOP! Read the safety information,
page 12 column 3.
2. Make sure manual shutoff valve is
fully open.
3. If Using Optional Hand-Held Re-
mote orWall Switch: Set switch to
OFF position.
4. Pressin and turncontrolknobclock-
wise to the OFF position.
5. Waitfive(5) minutesto clear out any
gas. Then smell for gas, including
near the floor. If you smell gas,
STOP! Follow “B” in the safety in-
formation, page 12 column 3. If you
don’t smell gas, go to the next step.
6. Pressin and turn controlknobcoun-
terclockwise to the PILOT
position. Press in control knob for
five (5) seconds (see Figure 23).
Note: You may be running this log
setforthefirsttime afterhooking up
to gas supply. If so, the control knob
may need to be pressed in for 30 sec-
onds or more. This will allow air to
bleed from the gas system.
7. With control knob pressed in, press
and release ignitor button. This will
light pilot. If needed, keep pressing
ignitor button until pilot lights.
Note: Ifpilotdoesnotstaylit,contacta
qualifiedserviceperson orgassupplier
forrepairs.Untilrepairsaremade,light
pilot with match. To light pilot with
match,seeManualLightingProcedure.
Figure 23 - Control Knob and Ignitor But-
ton Location (Shown as Supplied, No
Control Options)
WARNING: Burner will come
onautomaticallywithinoneminute
when the selector switch is in the
ON position after the pilot is lit. Control
Knob
Igniter
Button
Pilot Ther-
mopile
Figure 24 - Thermopile and Pilot
LIGHTING
INSTRUCTIONS
TO TURN OFF GAS
TO APPLIANCE
Shutting Off Appliance
1. Slightly push in and turn control
knob clockwise to the OFF
position.
Shutting Off Burner Only (pilot
stays lit)
Youmayshutofftheburnerandkeepthe
pilot lit by doing one of the following:
1. Slightly push in and turn control
knob clockwise to the PI-
LOT position.
2. If Using Optional Hand-Held Re-
mote orWall Switch: Set switch to
OFF position.
MANUAL LIGHTING
PROCEDURE
1. Followsteps1through6underLight-
ing Instructions.
2. Depress control knob and light pilot
with match.
3. Keep control knob pressed in for 30
seconds after lighting pilot.After 30
seconds, release control knob. Now
follow steps 9 through 10.
OPERATING
APPLIANCE
Continued
8. Keep control knob pressed in for 30
seconds after lighting pilot.After 30
seconds, release control knob.
• Ifcontrolknobdoesnotpopoutwhen
released, contact a qualified service
person or gas supplier for repairs.
Note: Ifpilot goes out, repeatsteps
4 through 8.
9. Slightly push in and turn control
knob counterclockwise to
the ON position.
10. If Using Optional Hand-Held Re-
mote or Wall Switch: Wait one
minute and switch selector switch to
the ON position to light burner.
Continued

®
14
901272
VENTED GAS LOGS
NOTICE: You must light the pilot
before using the hand-held re-
mote control unit. See Lighting
Instructions .
OPTIONAL REMOTE
OPERATION
Note: Allremotecontrolaccessoriesmust
be purchased separately. Follow instruc-
tions included with the remote control.
1. After lighting, let pilot flame burn for
about one minute. Turn control knob
toONposition.Slidetheselectorswitch
to the REMOTE position. NOTE: The
burner may light if hand-held remote
ONbuttonwasonwhenselectorswitch
was last turned off. You can now turn
the burner on and off with the hand-
held remote control unit.
IMPORTANT : Do not leave the se-
lector switch in the REMOTE posi-
tionwhenthepilot is not lit.This will
drain the battery.
IMPORTANT: Be sure to press the
ON/OFF buttons on the hand-held
remote control unit for up to 3 sec-
onds to assure proper operation.
GHRC Operation:
2. PresstheON/OFFbuttonto turn the
burner on and off. When turning
burner off, the pilot will remain lit.
GWMS2 WALL
MOUNTED SWITCH
(OPTIONAL)
This wall switch works just like the con-
ventional light switch. Flip the switch up
for on and down for off.
Note: Make sure that this switchis not in
apositiontobemistakenforalightswitch.
This may result in the log set being inad-
vertently turned on without the proper
precautions being taken. See installation
instructions on page 11 of this manual.
OPERATING
APPLIANCE
Continued
During the 2-3 hour appliance break-in
period, you may detect an odor from the
appliance as the various paints and com-
poundsused inthemanufacturing ofthis
log set cure. This is a normal and tempo-
rarysituation that is notcauseforalarm.
However,you may want toprovide extra
ventilation to the room during this time.
To ensure proper curing of the logs:
• Ignite a 2" flame and maintain it for 1
hour.
• Burnthelogs in consecutive1hourpe-
riods raising the flame an additional
2" to full flame height for a total of
three hours.
CURING LOGS

15
901272
OWNER’S MANUAL
TROUBLESHOOTING WARNING: Turn off log set
andletcoolbeforeservicing.Only
aqualifiedservicepersonshould
service and repair log set.
POSSIBLE CAUSE REMEDY
OBSERVED PROBLEM
1. Poor fuel quality
2. Fireplace venting system not drafting
properly
3. Excessive flame impingement or block-
age
4. Improper fuel/air mixture
5. Excessive gas supply/pressure
1. Passage of air/gas across irregular sur-
faces
2. Excessive gas pressure on natural gas
units
1. Incorrect gas supply or pressure
2. Blocked burner orifice or burner mani-
fold ports
3. Improper burner orifice size
1. Battery is not installed. Battery power
is low
Log set is smoking/sooting excessively
( Note: It is natural and unavoidable for
vented gas log sets to produce moderate
levels of carbon (soot) where flames
contact the logs. This is especially true
with propane/LP gas.)
Burner is excessively noisy
( Note: The movement and combustion of
gas will create low, unavoidable levels of
noise.)
Burner flame is too low or too high
Remote does not function (GHRC only)
1. Contact local natural or propane/LPgas
company
2. Adjust damper wide open and/or have
fireplace and venting professionally
cleaned and checked
3. Separate the logs to allow more flame
passage
4. Remove any foreign items from the
flame pattern and/or check for proper
orifice sizing
5. Preheat flue in very cold weather
1. Relieve any tight bends or kinks in gas
supply line
2. Check/reset gas regulator pressure (see
Adjusting Regulator Pressure For Pro-
pane/LP Conversion, page 10)
1. Check for proper gas supply pressure
2. Free burner orifice and manifold ports
of any burrs, paint, or other blockage
3. Verify proper burner orifice sizing (see
Figure 4, page 7)
1. Replace 9-volt batteries in receiver and
remote control
Continued
www.desatech.com
Note: For additional help, visit DESA
International’stechnicalservicewebsite
at www.desatech.com.
Note: Alltroubleshootingitemsarelistedin
order of operation.

®
16
901272
VENTED GAS LOGS
OBSERVED PROBLEM
When ignitor button is pressed, there is no
spark at pilot
When ignitor button is pressed, there is
spark at pilot but no ignition
Pilotlightsbutflamegoesoutwhencontrol
knob is released
Burner does not light after pilot is lit
Delayed ignition burner
REMEDY
1. Reconnect ignitor cable
2. Free ignitor cable if pinched by any
metal or tubing. Keep ignitor cable dry
3. Scrape away paint on bracket for better
contact with ground on piezo ignitor
4. Replace ignitor cable
5. Replace piezo ignitor
6. Replace electrode
7. Reposition electrode
1. Turn on gas supply or open manual
shutoff valve
2. Turn control knob to PILOT position
3. Press in control knob while in PILOT
position
4. Continue holding down control knob.
Repeat igniting operation until air is re-
moved
5. Adjust pilot flame for approximately
2" blue flame
6. Clean pilot (see Cleaning and Mainte-
nance, page 22) or replace pilot assembly
7. Replace gas control
1. Press in control knob fully
2. After pilot lights, keep control knob
pressed in 30 seconds
3. Fully open manual shut-off valve
4. A) Contact local natural gas company
B) Clean pilot (see Cleaning and Mainte-
nance, page 22) or replace pilot assembly
5. Hand tighten until snug, then tighten
1/4 turn more
6. Replace thermocouple
7. Replace control valve
1. Clean burner orifice
2. Contact local natural or propane/LPgas
company
3. Replace burner orifice
4. Reconnect leads
1. Adjust pilot flame for approximately
2" blue flame
2. Replace pilot orifice set
TROUBLESHOOTING
Continued
POSSIBLE CAUSE
1. Ignitor electrode not connected to igni-
tor cable
2. Ignitor cable pinched or wet
3. Bad ground on piezo ignitor
4. Broken ignitor cable
5. Bad piezo ignitor
6. Ignitor electrode broken
7. Ignitor electrode positioned wrong
1. Gas supply turned off or manual shutoff
valve closed
2. Control knob not in PILOT position
3. Control knob not pressed in while in
PILOT position
4. Air in gas lines when installed
5. Pilot adjustment screw closed
6. Pilot is clogged
7. Low gas pressure
1. Control knob not fully pressed in
2. Control knob not pressed in longenough
3. Manual shutoff valve not fully open
4. Pilot flame not touching thermocouple,
which allows thermocouple to cool,
causing pilot flame to go out. This prob-
lem could be caused by one or both of
the following:
A) Low gas pressure
B) Dirty or partially clogged pilot
5. Thermocouple connection loose at con-
trol valve
6. Thermocouple damaged
7. Control valve damaged
1. Burner orifice clogged
2. Inlet gas pressure is too low
3. Burner orifice diameter is too small
4. Thermocouple leads disconnectedorim-
properly connected
1. Pilot flame needs adjusting
2. Wrong pilot orifice
www.desatech.com

17
901272
OWNER’S MANUAL
WARNING: If you smell gas
• Shut off gas supply.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in
your building.
• Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
• Ifyoucannotreachyourgassupplier,callthefiredepartment.
POSSIBLE CAUSE
1. Metal expanding while heating or con-
tracting while cooling
1. Log Set burning vapors from paint, hair
spray, glues, cleaners, chemicals, new
carpet, etc. (See IMPORTANT state-
ment above)
2. Gas leak. SeeWarning statement at
top of page
1. Gas leak. SeeWarning statement at
top of page
2. Control valve defective
1. Gas leak. SeeWarning statement at
top of page
OBSERVED PROBLEM
Log Set produces a clicking/ticking noise
just after burner is lit or shut off
Log Set produces unwanted odors
Gas odor even when control knob is in OFF
position
Gas odor during combustion
REMEDY
1. This is common with most log sets. If
noise is excessive, contact qualified ser-
vice person
1. Open flue to maximum. Stop using odor
causingproductswhile log set is running
2. Locate and correct all leaks (see Check-
ing Gas Connections, page 8)
1. Locate and correct all leaks (see Check-
ing Gas Connections, page 8)
2. Replace control valve
1. Locate and correct all leaks (see Check-
ing Gas Connections, page 8)
IMPORTANT: Operating log set where impurities in air exist may create odors.
Cleaningsupplies,paint,paintremover,cigarettesmoke,cementsandglues,new
carpet or textiles, etc., create fumes. These fumes may mix with combustion air
and create odors. These odors will disappear over time.
TROUBLESHOOTING
Continued
www.desatech.com

®
18
901272
VENTED GAS LOGS
ILLUSTRATED
PARTS
BREAKDOWN
MODELS VVSA18R,
VVSA24R, VVDA18R,
VVDA24R, AND VVDA30R
O
F
F
P
I
L
O
T
O
N
3
15
18
21
16
13
24
6
4
17
22
20
17
14
23
10
7
5
5
9
9
11
12
1
19
2
8
25

19
901272
OWNER’S MANUAL
PARTS LIST This list contains replaceable parts used in your log set. When ordering parts, follow the
instructions listed under Replacement Parts on page 22 of this manual.
MODELS VVSA18R,
VVSA24R, VVDA18R,
VVDA24R, AND VVDA30R
KEY PART NUMBER FOR
NO. VVSA18R VVSA24R VVDA18R VVDA24R VVDA30R DESCRIPTION QTY.
1 901063-01 901063-01 901063-01 901063-01 901063-01 Brass 3/8 FLR x 1/2 FPT Elbow 1
2 901056-01 901056-01 901056-01 901056-01 901056-01 Brass 3/8 FLR x 3/8 MPT Elbow 1
3 901066-01 901066-01 901066-01 901066-01 901066-01 Brass Air Mixer - Natural Gas 1
4 901064-03 901064-04 901064-03 901064-04 901064-09 Natural Gas Injector 1
5 901208-01 901208-02 901209-01 901209-02 901209-03 Burner Manifold 1
6 901136-01 901136-02 901137-01 901137-02 901137-03 Burner Pan 1
7 901242-01 901242-01 901242-01 901242-01 901242-01 Damper Clamp - Std. Assembly 1
8 901232-01 901232-01 901232-01 901232-01 901232-01 Gas Line - 12" Aluminum 1
9 901430-01 901430-01 901431-01 901431-01 901431-01 Grate Steps 2
10 901243-01 901243-02 901246-01 901246-02 901246-03 Log Grate 1
11 — — 901681-01 901681-01 901681-01 Burner Strap 1
12 — — 901063-01 901063-01 901063-01 Nut #8/32 1
13 — — 901076-01 901076-01 901076-01 Screw #8/32 x 3/8 1
14 106824-01 106824-01 106824-01 106824-01 106824-01 Piezo Cover 1
15 901066-02 901066-02 901066-02 901066-02 901066-02 Propane/LP Brass Air Mixer 1
16 901065-02 901065-03 901065-02 901065-03 901065-04 Propane/LP Brass Orifice 1
17 901075-01 901075-01 901075-01 901075-01 901075-01 Screw 1/4" #8 “B” pt 1
18 105575-01 105575-01 105575-01 105575-01 105575-01 Jumper Wire 1
19 M12461-26 M12461-26 M12461-26 M12461-26 M12461-26 Machine Screw #10-32 x 3.8" 1
20 097159-04 097159-04 097159-04 097159-04 097159-04 Piezo Igniter 1
21 901071-01 901071-01 901071-01 901071-01 901071-01 Valve, mV 1
22 901073-01 901073-01 901073-01 901073-01 901073-01 Pilot Burner (with natural gas orifice) 1
23 901072-01 901072-01 901072-01 901072-01 901072-01 Piezo Ignitor Electrode 1
24 106823-01 106823-01 106823-01 106823-01 106823-01 Steel Shroud 1
25 901070-01 901070-01 901070-01 901070-01 901070-01 Propane/LP Pilot Burner Orifice 1
PARTS AVAILABLE — NOT SHOWN
901156-01 901156-01 901156-01 901156-01 901156-01 .125# Bag Embers 1
901155-01 901155-01 901155-01 901155-01 901155-01 1.5# Bag Ash Bed Material
(Vermiculite) 1
901838-01 901838-01 901838-01 901838-01 901838-01 Remote Receiver Cover (Log) 1

®
20
901272
VENTED GAS LOGS

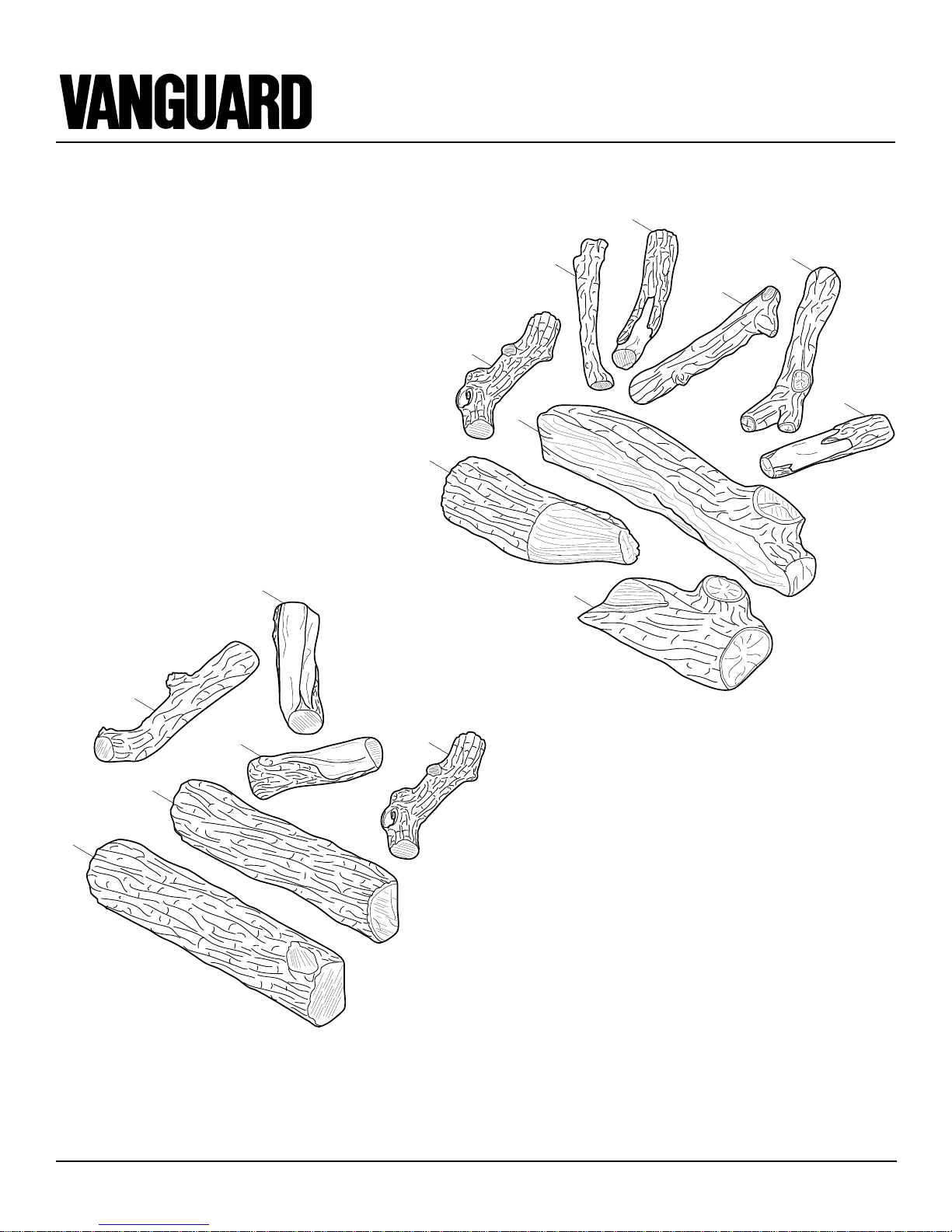

ILLUSTRATED
PARTS
BREAKDOWN
LOG SET MODELS VSLR18,
VSLR24, VDLCR18, VDLCR24,
AND VDLCR30
4
2
7
8
5
6
9
3
15
12
1
14 13
10
11
Kingston Split Oak Logs
Hanover Round Oak Logs
