42" AND 50" WOOD BURNING MASONRY FIREPLACE
OWNER’S OPERATION AND INSTALLATION MANUAL




and Herringbone Refractory

www.desatech.com 109493-01N2
TABLE OF CONTENTS
Safety Information ............................................... 2
Specications ...................................................... 3
Fireplace Installation............................................ 5
Venting Installation .............................................. 7
Optional Gas Line Installation.............................11
Glass Door Installation ...................................... 12
Operation and Maintenance Guidelines ............ 13
Technical Service............................................... 14
Replacement Parts............................................ 15
Accessories ....................................................... 16
SAFETY INFORMATION
 
 
alteration,serviceormain-

property damage or loss
of life. Refer to this manual
for assistance or addition-
al information. Consult a

distributor.
   

Before beginning the installation of the replace,
read these instructions through completely.
• This DESA replace and its components are
safe when installed according to this installation
manual. Unless you use DESA components,
which have been designed and tested for the
replace system, you may cause a re hazard.
• The DESA warranty will be voided by and
DESA disclaims any responsibility for the
following actions.
a. Modication of the replace, components,
doors, air inlet system and damper control.
b. Use of any component part not manufac-
tured or approved by DESA in combination
with a DESA replace system.
Proper installation is the most important step in
ensuring safe and continuous operation of the
replace. Consult the local building codes as to
the particular requirements concerned with the
installation of all factory built replaces.

-
less the manufacturer's instruc-

    
tested for use with the insert.

used as a substitute for a furnace

supplemental heat only.

 

or liquids in the vicinity of this
or any other appliance.
 
appliance should be located
     
furniture and draperies.
 

the appliance.
• Never leave children unat-




only. When processed wood
      
poke or stir the logs while they

that have been evaluated for

     
caution markings on packaging
prior to use.
   
glass doors fully opened or
fully closed when operating


www.desatech.com
109493-01N 3

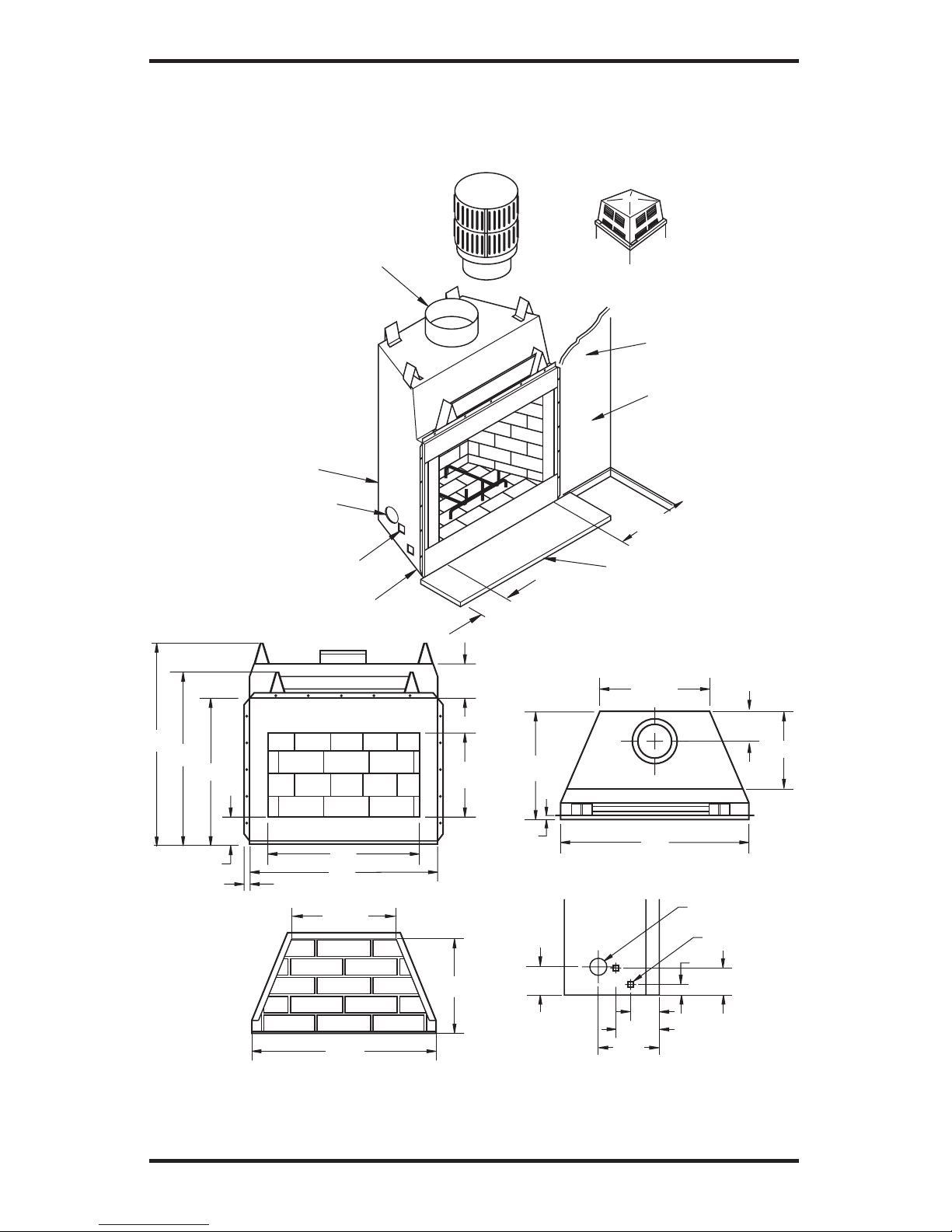

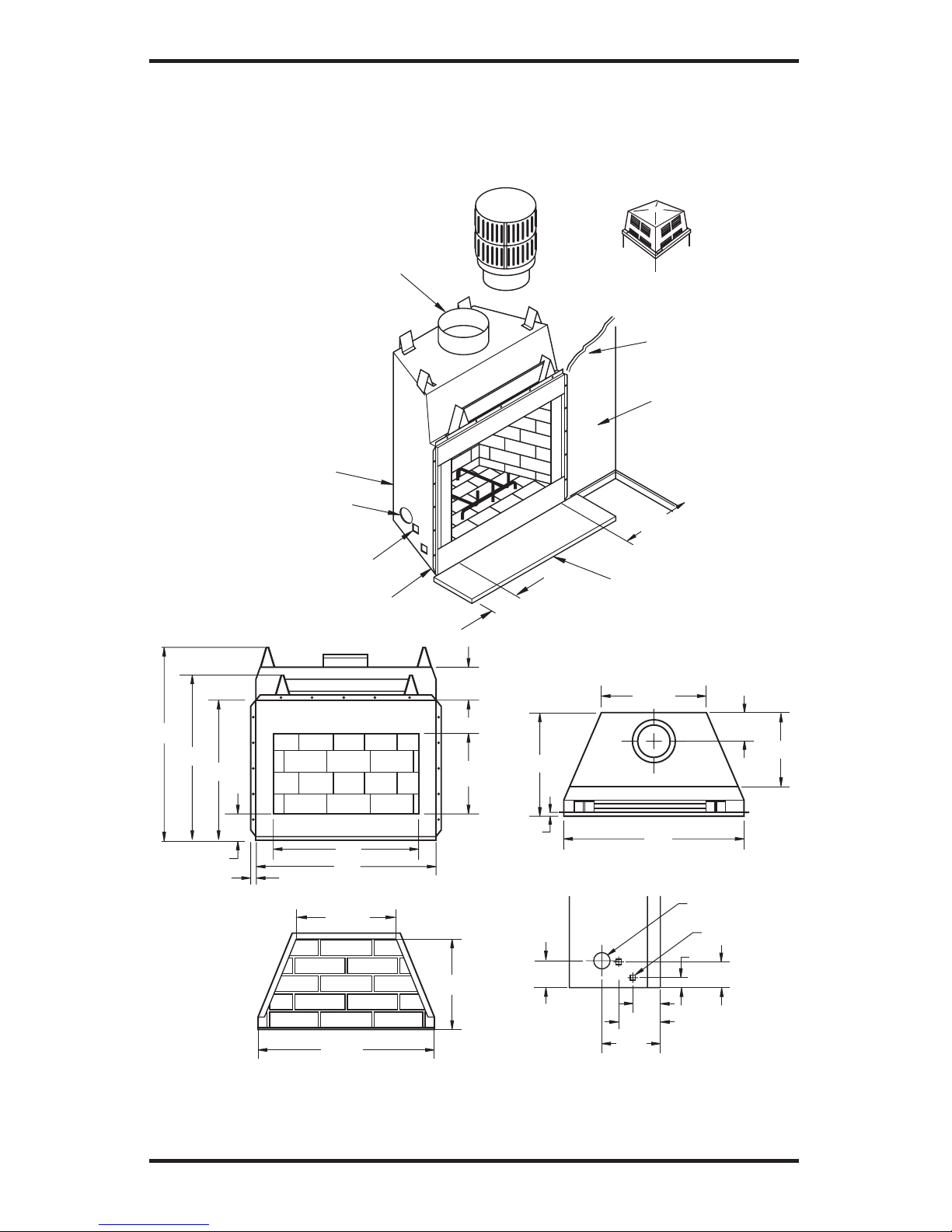

SPECIFICATIONS

10.5"
17"
0.625" 51"
30.5"
28.5"
21.25"
41.25"
23.5"
24.25"
3.5"
13"
1"
49"
8"
58"
30"
42"
51"
12"
9.5"
8.5"
67"
11"
GAS LINE
KNOCK OUTS
AIR KIT
KNOCK OUT
LEFT SIDE
OUTSIDE AIR
11/2" AIR SPACE
BACK AND SIDES
0" TO
BOTTOM
GAS LINE
KNOCKOUTS
12" EACH SIDE
COMBUSTIBLE
WALL BOARD
NO COMBUSTIBLE
MATERIAL ON FACE
MINIMUM 18" TO
PERPENDICULAR
SIDEWALL
HEARTH EXTENSION
66" X 20"
2" CHIMNEY AIRSPACE
CLEARANCE TO
COMBUSTIBLE MATERIAL
ROUND TOP TERMINATION
TERMINATION
SQUARE CHASE-TOP

www.desatech.com 109493-01N4
SPECIFICATIONS

10.5"
17"
50"
23.5"
32.75"
3.5"
13"
9.5"
8.5"
2" CHIMNEY AIRSPACE
CLEARANCE TO
COMBUSTIBLE MATERIAL
TERMINATION
SQUARE CHASE-TOP
ROUND TOP TERMINATION
COMBUSTIBLE
WALL BOARD
NO COMBUSTIBLE
MATERIAL ON FACE
0" TO
BOTTOM
OUTSIDE AIR
11/2" AIR SPACE
BACK AND SIDES
GAS LINE
KNOCKOUTS
12" EACH SIDE
MINIMUM 18" TO
PERPENDICULAR
SIDEWALL
HEARTH EXTENSION
74" X 20"
0.625" 59"
38.5"
28.5"
21.25"
11"
1"
49"
8"
58"
30"
50"
59"
12"
67"
LEFT SIDE
GAS LINE
KNOCK OUTS
AIR KIT
KNOCK OUT

www.desatech.com
109493-01N 5
FIREPLACE INSTALLATION

To determine the safest and most efcient location
for the replace, you must take into consideration
the following guidelines:
1. The location must allow for proper clearances
(see Figures 1 and 2).
2. Consider a location where the replace will
not be affected by drafts, air conditioning
ducts, windows or doors.
3. A location that avoids the cutting of joists or
roof rafters will make installation easier.
4. An outside air kit is available with this replace
(see Optional Outside Air Kit on page 6).


Back and sides of replace 1 1/2" min.*
Front of replace 48" min.
Floor** 0" min.
Perpendicular wall to opening 12" min.
Top spacers 0" min.
Mantel clearance see Mantels, page 5
Chimney outer pipe surface 2" min.
* Not required at nailing anges
** See step 2 of Framing
-
quired air spaces with insulation
or other materials.

The minimum height of the chimney, measured
from the base of the replace to the ue gas outlet
of the termination, is 16 feet for straight ue or a
ue with one elbow set. The maximum distance be-
tween elbows is 6 feet. For systems with two elbow
sets, the minimum height is 22 feet. The maximum
height of any system is 50 feet. This measurement
includes the replace, chimney sections and the
height of the termination assembly at the level of
the ue gas outlet (see Figure 15, page 9).

1. Frame the opening for the replace using the
dimensions shown in Figures 1 and 2.
2. If the replace is to be installed directly on
carpeting, tile (other than ceramic) or any
combustible material other than wood oor-
ing, the replace must be installed upon a
metal or wood panel extending the full width
and depth of the replace.
3. Set the replace directly in front of this open-
ing and slide the unit back until the nailing
anges touch the side framing.
4. Check the level of the replace and shim with
sheet metal if necessary.
5. Before securing replace to prepared framing,
the ember protector (provided) must be placed
between the hearth extension (not supplied)
and under the bottom front edge of the re-
place to protect against glowing embers falling
through. If the replace is to be installed on
a raised platform, a Z-type ember protector
(not supplied) must be fabricated to t your
required platform height. The ember protector
should extend under the replace a minimum
of 1 1/2". The ember protector should be made
of galvanized sheet metal (28 gauge minimum
to prevent corrosion.
6. Using screws or nails, secure the replace to
the framing through anges located on the
sides of the replace.
30.125"
58.125"
67.125"
51.25" (42")
59" (50")
Figure 1 - Framing Dimensions
92" (42" Models)
100" (50" Models)
65" (42" Models)
71" (50" Models)
Maintain 1 1/2"
Clearance at Sides
and Back of Fireplace
1 1/2" Clearance
Not Required at
Nailing Flanges

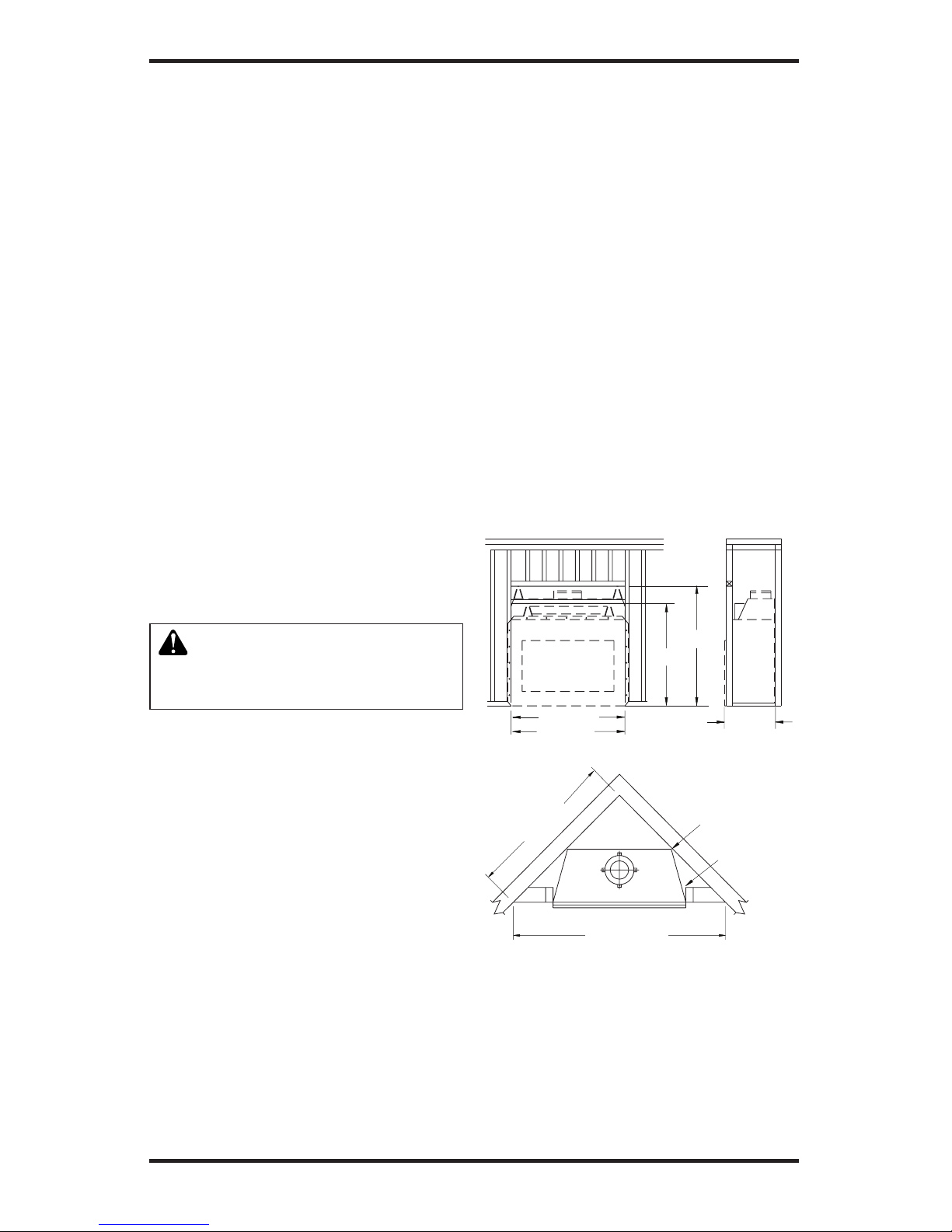

Figure 2 - Corner Installation

www.desatech.com 109493-01N6
HEARTH ExTENSION
A hearth extension projecting a minimum of 20"
in front of and a minimum of 12" beyond each
side of the replace opening is required to protect
combustible oor construction in front of the re-
place. Fabricate a hearth extension using a material
which meets the following specications: a layer
of noncombustible, inorganic material having a
thermal conductivity of K=0.84 BTU IN/FT, HR.
F (or less) at 1" thick. For example, if the material
selected has a K factor of 0.25, such as glass ber,
the following formula would apply:
0.25 x 1.0" = 0.30" thickness required
0.84
Thermal conductivity "K" of materials can be
obtained from the manufacturer or supplier of the
noncombustible material. If the hearth extension
is to be covered, use noncombustible material such
as tile, slate, brick, concrete, metal, glass, marble,
stone, etc. Provide a means to prevent the hearth
extension from shifting and seal gap between the
replace frame and hearth extension with a non-
combustible material (see Figure 3).

is to be installed only as shown

FIREPLACE INSTALLATION
Continued
Figure 3 - Hearth Extension
Seal Gap
Fireplace Front
Ember Protector
Fireplace Front
Raised Hearth
Fireplace Front
Elevated
Ember Protector
Ember Protector
Seal Gap
Hearth
Extension

A mantel may be installed if desired (see Figure 4).
Woodwork such as wood trims, mantels or any other
combustible material projecting from the front face
must not be placed within 12" of the replace open-
ing. Combustible materials above 12" and projecting
more than 1 1/2" from the replace must not be placed
less than 15" from the top opening of the replace
(NFPA STD 211, Sec. 7-3.3.3).
Mantels or any other combustible material also
may come up to the side edge of the black metal
face of the replace just as long as the projection
from the front face fall within the limit shown in
Figure 4.
12 1/4" Ref.
15" Min.
12" Min.
11/2" Max.
3" Nom.
33°
Combustible
Material
Safe
Zone for
Projection of
Combustible
Materials
Fireplace
Opening
Upper
Section of
Fireplace
Figure 4 - Mantel Clearances to
Combustible Material
FIREBOX
SAFE ZONE
Top View of Fireplace
3" Max.
4.5"
Min. to
Perpendicular
Side Wall
12"
7.75"
33°
Combustible
Material Must
Not Overlap
Front Face
6"
Ref.

www.desatech.com
109493-01N 7
Figure 6 - Lineal Gain

PART NO.  GAIN
Georgian Fireplace 66 1/2 "
12-12DM
12-12HT Pipe Section 10 5/8
"
18-12DM
18-12HT Pipe Section 16 5/8
"
24-12DM
24-12HT Pipe Section 23 5/8
"
36-12DM
36-12HT Pipe Section 34 5/8
"
48-12DM
48-12HT Pipe Section 46 5/8
"
RLT-12D
RLT-12HT Round Termination 7 3/4
"
*
STL-12D Square Chase-Top
with Slip Section 7
" to 15 " *
* The lineal gain for the terminations is mea-
sured to the ue gas outlet height.
Hemmed
End
12 3/8"
Stainless
Inner Pipe
15" Galvanized
Outer Pipe


Each double wall chimney section consists of a
galvanized outer pipe, a stainless steel inner ue
pipe and a wire spacer. The pipe sections must be as-
sembled independently as the chimney is installed.
When connecting chimney directly to the replace,
the inner ue pipe section must be installed rst
with the lanced side up. The outer pipe section can
then be installed over the ue pipe section with the
hemmed end up. Press down on each pipe section
until the lances securely engage the hem on the re-
place starter. The wire will assure the proper spacing
between the inner and outer pipe sections.
Continue to assemble chimney sections as outlined
above, making sure that both the inner and outer
pipe sections are locked together. When install-
ing double wall snap-lock chimney together, it is
important to assure the joint between the chimney
sections is locked. Check by pulling chimney
upward after locking. The chimney will not come
apart if properly locked. It is not necessary to add
screws to keep the chimney together (exception,
see Figure 9, page 8).
VENTING INSTALLATION


The installation of an outside air kit should be per-
formed during the rough framing of the replace
due to the nature of it's location. Outside combus-
tion air is accessed through a vented crawl space
(AK4F) or through a sidewall (AK4).
   
inlet ducts shall not terminate
in attic space.

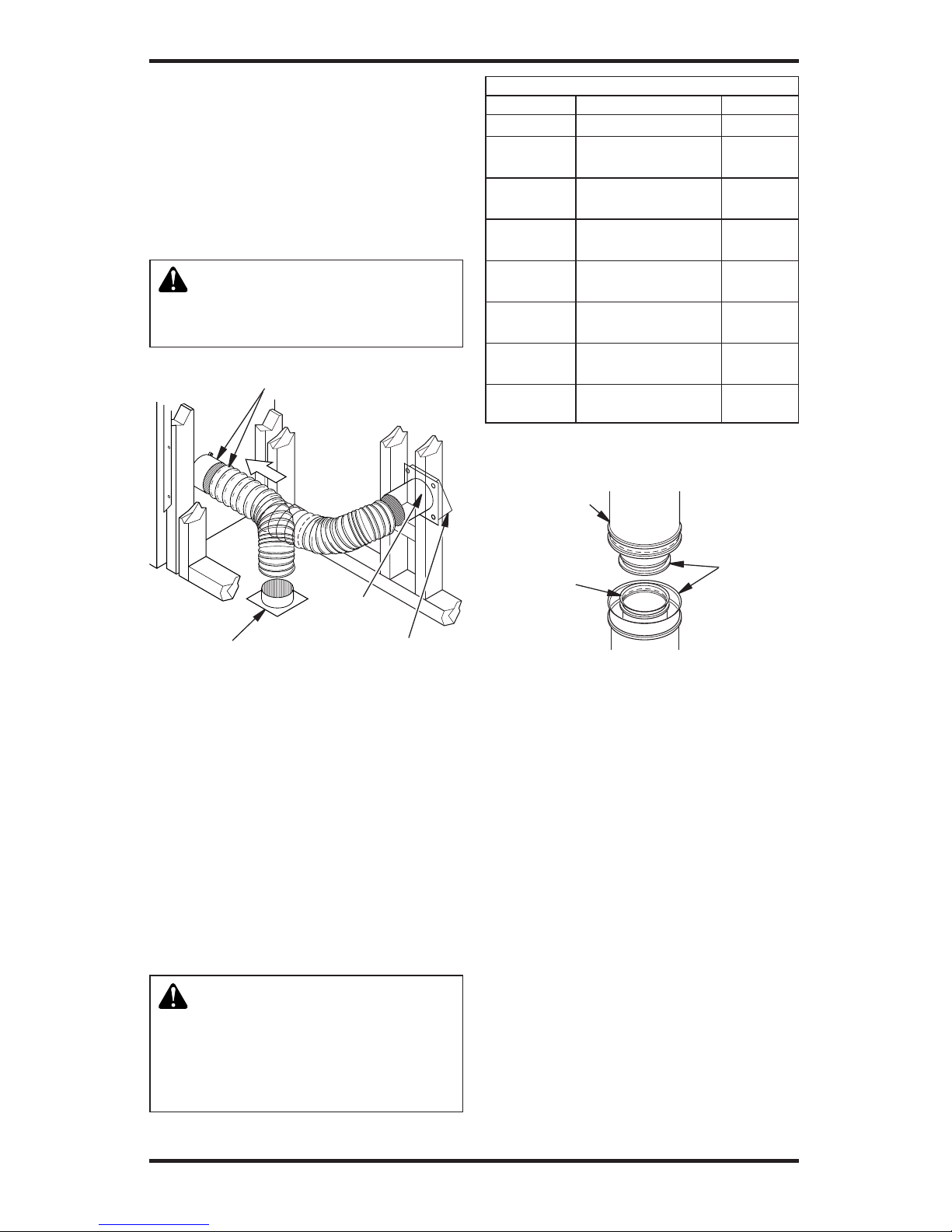

Figure 5 - Outside Air Kit
Secure to Collars with Metal Tape,
Screws or Straps (Min. 1/4" x 20" size)
Air Inlet
Location
Must Allow
For Bushes
or Snow
Vent Hood
Required for
Wall Installation
Air Inlet
Eyebrow
Vented Crawl Space
(Check Local Codes
Before Installing in a
Vented Crawl Space)

The DESA chimney system consists of 12", 18",
24", 36" and 48" snap-lock, double-wall pipe
segments, planned for maximum adaptability
to individual site requirements. Actual lengths
gained after tting overlaps must be taken into
consideration (lineal gain) and are given in the
lineal gain chart (see Figure 6). Lineal Gain is the
actual measurable length of a part after two or more
parts are connected. For Canada, use chimney parts
designated "HT".

collar around the chimney at the
      
obstructed.Neveruseblowninsula-


www.desatech.com 109493-01N8
VENTING INSTALLATION
Continued

1. To achieve desired offset, you may install
combinations of 12", 18", 24", 36" and 48"
length of double wall pipe (see offset chart
and Figure 7).

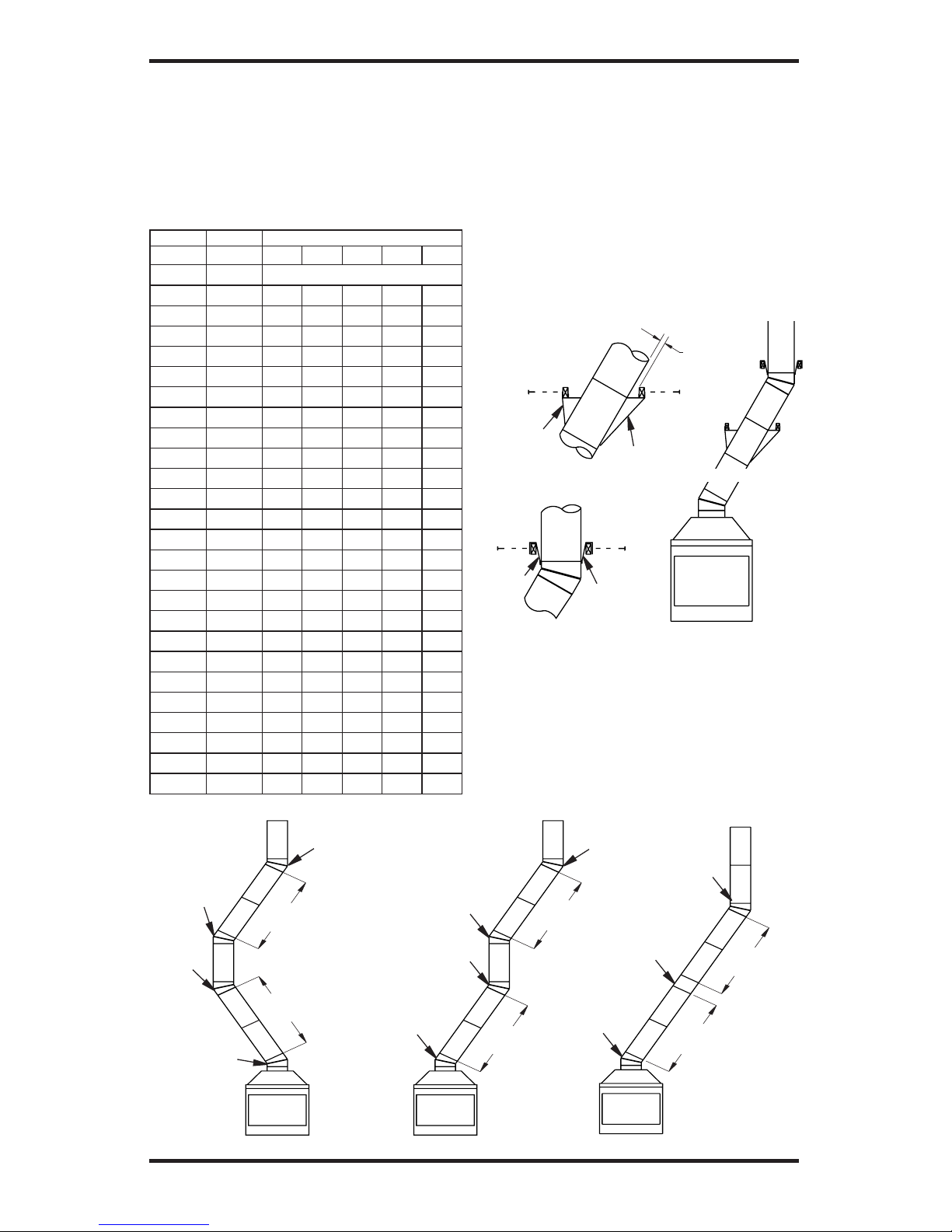

OFFSET CHART (22-50 FT. SYSTEM HEIGHT)
Figure 7 - Typical Offset Terminations
Return
Elbow
Offset
Elbow
Return
Elbow
Offset
Elbow
6' Max.
6' Max.
6' Max.
6' Max.
6' Max.
6' Max.
Return
Elbow
Offset
Elbow
Offset
Elbow
Return
Elbow
A B C
Offset
Elbow
Ceiling
Support Pipe
12S-12DM
Return
Elbow
Figure 8 - Ceiling Support Pipe
12S-12DM
2" Min.
Straps
Straps
Straps
Straps
Detail A
Return Elbow
Detail B
Angle Firestop
See Detail A
See Detail B
2. Chimney weight above offset rests on return
elbow. Straps must be securely nailed to rafters
or joists (see Figure 8, details a and b).
3. Maximum length of pipe between supports
(return elbow or 12S-12DM) is 6' of angle
run. Maximum of two 6' angle run sections
per chimney system (see Figure 7).
4. All pipe connections between the offset and
return must be secured with two screws on
the outer pipe only (see Figure 9, page 10).
Do not penetrate the inner stainless.
 RISE 
A B 12" 18" 24"  48"
4 3/8" 16 3/8" ELBOW SET ONLY
9 3/4" 25 1/2" 1
12 3/4" 30 3/4" 1
15" 34 3/4" 1
18" 40" 1 1
21 1/4" 46 1/4" 1
23 3/4" 49 1/4" 1 1
27 3/4" 56 3/4" 1
30" 60 3/4" 1 1
33" 66" 1 1
36" 71" 1 1
38 1/4" 75" 2
41 1/4" 80 1/4" 1 1 1
45" 86 3/4" 2
46 3/4" 89 1/2" 1 1 1
51" 97" 1 1
53 1/4" 101" 1 2
56 1/4" 106 1/4" 2
59 1/4" 111 1/2" 1 1 1
61 3/4" 115 1/2" 1 2
64 3/4" 120 3/4" 1 2
68 1/4" 127" 2 1
70" 130" 1 1 2
74 1/4" 137 1/2" 1 2 1
76 3/4" 141 1/2" 1 2 1
79 3/4" 146 3/4" 4

www.desatech.com
109493-01N 9
VENTING INSTALLATION
Continued
Figure 9 - Elbow Offset
B
A
Screws

Firestop spacers are required at each point where
the chimney penetrates a oor space. Their purpose
is to establish and maintain the required clearance
between the chimney and the combustible materials.
When the pipe passes through a framed opening into
a living space above, the restop must be placed onto
the ceiling from below as shown in Figure 10.
They also provide complete separation from one oor
space to another or attic space as required by most
codes. When the double wall pipe passes through a
framed opening into an attic space, the restop must
be placed into an attic oor as shown in Figure 11.

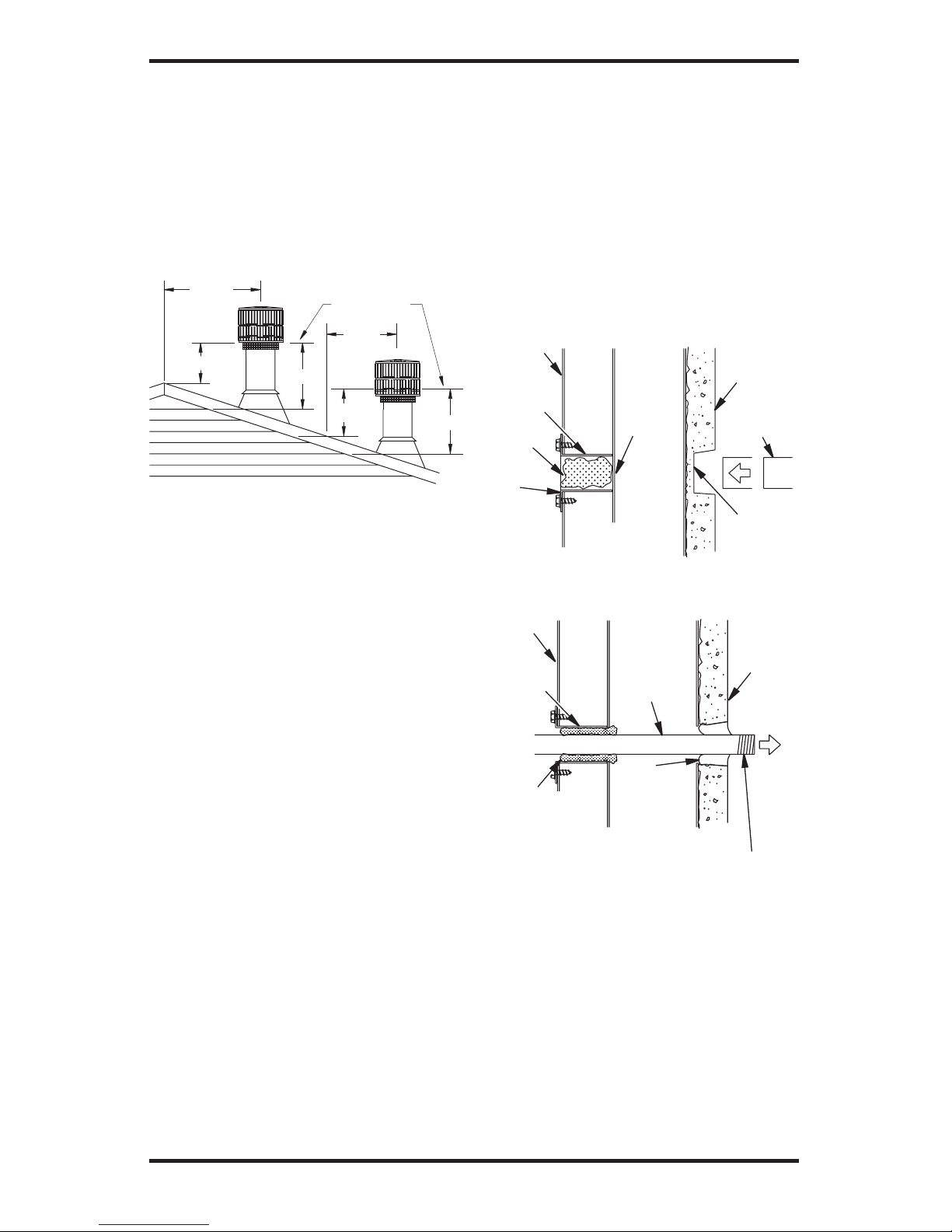

Figure 10 - Firestop Spacer with Living
Space Above Ceiling
Figure 11 - Firestop Spacer with Attic
Space Above Ceiling
Existing
Ceiling
Frame
Firestop
Spacer
Screws or
Staples
(Min. of 8)
Firestop
Spacer
Screws or Staples
(Min. of 8)

To maintain a 1" clearance to the pipe on a roof
with a pitch, a rectangular opening must be cut.
1. Determine the center point through which the
pipe will penetrate the roof.
2. Determine the center point of the roof. Pitch
is the distance the roof drops over a given
span, usually 12". A 6/12 pitch means that
the roof drops 6" for each 12" one measure
horizontally down from the roof rafters.
3. Use the roof opening chart (Figure 12) to
determine the correct opening length and
ashing required.
4. Remove the shingles around the opening
measured. Cut out this section.
5. Add the next sections of the pipe until the
end penetrates the roof line. Check to see that
the proper clearances are maintained. Extend
chimney by adding sections of double wall
pipe until pipe is minimum of 30" above the
highest point of the roof cutout. Termination
and chimney must extend a minimum of
36" above the highest point where it passes
through the roof.
19.5" Min. 30" Min.
2" Min.
2" Min.
2" Min.
Opening "A"
Pitch Slope Opening



Flat 0° 19.5" V6F-10DM
0-6/12 26.6° 22" V6F-10DM
6/12-
12/12 45.0° 27" V12F-10DM
Existing
Ceiling
Frame
Figure 12 - Roof Opening Measurements


Determine the ashing to be used with the roof
opening chart. Slide ashing over pipe until base
is at against roof. Replace as many shingles as
needed to cover exposed area and ashing base.
Secure in position by nailing through shingles (see
Figure 13, page 10). DO NOT NAIL THROUGH
FLASHING CONE.

www.desatech.com 109493-01N10
VENTING INSTALLATION
Continued
Nail Only
Outer
Perimeter
of Flashing
Storm
Collar
Flashing
Cone
Underlap
Shingles
at Bottom
Overlap
Shingles Top
and Sides Only

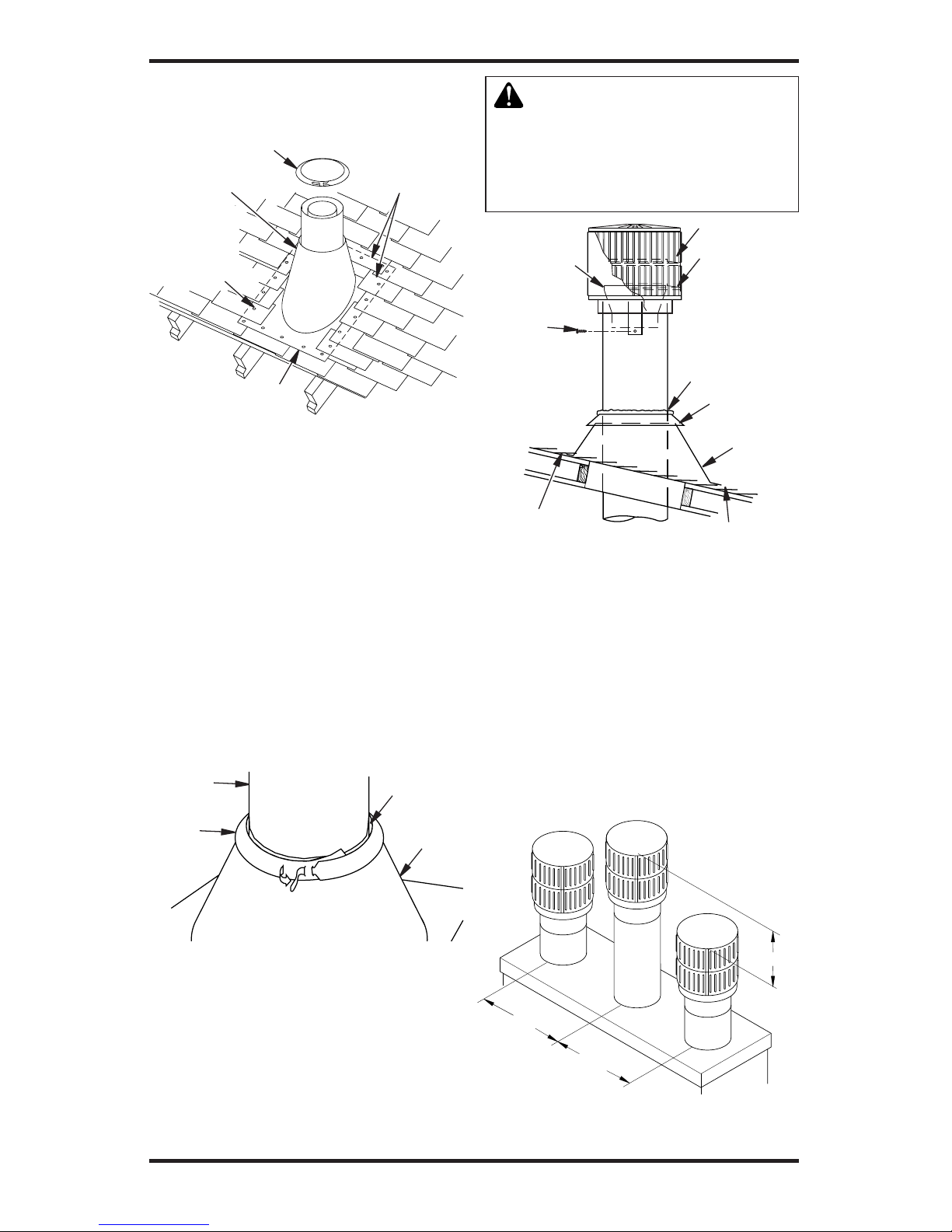

Figure 13 - Flashing Installation

When installing the ashing on a metal roof, it is
required that putty tape be used between the ash-
ing and the roof. The ashing must be secured to
the roof using #8 x 3/4" screws and then sealed
with roof coating to prevent leakage through the
screw holes. A roof coating must also be applied
around the perimeter of the ashing to provide a
proper seal.

Place storm collar over pipe and slide down until
it is snug against the open edge of the ashing (see
Figure 14). Apply waterproof caulk around the
perimeter of the collar to provide a proper seal.
Figure 14 - Storm Collar
Chimney
Pipe
Waterproof
Caulk
Storm
Collar Flashing
Terminations/Spark Arrestor
The replace system must be terminated with the
listed round top or chase terminations. In any case,
refer to the installation instructions supplied with
the termination.
Secure
Termination
to Outer
Pipe with 3
Screws
RTL-10D
Level of
Flue Gas
Outlet
Stainless
Inner Flue
Pipe
Waterproof
Caulking
Storm
Collar
Flashing
Underlap
Shingles
Figure 15 - Termination
Overlap
Shingles (Top and Sides
of Flashing Base)
-
-
low the installation instructions
provided with the termination
being used.

Instructions for chase installations are included
with the chase style termination chosen. In a mul-
tiple chase installation, be sure to provide adequate
distance between terminations to prevent smoke
spillage from one termination to another. Termi-
nations be separated a minimum of 24" center to
center and stacked at a minimum vertical height
difference of 18" (see Figure 16).
Note: If a decorative shroud is to be installed,
contact the manufacturer for specications.
24" Min.
24" Min.
18"
Min.
Typ.
Figure 16 - Multiple Chase Installation

www.desatech.com
109493-01N 11
VENTING INSTALLATION
Continued

Combustible materials, such as wallboard, gypsum
board, sheet rock, drywall, plywood, etc. may make
direct contact with sides and top around the replace
face. It is important that combustible materials do
not overlap the face itself. Brick, glass, tile or other
noncombustible materials may overlap the front
face provided they do not obstruct essential open-
ings like louvered slots or any other opening. When
overlapping with a noncombustible facing material,
use only noncombustible mortar or adhesive.
OPTIONAL GAS LINE
INSTALLATION
Gas line hook up should be done by your supplier
or a qualied service person.
Note: Before you proceed, make sure your gas
supply is turned off.
Use only a 1/2" black iron pipe and appropriate
ttings.

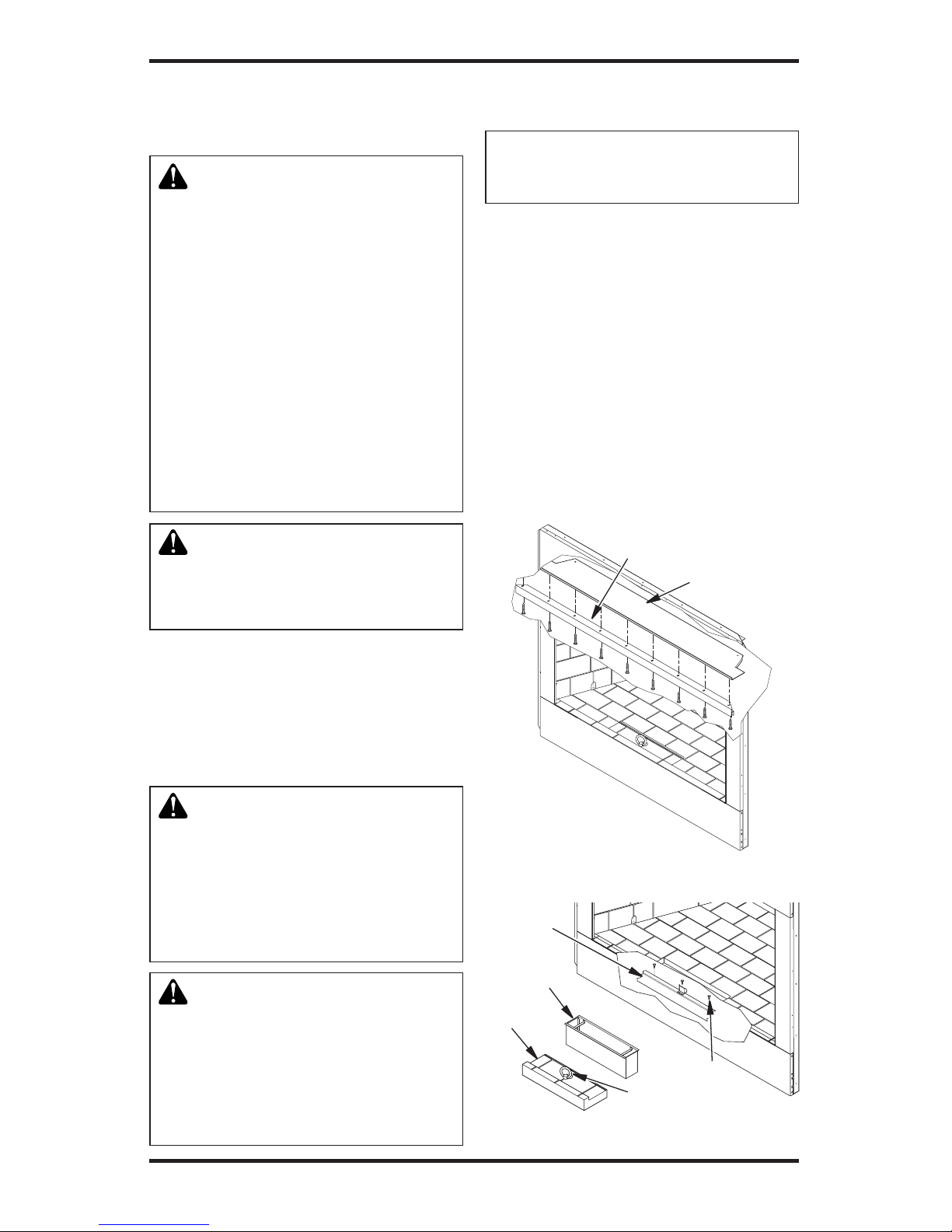

1. Remove knockout indentation on refractory or
rebrick wall located above the refractory hearth
oor. The knockout indentation must be rmly
tapped with any solid object such as a 1/2" dowel
until it is released. Remove fragmented portions
of refractory (see Figure 18).
2. Remove gas line cover plate located on either
side of replace and pull out insulation from gas
line conduit sleeve. Save insulation for reuse.
Replace screws.
10'
2' Min.
10'
3' Min.
2' Min. 3' Min.
Level of
Flue Gas
Outlet
Figure 17 - 10 Foot Rule
Figure 18 - Gas Line Knockout
Side
Firebrick
Finished
Side
Refractory
Knockout
Plug
Outside of
Fireplace
Gas Line
Conduit
Insulation
Gas
Conduit
Cover
1/2" Dowel
Remove
Knockout

All ue gas outlet chimney terminations must
extend a minimum of 3 feet in height above the
highest point where it passes through the roof and
must be at least 2 feet above the highest point of
the roof that is within a horizontal distance of 10
feet (see Figure 17).
3. Run a 1/2" black iron gas line into the replace
through the rear at gas line conduit sleeve (if
using a raised platform, add height). Provide
sufcient gas line into replace chamber for
fitting connection (see Figure 19). Note:
Secure incoming gas line to wood framing to
provide rigidity for threaded end.
4. Repack insulation around gas line and into
sleeve opening. Seal any gaps between gas line
and refractory knockout hole with refractory ce-
ment or commercial furnace cement, Install the
gas appliance or cap off gas line if desired.
Seal
Opening
with
Refractory
Cement
Outside of
Fireplace
Gas
Line
Conduit
Repack
Insulation
Incoming
1/2" Black
Iron Pipe
Side
Firebrick
Finished
Side
Provide Enough Threaded
End for Fitting Connection
Figure 19 - Gas Line Installation

www.desatech.com 109493-01N12
OPTIONAL GAS LINE
INSTALLATION
Continued
    
and connections must be tested
for leaks after the installation
is completed. After ensuring
that the gas valve is on, apply
soap and water solution to all

forming show a leak. Correct

    
-


-

    -
ate an unvented gas log set in

removed.
If you install a decorative gas appliance (vented
gas log), the decorative gas appliance must comply
with the Standard for Decorative Gas Appliance
for Installation in Solid Fuel Burning Fireplaces,
ANS Z21.60, Z21.84 or RG 2-72 and shall also be
installed in accordance with the National Fuel Gas
Code, ANSI 7223NFPA 54 latest edition.
    
has been used for wood burning,

cleaned of soot, creosote and
    
cleaner. Creosote will ignite if
heavily heated.
    
decorative vented gas log, the
damper must be removed or
permanently locked in the fully
open position and the glass
doors must be in the fully open
position.
GLASS DOOR
INSTALLATION

frame before installing glass
door.

1. Remove screws from smoke shelf (see
Figure 20).
2. Mount top door frame and secure with screws
removed in step 1.
3. Remove center brick by pulling ring handle
(see Figure 21).
4. Remove ash box.
5. Remove three screws located at front of re-
box (see Figure 21).
6. Align bottom rail mounting holes with holes
at front of rebox and secure with screws
removed in step 5.
7. Place ash box in place. Replace center brick.
Figure 20 - Installing Top Door Frame
Top Door
Frame
Smoke Shelf
Figure 21 - Installing Bottom Door Frame
Bottom
Door Rail
Ash Box
Center
Brick
Ring
Handle
Screws

www.desatech.com
109493-01N 13
Figure 24 - Bi-Fold Glass Doors
Doors Fully Closed
Fireplace Front
Fireplace Front
Doors
Fully Opened
OPERATION AND
MAINTENANCE
GUIDELINES

Glass doors are optional with the replace. When
fireplace is in operation, doors must be fully
opened or fully closed position only or a re hazard
may be created (see Figure 24).
A replace equipped with glass doors operates
much differently than a replace with an open
front. A replace with glass doors has a limited
amount of air for combustion.
Excessive heat within the replace can result if too
large a re is built or if combustion air gate is not
completely open. The following tips should be fol-
lowed to assure that both the replace and glass door
retain their beauty and function properly. Both the ue
damper and glass doors must be fully opened before
starting re. This will provide sufcient combustion
air and maintain safe temperatures in rebox.
IMPORTANT: The glass must be allowed to warm
slowly and evenly. The tempered glass will withstand
a gradual temperature rise to 550° F, which is more
than a normal re will generate. Such materials as
pitch/wax laden logs, very dry mill end lumber and
large amounts of paper or cardboard boxes can create
an excessively hot re and should not be burned in
this replace. Always keep the re well back from the
doors and never allow ames to contact the glass.
  
equipped with glass doors
should be operated only with
doors fully opened or doors fully


   


Remove doors and slightly loosen lower pivot clips
and upper spring clips. Replace doors and fully close
them. Use 1/8" shims (any material) to level doors.
Once proper setting is achieved, carefully open doors
enough so that you can access spring clips with a phil-
lips screwdriver. Tighten screws. See Figure 23.
Figure 22 - Installing Bi-Fold Doors
Spring
Clip
Insert Pin
into Spring
Clip
Pivot
Hole
Insert
Bottom
Pivot Pin
into Hole
Fold Door
and Slide
Top Pins
Into Track
Figure 23 - Adjusting Bi-Fold Doors
GLASS DOOR
INSTALLATION
Continued

Spring clips have been installed but some adjust-
ments may be needed. If doors do not close properly
or do not appear straight, see Door Adjustment.
1. With bi-fold doors completely folded, insert
bottom pivot pin into pivot hole located near
bottom corner of front face opening and swing
door to vertical position making sure top pins
slide into door track. Door is installed when
top door pin snaps into spring clip.
2. Repeat step 1 for remaining door.
If you nd the doors do not close properly or do
not appear level or straight, proceed with section
on door adjustment,
Spring
Clip

www.desatech.com 109493-01N14
Cleaning Glass
Clean glass with any commercial glass cleaner or
soap and water. Do not use any abrasive material
to clean glass. Do not clean glass with any cool
water if glass is still hot from the re and smoke.
A gas line or gas log lighter may be installed for the
purpose of installing a vented or vent-free deco-
rative gas appliance incorporating an automatic
shutoff device and complying with the Standard
for Decorative Gas Appliances for Installation in
Vented Fireplaces, ANSI Z21.60 or American Gas
Association draft requirements for Gas Fired Log
Lighters for Wood Burning Fireplaces, Draft NO.
4 dated August, 1993.
If you wish to install an unvented (vent-free) gas
log set, only unvented gas log sets which have been
found to comply with the standard for unvented
room heaters, ANSI Z21.11.2 are to be installed
in this replace.


The damper handle, which opens and closes the
damper blade, is located in the upper front face
of the replace. Pushing the handle forward and
up through the keyway slot will free damper
blade to automatically open. Pushing the handle
forward and down will lock damper blade closed
(see Figure 25).
The outside air kit lever is located at the left and
right hand sides of replace (see Figure 26). Lift-
ing lever up will free the outside air door to open.
Pulling lever down will lock the door.
     -
    
109466-01 grate only. This grate
has been designed to keep the


OPERATION AND
MAINTENANCE
GUIDELINES
Continued
Figure 25 - Operating Damper Handle
Damper
Weight
To Close
Damper
To Open
Damper
Damper
Weight
Open Position
Closed Position
Figure 26 - Outside Air Kit Lever
TECHNICAL SERVICE
You may have further questions about installation,
operation, or troubleshooting. If so, contact DESA’s
Technical Service Department at 1-866-672-6040.
When calling please have your model and serial
numbers of your heater ready.
You can also visit DESA’s technical services web
site at www.desatech.com.

www.desatech.com
109493-01N 15
REPLACEMENT PARTS






Bottom Rear Brick Refractory




Right Brick Refractory









Rear Brick Refractory










Bottom Rear Brick Refractory




Right Brick Refractory





Rear Brick Refractory




GRATE - 109496-01

ASH BOx - 111498-01

ACCESSORIES












48-12HT













Pitch





2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
www.desatech.com
NOT A UPC
109493-01
Rev. N
02/07
109493 01
