Desa HDFB32CA Original instructions
For more information, visit www.desatech.com
UNVENTED (VENT-FREE) UNIVERSAL FIREBOX
SAFETY INFORMATION AND INSTALLATION MANUAL
HDFB32CA
CIRCULATING LOUVERED MODEL
WARNING: If the information in this manual is not fol-
FOR USE ONLY WITH A LISTED GAS-FIRED UNVENTED
DECORATIVE ROOM HEATER NOT TO EXCEED 40,000
DO NOT INSTALL AN APPLIANCE IN THIS FIREBOX
UNLESS THIS FIREBOX MEETS THE MINIMUM DIMEN-
-
www.desatech.com 116533-01D2
SAFETY INFORMATION
TABLE OF CONTENTS
Safety Information ............................................... 2
Local Codes......................................................... 3
Unpacking............................................................ 3
Product Features................................................. 3
Product Specications......................................... 4
Locating Firebox ................................................. 4
Air For Combustion and Ventilation ..................... 4
Installation ........................................................... 7
Technical Service............................................... 12
Replacement Parts............................................ 12
Accessories ....................................................... 13

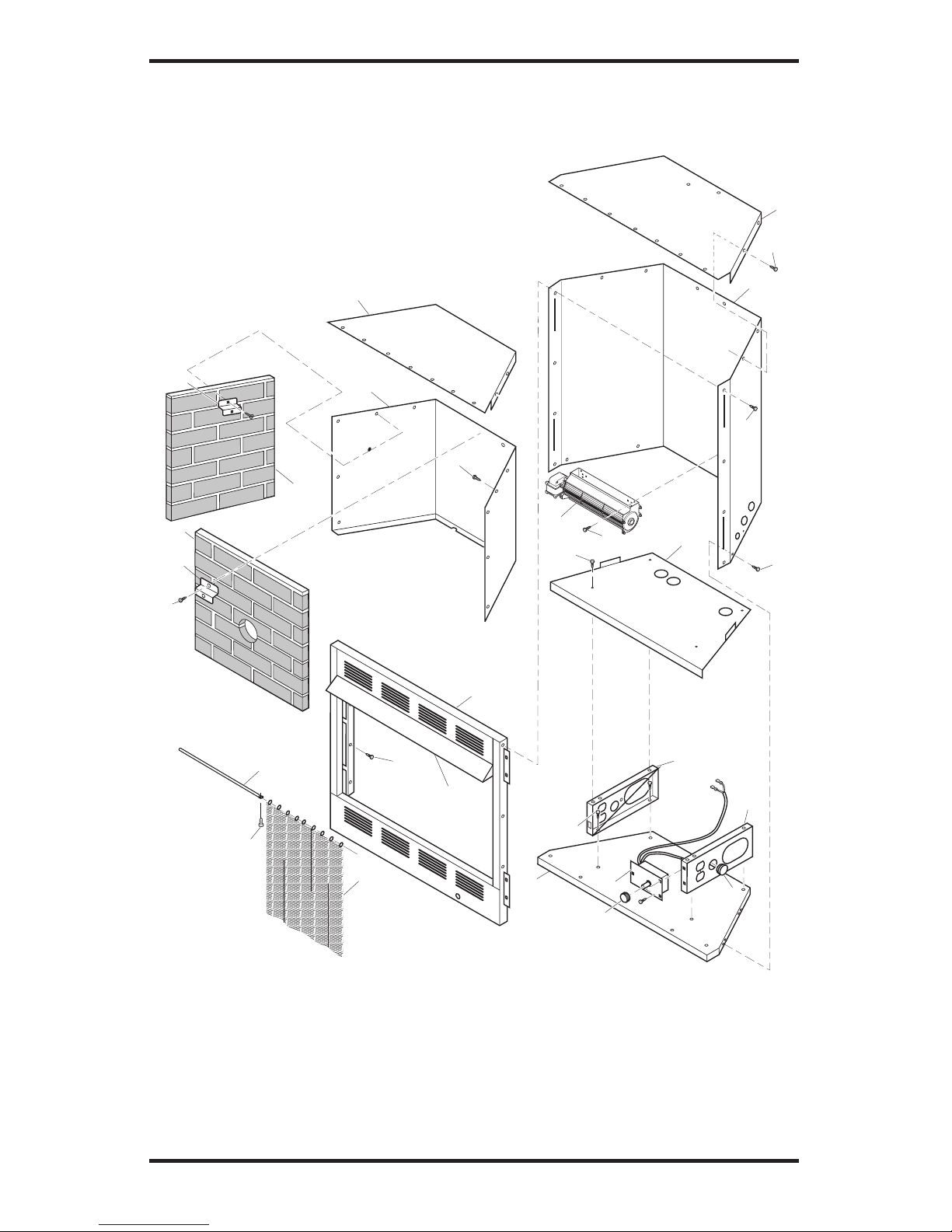

Illustrated Parts Breakdown and Parts List........ 14
Parts Centrals.................................................... 15
Warranty Information ...........................Back Cover
-
service or maintenance can
Refer to this manual for correct
additional information consult
IMPORTANT: Read this owner’s
-
-
-
WARNING: Do not allow fans
children and adults away
remain hot for a time after shut-
-
dren when they are in the room
www.desatech.com
116533-01D 3
1. This rebox shall not be installed in a
bedroom or bathroom.
2. Never install the rebox
• in a recreational vehicle
• where curtains, furniture, clothing or
other ammable objects are less than
36" from the front and 42" from top of
rebox - for side clearances see Figure
6, page 7
• in high trafc areas
• in windy or drafty areas
3. Do not use this rebox as a wood-burning
replace. Use only decorative unvented
room heaters (log sets).
4. Do not add extra logs or ornaments such as
pine cones, vermiculite or rock wool. Using
these added items can cause sooting.
5. Vent-free gas log heaters installed in
these reboxes require fresh air ventila-
tion to run properly. See Air for Combus-
tion and Ventilation, page 4.
6. Do not run rebox
• where ammable liquids or vapors are
used or stored
• under dusty conditions
7. Do not use this rebox to cook food or
burn paper or other objects.
8. Turn unit off and let cool before servicing.
Only a qualied service person should ser-
vice and repair rebox or installed unit.
9. Operating vent-free log sets in a rebox
above elevations of 4,500 feet could
cause pilot outage.
10. Do not use the rebox if it has been un-
der water due to the shock hazard that
could result with the blower accessary (if
installed) in place.
11. Provide adequate clearances around air
openings.
LOCAL CODES
Install and use replace with care. Follow all
local codes. In the absence of local codes,
use the latest edition of The National Fuel Gas
Code ANSI Z223.1/NFPA 54*. Firebox must
be electrically grounded in accordance with
the National Electrical Code, ANSI/NFPA70
(latest edition).
SAFETY INFORMATION
Continued
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
State of Massachusetts: The installa-
tion must be made by a licensed plumber
or gas tter in the Commonwealth of
Massachusetts.
Sellers of unvented propane or natural
gas-red supplemental room heaters
shall provide to each purchaser a copy of
527 CMR 30 upon sale of the unit.
Vent-free gas products are prohibited for
bedroom and bathroom installation in
the Commonwealth of Massachusetts.
UNPACKING
1.
With utility knife, cut the carton all the way
around above the staples on the bottom
tray. Lift the carton off the rebox. Remove
packing.
2. Check carton contents for the following:
• Screen assembly
• Screen support rod
•
Hardware and parts bag containing
the following:
Owner’s Operation and Installation
Manual
2 - Black #10 x 3/8" Phillips screws
3. If any items are missing, inform dealer
where you bought the rebox.
4. Check all items for any shipping damage.
If damaged, promptly inform dealer where
you bought rebox.
PRODUCT FEATURES
OPERATION
This rebox is designed to accept unvented
decorative gas logs. It requires no outside
venting or chimney making installation easy
and inexpensive. When used without the
blower the rebox requires no electricity mak-
ing it ideal for emergency backup heat.
BLOWER ACCESSORY
This rebox has an electric blower. The vari-
able blower allows you to select the fan speed
you desire. The blower circulates heated air
from the rebox into the room. Use of blower
is optional.
www.desatech.com 116533-01D4
22
1
/
2
"
16
11
/
16
"
13
1
/
4
"
*
14
1
/
4
"
31
5
/
8
"
34
3
/
8
"
35
5
/
8
"
19
1
/
4
"
Figure 3 - Firebox Top View
*Note: 141/4" is total rebox cavity depth including
brick liner. 131/4" is depth of at oor including
brick liner.
LOCATING FIREBOX
Plan where you will install the rebox. This will
save time and money later when you install
the rebox. Before installation, consider the
following:
1. Where the rebox will be located. Allow for
wall and ceiling clearances (see Installa-
tion Clearances, page 7).
2. Everything needed to complete installation.
3. This model CANNOT be installed in a
bedroom or bathroom.
4. Proper air for combustion and ventilation
(see Air For Combustion and Ventilation).
AIR FOR COMBUSTION
AND VENTILATION
-
-
Today’s homes are built more energy efcient
than ever. New materials, increased insulation
and new construction methods help reduce
heat loss in homes. Home owners weather
strip and caulk around windows and doors
to keep the cold air out and the warm air in.
During heating months, home owners want
their homes as airtight as possible.
While it is good to make your home energy
efcient, your home needs to breathe. Fresh
air must enter your home. All fuel-burning ap-
pliances need fresh air for proper combustion
and ventilation.
Exhaust fans, reboxes, clothes dryers and fuel
burning appliances draw air from the house to
operate. You must provide adequate fresh air
for these appliances. This will insure proper
venting of vented fuel-burning appliances.
PROVIDING ADEQUATE
VENTILATION
The following are excerpts from National Fuel
Gas Code ANSI Z223.1/NFPA 54, Section 5.3,
Air for Combustion and Ventilation.
All spaces in homes fall into one of the three
following ventilation classications:
12
1
/
2
"
9
3
/
4
"
4
5
/
8
"
2
1
/
2
"
6"
32
3
/
16
"
2
1
/
4
"
Electrical Access Hole Gas Line Access
Figure 2 - Firebox Side View
35 1/16"
31 3/4"
1 1/4"
16 1/4"
2 3/4"
3 7/8"
6 3/4"
2 3/4"
6 3/8"
19 3/8"
1 1/4"
Built-in Nailing Flanges
Figure 1 - Firebox Front View
PRODUCT
SPECIFICATIONS
www.desatech.com
116533-01D 5
1. Unusually Tight Construction
2. Unconned Space
3. Conned Space
The information on pages 4 through 6 will help
you classify your space and provide adequate
ventilation.
The air that leaks around doors and windows
may provide enough fresh air for combustion
and ventilation. However, in buildings of un-
usually tight construction, you must provide
additional fresh air.
construction where:
-
-112
and
and
If your home meets all of the three criteria
See Ventilation Air From Outdoors
If your home does not meet all of the three
Determining Fresh-
Air Flow For Firebox Location,
The National Fuel Gas Code ANSI Z223.1/
NFPA 54 denes a conned space as a space
whose volume is less than 50 cubic feet per
1,000 Btu per hour (4.8 m3per kw) of the ag-
gregate input rating of all appliances installed in
that space and an unconned space as a space
whose volume is not less than 50 cubic feet per
1,000 Btu per hour (4.8 m3per kw) of the ag-
gregate input rating of all appliances installed in
that space. Rooms communicating directly with
the space in which the appliances are installed*,
through openings not furnished with doors, are
considered a part of the unconned space.
* Adjoining rooms are communicating only if
there are doorless passageways or ventilation
grills between them.
AIR FOR COMBUSTION
AND VENTILATION
Continued
DETERMINING FRESH-AIR FLOW
FOR HEATER LOCATION
Use this work sheet to determine if you have
a conned or unconned space.
Includes the room in which you will
install heater plus any adjoining rooms with
doorless passageways or ventilation grills
between the rooms.
1. Determine the volume of the space (length
x width x height).
Length x Width x Height =__________cu. ft.
(volume of space)
Example: Space size 20 ft. (length) x 16 ft.
(width) x 8 ft. (ceiling height) = 2560 cu. ft.
(volume of space)
If additional ventilation to adjoining room
is supplied with grills or openings, add the
volume of these rooms to the total volume
of the space.
2. Multiply the space volume by 20 to determine
the maximum Btu/Hr the space can support.
________ (volume of space) x 20 = (Maxi-
mum Btu/Hr the space can support)
Example: 2560 cu. ft. (volume of space) x 20
= 51,200 (maximum Btu/Hr the space can
support)
3. Add the Btu/Hr of all fuel burning appliances
in the space.
Vent-free heater __________ Btu/Hr
Gas water heater* __________ Btu/Hr
Gas furnace __________ Btu/Hr
Vented gas heater __________ Btu/Hr
Gas replace logs __________ Btu/Hr
Other gas appliances* + ________ Btu/Hr
Total = ________ Btu/Hr
* Do not include direct-vent gas appliances.
Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
Example:
Gas water heater _________ Btu/Hr
Vent-free replace + _________ Btu/Hr
Total = _________ Btu/Hr
4. Compare the maximum Btu/Hr the space
can support with the actual amount of Btu/Hr
used.
_______ Btu/Hr (maximum the space can
support)
_______ Btu/Hr (actual amount of Btu/Hr
used)
Example: 51,200 Btu/Hr (maximum the
space can support)
79,000 Btu/Hr (actual amount of
Btu/Hr used)
40,000
39,000
79,000
www.desatech.com 116533-01D6
AIR FOR COMBUSTION
AND VENTILATION
Continued
The space in the previous example is a conned
space because the actual Btu/Hr used is more
than the maximum Btu/Hr the space can sup-
port. You must provide additional fresh air. Your
options are as follows:
A.
Rework worksheet, adding the space of an
adjoining room. If the extra space provides
an unconned space, remove door to adjoin-
ing room or add ventilation grills between
rooms. See Ventilation Air From Inside
Building below.
B. Vent room directly to the outdoors. See
Ventilation Air From Outdoors
below
.
C. Install a lower Btu/Hr heater, if lower
Btu/Hr size makes room unconned.
If the actual Btu/Hr used is less than the
maximum Btu/Hr the space can support, the
space is an unconned space. You will need
no additional fresh air ventilation.
WARNING: If the area in
in the National Fuel Gas Code,
ANSI Z223.1/NFPA54 Section 5.3
VENTILATION AIR
This fresh air would come from an adjoin-
ing unconned space. When ventilating to
an adjoining unconned space, you must
provide two permanent openings: one within
12" of the ceiling and one within 12" of the
oor on the wall connecting the two spaces
(see options 1 and 2, Figure 4). You can also
remove door into adjoining room (see option
3, Figure 4). Follow the National Fuel Gas
Code ANSI Z223.1/NFPA 54, Section 5.3, Air
for Combustion and Ventilation for required
size of ventilation grills or ducts.
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation
grills or ducts. You must provide two perma-
nent openings: one within 12" of the ceiling
and one within 12" of the oor. Connect these
items directly to the outdoors or spaces open
to the outdoors. These spaces include attics
and crawl spaces. Follow the National Fuel
Gas Code ANSI Z223.1/NFPA 54, Section 5.3,
Air for Combustion and Ventilation for required
size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for
inlet or outlet air into attic if attic has a thermo-
stat-controlled power vent. Heated air entering
the attic will activate the power vent.
Figure 4 - Ventilation Air from Inside
Building
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills
Into Adjoining
Room,
Option 1
12"
12"
Figure 5 - Ventilation Air from Outdoors
Outlet
Air
Ventilated
Attic
Outlet
A
ir
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
www.desatech.com
116533-01D 7
INSTALLATION
NOTICE: This heater is intended
-
-
WARNING: Never install the
• in a recreational vehicle
• where curtains, furniture,
IMPORTANT: Vent-free gas log heaters add
moisture to the air. Although this is benecial,
installing rebox in rooms without enough
ventilation air may cause mildew to form from
too much moisture. See Air for Combustion
and Ventilation, page 4.
IMPORTANT: Make sure the rebox is level. If
rebox is not level, log set will not work properly.
Note: Your rebox is designed to be used in zero
clearance installations. Wall or framing mate-
rial can be placed directly against any exterior
surface on the rear, sides or top of your rebox,
except where standoff spacers are integrally at-
tached. If standoff spacers are attached to your
rebox, these spacers can be placed directly
against wall or framing materials.
Use the dimensions shown for rough openings
to create the easiest installation (see Built-In
Firebox Installation, page 11).
INSTALLATION CLEARANCES
WARNING: Maintain the
Carefully follow the instructions below. This
will ensure safe installation.
Minimum Clearances For Side
A. Clearances from the side of the replace
cabinet to any combustible material and
wall should follow diagram in Figure 6.
Example: The face of a mantel, bookshelf,
etc. is made of combustible material and
protrudes 3 1/2" from the wall. This com-
bustible material must be 4" from the side
of the replace opening (see Figure 6).
B. Clearances from the top of the replace
opening to the ceiling should not be less
than 42".
Example
Figure 6 - Minimum Clearance for
Combustible to Wall
*Minimum 16" from Side Wall
Mantel Clearances for Built-In
Installation
If placing custom mantel above built-in rebox,
you must meet the minimum allowable clear-
ance between mantel shelf and top of rebox
opening shown in Figure 7, page 8. These are
the minimum allowable mantel clearances
for a safe installation. Use larger clearances
wherever possible to minimize heating of
objects and materials placed on mantel.
CAUTION: Close screens
www.desatech.com 116533-01D8
ELECTRICAL HOOKUP
This rebox has a blower assembly with an
electrical cord. This electrical cord is ve
feet in length. You must locate the rebox
within reach of a 120-volt grounded electri-
cal outlet. If not, you must install an electrical
outlet within reach of rebox power cord. The
GA3555 outlet accessory may be used for
built-in installation.
-
the National Electrical Code,
ANSI/NFPA 70 (Latest Edition)
Side
Opening
Support Bracket
Opening
Blower Power
Cord
Figure 8 - Routing Blower Power Cord
for Conventional Installation
Electrical
Outlet
Blower
INSTALLING BLOWER SPEED
CONTROL
NOTICE:
Note: Appearance of rebox may vary slightly
depending on model.
1. Remove the rebox bottom:
a. Remove the 2 screws that secure the
bottom of the rebox (see Figure 9).
b. Carefully raise and remove the rebox
bottom from the rebox.
Supplied
Firebox Hood
Must Be Used
at All Times
Wire-mesh
Screen
Firebox
Mantel Shelf
13" 16" 19" 21"
2
1/2
"
6"
8"
10"
For
CGFB32C
Series
circulating
louvered
models
only
Note:
A
ll vertical measurements
are from top of fireplace
opening to bottom of mantel
shelf. All measurements
are in inches.
Facing material (above
firebox) may be of
combustible material,
including decorative
mantel ornaments.
Figure 7 - Minimum Mantel Clearances
for Built-In Installation
INSTALLATION
Continued
Figure 9 - Removing Screws from
Firebox Bottom
Screws
If your installation does not meet the mini-
mum clearances in Figure 7, you must:
• raise the mantel to an acceptable height,
OR
• remove the mantel.
www.desatech.com
116533-01D 9
INSTALLATION
Continued
WARNING: If there is a du-
-
Failure to do this may result in
2. Remove shipping screw from speed
control in right support leg. Place speed
control against inner wall of front panel,
pushing the plastic control shaft forward
through the opening (see Figure 10).
3. While supporting speed control, secure
control shaft with lock nut by pushing and
turning lock nut with pliers clockwise until
it is tight against front panel. Place control
knob provided on shaft (see Figure 10).
4. Plug in blower power cord.
a.
, determine whether
the power cord will exit the left side or
the right side of the rebox. Install 1
plastic bushing provided into the 1
1
/
2
"
hole in the oor support on the exit
side. Install the second plastic bushing
provided into the 1
1
/
2
" hole in the outer
casing through which the power cord
will exit (see Figure 11). Route power
cord through both plastic bushings and
plug the power cord into a 3-prong
grounded wall receptacle near the
rebox.
b. -
, plug the
power cord into the duplex outlet
provided.
Figure 10 - Attaching Speed Control
Control Shaft
Speed
Control
Lock Nut
Control
Knob
CAUTION: Never touch the
5. Turn on power to duplex outlet if previ-
ously turned off per the warning in step
1, page 8.
6.
Check to make sure that the power cord is
completely clear of the blower wheel and
that there are no other foreign objects in
blower wheel. Turn blower on and check
for operation.
7.
Replace bottom of rebox. Note: Make sure
the back of the rebox bottom slides under
the rear of the rebrick (lift the rebrick up if
necessary.)
8. Reattach rebox bottom using 2 screws
removed in step 1, page 8.
9. Install the log set heater according to the
installation instructions supplied with the
heater.
Figure 11 - Installing Plastic Bushing for
Power Cord
Plastic Bushing
OPERATING THE BLOWER
Light your gas appliance with the blower off.After
about 15 minutes, turn the blower on to deliver
heated air at the top louvers. The blower features
a variable control which allows you to select the
speed you desire.
Note: Periodically check the louvers of the rebox
and remove any dust, dirt or other obstructions.
INSTALLING LOG HEATER IN
FIREBOX
CAUTION: Do not remove the
www.desatech.com 116533-01D10
INSTALLATION
Continued
1. Remove 2 screws holding rebox bottom
in place.
2. Lift and remove rebox bottom (see Figure
9, page 8).
3. Route exible gas line from equipment
shutoff valve into rebox through side.
-
-
4. Attach gas log heater base to rebox bot-
tom with four screws included with base
(see Installing Heater Base Assembly in
log set owner’s manual).
5. Replace rebox bottom and secure with
screws.
ASSEMBLING AND ATTACHING
OPTIONAL BRASS TRIM
Note: The instructions below show assem-
bling and attaching brass trim to replace.
1. Remove packaging from three pieces of
brass trim.
2. Locate four brass screws, two adjusting
plates with set screws and two shims in
the hardware packet.
3. Align shim under adjusting plate as shown
in Figure 12.
4. Slide one end of adjusting plate/shim in
slot on mitered edge of top brass trim (see
Figure 12).
5. Slide other end of adjusting plate/shim in
slot on mitered edge of side brass trim
(see Figure 12).
6. While rmly holding edges of brass trim
together, tighten both set screws on the
adjusting plate with slotted screwdriver.
7. Repeat steps 1 through 6 for the other
side.
8. Tighten trim hanging screws (#10 x 6.25
shoulder) into holes in cabinets. Place
the assembled trim onto replace cabinet.
Align hanging notches on trim with hang-
ing screws on side of replace (see Figure
13). Push trim rmly into place, sliding
hanging notches over hanging screws.
Figure 12 - Assembling Brass Trim
Slot
Mitered Edge
Slot
Shim
Set
Screws
Adjusting
Plate
Side Brass
Trim
Top Brass Trim
Figure 13 - Attaching Brass Trim to
Fireplace
Trim
Hanging
Screws
Assembled
Brass Trim
Hanging
Notches
on Trim
INSTALLING FIREPLACE HOOD
-
1. Attach three zinc-colored shoulder screws
to back of hood.
2. Insert hood into hood-mounting slots on
rebox.
3. Hold hood in place. Insert two black Phil-
lips screws through bottom of hood and
tighten.
www.desatech.com
116533-01D 11
INSTALLATION
Continued
Figure 14 - Installing Fireplace Hood
Hood
Hood
Mounting
Slot
Screw
Shoulder
Screw
INSTALLING FIREPLACE SCREEN
1. Insert each rod through nine rings located
at top of screen (see Figure 15).
2. Insert rst rod into rear hole in left side
of rebox. Fasten rod to rear hole near
center of rebox using black shoulder
screw.
3. Insert other rod into front hole on right
side of rebox and fasten using remaining
shoulder screw.
Ring
Figure 15 - Installing Fireplace Screen
Rod
Front and
Rear Hole
Screen
Screw
FIREBOX INSTALLATION USING
OPTIONAL ACCESSORY MANTELS
This rebox may be installed using the corner
or cabinet mantel with hearth base against
a wall in your home. A perimeter trim kit is
included with the mantel accessories (see
Accessories, page 13). Follow the instructions
included with mantel for installation.
Figure 16 - Rough Opening for Installing
in Wall
Figure 17 - Rough Opening for Installing
in Corner
34
3
/
4
"
17
3
/
4
"
33"
39 3/8"
27 7/8"
55 5/8"
34 3/4"
BUILT-IN FIREBOX INSTALLATION
Built-in installation of this rebox involves
installing rebox into a framed-in enclosure.
This makes the front of rebox ush with wall.
Optional perimeter trim is available (see Ac-
cessories, page 13) This perimeter trim will
extend past sides of rebox approximately
1/2". This will cover rough edges of the wall
opening. If installing a mantel above the re-
box, you must follow the clearances shown in
Figure 7, page 8. Follow the instructions below
to install the rebox in this manner.
1. Frame in rough opening. Use dimensions
shown in Figure 16 for the rough opening.
If installing in a corner, use dimensions
shown in Figure 17 for the rough opening.
The height is 33", which is the same as
the wall opening in Figure 16.
2. Install gas piping to rebox location. This
installation includes an approved exible
gas line (if allowed by local codes) after
the equipment shutoff valve. The exible
gas line must be the last item installed on
the gas piping. See Connecting to Gas
Supply in log set owner’s manual.
3. Carefully set rebox in front of rough open-
ing with back of rebox inside wall opening.
IMPORTANT: If installing perimeter trim,
see instructions included with perimeter
trim accessory. You must install shoulder
screws now.
www.desatech.com 116533-01D12
INSTALLATION
Continued
Figure 18 - Attaching Firebox to Wall Studs
Nailing
Flanges
Nails or
Wood
Screws
WARNING: Do not allow
WARNING: Use only non-
-
TECHNICAL SERVICE
You may have further questions about instal-
lation, operation or troubleshooting. If so, con-
tact DESA Hearth Products’ Technical Service
Department at 1-866-672-6040. When calling
please have your model and serial numbers
of your heater ready.
You can also visit DESA Hearth Prod-
ucts’ Technical Service web site at
REPLACEMENT PARTS
Note: Use only original replacement parts.
This will protect your warranty coverage for
parts replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product
or Parts Central (see page 16). If they can’t
supply original replacement part(s), call DESA
Hearth
Products’ Technical Service Depart-
ment at 1-866-672-6040.
When calling DESA
Hearth
Products, have
ready
• your name
• your address
• model and serial numbers of your re-
place
• how replace was malfunctioning
• type of gas used (propane/LP or natural
gas)
• purchase date
Usually, we will ask you to return the part to
the factory.
4. If using blower accessory, install and
properly ground a GA3555 three-prong
120 volt electrical outlet in rebox. Follow
instructions included with kit.
5. Attach exible gas line to log set. See
Connecting to Gas Supply in log set
owner’s manual.
6. Carefully insert rebox into rough opening.
7. Attach rebox to wall studs using nails
or wood screws through holes in nailing
ange (see Figure 18).
8. Check all gas connections for leaks. See
Checking Gas Connections in log set
owner’s manual.
9. If using optional perimeter kit, install the
trim after nal nishing and/or painting
of wall. See instructions included with
perimeter trim accessory for attaching
perimeter trim.
IMPORTANT: When nishing your rebox,
combustible materials such as wall board,
gypsum board, sheet rock, drywall, plywood,
etc. may be butted up next to the sides and top
of the rebox. Combustible materials should
never overlap the rebox front facing.
WARNING: Do not allow any
IMPORTANT: Noncombustible materials such
as brick, tile, etc. may overlap the front facing,
but should never cover any necessary open-
ings like louvered slots.
www.desatech.com
116533-01D 13
PARTS NOT UNDER WARRANTY
Contact authorized dealers of this product
or Parts Central (see page 15). If they can’t
supply original replacement part(s), call DESA
Hearth Products at 1-866-672-6040 for refer-
ral information.
When calling DESA
Hearth
Products, have
ready
• model number of your replace
• the replacement part number
ACCESSORIES
Purchase these replace accessories from
your local dealer. If they can not supply these
accessories, call DESA
Hearth
Products’ Sales
Department at 1-866-672-6040 for information.
You can also write to the address listed on the
back page of this manual.
EQUIPMENT SHUTOFF VALVE
GA5010
Equipment shutoff valve with
1/8" NPT tap. Fits 1/2" NPT
pipe.
PERIMETER TRIM KIT
Required with all mantel accessories. Optional
with built-in installation. Provides a nished
appearance covering rough and/or unnished
mantel edges.
REPLACEMENT PARTS
Continued
WALL CABINET MANTEL AND BASE
ACCESSORY WITH FIREPLACE
PERIMETER TRIM
32" Unnished, Traditional Design
32" Light Oak Finish, Traditional
Design
32" Painted White, Traditional
Design with Dentil Molding
32" Light Oak Finish,
Traditional Design with Dentil Molding
32" Red Oak Finish, Classic
Design
32" Painted White, Neo-Classical
Design
32" Unnished, Georgian
Design with Columns
32" Light Oak Finish, Georgian
Design with Columns
32" Red Oak Finish, Keystone
Design
32" Dark Oak Finish, Mission
Design
32" Painted White, Ultra/Click-n-
Brick Surround
32" cabinet mantels with base
and black perimeter trim kit.
CORNER CABINET MANTEL WITH
BASE AND PERIMETER TRIM
32" Unnished, Traditional Design
Light Oak Finish, Traditional Design
32" Dark Oak Finish, Classic Design
32" corner mantels with base
and perimeter trim kit.
Three-prong 120 volt electrical outlet with
installation hardware included.
www.desatech.com 116533-01D14
5
14
14
4
13
14
6
1
14
7
14
18
12
12
20
8
16
11 15
17
9
3
2
3
2
14
10
15
14
19
ILLUSTRATED PARTS BREAKDOWN
www.desatech.com
116533-01D 15
This list contains replaceable parts used in your rebox. When ordering parts, follow the
instructions listed under Replacement Parts on page 12 of this manual.
** Not available for eld replacement
PARTS LIST
KEY
DESCRIPTION
1 101872-03 Firebox Top 1
2 101889-01 Firebrick Retainer 3
3 117538-02 Firebrick Kit 1
4 101629-01 Plastic Bushing 2
5 103207-01 Outer Casing 1
6 ** Outer Shell Base 1
7 ** Firebox Wrapper 1
8 103297-01 Assembly Screen 2
9 103773-05 Front Assembly 1
10 ** Firebox Bottom 1
11 103809-01 Screen Rod 2
12 ** Firebox Support 2
13 ** Outer Casing Top 1
14 M11084-26 Hex Head Screw, #10-16 49
15 098304-01 Phillips Pan Head Screw, #10 11
16 099230-02 Shoulder Screw 2
17 103217-01CK Hood 1
18 103650-01 Control Knob 1
19 103581-03 Blower Assembly 1
20 105649-01 Blower Speed Control 1
Those Heater Guys
255 E. Stowell Street
Upland, CA 91786
909-982
5 Manila Ave
Hamden, CT 06514-0322
1-800-397-7553
203-248-7553
342 N. County Rd. 400 East
Valparaiso, IN 46383-9704
219-462-7441
1-888-619-7060
www.portableheaterparts.com
FBD
1349 Adams Street
Bowling Green, KY 42103-3414
270-846-1199
1-800-654-8534
Fax: 1-800-846-0090
PARTS CENTRALS
These Parts Centrals are privately-owned businesses. They have agreed to support our
customer’s needs by providing original replacement parts and accessories.
1251 Mound Ave. NW
Grand Rapids, MI 49504-2672
616-791-0505
1-800-446-1446
www.nbmc.com
1715 Main Street
Kansas City, MO 64108-2195
KS, MO, AR
816-842-3911
www.washerparts.com
10 East Route 36
W. Long Branch, NJ 07764
732-870-8809
1-800-755-8809
www.njplaza.com/ecep
21st Century
2950 Fretz Valley Road
Perkasie, PA 18944-4034
215-795-0400
1-800-325-4828
Service
2444 N. 5th Street
Hartsville, SC 29550-7704
843-332-0191
Parts Department
Cans Unlimited
P.O. Box 645
Taylor, SC 29687-0013
803-879-3009
1-800-845-5301
WARRANTY INFORMATION
KEEP THIS WARRANTY
Model ______________________________
Serial No. ___________________________
Date Purchased ______________________
116533-01
Rev. D
02/07
DESA Heating, LLC
2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
www.desatech.com
LIMITED WARRANTY
VENT-FREE FIREBOX
DESA Heating, LLC warrants this product to be free from defects in materials and components for two
(2) years from the date of rst purchase, provided that the product has been properly installed, operated
and maintained in accordance with all applicable instructions. To make a claim under this warranty the
Bill of Sale or cancelled check must be presented.
This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s)
required to restore this heater to proper operating condition and an allowance for labor when provided by
a DESAHeating, LLC Authorized Service Center. Warranty part(s) MUST be obtained through authorized
dealers of this product and/or DESA Heating, LLC who will provide original factory replacement parts.
Failure to use original factory replacement parts voids this warranty. The heater MUST be installed by
a qualied installer in accordance with all local codes and instructions furnished with the unit.
This warranty does not apply to parts that are not in original condition because of normal wear and tear
or parts that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or
defects caused by improper installation. Travel, diagnostic cost, labor, transportation and any and all
such other costs related to repairing a defective heater will be the responsibility of the owner.
TO THE FULL EXTENTALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE
OF THE PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED
WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO TWO (2)
YEARS ON ALL COMPONENTS FROM THE DATE OF FIRST PURCHASE; AND DESA HEATING,
LLC’S LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND DESA
HEATING, LLC SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING
INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation
of incidental or consequential damages, so the above limitation on implied warranties or exclusion or
limitation on damages may not apply to you.
This warranty gives you specic legal rights and you may also have other rights that vary from state
to state.
For information about this warranty write:
Always specify model and serial numbers when communicating with the factory.
The only warranty applicable is our standard written warranty. We make no other warranty, expressed or
implied.
NOT A UPC
116533 01
Table of contents
Other Desa Indoor Fireplace manuals
Desa
Desa P325E(B) Quick start guide
Desa
Desa CD36RN Quick start guide
Desa
Desa VI33NR Quick start guide
Desa
Desa KC42N Series Quick start guide
Desa
Desa LDL3924NR Quick start guide
Desa
Desa M42E(B Quick start guide
Desa
Desa Vanguard VCGF30PR Quick start guide
Desa
Desa GMC55FA Instruction manual
Desa
Desa G8001 SERIES User manual
Desa
Desa V32S Quick start guide
Desa
Desa M36B Safety guide
Desa
Desa (V)B36I Quick start guide
Desa
Desa CGEF26A Original instructions
Desa
Desa VM42 Quick start guide
Desa
Desa Comfort Glow CGCF26TNA Quick start guide
Desa
Desa 36RS User manual
Desa
Desa CHDV37N/P Quick start guide
Desa
Desa Comfort Glow CGFB32CB Original instructions
Desa
Desa Wood burning fireplace Assembly instructions
Desa
Desa S36 Series User manual
Popular Indoor Fireplace manuals by other brands
FPI
FPI Hampton H15U-NG Owners & installation manual
Element4
Element4 Lucius 140 Installation, operation and owner's manual
Osburn
Osburn Stratford Installation and operation manual
Intertek
Intertek Jøtul GI 535 DV IPI Fuel conversion instructions
Napoleon
Napoleon 3622-N Installation and operation instructions
FIREMAKER
FIREMAKER FireBob 69 manual
WANDERS
WANDERS STEALTH - SCHEMATICS Instructions for use intallation manual
Dovre
Dovre 2300GL installation instructions
HWAM
HWAM I 30/65 user manual
Solas
Solas ST-26N Installation & operation manual
IronStrike
IronStrike Montlake 230 Installation and operation manual
Drolet
Drolet MONT BLANC Installation and operating manual
Whalen
Whalen Middleton WSF32WV23-DB manual
Majestic fireplaces
Majestic fireplaces NV360 Series Homeowner's installation and operating manual
Stuv
Stuv B.100 Installation, servicing and user instructions
livin flame
livin flame Brighton Installation instructions & operating manual
Lennox Hearth Products
Lennox Hearth Products Brentwood SP Installation & operation manual
Astria Fireplaces
Astria Fireplaces MONTECITO ESTATE CAT Installation and operation instructions
