Desa LMFP33NR Quick start guide

UNVENTED (VENT-FREE)
GAS FIREPLACE
OWNER’S OPERATION AND INSTALLATION MANUAL
Save this manual for future reference.
Save this manual for future reference.
For more information, visit www.desatech.com
For more information, visit www.desatech.com
This appliance may be installed in an aftermarket,* permanently located, manufactured
(mobile) home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate.This appliance
is not convertible for use with other gases.
* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result caus-
ing property damage, personal injury, or loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed by a
qualifiedinstaller,serviceagency,orthegassupplier.
WARNING: Improper installa-
tion,adjustment,alteration,ser-
vice, or maintenance can cause
injury or property damage. Re-
fer to this manual for correct
installationandoperationalpro-
cedures. For assistance or ad-
ditional information consult a
qualified installer, service
agency, or the gas supplier.
WARNING: This is an unvented
gas-fired heater. It uses air (oxy-
gen) from the room in which it is
installed.Provisionsforadequate
combustion and ventilation air
mustbeprovided.Referto Airfor
Combustion and Ventilation sec-
tion on page 4 of this manual.
LMFP33NR/LMFP33PR REMOTE CONTROL
GAS FIREPLACE SYSTEMS
Shown with optional cabinet
mantel and hearth base
accessories.
Patent Pending

111604-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
2
SAFETY INFORMATION
DANGER: Carbon monoxide poisoning may lead
to death!
Carbon Monoxide Poisoning: Early signs of carbon monoxide
poisoning resemble the flu, with headaches, dizziness, or nausea.
If you have these signs, the heater may not be working properly.
Get fresh air at once! Have heater serviced. Some people are
more affected by carbon monoxide than others. These include
pregnant women, people with heart or lung disease or anemia,
those under the influence of alcohol, and those at high altitudes.
Natural and Propane/LP Gas: Natural and propane/LP gases are
odorless. An odor-making agent is added to the gas. The odor
helpsyoudetectagasleak.However,theodoraddedtothegascan
fade. Gas may be present even though no odor exists.
Make certain you read and understand all warnings. Keep this manual
forreference.Itisyourguidetosafeandproperoperationofthisheater.
WARNINGS
IMPORTANT: Read this owner’s manual carefully and
completely before trying to assemble, operate, or ser-
vicethisheater.Improper use of this heater can cause
serious injury or death from burns, fire, explosion,
electrical shock, and carbon monoxide poisoning.
WARNING:Anychangetothisheateroritscontrols
can be dangerous.
WARNING: Do not use a blower insert, heat
exchanger insert, or other accessory not approved
for use with this heater.
WARNING: Do not allow fans toblowdirectly into
the fireplace. Avoid any drafts that alter burner flame
patterns. Ceiling fans can create drafts that alter
burner flame patterns. Altered burner patterns can
cause sooting.
Due to high temperatures, the appliance should be
located out of traffic and away from furniture and
draperies.
Donotplaceclothingorotherflammablematerialon
or near the appliance. Never place any objects on
the heater.
Fireplace and screen become very hot when running
fireplace. Keep children and adults away from hot
surfaces to avoid burns or clothing ignition. Fire-
placewillremainhotforatimeaftershutdown.Allow
surfaces to cool before touching.
Carefully supervise young children when they are in
the room with fireplace. When using the optional
hand-heldremoteaccessory,keep selectorswitchin
the OFF position to prevent children from turning on
burners with remote.
You must operate this fireplace with the fireplace
screenandhoodinplace.Makesurefireplacescreen
and hood are in place before running heater.
Keeptheappliancearea clear and free from combus-
tiblematerials,gasoline,andotherflammablevapors
and liquids.
TABLE OF CONTENTS
SAFETY INFORMATION
WARNING:Thisproductcontainsand/orgenerates
chemicals known to the State of California to cause
cancer or birth defects, or other reproductive harm.
TABLE OF CONTENTS
SAFETY INFORMATION ............................................................ 2
PRODUCT IDENTIFICATION ..................................................... 3
LOCAL CODES........................................................................... 4
UNPACKING ............................................................................... 4
PRODUCT FEATURES .............................................................. 4
AIR FOR COMBUSTION AND VENTILATION ........................... 4
INSTALLATION ........................................................................... 7
OPERATING HEATER.............................................................. 17
INSPECTING BURNERS.......................................................... 20
CLEANING AND MAINTENANCE ............................................ 21
TROUBLESHOOTING .............................................................. 22
WIRING DIAGRAM ................................................................... 25
SPECIFICATIONS .................................................................... 25
TECHNICAL SERVICE ............................................................. 25
SERVICE HINTS....................................................................... 25
REPLACEMENT PARTS .......................................................... 25
ILLUSTRATED PARTS BREAKDOWNAND PARTS LIST ....... 26
ACCESSORIES ........................................................................ 30
OWNER’S REGISTRATION FORM.......................................... 31
WARRANTY INFORMATION...................................... Back Cover

111604-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
3
3
SAFETY INFORMATION
Continued
PRODUCT IDENTIFICATION
Figure 2 - Fireplace (VYGF33PRA Shown)
1. This appliance is only for use with the type of gas indicated on
the rating plate. This appliance is not convertible for use with
other gases.
2. Do not place propane/LP supply tank(s) inside any structure. Lo-
catepropane/LP supplytank(s) outdoors(propane/LP unitsonly).
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use any phone in
your building
• immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions
• if you cannot reach your gas supplier, call the fire department
4. This fireplace shall not be installed in a bedroom or bathroom.
5. Do not use this fireplace as a wood-burning fireplace. Use only
the logs provided with the fireplace.
6. Do not add extra logs or ornaments such as pine cones, ver-
miculite,orrockwool. Using these addeditemscancause soot-
ing. Do not add lava rock around base. Rock and debris could
fall into the control area of fireplace.
7. To prevent thecreationof soot, followtheinstructions in Clean-
ing and Maintenance, page 21.
8. Before using furniture polish, wax, carpet cleaner, or similar
products, turn heater off. If heated, the vapors from these prod-
ucts may create a white powder residue within burner box or
on adjacent walls or furniture.
9. This fireplace needs fresh air ventilation to run properly. This
fireplace has an Oxygen Depletion Sensing (ODS) safety
shutoff system. The ODS shuts down the fireplace if enough
fresh air is not available. See Air for Combustion and Ventila-
tion, pages 4 through 6. If fireplace keeps shutting off, see
Troubleshooting, pages 22 through 24.
10. Do not run fireplace
• where flammable liquids or vapors are used or stored
• under dusty conditions
11. Do not use this fireplace to cook food or burn paper or other
objects.
12. Do not use fireplace if any part has been exposed to or under
water. Immediately call a qualified service technician to in-
spect the fireplace and to replace any part of the control sys-
tem and any gas control which has been under water.
13. Do not operate fireplace if any log is broken. Do not operate
fireplace if a log is chipped (dime-sized or larger).
14. Turn fireplace off and let cool before servicing. Only a quali-
fied service person should service and repair fireplace.
SAFETY INFORMATION
PRODUCT IDENTIFICATION
Figure 1 - Log Base Assembly
O
F
F
P
I
L
O
T
O
N
5-Piece
Log Set
Remote Receiver
Piezo Ignitor
Remote
Control
Control
Knob
Top Louver
Assembly
Firebox
Hood
Bottom
Louver
Assembly
Screen
Assembly
Top Outer
Casing
Firebox
Support
Blower
Assembly
(Optional)
15. Operating fireplace above elevations of 4,500 feet could cause
pilot outage.
16. To prevent performance problems in propane/LP units, do not
use propane/LP fuel tanks of less than 100 lbs. capacity (pro-
pane/LP units only).
17. Provide adequate clearances around air openings.

111604-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
4
LOCAL CODES
Install and use fireplace with care. Follow all local codes. In the
absence of local codes, use the latest edition of The National Fuel
Gas Code ANSI Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
Note: Where listed vented decorative logs are required, thermostat
operation is not permitted.
1. With utility knife, cut the carton all the way around above the
staples on the bottom tray. Lift the carton off the heater. Re-
move packing. Note: The hood is located in the packing on
the right hand side of the heater front. Lift the heater off the
bottom tray.
2. Locate two screws above top corners of the fireplace screen.
Remove and discard these screws. Lift fireplace screen up and
pull out to remove.
3. Remove protective packaging applied to logs, log base assem-
bly, and fireplace.
4. Remove fireplace hood from carton insert.
5. Check allitemsfor any shippingdamage.Ifdamaged, promptly
inform dealer where you bought fireplace.
UNPACKING
CAUTION:Donotremovethedataplatesattached
to the heater base assembly. The data plates contain
important warranty and safety information. AIR FOR COMBUSTION AND
VENTILATION
Today’s homes are built more energy efficient than ever. New mate-
rials,increasedinsulation, and newconstructionmethods helpreduce
heat loss in homes. Home owners weather strip and caulk around
windowsanddoorstokeepthecoldairoutandthewarmairin.During
heatingmonths,homeownerswanttheirhomesasairtightaspossible.
While it is good to make your home energy efficient, your home
needs to breathe. Fresh air must enter your home. All fuel-burning
appliances need fresh air for proper combustion and ventilation.
Exhaustfans,fireplaces,clothesdryers,andfuelburningappliances
drawairfromthehousetooperate.Youmustprovideadequatefresh
air for these appliances. This will insure proper venting of vented
fuel-burning appliances.
WARNING: This heater shall not be installed in a
confined space or unusually tight construction un-
less provisions are provided for adequate combus-
tion and ventilation air. Read the following instruc-
tions to insure proper fresh air for this and other
fuel-burning appliances in your home.
LOCAL CODES
UNPACKING
PRODUCT FEATURES
AIR FOR COMBUSTION AND VENTILATION
PRODUCT FEATURES
OPERATION
This vent-free fireplace is clean burning. It requires no outside
venting. There is no heat loss out a vent or up a chimney. Heat is
generatedbybothrealisticflames.Whenusedwithouttheblower,the
fireplacerequiresnoelectricitymakingitidealforemergencybackup
heat.Thisheaterisdesignedforvent-freeoperation.Ithasbeentested
and approved to ANSI Z21.11.2 standard for unvented heaters. State
and local codes in some areas prohibit the use of vent-free heaters.
SAFETY DEVICE
Thisfireplacehas apilotwith anOxygenDepletion Sensing(ODS)
safety shutoff system. The ODS/pilot is a required feature for vent-
free room heaters. The ODS/pilot system shuts off the fireplace if
there is not enough fresh air.
PIEZO IGNITION SYSTEM
This fireplace has a piezo ignitor. This system requires no matches,
batteries, or other sources to light fireplace.
OPTIONAL BLOWER ASSEMBLY (GA3700
SERIES & GA3700TA SERIES)
This fireplace accepts an optional blower assembly (not included).
The GA3700TA Series blower operates thermostatically and fea-
tures a variable speed control. The GA3700 Series blower operates
manually and also features a variable speed control. The blower
circulates heated air from the fireplace into the room. See Accesso-
ries, page 30.

111604-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
5
5
PROVIDING ADEQUATE VENTILATION
The following are excerpts from National Fuel Gas Code, ANSI
Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation.
All spaces in homes fall into one of the three following ventilation
classifications:
1. Unusually Tight Construction
2. Unconfined Space
3. Confined Space
The information on pages 4 through 6 will help you classify your
space and provide adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough
fresh air for combustion and ventilation. However, in buildings of
unusually tight construction, you must provide additional fresh air.
Unusually tight construction is defined as construction
where:
a. walls and ceilingsexposedtotheoutside atmosphere
have a continuous water vapor retarder with a rating
of one perm (6 x 10-11 kg per pa-sec-m2) or less with
openings gasketed or sealed and
b. weather stripping has been added on openable win-
dows and doors and
c. caulking or sealants are applied to areas such as
joints around window and door frames,between sole
platesand floors,betweenwall-ceiling joints,between
wall panels, at penetrations for plumbing, electrical,
and gas lines, and at other openings.
If your home meets all of the three criteria above,
you must provide additional fresh air.See Ventilation
Air From Outdoors , page 6 .
Ifyourhomedoes not meet all of the threecriteriaabove,
proceed to Determining Fresh-Air Flow For Heater Loca-
tion, column 2.
Confined and Unconfined Space
The National Fuel Gas Code, ANSI Z223.1/NFPA 54 defines a
confined space as a space whose volume is less than 50 cubic feet
per 1,000 Btu per hour (4.8 m3per kw) of the aggregate input rating
of all appliances installed in that space and an unconfined space as
aspacewhosevolumeisnotlessthan50cubicfeetper1,000Btuper
hour (4.8 m3per kw) of the aggregate input rating of all appliances
installed in that space. Rooms communicating directly with the
space in which the appliances are installed*, through openings not
furnishedwithdoors,areconsideredapartofthe unconfinedspace.
* Adjoining rooms are communicating only if there are doorless
passageways or ventilation grills between them.
AIR FOR COMBUSTION AND
VENTILATION
Continued
DETERMINING FRESH-AIR FLOW FOR
HEATER LOCATION
Determining if You Have a Confined or
Unconfined Space
Usethiswork sheetto determineif youhaveaconfined orunconfined space.
Space:Includestheroominwhichyouwillinstallheaterplusanyadjoining
rooms with doorless passageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = ___________ cu. ft. (volume of space)
Example: Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling
height) = 2560 cu. ft. (volume of space)
Ifadditionalventilation toadjoining roomis suppliedwith grillsor open-
ings, add the volume of these rooms to the total volume of the space.
2. Multiply the space volume by 20 to determine the maximum Btu/Hr
the space can support.
__________ (volume of space) x 20 = (Maximum Btu/Hr the space
can support)
Example: 2,560 cu. ft. (volume of space) x 20 = 51,200 (maximum
Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in the space.
Vent-free heater _____________ Btu/Hr
Gas water heater* _____________ Btu/Hr
Gas furnace _____________ Btu/Hr
Vented gas heater _____________ Btu/Hr
Gas fireplace logs _____________ Btu/Hr
Other gas appliances* + _____________ Btu/Hr
Total = _____________ Btu/Hr
* Do not include direct-vent gas appliances. Direct-vent draws com-
bustion air from the outdoors and vents to the outdoors.
Example:
Gas water heater _____________ Btu/Hr
Vent-free heater + _____________ Btu/Hr
Total = _____________ Btu/Hr
4. Compare the maximum Btu/Hr the space can support with the actual
amount of Btu/Hr used.
__________________ Btu/Hr (maximum the space can support)
__________________ Btu/Hr (actual amount of Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the space can support)
73,000 Btu/Hr (actual amount of Btu/Hr used)
AIR FOR COMBUSTION AND VENTILATION
Providing Adequate Ventilation
Determining Fresh-Air Flow for Heater Location
40,000
33,000
73,000

111604-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
6
The space in the example on page 5 is a confined space because the actual
Btu/Hr used is more than the maximum Btu/Hr the space can support. You
must provide additional fresh air. Your options are as follows:
A. Rework worksheet, adding the space of an adjoining room. If the
extra space provides an unconfined space, remove door to adjoining
roomor addventilation grillsbetweenrooms. SeeVentilationAir From
Inside Building.
B. Vent room directly to the outdoors. See Ventilation Air From Outdoors.
C. Installa lower Btu/Hrheater, iflower Btu/Hrsizemakesroom unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the space can
support, the space is an unconfined space. You will need no additional fresh
air ventilation.
AIR FOR COMBUSTION AND
VENTILATION
Continued
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining unconfined space.
When ventilating to an adjoining unconfined space, you must
provide two permanent openings: one within 12" of the ceiling and
one within 12" of the floor on the wall connecting the two spaces
(see options 1 and 2, Figure 3). You can also remove door into
adjoining room (see option 3, Figure 3). Follow the National Fuel
GasCode,ANSIZ223.1/NFPA 54, Section 5.3,AirforCombustion
and Ventilation for required size of ventilation grills or ducts.
Ventilation Air From Outdoors
Provideextrafreshairby usingventilationgrillsorducts.Youmust
provide two permanent openings: one within 12" of the ceiling and
one within 12" of the floor. Connect these items directly to the
outdoorsorspacesopentotheoutdoors.Thesespacesincludeattics
and crawl spaces. Follow the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation
for required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for inlet or outlet air into
attic if attic has a thermostat-controlled power vent. Heated air
entering the attic will activate the power vent.
AIR FOR COMBUSTION AND VENTILATION
Determining Fresh-Air Flow for Heater Location (Cont.)
Ventilation Air

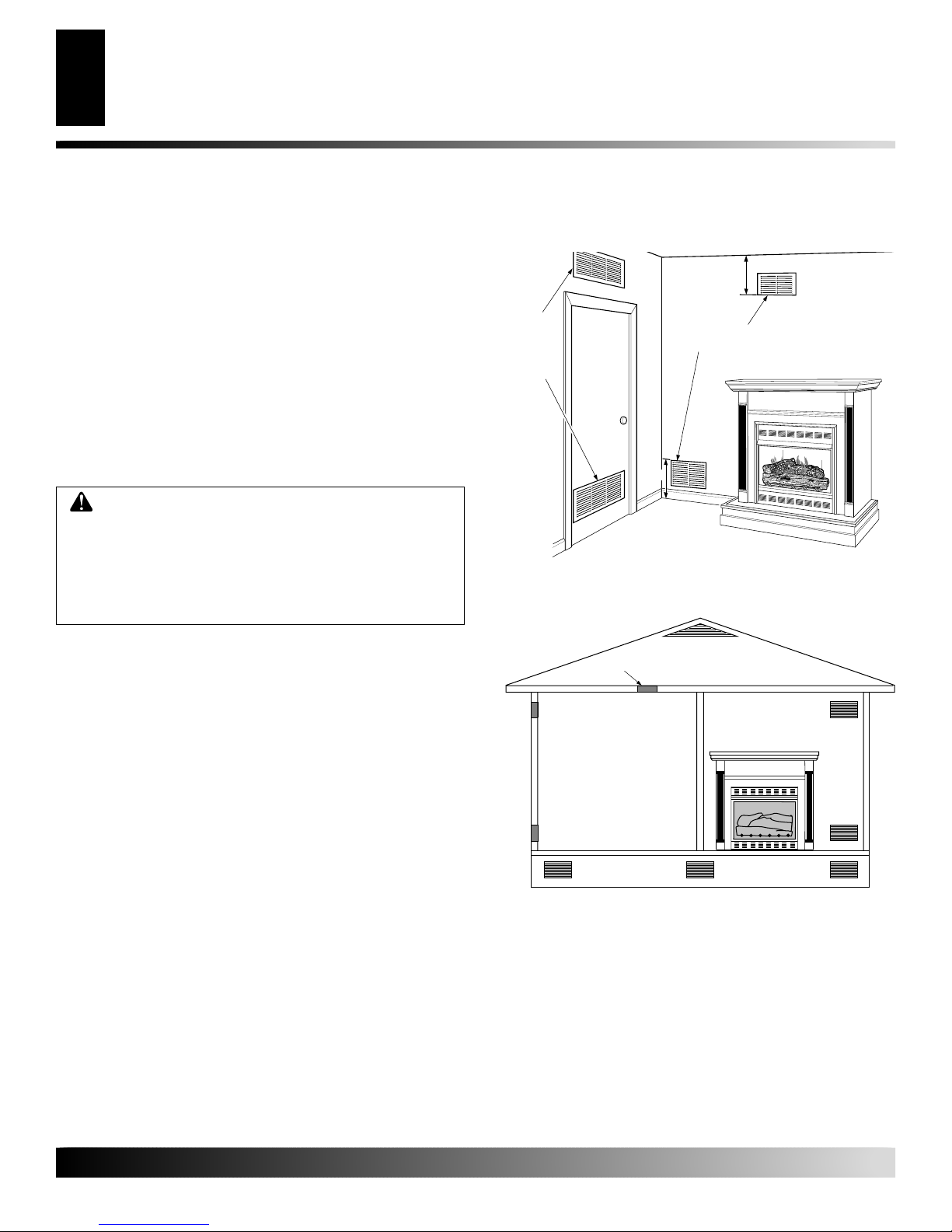

Figure 4 - Ventilation Air from Outdoors
Figure 3 - Ventilation Air from Inside Building
Outlet
Air Ventilated
Attic
Outlet
Air
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills
Into Adjoining
Room,
Option 1
12"
12"
WARNING: If the area in which the heater may be
operated is smaller than that defined as an uncon-
fined space or if the building is of unusually tight
construction,provideadequatecombustionandven-
tilation air by one of the methods described in the
National Fuel Gas Code, ANSI Z223.1/NFPA 54 Sec-
tion 5.3 or applicable local codes .

111604-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
7
7
INSTALLATION
INSTALLATION
Check Gas Type
Electrical Hookup
Installing Hood
NOTICE: This heater is intended for use as supple-
mental heat. Use this heater along with your primary
heating system. Do not install this heater as your
primary heat source. If you have a central heating
system, you may run system’s circulating blower
while using heater. This will help circulate the heat
throughoutthehouse.Intheeventofapoweroutage,
you can use this heater as your primary heat source.
WARNING: A qualified service person must in-
stall fireplace. Follow all local codes.
WARNING: Never install the fireplace
•in a bedroom or bathroom
•in a recreational vehicle
•where curtains, furniture, clothing or other flam-
mable objects are less than 42 inches from the
front, top or sides of the heater
•in high traffic areas
•in windy or drafty areas
CAUTION: This fireplace creates warm air cur-
rents.Thesecurrentsmoveheattowallsurfacesnext
to fireplace. Installing fireplace next to vinyl or cloth
wall coverings or operating heater where impurities
(suchas,butnotlimitedto,tobaccosmoke,aromatic
candles, cleaning fluids, oil or kerosene lamps, etc.)
in the air exist, may discolor walls or cause odors.
Note: Your fireplace is designed to be used in zero clearance
installations.Wallorframingmaterialcanbeplaceddirectlyagainst
any exterior surface on the rear, sides, or top of your fireplace,
except where standoff spacers are integrally attached. If standoff
spacers are attached to your fireplace, these spacers can be placed
directly against wall or framing materials.
Use the dimensions shown for rough openings to create the easiest
installation. See Built-In Fireplace Installation, pages 10 and 11.
IMPORTANT: Vent-freeheatersadd moisturetotheair. Although
this is beneficial, installing fireplace in rooms without enough
ventilation air may cause mildew to form from too much moisture.
See Air for Combustion and Ventilation, pages 4 through 6.
IMPORTANT: Make sure the fireplace is level. If fireplace is not
level, log set will not work properly.
CHECK GAS TYPE
Use the correct gas type (natural or propane/LP) for your fireplace.
If your gas supply is not correct, do not install fireplace. Call dealer
where you bought fireplace for proper type fireplace.
ELECTRICAL HOOKUP
(Models GA3700 Series and GA3700T Series
Blower Accessories, and GA3555 Internal
Duplex Kit)
This fireplace accepts a blower assembly with an electrical cord.
The electrical cord is five feet in length. You must locate fireplace
withinreachofa120voltgroundedelectricaloutlet.Ifnot,youmust
installanelectricaloutlet within reach of fireplacepowercord.The
GA3555 outlet accessory is used for built-in applications with
blower accessory installed.
INSTALLING HOOD
Install hood to top of firebox as shown in Figure 5. Use 3 Phillips
screws provided.

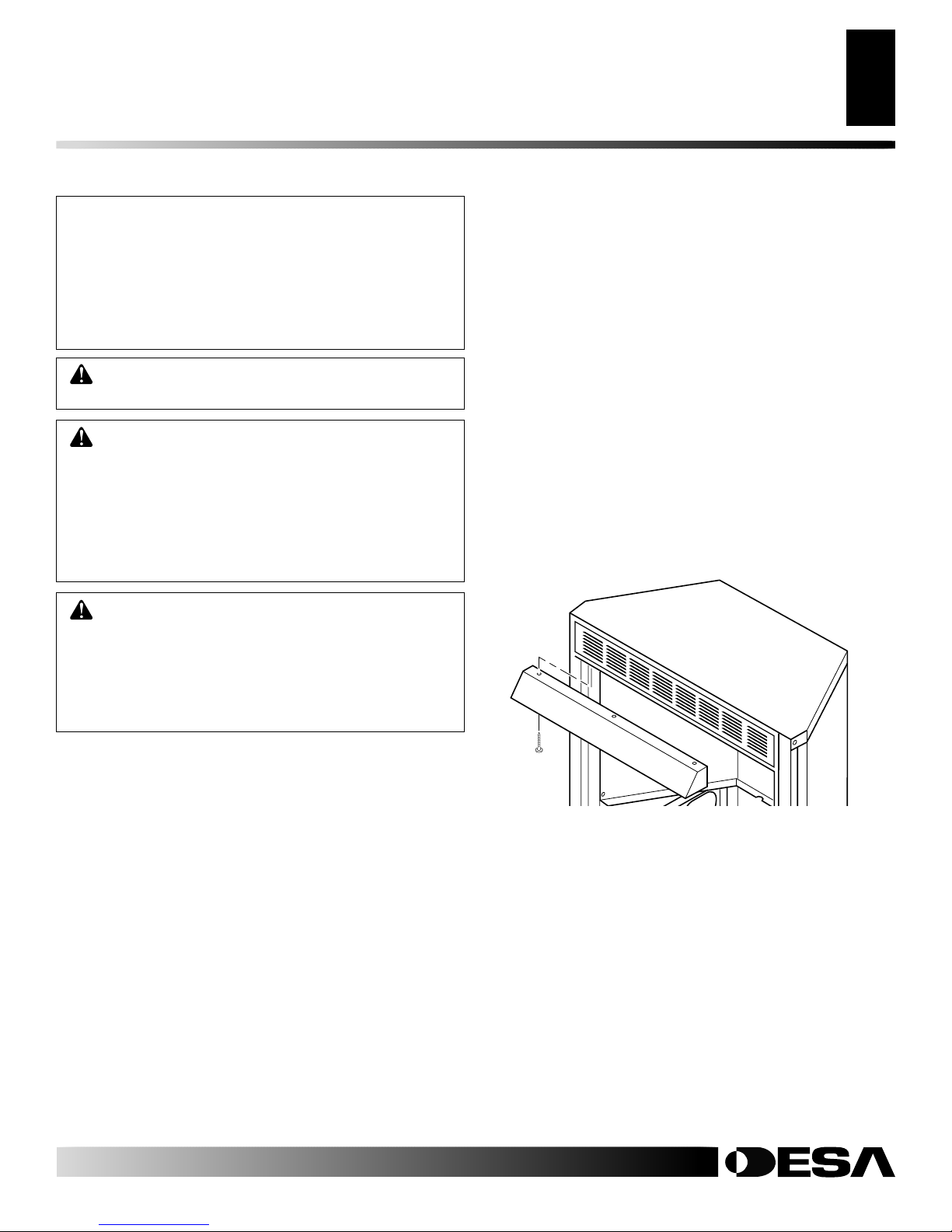

Figure 5 - Installing Hood to Firebox

111604-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
8
*
INSTALLATION
Continued

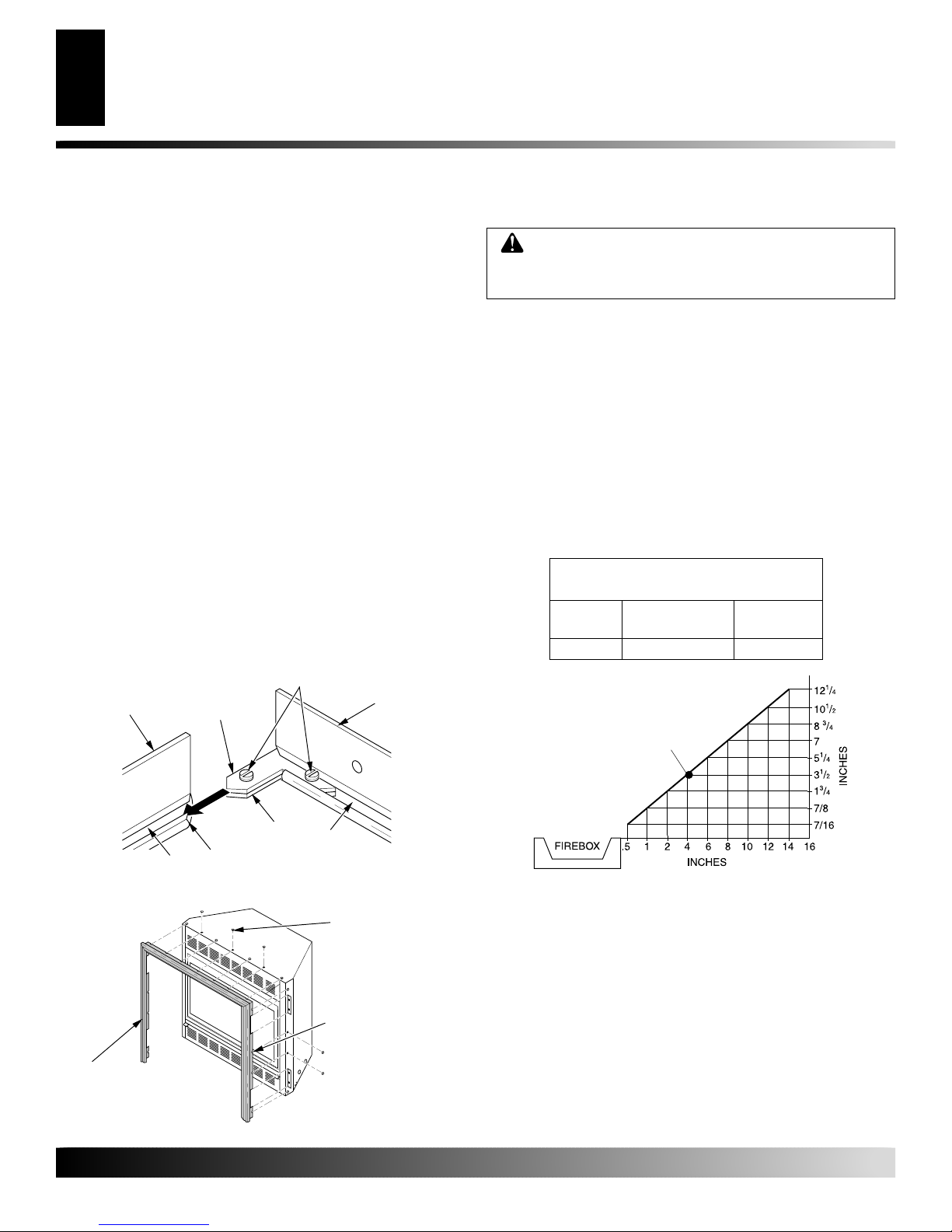

Figure 7 - Attaching Brass Trim to Fireplace
Figure 6 - Assembling Brass Trim
ASSEMBLING AND ATTACHING OPTIONAL
BRASS TRIM
(Included with Mantel Accessory)
IMPORTANT: If you are recessing the firebox in a wall, do not
attach brass trim at this time. See page 10.
Note: The instructions belowshowassembling and attachingbrass
trim to fireplace.
1. Remove packaging from three pieces of brass trim.
2. Locate four brass screws, two adjusting plates with set screws,
and two shims in the hardware packet.
3. Align shim under adjusting plate as shown in Figure 6.
4. Slide one end of adjusting plate/shim in slot on mitered edge
of top brass trim (see Figure 6).
5. Slide other end of adjusting plate/shim in slot on mitered edge
of side brass trim (see Figure 6).
6. While firmly holding edges of brass trim together, tighten both
set screws on the adjusting plate with slotted screwdriver.
7. Repeat steps 1 through 6 for other side.
8. Tighten trim hanging screws (#10 x 6.25 shoulder) into holes
in cabinets. Place the assembled trim onto fireplace cabinet.
Align hanging notches on trim with hanging screws on side of
fireplace (see Figure 7). Push trim firmly into place, sliding
hanging notches over hanging screws.
Side Brass
Trim
Top
Brass
Trim
Slot
Mitered Edge
Slot
Shim
Set Screws
Adjusting
Plate
Trim
Hanging
Screws
Assembled
Brass Trim
Hanging
Notches
on Trim
INSTALLATION CLEARANCES
WARNING: Maintain the minimum clearances. If
you can, provide greater clearances from floor, ceil-
ing, and adjoining wall.
Carefully follow the instructions below. This will ensure safe
installation.
Minimum Clearances For Side Combustible
Material, Side Wall, and Ceiling
A. Clearances from the side of the fireplace cabinet to any com-
bustible material and wall should follow diagram in Figure 8.
Example: The face of a mantel, bookshelf, etc. is made of
combustible material and protrudes 3 1/2" from the wall. This
combustible material must be 4" from the side of the fireplace
opening (see Figure 8).
B. Clearances from the top of the fireplace opening to the ceiling
should not be less than 42 inches.
Figure 8 - Minimum Clearance for Combustible to Wall
*Minimum 16 inches from Side Wall
Example
MINIMUM CLEARANCE TO
COMBUSTIBLE MATERIALS
Top Left and Bottom
Right Sides and Rear
42" 16" 0"
INSTALLATION
Assembling and Attaching Optional Brass Trim
Installation Clearances

111604-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
9
9
INSTALLATION
Continued

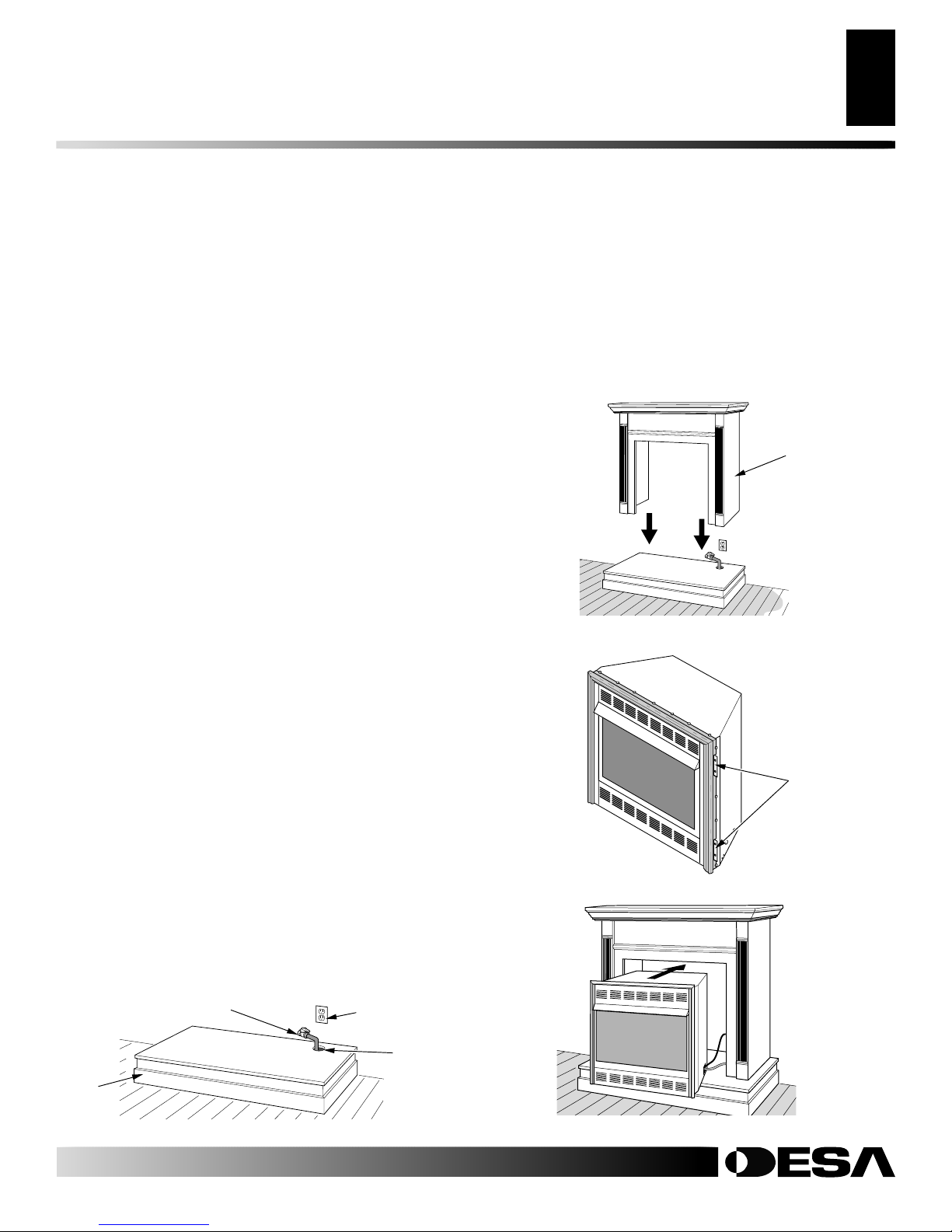

CONVENTIONAL FIREPLACE INSTALLATION
Conventional installation of this fireplace involves installing fire-
placealongwiththecorner,face,orcabinetmantelwithhearthbase
accessories against a wall in your home. Follow the instructions
below to install the fireplace in this manner.
Note: The instructions in this section show installation using the
cabinetmantelandhearthbaseaccessories.Thehearthbaseaccessory
shown is optional for this installation. You can install fireplace and
cabinet mantel directly on the floor. The corner mantel accessory for
models VYGF33NRA or VYGF33PRA can only be paired with the
cornerhearthbase.Ifmountingfireplaceandcabinetorcornermantel
tothefloor, anoptionalG3005 SeriesSlimBase kitmay beinstalled.
1. Assemble cabinet mantel, hearth base, and trim accessories.
Assembly instructions are included with each accessory.
2. When installing blower, install a properly grounded, 120 volt
three-prong electrical outlet at fireplace location if an outlet is
not there. If possible, locate outlet so cabinet mantel will cover
it when installed (see Figure 9).
3. Install gaspipingto fireplace location.This installationincludes
an approved flexible gas line (if allowed by local codes) after
the equipment shutoff valve. The flexible gas line must be the
last item installed on the gas piping. See Installing Gas Piping
to Fireplace Location, pages 12 and 13.
4. Place hearth base accessory against wall at installation loca-
tion. Cut an access hole in hearth top to run flexible gas line to
fireplace (see Figure 9). Make sure to locate access hole so
cabinet mantel will cover it when installed. Note: You can
secure base to floor using wood screws. Countersink screw
heads and putty over.
5. Route flexible gas line through access hole in hearth base.
6. Center cabinet mantel on hearth base (see Figure 10). Make
sure mantel is flush against wall.
7. Break off nailing flanges (see Figure 11) with hammer or pliers.
8. Place cardboard or other protective material on top of hearth
base. Carefully set fireplace on protective material, with back
of fireplace inside mantel opening.
9. Attach flexible gas line from fireplace gas regulator to gas sup-
ply. See Connecting Fireplace to Gas Supply, page 13.
10. If blower is installed, route blower electrical cord through ac-
cess holes in either side of fireplace. Note: Bushing may be
moved if necessary. Plug electrical cord into electrical outlet.
Figure 9 - Placing Hearth Base Accessory Against Wall
Electrical Outlet
Hearth
Base
Rigid Gas Line
Gas Line
Access
Hole
Figure 10 - Installing Cabinet Mantel
Cabinet
Mantel
11. Carefully insert fireplace into cabinet mantel. Be careful not
to scratch or damage hearth base, cabinet mantel, or any lami-
nate trim on hearth base. Remove protective material from top
of hearth base and from front of fireplace (if any). Note: You
can secure fireplace to hearth or floor. Open lower louver.
Locate screw holes in bottom of base. Tighten wood screws
through these holes and into hearth or floor.
12. Check all gas connections for leaks. See Checking Gas Con-
nections, page 14.
Figure 11 - Location of Nailing Flanges
Nailing
Flanges
Figure 12 - Inserting Fireplace Into Cabinet Mantel
INSTALLATION
Conventional Fireplace Installation

111604-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
10
INSTALLATION
Continued
INSTALLATION
Built-In Fireplace Installation
Actual Framing
Height 32 3/8" 33"
Front Width 34 5/16" 35 1/2"
Depth 16 11/16" 17 3/4"
BUILT-IN FIREPLACE INSTALLATION
Built-in installation of this fireplace involves installing fireplace
into a framed-in enclosure. This makes the front of fireplace flush
withwall.Ifinstallingamantelabovethefireplace,youmustfollow
theclearancesshownin Figure20,page 12. Followtheinstructions
below to install the fireplace in this manner.
1. Frame in rough opening. Use dimensions shown in Figure 13
for the rough opening.If installing in a corner, use dimensions
shown in Figure 14 for the rough opening. The height is 33"
which is the same as the wall opening above.
2. If using blower, install and properly ground GA3555, three-
prong 120 volt electrical outlet, in fireplace. Follow instruc-
tions included in kit (see Accessories, page 30).
3. Install gaspipingto fireplace location.This installationincludes
an approved flexible gas line (if allowed by local codes) after
the equipment shutoff valve. The flexible gas line must be the
last item installed on the gas piping. See Installing Gas Piping
to Fireplace Location, pages 12 and 13.
4. Carefully set fireplace in front of rough opening with back of
fireplace inside wall opening.
5. Plug electrical cord into electrical outlet installed in step 2.
6. Carefully insert fireplace into rough opening.
7. Attach flexible gas line to gas supply. See Connecting Fire-
place to Gas Supply, pages 13 and 14.
8. Attach fireplace to wall studs using nails or wood screws
through holes in nailing flange (see Figure 15).
9. Check all gas connections for leaks. See Checking Gas Con-
nections, pages 14 and 15.
10. Install brass trim after final finishing and/or painting of wall
(see Figure 7, page 8).
35
1
/ 2 "
17
3
/ 4 "
33"
Figure 13 - Rough Opening for Installing in Wall
WARNING: A qualified electrician must connect
electrical wiring to duplex outlet for built-in installa-
tion. Follow all local codes.
BUILT-IN FIREPLACE INSTALLATION
Built-in installation of this fireplace involves installing fireplace
into a framed-in enclosure. This makes the front of fireplace flush
withwall.Ifinstallingamantelabovethefireplace,youmustfollow
theclearancesshownin Figure20,page 12. Followtheinstructions
below to install the fireplace in this manner.
Actual Framing
Height 32 3/8" 33"
Front Width 34 5/16" 35 1/2"
Depth 16 11/16" 17 3/4"
Figure 14 - Rough Opening for Installing in Corner
Figure 15 - Attaching Fireplace to Wall Studs
Nailing Flanges
Nails or
Wood
Screws
39
3
/ 8 "27
7
/ 8 "
55
5
/ 8 "
35
1
/ 2 "

111604-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
11
11

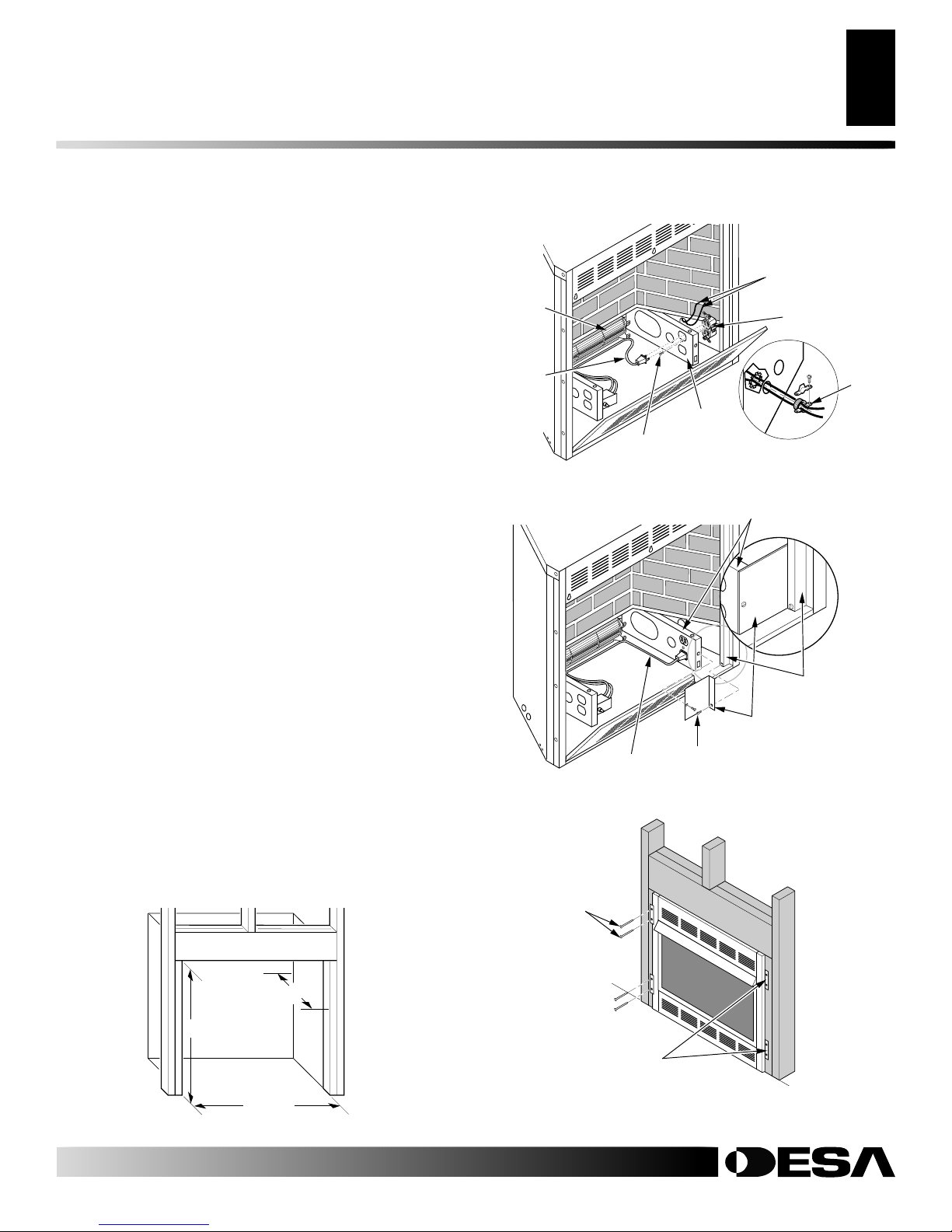

1. Frame in rough opening. Use dimensions shown in Figure 16
for the rough opening.
2. If using blower, install wiring and properly ground the three-
prong, 120 volt electrical outlet in fireplace.
3. Before replacing bottom of firebox, install duplex outlet to the
right support bracket in the bottom of firebox (see Figure 17).
4. Route wires from electrical box through smallest hole in outer
casing using strain relief fitting provided (see Figure 17).
5. Connect wires from the electrical box to duplex outlet. Match
wire colors to those indicated on duplex outlet. Be sure to con-
nect ground wire.
6. Install shield to end of right support bracket and behind the
firebox wrapper with 2 screws provided (see Figure 18).
7. Plug blowercordinto duplexoutlet.
Note: Onthermostat model
fireplaces, route power cord to the back of the fireplace to clear
thermostat valve.
8. Replace bottom of firebox and reconnect remote receiver mod-
ule to valve.
9. Install gaspipingto fireplace location.This installationincludes
an approved flexible gas line (if allowed by local codes) after
the equipment shutoff valve. The flexible gas line must be the
last item installed on the gas piping. See Installing Gas Piping
to Fireplace Location, pages 12 and 13.
10. Carefully set fireplace in front of rough opening with back of
fireplace inside wall opening.
11. Attach flexible gas line to gas supply. See Connecting Fire-
place to Gas Supply, pages 13 and 14.
12. Plug electrical cord into electrical outlet installed in step 2.
13. Carefully insert fireplace into rough opening.
14. Attach fireplace to wall studs using nails or wood screws
through holes in nailing flange (see Figure 19).
15. Check all gas connections for leaks. See Checking Gas Con-
nections, pages 14 and 15.
16. Install brass trim after final finishing and/or painting of wall
(see Figure 7, page 8).
INSTALLATION
Continued
35
1
/ 2 "
17
3
/ 4 "
33"
Figure 16 - Rough Opening for Installing in Wall
Blower
Support
Bracket
Cable from
Electrical
Source
Duplex
Outlet
Screw
Blower
Power
Cord Strain
Relief
Fitting
Figure 17 - Connecting Duplex Outlet
INSTALLATION
Built-In Fireplace Installation (Cont.)
Figure 19 - Attaching Fireplace to Wall Studs
Nailing Flanges
Nails or
Wood
Screws
Shield
Screws
Support Bracket
Firebox
Wrapper
Power
Cord
Figure 18 - Attaching Fireplace to Wall Studs

111604-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
12
INSTALLATION
Continued
Mantel Clearances for Built-In Installation
Ifplacingmantel above built-infireplace,you must meetminimum
clearance between mantel shelf and top of fireplace opening.
Figure 20 - Minimum Mantel Clearances for Built-In Installation
Supplied Firebox
Hood Must Be
Used at All Times
Wire-mesh
Screen
Firebox
Noncombustible
Material May
Project Off this
Surface above
the Firebox Hood
Mantel Shelf
13" 16" 19" 21"
2
1/2
"
6"
8"
10"
Note: All vertical
measurements are
from top of fireplace
hood opening to bottom
of mantel shelf.
These minimum
clearances replace any
other recommended
clearances supplied with
your ANSI Z21.11.2
approved gas logs.
Wall board or facing
material (above
firebox) may be of
combustible material,
including decorative
mantel ornaments or
other similar projec-
tions off of the facing
material.
Framing
Material
NOTICE: If your installation does not meet the mini-
mum clearances shown, you must do one of the
following:
•raise the mantel to an acceptable height
•remove the mantel
NOTICE:Surfacetemperaturesofadjacentwalls and
mantels become hot during operation. Walls and
mantels above the firebox may become hot to the
touch. If installed properly, these temperatures meet
the requirement of the national product standard.
Followallminimumclearancesshowninthismanual.
WARNING: This appliance requires a 1/2" NPT
(National Pipe Thread) inlet connection to the pres-
sure regulator.
WARNING: A qualified service person must con-
nect fireplace to gas supply. Follow all local codes.
CAUTION: Never connect propane/LP fireplace
directly to the propane/LP supply. This fireplace
requires an external regulator (not supplied). Install
the external regulator between the fireplace and pro-
pane/LP supply.
WARNING:Neverconnectnaturalgasfireplaceto
private (non-utility) gas wells. This gas is commonly
known as wellhead gas.
INSTALLATION
Built-In Fireplace Installation (Cont.)
Installing Gas Piping to Fireplace Location
INSTALLING GAS PIPING TO FIREPLACE
LOCATION
Installation Items Needed
Beforeinstallingfireplace,makesureyouhavetheitemslistedbelow.
• externalregulatorfor propane/LP unitonly(suppliedby installer)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection *
• sediment trap (optional)
• tee joint
• pipe wrench
• approved flexible gas line with gas connector (if allowed by lo-
cal codes) (not provided)
* A CSA design-certified equipment shutoff valve with 1/8" NPT
tap is an acceptable alternative to test gauge connection. Purchase
the optional CSA design-certified equipment shutoff valve from
your dealer. See Accessories, page 30.
For propane/LP units, the installer must supply an external regula-
tor. The external regulator will reduce incoming gas pressure. You
must reduce incoming gas pressure to between 11 and 14 inches of
water. If you do not reduce incoming gas pressure, heater regulator
damage could occur. Install external regulator with the vent point-
ing down as shown in Figure 21, page 13. Pointing the vent down
protects it from freezing rain or sleet.

111604-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
13
13
Installation must include an equipment shutoff valve, union, and
plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge
hook up. NPT tap must be upstream from fireplace (see Figure 22).
IMPORTANT: Install equipment shutoff valve in an accessible
location. The equipment shutoff valve is for turning on or shutting
off the gas to the appliance.
Checkyourbuildingcodesforanyspecialrequirementsforlocating
equipment shutoff valve to fireplaces.
ApplypipejointsealantlightlytomaleNPTthreads.Thiswillprevent
excess sealant from going into pipe. Excess sealant in pipe could
result in clogged fireplace valves. Never use sealant on flare threads.
WARNING:Usepipejointsealantthatisresistant
to liquid petroleum (LP) gas.
We recommend that you install a sediment trap in supply line as
showninFigure22.Locatesedimenttrapwhereitiswithinreachfor
cleaning.Installinpipingsystembetweenfuelsupplyandfireplace.
Locatesedimenttrapwhere trapped matter isnotlikely to freeze. A
sediment trap traps moisture and contaminants. This keeps them
from going into fireplace gas controls. If sediment trap is not
installed or is installed wrong, fireplace may not run properly.
CAUTION: Use only new, black iron or steel pipe.
Internally-tinned copper tubing may be used in cer-
tain areas. Check your local codes. Use pipe of 1/2"
diameter or greater to allow proper gas volume to
fireplace. If pipe is too small, undue loss of volume
will occur.

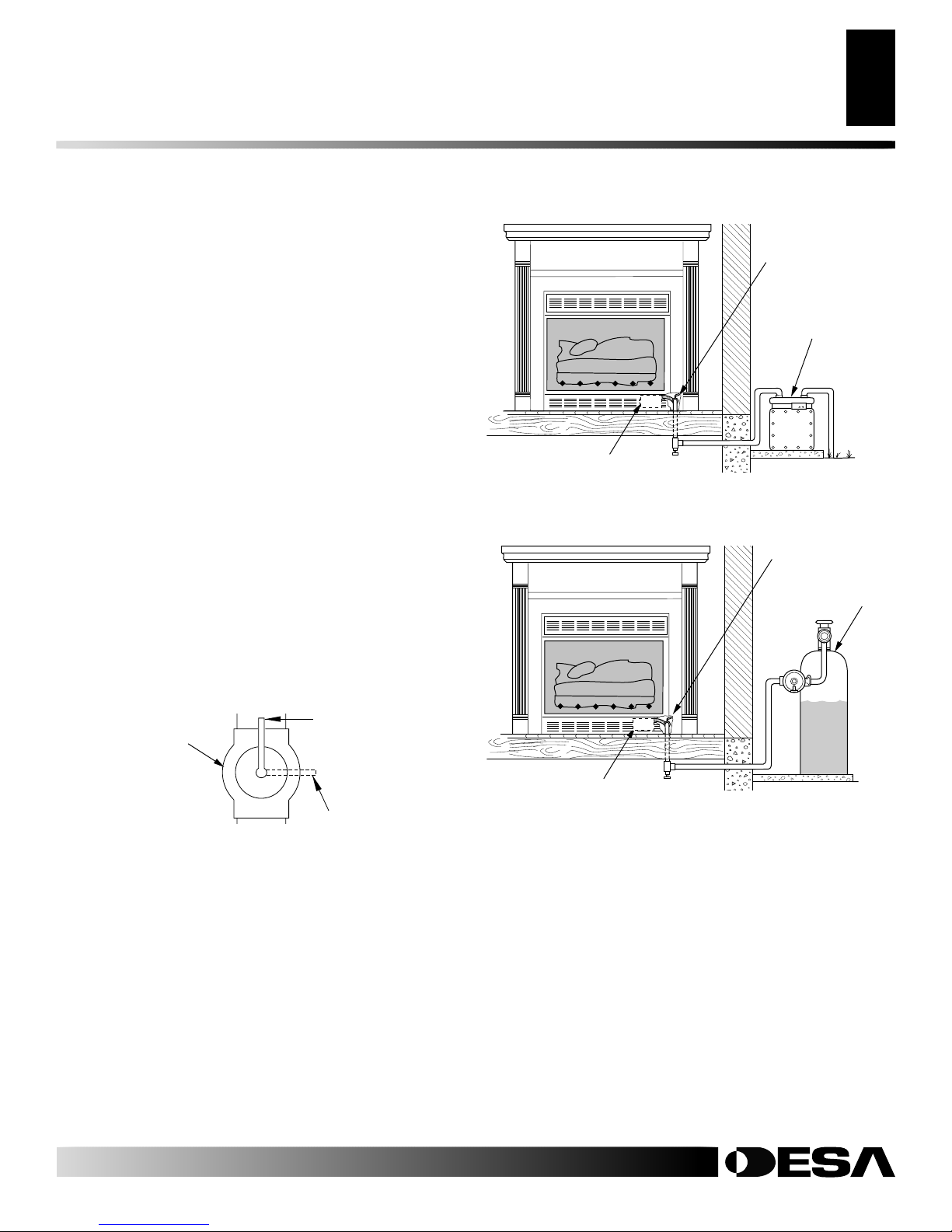

Figure21-ExternalRegulatoronPropane/LP SupplyTank with
Vent Pointing Down
External
Regulator
Vent
Pointing
Down
Propane/LP
Supply Tank
INSTALLATION
Continued
Figure 22 - Gas Connection
* Purchase the optional CSA design-certified equipment shutoff
valve from your dealer. See Accessories, page 30.
** Minimum inlet pressure for purpose of input adjustment.
Sediment Trap
CSA Design-Certified Equipment
Shutoff Valve With 1/8" NPT Tap*
3" Minimum
Cap Pipe Tee
Nipple Joint
Natural Gas
From Gas Meter
(5" W.C.** to 10.5" W.C.
Pressure)
Propane/LP
From External Regulator
(11" W.C.** to 14" W.C.
Pressure)
Installation Items Needed
• 5/16" hex socket wrench or nut-driver
• Phillips screwdriver
• sealant (resistant to propane/LP gas, not provided)
1. Remove two screws that hold fireplace screen in place for ship-
ping. These screws are located near top of screen. Discard
screws. Lift fireplace screen up and pull out to remove.
2. Open lower louver door. Carefully pull straight out on the wire
harnesses attached to right side and front of remote receiver
module (see Figure 23, page 14).
3. Remove screws that attach log base assembly to fireplace (see
Figure 23, page 14). Carefully lift up log base assembly and
remove from fireplace (see Figure 23, page 14).
Note: If adding the G8000A series brick liner accessory, install it
now. Follow instructions in G8000A accessory kit.
CONNECTING FIREPLACE TO GAS SUPPLY
CAUTION: Do not pick up log base assembly by
burner.This could damage burner. Onlyhandle base
by grates.
4. Route gas line (provided by installer) from equipment shutoff
valve to fireplace. Route flexible gas supply line through one
of the access holes.
INSTALLATION
Installing Gas Piping to Fireplace Location (Cont.)
Connecting Fireplace to Gas Supply

111604-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
14
INSTALLATION
Continued
Figure 23 - Removing Log Base Assembly From Fireplace
NOTICE: Most building codes do not permit con-
cealed gas connections. A flexible gas line is pro-
vided to allow accessibility from the fireplace (see
Figure24).Theflexible gas supply line connection to
the equipment shutoff valve should be accessible.
O
F
F
P
I
L
O
T
O
N
INSTALLATION
Connecting Fireplace to Gas Supply (Cont.)
Checking Gas Connections
➞
➞
Figure 24 - Attaching Flexible Gas Lines Together
5. Attach theflexiblegasline to gassupply(see Figure 24). Check
tightness of flexible gas line attached to gas regulator of fire-
place (see Figure 24).
6. Check all gas connections for leaks. See Checking Gas Con-
nections.
7. Replace log base assembly back into fireplace. Feed flexible gas
lineintofireplacebaseareawhilereplacinglogbaseassembly.Make
sure the entire flexible gas line is in fireplace base area. Reattach
log base assembly to fireplace with screws removed in step 2.
Flexible Gas Line from
Fireplace Gas Regulator
To Fireplace
Gas Regulator Equipment Shutoff Valve
Provided by Installer
Propane/LP
To External
Regulator
Natural Gas
To Gas Meter
Unplug From Remote
Receiver Module
Remote
Receiver
Module
Log Base
Assembly
Screw
Screw
Flexible Gas
Line
WARNING: Test all gas piping and connections,
internalandexternaltonit,forleaksafterinstallingor
servicing. Correct all leaks at once.
WARNING:Never use an openflametocheckfor
a leak. Apply a noncorrosive leak detection fluid to
all joints. Bubbles forming show a leak. Correct all
leaks at once.
CAUTION:Makesureexternalregulator has been
installed between propane/LP supply and fireplace.
See guidelines under Connecting Fireplace to Gas
Supply , page 13.
Pressure Testing gas Supply Piping system
Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)
1. Disconnect fireplace with its appliance main gas valve (con-
trol valve) and equipment shutoff valve from gas supply pip-
ing system. Pressures in excess of 1/2 psig will damage fire-
place regulator.
2. Cap off open end of gas pipe where equipment shutoff valve
was connected.
3. Pressurize supply piping system by either opening propane/LP
supplytankvalve for propane/LPgasor openingmaingas valve
located on or near gas meter for natural gas, or using com-
pressed air.
4. Check all joints of gas supply piping system.Apply noncorrosive
leak detection fluid to all joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Reconnect fireplace and equipment shutoff valve to gas sup-
ply. Check reconnected fittings for leaks.
CHECKING GAS CONNECTIONS

111604-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
15
15
INSTALLATION
Continued
Figure 25 - Equipment Shutoff Valve
ON
POSITION
OFF
POSITION
Open
Closed
Equipment
Shutoff
Valve
Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)
1. Close equipment shutoff valve (see Figure 25).
2. Pressurize supply piping system by either opening propane/LP
supplytankvalve for propane/LPgasor openingmaingas valve
located on or near gas meter for natural gas, or using com-
pressed air.
3. Check all joints from gas meter to equipment shutoff valve for
natural gas or propane/LP supply to equipment shutoff valve
for propane/LP (see Figures 26 or 27). Apply noncorrosive
leak detection fluid to all joints. Bubbles forming show a leak.
4. Correct all leaks at once.
Pressure Testing Fireplace Gas Connections
1. Open equipment shutoff valve (see Figure 25).
2. Open main gas valve located on or near gas meter for natural
gas or open propane/LP supply tank valve.
3. Make sure control knob of fireplace is in the OFF position.
4. Check all joints from equipment shutoff valve to gas control
valve (see Figures 26 or 27). Apply noncorrosive leak detec-
tion fluid to all joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Light fireplace (see Operating Fireplace, pages 17 through 19.
Check all other internal joints for leaks.
7. Turn off fireplace (see To Turn Off Gas to Appliance, page 18).
INSTALLATION
Checking Gas Connections (Cont.)
Figure 27 - Checking Gas Joints for Propane/LP Gas
Propane/LP
Supply Tank
Equipment
Shutoff Valve
Gas Control Valve
Gas Meter
Figure 26 - Checking Gas Joints for Natural Gas
Gas Control Valve
Equipment
Shutoff Valve

111604-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
16

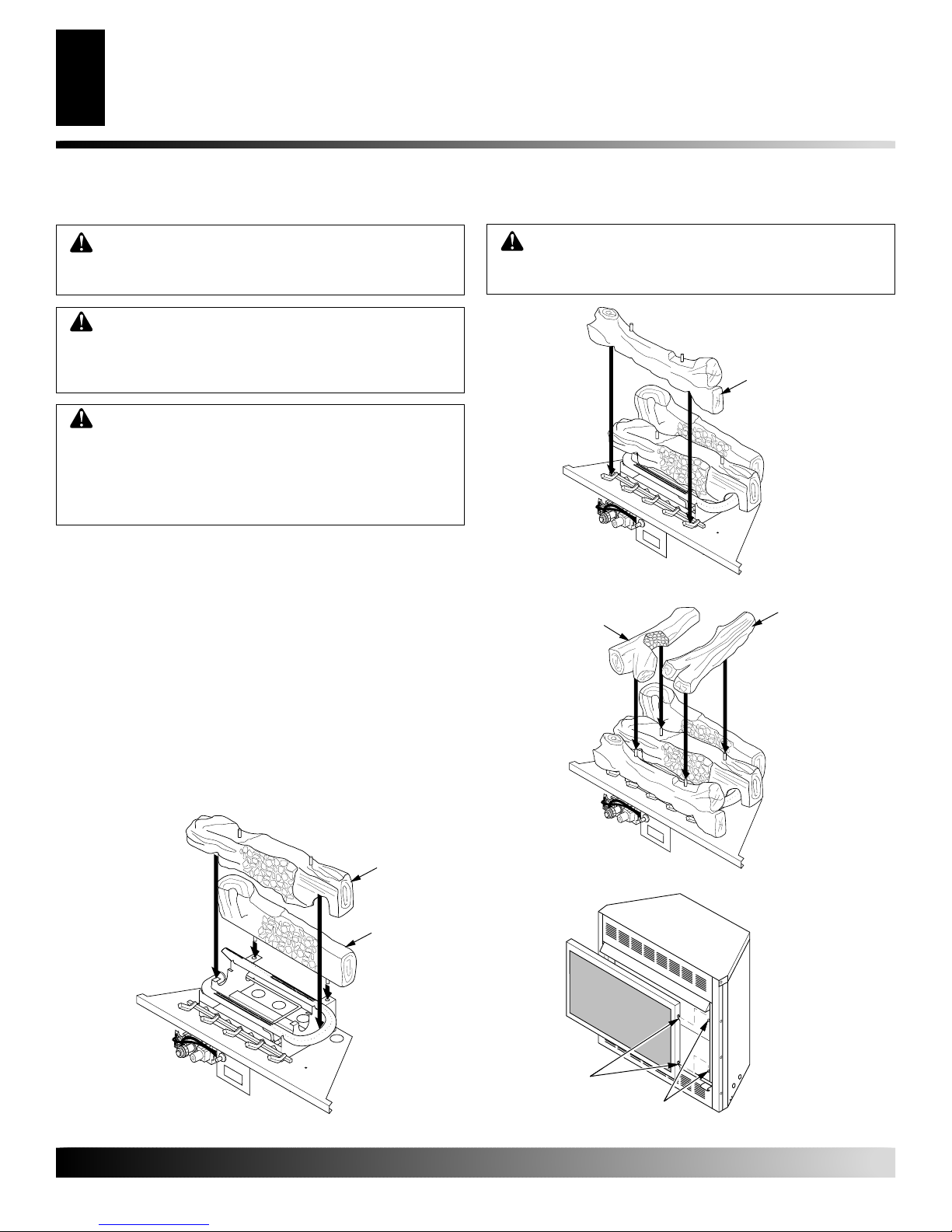

NotchesScrews for
Mounting Screen
INSTALLATION
It is very important to install the logs exactly as instructed. Do not
modify logs. Only use logs supplied with fireplace.
1. Place pins in rear log (log 1) into holes on rear of base grate as
shown in Figure 28.
2. Place middle log (log 2) between front and rear of burner. The
left side will rest on the left tab and the right will straddle the
burner as shown in Figure 28.
3. Place front log (log 3) onto grate fingers at front of base grate
(see Figure 29). Make sure log seats well into grate.
4. Place left top log on left pins on logs 2 and 3, resting it on log 1
(see Figure 30).
5. Place right top log on right pins on logs 2 and 3 (see Figure 30).
6. Install fireplace screen by slipping notches of fireplace screen
over screws on front of fireplace (see Figure 31).
INSTALLATION
Installing Logs
CAUTION:Donotremovethedataplatesattached
to the heater base assembly. The data plates contain
important warranty and safety information.
WARNING: Failure to position the parts in accor-
dance with these diagrams or failure to use only parts
specifically approved with this heater may result in
property damage or personal injury.
WARNING: After installation and periodically
thereafter, check to ensure that no flame comes in
contact with any log. With the heater set to High,
checktoseeifflamecontactanylog.Ifso, reposition
logs according to the log installation instructions in
this manual. Flames contacting logs will create soot.
INSTALLING LOGS
Figure 28 - Installing Logs 1 and 2
O
F
F
P
I
L
O
T
O
N
WARNING: You must operate this fireplace with
the fireplace screen in place. Make sure fireplace
screen is in place before running fireplace.
Notches
Figure 31 - Installing Fireplace Screen
Screws for
Mounting Screen
Figure 29 - Installing Log 3
Figure 30 - Installing Logs 4 and 5
O
F
F
P
I
L
O
T
O
N
O
F
F
P
I
L
O
T
O
N
Log 2
Log 1
Log 3
Right Top Log
Left Top Log

111604-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
17
17

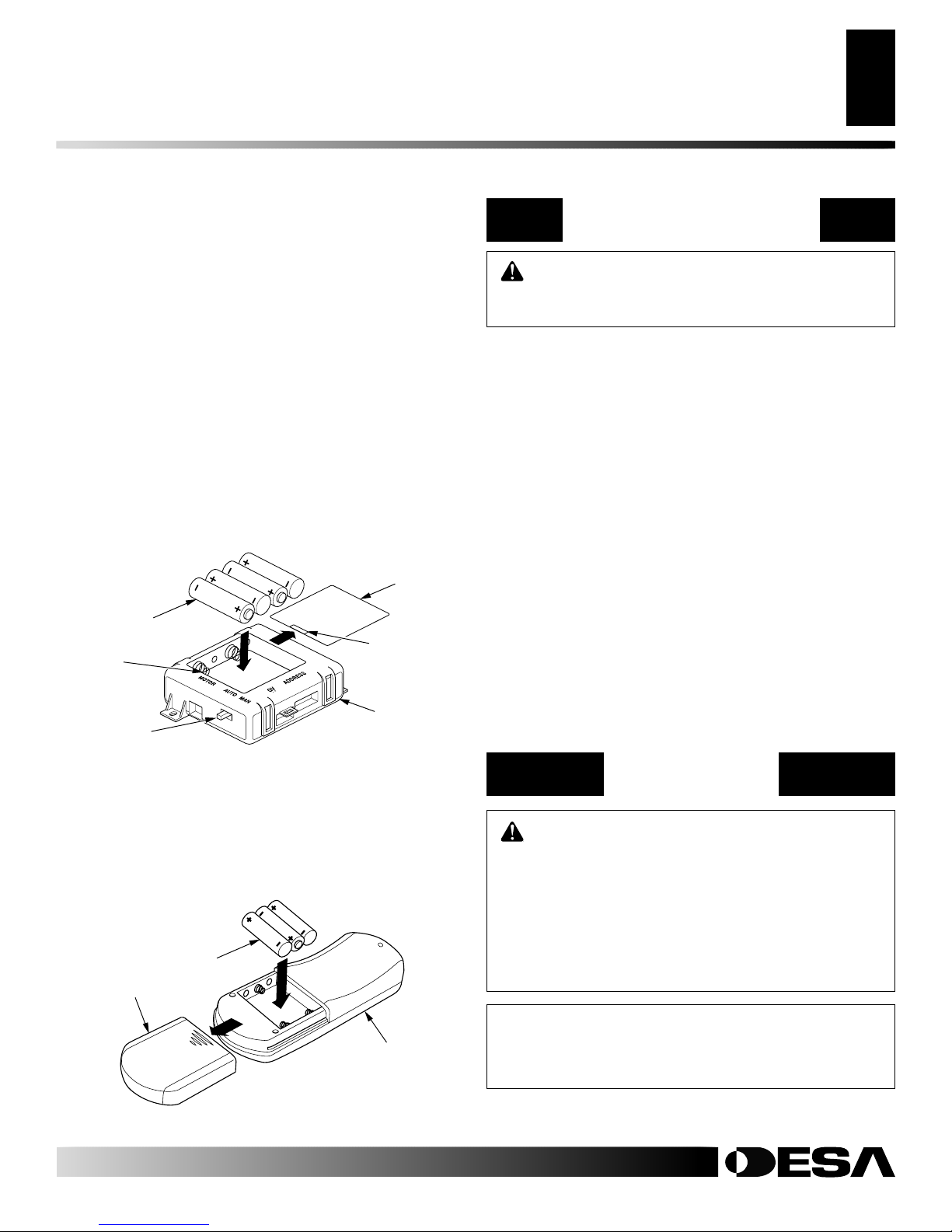

INSTALLATION
Continued
INSTALLING BATTERIES FOR REMOTE
RECEIVER AND HAND HELD REMOTE
CONTROL
FourAAbatteriesandthreeAAAbatteriesarerequiredtooperatethis
heater with the wireless hand-held remote control set. Four AA
batteries must be installed in the receiver and three AAA batteries in
the hand-held remote control unit. Note: Only use alkaline batteries.
Installing Batteries in Receiver
1. Locate slot on battery cover of receiver (see Figure 32). Firmly
insert tool such as a small screwdriver, butter knife, or dime
into the slot and lift up to remove cover.
2. Insert 4 AA batterines into receiver. Positive and negative are
marked inside receiver casing. Note: Receiver will not func-
tion if batteries are not installed correctly.
3. Slide tab on cover into receiver housing and snap cover back
into place.
Figure 33 - Installing Batteries in Remote Control
Cover
Remote
Control
3 AAA
Batteries
Installing Battery into Remote
1. Remove remote cover (see Figure 33).
2. Insert 3AAAbatteries into remotecontrol(see Figure 33).Posi-
tiveandnegative aremarkedinsideremotecontrol casing. Note:
Remote will not function if batteries are not installed correctly.
3. Slide remote cover back into place.
Figure 32 - Installing Batteries in Receiver
Cover
Receiver
Slot
4 AA
Batteries
Battery
Housing
Backup
Switch
INSTALLATION
Installing Batteries For Remote Receiver and Hand-Held Remote Control
OPERATING HEATER
For Your Safety Read Before Lighting
Lighting Instructions
WARNING:If youdonotfollowtheseinstructions
exactly, a fire or explosion may result causing prop-
erty damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by hand.
When lighting the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area
for gas. Be sure to smell next to the floor because some gas
is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in
your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire de-
partment.
C. Useonly your hand to push in or turnthegascontrolknob.
Never use tools. If the knob will not push in or turn by
hand, don’t try to repair it, call a qualified service techni-
cian or gas supplier. Force or attempted repair may result
in a fire or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
FOR YOUR SAFETY
READ BEFORE LIGHTING
LIGHTING
INSTRUCTIONS
WARNING
•If fireplace has glass doors, never operate this
heater with glass doors closed. If you operate
heater with doors closed, heat buildup inside fire-
placewillcauseglasstoburst.Makesurethereare
no obstructions across opening of fireplace.
•Youmustoperatethisheaterwithafireplacescreen
in place. Make sure fireplace screen is closed
before running heater.
NOTICE:Duringinitialoperation ofnewheater,burn-
ing logs will give off a paper-burning smell. Orange
flamewillalsobepresent.Opendamperorwindowto
vent smell. This will only last a few hours.
OPERATING HEATER

111604-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
18

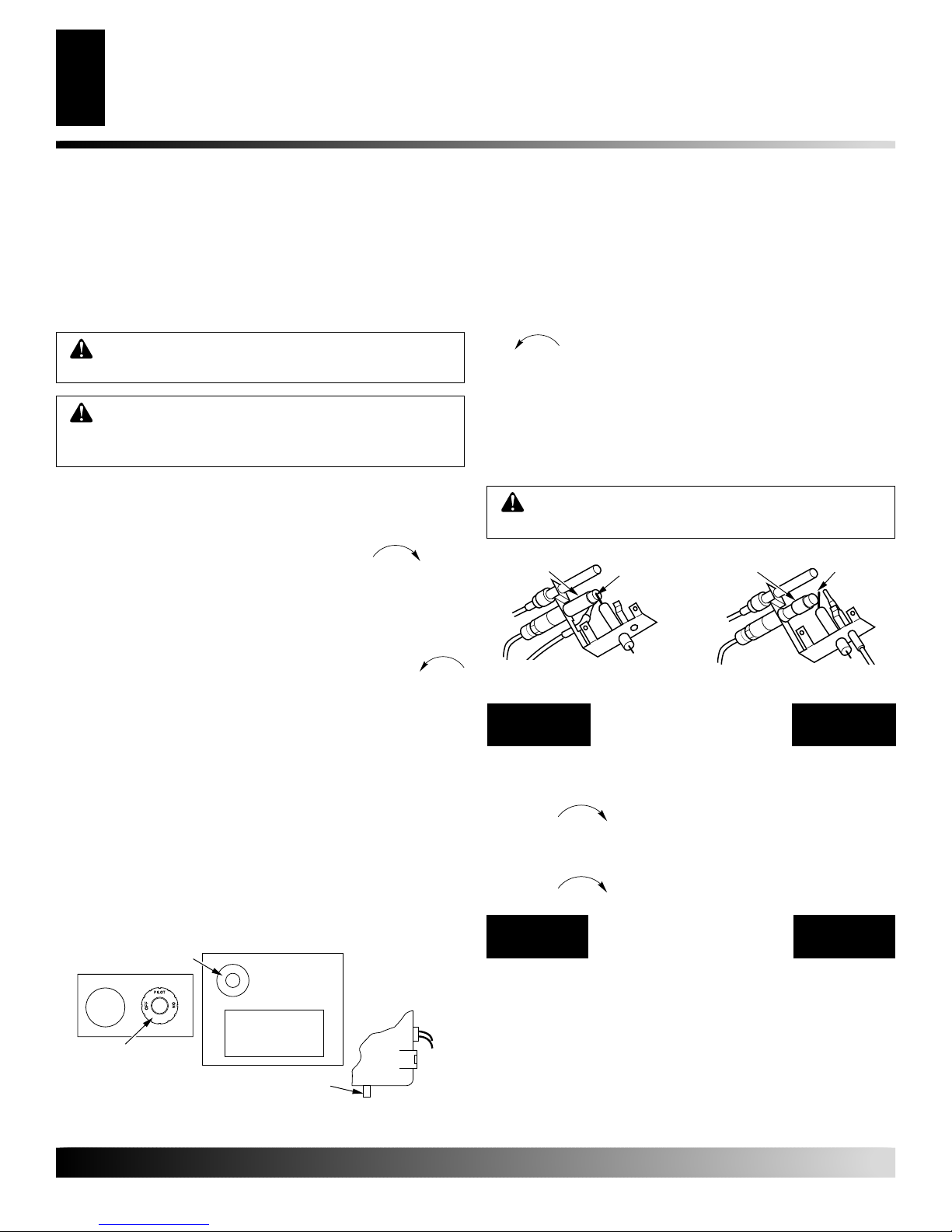

AUTO MAN
OPERATING FIREPLACE
Lighting Instructions (Cont.)
To Turn Off Gas To Appliance
Manual Lighting Procedure
1. STOP! Read the safety information, page 17 column 2.
2. Make sure equipment shutoff valve is fully open.
3. Set remoteselectorswitchintheAUTOposition(seeFigure 34).
4. Press in and turn control knob clockwise to the
OFF position (see Figure 34).
5. Wait five (5) minutes to clear out any gas. Then smell for
gas, including near the floor. If you smell gas, STOP! Fol-
low “B” in the safety information, page 17 column 2. If you
don’t smell gas, go to the next step.
6. Press in and turn control knob counterclockwise
to the PILOT position. Press in control knob for five (5)
seconds (see Figure 34).
Note: You may be running this heater for the first time
after hooking up to gas supply. If so, the control knob may
need to be pressed in for 30 seconds or more. This will al-
low air to bleed from the gas system.
7. With control knob pressed in, press and release ignitor but-
ton. This will light pilot. The pilot is attached to the rear of
the frontburner.Ifneeded,keep pressing ignitorbuttonuntil
pilot lights.
Note: If pilot does not stay lit, contact a qualified service
person or gas supplier for repairs. Until repairs are made,
lightpilotwithmatch.Tolightpilotwith match, seeManual
Lighting Procedure.
WARNING: Damper handle will be hot if heater
has been running.
WARNING: Burners will come on automatically
withinoneminutewhenthecontrolvalveisintheON
position after the pilot is lit.
Control Knob
Ignitor Button
Figure 34 - Remote Selector Switch, Control Knob and Ignitor
Button
Remote Selector Switch
OPERATING HEATER
Continued
Note: Home owners generally prefer to operate their heater
with the chimney damper closed. This will put all the heat into
the room. However, there may be times you will desire the full
flames of the highest heat setting but will find the heat output
excessive. You can open the chimney damper (if you have one)
fully or partially to release some of the heat.
Shutting Off Heater
Press on/off key on remote control and turn control knob
clockwise to the OFF position (see Figure 34).
Shutting Off Burners Only (pilot stays lit)
Press the on/off key on remote control or turn control knob
clockwise to the PILOT position.
TO TURN OFF GAS
TO APPLIANCE
MANUAL LIGHTING
PROCEDURE
1. Follow steps 1 through 7 under Lighting Instructions,
column 1.
2. Depress control knob and light pilot with match.
3. Keep control knob pressed in for 30 seconds after lighting
pilot.After30 seconds,releasecontrolknob.Nowfollowsteps
9 through 11 under Lighting Instructions above.
CAUTION: Do not try to adjust heating levels by
using the equipment shutoff valve.
Figure 35 - Pilot (Propane/LP)
Ignitor
Electrode
Pilot Burner
Figure 36 - Pilot (Natural)
Ignitor
Electrode
Pilot Burner
8. Keep control knob pressed in for 30 seconds after lighting
pilot. After 30 seconds, release control knob.
• If control knob does not pop out when released, contact
a qualified service person or gas supplier for repairs.
Note: If pilot goes out, repeat steps 4 through 8.
9. Slightly push in and turn control knob counterclockwise
to the ON position.
10. Press the on/off key on the remote control to turn on appli-
ance main burner. Wait at least 5 seconds before setting
desired flame height.
11. Press the up or down key until the small triangle is to the
left of large flame icon at the top of LCD display (see Fig-
ure 37, page 19). Press the left or right key to set the de-
sired flame height.

111604-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
19
19

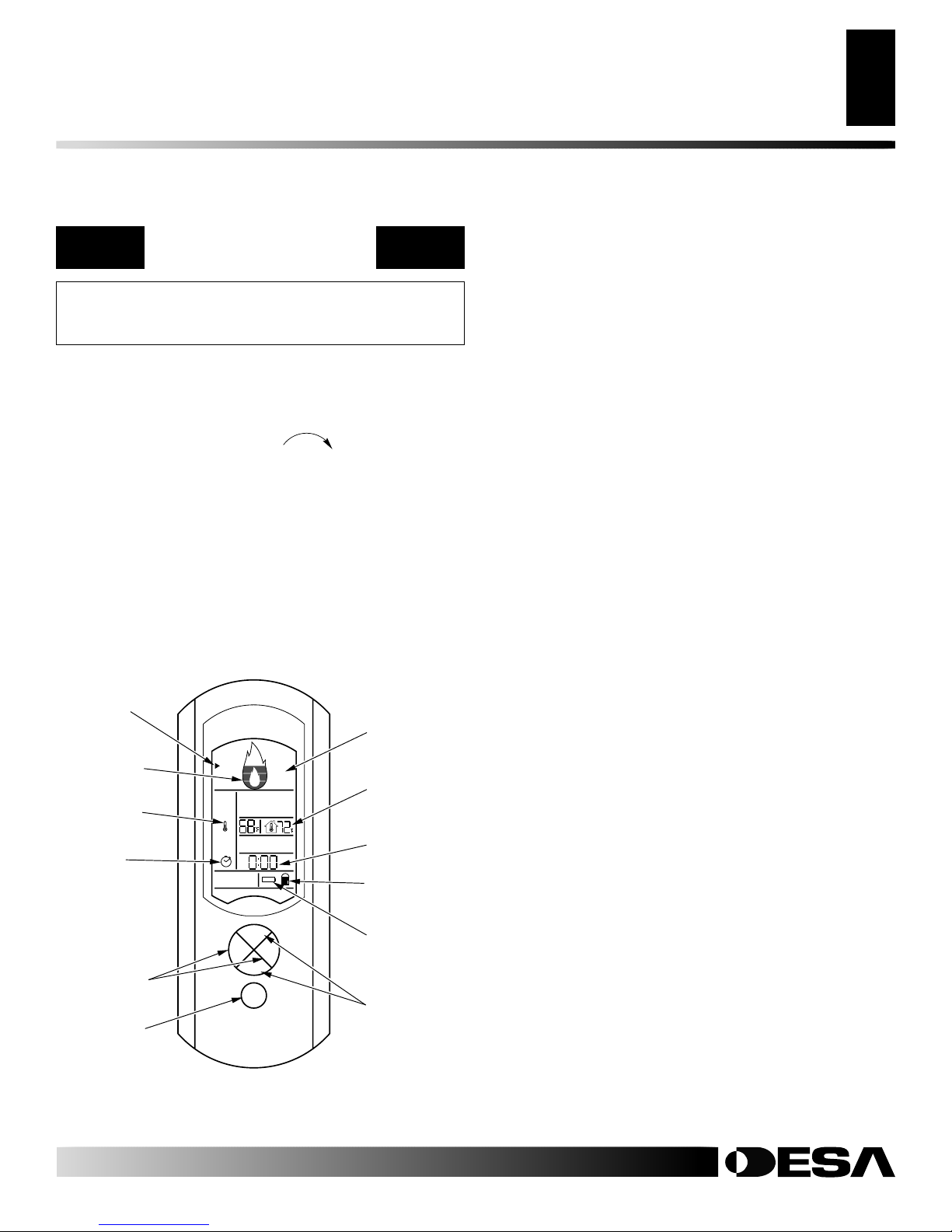

HAND-HELD
REMOTE OPERATION
NOTICE: You must light the pilot before using the
hand-held remote control unit. See Lighting Instruc-
tions , pages 17 and 18.
OPERATING HEATER
Continued
Left and Right
Keys Increase
and Decrease
Set Points
On/Off Button
Flame Height
Indicator
Thermometer
Icon
Clock Icon
Figure 28 - Remote Control
LCD Display
Room
Temperature
Display
Sleep Timer
Display
Lock-Out
Indicator
Low Battery
Indicator
Small Triangle
Icon (Function
Indicator)
Whentheapplianceandtheremotecontrolareswitchedoff,the
house icon with the room temperature will be displayed. When
the remote control is turned on, other icons will be visible and
the main burner of the appliance will turn on.
1. Turn control knob clockwise to the ON position
(see Figure 34, page 18).
2. Pressthe ON buttononremotecontrol (see Figure37).Wait
5 seconds to send a command to appliance.
Note: An acoustic signal will be heard that confirms the recep-
tion of the command sent from the remote control.
Setting Flame Height
Press the up or down key until the small triangle is to the left of
largeflameicon atthetop ofLCDdisplay (seeFigure37). Press
the left or right key to set the desired flame height. Six flame
levels are available from 1 (minimum) to 6 (maximum).
Setting Room Temperature
Press the up or down key until the small triangle is to the left of
thethermometericon (seeFigure37).Presstheleftorrightkey
to set the desired room temperature.
Setting Timer (Sleep Function)
Press the up or down key until the small triangle is to the left of
theclockicon(seeFigure37).Presstheleftorrightkeytosetthe
desired sleep time. Maximum sleep time is 90 minutes, in 15
minute increments. When desired time is set, press the up or
downkeyto startthetimer.When thedesiredtimehas elapsed,
the appliance will automatically switch off.
Child Safety Lock-Out
To lock the remote control keys, press the On/Off key then
immediately press the up key (see Figure 37). The lock-out
function is active when the lock icon is lit. Repeat key sequence
to unlock keys.
Low Battery Detection and Backup
A battery icon will be displayed on the LCD display when
batteries are low in the remote control (see Figure 37).
When the receiver detects a low battery condition;
• Three acoustic "beeps" are generated from the receiver
• Applianceisturnedoffandwillgotothemaximumflameheight
• Executionofcommandsisinhibiteduntilbatteriesarereplaced
Whenbatteriesarelow,itisnotpossibletoturnontheappliance
with the remote control. Appliance can be turned on or off
manually by setting the backup switch of the receiver to MAN
position (see Figure 34, page 18). Remote control and receiver
will restart normal operation after batteries are replaced. See
Installing Batteries for Remote Receiver and Hand Held Remote
Control, page 17.
Timeout
Ifapplianceisturnedonandnocommandissenttothereceiver
for 24 hours, appliance will automatically shut down. Com-
mands sent after shutdown will be executed normally.
OPERATING FIREPLACE
Hand-Held Remote Operation

111604-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
20

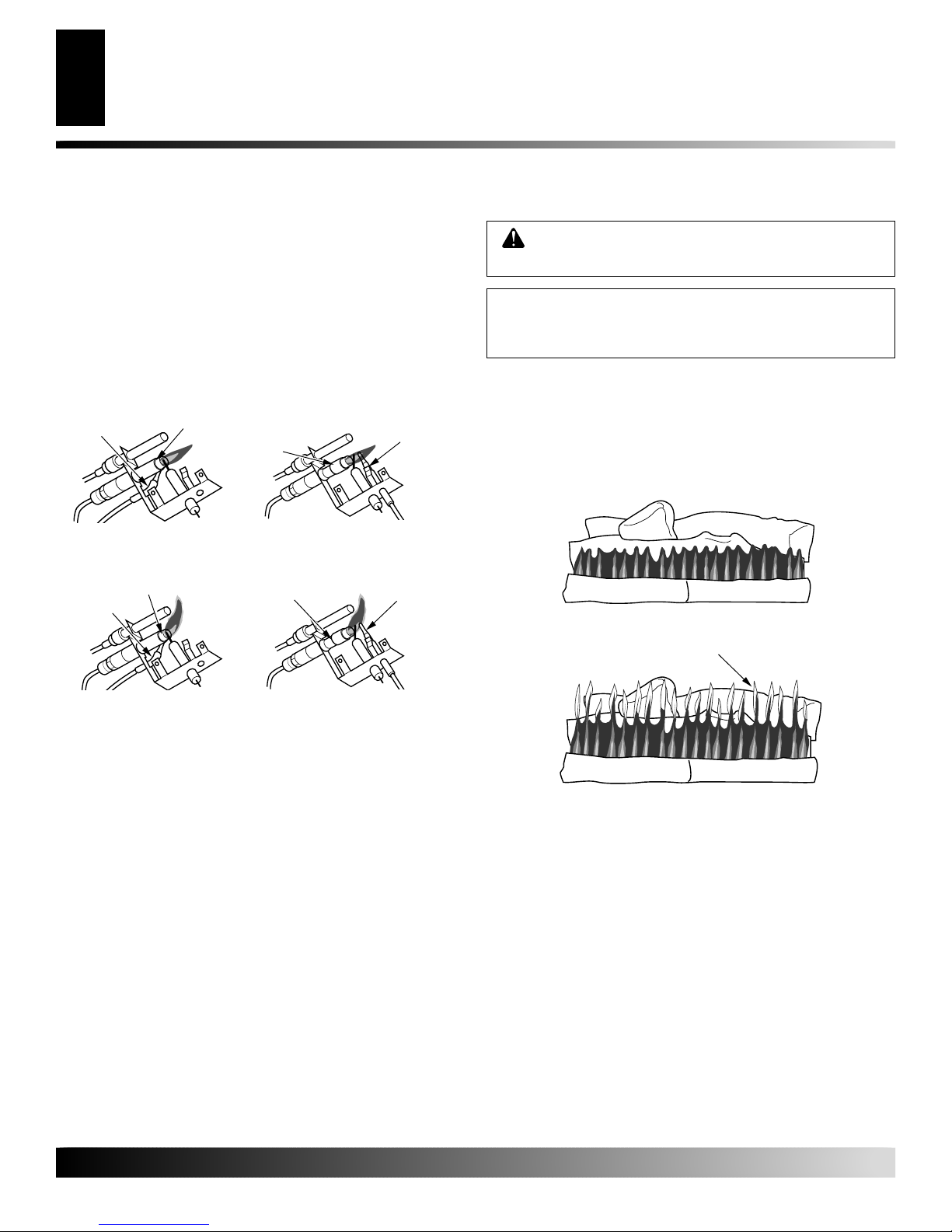

Figure 38 - Correct Pilot Flame Pattern
Figure 39 - Incorrect Pilot Flame Pattern
Check pilot flame pattern and burner flame patterns often.
PILOT FLAME PATTERN
Figure38showsacorrectpilotflamepattern.Figure39 showsanincorrect
pilot flame pattern. The incorrect pilot flame is not properly heating the
thermocouple. When the thermocouple cools, the heater will shut down.
If pilot flame pattern is incorrect, as shown in Figure 39
• turn heater off (see To Turn Off Gas to Appliance, page 18)
•
see Troubleshooting, pages 22 through 24
Note: The pilotflame ona naturalgas unitswill haveaslightcurve,
but flame should be blue and have no yellow or orange color.
INSPECTING BURNERS
BURNER PRIMARY AIR HOLES
Air is drawn into the burner through the holes in the fitting at the
burnerentrance.Theseholesmaybecomeblockedwithdust orlint.
Periodically inspect these holes for any blockage and clean if
needed. Blocked air holes will create soot.
MAIN BURNER
Periodically inspect all burner flame holes with the fireplace run-
ning. All slotted burner flame holes should be open with yellow
flame present. All round burner flame holes should be open with a
small blue flame present. Some burner flame holes may become
blocked by debris or rust, with no flame present. If so, turn off
fireplace and let cool. Remove blockage. Blocked burner flame
holes will create soot.
Pilot Burner Thermocouple
Thermocouple
Pilot Burner
Thermocouple
Pilot Burner
Thermocouple
INSPECTING BURNERS
Pilot Flame Pattern
Burner Primary Air Holes
Main Burner
Burner Flame Pattern
Pilot Burner
Natural Gas PilotPropane/LP Gas Pilot
Natural Gas PilotPropane/LP Gas Pilot
NOTICE: Do not mistake orange flames with yellow
tipping. Dirt or other fine particles enter the fireplace
and burn causing brief patches of orange flame.
WARNING:Ifyellowtippingoccurs,yourfireplace
could produce increased levels of carbon monoxide.
BURNER FLAME PATTERN
Figure 40 shows a correct burner flame pattern. Figure 41 shows an
incorrect burner flame pattern. The incorrect burner flame pattern
showstheflamehigherconsistentlyhigherthan1inchabovethelogs.
If burner flame pattern is incorrect, as shown in Figure 41
• turn heater off (see To Turn Off Gas To Appliance, page 18)
• see Troubleshooting, pages 22 through 24
Figure 40 - Correct Burner Flame Pattern
Yellow Tipping
Figure 41 - Incorrect Burner Flame Pattern
