VENTED GAS FIREPLACE
INSTALLATION AND OWNER’S OPERATION MANUAL
4" B-VENT DECORATIVE GAS FIREPLACES
MODELS
(V)CB36N(E) AND (V)CB36P(E)
WARNING: If the information in this manual is not fol-
lowed exactly, a re or explosion may result causing
property damage, personal injury or loss of life.
— Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the re
department.
— Installation and service must be performed by a quali-
ed installer, service agency or the gas supplier.
INSTALLER: Leave this manual with the appliance
CONSUMER: Retain this manual for future reference.
For more information, visit www.desatech.com

www.desatech.com 117437-01B2
WARNING: Improper in-
stallation, adjustment,
alteration, service or
maintenance can cause
injury or property dam-
age. Refer to this manual
for correct installation
and operational proce-
dures. For assistance or
additional information
consult a qualified in-
staller, service agency or
the gas supplier.
This appliance may be in-
stalled in an aftermarket,*
permanently located,
manufactured (mobile)
home, where not prohib-
ited by local codes.
This appliance is only for
use with the type of gas
indicated on the rating
plate. This appliance is
not convertible for use
with other gases.
* Aftermarket: Completion of sale, not for
purpose of resale, from the manufacturer
WARNING: This product
contains and/or generates
chemicals known to the State
of California to cause cancer or
birth defects or other reproduc-
tive harm.
IMPORTANT: Read this owner’s
manual carefully and completely
before trying to assemble, op-
erate or service this replace.
Improper use of this replace
can cause serious injury or death
from burns, fire, explosion,
electrical shock and carbon
monoxide poisoning.
DANGER: Carbon monoxide
poisoning may lead to death!
SAFETY INFORMATION
TABLE OF CONTENTS
Safety Information ............................................... 2
Product Identication........................................... 4
Local Codes......................................................... 4
Product Features................................................. 5
Pre-Installation Preparation................................. 5
Installation Precautions ....................................... 8
Venting Installation .............................................. 8
Installing Optional Controls.................................11
Fireplace Installation.......................................... 14
Operating Fireplace........................................... 19
Inspecting Burners............................................. 22
Cleaning and Maintenance................................ 23
Specications .................................................... 24
Troubleshooting................................................. 25
Illustrated Parts Breakdown and Parts List........ 30
Replacement Parts............................................ 34
Service Hints ..................................................... 34
Technical Services............................................. 34
Accessories ....................................................... 34
Warranty Information ...........................Back Cover
State of Massachusetts:
The installation must
be made by a licensed
plumber or gas tter in
the Commonwealth of
Massachusetts.

www.desatech.com
117437-01B 3
Do not place clothing or other
ammable material on or near
the appliance. Never place any
objects on or around replace.
Fireplace reaches high tempera-
tures. Keep children and adults
away from hot surface to avoid
burns or clothing ignition. Fire-
place will remain hot for a time
after shutdown. Allow surfaces
to cool before touching.
Do not operate replace with
glass door removed, cracked
or broken.
Carefully supervise young chil-
dren when they are in the room
with the replace.
Keep the appliance area clear
and free from combustible ma-
terials, gasoline and other am-
mable vapors and liquids.
This product is intended only
as a supplement to your central
heating system and is not to be
installed as a primary source of
heat. You may use this product
for emergency heating during a
power outage.
1. This appliance is only for use with the type
of gas indicated on the rating plate. This ap-
pliance is not convertible for use with other
gases unless a certied kit is used.
2. Do not place propane/LP supply tank(s) in-
side any structure. Locate propane/LP supply
tank(s) outdoors (propane/LP units only).
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use
any phone in your building
• immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions
• if you cannot reach your gas supplier, call
the re department
SAFETY INFORMATION
Continued
This replace is a vented product. This replace
will not produce any gas leakage into your home if
properly installed. This replace must be installed
by a qualied (certied or licensed) service person.
If this unit is not properly installed by a qualied
service person gas and/or carbon monoxide leak-
age (spillage) can occur.
Carbon Monoxide Poisoning: Early signs of
carbon monoxide poisoning resemble the u, with
headaches, dizziness or nausea. If you have these
signs, the replace may not be working properly.
Get fresh air at once! Have replace serviced.
Some people are more affected by carbon monoxide
than others. These include pregnant women, people
with heart or lung disease or anemia, those under the
inuence of alcohol and those at high altitudes.
Natural and Propane/LP Gas: Natural and propane/
LP gases are odorless. An odor-making agent is
added to these gases.The odor helps you detect a gas
leak. However, the odor added to the gas can fade.
Gas may be present even though no odor exists.
Make certain you read and understand all warn-
ings. Keep this manual for reference. It is your
guide to safe and proper operation of this heater.
WARNING: Any change to
this replace or its controls can
be dangerous.
WARNING: Do not use a blow-
er insert, heat exchanger insert
or other accessory not approved
for use with this replace.
WARNING: Do not allow fans
to blow directly into the replace.
Avoid any drafts that alter burner
ame patterns. Ceiling fans can
create drafts that alter burner
ame patterns. Altered burner
patterns can cause sooting.
Due to high temperatures, the
appliance should be located out
of trafc and away from furniture
and draperies.

www.desatech.com 117437-01B4
4. Never install the replace
• in a recreational vehicle
• in windy or drafty areas where curtains or
other combustible (ammable) objects can
make contact with the replace front
• in high trafc areas
5. Do not modify this replace under any circum-
stances. Any parts removed for servicing must
be replaced prior to operating replace.
6. Turn replace off and let cool before servicing,
installing or repairing. Only a qualied service
person should install, service or repair this
replace.
7. You must keep control compartments, burn-
ers and circulating air passages clean. More
frequent cleaning may be needed due to ex-
cessive lint and dust from carpeting, bedding
material, etc. Turn off the gas valve and pilot
light before cleaning replace.
8. Have replace and venting system inspected
annually by a qualied service person. If needed,
have venting system cleaned or repaired. See
Cleaning and Maintenance, page 23.
9. Do not use this replace to cook food or burn
paper or other objects.
10. Do not use any solid fuels (wood, coal, paper,
cardboard, etc.) in this replace. Use only the
gas type indicated on the nameplate.
11. This appliance, when installed, must be elec-
trically grounded in accordance with local
codes or, in the absence of local codes, with
the National Electric Code, ANSI/NFPA 70,
or the Canadian Electric Code, CSA C22.1.
12. Do not use fireplace if any part has been
exposed to or under water. Immediately call
a qualied service technician to arrange for
replacement of the unit.
13. Do not operate replace if any log is broken
or missing.
14. To prevent performance problems, do not
use propane/LP fuel tank of less than 100 lb.
(45 kg) capacity (propane/LP units only).
15. Provide adequate clearances around air
openings.
SAFETY INFORMATION
Continued
PRODUCT
IDENTIFICATION

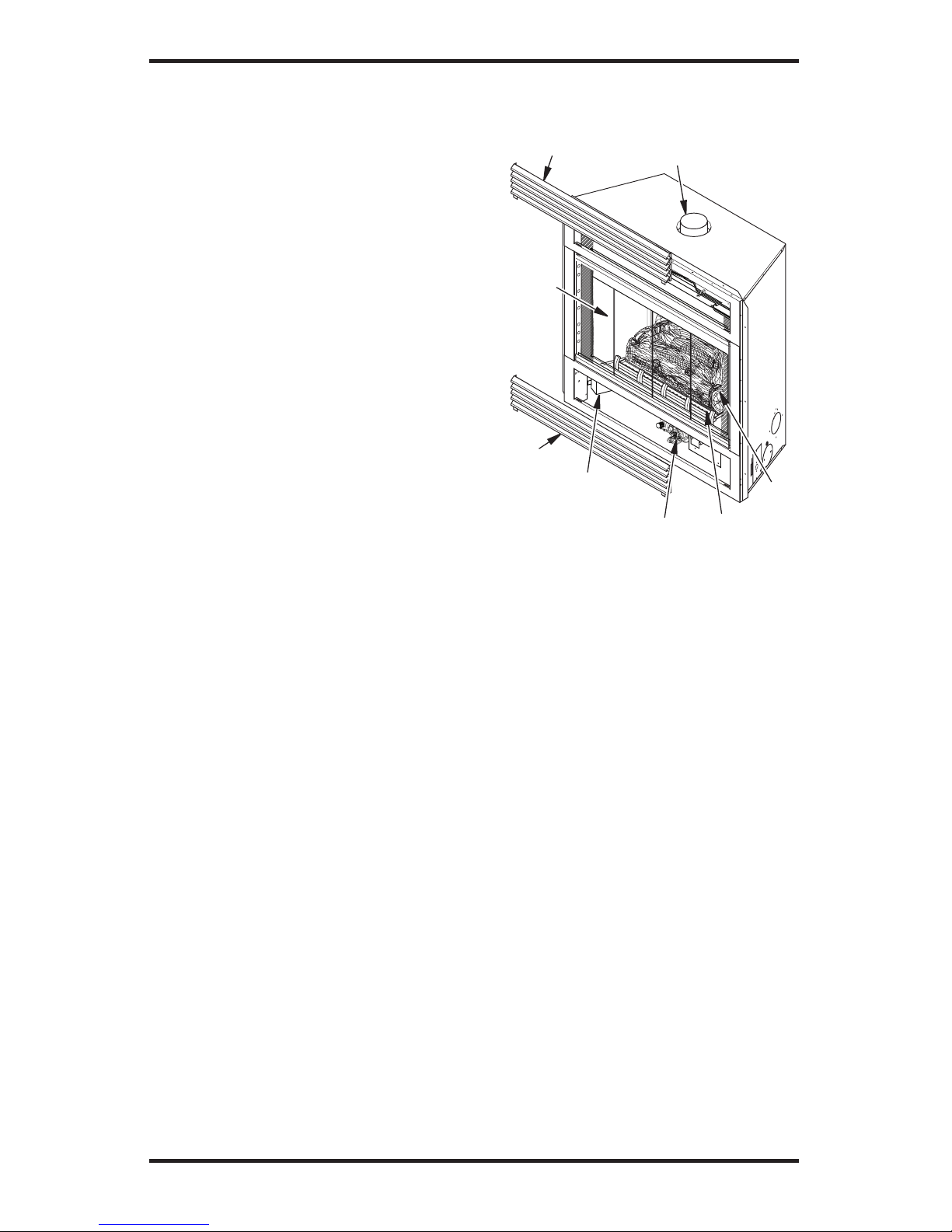

Figure 1 - B-Vent Fireplace
LOCAL CODES
Install and use replace with care. Follow all
local codes. In the absence of local codes, use
the latest edition of The National Fuel Gas Code
ANSI Z223.1/NFPA 54* (USA) or the current CSA-
B149.1 Installation Code (Canada).
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
Top Louver Panel
Glass
Door
Assembly
Bottom
Louver
Panel Junction Box
(Electronic
Ignition Only) Control
Valve
Ember
Tray
Log
Set
Nailing
Flange
4" B-Vent
Flue Collar

www.desatech.com
117437-01B 5
PRODUCT FEATURES
These are a few facts that can help you understand
and enjoy your vented decorative replace:

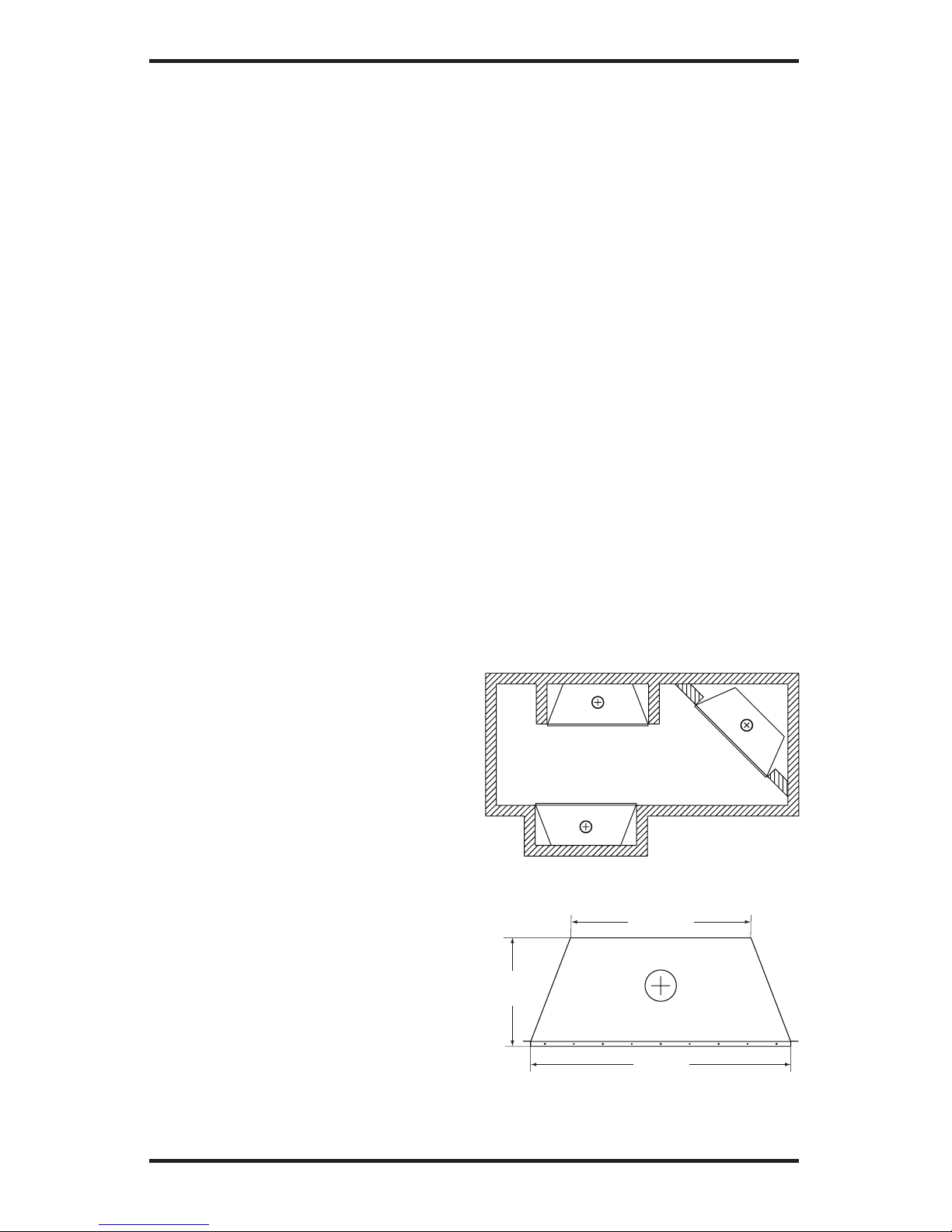

• The (V)CB36N(E) and (V)CB36P(E) series
of vented decorative replaces may be recessed
into an exterior chase, an interior ush wall
enclosure or a framed-in corner installation.
• Models (V)CB36N and (V)CB36P are
equipped with a millivolt gas control system
that does not require electricity to operate.
A piezo ignitor is provided to light the pilot
without using matches or lighters.
• Models (V)CB36N(E) and (V)CB36P(E) are
equipped with an electronic ignition system
that requires 120 VAC to operate. An electrode
ignitor automatically lights the pilot ame when
the replace is turned on.
• These replaces can accept any approved 4"
B-Type venting system and must be terminated
vertically through the roof using a listed type
vent cap only. See venting instructions starting
on page 8 for proper venting requirements.
• These vented replaces require indoor air for
combustion and must be installed in a room of
sufcient size to provide adequate fresh air for
safe and proper operation. The room intended
for installation must be of sufcient size to
meet the requirements for an unconned space
as dened in the National Fuel Gas Code,
ANSI Z223.1/NFPA 54, Section 5.3, Air for
Combustion and Ventilation. If sufcient air
for combustion is not available a makeup air kit
model AK4 may be required to provide outside
air to this appliance. Check your local codes as
to specic requirements for make up air.
• This replace may be installed in any room of
the house provided all local codes and these
installation instructions are followed.
PRE-INSTALLATION
PREPARATION
LOCATION AND SPACE
REqUIREMENTS
Determine the safest and most efcient location
for your DESA direct-vent replace. Make sure
that rafters and wall studs are not in the way of the
venting system. Choose a location where the heat
output is not affected by drafts, air conditioning
ducts, windows or doors. Figure 2 shows some
common locations. Be aware of all restrictions and
precautions before deciding the exact location for
your replace and termination cap.
When deciding the location of your replace,
follow these rules:
• Do not connect this replace to a chimney ue
servicing a separate solid fuel burning replace
or appliance.
• Do to high temperatures, do not locate this
replace in high traffic areas, windy or drafty
areas, or near furniture or draperies.
• Proper clearances must be maintained.
• If your replace is to be installed directly on
carpeting, vinyl, tile or any combustible mate-
rial other than wood, it must be installed on a
metal or wood panel extending the full width
and depth of the replace (see Figure 3).
• Only trim kits supplied by DESA shall be used
in the installation of this replace, see Acces-
sories, page 34.
• Do not install aftermarket vent dampers.
Manual or automatic vent dampers are not ap-
proved for use with this appliance.
• Your replace is designed to be used in zero
clearance installations. Wall or framing material
can be placed directly against any exterior sur-
face on the back, sides or top of your replace,
except when clearances are required from ue
vent pipe, see Clearances on page 6.
• If recessed into a wall, you can avoid extra
framing by positioning your replace against
an already existing framing member.
Through exterior wall
enclosed in a chase
Corner
Installation
Flush with a wall
Figure 2 - Common Fireplace Locations
25"
(63.5 cm)
36"
(91.4 cm)
36"
(91.4 cm)
Figure 3 - Fireplace Bottom Dimensions

www.desatech.com 117437-01B6
• A hearth extension is not required with this
appliance. If one is installed, it is for aesthetic
purposes only and does not have to meet stan-
dard requirements for hearth extensions.
• If you plan on installing a television or entertain-
ment center recessed above your replace, it is
recommended that you maintain a minimum 18"
(45.7 cm) above the top of louver opening.
• When locating the termination cap, it is impor-
tant to observe the minimum vent height and
clearances required under code, see Venting
Installation Instructions, page 8.
• Do not recess termination cap into a wall or
siding.
• You may paint the termination cap with 450° F
(232° C) heat resistant paint to coordinate with
the exterior nish.
PACKAGING AND REMOVAL
The (V)CB36 vented decorative gas replaces are
packaged with the following items:
• one box containing a 4 piece log set located on
the burner in the rebox.
• one bag containing the owner’s manual with
installation instructions, operator’s guide, and
warranty information.
• one bag of glowing ember material.
• one bag of vermiculite hearth treatments.
1. Remove shrink wrap securing 2 carton trays
to unit.
2. Lift top carton tray off and remove four corner
posts.
3. Discard bottom tray once unit is moved into
position.
PRE-INSTALLATION
PREPARATION
Continued
Note: To prevent damage to ceramic logs and
glass panels you may want to remove them before
positioning and framing the unit. To access rebox,
see Louver Panels and Glass Door, page 16.
CLEARANCES
Minimum clearances to combustibles for replace:
Back, Sides, Floor and Top 0" (0 mm)
Perpendicular walls 10" (25.4 cm)
Ceiling to Louver & Front 36" (91.4 cm)
B-Vent Surfaces 1" (26 mm) (See
venting instructions
for specics on vent
clearances.)
Mantel Clearances (See Mantel Clear-
ances, page 7, for
specic clearances to
combustible mantels.)
Combustible material with a maximum thickness
of 5/8" (16 mm) may be ush with top and sides
of front face of replace.
FRAMING AND FINISHING
Figure 5 shows typical framing of this replace.
Figure 6, page 7, shows framing for corner instal-
lation. All minimum clearances must be met.
For overall unit dimensions, framing allowances
and vent collar locations, see Unit Dimensions,
Figure 7 on page 7.
For available accessories for this replace, see
Accessories, page 34. If you are using a separate
combustible mantel piece, refer to Figures 8 and
9, page 8, for proper height and clearances. You
can install a noncombustible mantel at any height
above the replace opening.
Note: Noncombustible mantels may discolor!
Figure 4 - Unpacking Fireplace
Carton
Tray
Glass
Panel
Log
Carton
Corner
Post
Figure 5 - Framing Clearances for Flush
Wall Installation
36"
(91.4 cm)
36 1/4"
(92.1 cm) 14 3/4"
(37.5 cm)

www.desatech.com
117437-01B 7

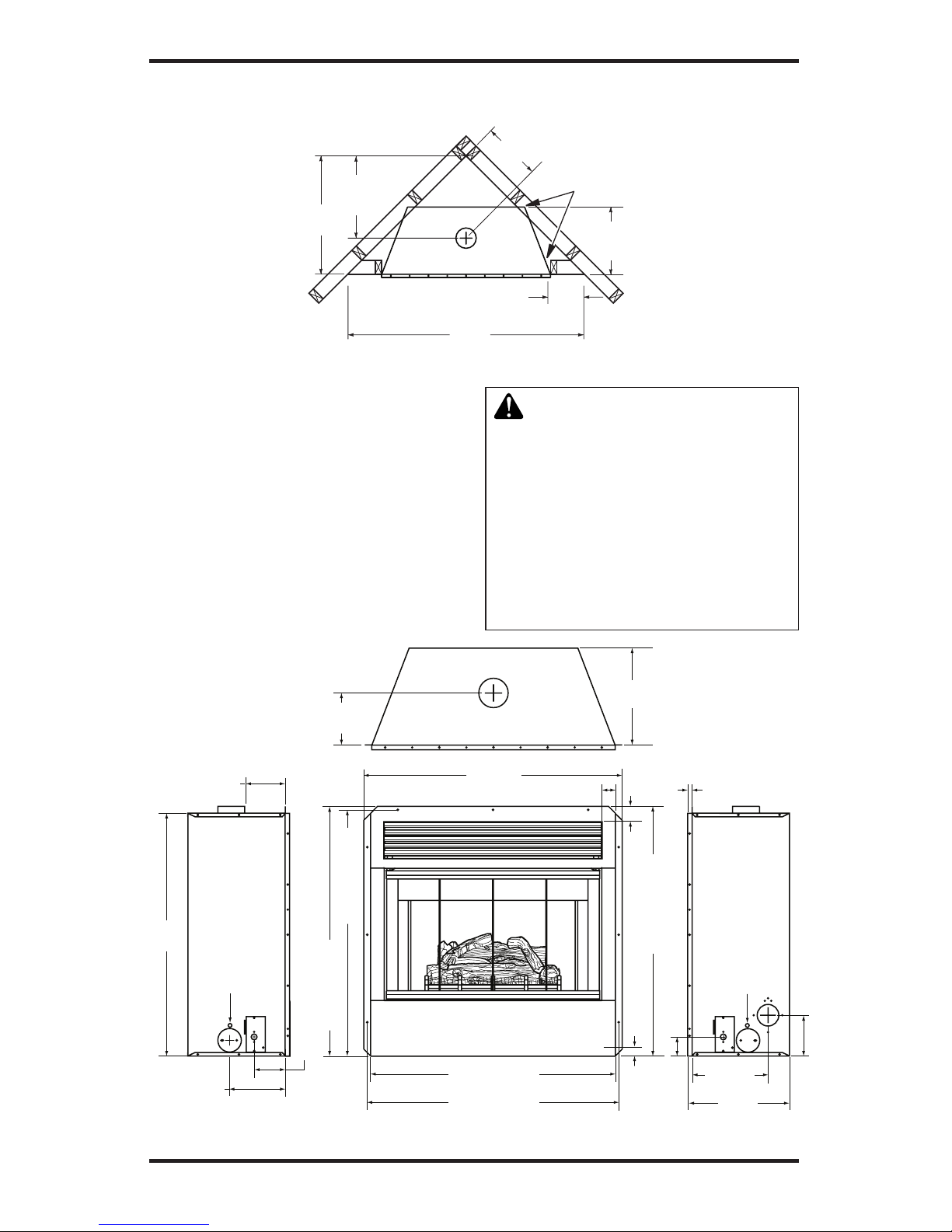

Figure 6 - Framing Clearances for Corner Installation
28 5/8"
(72.7 cm)
21" (53.3 cm)
To Center of
Top Vent
14 3/4"
(37.5 cm)
14 3/4" (37.5 cm)
to Nailing
Flanges
56 3/4"
(144 cm)
12 1/4"
(31 cm)
to Opening
PRE-INSTALLATION PREPARATION
Continued
Figure 7 - Unit Dimensions
14 3/4" (37.5 cm)
to Nailing Flanges
7 7/8" (20 cm) to
Center of 4" B-Vent
5 7/8"
(15 cm) to
Nailing
Flange
36 1/4" (92.1 cm)
to Nailing Flange
36 1/4" (92.1 cm)
Face Dimensions
1 1/2" (3.8 cm)
2 1/2" (6.4 cm)
6" (15.2 cm)
5/8"
(16 mm)
11 1/8"
(28.3 cm)
Air Kit Location
1 1/4"
(3.2 cm)
2"
(5.1 cm)
38"
(96.5 cm)
15 3/8"
(39 cm)
36" (91.4 cm)
Face Dimensions
37" (94 cm)
to Nailing Flange
35 3/4"
(90.8 cm)
4 1/2" (11.4 cm) Electrical Inlet
36 3/4" (93.4 cm)
Wall Switch
Wireway Wall Switch
Wireway
8" (20.3 cm)
Gas Supply
Inlet
MANTEL CLEARANCES
Figure 8, page 8, shows projected mantel depths
at various heights above top of louver opening.
Figure 7 shows minimum allowable distances
from various mantel components in relation to
both sides of replace opening.
WARNING: When nishing
appliance do not overlap com-
bustible materials onto the black
front face. Brick, tile or other
noncombustible materials may be
applied to the face provided that
any replace openings are not
blocked and gaps in the material
used and the face are sealed with
a noncombustible caulking.
These dimensions allow for 1"
clearance at sides and back of
replace.
However, 0" clearance is also
permitted at all sides when framed.

www.desatech.com 117437-01B8
Figure 9 - Clearances for Combustible
Mantels
Figure 8 - Side Clearances for
Combustible Mantels
PRE-INSTALLATION
PREPARATION
Continued
1 1/2"
(3.8 cm) 3 1/2"
(8.9
cm)
Outer
Surround
Combustible
Material May
Be Used
Perpendicular
Side Wall
5 1/4"
(13.3 cm)
1 3/4"
(4.4 cm)
To Fireplace
Opening
10" (25.4 cm)
33°
Safe
Zone
Ref. Mantel Depth Ref.
Mantel from
Top of Louver
Opening
1 16" (40.6 cm) A 18" (45.7 cm)
2 14" (35.6 cm) B 16" (40.6 cm)
3 12" (30.5 cm) C 14" (35.6 cm)
4 10" (25.4 cm) D 12" (30.5 cm)
5 8" (20.3 cm) E 10" (25.4 cm)
6 4" (10.2 cm) F 8" (20.3 cm)
7 2" (5.1 cm) G 6" (15.2 cm)
C
B
A
DE
FG
Top of Louver
Opening
3
2
1
4
5
6
7
Stud Wall
4" B-Vent
Flue Pipe
2 x 4 Header
at 1" Min.
Clearance
INSTALLATION
PRECAUTIONS
NOTICE:Failuretofollowthesein-
structions will void the warranty.
• Wear gloves and safety glasses for protection
• Use extreme caution when using ladders or
when on roof tops
• Be aware of electrical wiring locations in walls
and ceilings
The following actions will void the warranty on
this product:
• Installation of any damaged venting component
• Unauthorized modication of the venting sys-
tem (Do not cut or alter vent components)
• Installation of any component part not manu-
factured or approved by DESA.
• Installation other than as instructed by these
instructions
WARNING: Read all instruc-
tions completely and thoroughly
before attempting installation.
Failure to do so could result in
serious injury, property damage
or loss of life.
WARNING: B-type vent pipe air-
space clearance to combustibles
is 1" on all sides. Where the vent
pipe passes through a vertical wall
a listed thimble approved for use
with B-type vent must be used.
VENTING INSTALLATION
A 4" B-type venting system must be connected to the
appliance for venting to the outside of the building.
The following section is provided as a guide to
install a standard B-type vent installation.
Standing code requirements concerning B-type
vent installations may vary within your state,
province or local codes jurisdiction. Therefore,
it is recommended that you check with your local
building code authority for specic requirements
or in absence of local codes, follow Section 7.0
of the current National Fuel Gas Code NFPA
54/ANSI Z223.1 or in Canada with CAN/CSA
B149 for Category I systems using double wall
B-1 vent pipe.
This gas appliance must be vented to the outdoors
only and may not be terminated into an attic space
or into a chimney ue servicing a solid fuel burn-
ing appliance.

www.desatech.com
117437-01B 9
This appliance may be vented through a manu-
factured chimney liner system if all are listed,
inspected and approved by local codes and/or
building authorities.
The examples shown in Figure 10 are typical of
most B-vent installations and code practices.
WARNING: This gas replace
and vent assembly must be vented
directly to the outside. The venting
system must NEVER be attached
to a chimney serving a separate
solid fuel burning appliance.
Example 1: Shows the minimum allowable system
height and lateral offset for a 60° or greater inclina-
tion. Code species that offsets at 60° or greater
are considered horizontal and must follow the 75%
rule for lateral to total vertical system height. Codes
also allows only one offset in the total system when
at 60° or greater. The total vertical height in this
example represents the minimum height of 8 feet
and therefore the allowable lateral is 6 feet when the
75% rule applies. If the lateral length must exceed
75% then the system must be sized in accordance
with the Category I venting tables.
Example 2: Shows multiple offsets each at 45°
of inclination. Multiple offsets are permitted if
they do not exceed 45° of inclination. The total
lengths of the two offsets are not required to meet
the 75% rule.
Example 3: Shows a single offset at 45° of inclina-
tion and therefore the lateral length at 10 feet of offset
does not have to meet the 75% allowable rule.
In each case the offsets must be supported and
restops must be positioned wherever the vent
must pass through a sub-oor, ceiling joist or
an attic overhang. The vent pipe must terminate
vertically into a listed type vent cap and extend a
sufcient height through an approved roof ash-
ing, roof jack or a roof thimble. At all points the
listed clearances must be maintained.
Vent terminations must be located in accordance
with height and proximity rules of NFPA No. 54 or
CAN/CSA B149. These rules apply to vents at 12"
diameter or less and require a minimum height in
accordance with the roof pitch and a minimum of
8 foot distance from a vertical wall or obstruction
(see Figure 11, page 10).
If venting horizontally through a side wall be-
comes necessary, a listed thimble approved for use
with B-type vent must be used. Check with your
local codes before venting through a side wall.
Some codes areas allow the use of existing B-type
vent systems if the system is at or above the recom-
mended diameter of the ue.
The ue connection must be made using listed B-type
connectors and the existing system must be code
inspected for damage and proper installation.
It is not recommended that this appliance be
common vented with and existing gas burning
appliance. However, if it becomes necessary to
common vent the appliance. The venting system
must be sized and congured in accordance with
the common venting guidesAppendix G of the cur-
rent National Fuel Gas Code NFPA No. 54/ANSI
Z223.1 and in Canada with CAN/CSA B149.
Note: Before connecting this appliance to an
existing vent system or a common venting sys-
tem consult with your local architect planner, or
building ofcial.
Figure 10 - Typical B-Vent Conguration
Maintain
Listed
Clearance
Maintain
Listed
Clearance
12' Min.
12' Min. 45°
45
6'
8'
12' Min.
60 45
Position
Firestop
Position
Firestop
Position
Firestop
Listed
Vent Cap
Listed
Vent Cap
Listed
Vent Cap
Maintain
Listed
Clearance
Maintain
Listed
Clearance
Maintain
Listed
Clearance
Maintain
Listed
Clearance
Support Each
Lateral At
Least Every
6 Feet
Maintain
Listed
Clearance
10'
EXAMPLE 3EXAMPLE 2
EXAMPLE 1
VENTING INSTALLATION
Continued

www.desatech.com 117437-01B10
Lowest
Discharge
Opening
Listed
Vent Cap
8 Ft. Min.
Roof Pitch x/12
Listed Clearance
12
x
Listed
Gas
Vent
H (Min)
Height
From Roof

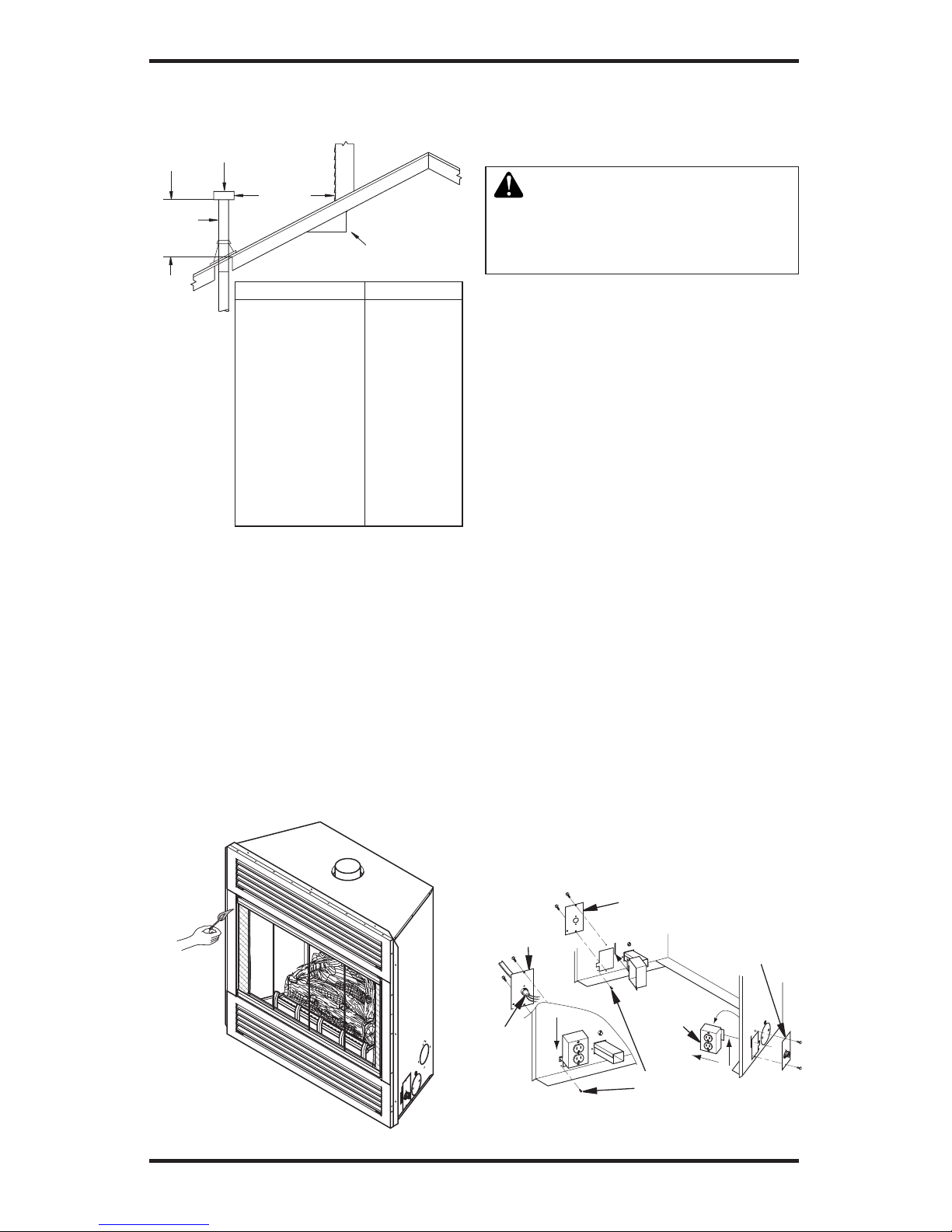

Figure 11 - B-Vent Termination
Roof Pitch H (Min.)
Flat to 6/12 1.0 ft (0.3 m)
6/12 to 7/12 1.25 ft (0.38 m)
Over 7/12 to 8/12 1.5 ft (0.46 m)
Over 8/12 to 9/12 2.0 ft (0.61 m)
Over 9/12 to 10/12 2.5 ft (0.76 m)
Over 10/12 to 11/12 3.25 ft (0.99 m)
Over 11/12 to 12/12 4.0 ft (1.22 m)
Over 12/12 to 14/12 5.0 ft (1.52 m)
Over 14/12 to 16/12 6.0 ft (1.83 m)
Over 16/12 to 18/12 7.0 ft (2.13 m)
Over 18/12 to 20/12 7.5 ft (2.27 m)
Over 20/12 to 21/12 8.0 ft (2.44 m)
VENTING INSTALLATION
Continued
CHECKING FOR PROPER VENTING
After completing and checking the electrical, gas
and vent connections, follow the lighting instruc-
tions and allow the main burner to run for approxi-
mately 5 minutes. Hold a match or butane lighter
ame, near the opening between the glass and the
replace face and play it along the entire length
of the opening (Smoke may also be used). Proper
venting will tend to draw ame or smoke into the
appliance. Improper venting, escaping or spillage
of burned gas, is indicated when the match ickers
or goes out (see Figure 12). Smoke will also tend
to disperse away from the appliance.
Figure 12 - Checking for Spillage
Figure 13 - Relocating Junction Box Recep-
tacle and Electrical Supply Connection
If the appliance is not venting properly, shut it
off and notify your installer or a qualied service
agency to inspect the venting system.
ELECTRICAL SUPPLY CONNECTION
CAUTION: Disconnect the
electrical power to the supply
circuit before attempting to con-
nect or service this appliance.
A prewired junction box receptacle with strain
relief is provided on the right side of the cabinet for
hard wiring the unit to a 15 Amp, 120 VAC, 60 Hz
grounded branch circuit. If the installation demands
that the electrical supply be connected from the left
side, the entire receptacle box can be relocated to the
left side by following these instructions:
Note: If you do not need to relocate the junction
box, to connect the electric supply follow steps 8
through 11 only:
1. Remove 2 screws and outer cover with strain
relief bushing on right side of cabinet (see
Figure 13).
2. Remove inner retaining screw on junction box
mounting tab.
3. Slide junction box up until screw mounting
tab is lined up to notch in outer cabinet.
4. Swing junction box out and slip retaining
ange out through slot in outer cabinet.
5. Remove 2 screws and outer cover on left side
of outer cabinet.
6. Reinsert junction box retaining ange through
slot now on left side and swing screw mount-
ing tab back through notch as before.
7. Slide junction box down till mounting tab holes
line up and replace inner retaining screw.
8. With junction box cover removed, pull end
of 3-wire Romex supply line through uni-
versal strain relief bushing on cover. (see
Figure 13).
J-Box
Cover
with Strain
Relilef
J-Box
Cover
Romex
Cable
J-Box with
Receptacle
J-Box Cover
with Strain
Relief
Screw/Tab
Retainer

www.desatech.com
117437-01B 11
Remote Receiver
or Wall Switch to
Terminal Marked “TH”
Wire Harness From
High Limit Switch
Male Connector to
Remote Receiver
or Wall Switch
9. Strip back outer Romex to about 4" and con-
nect black, white and green wires accordingly
using 3 wire nut connectors.
10. Tuck tailing wires into junction box and replace
junction box cover using 2 remaining screws.
11. Tighten adjustment on universal strain bush-
ing to secure Romex sheathing and complete
supply connection.
WARNING: This appliance,
when installed must be electri-
cally grounded in accordance
with local code or in the ab-
sence of local code, with the
current National Electric Code,
ANSI/NFPA 70, or the Canadian
Electric Code, CSA C22.1.
HIGH ALTITUDE INSTALLATION
Your DESA direct-vent replace has been tested
and approved in the USA for elevations from
0-2,000 feet (610 m) and in Canada at elevations
from 0-4,500 feet (1,372 m).
When installing a non-high altitude replace at an
elevation above 2,000 feet (610 m) (in the USA),
you may need to decrease the input rating by
changing the existing burner orice to a smaller
size. Reduce input 4% for each 1,000 feet (305 m)
above sea level. Check with your local gas com-
pany for proper orice size identication.
When installing this replace in Canada at an
elevation above 4,500 feet (1,372 m), Check with
local or provincial code authorities.
Consult your local gas company to help determine
the proper orice for your location.
For assistance with any high altitude installation
contact DESA’s Customer Service Department at
1-866-672-6040.
INSTALLING OPTIONAL
CONTROLS
INSTALLING OPTIONAL WALL
MOUNT SWITCH - GWMS2
1. Connect one terminal of 15 foot wire from
wall switch to male connector on high limit
harness. Connect remaining wire terminal to
TH terminal on valve. Make sure that wire
terminals are in positions on unit as pictured
in Figure 14. If wires are not connected as
shown switch will not work.
VENTING INSTALLATION
Continued
2. Route 15 foot wire through hole openings with
bushings provided on either side of replace
cabinet.
3. Connect one bare wire end to each of terminals
of GWMS2 wall switch.
4. Install wall switch and cover in wall.
IMPORTANT: Do not use any other wire than that
provided with GWMS2 wall switch kit. Do not
exceed 15 feet of distance from valve connection.
Using wire of higher gauge or turns or exceeding
minimum distance will increase resistance at
control valve causing unreliable performance of
replace controls.
Figure 14 - Connecting Remote Receiver
or Wall Switch to the Gas Control Valve
INSTALLING OPTIONAL WIRELESS
HAND-HELD REMOTE CONTROL
MODEL HRC100
Installing Remote Receiver
1. Open bottom louver and locate switch
bracket on right side.
2. Locate battery clip mounted on back of
receiver. Slide a 9-volt alkaline battery (not
included) through clip.
3. Attach terminal wires to battery (see Fig-
ure 15).
4. Connect one wire from receiver to male con-
nector on high limit harness and one to “TH”
on control valve (see Figure 14).
5. Locate two plastic mounting clips provided
with kit.
9-Volt
Alkaline
Battery
Receiver
Terminal
Wires
Battery Clip
Figure 15 - Attaching Alkaline Battery to
Receiver

www.desatech.com 117437-01B12
6. Use clips to mount receiver on remote mount-
ing bracket as shown in Figure 16.
INSTALLING OPTIONAL
CONTROLS
Continued
9-Volt
Battery
Battery
Housing
Battery
Cover
Terminal
Wires
Remote
Control
Unit
Towards Front
REMOTE ON OFF

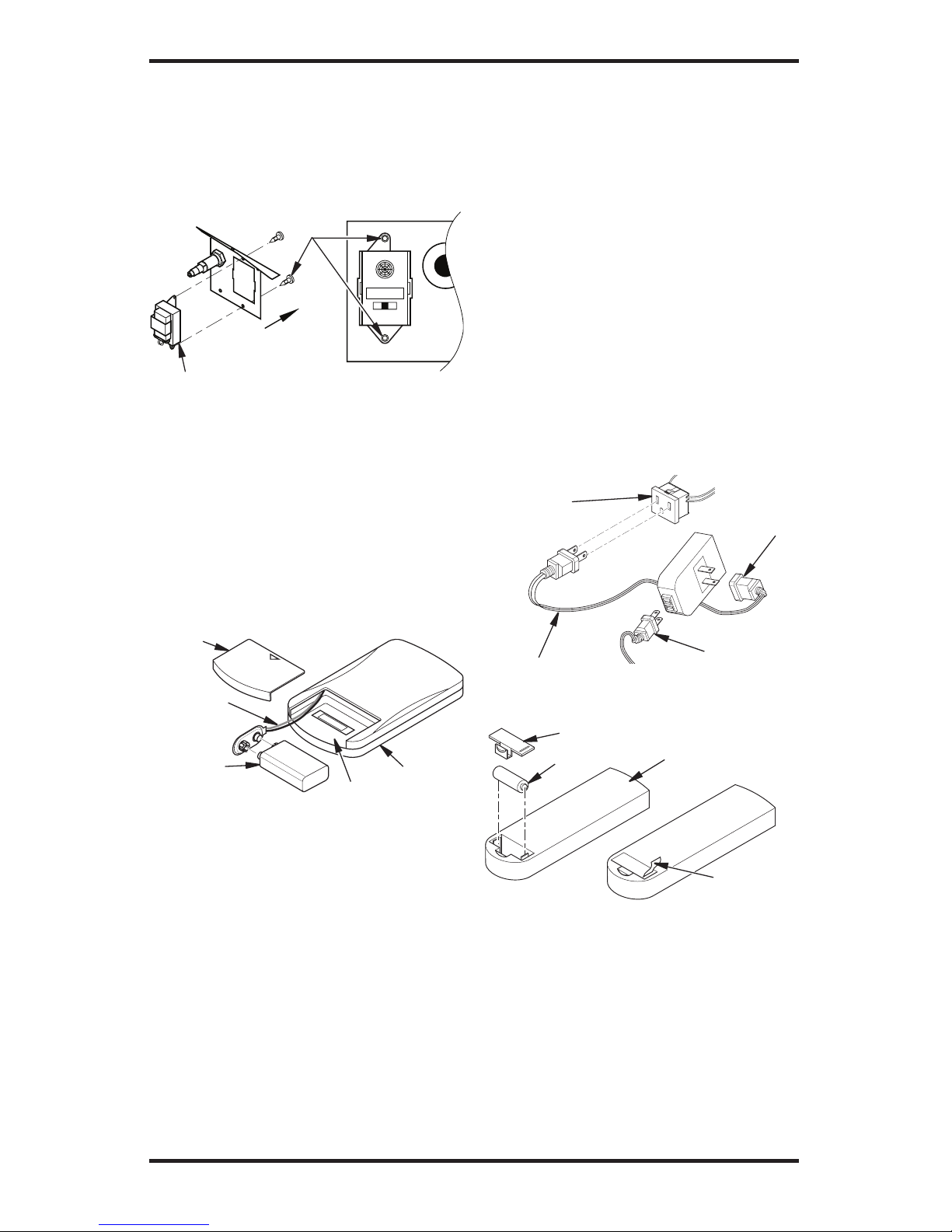

Figure 16 - Mounting Remote Receiver to
Bracket
Figure 17 - Installing Battery in Hand-
Held Control Unit (HRC100 Series)
Figure 18 - Installing WRC Remote Receiver
Figure 19 - Installing Battery into Back of
Handset
Fireplace
Receptacle
Remote
Control
Receiver
Extension Cord
Ignition
Module
Plug
Pull to
Remove
Insulation
Tab
Battery Cover
12 Volt Battery Back of Handset
Plastic Mounting
Clips
Remote Receiver
Installing 9-Volt Alkaline Battery in Hand-
Held Remote Control Unit
1. Remove battery cover on back of remote
control unit.
2. Attach terminal wires to a 9-volt alkaline bat-
tery (not included). Place battery into battery
housing (see Figure 17).
3. Replace battery cover onto remote control unit.
INSTALLING OPTIONAL WIRELESS
REMOTE CONTROL - MODEL WRC
(Electronic Ignition)
Installing and Activating the Remote
Receiver
1. Open bottom louver and locate plug recep-
tacle. The plug receptacle is located either on
the right or left side of cabinet.
2. The WRC model receiver does not require
a battery. Receiver can be installed by rst
plugging short extension cord into replace
receptacle. Then plug receiver unit into exten-
sion cord. Finally plug ignition module plug
into receiver unit (see Figure 18).
3. Activate remote handset battery by removing
insulating tab on back of handset (see Figure
19). Battery is included preinstalled.
4. Once battery is activated unit is ready to use.
5. Replace bottom louver panel.

www.desatech.com
117437-01B 13

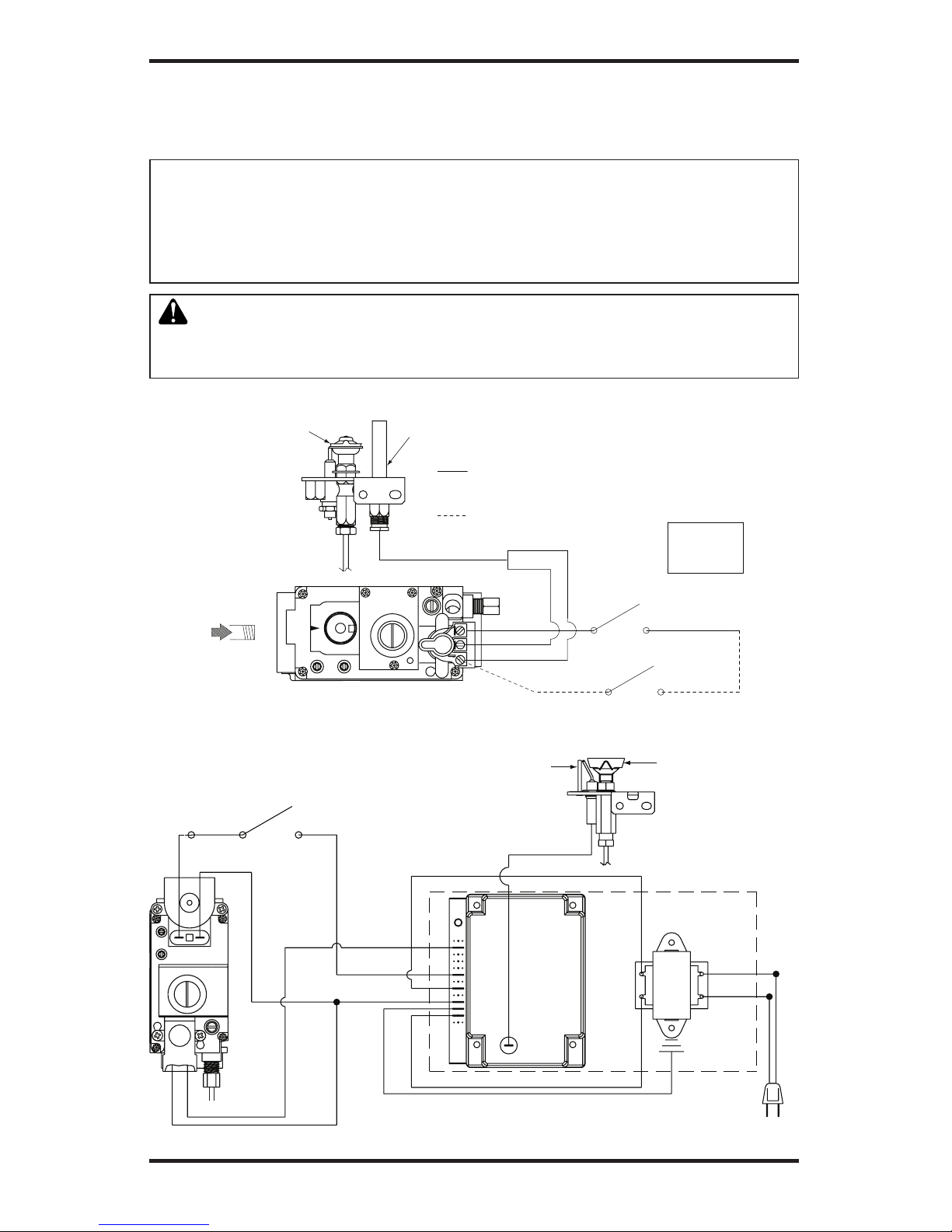

Figure 20 - Millivolt Ignition Wiring Diagram
Figure 21 - Electronic Ignition Wiring Diagram
TH
TP
TH/TP
WHITE
RED
DO NOT
CONNECT
TO 120V
HIGH LIMIT
SWITCH
N
O
T
O
L
P
F
F
O
I
NC
Pilot
Burner
Incoming
Main Gas
Supply
Thermocouple
Wall Switch/Remote Receiver
Replace factory wiring with
105° C equivalent or higher rating
External wiring use only Class 2
thermostat wire 18 Ga. Red/White
Millivolt Wiring Diagram
WIRING DIAGRAMS
NOTICE: This appliance is equipped with a vent safety shutoff switch
which will shut down the appliance in case of a venting problem. Do
not bypass the vent safety shutoff switch. If the appliance should
shut down, have a qualied installer, service agency, or your gas
supplier inspect the vent before operating.
CAUTION: label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dangerous opera-
tion. Verify proper operation after servicing.
EV2
EV1
High Limit
Switch
Gas Valve
Orange
Red
Red
Transformer
Ignition Control
Module
Black
Black
Ground
120 VAC
White
24 VAC
Blue
Blue
High Voltage
MV PV TH P/MV GND TR
Green Ignition Module
ELECTRONIC IGNITION
WIRING DIAGRAM
Black
Pilot Burner
Ignitor
NC
INSTALLING OPTIONAL CONTROLS
Continued

www.desatech.com 117437-01B14
FIREPLACE INSTALLATION
CHECK GAS TYPE
Use only the correct type of gas (natural or pro-
pane/LP). If your gas supply is not the correct gas
type, do not install replace. See dealer where
you purchased your replace for proper gas type
replace or tro purchase gas conversion kit (see
Accessories, page 34).
INSTALLING GAS PIPING TO
FIREPLACE LOCATION
WARNING: A qualified
service person must connect
replace to gas supply. Follow
all local codes.
CAUTION: For propane/LP
units, never connect fireplace
directly to the propane/LP supply.
This heater requires an external
regulator (not supplied). Install
the external regulator between the
replace and propane/LP supply.
Installation Items Needed
Before installing replace, make sure you have
the items listed below.
• external regulator (supplied by installer)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench
• approved exible gas line with gas connector
(if allowed by local codes)
* A CSA design-certified equipment shutoff
valve with 1/8" NPT tap is an acceptable alterna-
tive to test gauge connection. Purchase the CSA
design-certied equipment shutoff valve from
your retailer.
For propane/LP connection only, the installer must
supply an external regulator. The external regula-
tor will reduce incoming gas pressure. You must
reduce incoming gas pressure to between 11" and
14" of water. If you do not reduce incoming gas
pressure, replace regulator damage could occur.
Install external regulator with the vent pointing
down as shown in Figure 22. Pointing the vent
down protects it from freezing rain or sleet.

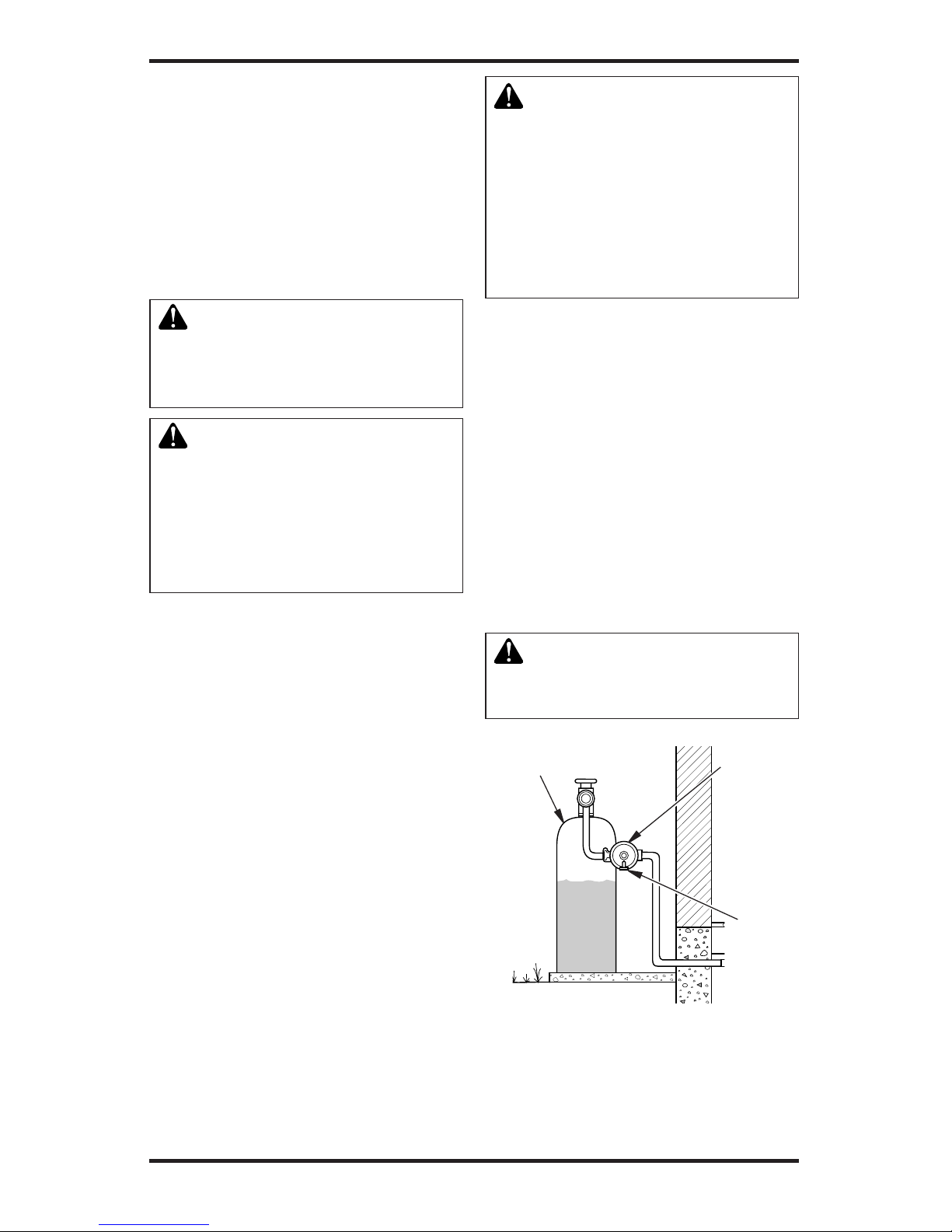

Figure 22 - External Regulator with Vent
Pointing Down (Propane/LP Only)
Propane/LP
Supply Tank External
Regulator
Vent
Pointing
Down
CAUTION: Use only new,
black iron or steel pipe. Inter-
nally-tinned copper tubing may
be used in certain areas. Check
your local codes. Use pipe of
1/2" diameter or greater to allow
proper gas volume to replace.
If pipe is too small, undue loss
of volume will occur.
Installation must include an equipment shutoff
valve, union and plugged 1/8" NPT tap. Locate
NPT tap within reach for test gauge hook up. NPT
tap must be upstream from replace (see Figure
23, page 15).
IMPORTANT: Install main gas valve (equipment
shutoff valve) in an accessible location. The main
gas valve is for turning on or shutting off the gas
to the appliance.
Check your building codes for any special re-
quirements for locating equipment shutoff valve
to replaces.
Apply pipe joint sealant lightly to male NPT
threads. This will prevent excess sealant from
going into pipe. Excess sealant in pipe could result
in clogged replace valves.
WARNING: Use pipe joint
sealant that is resistant to liquid
petroleum (LP) gas.

www.desatech.com
117437-01B 15
FIREPLACE INSTALLATION
Continued
We recommend that you install a sediment trap/
drip leg in supply line as shown in Figure 23. Lo-
cate sediment trap/drip leg where it is within reach
for cleaning. Install in piping system between fuel
supply and replace. Locate sediment trap/drip leg
where trapped matter is not likely to freeze. A sedi-
ment trap traps moisture and contaminants. This
keeps them from going into replace gas controls.
If sediment trap/drip leg is not installed or is in-
stalled wrong, replace may not run properly.

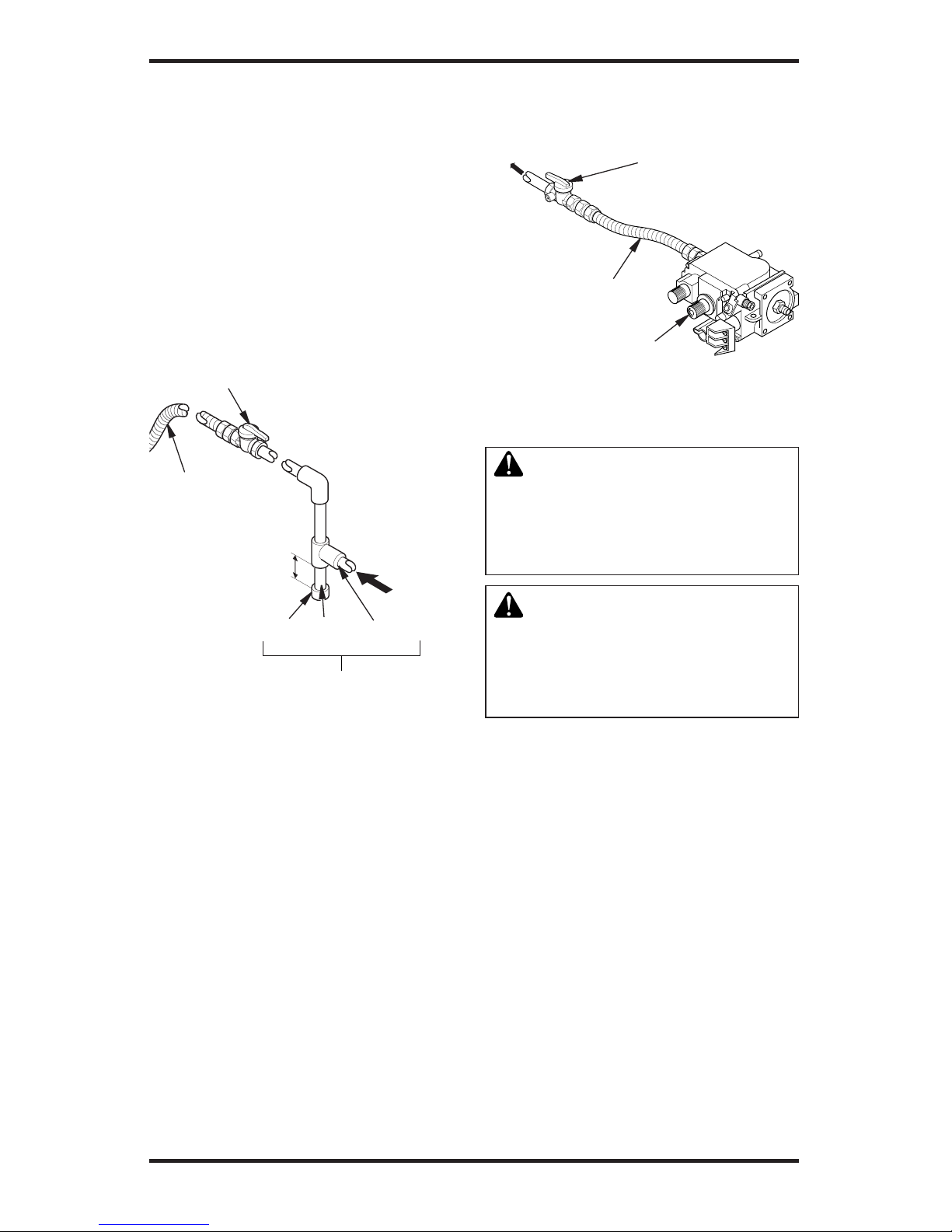

Figure 23 - Gas Connection
CSA Design-Certied
Equipment Shutoff Valve
with 1/8" NPT Tap*
3" Minimum
Approved
Flexible
Gas Line
Cap Pipe Tee Joint
Nipple
Sediment Trap/Drip Leg
Natural - From
Gas Meter (5.5"
W.C. to 10.5" W.C.
Pressure)
Propane/LP From
External Regulator
(11" W.C. to 14"
W.C. Pressure)
* The CSA design-certied equipment shutoff
valve may be supplied with the appliance or you
can purchase it from your retailer.
CONNECTING FIREPLACE TO GAS
SUPPLY
Installation Items Needed
• 3/4" and a 7/8" open end wrench or adjustable
wrench
• sealant (resistant to propane/LP gas, not pro-
vided)
1. Remove lower louver door panel by lifting
up until disengaged. Swing forward and out
of locating slots at bottom.
2. Route exible gas line (provided by installer)
from equipment shutoff valve to replace.
Route exible gas supply line through one of
the access holes on each side of the replace
cabinet.
3. Attach exible gas line from gas supply to the
1/2" are tting provided on the control valve
(see Figure 24).
4. Check all gas connections for leaks (see
Checking Gas Connections).
Figure 24 - Connecting Flexible Gas Line
to Millivolt Valve
Flexible Gas Line
Do NOT Kink
Equipment
Shutoff Valve
To Gas Supply
(Natural)
To External
Regulator
(Propane/LP)
Control Valve
CHECKING GAS CONNECTIONS
WARNING: Test all gas piping
and connections, internal and
external to unit, for leaks after
installing or servicing. Correct
all leaks at once.
WARNING: Never use an open
ame to check for a leak. Apply
noncorrosive leak detection uid
to all joints. Bubbles forming show
a leak. Correct all leaks at once.
PRESSURE TESTING GAS SUPPLY
PIPING SYSTEM
Test Pressures In Excess Of 1/2 PSIG
(3.5 kPa)
1. Disconnect replace and its individual equip-
ment shutoff valve from gas supply piping
system. Pressures in excess of 1/2 psig (3.5 kPa)
will damage replace gas regulator.
2. Cap off open end of gas pipe where equipment
shutoff valve was connected.
3. Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas replace or opening main gas
valve located on or near gas meter for natural
gas replace or using compressed air.
4. Check all joints of gas supply piping system.
Apply noncorrosive leak detection uid to all
joints. Bubbles forming show a leak. Correct
all leaks at once.
5. Reconnect replace and equipment shutoff
valve to gas supply. Check reconnected ttings
for leaks.

www.desatech.com 117437-01B16
Test Pressures Equal To or Less Than
1/2 PSIG (3.5 kPa)
1. Close equipment shutoff valve (see Figure 25).
2. Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas replace or opening main gas
valve located on or near gas meter for natural
gas replace or using compressed air.
3. Check all joints from propane/LP supply tank
or gas meter to equipment shutoff valve (see
Figure 26, for propane/LP or Figure 27, for
natural gas). Apply noncorrosive leak detec-
tion uid to all joints. Bubbles forming show
a leak. Correct all leaks at once.
FIREPLACE INSTALLATION
Continued
Figure 25 - Equipment Shutoff Valve
Open
Closed
Equipment
Shutoff Valve
Figure 26 - Checking Gas Joints for
Propane/LP Gas Fireplace
Propane/LP
Supply Tank
Gas Valve
Equipment Shutoff Valve
Figure 27 - Checking Gas Joints for
Natural Gas Fireplace
Gas
Meter
Gas Valve
Equipment
Shutoff
Valve
PRESSURE TESTING FIREPLACE GAS
CONNECTIONS
1. Open equipment shutoff valve (see Figure 25).
2. Open propane/LP supply tank valve for pro-
pane/LP replace or main gas valve located on
or near gas meter for natural gas replace.
3. Make sure control knob of replace is in the
OFF position.
4. Check all joints from equipment shutoff valve
to gas valve (see Figure 26, for propane/LP
or Figure 27, for natural gas). Apply non-
corrosive leak detection uid to all joints.
Bubbles forming show a leak. Correct all
leaks at once.
5. Light replace (see Operating Fireplace, page
19). Check all other internal joints for leaks.
6. Turn off replace (see To Turn Off Gas to
Appliance, page 19 or 20 depending on your
model).
LOUVER PANELS AND GLASS
DOOR
CAUTION: Do not operate
this replace with a broken glass
door panel or without the glass
door panel securely in place.
For replacement part informa-
tion see Replacement Parts,
page 34.
CAUTION: Wear gloves and
safety glasses while handling
or removing broken glass. Do
not remove if glass is hot. Keep
children and pets away from
glass.
WARNING: If replace has
been running, turn off and un-
plug replace. Let cool before re-
moving glass door or louvers.

www.desatech.com
117437-01B 17
Figure 28 - Removing Louver Panel
Louver
Panel
Spring
Latch
Removing/Replacing Glass Door
WARNING: Handle glass
door panel with care. Do not
strike, slam or otherwise abuse
glass. Do not operate fire-
place with glass door removed,
cracked or broken.
If replacement of glass is necessary, the entire
assembly, glass and frame, must be replaced. If
glass is broken, wear gloves and tape the remaining
fragments onto the frame.
1. Placing a screw driver or your nger tips into
the gap between lower glass panel rail and
bottom face frame, lift glass door assembly
until door pins clear locating holes in bottom
face frame (see Figure 29).
2. Swing bottom glass panel assembly out until
door pins on lower rail clear bottom face frame
(see Figure 30).
3. Lower door down until upper door pins are
free of locating holes in spring clips and place
in a safe area.
4. Replace glass panel in reverse order by insert-
ing top door pins into spring clips, lifting up
at lower frame rail and locating bottom pins
in holes on lower face frame.
FIREPLACE INSTALLATION
Continued
Figure 30 - Removing/Replacing Glass
Door
Spring Clips
Glass Panel
Frame Rail
1. Lift Up Panel
at Lower Rail
Figure 29 - Removing/Replacing Glass
Door
Locating
Hole
Door Pin
Glass Panel
Frame Rail
2. Swing Out
Panel
3. Lower
Panel Out
Removing Louver Panels
Remove the top and bottom louver panels by si-
multaneously pulling both top end spring latches
towards the center of the appliance until they are
disengaged from the locating holes (see Figure 28).
Repeat for bottom spring latches and pull the lou-
vers outward. To install or replace items removed,
simply reverse the procedures above.

www.desatech.com 117437-01B18

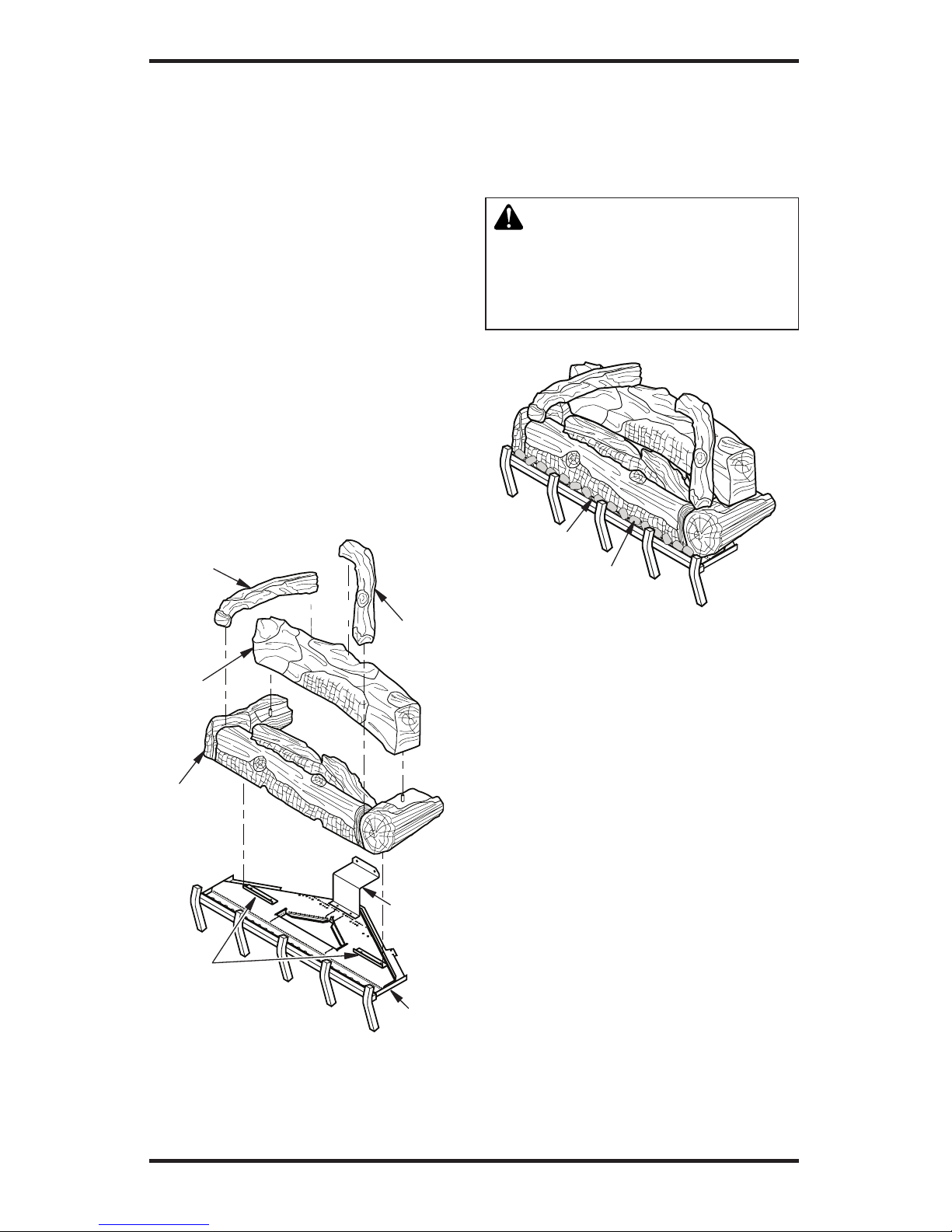

INSTALLING LOGS AND GLOWING
EMBERS
A 4 piece ceramic log set comes packed inside the
unit rebox. Removal of glass door is necessary
to unpack and assemble logs and add hearth treat-
ments. Follow steps under Removing/Replacing
Glass Door, page 17 to access logs and burner.
Assemble logs and add burner treatments as
follows:
1. Position base log onto burner log mounts (see
Figure 31).
Note: Cut out on bottom should fit over
mounts and base log should be positioned
against rear panel.
2. Position holes on bottom of rear log over pins
on base log (see Figure 31).
3. Position top left log and top right log onto rear
log and base log as shown in Figure 31.
Figure 31 - Installing Logs
FIREPLACE INSTALLATION
Continued
Figure 32 - Applying Ember Material
4. Break ember material into quarter sized pieces
and place a single layer along the full length
of ember tray to hide bottom edge of base log.
(see Figure 32).
5. Replace glass door and louver panels (see
Removing/Replacing Glass Door, page 17).
WARNING: The glass door
must be securely in place before
running this replace. Do not run
this replace if glass is missing
or broken.
Top
Right
Log
Top Left
Log
Rear
Log
Burner
Base Log
Rear Log
Stand
Burner
Pan
Log
Mounts
Ember
Tray
Ember
Material

www.desatech.com
117437-01B 19
O
F
F
P
I
L
O
T
O
N

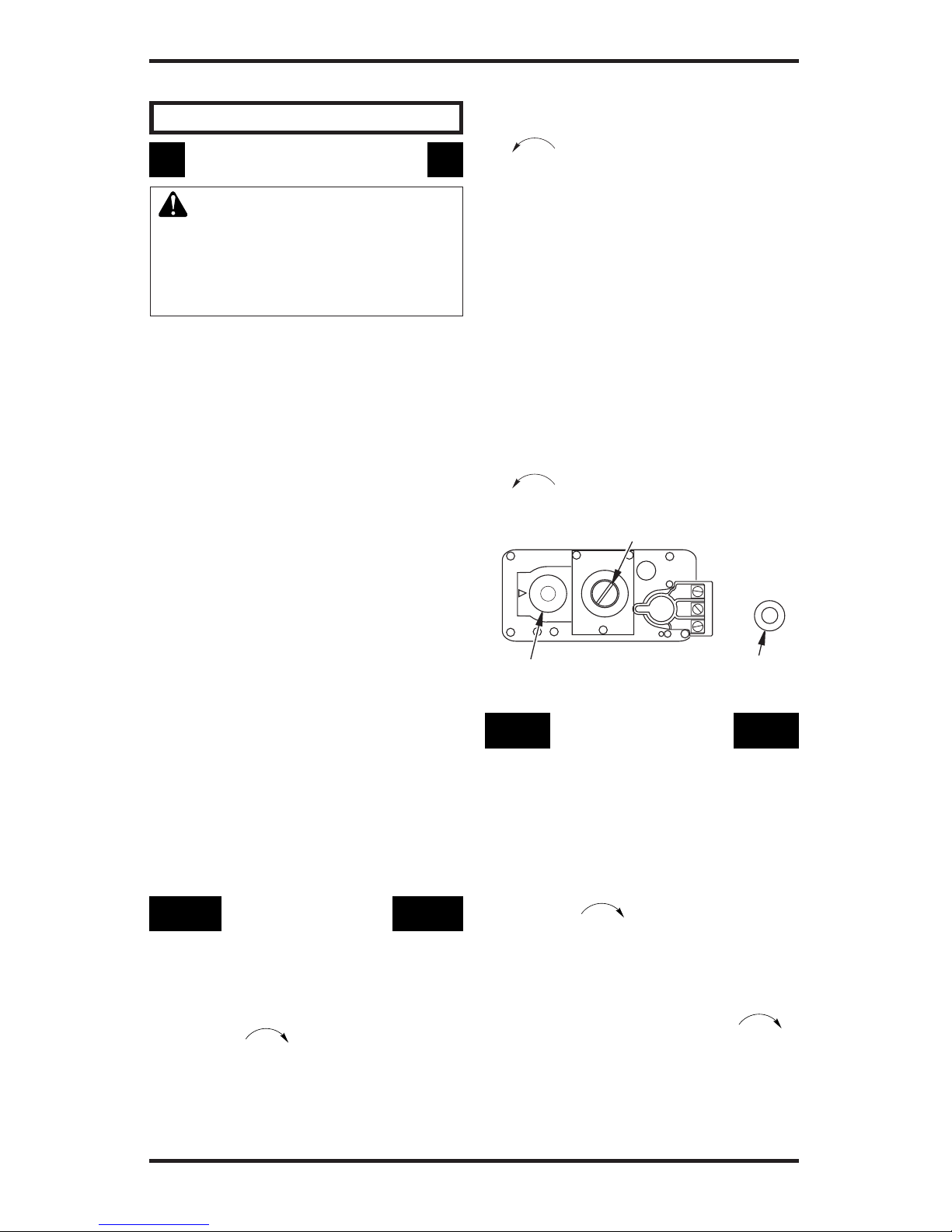

OPERATING FIREPLACE
MANUAL IGNITION SYSTEM
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not fol-
low these instructions exactly,
a re or explosion may result
causing property damage, per-
sonal injury or loss of life.
A. This appliance has a pilot which must be
lighted by hand. When lighting the pilot,
follow these instructions exactly.
B. BEFORE LIGHTING smell all around the
appliance area for gas. Be sure to smell next
to the oor because some gas is heavier than
air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not
use any phone in your building.
• Immediately call your gas supplier
from a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call
the re department
C. Use only your hand to push in or turn the
gas control knob. Never use tools. If the knob
will not push in or turn by hand, don't try to
repair it, call a qualied service technician.
Force or attempted repair may result in a
re or explosion.
D. Do not use this appliance if any part has
been under water. Immediately call a
qualied service technician to inspect the
appliance and to replace any part of the
control system and any gas control which
has been under water.
LIGHTING
INSTRUCTIONS
1. STOP! Read the safety information above.
2. Open lower louver panel.
3. Turn off all electric power to the replace.
4. Push in gas control knob slightly and turn
clockwise to OFF (see Figure 33).
5. Wait ve (5) minutes to clear out any gas.
Then smell for gas, including near the oor.
If you smell gas, STOP! Follow “B” in the
safety information above. If you don’t smell
gas go to the next step.
6. The pilot is located by the main burner and
should not require accessing for lighting.
7. Turn gas control knob counterclockwise
to PILOT.
8. Push in gas control knob all the way and
hold. Immediately light the pilot by re-
peatedly pressing the piezo ignitor until a
ame appears. Continue to hold for about
one (1) minute after the pilot is lit. Release
gas control knob and it will pop up. Pilot
should remain lit. If it goes out, repeat steps
5 through 8.
• If gas control knob does not pop up when
released, stop and immediately call your
service technician or gas supplier.
• If the pilot will not stay lit after several
tries, turn gas control knob to OFF and call
your service technician or gas supplier.
9. Turn on all electric power to replace.
10. Turn gas control knob counterclockwise
to ON.
11. Close lower louver panel.
Figure 33 - Control Valve Millivolt
TO TURN OFF GAS
TO APPLIANCE
1. Open lower louver panel.
2. Set the wall switch to “OFF” position or
the HRC selector switch (when equipped)
to prevent draining the battery.
3. Turn off all electric power to the appliance
if service is to be performed.
4. Push in gas control knob slightly and turn
clockwise to OFF.
5. Close lower louver panel.
Shutting Off Burners Only (pilot stays lit)
You may shut off the burners and keep the pilot
lit by doing one of the following:
1. Turn gas control knob clockwise to
the PILOT position.
2. Set the wall switch to the OFF position or
the HRC selector switch (when equipped)
to prevent draining the battery.
Gas Control Knob
Regulator Cap
Piezo Ignitor

www.desatech.com 117437-01B20

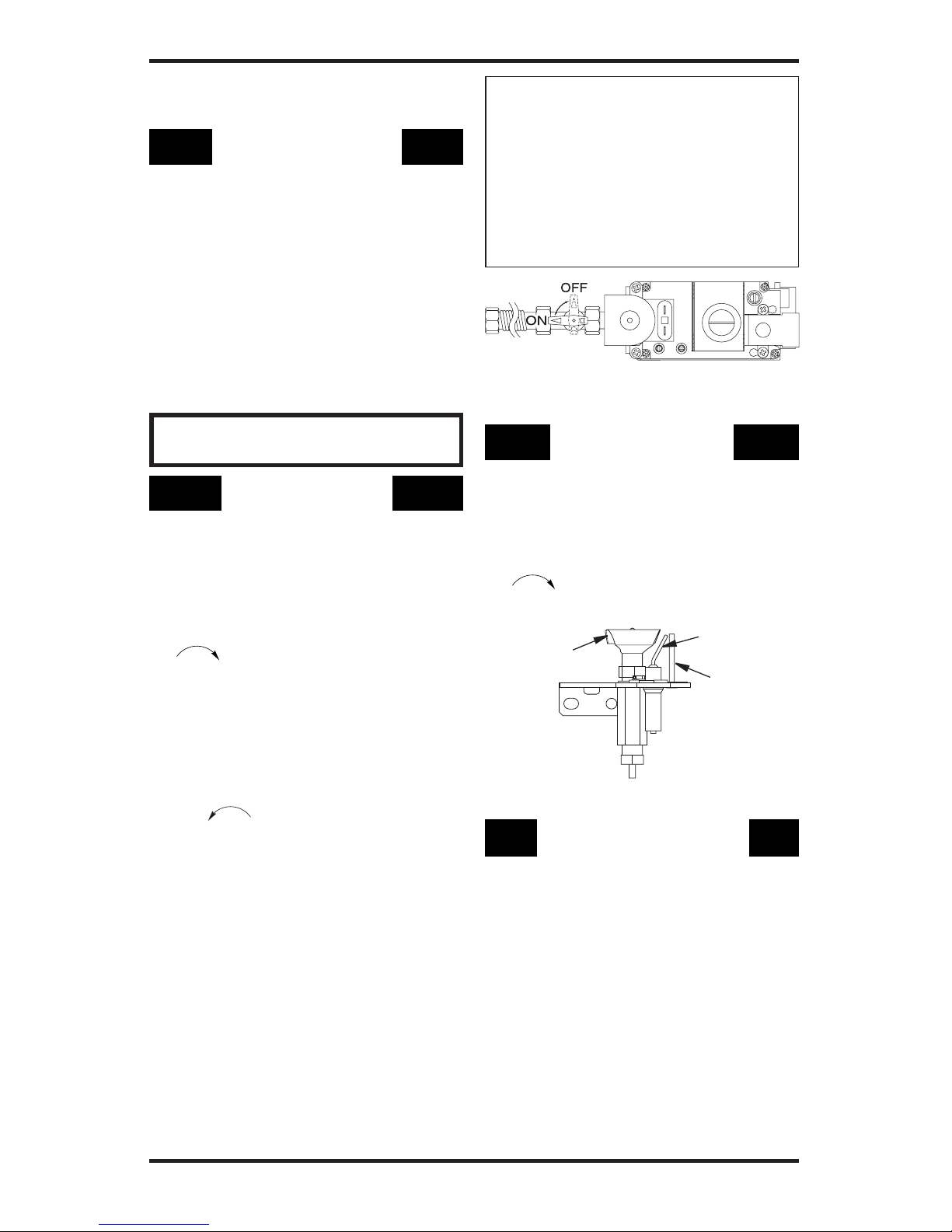

OPERATING FIREPLACE
Continued
MANUAL LIGHTING
PROCEDURE
1. Remove glass door (see Removing/Replacing
Glass Door, page 17).
2. Follow steps 1 through 8 under Lighting
Instructions, page 19).
3. Press gas control knob and light pilot with
match.
4. Keep gas control knob pressed in for30 seconds
after lighting pilot.After 30 seconds, release gas
control knob. Follow steps 10 through 11 under
Lighting Instructions, page 19).
5. Replace glass door (see Removing/Replacing
Glass Door, page 17).
ELECTRONIC IGNITION
SYSTEM
LIGHTING
INSTRUCTIONS
1. STOP! Read the safety information, col-
umn 1, page 19.
2. Turn off all electrical power to the replace.
3. Turn wall switch to the OFF position.
4. Open lower louver panel.
5. Turn equipment shutoff valve clockwise
to the OFF position (see Figure 34).
Do not force.
6. Wait ve (5) minutes to clear out any gas.
Then smell for gas, including near the oor.
If you smell gas, STOP! Follow “B” in the
safety information, column 1, page 19. If
you don’t smell gas go to the next step.
7. Turn equipment shutoff valve counterclock-
wise to the ON position. Do not force.
8. Close lower louver panel.
9. Turn on all electric power to the replace.
10. Turn the wall switch to the ON position.
11. Visually locate the pilot. The ignitor should
begin to spark and the main burner should
ignite once ame appears at pilot.
• If lighting the appliance for the rst time
each season, it may take several attempts
before the supply gas can reach the pilot
and main burner.
• If the appliance will not stay lit after sev-
eral attempts, follow the instructions To
Turn Off Gas To Appliance, and call your
service technician or gas supplier.
TO TURN OFF GAS
TO APPLIANCE
1. Turn off the wall switch.
2. Turn off all electric power to the appliance
if service is to be performed.
3. Open lower louver panel.
4. Turn equipment shutoff valve clockwise
to OFF. Do not force.
5. Close lower louver panel.
Figure 35 - Pilot
Pilot
Burner
Ignitor
Sensor
Rod
OPTIONAL WIRELESS
REMOTE OPERATION
Note: The WRC receiver and hand-held remote
control kit must be purchased separately (see
Accessories, page 34). Follow installation in-
structions included with the remote control.
1. Turn equipment shutoff valve to ON posi-
tion. You can now turn the burner on and
off with the hand-held remote unit.
IMPORTANT: Be sure to press the ON/OFF
buttons on the hand-held remote control
unit for up to 3 seconds to assure proper
operation.
2. Press the ON/OFF button to turn the
burner on and off.
Figure 34 - Turning Equipment Shutoff
Valve to the OFF Position
NOTICE: During initial operation
of a new heater, the burning of
residues from the manufacturing
process of the rebox and logs
will produce a paper-burning smell
and orange ames. Open a window
for the rst few hours of operation
to adequately vent this smell.
