Desa VT32N Series Quick start guide
For more information, visit www.desatech.com
DIRECT-VENT FIREPLACE
OWNER’S OPERATION AND INSTALLATION MANUAL
NATURAL GAS “TUDOR” MODELS (V)T32N SERIES
AND CHDV32NR
PROPANE/LP GAS “TUDOR” MODELS (V)T32P SERIES
WARNING: If the information in this manual is not
— WHAT TO DO IF YOU SMELL GAS
-
O-TL REPORT #114-F-06-5
www.desatech.com 111986-01F2
SAFETy
alteration, service or
maintenance can cause
-
for correct installation
-
additional information
-
-
stalled in an aftermarket,*
-
State of Massachusetts:
The installation must
the Commonwealth of
Installation and service must
chemicals known to the State
of California to cause cancer or
-
-
-
DANGER
This replace must be installed by a qualied
(certied or licensed) service person. It has
a sealed gas combustion chamber that uses
TAbLE OF CONTENTS
Safety .................................................................. 2
Local Codes......................................................... 4
Product Identication ........................................... 4
Product Features ................................................. 4
Pre-Installation Preparation ................................. 5
Location of Termination Cap ................................ 7
Venting Installation............................................... 8
Fireplace Installation.......................................... 18
Operation ........................................................... 27
Inspecting Burners............................................. 30
Cleaning and Maintenance ................................ 30
Troubleshooting ................................................ 32
Replacement Parts ............................................ 36
Service Hints ..................................................... 36
Technical Service............................................... 36
Specications .................................................... 36
Accessories ....................................................... 36
Parts .................................................................. 38
Warranty ..............................................Back Cover
www.desatech.com
111986-01F 3
SAFETy
Continued
a coaxial pipe (pipe within a pipe and having
the same center) venting system. It brings in
fresh air for combustion through the outer pipe
and combustion gases are exhausted through
the inner pipe. If the glass door assembly and
venting pipe are not properly seated, con-
nected, and sealed, carbon monoxide leakage
(spillage) can occur.
Early signs of
carbon monoxide poisoning resemble the u,
with headaches, dizziness, or nausea. If you
have these signs, the replace may not have
been installed properly. Get fresh air at once!
Have replace inspected and serviced by a
qualied service person. Some people are more
affected by carbon monoxide than others. These
include pregnant women, people with heart or
lung disease or anemia, those under the inu-
ence of alcohol, and those at high altitudes.
Propane/
LP and natural gases are odorless. An odor-
making agent is added to the gas. The odor
helps you detect a gas leak. However, the
odor added to the gas can fade. Gas may be
present even though no odor exists.
Make certain you read and understand all
warnings. Keep this manual for reference. It
is your guide to safe and proper operation of
this replace.
-
-
WARNING: Do not allow fans
-
-
adults away from hot surface to
-
-
dren when they are in the room
1. For propane/LP replace, do not place
propane/LP supply tank(s) inside any
structure. Locate propane/LP supply
tank(s) outdoors. To prevent performance
problems, do not use propane/LP fuel tank
of less than 100 lb. capacity.
www.desatech.com 111986-01F4
SAFETy
Continued
2. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not
use any phone in your building
• immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier's instructions
• if you cannot reach you gas supplier, call
the re department.
3. Never install the replace
• in a recreational vehicle
• in windy or drafty areas where curtains
or other combustible (ammable) objects
can make contact with the fireplace
front
• in high trafc areas
4. Turn appliance off and let cool before
servicing, installing or repairing. Only a
qualied service person should install,
service or repair this replace. Have re-
place inspected annually by a qualied
service person.
5. You must keep control compartments,
burners and circulating air passages
clean. More frequent cleaning may be
needed due to excessive lint and dust
from carpeting, bedding material, etc.
Turn off the gas valve and pilot light before
cleaning replace.
6. Have venting system inspected annually by
a qualied service person. If needed, have
venting system cleaned or repaired. See
Cleaning and Maintenance, page 30.
7. Do not use any solid fuels (wood, coal,
paper, cardboard, etc.) in this replace.
8. This appliance, when installed, must be
electrically grounded in accordance with
local codes or, in the absence of local
codes, with the National Electrical Code,
ANSI/NFPA 70.
9. Do not use replace if any part has been
exposed to or under water. Immediately
call a qualied service person to arrange
for replacement of the unit.
10. Do not operate replace if any log is
broken.
11. Do not operate replace with glass door
removed, cracked or broken.
12. Provide adequate clearances around air
openings.

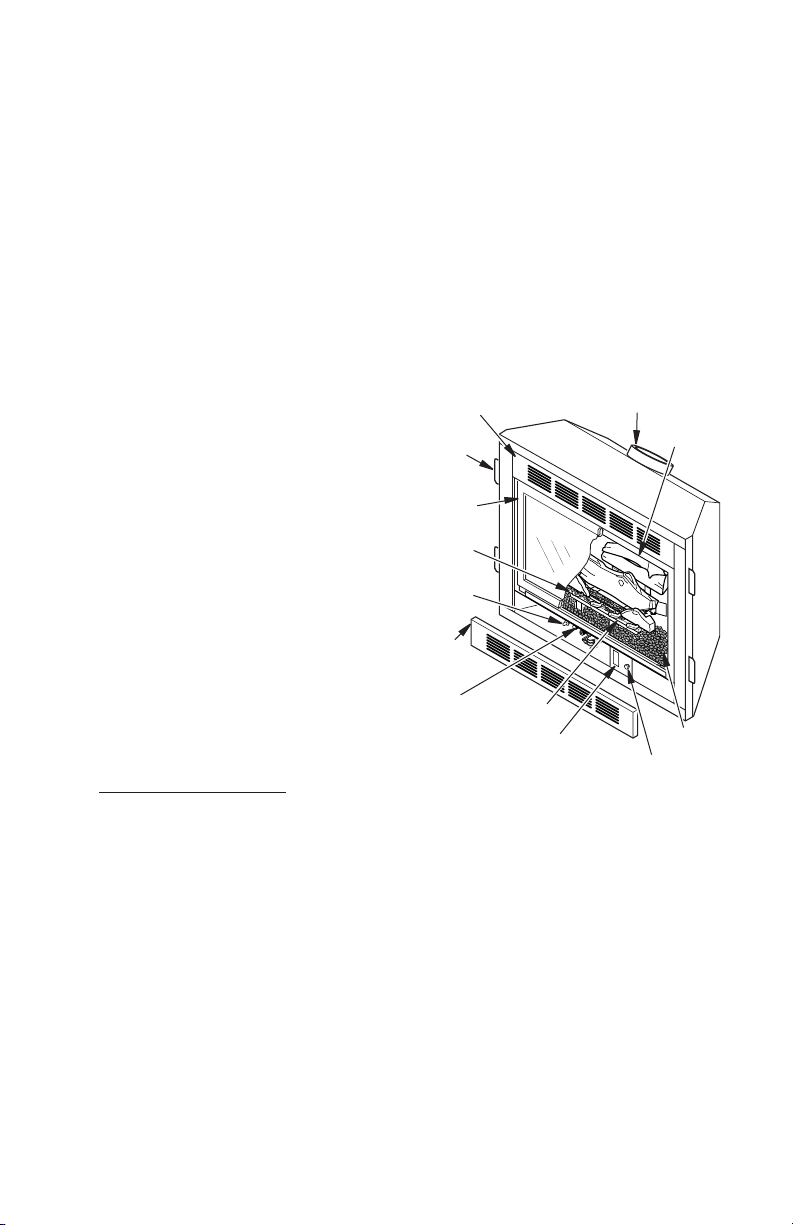

Figure 1 - Tudor Direct-Vent Fireplace
with Millivolt Ignition
Glass Door
Assembly
ON/OFF/
REMOTE
Switch (Optional
Installation)
Upper Louver
Panel
Lower
Louver
Panel
Flue Collar
Nailing
Flange
LOCAL CODES
Install and use replace with care. Follow all
local codes. In the absence to local codes,
use the current National Fuel Gas Code ANSI
Z223.1/NFPA 54* (USA).
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
PRODUCT
IDENTIFICATION
PRODUCT FEATURES
These are a few facts that can help you under-
stand and enjoy your direct-vent replace:
• The venting system may be routed to the
outside of your home in several ways. It may
vent through the roof (vertical) or it may vent
to an outside/exterior wall (horizontal). The
vent pipe installation is very important to
allow for proper operation. You must follow
the venting instructions very carefully for
either vertical or horizontal applications.
• This replace may be installed in any room
of your house provided all local codes and
these installation instructions are followed.
Control
Valve
Glowing
Embers
Blower Switch
(Optional
Installation)
Grate
Assembly
Lava Rock
Log Set
Piezo
Ignitor
www.desatech.com
111986-01F 5
Figure 2 - Common Fireplace Locations
Flush with a wall
Through exterior wall
enclosed in a chase
Corner
installation
• This replace does not require electricity
to operate.
• Only the blower requires electricity if in-
stalled and if you plan to install the blower
at a later date, do not forget to wire the
outlet at the bottom of the replace when
framing.
• A piezo ignitor and ceramic electrode cre-
ate spark to ignite the pilot light. It does not
require any matches, batteries or any other
sources of ignition to light the pilot.
• Each time you turn on your replace, you
may notice some amount of condensation
on the inside of the replace glass. This
is normal and will disappear after 10-20
minutes of operation.
• Your direct-vent gas fireplace system
(replace and venting) is a balanced and
sealed gas operating unit. It requires ap-
proximately 10-20 minutes of operating
time before the ame pattern stabilizes.
PRE-INSTALLATION
PREPARATION
LOCATION AND SPACE
REqUIREMENTS
Determine the safest and most efcient loca-
tion for your DESA Heating, LLC direct-vent
replace. Make sure that rafters and wall
studs are not in the way of the venting system.
Choose a location where the heat output is
not affected by drafts, air conditioning ducts,
windows or doors. Figure 2 shows some com-
mon locations. Be aware of all restrictions and
precautions before deciding the exact location
for your replace and termination cap.
When deciding the location of your replace,
follow these rules:
• Do not connect this replace venting to a
chimney ue serving a separate solid-fuel
burning replace or appliance.
• Due to high temperatures, do not locate this
replace in high trafc areas, windy or drafty
areas or near furniture or draperies.
• Proper clearances must be maintained.
• If your replace is to be installed directly on
carpeting, vinyl tile or any combustible ma-
terial other than wood, it must be installed
on a metal or wood panel extending the
full width and depth of the replace. See
Figure 3.
• Your replace is designed to be used in
zero clearance installations. Wall or framing
material can be placed directly against any
exterior surface on the back, sides or top of
your replace, except where standoff spacers
are integrally attached. If standoff spacers
are attached to your replace, these spacers
can be placed directly against wall or framing
material. See framing details on page 6.
• If you plan on installing a television or
entertainment center recessed above
your replace, it is recommended that you
maintain a minimum 18" above top of louver
opening.

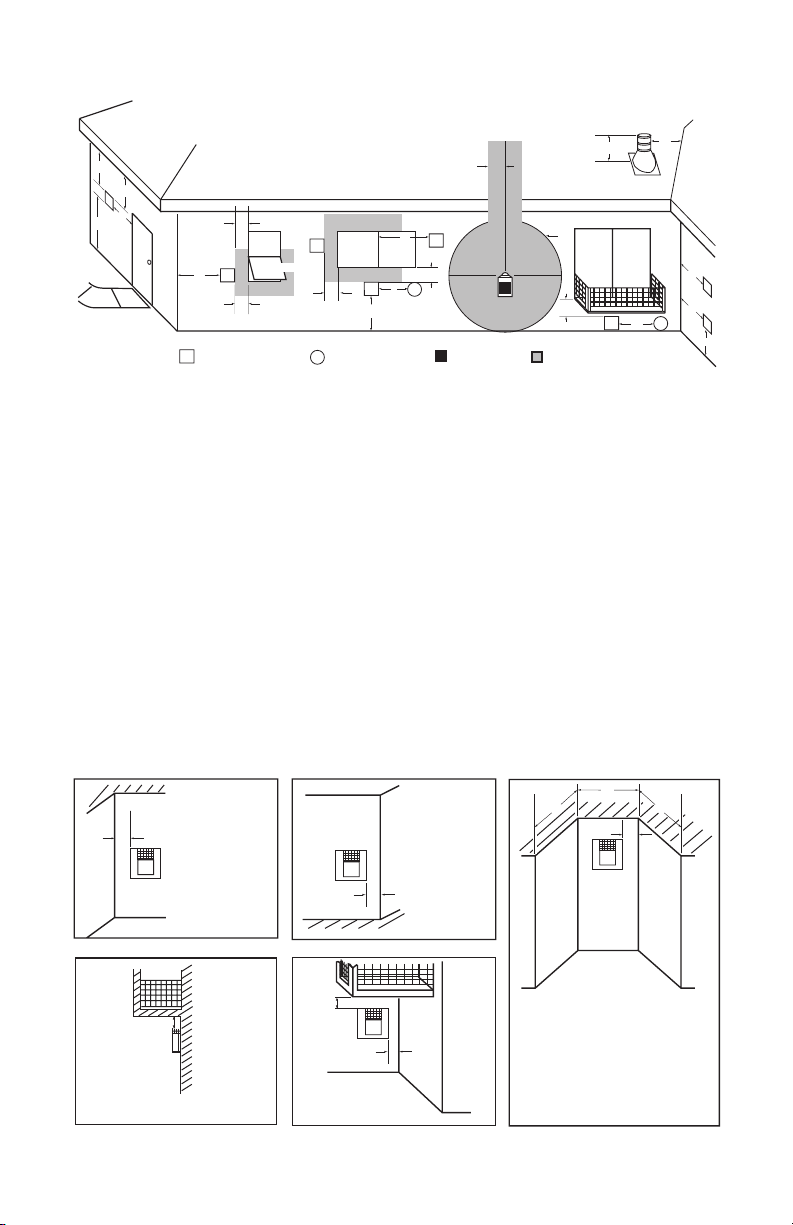

• When locating termination cap, it is impor-
tant to observe the minimum clearances
shown in Figure 7, page 7.
• If recessing into a wall, you can avoid extra
framing by positioning your replace against
an already existing framing member.
• Do not recess termination cap into a wall
or siding.
• You may paint the termination cap with 450º
F (232º C) heat-resistant paint to coordinate
with the exterior nish.
• There must not be any obstruction such
as bushes, garden sheds, fences, decks
or utility buildings within 24" from the front
of the termination cap.
• Do not locate termination cap where exces-
sive snow or ice build up may occur. Be sure
to clear vent termination area after snow falls
to prevent accidental blockage of venting
system. When using snow blowers, do not
direct snow towards vent termination area.

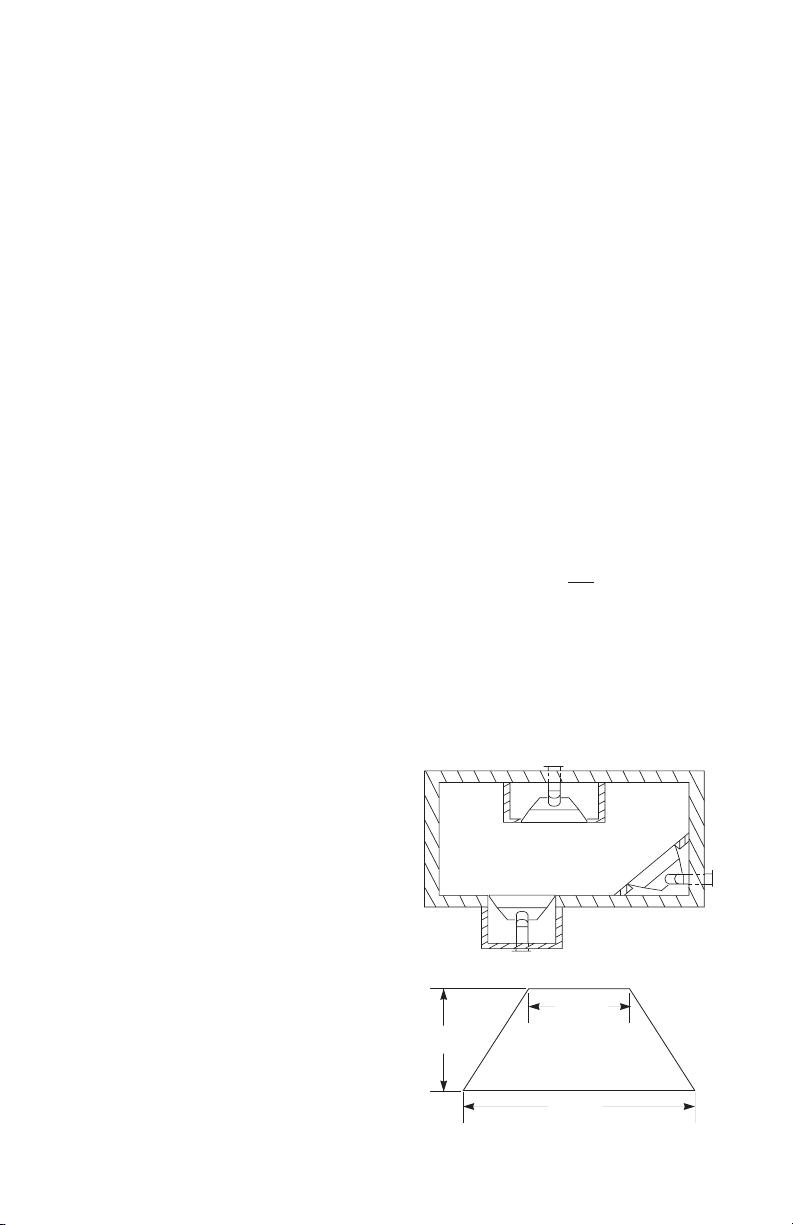

Figure 3 - Fireplace Bottom Dimensions
D
RW
FW
34 3/8"
22 1/2"
16 5/8"
PRODUCT FEATURES
Continued
www.desatech.com 111986-01F6
PRE-INSTALLATION
PREPARATION
Continued

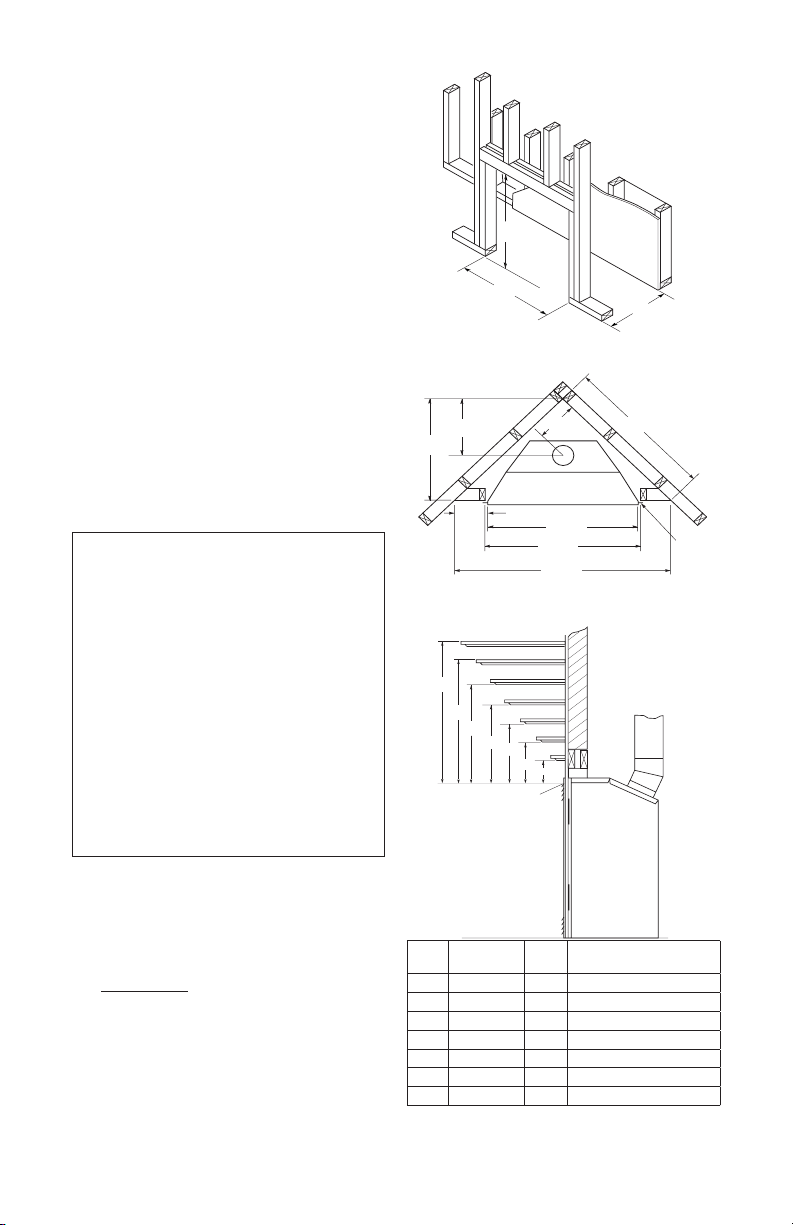

Figure 4 - Framing Clearances for
Installation Against an Exterior Wall
Figure 5 - Framing Clearances for Corner
Installation
C
B
A
DE
FG
T o p of Louver
Opening
3
2
1
4
5
6
7
Wa ll
Ref.
Mantel
Depth Ref.
Mantel from Top of
Louver Opening
114" A 16"
212" B 14"
310" C 12"
48" D 10"
56" E 8"
64" F 6"
72" G 4"
Figure 6 - Clearances for Combustible
Mantels
CLEARANCES
Minimum clearances to combustibles for the
replace are as follows:
*Back and sides 0"
Perpendicular walls 6"
Floor 0"
Ceiling to louver opening 42"
Front 36"
Top of Standoffs 0"
Vent (See venting instructions for
specic venting clearances.)
Combustible material with a maximum thick-
ness of 5/8" may be ush with the top front of
replace.
* For back and sides of replace, do not pack
with insulation or other materials. 0" clear-
ance to combustible materials are for framing
purpose only.
-
-
FRAMING AND FINISHING
Figure 4 shows typical framing of this replace.
Figure 5 shows framing for corner installation.
All minimum clearances must be met.
For available accessories for this replace,
see Accessories on page 36. If you are using
a separate combustible mantel piece, refer to
Figure 6 for proper installation height. You can
install noncombustible mantels at any height
above the replace.
Note: Noncombustible mantels may discolor!
323/8"
345/8"
19"
A
B
E
F
G
H
DC
Nailing Tabs
281/2"
135/8"393/8"
91/2"
97/8"343/8"
345/8"
541/8"
Nailing
Tabs
www.desatech.com
111986-01F 7
Figure 7 - Minimum Clearances for Termination Cap
LOCATION OF TERMINATION CAP
Fixed
Closed OpenableFixed
Closed
V
V
V
V
VV
V
V
X
X
VX
G
G
J
F
B
B
K
N
H
I
A
N
E
L
D
B
M
A
C
B
V
V
A
G
G
B
TERMINATION CAP AIR SUPPLY INLET GAS METERRESTRICTED AREA
(TERMINATION PROHIBITED)
A = clearance above grade, veranda, porch, deck, or
balcony [*12" (30.5 cm) minimum]
B = clearance to window or door that may be opened
[6" (15 cm) min. for 10,000 Btu or less; 9" (23 cm) in US
if between 10,000 and 50,000, 12" (30 cm) in Canada
if between 10,000 and 100,000; 12" (30 cm) in US if
greater than 50,000, 36" (91 cm) in Canada if greater
than 100,000]
C = clearance to permanently closed window
[minimum 12" (30.5 cm) recommended to prevent
condensation on window]
D = vertical clearance to ventilated soffit located above the
terminal within a horizontal distance of 24" (61 cm) from
the center-line of the terminal [18" (45.7 cm) minimum]
E = clearance to unventilated soffit [12" (30.5 cm) minimum]
F = clearance to outside corner (see below)
G = clearance to inside corner (see below)
H = *not to be installed above a meter/regulator assembly
within 36" (91.4 cm) horizontally from the center line
of the regulator
I = clearance to service regulator vent outlet [*72" (182.9 cm)
minimum]
J = clearance to non-mechanical air supply inlet to building
or the combustion air inlet to any other fireplace
[6" (15 cm) min. for 10,000 Btu or less; 9" (23 cm) in US
if between 10,000 and 50,000, 12" (30 cm) in Canada
if between 10,000 and 100,000; 12" (30 cm) in US if
greater than 50,000, 36" (91 cm) in Canada if greater
than 100,000]
K = clearance to a mechanical air supply inlet [*In Canada,
6 ft. (1.83m) minimum; In US 3 ft. (91 cm) above if within
10 ft. (3 m) horizontally]
L = † clearance above paved side-walk or a paved driveway
located on public property [*84" (213.3 cm) minimum]
M = clearance under veranda, porch, deck
[*12" (30.5 cm) minimum ‡]
N = clearance above a roof shall extend a minimum of
24" (61 cm) above the highest point when it passes
through the roof surface and any other obstruction within
a horizontal distance of 18" (45.7 cm)
† vent shall not terminate directly above a side-walk or paved driveway which is located between two
single family dwellings and serves both dwellings*
‡ only permitted if veranda, porch, deck or balconey is fully open on a minimum of 2 sides beneath the floor*
* as specified in CAN/CSA B149 (.1 or .2) Installation Codes (1991) for Canada and U.S.A.
Note: Local codes or regulations may require different clearances
A = 6" (15.2 cm)
Inside Corner
V
B
E
V
B = 6" (15.2 cm)
C = Maximum depth of 48" (121.9 cm)
for recessed location
D = Minimum width for back wall of
recessed location -
Combustible - 38" (965 mm)
Noncombustible - 24" (61 cm)
E = Clearance from corner in
recessed location-
Combustible - 6" (15.2 cm)
Noncombustible - 2" (5.1 cm)
Outside Corner Recessed Location
G
H
G = 12" (30.5 cm) minimum clearance
Balcony with No Side Wall
V
J
Combustible &
Noncombustible
H = 24" (61 cm)
J = 20" (50.8 cm)
Balcony with Perpendicular Side Wall
C
D
C
Termination Clearances for Buildings with Combustible and Noncombustible Exteriors
Openable
www.desatech.com 111986-01F8
VENTING INSTALLATION
NOTICE:Failure tofollowthese in-
NOTICE: Do not seal termination
INSTALLATION PRECAUTIONS
• Wear gloves and safety glasses for pro-
tection
• Use extreme caution when using ladders
or when on roof tops
• Be aware of electrical wiring locations in
walls and ceilings
The following actions will void the warranty
on your venting system:
• Installation of any damaged venting com-
ponent
• Unauthorized modication of the venting
system (Do not cut or alter vent compo-
nents)
• Installation of any component part not
manufactured or approved by DESA Heat-
ing, LLC.
• Installation other than as instructed by
these instructions
-
-
-
on the horizontal sections,
NOTICE: Read these instruc-
-
These models are tested and approved for
use with DESA Heating, LLC (direct-vent) pipe
components and terminations.
The venting system must terminate on the
outside of the structure and can not be at-
tached to a chimney or ue system serving a
separate solid fuel or gas burning appliance.
A direct-vent appliance must have its own
venting system. DO NOT common vent this
appliance.
These models are approved to be vented
either horizontally through an outside wall or
vertically through a roof or chase enclosure
using the following guidelines:
• When venting system terminates horizon-
tally on an outside wall, you may install
a standoff if the termination cap is to be
installed directly on a combustible nish
such as vinyl, wood, stucco, etc.
• Never run the vent downward as this may
cause excessive temperatures which
could cause a re.
• Vent pipe air space clearances to com-
bustibles are 1" on all sides except on the
horizontal sections, which requires 2" clear-
ance from the top of the pipe. Where the
termination cap penetrates a combustible
wall, 1" air space clearance is required.
• Snorkel terminations are required when
minimum clearance to grade cannot be
met (see Figure 16 on page 12).
• Have replace and selected vent compo-
nents on hand to help determine the exact
measurements when elbowing or offsetting.
Always use wall restops when penetrating
walls and restops when penetrating ceil-
ings or attic spaces.
• If using a venting conguration of only
horizontal venting with no vertical run, a
1/4" rise for every 12" of run toward the
termination is required.
WARNING: Read all instruc-
Failure to do so could result in
www.desatech.com
111986-01F 9

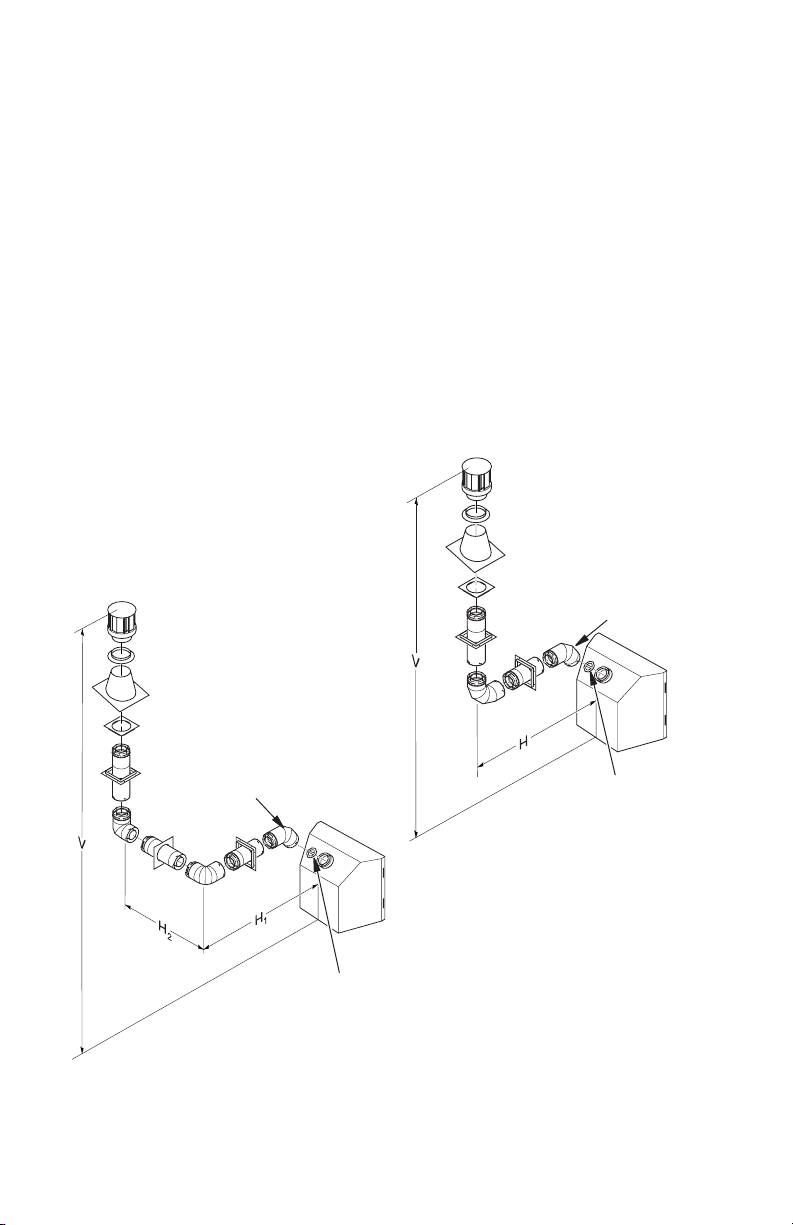

INSTALLATION PLANNING
There are two basic types of direct-vent
installation:
• Horizontal Termination
• Vertical Termination
Horizontal Termination Installation
IMPORTANT: Horizontal square terminations
require only inner portion of wall restop.
Horizontal installations using round termina-
tion require exterior portion of wall restop
available only in vent kit HTK (see Figure
14, page 11).
1. Set replace in its desired location and de-
termine the route your horizontal venting
will take. Do not secure replace until all
venting has been installed. Some instal-
lations require sliding replace in and out
of position to make nal venting connec-

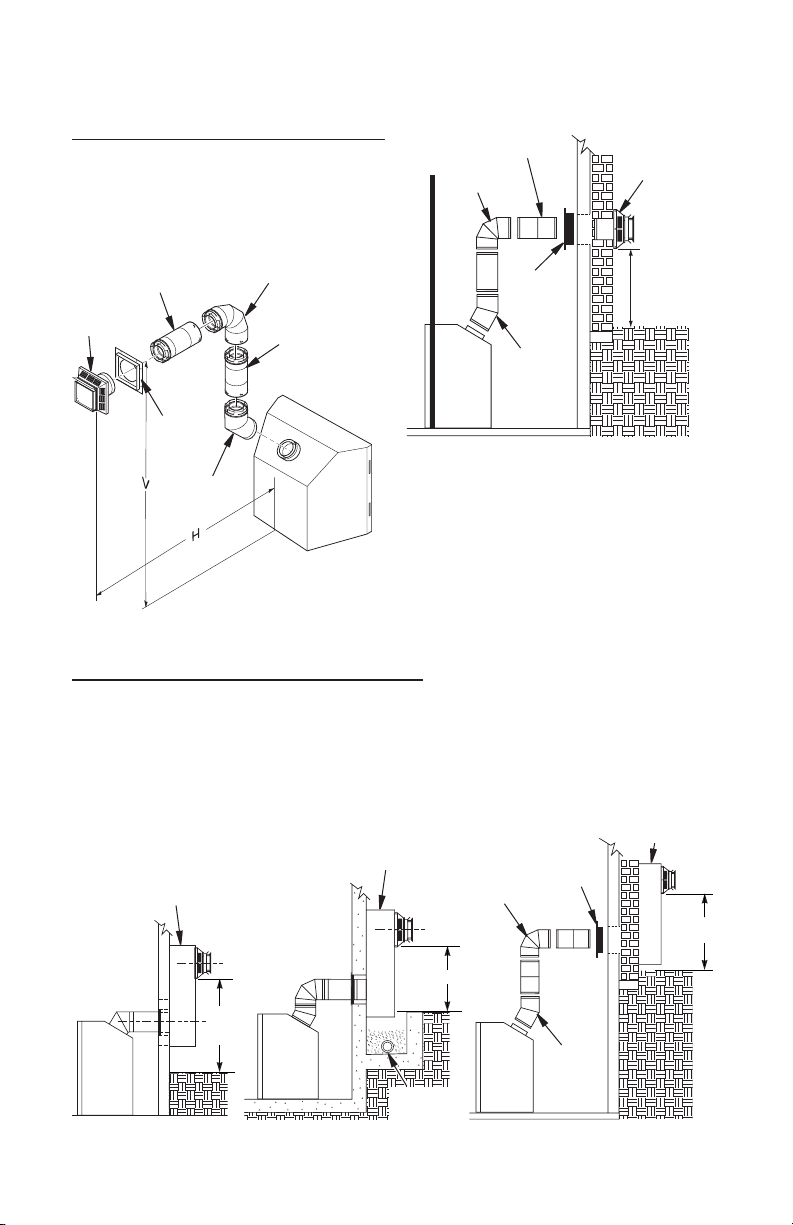

tions. Figures 14 through 18 on pages 10
through 13 show different congurations
for venting with horizontal termination that
will help you decide which application best
suits your installation. Check to see if wall
studs or roof rafters are in the path of your
desired venting route. If they are, you may
want to adjust location of replace.
2. Direct vent pipe sections and components
are designed with special twist-lock con-
nections.

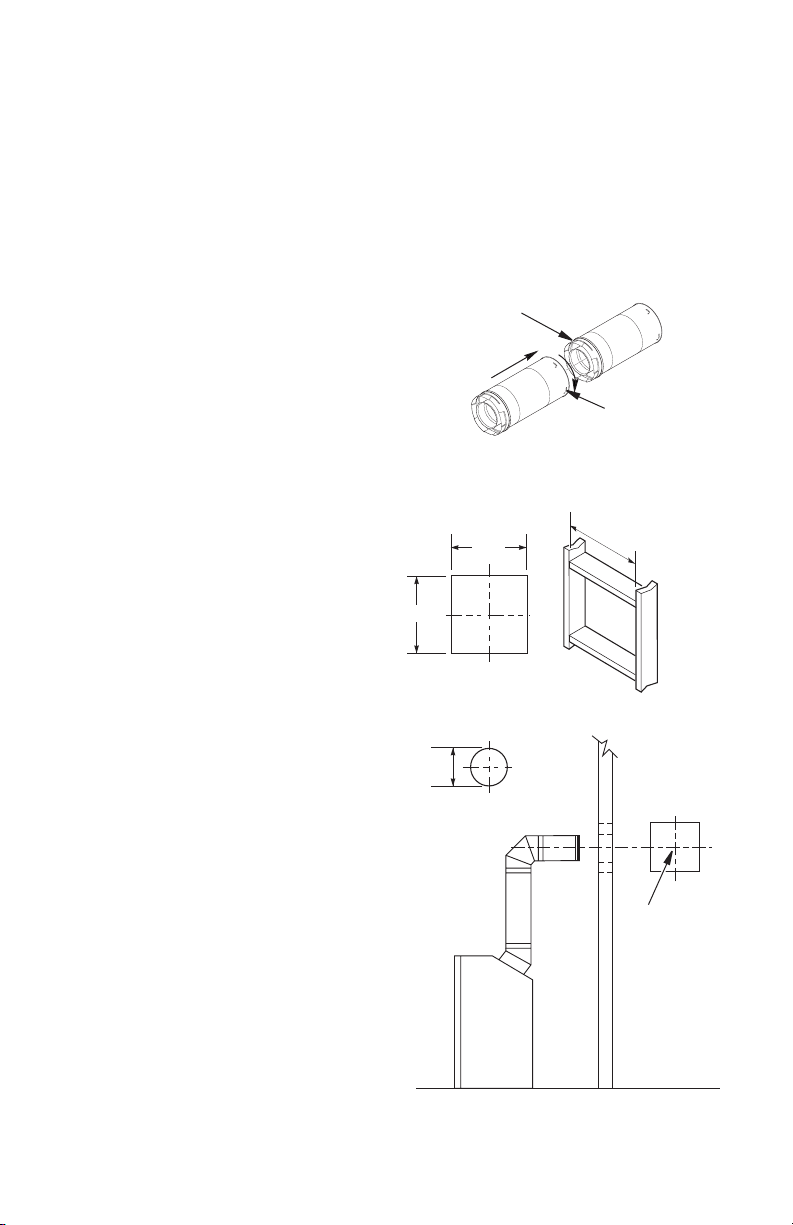

Twist-Lock Procedure: Female ends of
pipes have locking lugs (indentations).
These lugs will slide straight into match-
ing slots on male ends of adjacent pipes.
Push pipe sections together and twist
one section clockwise approximately one-
quarter turn until sections are fully locked
(see Figure 8). Note: Horizontal runs of
vent must be supported every three feet.
Use wall straps for this purpose.
3. Use a 45° elbow to connect venting sys-
tem to replace ue collar. The elbow is
designed to be twist-locked onto the ue
collar as described in step 2.
IMPORTANT: Do not attempt to alter
conguration of elbow by cutting, twisting,
bending, etc.
4. Assemble desired combination of pipe
and elbows to replace ue collar. If there
are long portions of venting run, pre-
assembled pipe sections may be installed
as subassemblies for convenience.
VENTING INSTALLATION
Continued
Figure 8 - Vent Pipe Connections
Female
Locking Lugs
Male
Slots
(Framing
Detail)
10"
10" Inside Framing
10"
7 3/4"
Vent Opening
Combustible Wall
Vent Opening
Noncombustible Wall
Figure 9 - Vent Opening Requirements
Center of
Hole
5. Carefully determine the location where
vent pipe assembly will penetrate outside
wall. The center of hole should line up with
center line of horizontal vent pipe. Mark
wall for a 10" x 10" square hole. Cut and
frame square hole in exterior wall where
vent will be terminated. If wall being pen-
etrated is constructed of noncombustible
material, such as masonry block or con-
crete, a 7 3/4" hole with zero clearance is
acceptable (see Figure 9).
www.desatech.com 111986-01F10
VENTING INSTALLATION
Continued
WARNING: Do not recess
6. Posi-
tion horizontal vent cap in the center of 7
3/4" round hole and attach to exterior wall
with four wood screws provided. Before
attaching vent cap to exterior wall, run a
bead of non-hardening mastic (pliable
sealant) around outside edges to make a
seal between it and outside wall.
Note: The four wood screws provided
should be replaced with appropriate fas-
teners for stucco, brick, concrete or other
types of sidings.
For vinyl
siding, stucco or wood exteriors, a siding
standoff may be installed between vent
cap and exterior wall. The siding standoff
prevents excessive heat from damaging
siding materials. Siding material must be
cut to accommodate standoff. Bolt vent
cap to standoff. Apply non-hardening
mastic around outside edge of standoff.
Position standoff/cap assembly in the
center of the 10" square hole and attach
to exterior wall with wood screws provided
(see Figure 11). Siding standoff must sit
ush against exterior fascia material.
7. Slide
wall restop over vent pipe before con-
necting horizontal run to vent cap (see
Figure 12).
8. Carefully move replace, with vent as-
sembly attached, toward wall and insert
vent pipe into horizontal termination. Pipe
overlap should be a minimum of 1 1/4" (see
Figure 13, page 11).
9. Slide
wall restop against interior wall surface
and attach with screws provided. See Fig-
ure 13, page 11, for horizontal termination
details.
10. Place replace into position and shim with
noncombustible material if needed. Nail or
screw side anges to framing to secure
unit in place. IMPORTANT: Make sure re-
place is level before securing. If replace
is not level it will not work properly.
Figure 10 - Installing Horizontal Vent Cap
(Noncombustible Exterior)
Wood Screw
Vent Cap
Figure 11 - Installing Siding Standoff
(Combustible Exterior Wall)
Cut Siding Away to
Fit Standoff
Wood
Screw
Screws
Standoff
Vent
Cap
Apply Mastic to
All Four Sides
Vent Cap
(Horizontal
Termination)
Interior Wall
Surface
Wall
Firestop
Horizontal
Vent Pipe
Figure 12 - Connecting Vent Cap with
Horizontal Vent Pipe
Screw
Apply Mastic to
All Four Sides
www.desatech.com
111986-01F 11
VENTING INSTALLATION
Continued
Figure 13 - Typical Horizontal
Termination Cap Mounting with
Additional Siding Standoff Installed
Siding Standoff
Screws
High Wind
Termination
Apply
Mastic to
Outside
Edge of
Standoff
Exterior Wall with Vinyl Siding
10" x 10" Framed
Opening
Maintain 1"
Minimum Air
Space Around
Outer Pipe When
Penetrating a Wall
Minimum Pipe
Overlap 11/4"
Wall
Firestop
Direct-Vent
Pipe
Figures 14 through 18 show different congura-
tions and alternatives for venting with horizontal
termination. Each gure includes a chart with
critical minimum and maximum dimensions
which MUST be met. IMPORTANT: If using
a venting configuration of only horizontal
venting with no vertical run, a 1/4" rise for
every 12" of run toward the termination is
required.
NOTICE: Do not seal termination
WARNING: Never run vent
downward as this may cause
-
GROUND FLOOR INSTALLATION
Recommended Applications:
• Installation using cabinet surrounds
• Through the wall using round or square
termination (up to 12" horizontal pipe)
• NOT FOR CORNER INSTALLATION
Horizontal
High Wind
Square
Termination
Wall Firestop
45° Elbow
Figure 14 - Horizontal Termination
Conguration for Square and Round
Terminations
45° Elbow
Wall
Firestop
Slide Ring
Over Elbow
to Complete
Connection
Exterior Portion
of Wall Firestop
(Round
Termination
Only)
Adjustable
Pipe 12" Max.
Round Termination
* If installing this replace at altitudes of
4000 feet and above, it is recommended
that an additional vertical height of 6" be
added to the vent system.
29" min. 17" Max.
Round
Termination
Cap
www.desatech.com 111986-01F12
CORNER AND ALTERNATE INSTALLATION
Recommended Applications:
• Corner ground oor installation
•
Ground oor installation where pipe vents hori-
zontally through wall (over 12" horizontal pipe)
•
Basement installation where one foot clear-
ance from ground to termination is possible
VENTING INSTALLATION
Continued
Figure 15 - Horizontal Termination Conguration for Corner Installation Using One
90° Elbow
Square
Termination
Wall
Firestop
Not to Exceed (H) Limits
As Required
for (V), See
Chart for
Pipe Section
Required
45° Elbow
90° Elbow
90° Elbow
Square
Termination
Wall
Firestop
45° Elbow
12" Min.
*40 1/2" min. None 30" max.
51 1/2" min. 1 ft. 48" max.
63 1/2" min. 2 ft. 60" max.
75 1/2" min. 3 ft. 84" max.
87 1/2" min. 4 ft. 20' max.
* Ground Floor Corner Venting
Not to Exceed
(H) Limits
Recommended Applications:
• Installations requiring a vertical rise on building exterior
• Any installation using snorkel termination to achieve one foot above ground
Snorkel terminations are available for installations requiring a vertical rise on the exterior of the building. If
installing snorkel termination below grade, you must provide proper drainage to prevent water from entering
snorkel termination (see Figure 16). Do not back ll around snorkel termination.
Snorkel Termination
12"
Min.
Snorkel
Termination
Wall
Firestop
90° Elbow
45° Elbow
Figure 16 - Snorkel Termination Congurations for Below Ground Installation
Snorkel Termination
Adequate
Drainage
12" Min.
12" Min.
www.desatech.com
111986-01F 13
VENTING INSTALLATION
Continued
Horizontal (H1
Horizontal (H1
Horizontal (H
5' min. 2' max. 6' max.
6' min. 4' max. 12' max.
7' min. 6' max. 18' max.
8' min. 8' max. 20' max.
20' max. 8' max. 20' max.
Figure 17 - Horizontal Termination Conguration for Venting Using Two 90° Elbows
45° Elbow
HORIZONTAL SYSTEM INSTALLATION
The following congurations show the minimum
vertical rise requirements for a horizontal sys-
tem using two 90° elbows.
Horizontal (H1
Horizontal (H
5' min. 6' max.
6' min. 12' max.
7' min. 18' max.
8' min. 20' max.
20' max. 20' max.
Figure 18 - Horizontal Termination Conguration for Venting Using Two 90° Elbows
with Termination at 90° with Fireplace
45° Elbow
www.desatech.com 111986-01F14
TERMINATION
Note: Vertical restrictor must be installed in
all vertical installations.
1. Determine the route your vertical venting
will take. If ceiling joists, roof rafters or
other framing will obstruct the venting
system, consider an offset (see Figure 19)
to avoid cutting load bearing members.
Note: Pay special attention to these instal-
lation instructions for required clearances
(air space) to combustibles when passing
through ceilings, walls, roofs, enclosures,
attic rafters, etc. Do not pack air spaces
with insulation. Also note maximum verti-
cal rise of the venting system and any
maximum horizontal offset limitations.
2. Set the replace in desired location. Drop
a plumb line down from the ceiling to the
position of the replace exit ue. Mark the
center point where the vent will penetrate
the ceiling. Drill a small locating hole at
this point.
Drop a plumb line from the inside of the
roof to the locating hole in the ceiling.
Mark the center point where the vent will
penetrate the roof. Drill a small locating
hole at this point.
1.
Cut a 10" square hole in the ceiling using
the locating hole as a center point. The
opening should be framed to 10" x 10"
inside dimensions, as shown in Figure 9
on page 9 using framing lumber the same
size as the ceiling joists. If the area above
the ceiling is an insulated ceiling or attic
space, nail restop from the top side. This
prevents loose insulation from falling into
the required clearance space. If the area
above the ceiling is a living space, install
restop below the framed hole. The restop
should be installed with no less than three
nails per side (see Figure 20).
2. Assemble the desired lengths of pipe
and elbows necessary to reach from the
replace ue up through the restop. Be
sure all pipe and elbow connections are
fully twist-locked (see Figure 8, page 9).
3. Cut a hole in the roof using the locating
hole as a center point. (Cover any exposed
open vent pipes before cutting hole in roof.)
The 10" x 10" hole must be measured on
the horizontal; actual length may be larger
depending on the pitch of the roof. There
must be a 1" clearance from the vent pipe to
combustible materials. Frame the opening
as shown in Figure 9, page 9.
4. Connect a section of pipe and extend up
through the hole.
VENTING INSTALLATION
Continued
Figure 19 - Offset with Wall Strap and 45°
Elbows
45° Elbow
Wall Strap
Roof Flashing
Ceiling Firestop Figure 20 - Installing Firestop
If area above is a living space, install
restop below framed hole.
If area above is an attic or insulated area,
install restop above framed hole.
www.desatech.com
111986-01F 15
Note: If an offset is needed to avoid
obstructions, you must support the vent
pipe every 3 feet. Use wall straps for this
purpose (see Figure 19, page 14). When-
ever possible, use 45° elbows instead of
90° elbows. The 45° elbow offers less
restriction to the ow of the ue gases
and intake air.
5. Place the ashing over the pipe section(s)
extending through the roof. Secure the
base of the ashing to the roof and fram-
ing with roong nails. Be sure roong
material overlaps the top edge of the
ashing as shown in Figure 19, page 14.
There must be a 1" clearance from the
vent pipe to combustible materials.
6. Continue to add pipe sections until the
height of the vent cap meets the minimum
building code requirements described in
Figure 7 on page7
VENTING INSTALLATION INSTRUCTIONS
Continued
Figures 21 through 24 show four different
congurations for vertical termination.
Horizontal (H1
Horizontal (H
5' min. 2' max.
6' min. 4' max.
7' min. 6' max.
8' min. 8' max.
20' max. 8' max.
Figure 21 - Vertical Venting
Conguration Using Two 90° Elbows
with Two Horizontal Runs (Vertical
Round High Wind Termination Shown)
Note: Install restrictor
into inner collar of
replace as shown.
45° Elbow
5' min. 2' max.
6' min. 4' max.
7' min. 6' max.
8' min. 8' max.
20' max. 8' max.
Figure 22 - Vertical Venting
Conguration Using One 90° Elbow
(Vertical Round High Wind Termination
Shown)
45° Elbow
Note: Install restrictor into
inner collar of replace as
shown.
Note: You must increase vent height for
steep roof pitches. Nearby trees, adjoining
rooines, steep pitched roofs and other
similar factors may cause poor draft or
down-drafting in high winds. Increasing
the vent height may solve this problem.
7. Twist-lock the vent cap onto the last sec-
tion of vent pipe.
Note: If the vent pipe passes through any oc-
cupied areas above the rst oor, including
storage spaces and closets, you must enclose
pipe. You may frame and sheetrock the en-
closure with standard construction material.
Make sure and meet the minimum allowable
clearances to combustibles. Do not ll any of
the required air spaces with insulation.
www.desatech.com 111986-01F16
VENTING INSTALLATION
Continued
Note: Install
restrictor into
inner collar of
replace as
shown.
1
5' min. 6' max.
6' min. 12' max.
7' min. 18' max.
8' min. 20' max.
Note: Vertical (V1) + Vertical (V2) = 40' max.
Figure 23 - Vertical Venting
Conguration Using Two 90° Elbows
(Vertical Round High Wind Termination
Shown)
45° Elbow
V = 40' max.
Figure 24 - Vertical Venting
Conguration With No Horizontal Run
(Vertical Round High Wind Termination
Shown)
Note: Install
restrictor into
inner collar of
replace as
shown.
45° Elbow
HIGH ALTITUDE INSTALLATION
Your DESA Heating, LLC direct-vent replace
has been tested and approved for elevations
from 0-2,000 feet (USA) and elevations from
0-4,500 feet (Canada).
When installing this replace at an elevation
above 2,000 feet (in the USA), you may need
to decrease the input rating by changing the
existing burner orice to a smaller size. Re-
duce input 4% for each 1,000 feet above sea
level. Check with your local gas company for
proper orice size identication.
When installing this replace at an elevation
above 4,500 feet (in Canada), check with
local authorities.
Consult your local gas company to help deter-
mine the proper orice for your location.
For assistance with any high altitude in-
stallation, contact DESA Heating, LLC at
1-866-672-6040.
www.desatech.com
111986-01F 17
AND COMPONENTS
P47-6 6" Section Coaxial Pipe,
Galvanized
P47-12 12" Section Coaxial Pipe,
Galvanized
P47-24 24" Section Coaxial Pipe,
Galvanized
P47-36 36" Section Coaxial Pipe,
Galvanized
P47-48 48" Section Coaxial Pipe,
Galvanized
PA47-712 Adjustable 7"-12" Section
Coaxial Pipe, Galvanized
VKG-47 Ground Floor Vent Kit, Galvanized
(Includes: 45° Elbow, 7"-12"
Adjustable Pipe, Wall Firestop,
Horizontal Square Termination,
16 Screws)
VKB-47 Basement Vent Kit, Galvanized
(Includes: 45° Elbow, 7"-12"
Adjustable Pipe, Wall Firestop,
Horizontal Square Termination,
4' Pipe, 90° Elbow, 20 Screws)
VKS-47 Snorkel Vent Kit, Galvanized
(Includes: 45° Elbow, 7"-12"
Adjustable Pipe, Wall Firestop,
36" Snorkel Termination, 4' Pipe,
1' Pipe, 90° Elbow, 26 Screws)
VKR-47 Roof Vent Kit, Galvanized
(Includes: 45° Elbow, 7"-12"
Adjustable Pipe, Flue Restrictor,
Vertical High Wind Termination,
2' Pipe, 4' Pipe, Wall Firestop,
Storm Collar, Roof Flashing
[0/12 - 6/12], 26 Screws)
VKC-47 Corner Vent Kit, Galvanized
(Includes 45° Elbow, 7"-12"
Adjustable Pipe, Wall Firestop,
Horizontal Termination, 6" Pipe,
90° Elbow, 18 Screws)
VENTING INSTALLATION
Continued
HTK Horizontal Round Termination Kit
(Includes: Round Termination,
Wall Firestop and 45° Elbow)
HTKS-47 Horizontal Square Termination Kit
(Includes: Square Termination,
Wall Firestop, 45° Elbow)
E47-45 45° Elbow, Galvanized
E47-90 90° Elbow, Galvanized
DESA Terminations
HT-47 Horizontal Round Termination,
Galvanized
HTS-47 Horizontal Square Termination,
Galvanized
VT-47 Vertical Round Termination,
Galvanized
ST-47-14 14" Snorkel Termination,
Galvanized
ST-47-36 36" Snorkel Termination,
Galvanized
SC-47 Storm Collar, Galvanized
WF-47 Wall Firestop, Galvanized
RF-47-6 Roof Flashing - 0 to 6/12 Pitch,
Galvanized
RF-47-12 Roof Flashing - 6/12 to 12/12 Pitch,
Galvanized
VR-47 Vertical Restrictor, Galvanized
S-47 Combustible Siding Standoff,
Galvanized
WS-47 Wall Strap
FP-47 Firestop Plate
www.desatech.com 111986-01F18
FIREPLACE
INSTALLATION
Use proper gas type for replace unit you are
installing. If your gas supply is not correct, do
not install replace. See retailer where you pur-
chased the replace for proper replace accord-
ing to your gas type or to purchase gas conver-
sion kit (see Accessories, page 36). A conversion
kit is supplied with the CHDV32NR.
ACCESSORIES
-
electrical outlet installed in the
Follow all instructions provided in blower
accessory kit.
1. Attach power cord to blower motor by
rmly pushing two female terminals at end
of power cord onto two spade terminals
on blower motor (see Figure 25).
2. Attach green ground wire from power cord
to blower housing using screw provided
(see Figure 25). Tighten screws securely.
3. Place blower against lower rear wall of
rebox outer wrapper with exhaust port
directed upward. The blower will t inside
back opening and be held in position against
back wall by magnets (see Figure 25).
4. Be certain that all wire terminals are
securely attached to terminals on blower
motor and screw retaining green ground
wire is tight.
5. Mount speed control box to switch bracket
by placing plastic control shaft forward
through opening in switch bracket (see
Figure 26).
6. While supporting speed control, secure
control shaft with lock nut by pushing and
turning lock nut with pliers clockwise until
it is tight against front panel. Place control
knob provided on shaft.
7. Turn on power to duplex outlet if previously
turned off per the warning in column 1.
8. Plug in blower power cord.
a. If your rebox is installed as a free-
standing unit with an accessory man-
tel, determine whether power cord will
exit left side or right side of rebox.
Route power cord through exit hole
and plug power cord into a wall recep-
tacle near rebox.
b. If your rebox installation is recessed
and/or pre-wired, plug power cord into
duplex outlet provided. Refer to your
rebox owner’s manual for instructions
on wiring duplex outlet.
CAUTION: Never touch the
Figure 25 - Blower Model BK
Green
Ground Wire Screw
Spade
Terminals Magnetic
Strips
Exhaust
Port
Side View
Lower Firebox
Cavity
Blower
Location
Figure 26 - Attaching Speed Control to
Firebox
Switch
Bracket
Locknut
Control
Shaft
Control
Knob
Speed
Control
Blower
Plug-In
Duplex Outlet
(Located under-
neath rebox oor
against lower right
outside wall)
www.desatech.com
111986-01F 19
FIREPLACE
INSTALLATION
Continued

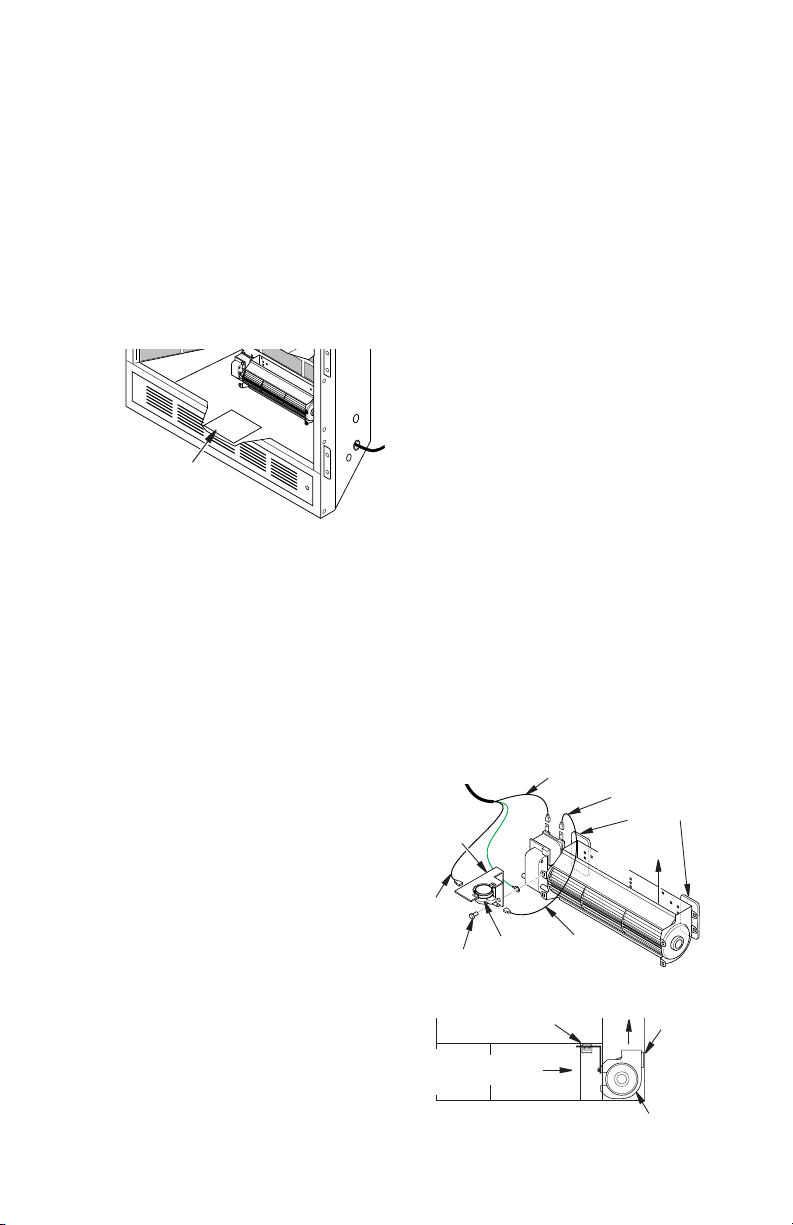

Figure 27 - Location of Wiring Diagram
Decal (Model May Vary from Illustration)
Wiring Diagram
Decal 12" in Front
of Burner
9. Check to make sure power cord is com-
pletely clear of blower wheel and there are
no other foreign objects in blower wheel.
Turn blower on and check for operation.
Turn blower off by turning knob fully coun-
terclockwise before continuing.
10. Peel off backing paper and stick supplied
wiring diagram decal on rebox bottom
approximately 12" in front of blower (see
Figure 27).
Note: When installing BKT thermostatically-
controlled blower, you must first secure
thermal switch bracket to blower if it has not
already been factory installed.
1. Place green ground wire with ring terminal
between bottom hole on thermal switch
bracket and top ear hole on blower assem-
bly. Insert phillips screw into all three pieces
and tighten securely (see Figure 28).
2. Connect wire harness and power cord ter-
minals. Connect blue jumper wire to blower
motor terminal and right side terminal of
thermal switch. Connect black wire to left
side of thermal switch and white wire to
other remaining blower motor terminal.
Note: Power cord outer insulation sleeve may
have to be stripped slightly to allow enough wire
length to reach and make all connections. DO
NOT trim excessive length away. Just enable
enough to make all connections securely.
3.
Place blower against lower rear wall of rebox
outer wrapper with exhaust port directed
upward and thermodisc positioned up near
replace bottom. Thermodisc must be oriented
near replace bottom as shown in Figure 28
in order to sense temperature and properly
operate. Blower will be held in position against
back wall by magnets incorporated onto
blower housing (see Figure 28).
4. Be certain that all wire terminals are
securely attached to terminals on blower
motor and thermal switch, and that screw
for thermodisc bracket and green ground
wire is tight.
5. Mount speed control box against mounting
plate provided in lower replace cavity by
placing plastic control shaft forward through
round hole (see Figure 26, page 18).
6. While supporting speed control, secure
control shaft with lock nut by pushing and
turning lock nut with pliers clockwise until
it is tight against mounting plate. Place
control knob provided on shaft (see Figure
26, page 18).
7. Check to make sure power cord is com-
pletely clear of blower wheel and that no
other foreign objects are in blower wheel.
Also double check all wire leads and make
sure wire routing is not pinched or in a
precarious position. Correct accordingly.
8. Turn on power to duplex outlet if previ-
ously turned off per warning in column 1,
page 18.
9. Plug in blower power cord to duplex outlet.
10. Blower will only run when speed control
knob is in ON position and thermal switch
senses temperature after replace begins
to heat up. Blower speed can be adjusted
by rotating control knob. To turn off, turn
knob fully counterclockwise until it clicks off.
If blower is ON and has been running with
replace operating, blower will continue to
run for a short time after replace has been
turned off. As thermal switch cools down,
blower shuts down automatically.
Figure 28 - Blower Model BKT
Black
Wire
Phillips
Screw
Blue Wire
Ring
Terminal on
Green Wire
White Wire
Thermal
Switch
Thermal
Switch
Bracket
Power Cord
Air Flow
Direction
Magnetic
Strips
Side View Firebox Bottom
Route BKT Blower
Through This Area
Thermodisc
Air Flow
Direction Magnets
Blower
www.desatech.com 111986-01F20
11. Peel off backing paper and stick supplied
wiring diagram decal on rebox bottom
approximately 12" in front of blower (see
Figure 27, page 19).
-
FIREPLACE
INSTALLATION
Continued
Figure 29 - Blower Wiring Diagram for
Thermostat-Controlled Models
Blue
Va riable
Fan Switch Fan Switch
(N.O.)
Green
White
On
11 0/115
V. A.C.
Blower
Motor
Black
Off 1
2Black
INSTALLING GAS PIPING TO
FIREPLACE LOCATION
WARNING: For natural
Installation Items Needed
Before installing replace, make sure you have
the items listed below.
• external regulator (supplied by installer)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench
• approved exible gas line with gas connec-
tor (if allowed by local codes)
* A CSA design-certied equipment shutoff
valve with 1/8" NPT tap is an acceptable alter-
native to test gauge connection. Purchase the
CSA design-certied equipment shutoff valve
from your retailer.
For propane/LP connection only, the installer
must supply an external regulator. The ex-
ternal regulator will reduce incoming gas
pressure. You must reduce incoming gas
pressure to between 11" and 14" of water. If
you do not reduce incoming gas pressure,
replace regulator damage could occur. Install
external regulator with the vent pointing down
as shown in Figure 30. Pointing the vent down
protects it from freezing rain or sleet.
CAUTION: Use only new,
-
-
Figure 30 - External Regulator with Vent
Pointing Down (Propane/LP Only)
Propane/LP
Supply Tank
External
Regulator
with Vent
Pointing
Down
Other manuals for VT32N Series
2
This manual suits for next models
4
Table of contents
Other Desa Indoor Fireplace manuals
Desa
Desa Comfort Glow CGCF26NRA Quick start guide
Desa
Desa VMH10TPB Quick start guide
Desa
Desa Comfort Glow LFP33NRA Quick start guide
Desa
Desa V36N-A Series Quick start guide
Desa
Desa VTC36PE SERIES Quick start guide
Desa
Desa Vanguard VCGF30PR Quick start guide
Desa
Desa Vanguard VSGF33NR Quick start guide
Desa
Desa Vm42eP Quick start guide
Desa
Desa Variable Manually-Controlled Models Quick start guide
Desa
Desa CGEFP33NRB Quick start guide
Desa
Desa VYGF33NR Quick start guide
Desa
Desa THE SAVANNAH V3610ST User manual
Desa
Desa Comfort Glow CF26NR Quick start guide
Desa
Desa CDCFNR Quick start guide
Desa
Desa Comfort Glow CGCF26TPA Quick start guide
Desa
Desa P324E Quick start guide
Desa
Desa MSBVBN Quick start guide
Desa
Desa Wall Mantel and Base with Trim W32DS Instruction manual
Desa
Desa Design Dynamics VTD-18N-BTB Quick start guide
Desa
Desa VSGF36NRC Quick start guide
Popular Indoor Fireplace manuals by other brands
Home Decorators Collection
Home Decorators Collection 617 452 Use and care guide
Dru
Dru Maestro 75 RCH instruction manual
Valor
Valor Regency OXYSAFE 2 Installer's guide
Lennox
Lennox EDV3530CNM-B Care and operation instructions
Isokern
Isokern Magnum 86072-60 Installation, operation and owner's manual
Riello
Riello RX 700 S/PV Installation, use and maintenance instructions
Coleman
Coleman 5059-700 Assembly and instruction manual
DelRay
DelRay DHS Installation operation & maintenance
Pacific Living
Pacific Living PL8304SS owner's manual
Nordica
Nordica TERMOCAMINO Series user manual
barbas
barbas Unilux-7 45 user manual
Majestic
Majestic 360DVS2 Installation instructions & homeowner's manual
Kohlangaz
Kohlangaz Delamere Plus Installation, maintenance & user instructions
Dimplex
Dimplex CHT20LE Installation and operating instructions
BIS
BIS TRADITION CE 506128-19 Installation and operation instructions
Jøtul
Jøtul F 500 ECO Installation and operating instructions
Dimplex
Dimplex HDN20-EU owner's manual
IHP
IHP capella 27 Installation and operation instruction
