Desis CWS Series User manual

CWS Seres Weghng Platform Scales Operaton Manual
Contents
1 INTRODUCTION..................................................................................................................................3
2 SPECIFICATIONS................................................................................................................................4
3 INSTALLATION....................................................................................................................................5
3.1 GENERAL INSTALLATION..........................................................................................................5
4 KEY DESCRIPTIONS..........................................................................................................................6
5 DISPLAYS............................................................................................................................................7
6 OPERATION.........................................................................................................................................8
6.1 Zeroing The Display.....................................................................................................................8
6.2 Taring............................................................................................................................................8
6.3 Weighing a sample.......................................................................................................................8
6.4 Check-Weighing...........................................................................................................................9
6.4.1 About check-weighing..........................................................................................................9
6.4.2 Set limits...............................................................................................................................9
6.4.3 Set check weighing mode.....................................................................................................9
6.5 Accumulated Total........................................................................................................................9
6.5.1 Accumulate operate............................................................................................................10
6.5.2 Memory recall.....................................................................................................................10
6.5.3 Memory clear......................................................................................................................10
6.5.4 Automatically accumulate...................................................................................................10
6.6 Animal Scales.............................................................................................................................10
6.7 Keyboard lock.............................................................................................................................11
6.8 Set backlight...............................................................................................................................11
6.9 Set auto power off......................................................................................................................11
7 BATTERY OPERATION.....................................................................................................................12
8 RS-232 OUTPUT................................................................................................................................13

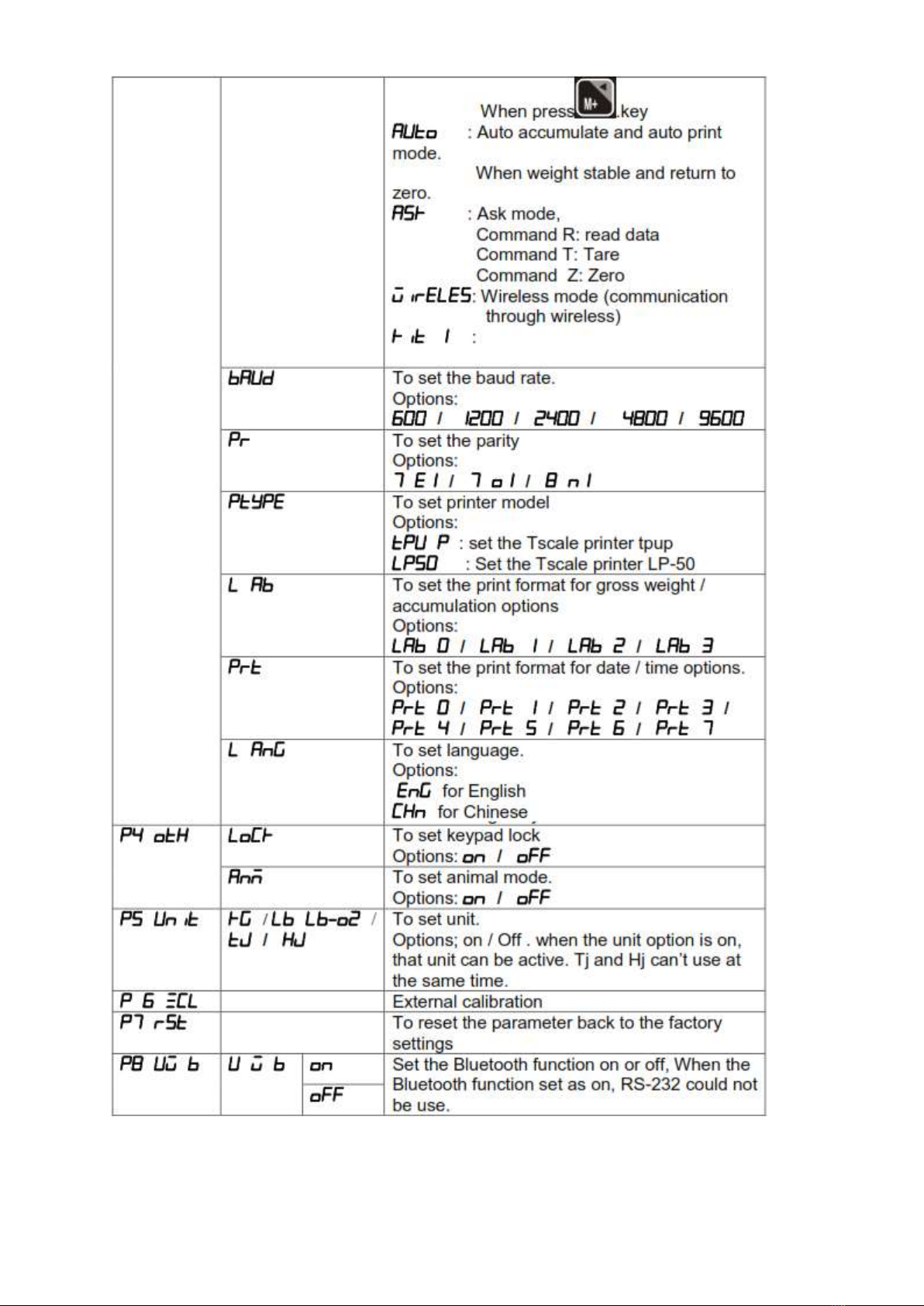

9 PARAMETERS...................................................................................................................................14
10 ERROR CODES.............................................................................................................................16
1 INTRODUCTION
The BWS seres of weghng ndcator provdes an accurate, fast and versatle seres
-2-

CWS Seres Weghng Platform Scales Operaton Manual
of general purpose weghng scale wth check-weghng functons.
All the dsplays are large easy to read lqud crystal type dsplays (LCD). The LCD’s
are suppled wth a LED backlght.
All unts nclude automatc zero trackng, audble alarm for pre-set weghts, and an
accumulaton faclty that allows the ndvdual weghts to be stored and recalled as
an accumulated total.
-3-

CWS Seres Weghng Platform Scales Operaton Manual
2 SPECIFICATIONS
Model CWS
Resoluton 3000e ; DUAL RANGE
Interface RS-232 Output Optonal
Stablsaton Tme 1 Seconds typcal
Operatng
Temperature -10°C - 40°C / 22°F - 104°F
Power supply External AC adapter, 9V 800mA
Calbraton Automatc External
Dsplay 51/2 dgts LCD dsplay wth 52mm hgh dgts, attached LED
backlght
Balance Housng Stanless Steel Indcator
Load cell drve
voltage Max 5V/150mA
Load cells Up to four 350 ohms cells
-4-

CWS Seres Weghng Platform Scales Operaton Manual
3 INSTALLATION
3.1 GENERAL INSTALLATION
The scales should be sted n a locaton that wll not degrade the
accuracy.
Avod extremes of temperature. Do not place n drect sunlght or near ar
condtonng vents.
Avod unsutable tables. The tables or floor must be rgd and not vbrate. Do not
place near vbratng machnery.
Avod unstable power sources. Do not use near large users of electrcty such as
weldng equpment or large motors.
Avod hgh humdty that mght cause condensaton. Avod drect contact wth
water. Do not spray or mmerse the scales n water.
Keep the ndcator clean.
-5-

CWS Seres Weghng Platform Scales Operaton Manual
4 KEY DESCRIPTIONS
ON/ OFF or
Turn on or off the power.
Zero
Set the zero pont for all subsequent weghng. The dsplay shows zero.
A secondary functonof "Enter" key when settng parameters or other functons.
Tare
Tares the scale. Stores the current weght n memory as a tare value, subtracts
the tare value from the weght and shows the results.
A secondary functon ncrementng the actve dgt when settng a value for
parameters or other functons.
Press Zero and Tare key together n normal weghng mode wll turn on/off anmal
scale functon.(when enter/escape anmal scale mode, you wll hear beeper on twce)
MR
Memory recall key, show total accumulate weght n memory.
In settng mode, ths key used to move actve dgts rght.
M+
Accumulate key, store current weght n memory.
In settng mode, ths key used to move actve dgts left.
Press M+ and MR key for MC (memory clear)
Prnt
To prnt the results to a PC or prnter usng the optonal RS-232 nterface.
Press Prnt durng selfcheckng wll enter settng mode.
G/N
Gross weght/net weght shft key
Secondary functon (ESC) , s to return to normal operaton when the scale s n a
parameter settng mode.
Press G/N and Prnt key together for settng check Weghng lmt.
-6-

CWS Seres Weghng Platform Scales Operaton Manual
5 DISPLAYS

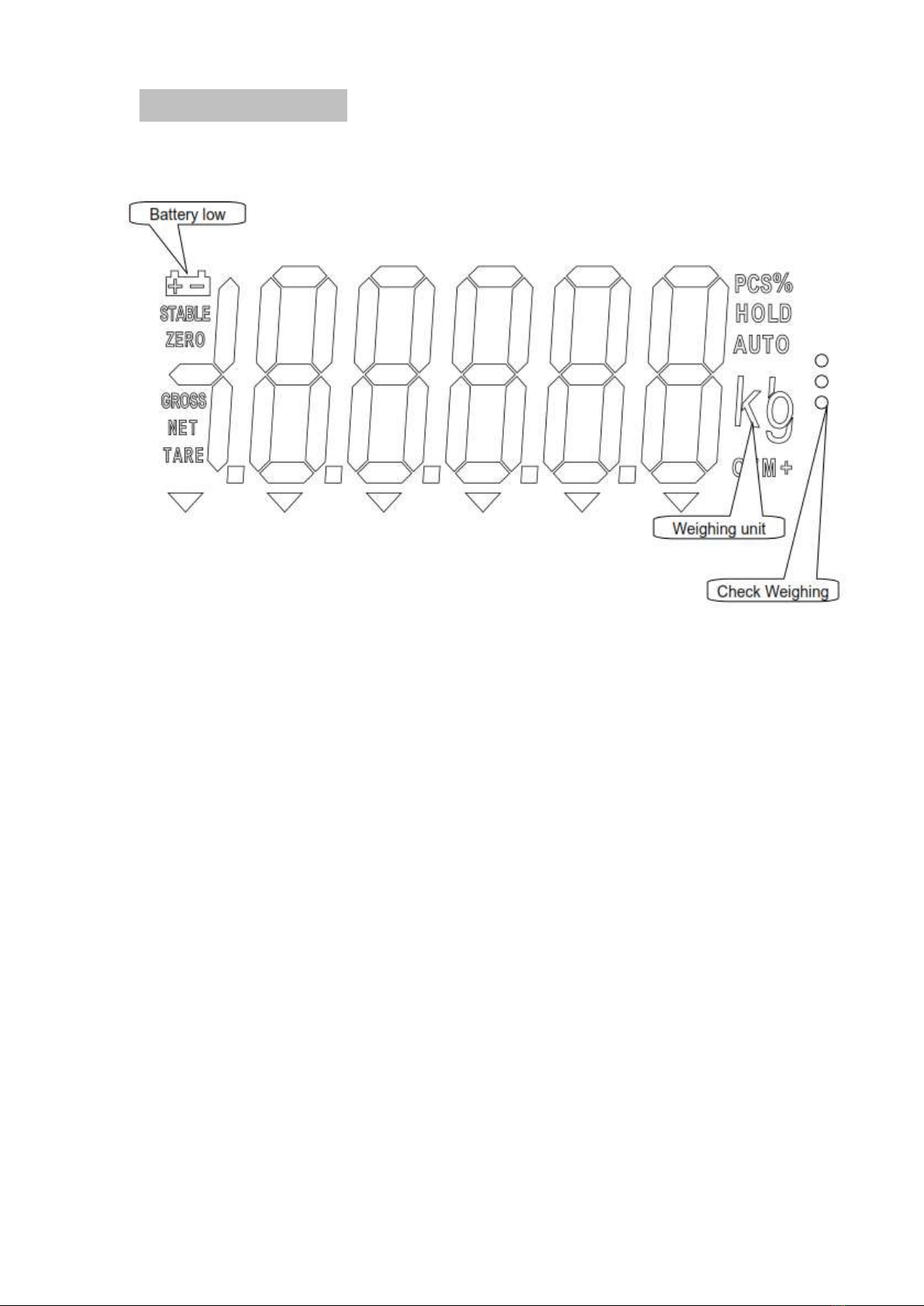

The LCD dsplay wll show a value and a unt to the rght of the dgts.
In addton there are labels for TARE, GROSS weght, Zero and for Low battery
-7-

CWS Seres Weghng Platform Scales Operaton Manual
6 OPERATION
6.1 Zerong The Dsplay
You can press the ZERO key at any tme to set the zero pont from whch all other
weghng and countng s measured, wthn +/-2% of power up zero. Ths wll usually
only be necessary when the platform s empty. When the zero pont s obtaned the
dsplay wll show the ndcator for zero.
The scale has an automatc rezerong functon to account for mnor drftng or
accumulaton of materal on the platform. However you may need to press the ZERO
key to rezero the scale f small amounts of weght are shown when the platform s
empty.
6.2 Tarng
Zero the scale by pressng the ZERO key f necessary. The zero ndcator wll be on.
Place a contaner on the platform, a value for ts weght wll be dsplayed.
Press the TARE key to tare the scale. The weght that was dsplayed s stored as the
tare value and that value s subtracted from the dsplay, leavng zero on the dsplay.
The "NET" ndcator wll be on. As product s added only the weght of the product wll
be shown. The scale could be tared a second tme f another type of product was to
be added to the frst one. Agan only the weght that s added after tarng wll be
dsplayed.
When the contaner s removed a negatve value wll be shown. If the scale was tared
just before removng the contaner ths value s the gross weght of the contaner plus
all product that was removed. The zero ndcator wll also be on because the platform
s back to the same condton t was when the ZERO key was last pressed.
6.3 Weghng a sample
To determne the weght of a sample frst tare the empty contaner then place the
sample n the contaner. the dsplay wll show the weght and the unts of weght
currently n use.
-8-

CWS Seres Weghng Platform Scales Operaton Manual
6.4 Check-Weghng
6.4.1 About check-weghng
Check-weghng s a procedure to cause an alarm to sound when the weght on the
scale meets or exceeds values stored n memory. The memory holds values for a
hgh lmt and a low lmt.
Check mode OK:
When check range, the dsplay wll show OK and the beeper wll sound when the
weght s between the lmts.
Check mode NG:
When check range, the dsplay wll show OK and the beeper wll sound when the
weght s out of the lmts.
6.4.2 Set lmts
Press G/N and PRINT key together, t wll dsplay “
set
h”, use TARE key to select
“SET H” or “SET L”, press ZERO key to enter, use M+ and MR key to move
actve dgt, use TARE key to change value, use Prnt key to clear value. After
you enter the value, press ZERO key to sure, press G/N key to escape.
6.4.3 Set check weghng mode
Press G/N and prnt key together, t wll dsplay “
set
h”, use TARE key to select
beep, press ZERO key to enter, press TARE key to select ok(check mode OK),
ng
(check mode NG), no(no beep), press ZERO key to sure, press G/N key to escape.
NOTE
Checkweghng functon only avalable when weght more than 20d (mn).
To dsable the Check-Weghng functon enter zero nto both lmts by pressng the
PRINT key when the current lmts are shown then pressng ZERO to store the zero
values.
6.5 Accumulated Total
The scale can be set to accumulate manually by pressng the M+ key. See the
PARAMETERS Secton for detals of selectng the method usng functon "P2
com
".
Please note before every accumulate operate, scale need return to zero, and only
press M+ key when stable, when weght less than 20d, accumulate operate wll be
nvald.
-9-

CWS Seres Weghng Platform Scales Operaton Manual
6.5.1 Accumulate operate
The weght dsplayed wll be stored n memory when the M+ key s pressed and the
weght s stable.
The dsplay wll show "ACC 1" and then the total n memory for 2 seconds before
returnng to normal. (after do accumulate operate, “M+” ndcator wll turn on) If the
optonal RS-232 nterface s nstalled the weght wll be output to a prnter or PC.
Remove the weght, allowng the scale to return to zero and put a second weght on.
Press the M+ key, the dsplay wll show "ACC 2" and then the new total.
Contnue untl all weghts have been added.
6.5.2 Memory recall
To vew the totals n memory press MR key.
6.5.3 Memory clear
To clear the memory, just press M+ and MR together
6.5.4 Automatcally accumulate
Press Prnt key durng selfcheckng, enter settng mode, press Tare key untl dsplay
show “
P2 COM ”,
press ZERO key to enter, press TARE key to select “mode”, press
ZERO key to sure, dsplay wll show current RS-232 mode, press TARE key to select
Auto
. After you set, AUTO ndcator on.
Press weght on platform, after stable, you wll hear beep on twce, you can add or
remote weght now, scale wll beep on agan after stable, at last, remove all weght
on platform, the last weght value wll store n memory
6.6 Anmal Scales
Let the anmal on the platform, after some second, f readng data change not a lot,
you can hear beep sound and readng data wll be locked.
In readng data lock mode, f you add/remove bg weght, dsplay wll stll update and
lock new readng data.
You can press ZERO TARE together to enter/escape anmal weghng mode.
-10-

CWS Seres Weghng Platform Scales Operaton Manual
6.7 Keyboard lock
You can use keyboard lock when ths functon enable after keyboard haven’t use for
10 mnutes, keyboard wll be lock, after enter lock status, f you press any key, dsplay
wll show “
K-LCK
”.
If you want to escape lock mode and return work mode, hold PRINT , MR , ZERO
key 2 seconds, dsplay wll show
“ ULCK ”,
return normal mode.
6.8 Set backlght
Hold ZERO key 3 second, display will show ”
setbl
“, press ZERO key to enter
backlight setting, press TARE key to change backlight mode (BL
ON:
always on,
BL
AU: auto backlight, backlight will on when press any key or add load on scale,
BLOFF: backlight always off), press ZERO key to sure, press G/N key to escape.
6.9 Set auto power off
Hold ZERO key 3 second, dsplay wll show ”
setbl
“, press TARE key,
dsplay show “
setoff
”, press ZERO key to enter auto power off settng, press
TARE key to change auto power off tme (
of ON:
always on,
of
5: auto power off
after standby 5 mnutes,
of
15: auto power off after standby 15 mnutes), press
ZERO key to sure, press G/N key to escape.
-11-

CWS Seres Weghng Indcator Operaton Manual
7 BATTERY OPERATION
The weghng ndcator can be operated from the battery f desred. The battery lfe s
approxmately 70 hours.
When the battery needs chargng a symbol on the weght dsplay wll turn on. The
battery should be charged when the symbol s on. The scale wll stll operate for
about 10 hours after whch t wll automatcally swtch off to protect the battery.
To charge the battery smply plug nto the mans power. The scale does not need to
be turned on.
The battery should be charged for 12 hours for full capacty.
Just under the quantty dsplay s an LED to ndcate the status of battery chargng.
When the scale s plugged nto the mans power the nternal battery wll be charged.
If the LED s green the battery has a full charge. If t s Red the battery s nearly
dscharged and yellow ndcates the battery s beng charged.
As the battery s used t may fal to hold a full charge. If the battery lfe becomes
unacceptable then contact your dstrbutor.
-12-

CWS Seres Weghng Indcator Operaton Manual
8 RS-232 OUTPUT
The CWS Seres of scales can be ordered wth an optonal RS-232 output.
Basc nformaton
Specfcatons:
RS-232 output of weghng data
ASCII code
7/8 data bts
Party setable
Baud rate from 600bps to 9600bps
Connector: 25 pn d-submnature socket
Pn 2: Input,
Pn 3: Output
Pn 5: Sgnal Ground
Normal prnt out
Data Format for normal weghng operatons, parts countng or recallng of totals from
memory wll all be dfferent. Examples follow:
Normal Output
S/N The number ncrements every tme a new value s stored n memory
GW GW for gross weght, NT for net weght and a unt of weght
<If>
<If> Includes 2 lne feeds
When recallng the Total weght stored n the accumulaton memory the output
format s:
*************** A lne of stars s shown
<lf> Includes 1 lne feed
Total No: 3 Tmes of the accumulaton memory
Total wt.: 0.447KG Weght of the accumulaton memory
***************
Contnuously output protocol
con1: weghng mode
-
/
k g CR LF
-HEADER1-- - HEADER2- --- WEIGHT DATA --
-
W
E
I
G
H
T
U
N
I
T
- TERMINATOR
HEADER1: ST=STABLE US=UNSTABLE
HEADER2: NT=NET GS=GROSS
-13-

CWS Seres Weghng Indcator Operaton Manual
9 PARAMETERS
To set parameter, turn on the scale.
• Press key durng the self checkng.
• Dsplay wll be show Pn
• Press , and to enter, dsplay wll be show “P0CHK”.
-14-

CWS Seres Weghng Indcator Operaton Manual
-15-

CWS Seres Weghng Indcator Operaton Manual
10ERROR CODES
ERROR
CODES DESCRIPTION RESOLUTION
- - - - - Over range Remove weght from the scale.
If the problem persst contact your dealer.
Err 4
Zero Settng Error The scale was outsde the normal zero settng
range ether when t was turned on or when the
ZERO key was pressed.
Remove weght from the scale and try agan.
Use the TARE key to set the dsplay to zero value.
If the problem persst contact your dealer.
Err 6
A/D out of range The values from the A/D converter are outsde the
normal range. Remove weght from the scale f
overloaded, make sure the pan s attached.
Indcates the load cell or the electroncs may be
faulty. If the problem persst contact your dealer.
-16-

CWS Seres Weghng Indcator Operaton Manual
Brand: DESIS
Model: CWS
Type: Weighing Plaorm Scale
www.desis.bg
Importer Company
DESIS INTERNATIONAL OOD
Address: Ulitsa Iztochna Tangenta 102 Sofia – Bulgaria
Tel: [phone]
E-mail: Offi[email protected]
Website: www.desisi.bg
Manufacturer
ETS Elektronik Tar Sistemleri Tic. Ltd. Ş.
Address: Ikitelli Organize Sanayi Bolgesi
Metal Is Sanayi Sitesi 8. Blok No:8-10
Basaksehir/Istanbul/Turkey
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Website: www.desis.com.tr
©Copyrght by Ets Elektronk Tartı Sstemler Tc. Ltd. Şt. All rghts reserved. No part
of ths publcaton may be reprnted or translated n any form or by any means wthout
the pror permsson of Ets Elektronk Tartı Sstemler Tc. Ltd. Şt.
-17-
