Detroit Radiant Products SV Series User manual

WARNING
!
Improper installation, adjustment, alteration, service or maintenance can cause
property damage, injury or death. Read the installation, operation and maintenance
instructions thoroughly before installing or servicing this equipment.
This heater must be installed and serviced by trained gas installation and service
personnel only. Failure to comply could result in personal injury, asphyxiation, death,
fire or property damage.
In locations used for the storage of combustible materials, signs must be posted to
specify the maximum permissible stacking height to maintain the required clearances
from the heater to the combustibles. Signs must either be posted adjacent to the
heater thermostats or in the absence of such thermostats, in a conspicuous location.
Not for residential use! Do not use this heater in the home, sleeping quarters,
attached garages, etc. Installation of a commercial tube heater system in residential
indoor spaces may result in property damage, serious injury, asphyxiation or death.
SV Series
Insert Manual
For complete installation instructions, see the Tube Heater General Manual
that accompanies this Series Insert Manual.
The SV Series Infrared Tube Heater is a negative pressure, single-stage radiant heater system. This insert
manual is a supplement to the Tube Heater General Manual and provides specific information related to
the SV Series model. All persons involved with the installation, operation and maintenance of the heater
system must read and understand the information in this insert manual and the accompanying Tube
Heater General Manual.
For Your Safety
If you smell gas:
• Donottrytolightanyappliance. •Immediatelycallyourgassupplierfromaneighbor’sphone.
•Donottouchanyelectricalswitch. •Followthegassupplier’sinstructions.
•Donotuseanyphoneinyourbuilding. • Ifyoucannotreachyourgassupplier,calltheredepartment.
Keep these instructions for future reference.
LIOSVa -Rev. 18111
Print: 1M-9/12_r1-2/13 (CDS)
Replaces: LIOSVa-1M-1/11 (DRP)

SV Series
2
Contents
1.0 Safety...................................................................3
Safety Labels and Locations ............................................3
Clearance to Combustibles .............................................4
2.0 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Gas Requirements ...................................................6
Electrical Requirements................................................6
Thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

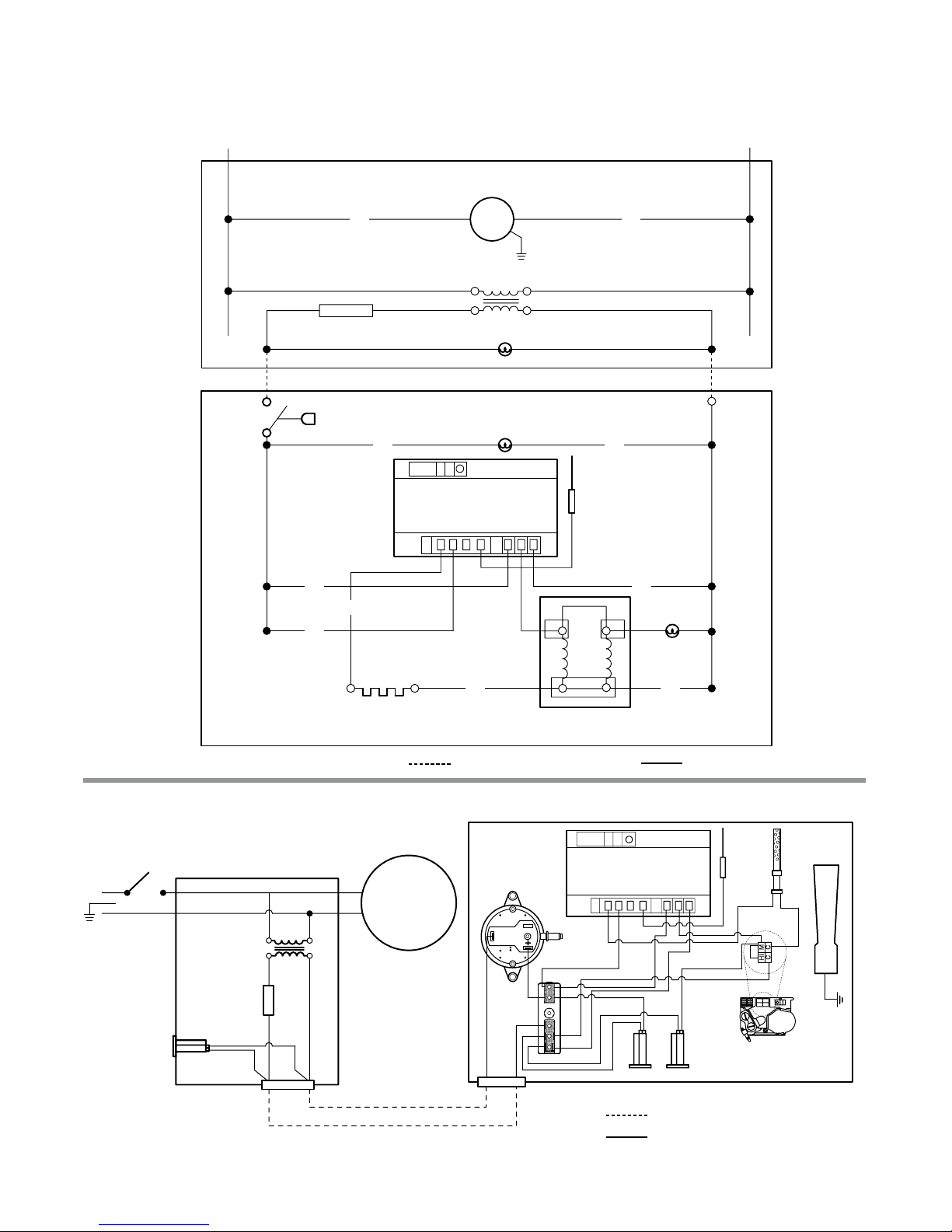

Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Specifications ......................................................10
Tube Installation Sequence ............................................11
Exhauster Mounting Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.0 Operation ..............................................................13
Sequence of Operation ...............................................13
Operational Indicator Lights............................................13
4.0 Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.0 Parts ..................................................................18

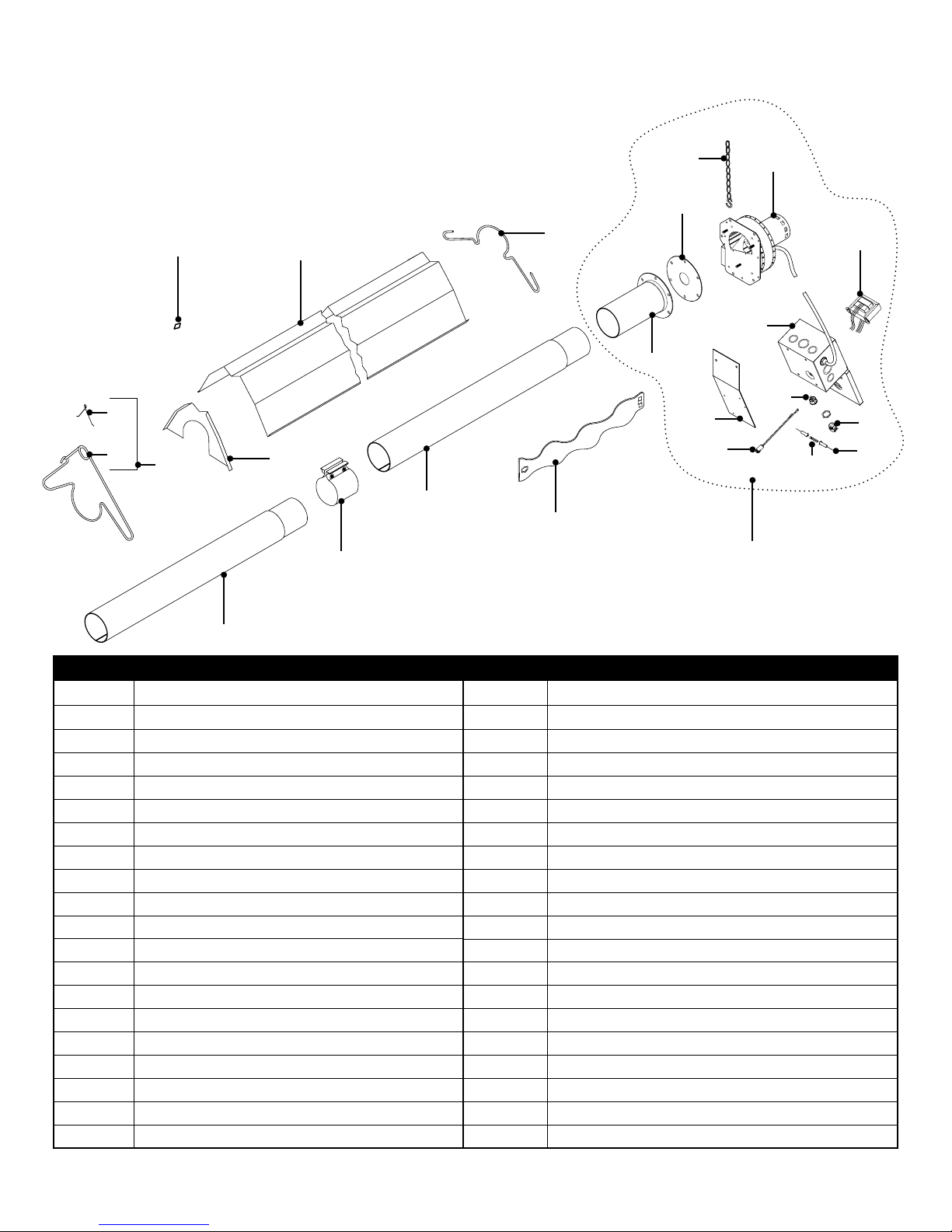

Heater Components & Parts List........................................18
Kit Contents Check List ...............................................20
Approvals..........................................................20
Limited Warranty ....................................................20
NOTE: See page 10 for a list of available models and specifications.

SV-40-125N
Data on this label is for the model shown on this label. If your heater has been converted,
this information is not accurate. Please contact the factory for assistance.
BURNER COMPONENTS:
For parts replacement information, contact factory at 586-756-0950 or visit www.drp-co.com/parts.
Serial No.: 0804XXXXXXXXXX 0001
Gas Valve:
Circuit Board:
Wire Harness:
N.O. Switch:
N.O. VL Orifice:
N.C. Switch:
N.C. VL Orifice:
Diff Switch:
Diff VL Orifice:
Igniter:
Burner:
16” Tube:
Ind. Lights:
Diag. Light:
Term. Block:
Transformer:
Fan:
Alt. Fan:
Alt. Fan Usage:
Relay:
Filter:
24 Volt In:
120 Volt In:
Gas In:
Extra VL Orifice:
Production Code:
Version:
Stock:
Add-On:
Internal Use Only:
HEATER
TYPE: Electric:
Tag:
Special 1:
Special 2:
Gas:
Air:
C1
C1 C2 C3
None
N/A
SV-125
36G54-224
Triton - 2465H
None
None
N/A
None
None
IS22016051F5169
Black(+ / -)
24V Norton
High
4” 24 Mini
Yellow - 24V
(Specify TP-#’s)
1240A
1251
None
N/A
N/A
264E
1250
201B
1280
828
None
10 - Spade
None
PB - (7-10)
None
Pack 1 p/ burner
None
None
2T - plug
trans Box
7/8” FC Flare
Yellow
329
826
1215
N/A
N/A
N/A
832
1266
83
10
2 1/4”
TP-204#
TP-114#
10
2 1/4”
LLWT020
None
9
2 1/4”
Pump ID
24V - ID
Orifice Type:
®
DETROIT RADIANT PRODUCTS COMPANY
21400 HOOVER ROAD - WARREN, MI
RE-VERBER-RAY INFRA-RED RADIANT TUBE HEATER
FOR INDOOR (Non-Residential) INSTALLATION ONLY.
Class IIIA Permanent Label
[phone] - www.drp-co.com
Volts AC:
AMPS - Starting:
AMPS - Running:
Combustion Chamber:
24V - 60Hz
3.0
2.0
4” Black Coated Aluminized
DESIGN COMPLIES WITH:
ANSI Z83.20b-2004-GAS FIRED LOW INTENSITY INFRA-RED HTR.
Manifold Pressure:
Maximum Inlet Pressure:
Minimum Inlet Pressure:
3.5 in.
14 in.
5.5 in.
W.C.P.
W.C.P.
W.C.P.
Serial No.: 0807XXXXXXXXXX 0001
MODEL NO.
SV- 40 - 125N
Heater Type
Minimum Mounting Angle:
Maximum Mounting Angle:
C1
0
45
DEGREES
DEGREES
INPUT BTU/H
125,000
FOR USE WITH
Natural Gas
1.0 Safety
SAMPLE
SAMPLE
SV
Air Metering Orifice
DO NOT REMOVE
TP-114
TP-3014 1 - 1/2"
F/N: LLAC
Air Metering Orifice
SAMPLE
SV Series
3

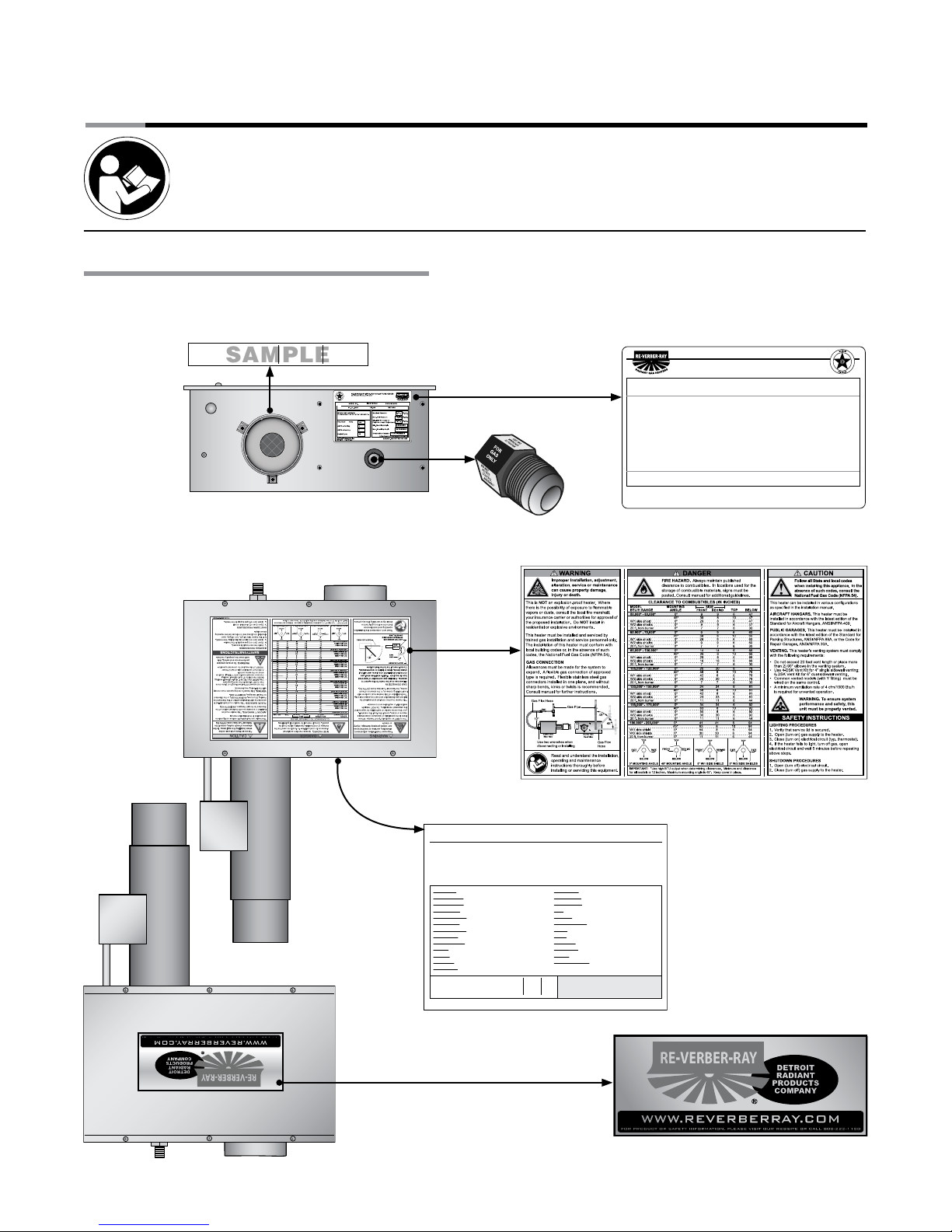

Safety Labels and Their Locations
Read and understand all safety information and warnings in this insert manual and the
Tube Heater General Manual before installation, operation and maintenance of the
radiant tube heater system.
Back Panel
Top Panel
Bottom Panel
Rating Plate
F/N: LLTB018 (Natural Gas)
F/N: LLTB019 (LP Gas)
F/N: LLTCL001
Clearance to Combustibles Label.
F/N: LLLOGO1
Burner Control Box
Component Label
(located under the top panel)
Product safety signs or labels should be replaced by the product user when they no longer are legible.
Contact either your local distributor or the product manufacturer for obtaining replacement signs or labels.
1.0 Safety •Safety Labels and Locations

WARNING
!
Placement of explosive objects, flammable objects, liquids and vapors close to
the heater may result in explosion, fire, property damage, serious injury or death.
Do not store or use explosive objects, liquids or vapor in the vicinity of the heater.
VALVE
PS
PRESSURE
SWITCH
V
F/ N : L LV3EP6

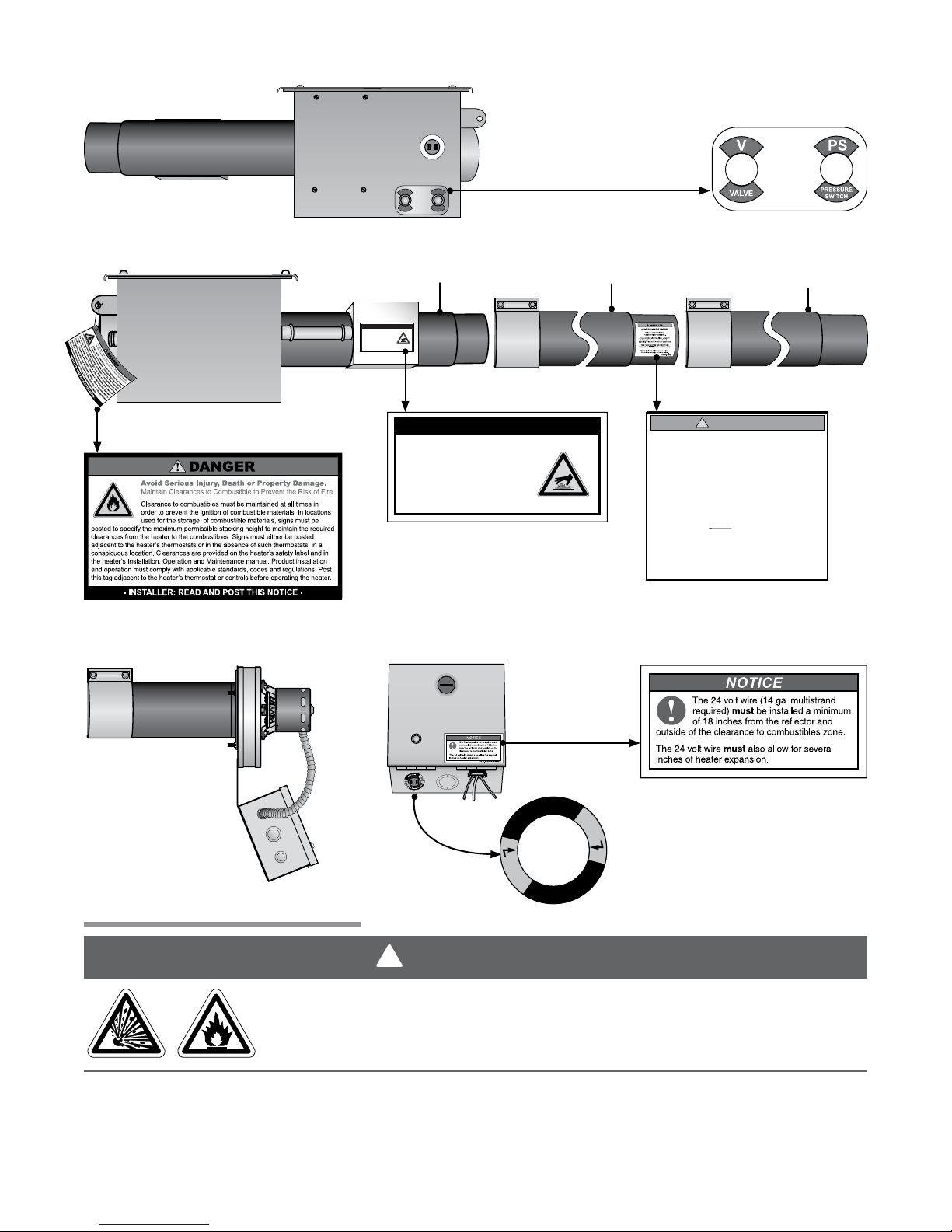

Left Panel
SV Series
4
AVOID EQUIPMENT FAILURE
THIS 10 FT. TUBE IS THE
COMBUSTION CHAMBER.
THIS TUBE MUST BE THE FIRST TUBE
FOLLOWING THE BURNER CONTROL BOX.
!
INSTALLER
The combustion chamber utilizes either 409
stainless, titanium alloy or aluminized steel -
depending on the model number of your heater.
Rotate the tube’s welded seam to bottom.
Consult the manual(s) for further details.
SERVICE ACCESS PA NEL
IGNITER & FLAME SENSE COMPARTMENT
1. Turn off gas & electricity.
2. Remove cover by lifting top
cover upward and outward.
CAUTION: HOT SURFACE.
KEEP COVER IN PLACE. REMOVE FOR SERVICE ONLY.
Clearance to combustibles is defined as the minimum distance that must be maintained between the tube
surface, or reflector, and any combustible items (see Figure 1.1). It also pertains to the distance that must
be maintained from moving objects around the tube heater. Refer to Chart 1.1 to determine the required
distances for your model.
Clearance to Combustibles
F/N: LLTB004 (orange)
Applicable on 150-200 MBH models only
SERVICE ACCESS PANEL
IGNITER & FLAME SENSE COMPARTMENT
1. Turn off gas & electricity.
2. Remove cover by lifting top
cover upward and outward.
CAUTION: HOT SURFACE.
KEEP COVER IN PLACE. REMOVE FOR SERVICE ONLY.
F/N: LLTB026
Right Panel
(Valve Compartment)
Radiant
Tube
Combustion
Chamber
16” Burner Tube
F/N: LL01 - Clearance Safety Tag
(Afxadjacenttoheater’sthermostat).
Exhauster Pump
Assembly
Side View
Power Box
Front View
F/N: LLTB032
F/N: LLTB033
1.0 Safety •Safety Labels and Locations •Clearance to Combustibles
2
4
V
O
u
t
p
u
t
C
O
M
2
4
V
T
o
B
u
r
n
e
r
C
o
n
t
r
o
l
B
o
x
LLTB033

SV Series
5
Model Number
Mounting
Angle*
Side
Top BelowFront Behind
SV (20, 30, 40) - 50, 60 [N, P] 0° 99647
45° 39 810 47
with 1 side shield 0° 29 8 6 47
with 2 side shields 0° 99647
20 ft. from burner 0° 77630
SV (20, 30, 40) - 75 [N, P] 0° 99660
45° 39 810 60
with 1 side shield 0° 29 8 6 60
with 2 side shields 0° 99660
20 ft. from burner 0° 77630
SV (30, 40, 50) - 100 [N, P] 0° 14 14 666
45° 39 810 66
with 1 side shield 0° 29 8 6 66
with 2 side shields 0° 16 16 666
20 ft. from burner 0° 77630
SV (30, 40, 50) - 125 [N, P] 0° 20 20 676
45° 58 810 76
with 1 side shield 0° 42 8 6 76
with 2 side shields 0° 20 20 676
20 ft. from burner 0° 77630
SV (40, 50, 60) - 150 [N, P] 0° 24 24 681
45° 58 810 81
with 1 side shield 0° 42 8 6 81
with 2 side shields 0° 23 23 681
20 ft. from burner 0° 11 11 644
SV (40, 50, 60, 70) - 175 [N, P] 0° 34 34 692
45° 63 810 92
with 1 side shield 0° 50 8 6 92
with 2 side shields 0° 30 30 692
20 ft. from burner 0° 11 11 644
SV (50, 60, 70, 80) - 200 [N, P] 0° 41 41 694
45° 63 810 94
with 1 side shield 0° 54 8 6 94
with 2 side shields 0° 30 30 694
20 ft. from burner 0° 11 11 644
Chart 1.1 • Clearance to Combustibles in Inches (see Figure 1.1 for Mounting Angles)
1.0 Safety •Clearance to Combustibles
The stated clearance to combustibles represents a surface temperature of 90°F (32°C) above room
temperature. Building materials with a low heat tolerance (such as plastics, vinyl siding, canvas,
tri-ply,etc.)maybesubjecttodegradationatlowertemperatures.Itistheinstaller’sresponsibilityto
assure that adjacent materials are protected from degradation.
Figure 1.1 •Mounting Angles
45° Mounting Angle
0° Mounting Angle
with 1 Side Shield
(P/N: SSE)
0° Mounting Angle
with 2 Side Shields
(P/N: SSE)
Front Behind
Below
Top
Front Behind
Below
Top
Side Side
Below
Top
0° Mounting Angle
Side Side
Below
Top
5
*
Heaters mounted on an angle between 0° to 45° must maintain clearances posted for 0° or 45°; whichever is greater.

SV Series
6

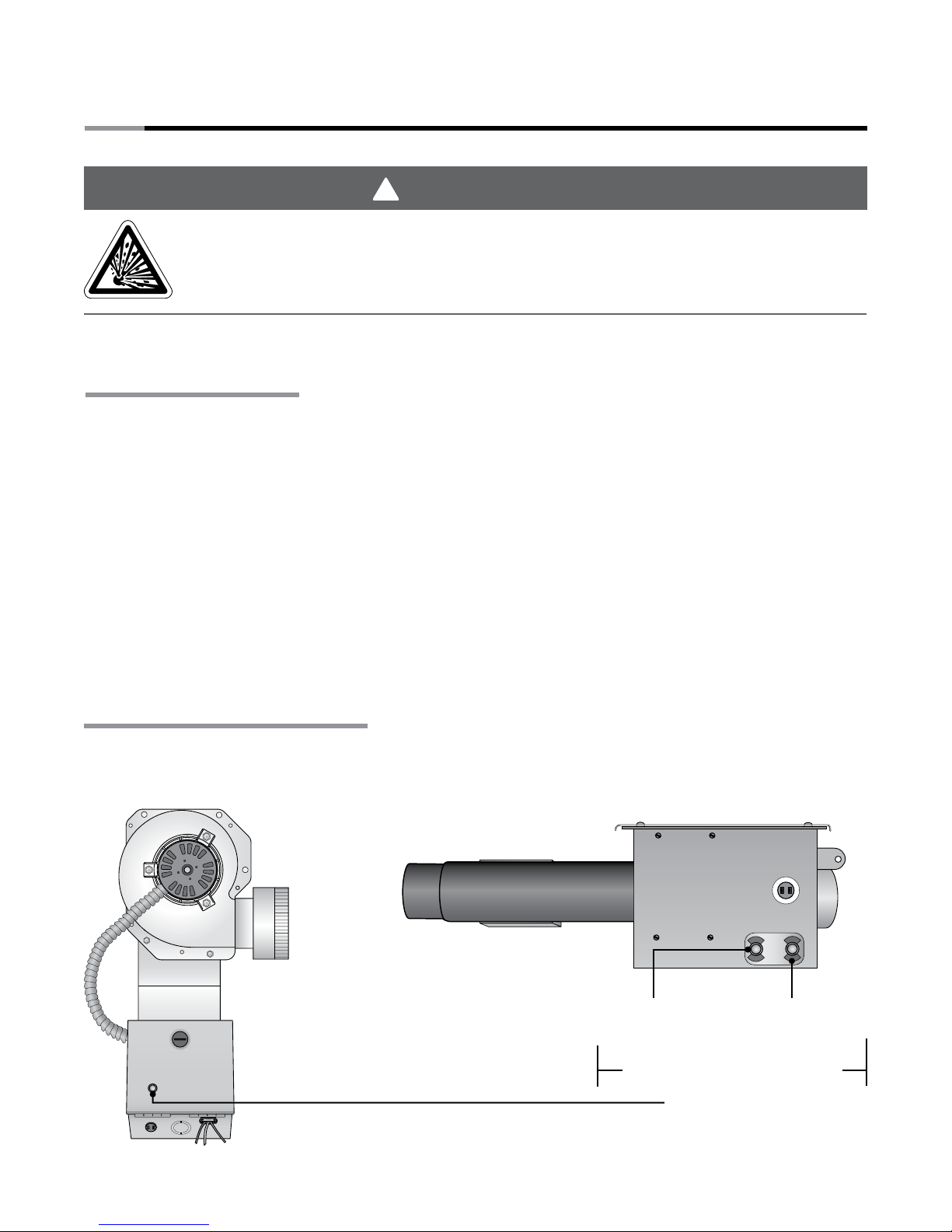

2.0 Installation
Electrical Requirements
Power to the exhauster assembly is supplied via a 120VAC-60Hz. connection and controlled via a
thermostat or switch. The burner control box is powered by 24VAC via the terminal plug connection from
the exhauster power box assembly. See Figures 2.1-2.2.
 • 120Volt-60HzGRD,3-wire.
 • Startingcurrent3.0amps
 • Runningcurrent2.0amps
WARNING
!
Electric Shock
Field wiring to the tube heater must be connected and grounded in accordance with national,
state, provincial, local codes and to the guidelines in the Tube Heater General Manual and
Series Insert Manual. In the United States refer to the most current revisions to the ANSI/NFPA
70 Standard and in Canada refer to the most current revisions to the CSA C22.1 Part I Standard.
WARNING
!
Not for residential use! Improper installation, adjustment, alteration, service or
maintenance can cause property damage, serious injury or death.
Read and understand, the installation, operating and maintenance instructions thoroughly
before installing or servicing this equipment. Only trained, qualified gas installation and
service personnel may install or service this equipment.
Gas Requirements
NOTE: Check manifold pressure at the tap on the gas valve. Small variations in manifold pressure
(actual vs. published) may exist due to changing atmospheric conditions. Readings will be above
atmospheric pressure.
Type of Gas Required Manifold
Pressure
Minimum Inlet
Pressure
Maximum Inlet
Pressure
Natural 3.5 Inches W.C. 5.0 Inches W.C. 14.0 Inches W.C.
Liquefied Petroleum 10.0 Inches W.C. 11.0 inches W.C. 14.0 Inches W.C.
IMPORTANT: Consult the Tube Heater General Manual for gas connection requirements.
Instructions for the following are detailed in the Tube Heater General Manual:
 • Designconsiderations
 • Hangersuspensionandplacement
 • Tubelayoutandassembly
 • Burnercontrolboxsuspension
Note: Electronic versions of all manuals are available at www.detroitradiant.com
 • Reectors(andaccessories)
 • Ventingandcombustionairintake
 • Gasrequirements
 • Bafeassembly
2.0 Installation •Gas Requirements •Electrical Requirements

SV Series
7
Wiring
Figure 2.1 •Field Wiring Diagrams
A. Line Voltage Thermostat Wiring - Single thermostat (20 amp), up to six heaters.
L1
Neutral
Ground
T
SV Series
Burner Box
120VAC-60Hz.
Supply
G
BK
W
Low voltage wire (14 ga. multistrand required)
must be installed a minimum of 18 in. from the reflector
and outside of the clearance to combustibles zone.
Up to five
additional
heaters
1/4” female spade
terminals required
(as supplied).
Power Box
1/4” female spade
terminals required
(as supplied).
NOTE: If any of the original wire as supplied with the appliance must be replaced, it must be replaced
with wiring material having a temperature rating of at least 105° C.
Thermostat
SV Series heaters require a 120VAC thermostat to operate. NOTE: Different thermostats operate
according to their particular features. Refer to thermostat specifications for details.
NOTE: The wire (field supplied) is not where the thermostat is tied into. The thermostat switches the
120VAC supply voltage. Refer to field wiring diagrams (Figures 2.1A & 2.1B).
The use of 14 ga. minimum multi strand wire (field supplied) is required to connect the exhauster
assembly to the burner control box. A round terminal plug accepts two (2) 1/4” insulated female spade
terminals (field supplied).
IMPORTANT: The wire (field supplied) connecting the exhauster power box assembly to the burner
control box must be mounted a minimum of 18 inches from the top of the reflector and outside of any
other clearance requirements. The span of wire must allow for several inches of heater expansion.
2.0 Installation •Thermostat •Wiring

SV Series
8
Figure 2.1 •Field Wiring Diagrams
B. Low Voltage Thermostat Wiring (with optional R8285B transformer relay) - Up to Five Heaters per branch.
SV Series
Burner Box
BK
W
Low voltage wire (14 ga. multistrand
required) must be installed a
minimum of 18 inches from the
reflector and outside of the
clearance to combustibles zone.
Up to four
additional heaters
1/4” female
spade terminals
(as supplied).
Power Box
Assembly
1/4” female spade
terminals (as supplied).
To heater branch #2
(Up to five heaters per branch)
To heater branch #1
N
L1
120VAC
Low Voltage Thermostat
C W R
14 ga. multistrand
low voltage wire
(as supplied)
Common required for thermostats
that require constant power.
N
L1
120V
R8285B Transformer Relay (optional)
Required when wiring line voltage
heaters to any low voltage thermostat.
POLE
#1
POLE
#2 W R
G
YC
Coil
W
B
R/Y
R
BK
W
W
V
2.0 Installation •Wiring

SV Series
9
Figure 2.2 •Internal Wiring Diagrams
A. TP-1251 Ladder Diagram
B. TP-1251 Block Diagram
BK W
NL1 120V
Blower
Switch
Light
Valve
Light
Flame
Rod
Gas Valve
Igniter
BK
BK
BK
W W
G
Y Y
Fuse
120V
24V
24V Indicator Light
Blower
Motor
120V
24V
Fuse
Indicator
Light
N
L1
120V
Pressure
Switch
Flame
Rod
Igniter
Burner
Gas Valve
Indicator Lights
Terminal
Block
24V
24V
24V
S1 L1 L2 S2 W
MV1
GND
Field Supplied Wiring
Factory Wiring
LED
ON = Control Fault
2 Flashes = Flame, No Call for Heat
3 Flashes = Ignition Lockout
ON = Control Fault
2 Flashes = Flame, No Call for Heat
3 Flashes = Ignition Lockout
S1 L1 L2 S2 W
MV1
GND
LED
Ignition Module
Ignition Module
Field Supplied Wiring Factory Wiring
Burner
Control
Box
Exhauster
Power Box
Assembly
Exhauster Power
Box Assembly
Burner Control Box
2.0 Installation •Wiring

Model Number Gas Type (select one) BTU/h Straight Length U-Tube Length Standard Weight (lbs.) Recommended Mounting Height Combustion Chamber Radiant Emitter Tube(s) (Black Coated) Radiant Surface Area (sq. ft.) 36” Baffle Sections Maximum Vent Length (ft.)
SV-20-50 N or LP 50,000 22’-7” 13’-0” 140 9’to14’ Alum Alum 20.2 525
SV-20-60 N or LP 60,000 22’-7” 13’-0” 140 10’to15’ Alum Alum 20.2 525
SV-20-75 N or LP 75,000 22’-7” 13’-0” 140 10’to15’ Alum Alum 20.2 530
SV-30-50 N or LP 50,000 32’-3” **17’-8” 180 10’to15’ Alum Alum 30.4 420
SV-30-60 N or LP 60,000 32’-3” **17’-8” 180 11’to18’ Alum Alum 30.4 420
SV-30-75 N or LP 75,000 32’-3” **17’-8” 180 12’to20’ Alum Alum 30.4 425
SV-30-100 N or LP 100,000 32’-3” **17’-8” 180 13’to23’ Alum Alum 30.4 330
SV-30-125 N or LP 125,000 32’-3” **17’-8” 180 14’to25’ Alum Alum 30.4 535
SV-40-50 N or LP 50,000 41’-11” 22’-8” 210 11’to18’ Alum Alum 40.5 320
SV-40-60 N or LP 60,000 41’-11” 22’-8” 210 11’to18’ Alum Alum 40.5 320
SV-40-75 N or LP 75,000 41’-11” 22’-8” 210 12’to20’ Alum Alum 40.5 325
SV-40-100 N or LP 100,000 41’-11” 22’-8” 210 13’to23’ Alum Alum 40.5 225
SV-40-125 N or LP 125,000 41’-11” 22’-8” 210 14’to25’ Alum Alum 40.5 430
SV-40-150 N or LP 150,000 41’-11” 22’-8” 210 15’to27’ Titan Alum 40.5 435
SV-40-175 N or LP 175,000 41’-11” 22’-8” 210 16’to30’ Titan Alum 40.5 435
SV-50-100 N or LP 100,000 51’-7” **27’-4” 255 15’to27’ Alum Alum 50.6 125
SV-50-125 N or LP 125,000 51’-7” **27’-4” 255 15’to27’ Alum Alum 50.6 330
SV-50-150 N or LP 150,000 51’-7” **27’-4” 255 16’to30’ Titan Alum 50.6 330
SV-50 -175 N or LP * 175,000 51’-7” **27’-4” 255 17’to35’ Titan Alum 50.6 335
SV-50-200 N or LP * 200,000 51’-7” **27’-4” 255 18’to40’ Titan Alum 50.6 435
SV-60-150 N or LP 150,000 61’-3” 32’-4” 285 17’to35’ Titan Alum 60.7 225
SV-60-175 N or LP * 175,000 61’-3” 32’-4” 285 17’to35’ Titan Alum 60.7 230
SV-60-200 N or LP * 200,000 61’-3” 32’-4” 285 18’to40’ Titan Alum 60.7 330
SV-70-175 N or LP * 175,000 70’-11” **37’-0” 320 19’to42’ Titan Alum 70.9 125
SV-70-200 N or LP * 200,000 70 ’-11” **37’-0” 320 19’to42’ Titan Alum 70.9 2
30
SV-80-200 N or LP * 200,000 80’-7” 42’-0” 350 20’to45’ Titan Alum 80.1 125
Specifications
SV Series
10
Chart 2.1 • Specifications
See Figure 2.6 for exhauster assembly dimensions.
* Model requires stainless steel tube clamp (P/N: TP-220) to be located at the seam between the first and second
10 ft. tube sections downstream of the burner control box.
**Modelrequires5EA-SUBaccessorypackagewheninstallingina‘U’conguration(P/N:TF1B).
Titan = Black coated titanium stabilized aluminized steel.
Alum = Black coated aluminized treated steel.
2.0 Installation •Specifications

Key
Tube Installation Sequence
SV Series
11
20 Foot
50 Foot
60 Foot
70 Foot
30 Foot
40 Foot
Figure 2.4 •Tube Installation Sequence
Burner Control Box with
16” Burner Tube
Combustion Chamber
Coated Aluminized
Radiant Emitter Tube
Standard Tube Clamp
Stainless Steel Tube
Clamp (P/N: TP-220)
175-200 MBH models only - Located
between 1st and 2nd 10 ft. tube sections.
Important! The combustion chamber & radiant tube sections must be installed in the following order.
Note: Refer to the Tube Heater General Manual, Chart 3.6 (page 23) for secured reflector joints.
Baffle Location
80 Foot
Stainless steel clamp location on 175 - 200 MBH models only (P/N: TP-220).
Stainless steel clamp location on 175 - 200 MBH models only (P/N: TP-220).
Stainless steel clamp location on 175 - 200 MBH models only (P/N: TP-220).
Stainless steel clamp location on 175 - 200 MBH models only (P/N: TP-220).
Exhauster Pump Assembly
Security Chain Location (P/N: THCS)
2.0 Installation •Tube Installation Sequence •Heater Length

SV Series
12
SIDE VIEW

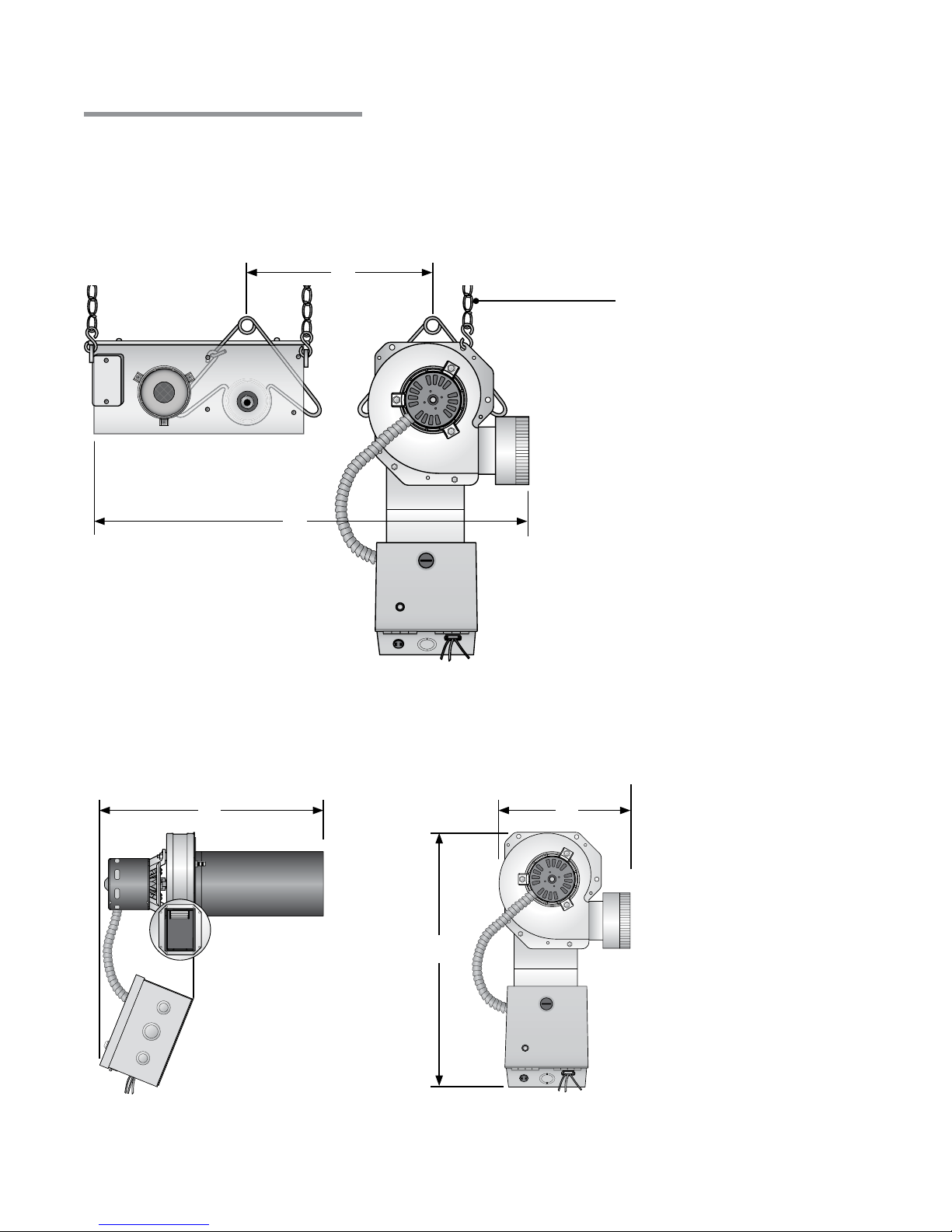

Figure 2.6 • Exhauster Assembly Dimensions
END VIEW
18.5”
16” 10”
Exhauster Mounting Details
Figure 2.5 • Exhauster Assembly Mounting Details - U-Shaped Configuration
When installing this heater in a U-shaped configuration, the exhauster assembly and the burner control box must
not interfere with each other. When looking at the U-shaped configuration from behind, the burner control box is on
the left and the exhauster assembly is on the right. See Figure 2.5.
Security Chain
16”
35”
2.0 SV Series Installation •Exhauster Mounting Details

Burner Control Box
Left Panel View
Exhauster End View
SV Series
13
Figure 3.1 • Operational Indicator Lights
Light 1
Indicates Power
to Valve
Light 2
Indicates Pressure
Switch Closes
Operational Indicator Lights
VALV E
PS
PRESSURE
SWITCH
V
Power Box Light
Indicates 24VAC
Operational Indicator Lights
WARNING
!
3.0 Operation
NOTE: Reference the Tube Heater General Manual (F/N: LIOGTa) for installation requirements.
Sequence of Operation
Starting Circuit: Upon a call for heat, the exhauster fan energizes creating a negative air pressure
allowing the differential pressure switch to close. A low voltage circuit is completed from the
secondary side of the transformer to the ignition module. After a five (5) second delay, the igniter is
powered. After seven (7) seconds, gas valve opens initiating the ignition trial. If flame is not sensed
after 15 seconds, the heater will attempt to re-ignite for a total of three (3) trials for ignition before
entering lockout mode.
Running Circuit: After ignition, the flame rod monitors burner flame. If sense of flame is lost, the control
closes the gas valve within one second and a new trial sequence (identical to the starting sequence)
is initiated. If flame sense is not established within 15 seconds, the heater will attempt two (2)
additional ignition sequences before entering lockout mode. The control can be reset by briefly
interrupting the power source.
This heater must be installed and serviced by trained gas installation and service
personnel only.
Donotbypassanysafetyfeaturesortheheater’sbuiltinsafetymechanismswill
be compromised.
3.0 Operation •Sequence of Operation •Operational Indicator Lights

SV Series
14
Test for 24V at valve during
opening period (usually 7
seconds after power to heater).
Is there 24V to the valve?
Check voltage on the
secondary side of the
transformer. Is it 24V?
Is 24V going from the
exhauster power box
assembly to the burner
control box?
4.0 Troubleshooting Guide
Is the exhauster
obstructed?
Does the igniter warm
up and glow red? Is the igniter
physically damaged?
Is the inlet or the outlet of
the unit obstructed (i.e.,
ice, birds nest, dirt, etc.)?
Turn up thermostat
Does the exhauster
fan turn on?
Is the power at the
exhauster 120V?
Find the source of the
electrical problem.
No
Yes
Remove obstruction
and lubricate fan.
No
Yes
Does the pressure
switch light energize?
Is the light burnt out?
If so, replace.
No No
Yes
Remove obstruction.
No
No No
Yes
Replace igniter.
Does the valve
light energize?
Yes
Does the burner
ignite at all?
No Yes
Replace faulty light.
Does valve open?
Yes
Confirm that gas pressure
is within minimum and
maximum inputs as
indicated on the burner
rating plate. Is it ok?
No
Yes
Yes
Continued on page 16.
No
No
Yes
No
Repair faulty wiring
between the
exhauster power box
assembly and the
burner control box.
Replace
transformer.
Yes
Yes
Yes
Replace faulty circuit board
and/or wiring harness.
No
No
No Yes
4.0 Troubleshooting Guide

NOTICE
Bypassing any switch is intended for testing purposes only. Do not leave switch bypassed
duringnormaloperationortheheater’sbuilt-insafetymechanismswillbecompromised.
SV Series
15
Check for loose wiring
or resistance in hose
connection to pressure
switch. Are they ok?
The Heater is equipped with a safety pressure
switch. This differential switch, located in the
ignition controls compartment, is a normally
open pressure switch. Temporarily place
jumpers across the terminals of the switch (Be
sure to reinstall the burner control box cover).
Does the light energize?
Replace circuit board.
Check voltage at igniter during
ignition sequence (usually 7
seconds after power to the
burner control box). Is it 24V?
Key
Start
Question Process
Question
Corrective
Action
The fan is faulty
and must be
replaced.
Repair.
No
Yes
Replace faulty light.
No
Replace the differential switch after verifying the following:
• Baffle(s) is/are in the radiant tube(s) farthest from the burner.
• The heater, fan blower, squirrel cage, intake and exhaust are free from
dirt and obstructions.
• The 4” air intake pipe does not exceed 20 feet and/or 2 elbows.
• There is not a negative pressure experienced at the area of air intake
(i.e., attic space, high winds, very tight building).
If any of the above are occurring, please address the problem.
No
Yes
Is resistance through
the igniter 1-6 Ω ?
Replace
igniter.
No
Replace
faulty wiring.
Yes
Correct problem.
Replace gas valve.
Yes
4.0 Troubleshooting Guide

SV Series
16
Is the proper gauge wire used between
the exhauster power box assembly and
the burner control box?
Does the
burner ignite?
Does the burner
stay on?
Is the gas supply
to the heater in
the ON position?
Does the burner stay on
for approx. 15 seconds
and then shut off?
Does the burner come
on and turn off
immediately (1 or 2
seconds)?
Check to make sure gas pressure
is within minimum and maximum
inputs, as indicated on the burner
rating plate. Is gas pressure OK?
Pressure
switch may
be faulty or
there is a
restriction in
the exhaust.
Does the heater
stay ON until the
call for heat ends?
Troubleshooting ends
The heater can shut down due to:
 •Impropergrounding.
 •Highwinds.
 •Takingcombustionairfromtheattic.
 •Dirtyenvironment.
 •Improperlypositionedbafes.
 •Fluctuatinggaspressure.
No
No
Yes
Yes
No
Yes
No
Yes
Yes
No
Turn on.
Continued from page 14
Yes
Correct problem.
No
No
Use 14 gauge multistrand wire.
Yes
Yes
4.0 Troubleshooting Guide

SV Series
17
Were the gas
lines purged of
air?
Check to make sure gas pressure is within
minimum and maximum inputs, as indicated on
burner rating plate. Is gas pressure OK?
Yes
No
Is the heater properly
grounded?Istheheater’s
polarity correct?
With microampmeter, check
amperage at flame rod. Is it
greater than .7 microamps?
Check to make sure flame
sensor wire is OK. If so,
then replace circuit board.
Sensing rod is faulty or flame
is weak. Check to make sure
heater is operating at proper
gas pressure as indicated on
burner rating plate and then, if
needed, replace sensing rod.
Correct problem.
No
Yes
No
Purge gas line.
No
Confirm manifold pressure is
correct and/or gas orifice is not
plugged and is the correct size.
Check voltage at burner
control box during igniter
warm up. Is it at least 24V?
Yes
Yes
Use larger gauge wire.
No
Yes
Correct pressures.
4.0 Troubleshooting Guide

SV Series
18
Part No. Description Part No. Description
TP-1 Control Box Cover TP-65I 36 in. Interlocking Turbulator Baffle
TP-5 Flange Gasket TP-70 Control Box Cover Gasket (per foot**)
TP-9 Conduit Coupling TP-76 Rubber Grommet
TP-10 Conduit 4 in. x 1/2 in. TP-82 Reflector Center Support (RCS)
TP-11 Hot Surface Igniter Box TP-83 24 in. Stainless Steel Flexible Gas Connector
TP-12 Hot Surface Igniter Box Cover TP-84 1/2 in. Female / Male Flare Fitting
TP-13 8 x 1/2” Self-Drilling Screw (Qty. 2) TP-85 1/2 in. Male / Male Flare Fitting
TP-14 Sight Glass Gasket TP-97 1/4 in. x 1/4 in. Brass Barb Fitting (Qty. 2)
TP-15 Sight Glass TP-105 Aluminum Reflector End Cap
TP-16 Sight Glass Washer TP-106 Reflector End Cap Clips (Qty. 8)
TP-17 Sight Glass Kit TP-113 Reflector Tension Spring
TP-19B 4 in. Wire Hanger with Tension Spring TP-114 Plastic Air Orifice w/ Screen (Consult factory)
TP-20C 120 in. Aluminum Reflector TP-200A Low BTU Burner (Blue) - consult factory
TP-20D* 120 in. Stainless Steel Reflector TP-201B Mid BTU Burner (Tan) - consult factory
TP-21B 4 in. Standard Tube Clamp TP-204 Gas Orifice (consult factory)
TP-26A 10 ft. Aluminized Radiant / Combustion Tube TP-207 Pressure Switch Mounting Bracket
TP-26B 10 ft. Titanium Coated Combustion Tube TP-208A Gas Valve Mounting Bracket
TP-26D* 10 ft. 304 Stainless Steel Radiant Tube TP-212 1/2 in. x 3 in. Pipe Nipple
TP-26E* 10 ft. 409 Stainless Steel Combustion Tube TP-214 Glo-Bar Wiring Harness
TP-31B Control Box Mounting Bracket (Qty. 2) TP-217 Pressure Switch Barb Fitting
TP-33B 1/2 in. Shut-Off Ball Valve / Inlet Tap TP-218 Differential Switch Vinyl Sensing Tube (exhaust)
* Optional upgrade or add-on item. **6 feet total required to cover outer edges of the burner control box.
Chart 5.1 • Parts List
5.0 Parts
Figure 5.1 •Burner Assembly
Components
1283
221 222, 222A
11
1250
321
1
APS
301
207
218
70
329
219
31B
33B
83
212
208A
1240A, 1241A
223
204
200A, 201B
303
12
10
9
217
5
1280
15
14
16
21B
804, 1204
76
31B
13
13
97 17
828
832
114
12021251
5.0 Parts •Heater Components and Parts List
84
85
214

105
106
26A/B/E*
21B, 220
20C/D* 82
26A/D*
65I
1220
1289
1243
1526A
1215
828
1266
1232
533
1255
THCS
1229
1297
19B
113
579
SV Series
19
* Optional upgrade or add-on item.
Figure 5.2 •Tube & Reflector Components
Combustion Chamber(s) Radiant Emitter Tube(s)
Part No. Description Part No. Description
TP-219 Differential Vinyl Sensing Tube (burner) TP-1250 24V Mini Igniter
TP-220 Stainless Steel Tube Clamp (175 & 200 MBH) TP-1251 Self Diagnostic Ignition Module
TP-221 Mini Igniter Gasket TP-1255 Full Exhauster Assembly (TP-1215, TP-1266, TP-1243)
TP-222 Flame Rod TP-1266 Power Box Assembly (individual parts below)
TP-222A Flame Rod Wire TP-533 120V Conduit Connector
TP-223 Gas Manifold TP-828 Power Box 24V Yellow Indicator Light
TP-301 Center Panel TP-1220 Power Box Mounting Bracket
TP-303 End Panel, Right TP-1229 Fuse Holder
TP-321 Ignition Plate Gasket TP-1232 Terminal Plug
TP-329 Terminal Block TP-1289 Exhauster Mounting Tube
TP-579 4 in. Wire Hanger w/o Tension Spring TP-1297 Fuse
TP-804 Burner Control Box Outer Shell (50 -175 MBH ) TP-1526A 75VA Transformer with Foot Mounts
TP-828 Yellow Operational Ind. Light (Qty. 2) TP-1280 16” Burner Tube with Flange
TP-832 Thermostat Terminal Strip TP-1283 Mini Igniter Plate
TP-1202 End Panel, Left TP-APS Atmospheric Pressure Switch (see below)
TP-1204 Burner Control Box Outer Shell (200 MBH) TP-264B Differential Pressure Switch, 50 to 75 MBH
TP-1215 Exhauster Pump TP-264E Differential Pressure Switch, 100 to 125 MBH
TP-1240A 24V Gas Valve - Natural Gas Assembly TP-1264A Differential Pressure Switch, 150 to 175 MBH
TP-1241A 24V Gas Valve - LP Gas Assembly TP-264F Differential Pressure Switch, 200 MBH
TP-1243 Blower Restrictor Plate - Specify Model THCS Exhauster Assembly Security Chain
5.0 Parts •Heater Components and Parts List

TP-106
Reflector
End Cap Clips
TP-25
1/4” Female
Spade Terminal
HL2 Series
Insert Manual
F/N: LIOGTa & LIOSVa
Tube Heater
General Manual and
SV Series Insert Manual
Tube Heater
General Manual
SV Series
* One 4” stainless steel tube clamp (P/N: TP-220) is provided for each 175,000 - 200,000 BTU model. Place as
shown on page 11.
© 2013 Detroit Radiant Products Co.
21400HooverRoad•Warren,MI48089
Phone: [phone] Fax: [phone]
www.detroitradiant.com•[e-mail]
Chart 5.2 • Kit Contents for SV Series - Reference the length column for your model.
TP-19B 4” Hanger with
Reflector Tension Spring
TP-105
Reflector End Cap
TP-21B 4” Tube Clamp
TP-33B 1/2” Shut-Off
Ball Valve / Inlet Tap
TP-83 24” Stainless Steel
Flexible Gas Connector
Kit Contents Check List
SV Series Kit Contents
TP-82 4” Reflector
Center Support (RCS)
Printed in U. S. A.
Approvals
• CSA
• Indoorapproval.
• Commercialapproval.
Limited Warranty
• 1year-Burnerboxcomponents.
• 3years-Combustionandradianttubes.
• 5years-Stainlesssteelburner.
• Seepage36oftheGeneralTubeHeaterManual 
for terms and conditions.
Part No. Description 20 ft. 30 ft. 40 ft. 50 ft. 60 ft. 70 ft. 80 ft.
TP-19B 4” Hanger w/ Tension Spring 3456789
TP-21B 4” Tube Clamp 3456* 7* 8* 9*
TP-25 1/4” Female Spade Terminal 4444444
TP-33B 1/2” Shut-Off Valve & Inlet Tap 1111111
TP-82 4” Reflector Center Support 2345678
TP-83 24” S.S. Flexible Gas Connector 1111111
TP-105 Reflector End Cap 2222222
TP-106 Reflector End Cap Clips 8888888
THCS 60 in. Security Chain 1111111
LIOGTa General Tube Heater Manual 1111111
LIOSVa SV Series Insert Manual 1111111
Filled By:
THCS 60 in. Security Chain
5.0 Parts • KitContentsCheckList•Approvals•LimitedWarranty
