Detroit Radiant Products EDX Series User manual

EHL/EDX Series
AU Installation, Operation,
Maintenance and Parts Manual
AGA XXXXG Certified 240V-50Hz. Overhead Radiant Gas Fired Infrared Tube Heater.
All persons involved with the installation, operation and maintenance of the heater system must read and
understand the information in this manual.
For Your Safety
If you smell gas:
• Do not try to light any appliance. • Immediately call your gas supplier from a neighbor’s phone.
• Do not touch any electrical switch. • Follow the gas supplier’s instructions.
• Do not use any phone in your building. • If you cannot reach your gas supplier, call the fire department.
Keep these instructions for future reference.
LIOEAU-7/07_r12/14 (DRP)
WARNING
!
!
Improper installation, adjustment, alteration, service or maintenance can cause
property damage, injury or death. Read the installation, operation and maintenance
instructions thoroughly before installing or servicing this equipment.
This heater must be installed and serviced by authorized gas installation and service
personnel only. Failure to comply could result in personal injury, asphyxiation, death,
fire or property damage.
In locations used for the storage of combustible materials, signs must be posted to
specify the maximum permissible stacking height to maintain the required clearances
from the heater to the combustibles. Signs must either be posted adjacent to the
heater thermostats or in the absence of such thermostats, in a conspicuous location.
Do not place articles on or against this appliance.
Do not use or store flammable materials near this appliance.
Do not spray aerosol in the vicinity of this appliance while in operation.
Not for residential use! Do not use this heater in the home, sleeping quarters,
attached garages, etc. Installation of a commercial tube heater system in residential
indoor spaces may result in property damage, serious injury, asphyxiation or death.
© 2007-2014 Detroit Radiant Products Co.
21400 Hoover Road • Warren, MI 48089
Phone: [phone] Fax: [phone]
www.detroitradiant.com • [e-mail]

1.0 INTRODUCTION .............................................................................................................................................. 4
1.1 Overview............................................................................................................................................ 4
1.2 Kit Contents ....................................................................................................................................... 4
2.0 SAFETY ........................................................................................................................................................... 5
2.1 Warning Symbols............................................................................................................................... 5
2.2 Applications ....................................................................................................................................... 5
2.3 Codes and Regulations ..................................................................................................................... 6
2.4 Clearance to Combustibles................................................................................................................ 7
3.0 INSTALLATION ................................................................................................................................................ 9

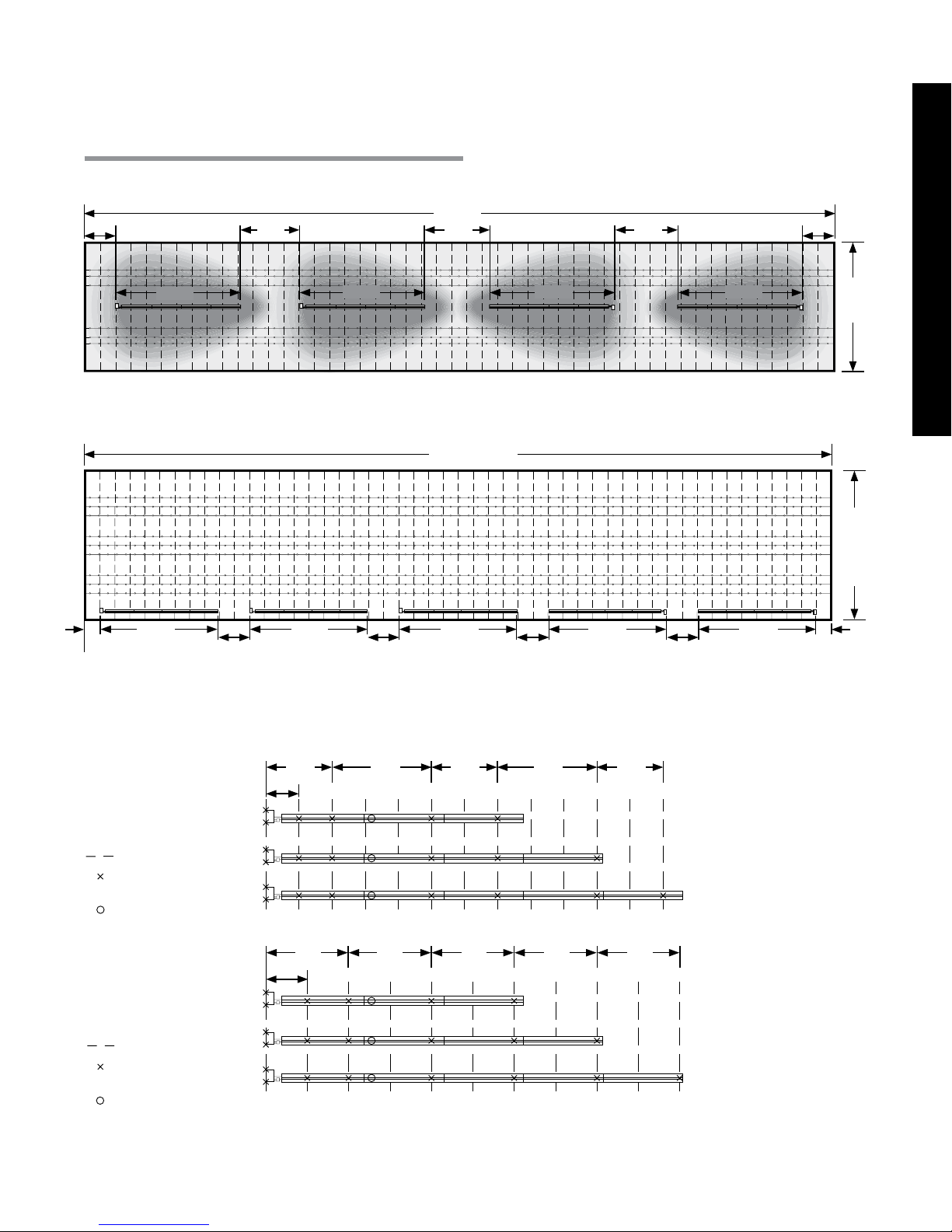

3.1 Design Considerations and Prechecks.............................................................................................. 9
3.2 Recommended Mounting Heights .....................................................................................................12

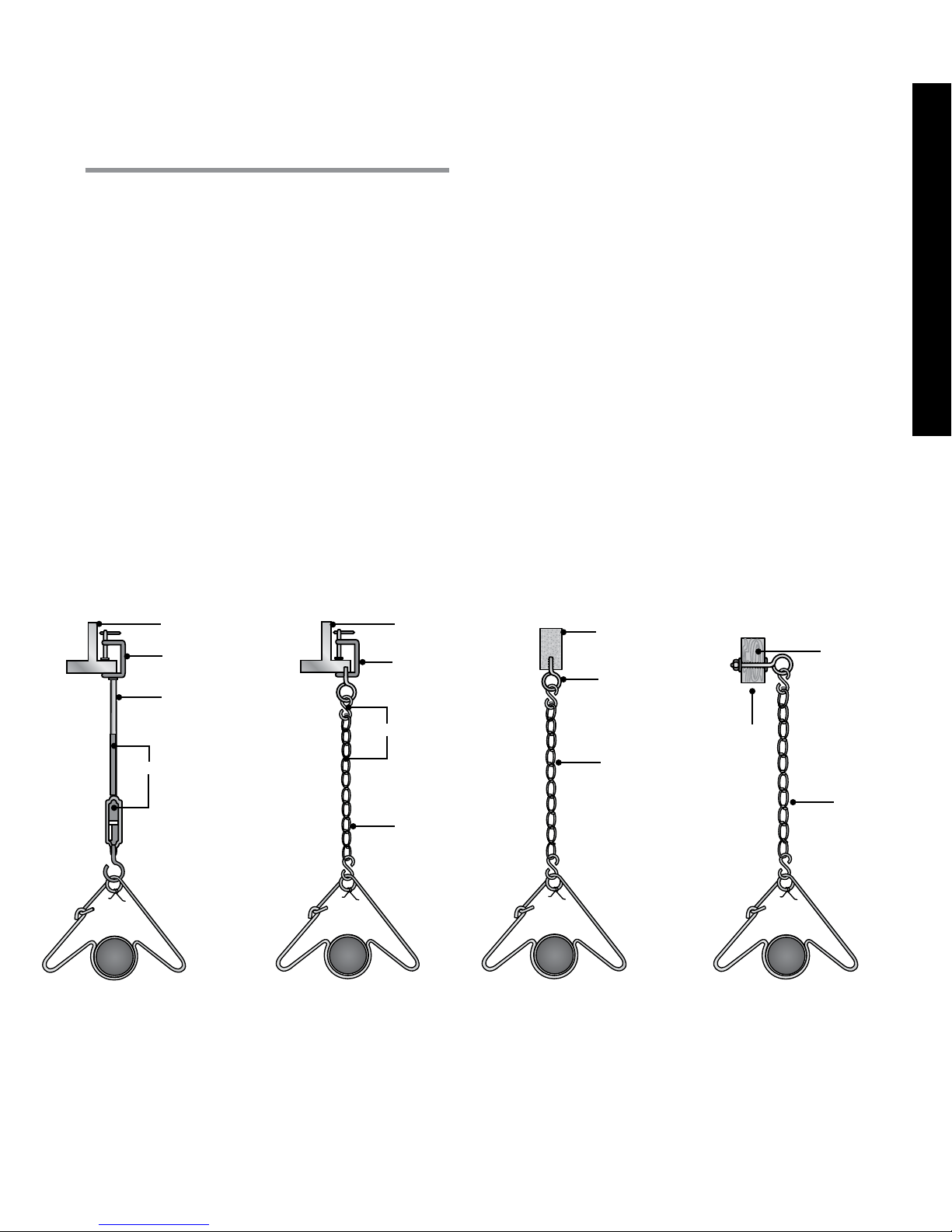

3.3 Hanger Placement and Suspension ..................................................................................................13

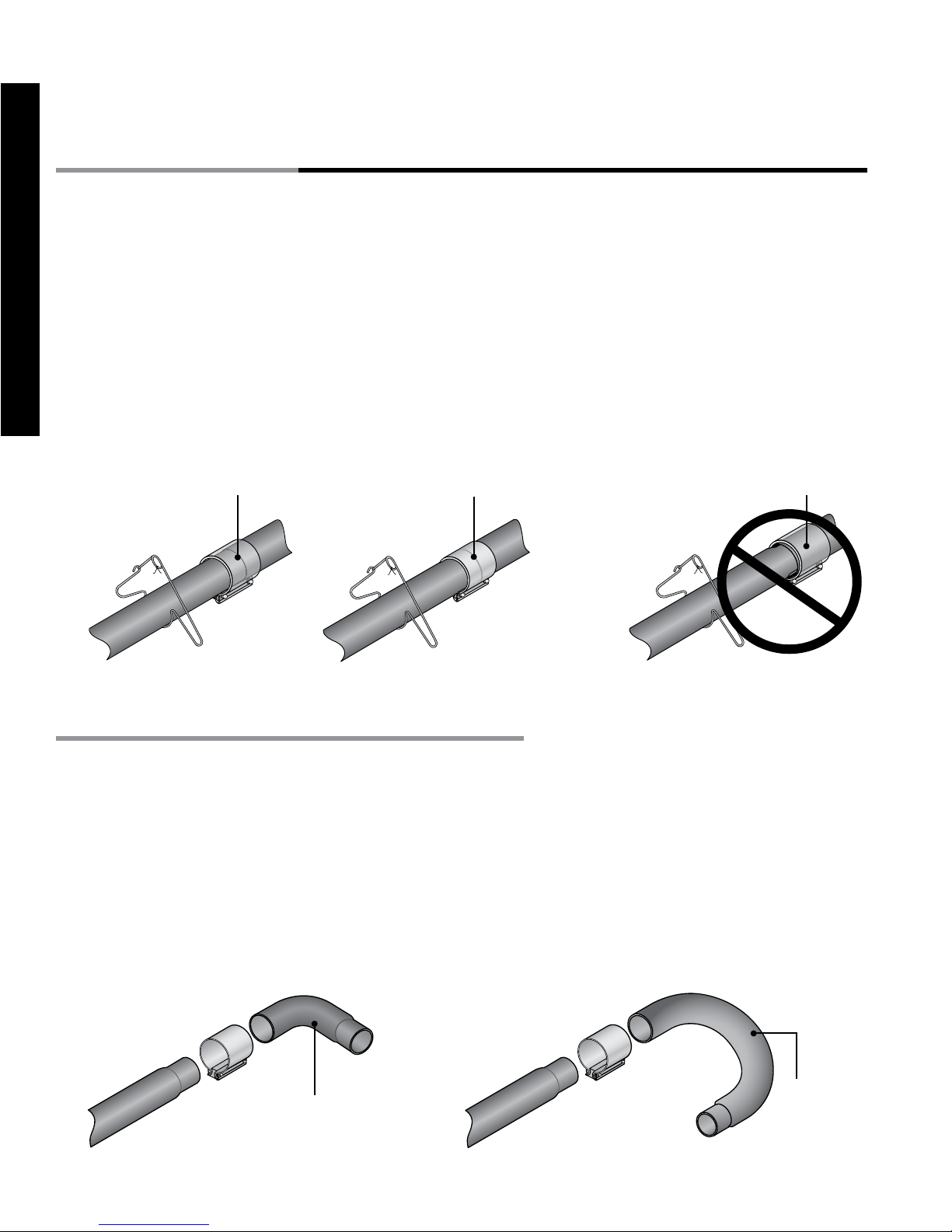

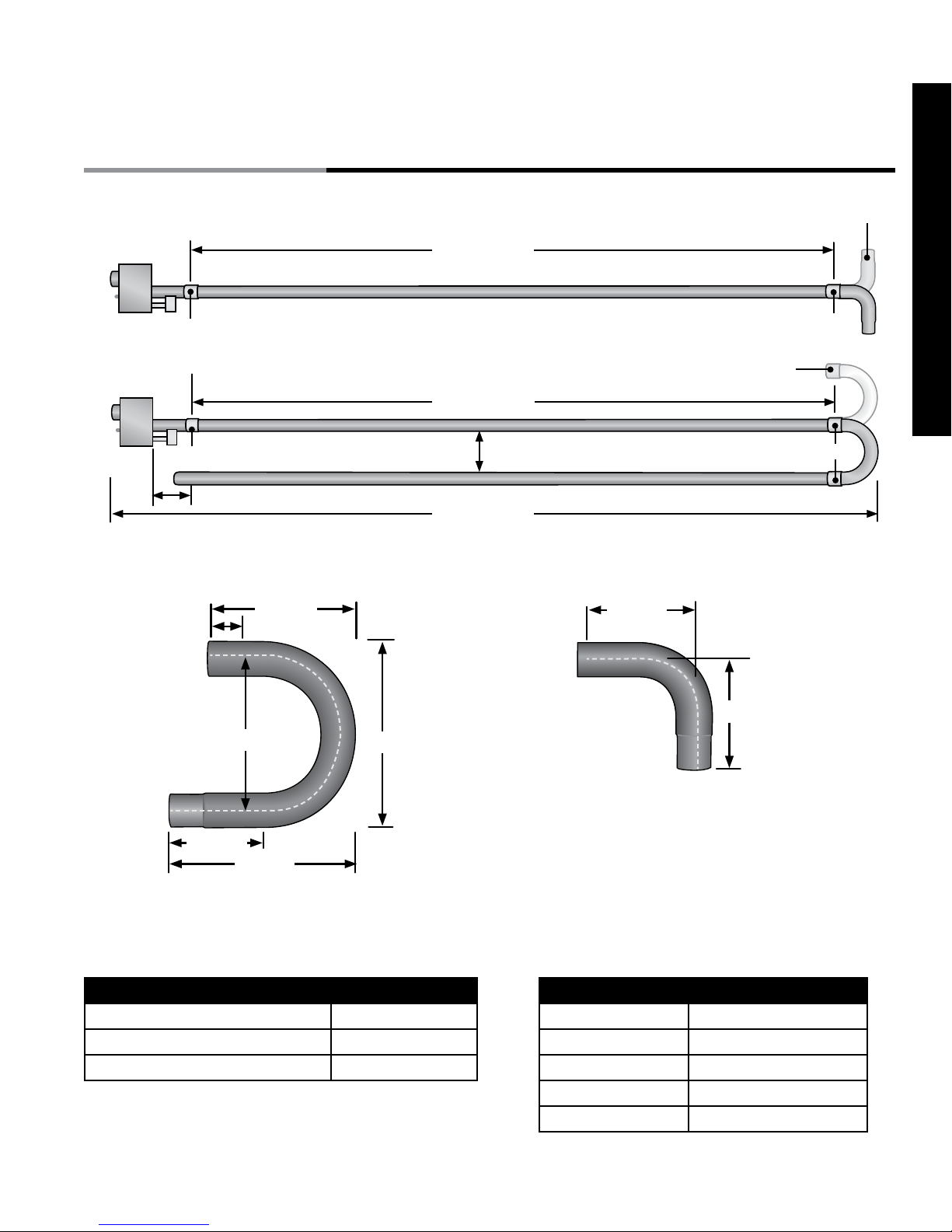

3.4 Optional U-Bend or Elbow Accessory Configuration .........................................................................16

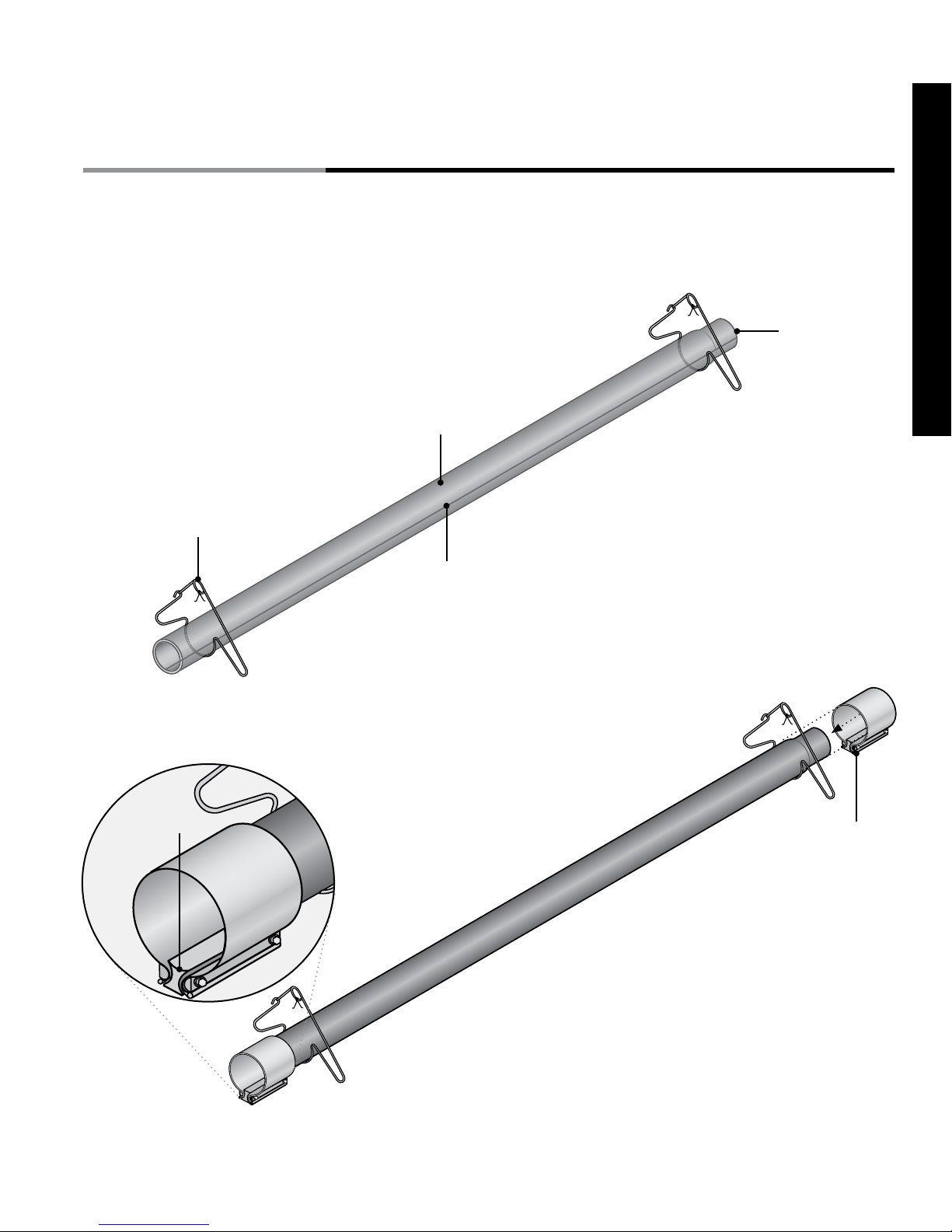

3.5 Radiant Tube Assembly .....................................................................................................................17

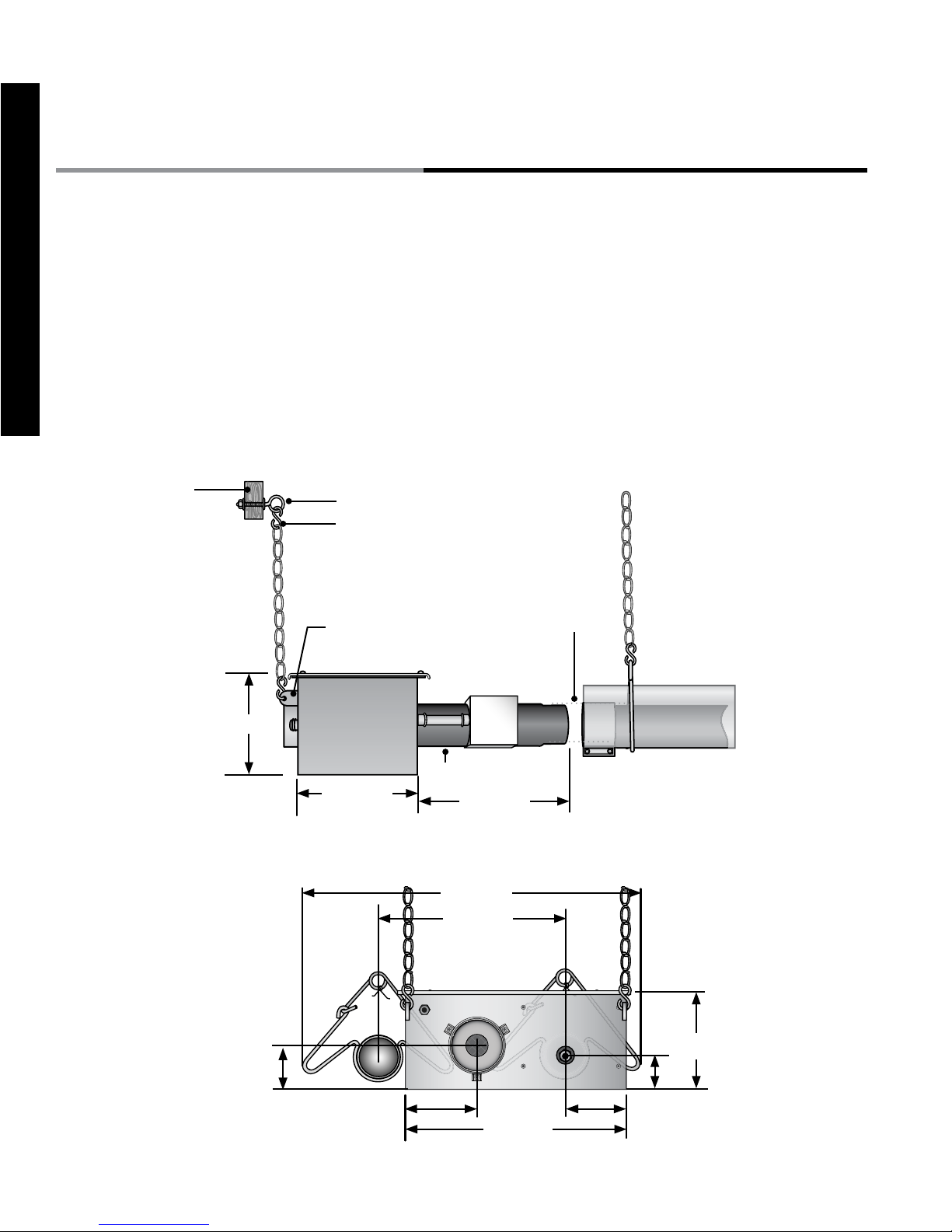

3.6 Burner Control Box Suspension ........................................................................................................20
3.7 Reflector Assembly............................................................................................................................21
3.8 Baffle Assembly and Placement .......................................................................................................23
3.9 Final Heater Assembly ......................................................................................................................24
3.10 Flueing...............................................................................................................................................25
3.11 Combustion Air Requirements ..........................................................................................................30
3.12 Gas Supply ........................................................................................................................................32
4.0 EDX SERIES SPECIFIC ...................................................................................................................................35
4.1 Electrical Requirements ....................................................................................................................35
4.2 Operation ..........................................................................................................................................37
4.3 Troubleshooting ................................................................................................................................39
4.4 Replacement Parts List .....................................................................................................................40
4.5 Technical Specifications ....................................................................................................................42
5.0 EHL SERIES SPECIFIC ...................................................................................................................................43
5.1 Electrical Requirements ....................................................................................................................43
5.2 Operation ..........................................................................................................................................45
5.3 Troubleshooting ................................................................................................................................47
5.4 Replacement Parts List .....................................................................................................................48
5.5 Technical Specifications ....................................................................................................................50
6.0 MAINTENANCE ...............................................................................................................................................51
Installation, Operation, Maintenance and Parts Manual
Contents
2

General InstallatIon / operatIon
EHL & EDX SEriES
EDX Series Offering
Installation, Operation, Maintenance and Parts Manual
Available Models
EHL Series Offering
3
Model
Number
MJ/h Length (mm) Length (M)
Install Kit
Combustion
Chamber
Radiant
Tubes
High Low Min. Max.
EDX-50 52,8 N/A 6.705 12.473 6M 9M 12M Aluminized Aluminized or
Hot-Rolled Steel
20 kit 30 kit 40 kit
EDX-60 63,3 N/A 6.706 12.473 6M 9M 12M Aluminized Aluminized or
Hot-Rolled Steel
20 kit 30 kit 40 kit
EDX-75 79,1 N/A 6.707 12.473 6M 9M 12M Aluminized Aluminized or
Hot-Rolled Steel
20 kit 30 kit 40 kit
EDX-100 105,5 N/A 9.525 15.417 9M 12M 15M Aluminized Aluminized or
Hot-Rolled Steel
30 kit 40 kit 50 kit
EDX-125 131,9 N/A 12.473 18.365 12M 15M 18M Aluminized Aluminized or
Hot-Rolled Steel
40 kit 50 kit 60 kit
EDX-150 158,3 N/A 12.473 18.365 12M 15M 18M Titan-Alum Aluminized or
Hot-Rolled Steel
40 kit 50 kit 60 kit
Model
Number
MJ/h Length (mm) Length (M)
Install Kit
Combustion
Chamber
Radiant
Tubes
High Low Min. Max.
EHL-75 79,1 52,8 6.707 12.473 6M 9M 12M Aluminized Aluminized or
Hot-Rolled Steel
20 kit 30 kit 40 kit
EHL-100 105,5 68,5 9.525 15.417 9M 12M 15M Aluminized Aluminized or
Hot-Rolled Steel
30 kit 40 kit 50 kit
EHL-125 131,9 100,2 9.525 15.417 12M 15M 18M Aluminized Aluminized or
Hot-Rolled Steel
40 kit 50 kit 60 kit
EHL-150 158,3 105,5 12.473 18.365 12M 15M 18M Titan-Alum Aluminized or
Hot-Rolled Steel
40 kit 50 kit 60 kit

General InstallatIon / operatIon
EHL & EDX SEriES
1.0 Introduction
1.0 Introduction - Installation, Operation, Maintenance and Parts Manual
The intent of this manual is to provide information regarding general safety, installation, operation and
maintenance of this tube heater. You must read and understand all instructions and safety warnings before
installing or servicing the tube heater.
Prior to installation, verify that you have received all heater components included with your tube heater.
Refer to the chart below for a list of the kit contents for your model heater. Materials not included in the kit
(e.g. sheet metal screws, flue material, terminals, etc.) are the responsibility of the installer.
1.1 Overview

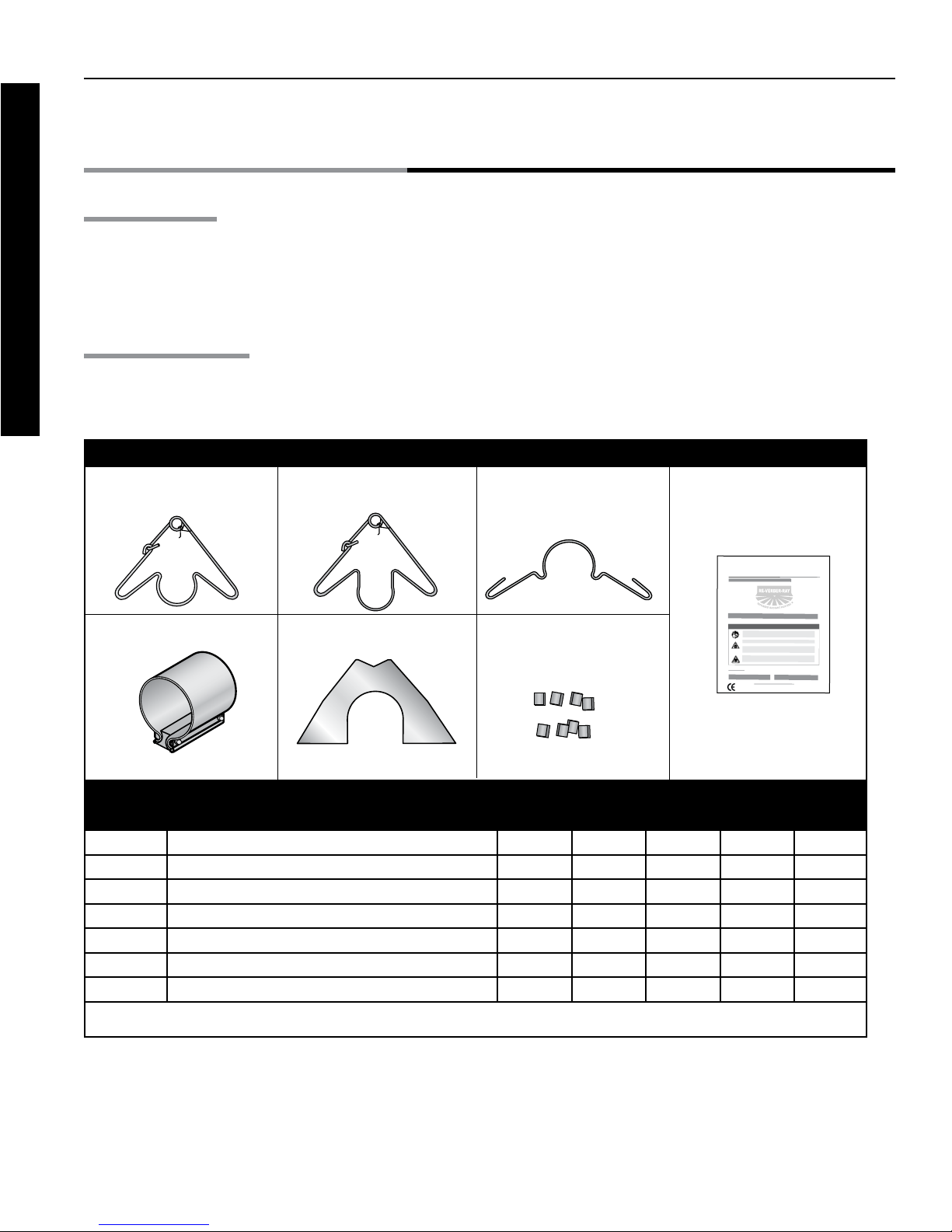

1.2 Kit Contents
TP-19B Hanger with
Reflector Tension Spring
TP-105 Reflector End Cap
TP-21B Tube Clamp TP-106 Reflector
End Caps Clips
Installation, Operation and
Maintenance Manual
F/N: LIOEAU
TP-82 Reflector
Center Support (RCS)
EHL/EDX Series
Installation, Operation,
Maintenance and Parts Manual
Kit Contents - Reference the column for your model length.
4
TP-19E* Hanger with
Reflector Tension Spring
*Optional
Part No. Description
Unit Length 6M 9M 12M 15M 18M
Kit Size 20 30 40 50 60
TP-19B Hanger w/ Tension Spring 34567
TP-19E* Elongated Agricultural Hanger _ _ _ _ _
TP-21B Tube Clamp 23456
TP-82 Reflector Center Support 23456
TP-105 Reflector End Cap 22222
TP-106 Reflector End Cap Clips 88888
LIOEAU EHL/EDX Series IOM 11111
Filled By:

Warning indicates a potentially hazardous situation
which, if not avoided, could result in death or injury.
Caution indicates a potentially hazardous situation
which, if not avoided, could result in minor or
moderate injury.
Notice indicates a potentially hazardous situation
which, if not avoided, could result in property
damage.
NOTICE
WARNING
!
!
CAUTION
!
WARNING
!
!
General InstallatIon / operatIon
EHL & EDX SEriES
2.1 Warning Symbols
Safety is the most important consideration during installation, operation and maintenance of the tube heater.
You will see the following symbols and signal words when there is a hazard related to safety or property
damage.
Improper installation, adjustment, alteration, service or maintenance can cause property
damage, serious injury or death. Read and understand, the installation, operating and
maintenance instructions thoroughly before installing or servicing this equipment. Only
trained, authorized gas installation and service personnel may install or service this
equipment.
5
2.2 Applications
This is not an explosion-proof heater. Consult the local Fire Marshall, fire insurance carrier and other
authorities for approval if the proposed installation is in question.
Not for residential use!
Do not use this heater in the
home, sleeping quarters,
attached garages, etc.
WARNING
Commercial and Agricultural
This tube heater is designed and certified for
use in industrial and commercial buildings such
as, warehouses, manufacturing plants, aircraft
hangars, vehicle maintenance shops and in
agricultural applications (e.g. poultry houses).
2.0 Safety - Installation, Operation, Maintenance and Parts Manual
2.0 Safety
Not for residential use!
Do not use this heater in the
home, sleeping quarters,
attached garages, etc.
WARNING
!

General InstallatIon / operatIon
EHL & EDX SEriES
2.3 Codes and Regulations
2.0 Safety - Installation, Operation, Maintenance and Parts Manual
The following must be reviewed before installing this heater:
Installation must be in accordance with these instructions, local gas fitting instructions, municipal
building codes, electric wiring regulations, AS 5601, and any other relevant statutory regulations. The
requirements of the local authority - gas, electricity, etc.
• Check the heater rating label on the heater to verify the proper gas to be used. Check other labels on
the heater to verify proper mounting and clearance to combustibles.
• Signs must be posted in storage areas to specify maximum stacking heights allowed in order to
maintain published clearances to combustibles.
• Not withstanding their limited scope, this appliance must be installed in accordance with relevant
provisions of the following regulations:
6

General InstallatIon / operatIon
EHL & EDX SEriES
This heater must be installed
so that the minimum clearances
to combustibles, as marked on
the heater, will be maintained. If
vehicle lifts are present, ensure
that these clearances will be maintained from
the highest raised vehicle.
Fire Hazard. Always maintain
published clearance to
combustibles. Failure to comply
with the stated clearances to
combustibles could result in personal injury,
death and/or property damage.
WARNING
This is not an explosion-proof
heater. Do not store or use
flammable objects, liquids or vapor
in the vicinity of the heater. Where
there is the possibility of exposure
to flammable vapors or highly combustible
materials, consult the local fire marshall, fire
insurance carrier and other authorities for
approval of the proposed installation.
WARNING WARNING
2.0 Safety - Installation, Operation, Maintenance and Parts Manual

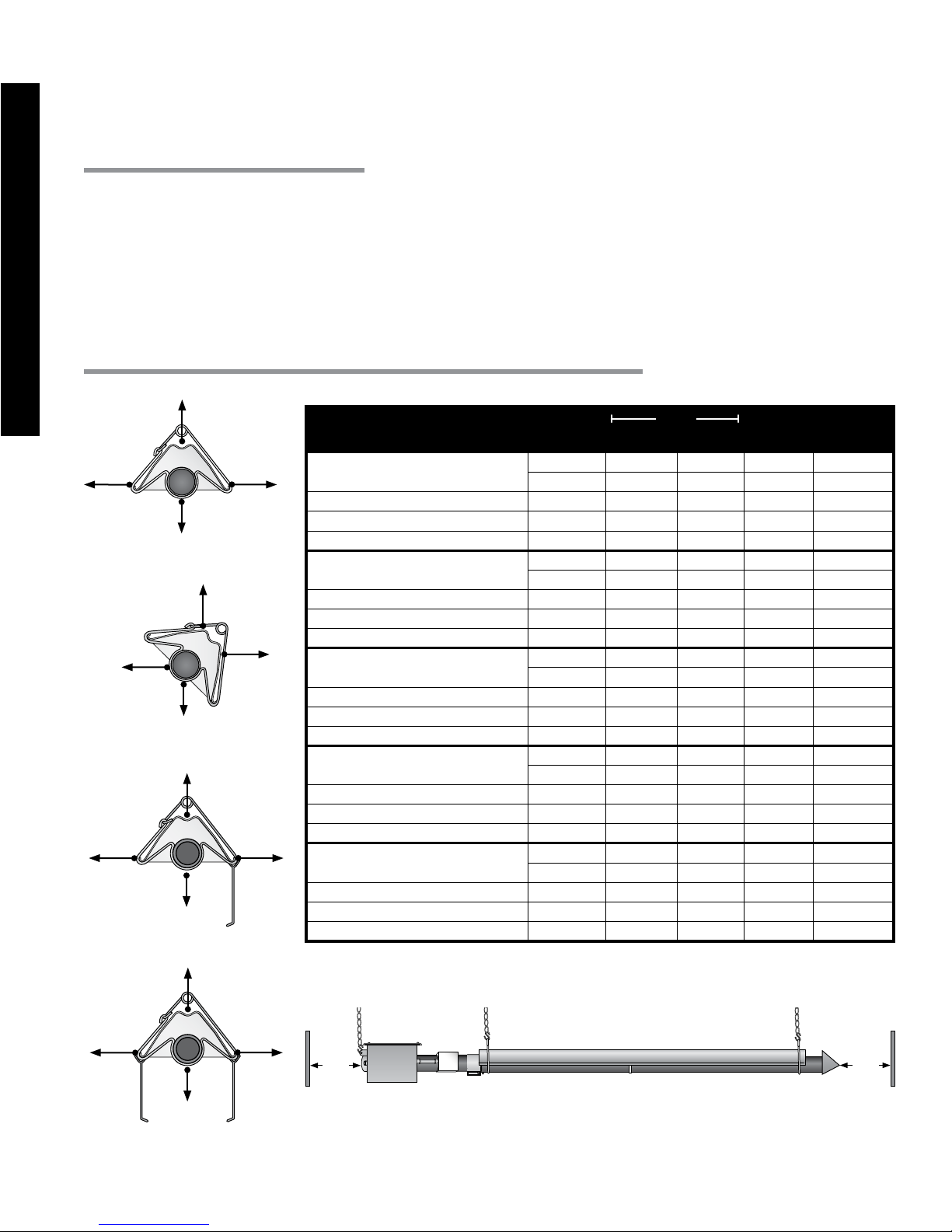

2.4 Clearance to Combustibles
Hazards
For maximum safety, the building must be evaluated
for hazards before installing this heating system.
A critical safety factor before installation is the
clearance to combustibles.
Clearances to combustibles is defined as the
minimum distance that must be maintained
between the tube surface or reflector and
combustible materials. It also pertains to the
distance that must be maintained from moving
objects (e.g. overhead doors, cranes, vehicle lifts,
etc.) around the tube heater.
If you are unsure about the proposed intallation, consult your local fire marshall, fire insurance carrier or
other authorities for the approval of the proposed installation.
Safety Signs and Labels
It is important to provide warnings to alert individuals to potential hazards and safety actions. Local
codes may require you to post a sign “specifying the maximum permissible stacking height to maintain
the required published clearances from the heater to combustibles” near the heater’s thermostat or, in the
absence of such thermostats, in a conspicuous location.
All safety labels must be maintained on this appliance. Contact your distributor if replacement labels are
needed.
• Gas and electrical lines
• Combustible and explosive materials
• Chemical storage areas
• Areas of high chemical fume concentrations
• Vehicle parking areas
• Vehicle lifts
• Hoists or cranes
• Storage areas with stacked materials
• Lighting
• Sprinker heads
• Overhead doors and tracks
• Dirty, contaminated areas
7
The following is a partial list of items to maintain clearances from:
!
!
!

General InstallatIon / operatIon
EHL & EDX SEriES
2.0 Safety - Installation, Operation, Maintenance and Parts Manual
Clearance to Combustibles
IMPORTANT:
For the safe installation of this unit, the clearance to combustibles data below contains clearances that must
be maintained.
Check the rating plate on the heater to verify the minimum clearance to combustibles and gas type for your
model heater.
EHL/EDX Series Clearance to Combustibles Data (mm)
8
Heater Input (MJ/h)
Mounting
Angle* Front Behind To p Below
53-63 MJ/h 0° 229 229 152 1194
45° 991 203 254 1194
w/ 1 side shield 0° 737 203 152 1194
w/ 2 side shields 0° 229 229 152 1194
6.1m downstream of burner 0° 178 178 152 762
79 MJ/h 0° 229 229 152 1524
45° 991 203 254 1524
w/ 1 side shield 0° 737 203 152 1524
w/ 2 side shields 0° 229 229 152 1524
6.1m downstream of burner 0° 178 178 152 762
105-109 MJ/h 0° 356 356 152 1676
45° 991 203 254 1676
w/ 1 side shield 0° 737 203 152 1676
w/ 2 side shields 0° 406 406 152 1676
6.1m downstream of burner 0° 178 178 152 762
132 MJ/h 0° 508 508 152 1930
45° 1473 203 254 1930
w/ 1 side shield 0° 1067 203 152 1930
w/ 2 side shields 0° 508 508 152 1930
6.1m downstream of burner 0° 178 178 152 762
152-163 MJ/h 0° 610 610 152 2057
45° 1473 203 254 2057
w/ 1 side shield 0° 1067 203 152 2057
w/ 2 side shields 0° 584 584 152 2057
6.1m downstream of burner 0° 279 279 152 1118
Heaters mounted on an angle between 0° to 45° must maintain clearances posted
for 0° or 45°; whichever is greater.
*
0° Mounting
Angle Top
Side Side
Below
45° Mounting
Angle
Top
Front Behind
Below
0° w/ 1 Side
Shield
Top
Front Behind
Below
0° W/ 2 Side
Shields
Top
Side Side
Below
Side
310mm
310mm

General InstallatIon / operatIon
EHL & EDX SEriES
3.0 Installation - Installation, Operation, Maintenance and Parts Manual
3.0 Installation
Placement of infra-red tube heaters is influenced
by many factors. Aside from safety factors,
considerations such as the number of elbows that
are allowed, maximum flue lengths and ducting of
combustion air are a few examples. It is critical that
all guidelines and instuctions are followed.
3.1 Design Considerations and Prechecks
NOTE: The effective infra-red surface temperature
of a person or object may be diminished with wind
above 8 km/h. The use of adequate wind barrier(s)
may be required.
NOTE: When heated, materials high in
hydrocarbons (solvents, paint thinner, mineral
spirits, formaldehydes, etc.) can evaporate. This
may result in odors or fumes being emitted into the
environment. To correct this problem, clean the
area and/or introduce additional ventilation.
Heaters installed and serviced in accordance with
the installation manual do not emit odors into the
environment. See notice on page 30 for additional
information.
• Has the building’s heat loss been evaluated?
• Does the design meet the needs of the space?
• Have all clearance to combustible situations been
observed?
• Have recommended mounting heights been
observed?
• Is the supply (burner) end of the heater located
where more heat is required?
• Is it best to offset the heaters and/or rotate the
reflectors towards the heat zone?
• Are protective guards, side shields, ‘U’ or ‘L’
reflector covers needed?
• Does the heater require outside fresh air for
combustion?
• Is the enviroment harsh or contaminated
(requiring outside air for combustion)?
• Are chemicals or vapor a concern (requiring
outside air for combustion)?
To ensure a properly designed heating system, a
heating layout should be developed for the correct
placement of the burner control box, radiant
tubing, flueing and combustion air intake ducts.
Inspect and evaluate the mounting conditions, flue
locations, gas supply and electrical wiring. Refer to
the chart below for the recommended distances for
the model being installed.
When designing an infra-red radiant heating system, consider the following:
9

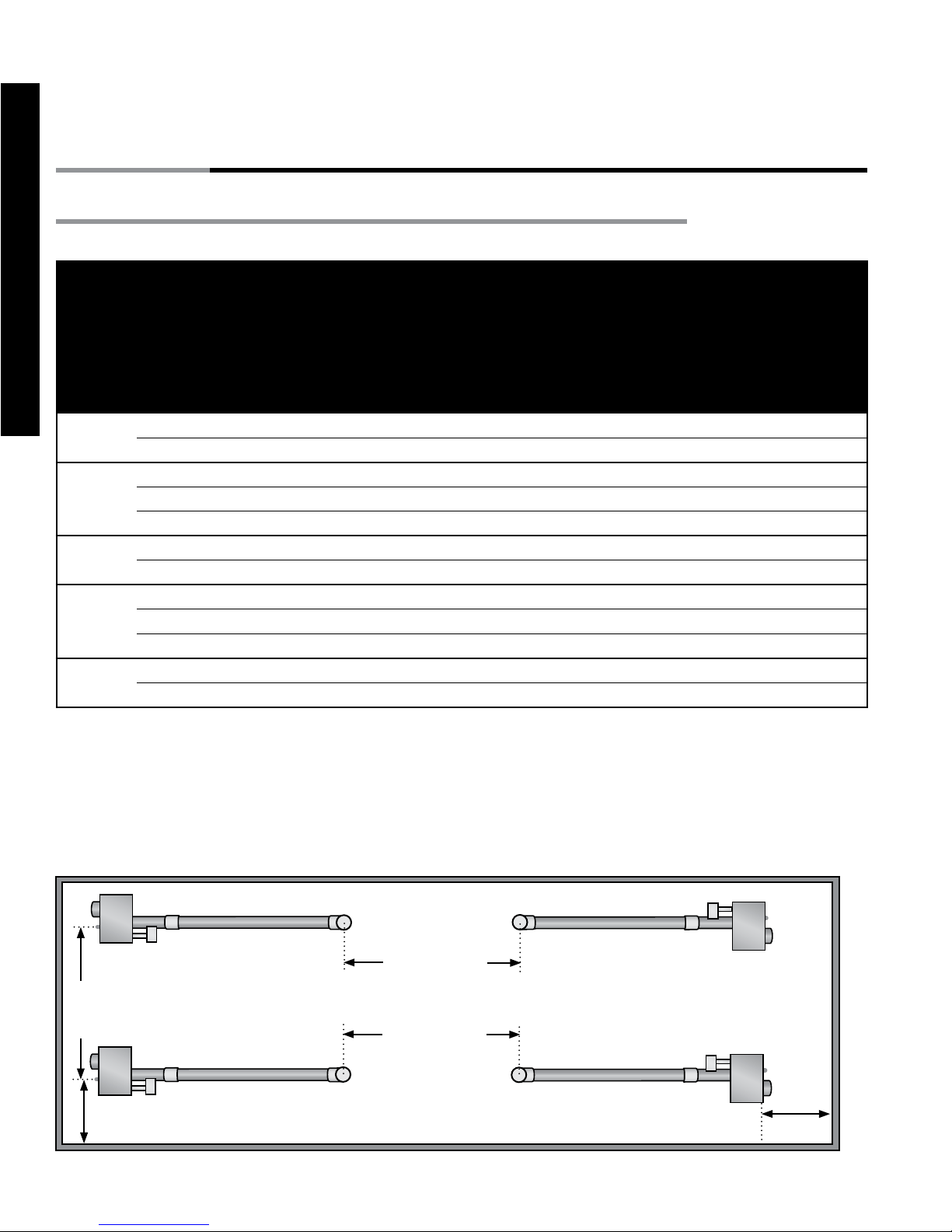

Chart X.X • Heater Installation Chart
HEATER INSTALLATION CHART (mm)
Input (MJ/h)
Recommended
Mounting Heights
Distance
Between
Heaters
Distance
Between
Heater Rows
Maximum Distance
Between Heater
and Wall
53-63 MJ/h 3050 - 4880 3050 - 9140 3660 - 19810 5030
79 MJ/h 3660 - 5490 3660 - 10670 4570 - 21340 6100
105-109 MJ/h 3690 - 6100 3960 - 12190 4880 - 25910 6100
132 MJ/h 4570 - 7620 4270 - 13100 5180 - 27430 7620
152-163 MJ/h 4880 - 9140 4570 - 13720 5490 - 30480 7620

General InstallatIon / operatIon
EHL & EDX SEriES
3.0 Installation - Installation, Operation, Maintenance and Parts Manual
General Design Scenario
10
A tube heater system is being installed in a 27.4m (L) x 15.2m (W) space with 4.3m ceilings. Two overhead
doors are located at one end and an equipment storage area exists on one side. The calculated heat load
is 316.5 MJ/h.

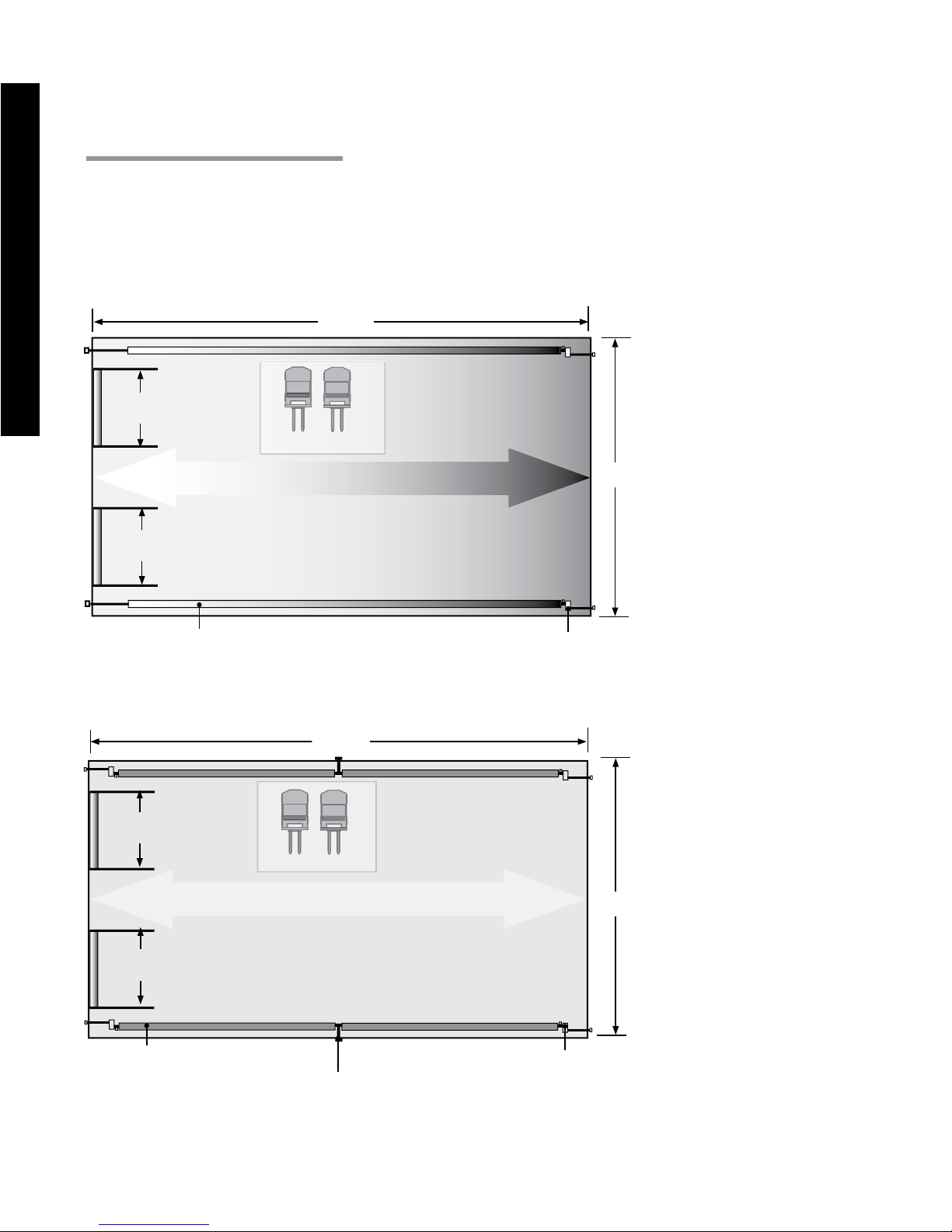

Figure 3.1 - Poor Design
Doors and
tracks
Too Cold Too Hot
Equipment storage
15.2m
24.4m - 158.3 MJ/h, Typ. 2
Doors and
tracks
27.4m
Gas Supply
Doors and
tracks
Doors and
tracks
Equipment storage
Better Heat Distribution
Sidewall Vent, Type 2
15.2m
27.4m
Gas Supply
12.2m - 79.1 MJ/h, Typ. 4
Figure 3.2 - Good Design
• Two burners (158.3 MJ/h
each) are placed at one end,
opposite the area of highest
demand (overhead doors).
• Recommended mounting
heights are not observed.
• Produces an uneven heat
distribution.
• Four burners (79.1 MJ/h
each) are placed in each
corner. Burner (hotter) ends
direct heat to areas of highest
heat demand.
• Recommended mounting
heights observed.
• Distributes heat more evenly.

General InstallatIon / operatIon
EHL & EDX SEriES
15.2m-21.3m
3.0 Installation - Installation, Operation, Maintenance and Parts Manual
Agricultural (Brood) Design Scenario
11
Figure 3.3 - Center House Installation
Figure 3.4 - Side Wall Installation
Figure 3.5 - Center House Installation
NOTE: Utilize CH hangers on houses 18.3 meters or more with center house mounting.
NOTE: Mount Reector at a 45° angle toward center.
9m, 12m and 15m Truss Installation
76.2 m
12.5m 12.5m 12.5m 12.5m
4.6m 5.8m 5.5m 5.8m 4.6m
9.1m
to
14m
76.2m-152.4m
1.5m
2.8m 12.5m
12.5m
1.5m
2.8m 12.5m 2.5m 12.5m 2.8m 12.5m
2.4m 3.7m 2.4m 3.7m 2.4m
1.2m
1.2m on center
1.5/3m on center 3m
1.5m
3m 3m 3m 3m
9m
12m
15m
9m
12m
15m
Truss
Hanging
Location
RCS
Truss
Hanging
Location
RCS
NOTE: Optional hangers (TP-19E) may be required for side wall installations.

General InstallatIon / operatIon
EHL & EDX SEriES
3.0 Installation - Installation, Operation, Maintenance and Parts Manual
Design Criteria
3.2 Recommended Mounting Heights (Industrial/Commerical Applications)
NOTE:
Factory recommended mounting heights are listed as a guideline. If infra-red heaters are mounted too low or too
high, they may result in heat discomfort or lack of heat. It is generally recommended to observe the recommended
mounting heights to optimize comfort conditions. However, certain applications such as spot heating, freeze
protection, outdoor patio heating or very high ceilings may result in the heaters being mounted outside of of the factory
recommended mounting heights. Clearances to combustibles must always be maintained.
Figure 3.6 •Recommended Mounting Heights and Distances - see chart above for dimensions.
Dimension C
Maximum
distance
between
heater
and wall
Dimension A
Dimension B
Distance between
heater rows
Dimension C
Maximum distance between heater and wall
Dimension A
12
Model (M) MJ/h Range kW Range Recommended Mounting Heights (M) Coverage Straight Config. (LxW) (M) Coverage U-Tube Config. (LxW) Distance Between Heater Rows (M) Dim. A Distance Between Heater Rows (M) Dim. B Max. Distance Between Heaters and Wall (M) Dim. C
EDX/
EHL 6M
53-63 14.6 - 17.6 3.5 - 5.0 6.5 x 4.0 4.0 x 4.0 3.5 - 6.5 6.5 - 12.5 5.0
79 22.0 - 29.3 4.0 - 6.5 7.0 x 4.5 4.0 x 4.5 6.5 - 9.5 9.5 - 15.5 5.5
EDX/
EHL 9M
53-63 14.6 - 17.6 3.5 - 5.0 9.5 x 4.5 5.5 x 4.0 3.5 - 6.5 6.5 - 12.5 5.5
79-132 22.0 - 36.6 4.0 - 6.5 10.0 x 5.5 5.5 x 4.5 6.5 - 9.5 9.5 - 15.5 6.5
105-109 29.3 - 36.6 3.5 - 6.5 10.0 x 5.5 5.5 x 4.5 6.5 - 9.5 9.5 - 15.5 6.5
EDX/
EHL 12M
79-132 22.0 - 36.6 4.0 - 7.0 13.5 x 6.5 7.0 x 5.5 6.5 - 9.5 9.5 - 15.5 6.5
158.3 44.0 5.0 - 9.5 14.0 x 8.0 7.5 x 6.5 9.5 - 12.5 12.5 - 18.5 8.0
EDX/
EHL 15M
53-63 14.6 - 17.6 3.5 - 5.0 12.5 x 5.5 7.0 x 4.5 3.5 - 6.5 6.5 - 12.5 6.5
79-132 22.0 - 36.6 4.0 - 6.5 13.5 x 6.5 7.0 x 5.5 6.5 - 9.5 9.5 - 15.5 6.5
158 44.0 5.0 - 9.5 14.0 x 8.0 7.5 x 6.5 9.5 - 12.5 12.5 - 18.5 8.0
EDX/
EHL 18M
132 36.6 5.0 - 8.0 20.5 x 8.5 10.0 x 6.5 6.5 - 9.5 9.5 - 15.5 8.0
158 44.0 5.5 - 12.5 20.5 x 10.5 10.5 x 8.0 9.5 - 12.5 12.5 - 18.5 8.0

General InstallatIon / operatIon
EHL & EDX SEriES
3.3 Hanger Placement and Suspension
WARNING
Improper suspension of the heater may result in collapse and being crushed. Always
suspend the appliance from a permanent part of the building structure that can
support the total weight and force of the heater.
WARNING
Failure to maintain the published clearance to combustibles may result in fire and/or
explosion, property damage, serious injury or death. Always maintain clearances and
post signs where needed.
Suspension of the heater must conform to applicable codes referenced in the Safety section and these
instructions.
1Remove unit from packaging and discard all transit protection materials.
NOTE: All packaging material are external of the burner and tubular exchangers.
2Lay radiant tubing out in the following order. Position tubes in their approximate locations. Figure 3.7.
• Primary combustion chamber.
• Radiant emitter tubes.
IMPORTANT! 152-163 MJ/h models must use the titanium alloy treated combustion chamber
as the first tube connected to the burner control box. The combustion chamber has an orange
identification sticker located on the swaged end of the tube.
3Mark locations for hanging points. Figure 3.7.
NOTE: If the available hanging points do not allow for the recommended spacing (or if an
alternative hanging method is utilized) then additional hangers may be necessary.
• The spacing between the burner control box mounting brackets and the first hanger should be
approximately 711mm.
• The space between the first two hangers placed on the first tube should be approximately
2692mm.
• The space between hangers thereafter, one per tube, should be approximately 2946mm.
13
3.0 Installation - Installation, Operation, Maintenance and Parts Manual
!
!

Burner
Tube
General InstallatIon / operatIon
EHL & EDX SEriES
Primary Combustion Chamber
Radiant Emitter Tube
711mm
2692mm
2946mm
Burner Control Box
Radiant Emitter
Tube ( s)
Suspension
Point
Burner Control Box
Suspension Points
Suspension
Point
Suspension Point
Ignitor/Sensor Box
3.0 Installation - Installation, Operation, Maintenance and Parts Manual
Hanger Placement and Suspension
Figure 3.7 •Heater Suspension Layout
Heater Mounting Requirements and Weights
Note:
A sticker identifying the combustion chamber(s)
is located on the swaged end of the tube(s).
14
Model Length (M) Dimension Straight Config. (mm) Suspension Points Control Box Stabilizer Shipping Weight (kg) Stainless Steel Ship Weight (kg) Chain Set Qty. Straigt Config. Chain Set Qty. U-Tube Config. Optional Brass Knuckles (P/N: BK) Optional Single Mount Bracket (P/N: SMB) U Config. Only.
6M 6580 3 2 54.5 66.0 5 6 3 2
9M 9530 4 2 73.0 88.5 6 7 4 N/A
12M 12470 5 2 86.5 107.0 7 8 5 3
15M 15420 6 2 107.0 132.0 8 9 6 N/A
18M 18360 7 2 120.0 150.0 9 10 7 4
2946mm

General InstallatIon / operatIon
EHL & EDX SEriES
5S-Hook and
double-loop
chain
3Wood
Beam
3Concrete
Beam
4Beam Clamp
4Screw Hook
4
Screw hook
with
locknut
and
washer
5Threaded Rod
and Turnbuckle
6Threaded Rod
6Chain
3
I-Beam
4Beam Clamp
6Chain
6Chain
3I-Beam
3.0 Installation - Installation, Operation, Maintenance and Parts Manual
Hanger Placement and Suspension
Suspension of the heater must conform to applicable codes referenced in the Safety section and these
instructions.
3Prepare the mounting surface. If necessary, weld blocks, drill holes, etc. Figure 3.8.
NOTE: The burner control box and radiant tubes should be in straight alignment and level.
4Fasten beam clamp, screw hook, or other type of suspension anchor to hanging point.
5Attach and close S-hook and double-loop chain to anchor. Check that it is securely attached.
NOTE: Threaded rod and turnbuckles may be used.
6Attach hangers to chains. Adjust chain lengths until radiant tubing is level and equal weight distribution
is achieved. NOTE: Chains must be straight up and down. Do not install chains at an angle as this can
result in tube warpage or separation.
Figure 3.8 •Mounting the Hangers
15

General InstallatIon / operatIon
EHL & EDX SEriES
For 45 degree hanging angle use two
S-hooks and two double-loop chains.
For a variety of hanging angles, use the
Brass Knuckle (P/N: BK) fitting with a
double-loop chain and S-hook.
45°
30° 15°
U-Tubes can be mounted at a
15, 30 or 45 degree angle with two
suspension points, using two Brass Knuckle
(P/N: BK) fittings, double-loop chains and S-hooks.
U-Tubes can be mounted from a single suspension
point using a Single Mounting Bracket (P/N: SMB)
with five S-hooks and double-loop chains.
Figure 3.9 •U-Tube Hanger Mounting Options
Figure 3.10 •Angled Hanger Mounting Options
Exhaust
End
Single Mounting
Bracket
Brass Knuckle
3.0 Installation - Installation, Operation, Maintenance and Parts Manual
3.4 Optional U-Bend or Elbow Accessory Configuration
16

General InstallatIon / operatIon
EHL & EDX SEriES
2Slide tube clamps onto radiant tubes (see Figure 3.12).
17
To install the radiant tubes:
1Place tubes in hangers with the welded seam facing downward and the swaged end of the tube towards
the exhaust end of the heater system (see Figure 3.11).
Refer to Section 3.9 on page 24 for tube installation sequence.
Figure 3.11 •Attach Hangers
Figure 3.12 •Attach Tube Clamps
Hanger
Welded seam
faces down
Swaged end
Tube Clamp
Radiant Tube
NOTE: If the tube clamp comes apart, the spacer must
be re-assembled with the spacer’s concave surface
facing against the radiant tube surface.
Concave surface
3.0 Installation - Installation, Operation, Maintenance and Parts Manual
3.5 Radiant Tube Assembly

General InstallatIon / operatIon
EHL & EDX SEriES
Tubes fit snuggly together and the
tube clamp is centered over the seam.
Tubes are not fit snuggly
together and the tube clamp is
not centered over the seam.
The tube clamp is tight when proper
torque is achieved (normally when
seam becomes visible).
Correct Tube Connection Incorrect Tube Connection
90 Degree Elbow Bend 180 Degree
U-Bend
Figure 3.14 •Optional Tube Connections
(P/N: TF1B)
(P/N: E6)
3.0 Installation - Installation, Operation, Maintenance and Parts Manual
Radiant Tube Assembly
3Slip-fit the radiant tube sections together until tightly connected (install swaged end of each tube towards
exhaust end). NOTE: If it is difficult to mate the tubes, they may be installed incorrectly.
4Center tube clamps over the seams where two radiant tube sections connect. If necessary, rotate tube
clamps so they will not interfere with the reflector end caps during expansion and contraction of the
heater while operating.
5Tighten tube clamp bolts to secure. When proper compression is obtained (30-44 Nm), the tube seam
will create a visible mark on the tube clamp. NOTE: Excessive torque may damage the tube clamp.
6Determine the location of the burner control box and note the placement of the mounting chains.
Figure 3.13 •Tube Connections
Optional U-Bend or Elbow Accessory Configurations
A 180 degree U-bend or 90 degree accessory fitting may be installed in the radiant tube heater system.
Refer to page 19 for minimum distance requirements from the burner control box.
When installing a U-bend or Elbow Accessory Fitting:
• The top clearance of an uncovered (no reflector) U-bend or elbow accessory fitting to combustibles is
458mm.
• If operating the heater un-vented, separate the intake air to the heater from its exhaust products a
minimum of 1220mm; further separation may be necessary. Combustion air may also be supplied.
• A maximum of one 180° U-bend or two 90° elbows can be installed on a heater.
• Omit one 840mm section of turbulator baffle. Refer to Baffle Assembly section.
18

General InstallatIon / operatIon
EHL & EDX SEriES
3.0 Installation - Installation, Operation, Maintenance and Parts Manual
Radiant Tube Assembly
Figure 3.15 •Elbow and U-Bend Clearances
Minimum Distance from Burner Control Box to
U-Bend or Elbow Accessory
Overall Dimensions for Heaters
Configured with U-Bend (P/N: TF1B)
19
Heater Input Range (MJ/h) Dim. A (mm)
53-109 MJ/h 3050
132 MJ/h 4570
152-163 MJ/h 6100
Model Length Dim. B (mm)
EHL/EDX 6M 3963
EHL/EDX 9M 5385
EHL/EDX 12M 6909
EHL/EDX 15M 8332
EHL/EDX 18M 9856
Dimension A
U-Bend can be set in both directions
305mm
Figure 3.16 •U-Bend and Elbow Dimensions
Elbow can be set
in both directions
Tube Clamp Tube Clamp
Dimension A
Dimension B
P/N: TF1B
P/N: E6
203mm
410mm
410mm
150mm
510mm
250mm
460mm
Tube Clamp Tube Clamp
318mm
318mm

General InstallatIon / operatIon
EHL & EDX SEriES
Suspending the burner control box must be done in accordance with applicable codes listed in the Safety
section and these instructions.
The burner control box must be in straight alignment with the radiant tubes and level.
1Determine the mounting chain locations for hanging the burner control box.
2Fasten beam clamp, screw hook, or other type of suspension anchor to hanging point.
3Attach and close S-hook and double-loop chain to anchor. Check that it is securely connected.
4Attach chain assemblies and S-hooks to mounting brackets on the burner control box. Adjust chain
lengths until level and in straight alignment with the radiant tubes. The burner sight glass will be
visible from the floor.
Figure 3.17 •Burner Control Box Assembly •Side View
Figure 3.18 •Burner Control Box with U-Bend •End View
3.0 Installation - Installation, Operation, Maintenance and Parts Manual
3.6 Burner Control Box Suspension
20
140mm 127mm
752mm
407mm
458mm
89mm
76mm
206mm
12
3
4
Burner Sight Glass
(bottom side of the tube)
Burner Control Box tube is in
straight alignment with Primary
Combustion Chamber
305mm
206mm
407mm
