DEUTA Controls AL-602-03-902 EnoPuck BASIC User manual

Manual Page 1 of 19
© DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:[phone]
06.07.2021 Hauptstraße 76, 32479 Hille Tel: [phone] - 0
Technical data might change [e-mail]; www.deuta-controls.net Fax:[phone] - 28

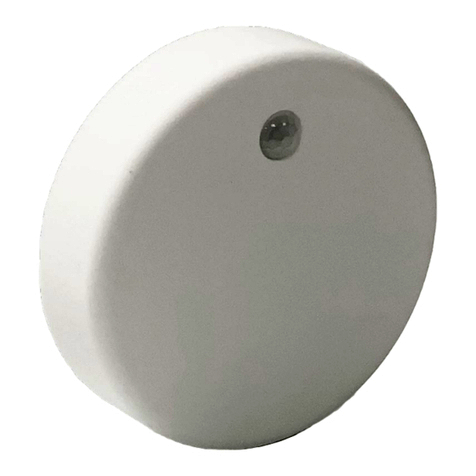

AL-602-03-902 EnoPuck BASIC
Desk Sensor with vibration and PIR sensor
EnOcean 902 MHz
Part no. 12408
Version 1.1.02, valid since FW/HW 1.0 / 2.0

AL-602-03-902 EnoPuck BASIC
Product manual Page 2 of 19
© DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:[phone]
06.07.2021 Hauptstraße 76, 32479 Hille Tel: [phone] - 0
Technical data might change [e-mail]; www.deuta-controls.dnet Fax:[phone] - 28
© 2021 DEUTA Controls GmbH
All rights reserved
This Manual, including all figures and illustrations, is copyright-protected. Any further use of
this Manual by third parties that violate pertinent copyright provisions is prohibited.
Reproduction, translation, electronic and phototechnical filing/archiving (e.g., photocopying)
as well as any amendments require the written consent of DEUTA Controls GmbH, Bergisch
Gladbach, Germany. Non-observance will involve the right to assert damage claims.
DEUTA Controls GmbH
Paffrather Straße 140
51465 Bergisch Gladbach
Phone:[phone]
Fax: [phone]
E-Mail: [e-mail]
Web: www.deuta-controls.net
Every conceivable measure has been taken to ensure the accuracy and completeness of this
documentation. However, as errors can never be fully excluded, we always appreciate any
information or suggestions for improving the documentation.
E-Mail: [e-mail]

AL-602-03-902 EnoPuck BASIC
Product manual Page 3 of 19
© DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:[phone]
06.07.2021 Hauptstraße 76, 32479 Hille Tel: [phone] - 0
Technical data might change [e-mail]; www.deuta-controls.dnet Fax:[phone] - 28
Table of contents
1Validity of this documentation......................................................................................... 5
2Intended use .................................................................................................................. 5
3Disposal ......................................................................................................................... 6
4Device description .......................................................................................................... 6
4.1 Functionality............................................................................................................ 6
4.2 External product interface ....................................................................................... 6
4.3 Observe intended use ............................................................................................. 7
4.4 Observe statutory provisions for operating frequency range.................................... 7
4.5 Non-conduction mounting surface........................................................................... 7
5Technical data................................................................................................................ 8
5.1 Communication / EnOcean wireless interface ......................................................... 8
5.2 Sensor: Vibration sensor ......................................................................................... 8
5.3 Sensor: Motion / PIR ............................................................................................... 8
5.4 User interfaces ........................................................................................................ 8
5.5 Housing / connection technology............................................................................. 8
5.6 Power supply........................................................................................................... 9
5.7 Environmental conditions ........................................................................................ 9
5.8 Dimensions and weight ........................................................................................... 9
5.9 Approvals ................................................................................................................ 9
5.10 Standards and guidelines........................................................................................ 9
6Functional description in detail ......................................................................................10
6.1 Events and messages ............................................................................................10
6.1.1 Detect vibrations .............................................................................................10
6.1.2 Detect motion..................................................................................................10
6.1.3 Send learn telegram........................................................................................10
6.2 Table of supported EEP’s (EnOcean Equipment Profiles) ......................................11
6.2.1 Transmit / TX ..................................................................................................11
6.2.2 Receive/ RX ....................................................................................................13
7Service / changing batteries ..........................................................................................14

AL-602-03-902 EnoPuck BASIC
Product manual Page 4 of 19
© DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:[phone]
06.07.2021 Hauptstraße 76, 32479 Hille Tel: [phone] - 0
Technical data might change [e-mail]; www.deuta-controls.dnet Fax:[phone] - 28
8Safety remarks ..............................................................................................................14
9Device labels.................................................................................................................15
10 FCC (United States) Regulatory Statement ...............................................................16
11 ISED Regulatory Statement .......................................................................................16
12 Dimensions / drawings...............................................................................................17
13 Ordering information ..................................................................................................18
14 Revision history .........................................................................................................19

AL-602-03-902 EnoPuck BASIC
Product manual Page 5 of 19
© DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:[phone]
06.07.2021 Hauptstraße 76, 32479 Hille Tel: [phone] - 0
Technical data might change [e-mail]; www.deuta-controls.dnet Fax:[phone] - 28
1 Validity of this documentation
This documentation is only applicable to the product
AL-602-03-902 EnoPuck BASIC
and is only applicable starting from products with FW/HW Version 1.0/2.0.
The device must only be installed and operated according to the instructions in these
operating instructions.
2 Intended use
The AL-602-03-902 EnoPuck BASIC must not be used in any relation with equipment
that supports, directly or indirectly, human health or life or with applications that can
result in danger for people, animals or real value.
The AL-602-03-902 EnoPuck BASIC can be put on a tables surface, or even mounted
below a desk using a double-sided adhesive tape. The lens cover can be used to shield
a certain area to avoid an unwanted motion detection. Without the lens cover, detection
range will be 360°, as shown in the following example (green detection area):
Using the lens cover, you can shield half of the area as shown below (yellow
detection area):

AL-602-03-902 EnoPuck BASIC
Product manual Page 6 of 19
© DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:[phone]
06.07.2021 Hauptstraße 76, 32479 Hille Tel: [phone] - 0
Technical data might change [e-mail]; www.deuta-controls.dnet Fax:[phone] - 28
3 Disposal
Electrical and electronic equipment may not be disposed of with
household waste. This also applies to products without this symbol.
Electrical and electronic equipment contain materials and substances
that can be harmful to the environment and health. Electrical and
electronic equipment must be disposed of properly after use.
Note only for EU: WEEE 2012/19/EU applies throughout Europe.
Directives and laws may vary nationally.
4 Device description
4.1 Functionality
The AL-602-03-902 EnoPuck BASIC is used to detect the presence of people working
on a desk by the internal vibration and PIR (passive infrared) motion sensor in the
front.
The integrated radio interface based on EnOcean® wireless technology offers the
possibility to integrate this information into any building automation system with an
EnOcean interface. It can also be directly teached in into an EnOcean based actuator.
If vibration or motion is detected, a wireless message will be sent by the integrated
radio transmitter based on the international EnOcean®wireless standard.
The technical data of the integrated sensors are as follows:
• PIR sensor: 100 degree opening angle, range 3 to 5 meters
• Vibration: sensitivity 0.05 g
The measured values / events are transmitted via EnOcean. There is no external wired
interface.
The EnoPuck BASIC is supplied by two internal 1,5 V AA batteries.

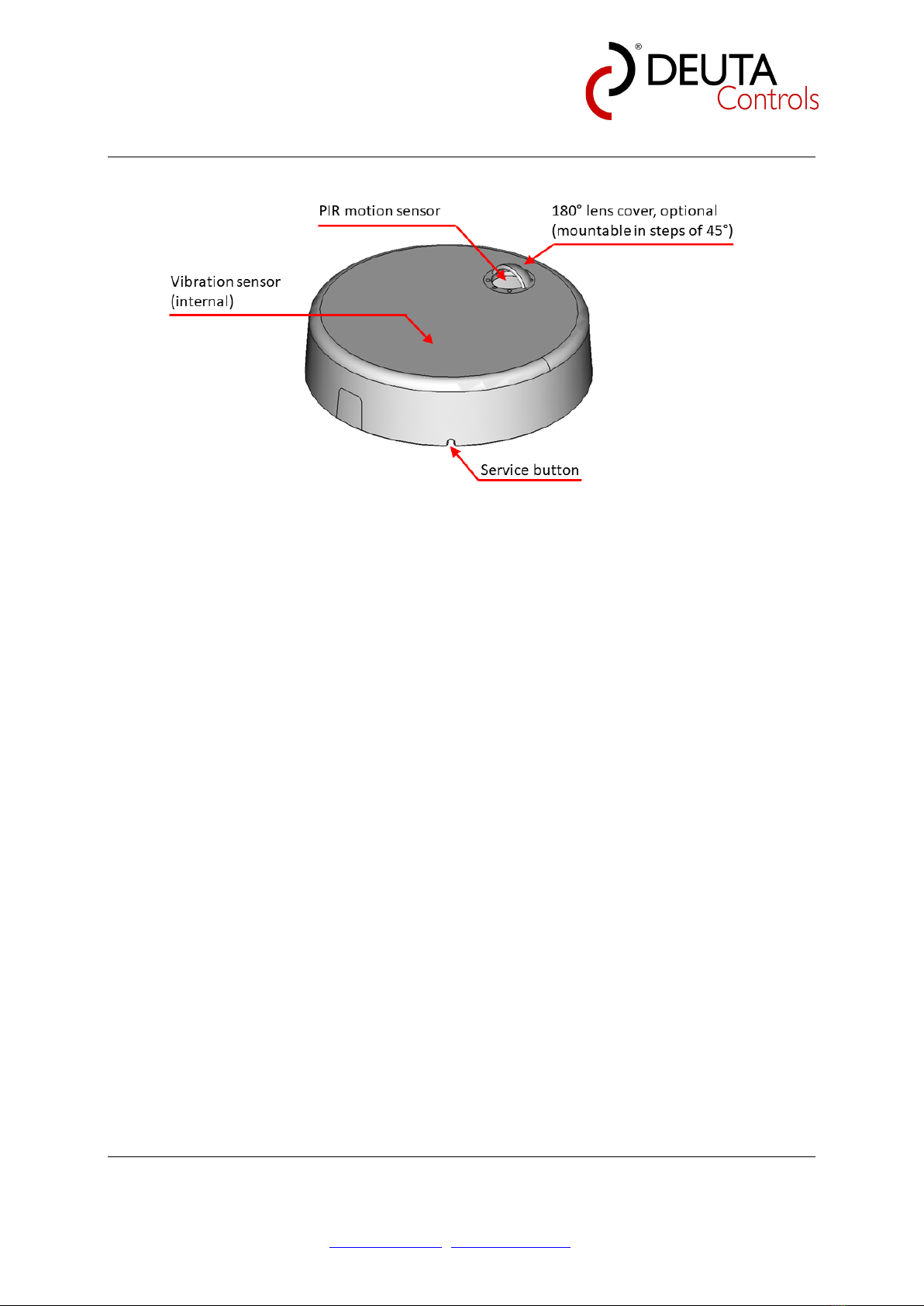

4.2 External product interface
The external product interface consists of the following items:
•Infrared lens in conjunction with a passive infrared sensor for motion detection
•Mountable 180° lens cover, 8 positions in steps of 45°
•Service button to send teach in / learn telegram

AL-602-03-902 EnoPuck BASIC
Product manual Page 7 of 19
© DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:[phone]
06.07.2021 Hauptstraße 76, 32479 Hille Tel: [phone] - 0
Technical data might change [e-mail]; www.deuta-controls.dnet Fax:[phone] - 28
4.3 Observe intended use
The AL-602-03-902 EnoPuck BASIC must not be used in any relation with equipment
that supports, directly or indirectly, human health or life or with applications that can
result in danger for people, animals or real value.
4.4 Observe statutory provisions for operating frequency range.
The AL-602-03-902 EnoPuck BASIC must only be operated in compliance with the
country-specific provisions regarding operation of radio equipment.
4.5 Non-conduction mounting surface
A non-conductive mounting surface is necessary.
Ensure the AL-602-03-902 EnoPuck BASIC is mounted on a non-conductive surface.
If it is not, performance may be adversely affected.

AL-602-03-902 EnoPuck BASIC
Product manual Page 8 of 19
© DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:[phone]
06.07.2021 Hauptstraße 76, 32479 Hille Tel: [phone] - 0
Technical data might change [e-mail]; www.deuta-controls.dnet Fax:[phone] - 28
5 Technical data
5.1 Communication / EnOcean wireless interface
Type
EnOcean
Number
1
Transmit / receive center frequency 902.875 MHz
Maximum transmission power +99 dBµV/m
Table 1: Technical data / communication
5.2 Sensor: Vibration sensor
Measuring range ± 8 g
Sensitivity 0,05 g
Table 2: Technical data / vibration sensor
5.3 Sensor: Motion / PIR
Detection angle 100 degrees
Detection range 3 – 5 m
Table 3: Technical data / PIR sensor
5.4 User interfaces
Service button Yes
Service LED -
Table 4: Technical data / user interfaces
5.5 Housing / connection technology
Connection technology -
Housing Plastic, PC, white opaque
Table 5: Technical data / housing

AL-602-03-902 EnoPuck BASIC
Product manual Page 9 of 19
© DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:[phone]
06.07.2021 Hauptstraße 76, 32479 Hille Tel: [phone] - 0
Technical data might change [e-mail]; www.deuta-controls.dnet Fax:[phone] - 28
5.6 Power supply
Power supply voltage 2x AA, 1,5V internal batteries
Power consumption Typ. 1 mW, 50 µA standby
Table 6: Technical data / power supply
5.7 Environmental conditions
Operating temp. 0..50 °C
Storage temp.
-20 ..+70 °C
Rel. humidity 0..99 % rel. humidity, non condensing
Protection class IP20
Table 7: Technical data / environmental conditions

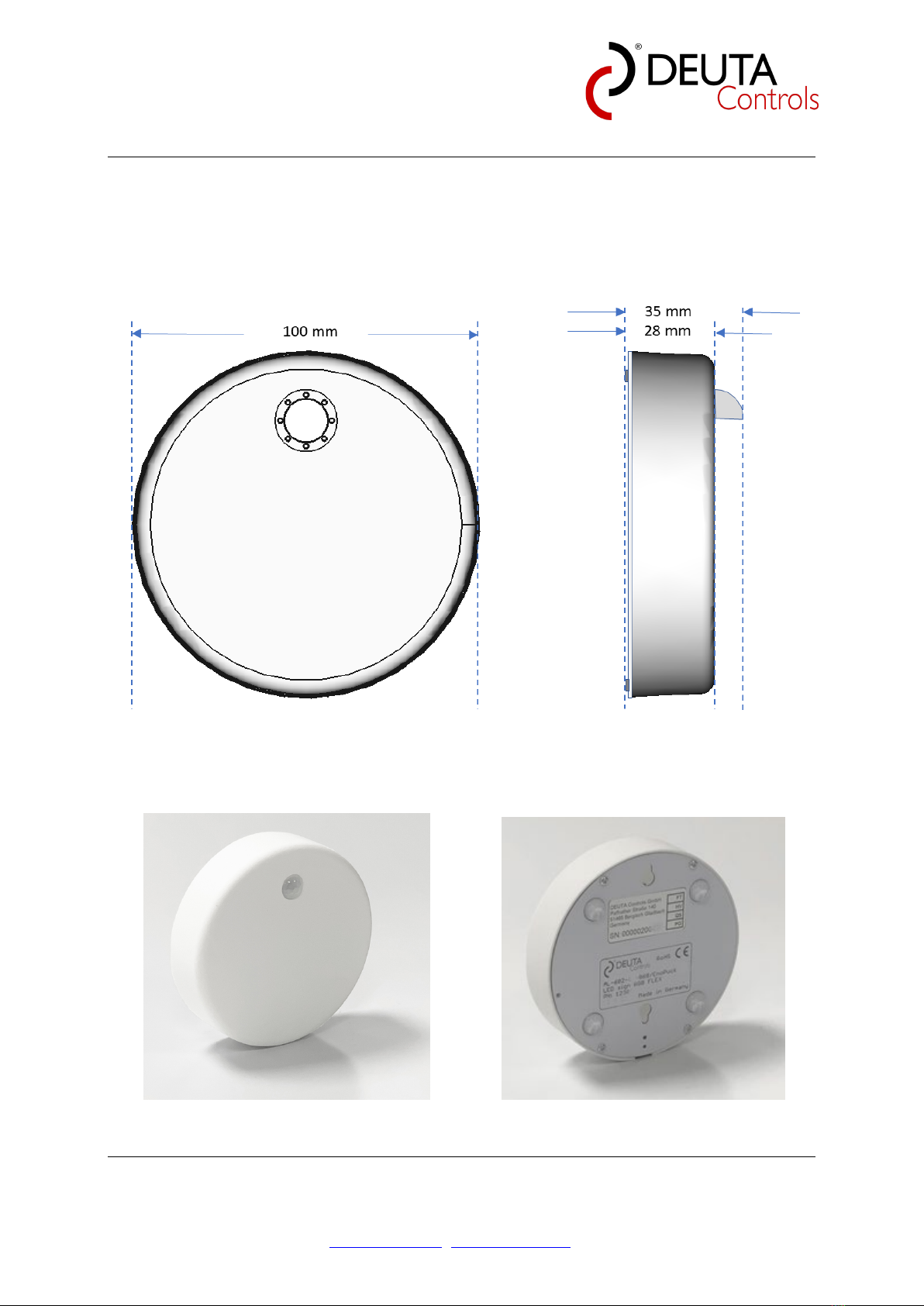

5.8 Dimensions and weight
Weight 150 g
Dimensions Diameter: 100 mm, Height: 28 mm
Table 8: Technical data / dimensions and weight
5.9 Approvals
FCC Rule parts 15.231
Equipment class Part 15 Security / Remote control
Table 9: Technical data / tests and approvals
5.10 Standards and guidelines
EMC EN IEC 61000-6-2 :2016
EN IEC 61000-3-2 :2019
EN 61000-3-3 :2013
EN 55032 :2012/AC :2013
Table 10: Technical data / standards and guidelines

AL-602-03-902 EnoPuck BASIC
Product manual Page 10 of 19
© DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:[phone]
06.07.2021 Hauptstraße 76, 32479 Hille Tel: [phone] - 0
Technical data might change [e-mail]; www.deuta-controls.dnet Fax:[phone] - 28
6 Functional description in detail
6.1 Events and messages
Vibration and motion are monitored in parallel by the AL-602-03-902 EnoPuck BASIC.
The events are handled with the same priority, whatever will happen first.
6.1.1 Detect vibrations
The EnoPuck BASIC continuously monitors the environment by the PIR sensor on top
of the housing. After a phase of no detection, the EnoPuck BASIC will immediately
send a message with Bit 0 = 1 and Bit 7 = 1 when a motion is detected by the
sensor. After a detection event, the EnoPuck BASIC will not react again for a time of
30 seconds.
6.1.2 Detect motion
The EnoPuck BASIC continuously monitors the environment by a highly sensitive
vibration sensor inside the device. After a phase of no detection, the EnoPuck BASIC
will send immediately a message Bit 1 = 1 and Bit 7 = 1 when vibration is detected
by the sensor. After a detection event, the EnoPuck BASIC will not react again for a
time of 30 seconds.
When vibration and motion are detected at the same time, both bits Bit 0 and Bit 1 will
be set accordingly.
6.1.3 Send learn telegram
To connect the EnoPuck BASIC to any building automation system, a so called learn
telegram can be send by the EnoPuck BASIC.
Simply push the service button. The EnoPuck BASIC will immediately send a learn
telegram.

AL-602-03-902 EnoPuck BASIC
Product manual Page 11 of 19
© DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:[phone]
06.07.2021 Hauptstraße 76, 32479 Hille Tel: [phone] - 0
Technical data might change [e-mail]; www.deuta-controls.dnet Fax:[phone] - 28
6.2 Table of supported EEP’s (EnOcean Equipment Profiles)
6.2.1 Transmit / TX
The EnOcean wireless standard defines so called EnOcean Equipment Profiles
(EEP). Each EnOcean based product sends and receives data according to at least
one standardized data format. The EnoPuck BASIC transmits data described as
follows:
Cons. nr.
EEP
Description
Tx-ID
1 A5-07-01 Occupancy sensor with supply voltage
monitor (PIR, Vibration) EURID
Table 11: Technical data / EnOcean EEP for tx
The following table describes in detail data send by the EnoPuck BASIC according to
the EEP A5-07-01:
Offset Size Bitrange Data Shortcut Description Valid
range
Scale Unit
0 8 DB3.7…DB3.0 Supply
voltage
SVC Battery
voltage
0..250 0…5.0 V
8 8 DB2.7…DB2.0 Not used (= 0)
16 8 DB1.7…DB1.0 PIR
Status
PIRS PIR Status s. Table 13 below

AL-602-03-902 EnoPuck BASIC
Product manual Page 12 of 19
© DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:[phone]
06.07.2021 Hauptstraße 76, 32479 Hille Tel: [phone] - 0
Technical data might change [e-mail]; www.deuta-controls.dnet Fax:[phone] - 28
Offset Size Bitrange Data Shortcut Description Valid
range
Scale Unit
24 4 DB0.7…DB0.4 Not used (= 0)
28 1 DB0.3 LRN bit LRNB LRN Bit 0: Teach-in telegram
1: Data telegram
29
2
DB0.2…DB0.1
Not used (= 0)
31 1 DB0.0 Supply
voltage
available
SVA Supply
voltage
availability
at DB_3
1: Supply voltage is
supported
Table 12: EnOcean transmit data
Note:
The EnoPuck BASIC sends EnOcean telegrams according to the following rules:
•Immediately when the PIR or VIB sensors detect a motion or vibration event.
The bits are coded as follows:
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Motion
detected
Reserved Reserved Reserved Reserved Reserved Vibration PIR
sensor
Table 13: EnOcean data, PIR and vibration message coding
Bit 7: 1 = motion detected
Bit 6: Reserved
Bit 5: Reserved
Bit 4: Reserved
Bit 3: Reserved
Bit 2: Reserved
Bit 1: 1 = Vibration detected; 0 = No vibration detected;
Bit 0: 1 = PIR motion detected; 0 = PIR motion detected;

AL-602-03-902 EnoPuck BASIC
Product manual Page 13 of 19
© DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:[phone]
06.07.2021 Hauptstraße 76, 32479 Hille Tel: [phone] - 0
Technical data might change [e-mail]; www.deuta-controls.dnet Fax:[phone] - 28
6.2.2 Receive/ RX
The EnoPuck BASIC only sends EnOcean telegrams. No data is received /
interpreted.
Cons. Nr.
EEP
Description
- - -

AL-602-03-902 EnoPuck BASIC
Product manual Page 14 of 19
© DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:[phone]
06.07.2021 Hauptstraße 76, 32479 Hille Tel: [phone] - 0
Technical data might change [e-mail]; www.deuta-controls.dnet Fax:[phone] - 28
7 Service / changing batteries
Caution: When opening the device, you have to take care of
electrostatic discharge. Otherwise, electronics will be damaged.
In case of discharged batteries, they can be replaced with two new AA batteries, 1,5 V.
You have to remove carefully the four screws on the backside of the EnoPuck BASIC
(Tool: Bit T6). Do not touch any electronic components, since you could damage the
device.
8 Safety remarks
CAUTION: Risk of damage or explosion if a battery of incorrect type is
used.
This product contains AA type batteries. If a battery is swallowed, it can
cause severe internal burns in just 2 hours and can lead to death.

AL-602-03-902 EnoPuck BASIC
Product manual Page 15 of 19
© DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:[phone]
06.07.2021 Hauptstraße 76, 32479 Hille Tel: [phone] - 0
Technical data might change [e-mail]; www.deuta-controls.dnet Fax:[phone] - 28
Keep new and used batteries away from children.
9 Device labels
The following labels are placed on the bottom side of the EnoPuck BASIC:
IC
FCC ID: 2AZTH-AL-602-03-902
IC: 27242-60203902
PMN: AL-602-03-902
FVIN: 1.0 HVIN: 2.0
RoHS
AL-602-03-902/EnoPuck Basic
PN: 12408
2 x Bat Typ AA Made in Germany
DEUTA Controls GmbH
Paffrather Straße 140
51465 Bergisch Gladbach
Germany
SN: xxxxx
FT
HV
QS
PG

AL-602-03-902 EnoPuck BASIC
Product manual Page 16 of 19
© DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:[phone]
06.07.2021 Hauptstraße 76, 32479 Hille Tel: [phone] - 0
Technical data might change [e-mail]; www.deuta-controls.dnet Fax:[phone] - 28
10 FCC (United States) Regulatory Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
11 ISED Regulatory Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
1 . This device may not cause interference.
2. This device must accept any interference, including interference that may cause
undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est
conforme aux CNR d’Innovation, Sciences et Développement économique Canada
applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.

AL-602-03-902 EnoPuck BASIC
Product manual Page 17 of 19
© DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:[phone]
06.07.2021 Hauptstraße 76, 32479 Hille Tel: [phone] - 0
Technical data might change [e-mail]; www.deuta-controls.dnet Fax:[phone] - 28
12 Dimensions / drawings
Diameter: 100 mm; Height: approx. 28 mm+ 7 mm lens cover if mounted

AL-602-03-902 EnoPuck BASIC
Product manual Page 18 of 19
© DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:[phone]
06.07.2021 Hauptstraße 76, 32479 Hille Tel: [phone] - 0
Technical data might change [e-mail]; www.deuta-controls.dnet Fax:[phone] - 28
13 Ordering information
Part name
Part nr.
Description
AL-602-03-902 EnoPuck BASIC 12408
Table sensor, EnoPuck BASIC,
EnOcean 902 MHz, sensors for
vibration and PIR detector;
supply voltage 2x AA 1,5 V
internal, dimensions 100 x 28
mm,
PC, white opaque; incl.
adhesive pad;

AL-602-03-902 EnoPuck BASIC
Product manual Page 19 of 19
© DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:[phone]
06.07.2021 Hauptstraße 76, 32479 Hille Tel: [phone] - 0
Technical data might change [e-mail]; www.deuta-controls.dnet Fax:[phone] - 28
List of tables
Table 1: Technical data / communication .............................................................................. 8
Table 2: Technical data / vibration sensor ............................................................................. 8
Table 3: Technical data / PIR sensor..................................................................................... 8
Table 4: Technical data / user interfaces ............................................................................... 8
Table 5: Technical data / housing......................................................................................... 8
Table 6: Technical data / power supply ................................................................................. 9
Table 7: Technical data / environmental conditions ............................................................... 9
Table 8: Technical data / dimensions and weight .................................................................. 9
Table 9: Technical data / tests and approvals........................................................................ 9
Table 10: Technical data / standards and guidelines ............................................................. 9
Table 11: Technical data / EnOcean EEP for tx....................................................................11
Table 12: EnOcean transmit data .........................................................................................12
Table 13: EnOcean data, PIR and vibration message coding...............................................12
14 Revision history
Version
Author
Reviewer
Date
Major changes
1.0
Lehzen
-
15.06.2021
Initial release
1.1
Lehzen
Pohl / Kurzawa
15.06.2021
Release candidate for
FCC approval
1.1.01
Lehzen
-
15.06.2021
Minor changes in 9,
FCC instead of FDD
1.1.02
Lehzen
Pohl / Kurzawa
06.07.2021
Changed functional
description according
to FCC test report
------------ End of document -----------
