DEUTSCHER HE660
OWNER’S INSTRUCTION MANUAL
AND PARTS LIST

2
.................... Assembly Instructions
.................... Safety Instructions
.................... Routine Care and Storage
.................... Specifications
.................... Operation
.................... Maintenance

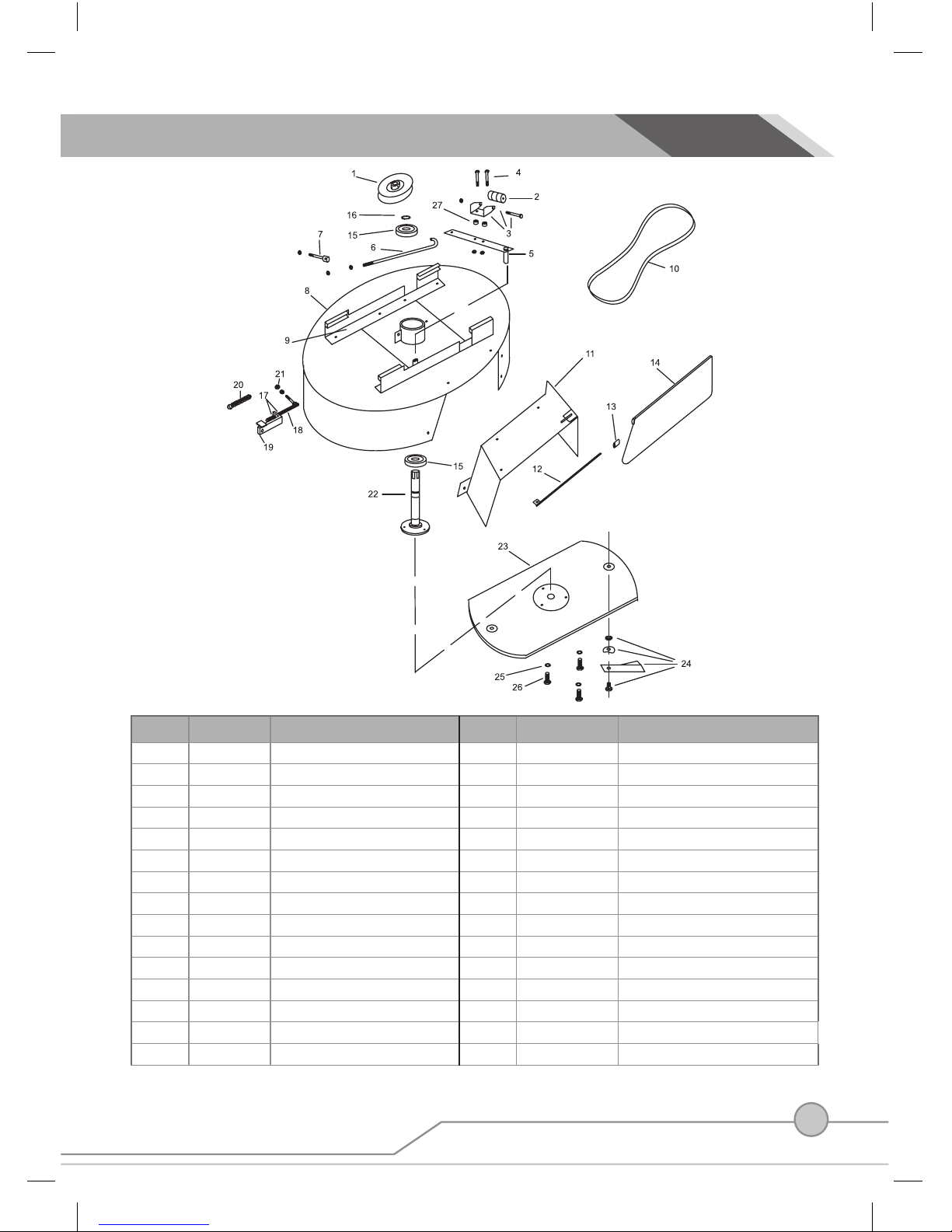

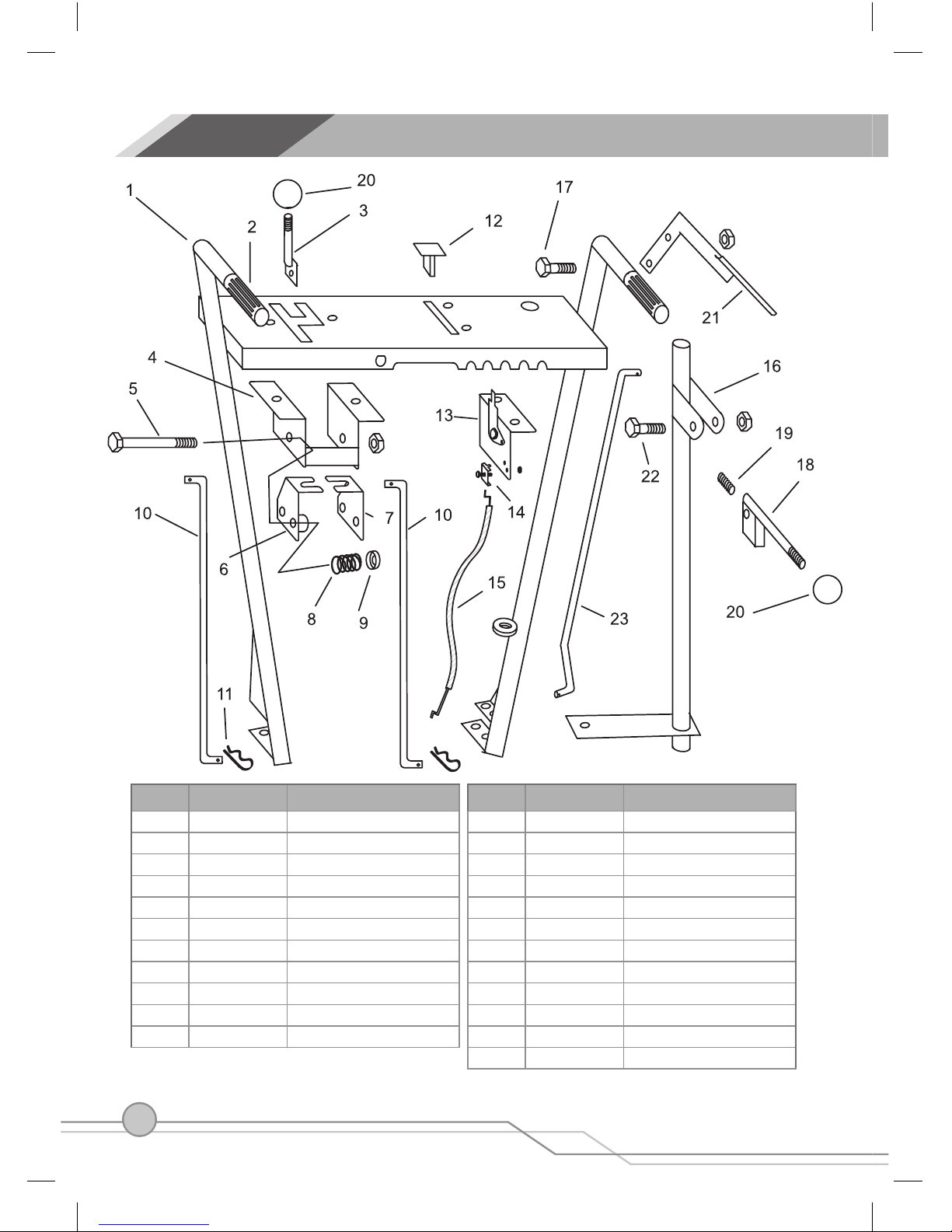

.................... Exploded views and Part Numbers
.................... Warranty
3-4
5-6
7
7
8-9
10-13
14-19
20
INDEX
HE660 Models
36157 HE660 Deutscher Honda GXV340 Limited slip differential
36257 HE660 Deutscher Honda GXV340
36258 HE660 Deutscher Honda GXV390 Electric Start
36158 HE660 Deutscher Honda GXV390 Electric Start. Limited slip differential

3
ASSEMBLY INSTRUCTIONS

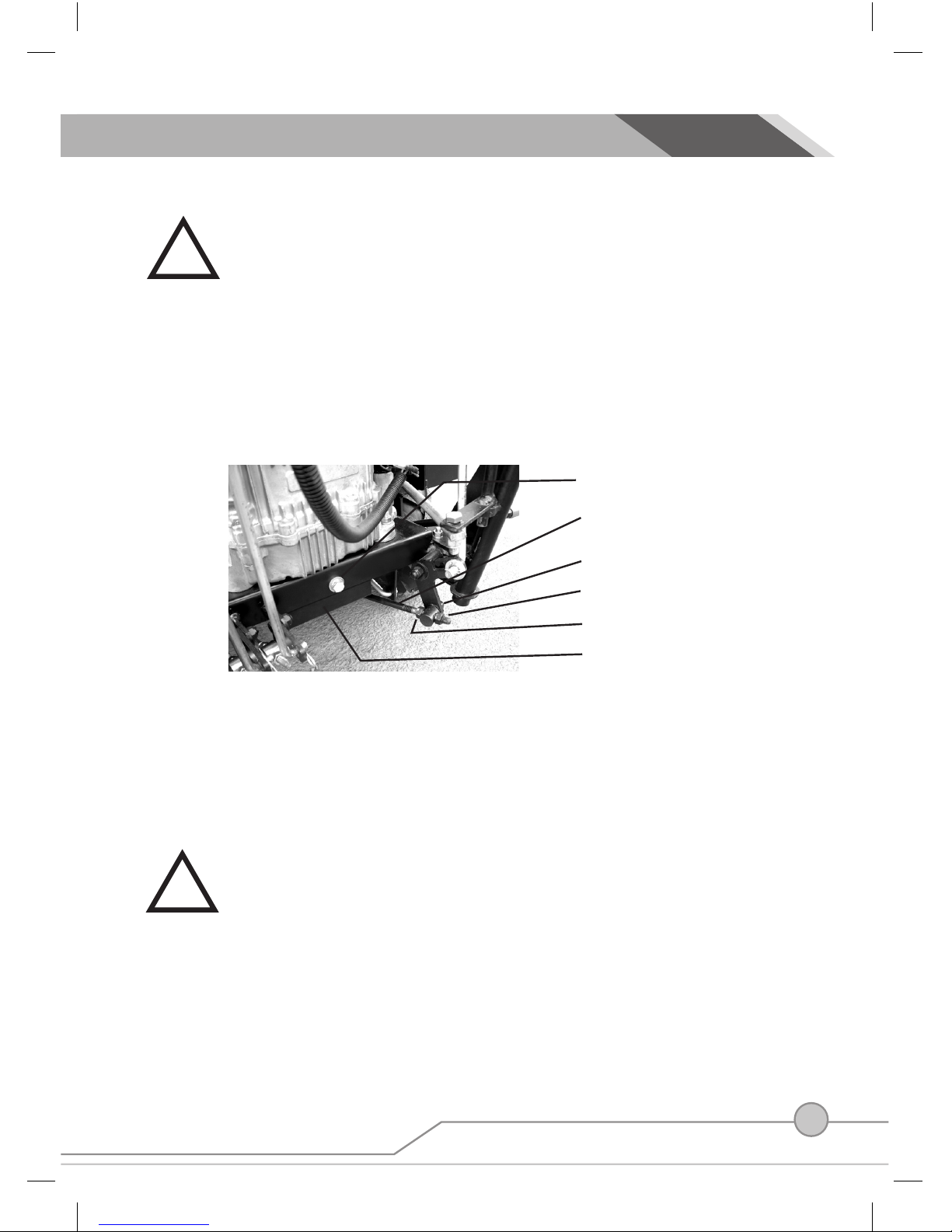

HANDLE ATTACHMENT (Pre delivery) (Refer to Figure 1)
1. Connect the handles to the side rails of the chassis using four 75mm M8 bolts. Fasten the four nuts securely.
Inset rods ‘A’ through the holes in the levers ‘B’ and secure with R clips.
2. Fully loosen nut ‘C’ and connect rod ‘D’ to the drive clutch lever ‘E’ using a washer and split pin.
Retighten nut ‘C’.
3. Connect the rod ‘G’ to the foot pedal assembly ‘H’using a washer and split pin.
4. Connect the height adjusting rod ‘J’ to the straight lever ‘K’ as shown, using the bolt ‘I’ and the nut and
washer provided.

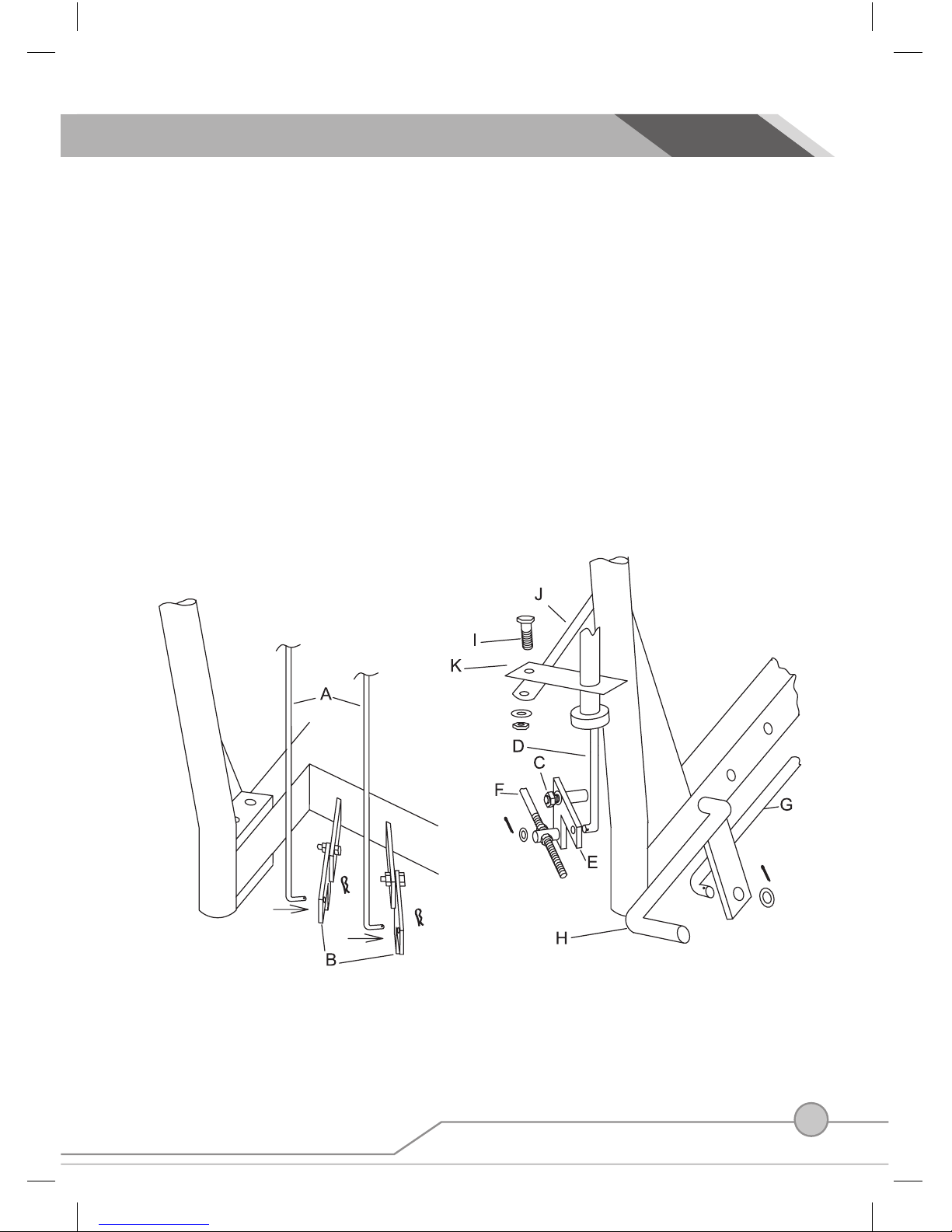

Fig. 1 - Dealer Assembly

4
ASSEMBLY INSTRUCTIONS
5. See Figure 2. Place tank straps “3” in the tank bracket “4” slots and bend tabs up and back against the
bracket. Place the fuel tank in position and attach the straps at their lower end using two 6mm bolts.
6. Connect the fuel line from the engine to the nipple underneath the tank. Use pliers to raise the loose hose
clamp to secure the hose to the tank..
7. Insert the throttle lever through the slot in the center of the control panel then attach the throttle control to the
underside of the control paned using the two screws provided. Ensure both “choke” and “stop” positions are
achieved using the throttle lever. Push the ‘” T “ shaped plastic knob onto the throttle lever.
8. Electric start models. Insert the key-switch through the “D” shaped hole in the rear of the control panel and
secure it with the spring washer and nut provided.
Remove the battery from the battery box and fill it with battery acid (not supplied) to 1-2 mm above the plates.
Clean any spilled acid from the battery then install the battery in the mower. Ensure that the negative terminal is
connected to the frame of the mower (earth). Wait 20 minutes for the battery to charge before attempting to start
the mower. You do not need to connect it to a charger.
ENGINE PREPARATION (Pre delivery)
1. Remove the dipstick and check the oil level as per the instructions in the engine manual.
2. Add unleaded petrol to the petrol tank.
3. Read and abide by the Safety Instructions listed below then follow the starting procedure listed In the
Operation section. Check there is no abnormal vibration, and that the gear lever, forward drive lever, height
adjustment lever and blade clutch are functioning satisfactorily.
Fig. 2 - Fuel Tank Attachment

5
SAFETY INSTRUCTIONS
BEFORE STARTING:
• Know your controls. Read the owners manuals thoroughly. Learn how to stop the engine quickly in an
emergency.
• Inspect the area to be mown, remove all debris and obstacles that may be in the path of the mower. Do not
attempt to shift obstacles while the mower is running.
• Damaged blades and worn bolts are major hazards. Before starting, always visually inspect to see that blades,
blade bolts and cutter assemblies are not worn or damaged.
• Replace worn or damaged blades and bolts in sets to preserve balance.
• Refuel outdoors only and away from all sources of ignition, including pilot lights in gas appliances. Do not
smoke while refuelling the engine. Add fuel before starting the engine. Never remove the cap from the fuel tank
or add petrol while the engine is running or the engine is hot. If petrol is spilled, do not attempt to start the engine
but move the machine away from the area of the spill and avoid creating any source of ignition until the petrol
vapours have dissipated.
• Do not allow children or people unfamiliar with these instructions to use the mower.
• With prolonged use, hearing protection should be worn.
• Never mow while barefoot or wearing open sandals, or thongs. Wear long trousers and heavy shoes.
• Apply sunscreen; wear appropriate clothing, a hat and sunglasses to avoid sunburn.
• It is advisable to wear suitable eye protection when operating the mower.
!
STARTING - Safety Instructions:
• Disengage all blades and drive clutches and shift the gear lever into neutral before starting the engine.
• Start the mower carefully according to the instructions on page 8, with feet well away from blades and not in
front of the discharge chute.
OPERATION - Safety Instructions:
• Never mow while people, especially children or pets, are nearby.
• Mow only in daylight or in good artificial light. Stay alert for holes in the terrain and other hidden hazards.
• Never direct discharge material towards bystanders.
• Avoid operating the equipment in wet grass, where feasible.
• Do not put hands and feet near or under rotating parts. Keep clear of the discharge opening at all times.
• Never lift or carry a mower while the engine is running.

6
SAFETY INSTRUCTIONS
• Use extreme caution when reversing or pulling the mower towards you. Ensure your footing is stable and be
especially careful in uneven terrain.
• Do not attempt to ride the mower.
• Walk, never run.
• Slopes:
Do not mow excessively steep slopes.
Exercise extreme caution when on slopes.
Mow across the face of slopes, never up and down, and exercise extreme caution when changing direction
on slopes.
• Use low throttle settings when engaging the ground drive, especially in “high” gear.
• Reduce speed on slopes and in sharp turns to prevent overturning or loss of control.
• Stop the blades when crossing surfaces other than grass and when transporting the mower to and from the
area to be mowed.
• Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect.
• Stop the engine:
Whenever you leave the mower, even for an instant.
Before re-fuelling.
• Stop the engine and disconnect the spark-plug lead, or turn off and remove the key (if fitted):
Before clearing blockages or unclogging chute
Before checking, cleaning or working on the mower
*After striking a foreign object, inspect the mower for damage and make repairs before restarting and operating
the mower. If mower starts to vibrate abnormally, stop the engine immediately.
• Watch out for traffic when crossing or near roadways.
• Before leaving the operator’s position:
Disengage the cutter engagement lever.
Change into neutral and set the parking brake.
Stop the engine and or remove key.
Do not modify the mower in any way, or use the mower without the shields and guards
in place. They are for your protection.

7
ROUTINE CARE & STORAGE
• Keep all nuts, bolts and screws tight to ensure the equipment is in a safe working condition.
• Do not use pressure-cleaning equipment.
• Never store the equipment with petrol in the tank inside a building where fumes can reach an open flame
or spark.
• Allow the engine to cool before storing in any enclosure.
• To reduce the fire hazard, keep the engine, silencer, battery compartment and petrol storage areas free of
grass, leaves, or excessive grease.
• Replace worn or damaged parts for safety;
• Replace faulty silencers.
• If the fuel tank has to be drained, do this out-doors and away from all ignition sources.
• Do not change the engine governor settings or over speed the engine. Operating an engine at excessive speed
can increase the risk of personal injury and cause premature engine failure.
• Be careful during adjustment of the mower to prevent entrapment of the fingers between moving blades and
fixed parts of the mower.
• Store fuel in a cool place in a container specifically designed for the purpose. In general, plastic containers
are unsuitable.
• Lower the cutting deck when the mower is to be parked, stored or left unattended.
SPECIFICATIONS:
ENGINE: Honda GXV340 recoil start or GXV390 electric start engines are used. See engine owner’s manual
supplied with the mower.
GEARBOX: Deutscher gearbox houses two forward gears, a reverse gear and a differential in an oil bath alloy
housing.
Recommended oil: EPX 85w/140
Capacity: 750ml
SPEED RANGE: Low gear: 2.2 kph @ 2500rpm.
High gear: 3.6 kph @ 2500rpm.
Reverse gear: 1.7 kph @ 2500rpm.
TYRES: Rear: 13-500-6 Pressure, 20psi
Front 250 x 4 Pressure, 20psi
CUTTING HEAD: 660mm cut, 2 x blades,
6 cutting height positions from 25mm-85mm.
GENERAL: Length:1600mm
Width: 640mm
Height: 960mm
Weight: 120kg

8
OPERATION
CONTROLS:
PRE-START CHECK
Your Deutscher Mower comes to you tested and ready to operate, with engine and gearbox filled with oil.
• Read all safety instructions and know how to stop engine quickly in any emergency.
• Know your controls – Where they are and their function.
• Use fresh unleaded petrol. Do not mix oil with petrol.
• Ensure drive and cutter mechanisms are placed in neutral or disengaged.
OPERATION:
TO START THE ENGINE (Manual start) :
• When engine is cold, move throttle lever to CHOKE position.
• When engine is hot, move throttle lever to high throttle position.
• Slowly pull starter cord until starter pawls engage and rope stops, then pull with force to turn the engine over.
Repeat this procedure if the engine does not start.
Once the engine is running shift the throttle lever to the desired operating position
TO STOP THE ENGINE (Manual start) :
• Push throttle lever to the STOP position.
TO START THE ENGINE (Electric start version) :
• When the engine is cold, move throttle lever to the CHOKE position.
• When the engine is hot, move the throttle lever to the FAST throttle position.
• Turn the key fully clockwise to the start position and release the key as soon as the engine is running.
• Once engine is running, shift throttle lever from Choke position to desired operating position.
Note: If the mower fails to start first time, allow the starter a short time to cool before re-trying.
TO STOP THE ENGINE (Electric start version) :
• Turn key fully anticlockwise.

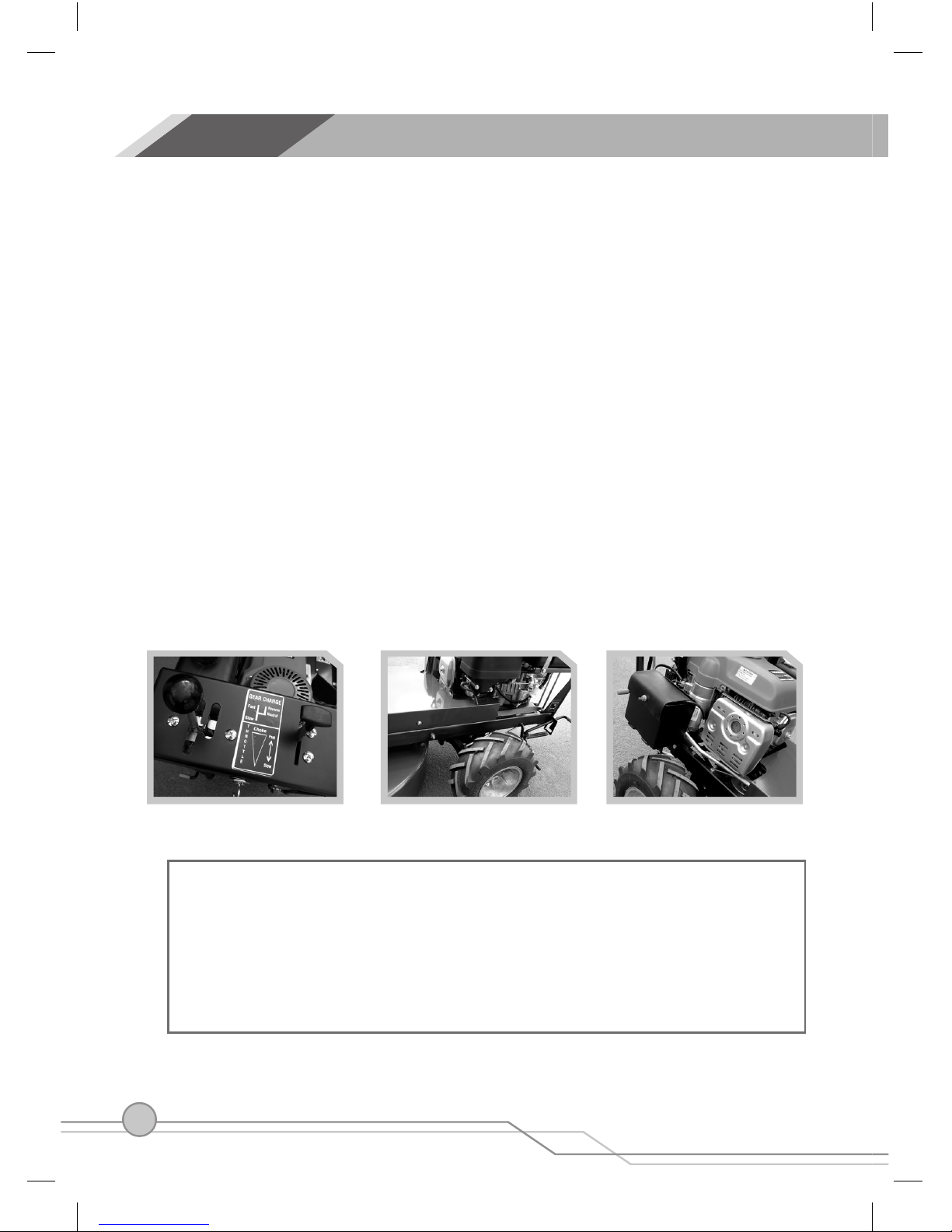

Illustration 1
Gear change lever
Throttle lever
Drive clutch lever
Height adjustment lever
Blade engagement pedal
Parking brake pedal
Key start (Electric only)

9
OPERATION
TO DRIVE MOWER (See Illustration 1 on Page 8):
• Release park brake.
• Select gear (See Illustration 2)
Low forward: Pull lever backward.
High forward: move lever forward.
Reverse: Move to right, then forward.
Note: Pushing the mower forward slowly while operating the
gear lever may improve the ease of gear selection.
• Grasp the drive clutch lever with your right hand and slowly raise it to the hand grip.
Release to stop.
WARNING! Use low throttle settings when engaging the drive-clutch lever, especially in high gear.
TO ENGAGE CUTTER DRIVE:
• Set the throttle to at least a mid range position to prevent stalling when the cutter is engaged.
• Place your right foot on blade engagement lever and press down slowly until the pedal locks into position.
• To release, lift the lever up with right foot.
MOWING ACROSS SLOPES AND REVERSING:
• As mentioned in the Safety Instructions, reduce speed on slopes and in sharp turns to prevent overturning and
loss of control. Mow across the face of slopes, never up and down.
• Wear suitable boots for the terrain. Do not continue mowing if you are slipping while walking. Exercise extreme
caution if the grass is damp.
• Do not mow an area with a slope greater than 10 degrees to the horizontal.
• When parking a mower on a slope, ensure the engine is turned off AND THE PARKING BRAKE IS ENGAGED,
before leaving the mower. This applies even if you leave the mower for an instant.
• Be extremely cautious when reversing. This is particularly important on slopes. Wear non slip footwear and
keep well back from the mower to ensure your footing is steady. Instantly release the drive lever if you feel
yourself slipping.
TRANSPORTING AND LIFTING THE MOWER:
It is far safer to use ramps or a lifting device to put the mower onto a trailer or utility tray, rather than attempting
to lift it. Never attempt to lift the mower on your own.
Illustration 2
GEAR CHANGE
Fast Reverse
Neutral
Slow
Gear change lever
Throttle lever
Drive clutch lever
Height adjustment lever
Blade engagement pedal
Parking brake pedal
Key start (Electric only)

10
MAINTENANCE
MAINTENANCE
LUBRICATION CHART
Lubrication Daily 20hrs 100hrs
Engine Refer to Engine Manual
Gearbox Check x
Gearbox Change Gear Oil EPX 85w/140 x
Kingpins Oil x
Cutter Deck slides Grease x
Gear Control linkages Oil x
Clutch Control linkages Oil x
Height Control linkages Oil x
Throttle Cable Oil x
GEARBOX
Use gear oil 85w/140 Capacity = 750ml

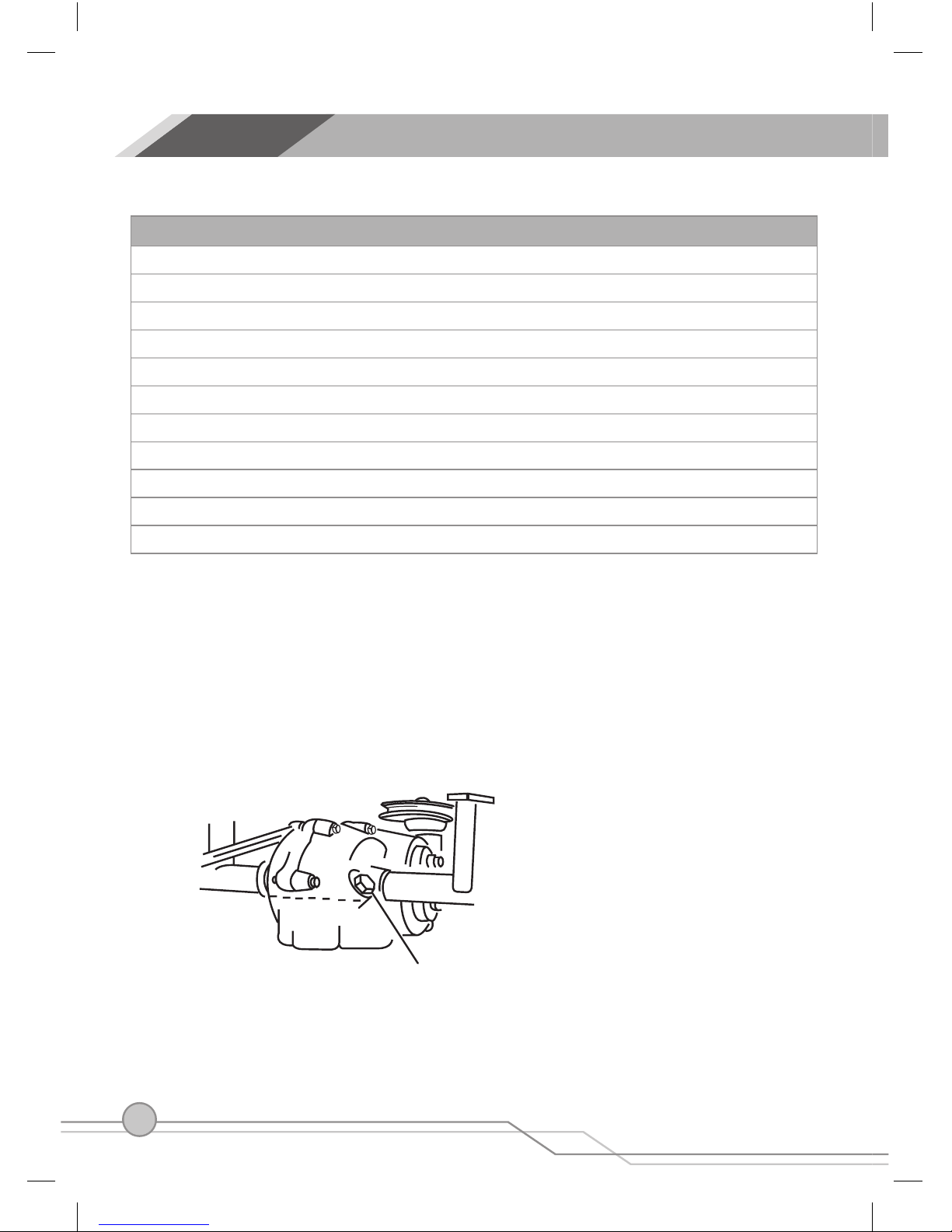

Illustration 3
Fill Gear Box to Level Plug

11
MAINTENANCE
GEARBOX BELT (Replacement): (See Illustration 4)
• Before any inspection or replacements of the belts and associated parts, turn engine off and pull
spark plug lead off the spark plug.
• Be careful during adjustment of the mower to prevent entrapment of the fingers between moving
blades, pulley’s and fixed parts of the mower.
• Remove belt guide. (Part No 3228) by fully unscrewing the 8mm bolt shown in illustration 4.
• Remove nut “A” from the adjustment pivot and release the rod from the crank arm.
• Remove the belt from the pulleys and slide it over the clutch adjustment rod.
• To fit a new belt, place the belt over the clutch adjustment rod and wrap it around the gearbox, idler & engine pulleys.
• Reconnect adjustment pivot to crank arm and tighten nut “A”.
• Refit belt guide. (ensure guide is bolted on the inside of the engine mounting plate)
• Adjust clutch: See below.
!
Illustration 4
CUTTER BELT (Replacement) (See illustrations 1, 4 and 5):
• Before replacements of the belts and associated parts, turn the engine off and pull the spark
plug lead off the spark plug.
• Be careful during adjustment of the mower to prevent entrapment of the fingers between moving
blades, pulleys and fixed parts of the mower.
• Remove belt guide, P/No 3228, by unbolting it from the engine mounting plate.
• Remove the gearbox belt from engine pulley as described above.
• Ensure the blade engagement pedal is disengaged.
• Move the cutter height lever to mid height position.
• Loosen “D” nut and the 6mm nuts on the brake arm, to ensure the belt is loose. (See illustrations 5)
• Remove the old belt and replace with a new belt, feeding it around the pulleys and keeping the belt on the
inside of the guide pins under the engine plate.
• Place the blade engagement pedal in the engaged position and adjust the belt tension by adjusting nuts “D” & “E”.
DO NOT OVER TIGHTEN THE BELT !
!
CLUTCH ADJUSTMENT FOR TRANSMISSION: (See Illustration 4)
• To Increase belt tension, loosen nut “C” and tighten nut “B”.
• Make sure the belt is entirely free when the clutch lever is disengaged and that the lever requires little force
to hold against the handgrip.
• DO NOT OVER-TIGHTEN THE BELT. ONLY A LIGHT TENSION IS NECESSARY FOR DRIVING THE MOWER.
8mm bolt securing belt guide.
Clutch adjustment rod
Nut B
Nut C
Nut A
Belt guide No 3228.

12
MAINTENANCE
Illustration 5
CUTTER BRAKE (Adjustment): (See Illustration 5)
• Before replacement of belts and associated parts, turn engine off and pull spark plug lead from
the spark plug.
• Be careful during adjustment of the mower to prevent entrapment of the fingers between moving
blades, pulleys and fixed parts of the mower.
• Loosen the 6mm nuts on the brake arm and adjust the rod forward until the brake pad prevents cutter pulley
from rotating when cutters are disengaged.
• Make sure the brake pad is 1-2mm clear of the cutter pulley when the blade drive pedal is engaged.
• Tighten the 6mm nuts on the brake arm against both sides of the pivot that protrudes through the chassis.
!
BLADES:
• Before any inspection or replacements of the blades and associated parts, turn the engine off
and pull the spark plug lead off the spark plug.
• Be careful during adjustment of the mower to prevent entrapment of the fingers between moving
blades and fixed parts of the mower.
• It is important that you visually inspect the blades, bolts and nuts to ensure that they are in a safe operating
condition; this should be done before each mowing period.
• Always replace blades and bolts in kit form to prevent any vibration that may damage the mower and cause
personal injury.
!
Illustration 6
• Adjust the cutter brake to ensure the cutter spindle stops when the belt is disengaged. (See next section)
• Replace the gearbox belt and refit the belt guide. (Note: Belt guide is bolted the inside of the engine mounting
plate (See illustration 4).
• Run and test, to ensure all adjustments are correct.
Nut
Washer
Blade Plate
Blade
Bolt
Nut D
Nut E
Brake arm. Adjust using two 6mm nuts on
the arm so the brake pad firmly contacts the
pulley when the belt is released to the point
where it no longer drives the blade.

13
WIRING DIAGRAM
HONDA GXV390 RT1 DAEU
Item Part No. Part Description
1 1261 Key Switch
2 1368 Battery lead 330mm
3 1373 Battery lead 250mm
4 3415 Loom assembly
5 H315 Battery 12 Volts
WARNING: Incorrect wiring may result in damage to the engines electrical system. Only qualified
and or competent electrical technicians should attempt any repairs or alterations.
-
2
7
+
3
4 BLUE
RED
RED
8IBIG
GREEN IS
IMIL
BLACK1
5
THE MANUFACTURERS RESERVES THE RIGHT TO ALTER, CHANGE OR VARY THE SPECIFICATIONS OF THE MOWER
OR ANY OF THE COMPONENT PARTS AT ANY TIME WITHOUT NOTICE.

14
CHASSIS
Item No. Part No Part Description Item No Part No Part Description
1 3339 Chassis Assembly 23 3337 Pulley, engine
2 1463 Connecting rod, front 24 1492 Key
3 3371 Raise & lower rod, rear 25 1523 Plate, clutch pulley
4 3307 Top cover. 26 1350 Wheel complete (Bar tread)
5 1017 Bolt 8mm x 20 27 1497 Tube 13-500-6
6 1018 Spring washer 8mm 28 1732 Tyre 13-500-6 (Bartread)
7 3015 Flanged Bush 29 HD123 Rim assembly
8 1472 King pin & stub axle LH 30 1501 Pin, axle drive
9 1477 King pin & stub axle RH 31 1846 Spring
10 1478 Lock pin 32 3370 Rod, cutter engage
11 1477 Flat head screw 33 3092 Brake rod
12 1478 Lock pin 34 1846 Spring
13 1479 Roll pin 35 3090 Brake pedal, parking
14 1480 Spring 36 1495 Bolt
15 1481 Tyre 250-4 37 1781 Stepped bush
16 1484 Rim & bearings 38 1518 Pulley (Clutch)
17 Y556 Tube 250-4 39 1514 Pin, pivot
18 H616 Wheel complete 40 3087 Arm, crank
19 1484 Bearing 6203 41 1579 Gear box belt
20 1487 Spring 42 3328 Belt guard
21 3312 Gear change right angle
22 1488 Belt guide, idler pulley

15
CUTTER ASSEMBLY
Item Part No Part Description Item Part No Part Description
1 1646 Pulley 16 1897 Circlip
2 2092 Brake disc x 4 17 1244 12mm nut
3 2093 Brake pad assembly 18 1558 Push Rod
4 5350 Bolt 19 2007 Push rod connector
5 3295 Brake lever rod 20 1549 Spring brake return
6 1986 Brake lever rod 21 1016 Nyloc nut 12mm
7 3255 Brake rod pivot 22 3340 Spindle & flange
8 3379 Cutter deck 23 1576 Blade plate
9 3380 Lift frame & spindle tube 24 H650 Blade, nut, bolt, washer X 2
10 1578 Cutter belt H652 Nut, bolt & washer x 2
11 3333 Side chute assembly 25 1060 Spring washer
12 1541 Hinge bar 26 1304 Bolt Blade plate attach
13 2095 Plastic bush HE661 Main Guard Inc chute & flap
14 3305 Discharge flap 3500 Cutting deck complete
15 1898 Bearing, spindle 6205 27 2013 Spacer bush

16
HANDLE BARS & CONTROLS
Item New No. Part Description
1 3334 Handle Bar assembly
2 1586 Handle Grip
3 3322 Gear lever (Hand)
4 3393 Gear lever cage
5 1334 Bolt
6 3396 Gear Selector plate LH
7 3310 Gear selector Plate RH
8 3021 Spring
9 3398 Plastic Cup
10 3318 Vertical Rod
11 1184 “R” Clip
Item New No. Part Description
12 1148 Throttle Knob
13 3423 Throttle Control
14 1154 Cable Clamp & Screw
15 3417 Throttle Cable
16 3377 Vertical height rod
17 1495 Special bolt
18 3301 Height lever
19 3332 Spring
20 1618 Knob
21 1587 Clutch lever
22 1098 Bolt, M8 x 30
23 1590 Vertical Clutch Rod

17
34
35
37
33
33
32
31
39
70
69
67
68
66
1
3
4
5
6
7
8
9
10
11
12
14 15
16
18 19
20
17
2
Limited Slip Differential Option
65
50
49
48
24
23
22
21
47
51 52 53 54
57
40 55
41
28
43
13
38
21 22
23 24
56
26
25
64
58
59
60 61 62 63
43
43
30
29
28
27 42
44
35
36
46
44
45
GEARBOX ASSEMBLY

18
GEARBOX ASSEMBLY
Item No. Part No. Part Description Qty Item No. Part No. Part Description Qty
1 1100 Screw, pulley 1 37 1695 Selector tappet reverse 1
2 1640 Key 1 38 1739 High crown gear 1
3 1641 Spring washer 1 39 1699 Bearing, needle, axle 4
4 1642 Washer 1 40 1700 Spacer, diff. 4
5 1643 Pulley 1 41 1701 Low crown gear 1
6 1650 Spacer 1 42 1702 Axle 2
7 1651 Seal 25x40x7 1 43 1704 Bolt, diff 5
8 1652 Circlip 40mm 1 44 1705 Spring holder 2
9 1484 Bearing 6203 1 45 1706 Spring 2
10 1653 Input spindle 1 46 1707 Ball 2
11 1654 Plug Filler 1 47 3336 Housing R.H. 1
12 1655 Fibre washer ¾” 1 48 1714 Sleeve, bearing 1
13 1656 Bearing roller B128 1 49 1715 Reverse gear 13 teeth 1
14 1657 Nut, axle 5/8” UNF 2 50 1716 Bronze worm gear 1
15 1658 Spring washer 2 51 1717 Washer, hardened 1
16 1315 Flat washer 2 52 1740 High gear pinion & clutch 1
17 1659 Seal, axle 7/8” 2 53 1719 Double clutch 1
18 1501 Pin, axle drive 2 54 1720 Pinion, low gear 1
19 1661 Plug, ½” BSF 2 55 1721 Circlip, 14mm 1
20 1662 Fibre washer ½” 2 56 1722 Sliding clutch with pins L.H. 1
21 1663 Screw 2 57 1723 Forward spindle 1
22 1637 Washer 2 58 1724 Axle & clutch L.H. LSD 1
23 1664 Bearing 6202 2 59 1725 Spacer 8
24 1665 Circlip 35mm 2 60 1726 Clutch spreader bar 2
25 1666 Reverse spindle & gear 1 61 1727 Spring 1
26 1669 Reverse clutch 1 62 1728 Sliding clutch R.H. 1
27 1670 Reverse sliding gear 1 63 1729 Axle & clutch R.H. LSD 4
28 1671 Bearing, roller B98 2 64 1730 Diff spider gear 4
29 1672 Gasket 1 65 1639 Bolt, 1/4”x1-1/4” 1
30 3335 Housing L.H. 1 66 1072 Nut M8 4
31 3422 G/box lower lever 1 67 5028 """E"" clip" 2
32 3421 G/box upper lever 1 68 3172 Stepped bush 2
33 3319 Gear selector rod Hor. 2 -- 3425 Gearbox complete 1
34 1689 Bolt, housing, ¼”x2” 6 -- 3430 Gearbox LSD 1
35 1690 O-ring 2
36 1691 Selector tappet Forward 1

19
FUEL TANK / SUNDRY PARTS
Item No. Part No. Part Description Item No. Part No. Part Description
1 1746 Tank, 6.5lt -3343 Decal set
2 1329 Cap, fuel tank
3 1747 Strap
4 1748 Bracket, tank

WARRANTY POLICY
DEUTSCHER MOWERS PTY. LTD. will repair or replace, free of charge, any mower or part of a mower that is•
defective in materials or workmanship (or both) for a period of 24 months from the date of purchase. If parts
or units are replaced, the replacement period will be no longer than 3 months.
This does not cover normal wear, abuse or servicing procedures not in accordance with the user’s manual.•
Parts such as blades, blade bolts, tyres and v-belts, that can be subject to use beyond their normal intended
working limits, are also excluded.
This warranty is void if parts other than genuine parts have been used or if repairs or modifications have been•
made without the manufactures written authority.
This warranty does not obligate the manufacturer, agents or dealers to cover transport costs incurred in the•
repair or replacement of any defective part. It does not obligate the manufacturer, agents or dealers to cover
any other costs associated with making the warranty claim. (eg telephone calls )
The engine on this mower is covered by the engine manufacturer’s warranty supplied with the mower. For•
your nearest engine dealer,
Phone: Honda M.P.E.: 1800 241173
To claim a warranty the owner must return the mower (at the owners expense) to an authorized dealer , then
give the authorized dealer a clear explanation of the defect. A list of authorized dealers can be found on the
Deutscher Mowers website or the location of the nearest authorized dealer can be determined by telephoning
the telephone number listed below.
Our goods come with guarantees that cannot be excluded under Australian Consumer Law. You are entitled to
a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
The benefits to the owner given by this warranty are in addition to other rights and remedies of the owner under
a law in relation to goods or services to which the warranty relates.
Manufactured in Australia by: DEUTSCHER MOWERS PTY LTD, 731Creswick Rd, Ballarat, 3350
Part No. 3402 Edition: 3 March 2013
Telephone : [phone] Fax: [phone] www.deutschermowers.com.au
Remember: Proof of purchase is the responsibility of the owner and is necessary prior to warranty work
being undertaken. Only warranty work performed by an authorized dealer using genuine spare parts
will be eligible for payment, and claims may not be accepted if abuse or other damage has occurred that
is not considered as normal wear and tear.
FOR YOUR RECORD
Model: HE660
Serial Number: Date of Purchase:
Mower Purchased From:
