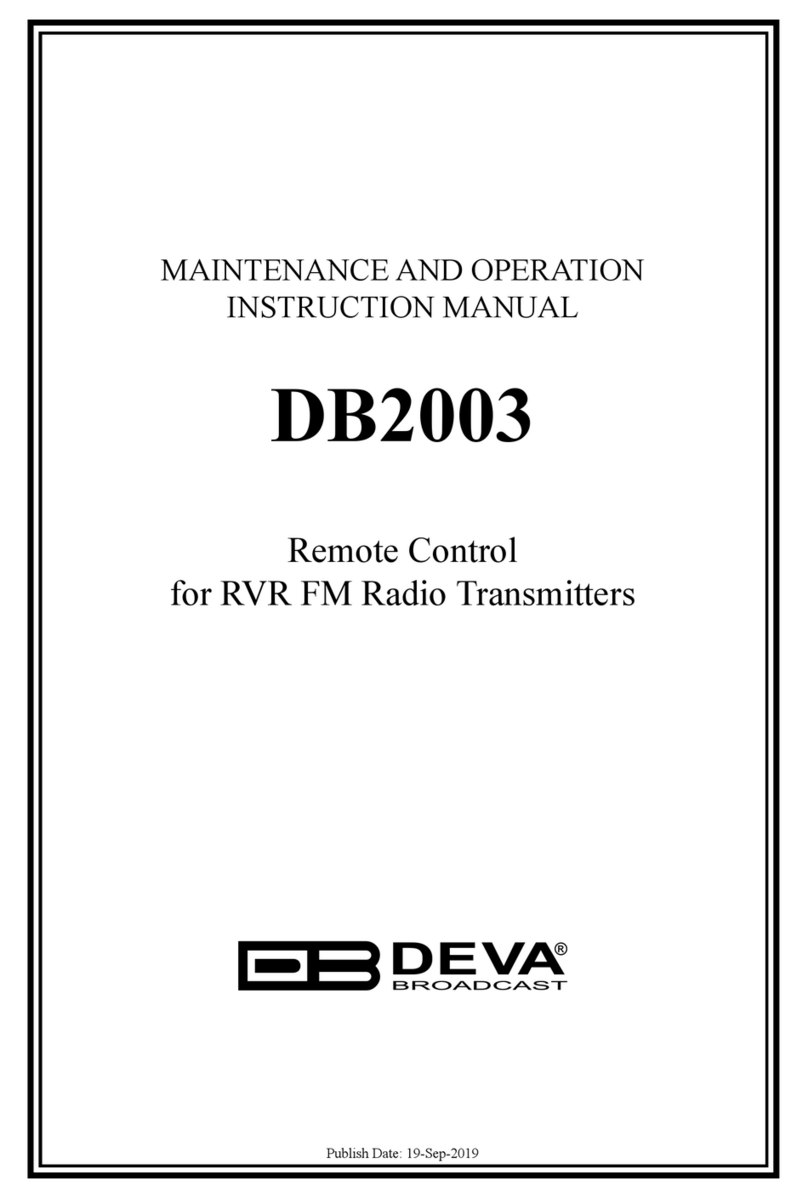

DEVA Broadcast DB2003 Instruction manual

DB2003
Remote Control
for RVR FM Radio Transmitters
65 Aleksandar Stamboliyski Str., 8000 Burgas, Bulgaria
Tel.: [phone], Fax: [phone]
Email: [email protected], Web: www.devabroadcast.com
Quick User Guide
BEFORE YOU USE THIS PRODUCT
In order to be able to enjoy all the benefits of owning your new
DEVA product, please verify first that the latest software and
firmware releases were installed.
Visit www.devabroadcast.com/downloads
recent software and firmware downloads, prior the installation.
for the most
DEVA Broadcast Limited is an ISO 9001:2015 certified company.

Network discovery is a network setting that defines whether your computer can see (find) other computers
and devices on the network and whether other computers on the network can see your computer. By
default, Windows Firewall blocks network discoverybut you can enable it.
If you have already enabled this function on your computer just open a new Explorer bar and click on .
The device must be displayed.
1. Open Advanced sharing settings by clicking the
Start button, and then on "Control Panel". In the search
box, type "network", click "Network and Sharing
Center", and then, in the left pane click "Change
advanced sharing settings";
2. Select your current network profile;
3. Click Turn on network discovery, and then click
Save changes. If you're prompted for an administrator
password or confirmation, type the password or provide
confirmation.
4. To access the device open a new Explorer bar and
click on . If you have successfully enabled the
network discovery option, the device will be displayed.
A double click on will open a new WEB browser window requiring username and password. Default
values are - Username: admin, Password: pass.
(1)
(1)
(2)
NOTE: DB2003 has a DHCP assigned IP address by default. In order to establishacommunication,your
PC should be connected to the same Sub network as the device. For further information consult
with your network administrator.
DHCP: Enabled
IP: Assigned by DHCP
Mask: Assigned by DHCP
Gateway: Assigned by DHCP
DNS: Assigned by DHCP
HTTP Port: 80
After connecting the network cable the LED 'LAN' indicator located on the rear panel must be ON or
flashing. These are the Default Network Settings:
(1)
Network Settings
STEP 2
POWER
12V / 2A
MADE IN
BULGARIA
COM 1COM 2 RESET LAN
1
This Quick user guide will make the installation of DB2003 quick and easy. Applying these principles, you
can simplify the process and save yourself extra time and effort. For more information about the Safety
precautions and the Operating environment recommendations please refer to the User Manual.
Connection
STEP 1
1. Connect the device to a local network or to the Internet by a cable with an RJ-45 connector;
2. Connect the DB2003 to the power supply.
RECOMMENDATION:Preferably, connect the device to a DHCP Server network from which DB2003 will
receive an IP address.
1
2
Network discovery for Windows 7
STEP 3

DB2003 provides you with a protected access to the device settings.
The device serves only one user at a time, thus username and password will be requested upon login.
WEB Interface Login
STEP 4
You can choose between two types of log in:
1. ADMINISTRATOR – which will give you full control over the settings and can remotely manage the
monitored devices. (username: admin, password: pass);
2. USER – this type of log-inwill allow you only to monitor the device. It has no access to settings and
cannot change the operation mode of the DB2003 or influence monitored devices. (username: user,
password: pass).
In order to make the necessary adjustments to the device please log in as ADMINISTRATOR.
Device Settings
STEP 5
After a successful log-in go to the Settings > Device tab. This tab lists the settings influencing the operation
of the DB2003 but having no direct influence on the monitored device, as well as its selection and
connection.

Please refer to the User manual for detailed information on
how to configure and explore your device.
In the Port Settings group, you have to specify the device the DB2003 is to monitor/control and how to
connect to it. Setting an Alias allows the user to recognize the different monitored devices. This is where
you enable/disable the port.
Telemetry Port Settings
STEP 7
DB2003 is not limited to a single connection scenario. To proceed further it is necessary first to define your
Telemetry Setup. It is of great importance to supply the necessary cables as well as their corresponding
connectors. Interconnect DB2003 with all monitored devices and proceed to Step 7. For a detailed
explanation about Cables, Connectors and Connection Scenarios, please refer to the complete User
Manual.
Connection Scenarios
STEP 6
NOTE: The set interface must match the one which is physically connected. The address and speed of the
connection must correspond to the ones set in the monitored device.
Thank you for choosing DEVA!
