Preface 5
devolo dLAN 1200+ WiFi ac
1Preface
Thank you for placing your trust in this
dLAN 1200+ WiFi ac.
The dLAN 1200+ WiFi ac allows you to set up your
own home network with almost no effort. Because
the clever dLAN technology transmits the data over
the household electrical wiring, you do not have to
lay any new cables.
1.1 About this manual
Carefully read all instructions before setting up the de-
vice and store the manual and/or installation guide for
later reference.
After a brief introduction to dLAN® and WiFi basics
and an introduction to the dLAN 1200+ WiFi ac in
Chapter 2, Chapter 3 tells you how to successfully
start using the adapter in your network. Chapter 4 de-
scribes in detail the setting options of the built-in con-
figuration interface and thus also access to the Wi-Fi.
Tips for bandwidth optimisation, information about
product safety and environmental compatibility of the
device, as well as our warranty terms, can be found in
Chapter 5 at the end of the manual.
Description of the icons
This section contains a brief description of the icons
used in this manual and/or on the rating plate, the de-
vice connector, as well as the icons used on the packa-
ge:
Icon Description
Very important safety symbol that
warns you of imminent electrical
voltage which if not observed can
result in serious injury or death.
An important safety symbol that
warns you of a potentially dan-
gerous situation involving a burn
hazard which can result in minor
injuries or damage to property.
An important note that should be
observed which can potentially
lead to material damages.
The installation may be per-
formed by a qualified electrician
only.

6 Preface
devolo dLAN 1200+ WiFi ac
The device may only be used
indoors in dry conditions.
The manufacturer/distributing
company uses the CE marking to
declare that the product meets all
applicable European regulations
and has been subjected to the
prescribed conformity assessment
procedures.
It is used to prevent the occur-
rence of waste electrical and
electronic equipment and to
reduce this type of waste through
reuse, recycling and other forms
of utilisation. It establishes mini-
mum standards for handling
waste electrical and electronic
equipment in the EU.
Additional information, back-
ground material and configura-
tion tips for your device.
Icon Description
Indicates a completed course of
action
Icon Description

Preface 7
devolo dLAN 1200+ WiFi ac
1.1.1 Intended use
Use the adapter as described in these instructions to
prevent damage and injuries.
CAUTION!
Damage to the device caused by
ambient conditions
Only use device indoors in dry conditions
1.1.2 CE conformity
This product complies with the tech-
nical requirements of the directives
2014/53/EU, 2011/65/EU und 2009/
125/EC.
This product is designed for use in the EU,
Switzerland and Norway.
A printout of the simplified CE declaration of
this product is separately included and can also
be found under www.devolo.com.
1.1.3 Safety notes
It is essential to have read and understood all safety
and operating instructions before the devolo device is
used for the first time; keep them safe for future refe-
rence.
DANGER!
Electrical shock caused by
electricity
Do not reach into the electrical socket, do
not open the device and do not insert any
objects into the electrical socket or into the
ventilation openings
Users do not need to carry out any maintenance on
devolo devices. In the event of damage, disconnect the
devolo device from the mains supply by pulling it or its
plug out of the electrical socket. Then contact qualified
specialist personnel (after-sales service) exclusively.
Damage is deemed to have occurred, for example,
쎲if the power plug is damaged.
쎲if the devolo device has been showered with
liquid (such as rain or other water).
쎲if the devolo device is inoperable.
쎲if the housing of the devolo device is damaged.
Do not plug devolo devices directly into each
other. Devices that are plugged into each other
can experience a decrease in transmission rate.
DANGER!
Electric shock caused by electri-
city
Device must be plugged into a power socket
with a connected earth wire

8 Preface
devolo dLAN 1200+ WiFi ac
devolo devices may be operated only on a mains po-
wer supply as described on the rating plate.
To disconnect devolo devices from the mains supply,
unplug the device from the electrical socket.
The power socket and all connected network devices
should be easily accessible so that you can pull the po-
wer plug quickly if needed.
CAUTION!
Heat development during ope-
ration
Certain housing components can become
very hot in certain situations. Attach device
so that it is touch-proof, observing optimal
positioning
devolo devices should only be installed at locations
that guarantee adequate ventilation. Slots and
openings on the housing are used for ventilation:
쎲Do not cover devolo devices during operation.
쎲Do not place any objects on devolo devices.
쎲Do not insert any objects into the openings of
devolo devices.
쎲devolo devices must not be placed directly next
to a naked flame (such as fire or candles).
쎲devolo devices must not be exposed to direct
heat radiation (e.g. radiator, direct sunlight).
CAUTION!
Damage to housing from
cleaning agents containing solvents
Clean only electroless and with dry cloth
1.2 devolo on the Internet
For detailed information on our products and dLAN,
visit www.devolo.com. The Powerline area not only
contains product descriptions and documentation, but
also updates of devolo software and your device's
firmware.
If you have any further ideas or suggestions related to
our products, please don't hesitate to contact us at
[email protected]!

Introduction 9
devolo dLAN 1200+ WiFi ac
2Introduction
dLAN is an intelligent, secure technology that lets you
set up a home network easily, quickly and economical-
ly via your household electrical wiring, without the
need for complex and expensive dedicated cabling.

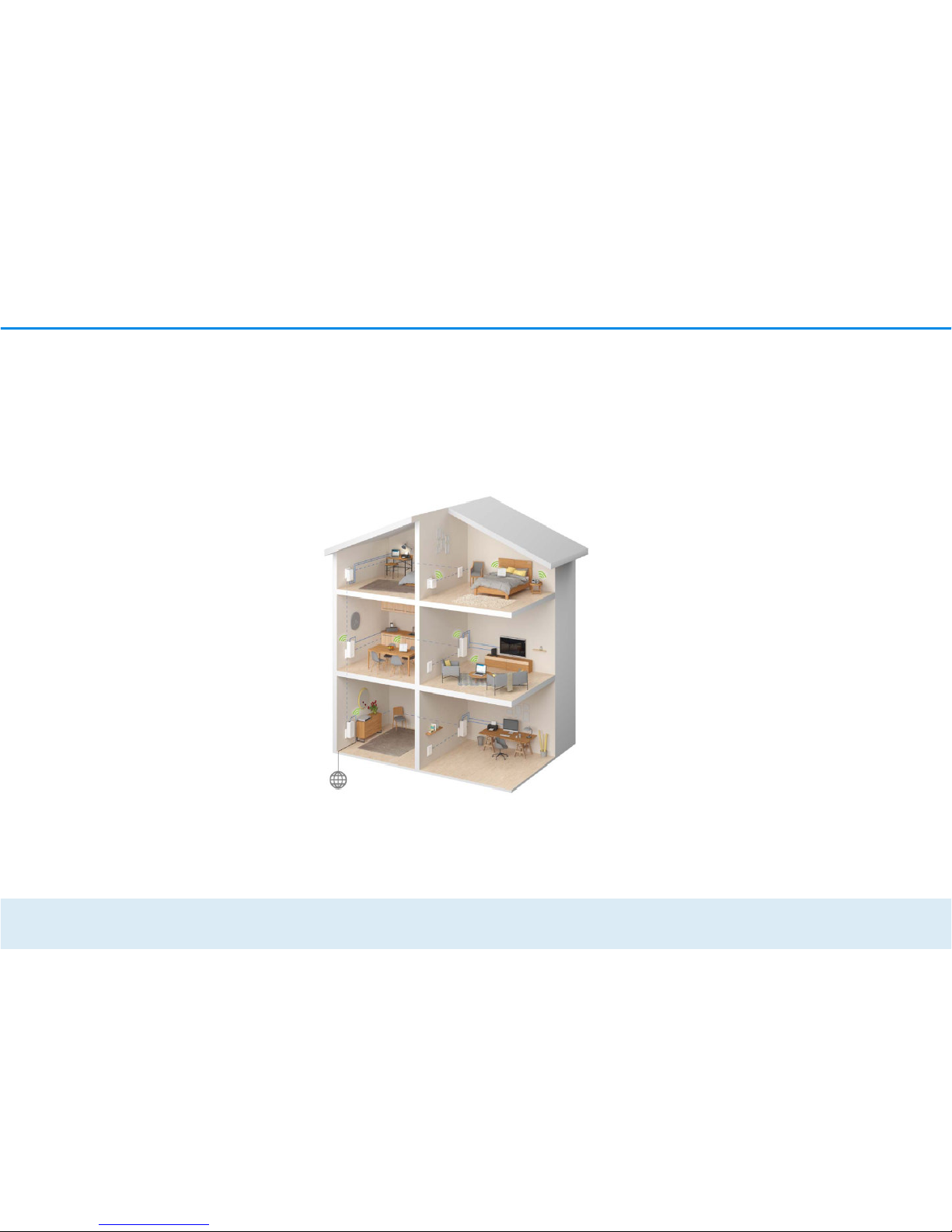

Fig. 1 devolo dLAN and WiFi throughout the home
2.1 What exactly is dLAN?
The dLAN (direct Local Area Network) uses the house-
hold power grid to transfer data between computers
and other network components equipped with suitable
adapters. As a result, any electrical socket can be used
as a network access point. The data is modulated prior
to transfer and sent as a signal via household power
lines. State-of-the-art technology ensures that the
power and data networks do not interfere with one an-
other. Networking via dLAN is fast and secure. The
data is encrypted using a key to prevent interception by
third parties.
2.2 What is WLAN?
WiFi refers to a WLAN (Wireless Local Area Network),
the use of radio technology to network computers and
other devices. While it is possible to wirelessly connect
computers in pairs ("peer-to-peer", p2p), a central ac-
cess point is usually required to set up a network of
multiple devices. This turns a WiFi router into an access
point as well as a modem for Internet access and into
a router for acting as a go-between within the net-
work.
The wireless network established by an access point
has only limited range. The range of the access point,

10 Introduction
devolo dLAN 1200+ WiFi ac
which is also known as a "radio cell", is impeded by
building walls. In some cases, stable connections are
often only possible between WiFi devices within a sin-
gle room.
Since it is not possible to rely on hardware such as net-
work cables (in a LAN) or household wiring (in a dLAN)
to control access to a WiFi network, wireless network-
ing naturally presents special security challenges. WiFi
networks therefore use a number of security measures,
such as a concealed network name (SSID - Service Set
Identifier), data encryption and access control via the
MAC addresses of the devices (clients).
2.3 Wi-Fi or WLAN?
Wi-Fi is an invented brand name of the Wi-Fi Alliance,
a consortium that certifies devices with wireless inter-
faces. In many countries, Wi-Fi is also used synony-
mously with WLAN, which if taken strictly, is incorrect,
because Wi-Fi designates the wireless standard and
WLAN the wireless network.
2.4 What exactly is range +?
Range + is a technology for devolo dLAN products.
Unlike conventional Powerline technology, range+
Technology uses all three lines (neutral, earth wire,
phase) of the electrical circuit, making use of the full
physical potential. Thanks to patented signal coupling,
data transmission over the mains supply is optimised.
This results not only in a more stable Internet connec-
tion that is less sensitive to interference, but also in-
creased range.
2.5 What does WiFi Clone mean?
WiFi Clone is a technology for devolo WiFi products
that makes it extremely easy to integrate new devices
into an existing WiFi network. For this purpose, just
plug the corresponding adapter into an available elec-
trical socket and press the encryption button (for older
models, the WPS button). The devolo WiFi devices now
automatically exchange their WiFi credentials with the
existing WiFi router and synchronise SSIDs, keys and
any configured settings, such as parental control and
time control settings.
2.6 What is WiFi Move Technology?
WiFi Move Technology is a function for devolo WiFi
products that expands and optimises the existing WiFi
network. If multiple devolo WiFi devices are used,
these act as access points that connect via Powerline.
The devolo WiFi products automatically connect to the

Introduction 11
devolo dLAN 1200+ WiFi ac
access point with the strongest signal. This creates a
fast and stable WiFi network throughout the home.
2.7 The dLAN 1200+ WiFi ac
The dLAN 1200+ WiFi ac is equipped with
쎲An encryption button (home icon) with LED status
display,
쎲A WiFi button with LED status display,
The LED status display can be deacti-
vated on the configuration interface
of the adapter (see 4.6 Management).
쎲Two network jacks
쎲One reset button
쎲Four internal WiFi antennas
쎲One integrated electrical socket
2.7.1 Encryption button
This button controls the following functions:
Encrypting the dLAN network
쎲To encrypt your dLAN network individually, press
each encryption button on the connected
devices for approx. 1 second – within 2 minutes.
쎲To remove a dLAN device from your network,
press the encryption button on the correspond-
ing device for at least 10 seconds.
For more information, refer to Chapter 3.3 Con-
necting the dLAN 1200+ WiFi ac.
Fig. 2 is country-specific

12 Introduction
devolo dLAN 1200+ WiFi ac
Indicator lights
The integrated indicator lights (LEDs) show the dLAN
status for the dLAN 1200+ WiFi ac by illuminating
and/or flashing:
Check whether the adapter is connected to the
mains supply correctly and whether the encryp-
tion process has been carried out successfully.
For more information about this, refer to 3.3
Connecting the dLAN 1200+ WiFi ac.
Flashing behaviour of the dLAN LED
* For information on improving transmission rate, refer
to Chapter 5.3 Bandwidth optimisation.
LED Flashing
behaviour Meaning
Red LED Lights up
steady
Adapter is in the
start-up process
Red LED Flashes at
intervals of 0.5
sec.
(on/off)
No dLAN connec-
tion exists
Red LED Flashes at
intervals of 2
sec.
(on/off)
Data transmis-
sion rate not in
optimum range *
White
LED
Lights up
steady
An encrypted
dLAN connection
exists and the
adapter is ready
to operate
White
LED
Flashes at
intervals of 0.5
sec.
(on/off)
dLAN encryption
being established
White
LED
Flashing at
intervals of
0.5/50-60 sec.
(On/off)
Adapter is in
PowerSave mode
LED Flashing
behaviour Meaning

Introduction 13
devolo dLAN 1200+ WiFi ac
Setting up WiFi Clone and using
WiFi Move Technology
WiFi Move Technology is a function for synchronising
the WiFi settings of all WiFi adapters. Activate the syn-
chronisation either using the functions on the configu-
ration interface (see Chapter 4.3.6 WiFi Clone and
WiFi Move) or at the touch of a button on the adapt-
er.
햲First press the encryption button with the home
icon (for about 1 second) on an existing
dLAN 1200+ WiFi ac that has the entire WiFi
configuration which is to be transferred to all
other dLAN 1200+ WiFi ac adapters. Then,
within 2 minutes, press each encryption button
on the new dLAN 1200+ WiFi ac devices (for
about 1 second). The WiFi settings are now
being synchronised (WiFi Clone).
햳The WiFi adapters are now continuously con-
nected to each other and, from now on, share
changes to the WiFi configuration automati-
cally with each other (WiFi Move Technology).
2.7.2 WiFi button
The WiFi button controls the following WiFi
functions:
WiFi On/Off:
쎲In the factory default settings, the WiFi set-
ting is already enabled and the WiFi encryption is
set to WPA2. The WiFi key is the unique key of
the dLAN 1200+ WiFi ac. You can find this key on
the label on the rear side of the housing.
쎲In order to switch WiFi off, press and hold the
WiFi button longer than 3 seconds.
쎲In order to switch WiFi back on, tap the WiFi
button.
Connecting WiFi devices via WPS
쎲If the device is still on factory defaults, tap the
WiFi button in order to activate WPS.
쎲If the WiFi connection was switched off and
you would like to activate WPS, press the
Fig. 3 WiFi button

14 Introduction
devolo dLAN 1200+ WiFi ac
WiFi button twice; once to switch WiFi on, and
again to activate WPS.
WPS, developed by the WiFi Alliance, is one of
the encryption standards in a WiFi network. The
objective of WPS is to make it easier to add de-
vices to an existing network. For more detailed
information, refer to Chapter 4.3.7 WiFi Pro-
tected Setup (WPS).
Reading the WiFi indicator light
The integrated indicator lights (LEDs) show the WiFi
status for the dLAN 1200+ WiFi ac by illuminating
and/or flashing:
Flashing behaviour of the WiFi LED
2.7.3 Network jack
A PC or other network device can be connected to the
dLAN 1200+ WiFi ac at this port using a standard net-
work cable.
LED Flashing
behaviour Meaning
White LED Lights up
steady
An encrypted WiFi
connection exists
and the adapter is
ready to operate
White LED Off WiFi connection
switched off
or
Adapter is in the
start-up process
White LED Flashes at
intervals of 0.5
sec.
(on/off)
WPS encryption
being established

Introduction 15
devolo dLAN 1200+ WiFi ac
2.7.4 Reset
The reset button (next to the network jack) has two
different functions:
쎲The device restarts if you press the Reset button
for less than 10 seconds.
쎲To change the configuration of the
dLAN 1200+ WiFi ac back to the factory
defaults, press the Reset button for more than
10 seconds. Keep in mind that all settings that
have already been configured will be lost!
You can use a pointed object (such as a paper
clip) to press the Reset button.
2.7.5 WiFi antennas
The internal WiFi antennas are for connecting to other
network devices wirelessly.
2.7.6 Integrated electrical socket
To connect other network devices to your mains sup-
ply, use the electrical socket of the
dLAN 1200+ WiFi ac. The mains filter integrated into
the dLAN 1200+ WiFi ac eliminates any noise of con-
nected devices and significantly improves data trans-
mission in the network.

16 Initial use
devolo dLAN 1200+ WiFi ac
3Initialuse
This chapter covers everything you need to know to set
up your dLAN 1200+ WiFi ac. We provide a descrip-
tion of how the device is connected and briefly intro-
duce the included devolo software.
3.1 Package contents
Please ensure that the delivery is complete before be-
ginning with the installation of your
dLAN 1200+ WiFi ac.
쎲Single Kit:
쑗dLAN 1200+ WiFi ac
쑗Hard copy of installation guide
쑗CE declaration
or
쎲Starter Kit:
쑗dLAN 1200+ WiFi ac
쑗dLAN 1200+
쑗Network cable
쑗Hard copy of installation guide
쑗CE declaration
devolo AG reserves the right to change the package
contents without prior notice.
3.2 System requirements
쎲Operating systems:Windows 7 Home Premium
(32-bit/64-bit), Windows 8 (32-bit/64-bit), Win-
dows 8 Pro (32-bit/64-bit), Linux (Ubuntu 12.4),
Mac (OS X 10.6) and all operating systems with
network support
쎲Network connection
Please note that your computer or other device
must have a network adapter with a network
port.
To set up a dLAN network, you need at least two
dLAN devices (200 Mbps, 500 Mbps,
600 Mbps, 1000 Mbps or 1200 Mbps).

Initial use 17
devolo dLAN 1200+ WiFi ac
3.3 Connecting the
dLAN 1200+ WiFi ac
CAUTION!
Damage to the device caused by
ambient conditions
Only use device indoors in dry conditions
In the following sections we describe how to connect
the dLAN 1200+ WiFi ac and integrate it into the net-
work. We clarify the exact procedures based on poten-
tial network scenarios.
For the permitted voltage range for operating
the device and the power consumption, refer to
the label on the rear of the device. For addition-
al technical information on our products, refer
to the Service Centre area at www.devolo.com.
3.3.1 Starter Kit – Setting up a new dLAN
network
햲Connect the dLAN 1200+ to your Internet access
device's network jack (e.g. WiFi router).
CAUTION!
Tripping hazard
Lay the network cable in a barrier-free
manner and ensure that the electrical
socket and the connected network devices
are easily accessible
햳Plug the dLAN 1200+ WiFi ac into a wall socket.
As soon as the LED indicator light flashes red at
regular intervals of 0.5 sec., the adapter is ready
to operate but not yet integrated into the dLAN
network.
Connecting the two dLAN 1200+ WiFi ac to a
dLAN network
Before you can use the adapter in a dLAN network, first
you have to connect it as a network. This is accom-
plished by using a shared dLAN password. This forms
a delimited dLAN network. Shared use of the dLAN
password serves both as access control to the dLAN
network as well as the encryption, and thereby the
interception protection, of the transmitted data.
The dLAN password can be set in different ways:
햴
dLAN network encryption:
쎲dLAN network encryption: at the touch of a but-
ton: First press the encryption button of the
dLAN 1200+ for approx. 1 second, and then
within 2 minutes press the encryption button of
the dLAN 1200+ WiFi ac for approx.1 second.
or

18 Initial use
devolo dLAN 1200+ WiFi ac
쎲dLAN network encryption by entering the dLAN
password in the dLAN: More information can be
found in Chapter 4.5 Device configuration.
As soon as the white LED lights up steady on
both devices, your dLAN network is set up
and protected from unauthorised access.
3.3.2 Addition – Expanding an additional
network
햲Plug the dLAN 1200+ WiFi ac into a wall socket.
As soon as the LED indicator light flashes red at
regular intervals of 0.5 sec., the adapter is ready
to operate but not yet integrated into the dLAN
network.
Integrating the dLAN 1200+ WiFi ac into an exist-
ing dLAN network
Before you can use the dLAN 1200+ WiFi ac in your
dLAN network, first you have to connect it to your ex-
isting dLAN devices as a network. This is accomplished
by using a shared dLAN password. The dLAN password
can be set in different ways:
햳
dLAN network encryption:
쎲dLAN network encryption: at the touch of a but-
ton: First press the encryption button on a device
in your existing network for approx. 1 second
and within 2 minutes, press the encryption but-
ton of the new dLAN 1200+ WiFi ac for approx. 1
second.
or
쎲dLAN network encryption by entering the dLAN
password in the dLAN: More information can be
found in Chapter 4.5 Device configuration.
As soon as the white LED lights up steady,
the new dLAN 1200+ WiFi ac is integrated
into your existing, encrypted dLAN network.

Initial use 19
devolo dLAN 1200+ WiFi ac
Integrating the dLAN 1200+ WiFi ac into an exist-
ing WiFi network
햲
쎲Establish the WiFi connection with your laptop,
tablet or smartphone by entering the previously
noted WiFi key as the network security key.
To ensure that the dLAN 1200+ WiFi ac has the same
WiFi configuration as your WiFi router, you can apply
the WiFi access data at the touch of a button using the
WiFi Clone function. This can be enabled in different
ways:
햳
Enabling WiFi Clone:
쎲Enabling WiFi Clone at the touch of a button: First
press the encryption button with the home
icon on the front side of dLAN 1200+ WiFi ac
and then press the WPS button of the WiFi router
with the access data you want to apply.
or
쎲Enabling WiFi Clone via the configuration inter-
face.
More information about this function can be found in
Chapter 4.3.6 WiFi Clone and WiFi Move.
To integrate the dLAN 1200+ WiFi ac into an ex-
isting WiFi network with devolo WiFi devic-
es of the 500 series (e.g. dLAN 500 WiFi or
dLAN 500 Wireless+), you have to transfer the
settings of your existing WiFi configuration man-
ually to the configuration interface of the
dLAN 1200+ WiFi ac.
For more information on the configuration inter-
face, refer to Chapter 4 Network configura-
tion.
