DeWalt DCMHT563P1-QW User manual

Final Page size: A5 (148mm x 210mm)
DCMHT563

B
Copyright
DeWALT
English (original instructions) 3

1
Fig. A
Fig. B Fig. C
Fig. D
12 34 5 10
7
8 9
6
8 9
9
10
10

2
Fig. F
Fig. H
Fig. E
Fig. G
Fig. I Fig. J
Fig. LFig. K
11
12
3
5
4
1
5
7
2

3
ENGLISH
Congratulations!
You have chosen a D
eWALT
tool. Years of experience,
thorough product development and innovation make
DeWALT
one of the most reliable partners for professional
power toolusers.
Technical Data
DCMHT563
Voltage VDC 18
Type 1
Battery type Li-Ion
Blade strokes (no load) min-1 1400
Blade length cm 55.8
Blade gap mm 25
Blade break time s<1
Weight (without battery pack) kg 2.9
Noise values and/or vibration values (triax vector sum) according to
EN60745:
LPA (emission sound pressure level) dB(A) 79.5
LWA (sound power level) dB(A) 90.5
K (uncertainty for the given sound level) dB(A) 3.1
Vibration emission value a
h
= m/s2<2.5
Uncertainty K = m/s21.5
The vibration and/or noise emission level given in this
information sheet has been measured in accordance with
a standardised test given in EN60745 and may be used
to compare one tool with another. It may be used for a
preliminary assessment ofexposure.
WARNING: The declared vibration and/or noise
emission level represents the main applications
of the tool. However if the tool is used for different
applications, with different accessories or poorly
maintained, the vibration and/or noise emission may
differ. This may significantly increase the exposure level
over the total workingperiod.
An estimation of the level of exposure to vibration and/
or noise should also take into account the times when
the tool is switched off or when it is running but not
actually doing the job. This may significantly reduce
the exposure level over the total workingperiod.
Identify additional safety measures to protect the
operator from the effects of vibration and/or noise
such as: maintain the tool and the accessories, keep
the hands warm (relevant for vibration), organisation
of workpatterns.
HEDGE TRIMMER
DCMHT563
English (original instructions)
EC-Declaration of Conformity
Machinery Directive
OUTDOOR NOISE DIRECTIVE
Hedge Trimmer
DCMHT563
DeWALT
declares that these products described under
Technical Data are in compliance with:
2006/42/EC, EN60745-1:2009 + A11:2010; EN60745-2-
15:2009 + A1:2010
2000/14/EC, Hedge trimmer, Annex V
DEKRA Certification B.V.
Meander 1051 / P.O. Box 5185
6825 MJ ARNHEM / 6802 ED ARNHEM
Netherlands
Notified Body ID No.: 0344
Level of accoustic power according to 2000/14/EC
(Article 13, Annex III):
LPA (measured sound pressure level) 79.5 dB(A), K=4.1 dB(A)
Uncertainty = 3 dB(A)
LWA (guaranteed sound power) 94 dB(A)
These products also comply with Directive 2014/30/EU and
2011/65/EU. For more information, please contact
DeWALT
at
the following address or refer to the back of themanual.
The undersigned is responsible for compilation of the
technical file and makes this declaration on behalf
of
DeWALT
.
Markus Rompel
Vice President of Engineering, PTE-Europe
DeWALT
, Richard-Klinger-Straße 11,
D-65510, Idstein, Germany
17.02.2016
WARNING: To reduce the risk of injury, read the
instructionmanual.

4
ENGLISH
b ) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust orfumes.
c ) Keep children and bystanders away while
operating a power tool. Distractions can cause you
to losecontrol.
2) Electrical Safety
a ) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electricshock.
b ) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed orgrounded.
c ) Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase
the risk of electricshock.
d ) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electricshock.
e ) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electricshock.
f ) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electricshock.
3) Personal Safety
a ) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
Definitions: Safety Guidelines
The definitions below describe the level of severity for each
signal word. Please read the manual and pay attention to
thesesymbols.
DANGER: Indicates an imminently hazardous
situation which, if not avoided, will result in death or
seriousinjury.
WARNING: Indicates a potentially hazardous
situation which, if not avoided, could result in death
or seriousinjury.
CAUTION: Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderateinjury.
NOTICE: Indicates a practice not related to
personal injury which, if not avoided, may result in
propertydamage.
Denotes risk of electricshock.
Denotes risk offire.
GENERAL POWER TOOL SAFETY
WARNINGS
WARNING: Read all safety warnings, instructions,
illustrations and specifications provided with
this power tool. Failure to follow all instructions
listed below may result in electric shock, fire and/or
seriousinjury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTUREREFERENCE.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
powertool.
1) Work Area Safety
a ) Keep work area clean and well lit. Cluttered or dark
areas inviteaccidents.
Batteries Chargers/Charge Times (Minutes)
Cat # VDC Ah Weight (kg) DCB104 DCB107 DCB112 DCB113 DCB115 DCB118 DCB132 DCB119
DCB546 18/54 6.0/2.0 1.05 60 270 170 140 90 60 90 X
DCB547 18/54 9.0/3.0 1.46 75* 420 270 220 135* 75* 135* X
DCB548 18/54 12.0/4.0 1.44 120 540 350 300 180 120 180 X
DCB181 18 1.5 0.35 22 70 45 35 22 22 22 45
DCB182 18 4.0 0.61 60/40** 185 120 100 60 60/40** 60 120
DCB183/B 18 2.0 0.40 30 90 60 50 30 30 30 60
DCB184/B 18 5.0 0.62 75/50** 240 150 120 75 75/50** 75 150
DCB185 18 1.3 0.35 22 60 40 30 22 22 22 X
DCB187 18 3.0 0.54 45 140 90 70 45 45 45 90
DCB189 18 4.0 0.54 60 185 120 100 60 60 60 120
*Date code 201811475B or later
**Date code 201536 or later
Batteries
Chargers/Charge Times (Minutes)
Cat #
DC
Weight
*Date code 201811475B or later
**Date code 201536 or later

5
ENGLISH
damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained
powertools.
f ) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier tocontrol.
g ) Use the power tool, accessories and tool bits, etc.
in accordance with these instructions, taking
into account the working conditions and the
work to be performed. Use of the power tool for
operations different from those intended could result in
a hazardoussituation.
h ) Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpectedsituations.
5) Battery Tool Use and Care
a ) Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another batterypack.
b ) Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury andfire.
c ) When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal to
another. Shorting the battery terminals together may
cause burns or afire.
d ) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
orburns.
e ) Do not use a battery pack or tool that is damaged
or modified. Damaged or modified batteries may
exhibit unpredictable behaviour resulting in fire,
explosion or risk ofinjury.
f ) Do not expose a battery pack or tool to fire
or excessive temperature. Exposure to fire or
temperature above 130 °C may causeexplosion.
g ) Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specified in the instructions.
Charging improperly or at temperatures outside the
specified range may damage the battery and increase
the risk of fire.
6) Service
a ) Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power tool
ismaintained.
moment of inattention while operating power tools
may result in serious personalinjury.
b ) Use personal protective equipment. Always wear
eye protection. Protective equipment such as a dust
mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce
personalinjuries.
c ) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking up
or carrying the tool. Carrying power tools with your
finger on the switch or energising power tools that
have the switch on invitesaccidents.
d ) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personalinjury.
e ) Do not overreach. Keep proper footing and
balance at all times. This enables better control of
the power tool in unexpectedsituations.
f ) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair
can be caught in movingparts.
g ) If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust
collection can reduce dust-relatedhazards.
h ) Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
cause severe injury within a fraction of asecond.
4) Power Tool Use and Care
a ) Do not force the power tool. Use the correct
power tool for your application. The correct power
tool will do the job better and safer at the rate for
which it wasdesigned.
b ) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
berepaired.
c ) Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of
starting the power toolaccidentally.
d ) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands
of untrainedusers.
e ) Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation. If

6
ENGLISH
• Always ensure that all guards are fitted when using the
tool. Never attempt to use an incomplete tool or a tool with
unauthorisedmodifications.
• Never allow children to use thetool.
• Be aware of falling debris when cutting the higher sides of
ahedge.
• Always hold the tool with both hands and by the
handlesprovided.
Safety of Others
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for theirsafety.
• Children should be supervised to ensure that they do not
play with theappliance.
Residual Risks
Additional residual risks may arise when using the tool which
may not be included in the enclosed safety warnings. These
risks can arise from misuse, prolonged use etc. Even with
the application of the relevant safety regulations and the
implementation of safety devices, certain residual risks can
not be avoided. These include:
• Injuries caused by touching any rotating/movingparts.
• Injuries caused when changing any parts, blades
oraccessories.
• Injuries caused by prolonged use of a tool. When using any
tool for prolonged periods ensure you take regularbreaks.
• Impairment ofhearing.
• Health hazards caused by breathing dust developed
whenusing your tool (example:- working with wood,
especially oak, beech and MDF.)
SAVE THESE INSTRUCTIONS
Chargers
DeWALT
chargers require no adjustment and are designed to
be as easy as possible tooperate.
Electrical Safety
The electric motor has been designed for one voltage only.
Always check that the battery pack voltage corresponds
to the voltage on the rating plate. Also make sure that the
voltage of your charger corresponds to that of yourmains.
Your
DeWALT
charger is double insulated in
accordance with EN60335; therefore no earth wire
isrequired.
If the supply cord is damaged, it must be replaced only by
DeWALT
or an authorised serviceorganisation.
b ) Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized serviceproviders.
Additional Power Tool Safety Warnings
WARNING: Additional safety warnings for
hedgetrimmers
• Keep all parts of the body away from the cutter
blade. Do not remove cut material or hold material
to be cut when blades are moving. Make sure the
switch is off when clearing jammed material. A
moment of inattention while operating the tool can result
in serious personalinjury.
• Carry the hedge trimmer by the handle with the
cutter blade stopped. When transporting or storing
the hedge trimmer always fit the cutting device
cover. Proper handling of the hedge trimmer will reduce
possible personal injury from the cutterblades.
• Hold the power tool by insulated gripping surfaces
only, because the cutter blade may contact hidden
wiring. Cutter blades contacting a "live" wire may make
exposed metal parts of the power tool "live" and could give
the operator an electricshock.
• The intended use is described in this instruction manual.
The use of any accessory or attachment or performance
of any operation with this tool other than those
recommended in this instruction manual can present a risk
of personal injury and/or damage toproperty.
• Do not carry the tool with your hands on the front
handle, switch or the trigger switch unless the battery has
beenremoved.
• If you have not used a hedge trimmer before, preferably
seek practical instruction by an experienced user in
addition to studying thismanual.
• Never touch the blades while the tool isrunning.
• Never attempt to force the blades to come to astandstill.
• Do not put the tool down until the blades have come to a
completestandstill.
• Regularly check the blades for damage and wear. Do not
use the tool when the blades aredamaged.
• Take care to avoid hard objects (e.g. metal wire, railings)
when trimming. Should you accidentally hit any such
object, immediately switch the tool off and check for
anydamage.
• Should the tool start to vibrate abnormally, immediately
switch it off and remove the battery then check for
anydamage.
• If the tool stalls, immediately switch it off. Remove the
battery before attempting to remove anyobstructions.
• After use, place the blade sheath supplied over the blades.
Store the tool, making sure that the blade is notexposed.

7
ENGLISH
Any other uses may result in risk of fire, electric shock
orelectrocution.
• Do not expose charger to rain orsnow.
• Pull by plug rather than cord when disconnecting
charger. This will reduce risk ofdamage to electric plug
andcord.
• Make sure that cord is located so that it will not be
stepped on, tripped over, or otherwise subjected to
damage orstress.
• Do not use an extension cord unless it is absolutely
necessary. Use of improper extension cord could result in
risk of fire, electric shock, orelectrocution.
• Do not place any object on top of charger or place
the charger on a soft surface that might block the
ventilation slots and result in excessive internal heat.
Place the charger in a position away from any heat source.
The charger is ventilated through slots in the top and the
bottom of thehousing.
• Do not operate charger with damaged cord or
plug—have them replacedimmediately.
• Do not operate charger if it has received a sharp
blow, been dropped, or otherwise damaged in any
way. Take it to an authorised servicecentre.
• Do not disassemble charger; take it to an authorised
service centre when service or repair is required.
Incorrect reassembly may result in a risk of electric shock,
electrocution orfire.
• In case of damaged power supply cord the supply cord
must be replaced immediately by the manufacturer,
its service agent or similar qualified person to prevent
anyhazard.
• Disconnect the charger from the outlet before
attempting any cleaning. This will reduce the risk of
electric shock. Removing the battery pack will not reduce
thisrisk.
• NEVER attempt to connect two chargerstogether.
• The charger is designed to operate on standard
230V household electrical power. Do not attempt to
use it on any other voltage. This does not apply to the
vehicularcharger.

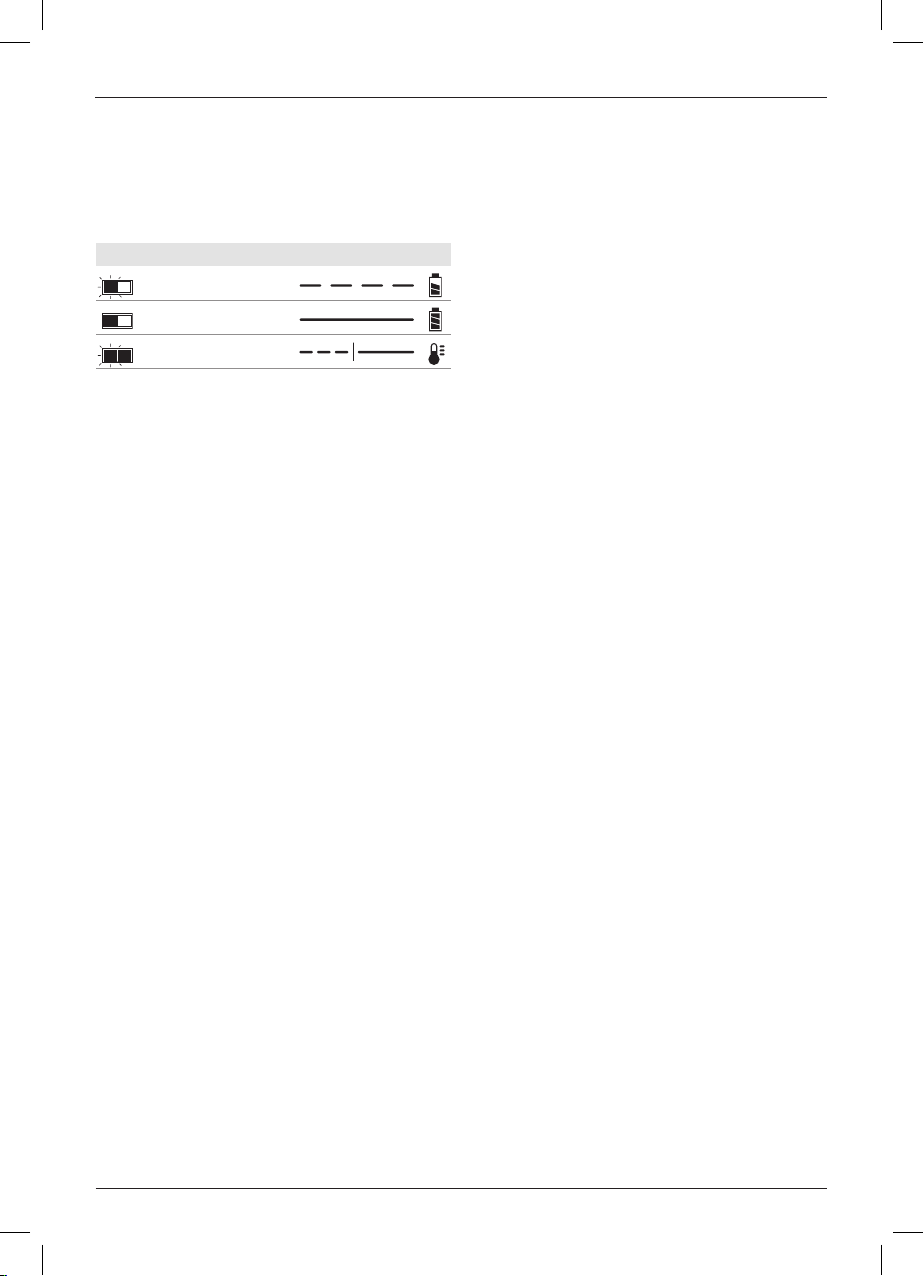

Charging a Battery (Fig. B)
1. Plug the charger into an appropriate outlet before
inserting batterypack.
2. Insert the battery pack9 into the charger, making sure
the battery pack is fully seated in the charger. The red
(charging) light will blink repeatedly indicating that the
charging process hasstarted.
3. The completion of charge will be indicated by the red
light remaining ON continuously. The battery pack is
fully charged and may be used at this time or left in the
charger. To remove the battery pack from the charger,
push the battery release button10 on the batterypack.
Mains Plug Replacement
(U.K. & Ireland Only)
If a new mains plug needs to be fitted:
• Safely dispose of the oldplug.
• Connect the brown lead to the live terminal in theplug.
• Connect the blue lead to the neutralterminal.
WARNING: No connection is to be made to the
earthterminal.
Follow the fitting instructions supplied with good quality
plugs. Recommended fuse: 3A.
Using an Extension Cable
An extension cord should not be used unless absolutely
necessary. Use an approved extension cable suitable for
the power input of your charger (see Technical Data). The
minimum conductor size is 1mm2; the maximum length
is30m.
When using a cable reel, always unwind the
cablecompletely.
Important Safety Instructions for All Battery
Chargers
SAVE THESE INSTRUCTIONS: This manual contains
important safety and operating instructions for compatible
battery chargers (refer to TechnicalData).
• Before using charger, read all instructions and cautionary
markings on charger, battery pack, and product using
batterypack.
WARNING: Shock hazard. Do not allow any liquid to
get inside charger. Electric shock mayresult.
WARNING: We recommend the use of a residual
current device with a residual current rating of 30mA
orless.
CAUTION: Burn hazard. To reduce the risk of injury,
charge only
DeWALT
rechargeable batteries. Other
types of batteries may burst causing personal injury
anddamage.
CAUTION: Children should be supervised to ensure
that they do not play with theappliance.
NOTICE: Under certain conditions, with the charger
plugged into the power supply, the exposed charging
contacts inside the charger can be shorted by foreign
material. Foreign materials of a conductive nature
such as, but not limited to, steel wool, aluminum foil or
any buildup of metallic particles should be kept away
from charger cavities. Always unplug the charger from
the power supply when there is no battery pack in the
cavity. Unplug charger before attempting to clean
• DO NOT attempt to charge the battery pack with
any chargers other than the ones in this manual.
The charger and battery pack are specifically designed to
worktogether.
• These chargers are not intended for any uses other
than charging
DeWALT
rechargeable batteries.

8
ENGLISH
from a corner or other obstructions which may impede
air flow. Use the back of the charger as a template for the
location of the mounting screws on the wall. Mount the
charger securely using drywall screws (purchased separately)
at least 25.4mm long with a screw head diameter of
7–9mm, screwed into wood to an optimal depth leaving
approximately 5.5mm of the screw exposed. Align the slots
on the back of the charger with the exposed screws and fully
engage them in theslots.
Charger Cleaning Instructions
WARNING: Shock hazard. Disconnect the charger
from the AC outlet before cleaning. Dirt and grease
may be removed from the exterior of the charger using
a cloth or soft non-metallic brush. Do not use water
or any cleaning solutions. Never let any liquid get
inside the tool; never immerse any part of the tool into
aliquid.
Battery Packs
Important Safety Instructions for All Battery
Packs
When ordering replacement battery packs, be sure to
include catalogue number andvoltage.
The battery pack is not fully charged out of the carton.
Before using the battery pack and charger, read
the safety instructions below. Then follow charging
proceduresoutlined.
READ ALL INSTRUCTIONS
• Do not charge or use battery in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Inserting or removing the battery
from the charger may ignite the dust orfumes.
• Never force battery pack into charger. Do not modify
battery pack in any way to fit into a non-compatible
charger as battery pack may rupture causing serious
personalinjury.
• Charge the battery packs only in
DeWALT
chargers.
• DO NOT splash or immerse in water or otherliquids.
• Do not store or use the tool and battery pack in
locations where the temperature may reach or
exceed 40 ˚C (104 ˚F) (such as outside sheds or metal
buildings in summer).
• Do not incinerate the battery pack even if it is
severely damaged or is completely worn out. The
battery pack can explode in a fire. Toxic fumes and
materials are created when lithium-ion battery packs
areburned.
• If battery contents come into contact with the skin,
immediately wash area with mild soap and water. If
battery liquid gets into the eye, rinse water over the open
eye for 15 minutes or until irritation ceases. If medical
attention is needed, the battery electrolyte is composed of
a mixture of liquid organic carbonates and lithiumsalts.
NOTE: To ensure maximum performance and life of lithium-
ion battery packs, charge the battery pack fully before
firstuse.
Charger Operation
Refer to the indicators below for the charge status of the
batterypack.
Charge Indicators
Charging
Fully Charged
Hot/Cold Pack Delay*
*The red light will continue to blink, but a yellow indicator
light will be illuminated during this operation. Once the
battery pack has reached an appropriate temperature, the
yellow light will turn off and the charger will resume the
chargingprocedure.
The compatible charger(s) will not charge a faulty battery
pack. The charger will indicate faulty battery by refusing
tolight.
NOTE: This could also mean a problem with acharger.
If the charger indicates a problem, take the charger and
battery pack to be tested at an authorised servicecentre.
Hot/Cold Pack Delay
When the charger detects a battery pack that is too hot
or too cold, it automatically starts a Hot/Cold Pack Delay,
suspending charging until the battery pack has reached an
appropriate temperature. The charger then automatically
switches to the pack charging mode. This feature ensures
maximum battery packlife.
A cold battery pack will charge at a slower rate than a warm
battery pack. The battery pack will charge at that slower rate
throughout the entire charging cycle and will not return to
maximum charge rate even if the battery packwarms.
The DCB118 charger is equipped with an internal fan
designed to cool the battery pack. The fan will turn on
automatically when the battery pack needs to be cooled.
Never operate the charger if the fan does not operate
properly or if ventilation slots are blocked. Do not permit
foreign objects to enter the interior of thecharger.
Electronic Protection System
XR Li-Ion tools are designed with an Electronic Protection
System that will protect the battery pack against
overloading, overheating or deepdischarge.
The tool will automatically turn off if the Electronic
Protection System engages. If this occurs, place the lithium-
ion battery pack on the charger until it is fullycharged.
Wall Mounting
These chargers are designed to be wall mountable or to sit
upright on a table or work surface. If wall mounting, locate
the charger within reach of an electrical outlet, and away

9
ENGLISH
lithium-ion battery packs alone regardless of Watt Hour
rating. Shipments of tools with batteries (combo kits) can be
air shipped as excepted if the Watt Hour rating of the battery
pack is no greater than 100Whr.
Regardless of whether a shipment is considered excepted
or fully regulated, it is the shipper's responsibility to consult
the latest regulations for packaging, labeling/marking and
documentationrequirements.
The information provided in this section of the manual
is provided in good faith and believed to be accurate
at the time the document was created. However, no
warranty, expressed or implied, is given. It is the buyer’s
responsibility to ensure that its activities comply with the
applicableregulations.
Transporting the FLEXVOLTTM Battery
The
DeWALT
FLEXVOLTTM battery has two modes: Use
andTransport.
Use Mode: When the FLEXVOLTTM battery stands alone or is
in a
DeWALT
18V product, it will operate as an 18V battery.
When the FLEXVOLTTM battery is in a 54V or a 108V (two 54V
batteries) product, it will operate as a 54Vbattery.
Transport Mode: When the
cap is attached to the
FLEXVOLTTM battery, the
battery is in Transport mode.
Keep the cap forshipping.
When in Transport mode, strings of cells are electrically
disconnected within the pack resulting in 3 batteries with a
lower Watt hour (Wh) rating as compared to 1 battery with a
higher Watt hour rating. This increased quantity of 3
batteries with the lower Watt hour rating can exempt the
pack from certain shipping regulations that are imposed
upon the higher Watt hour batteries.
For example, the
Transport Wh rating
might indicate 3x36
Wh, meaning 3
batteries of 36 Wh
each. The Use Wh rating might indicate 108Wh (1battery
implied).
Storage Recommendations
1. The best storage place is one that is cool and dry
away from direct sunlight and excess heat or cold. For
optimum battery performance and life, store battery
packs at room temperature when not inuse.
2. For long storage, it is recommended to store a fully
charged battery pack in a cool, dry place out of the
charger for optimalresults.
NOTE: Battery packs should not be stored completely
depleted of charge. The battery pack will need to be
recharged beforeuse.
Example of Use and Transport Label Marking
• Contents of opened battery cells may cause
respiratory irritation. Provide fresh air. If symptoms
persists, seek medicalattention.
WARNING: Burn hazard. Battery liquid may be
flammable if exposed to spark orflame.
WARNING: Never attempt to open the battery pack
for any reason. If battery pack case is cracked or
damaged, do not insert into charger. Do not crush,
drop or damage battery pack. Do not use a battery
pack or charger that has received a sharp blow, been
dropped, run over or damaged in any way (i.e., pierced
with a nail, hit with a hammer, stepped on). Electric
shock or electrocution may result. Damaged battery
packs should be returned to service centre forrecycling.
WARNING: Fire hazard. Do not store or carry the
battery pack so that metal objects can contact
exposed battery terminals. For example, do not
place the battery pack in aprons, pockets, tool boxes,
product kit boxes, drawers, etc., with loose nails,
screws, keys,etc.
CAUTION: When not in use, place tool on its
side on a stable surface where it will not cause
a tripping or falling hazard. Some tools with large
battery packs will stand upright on the battery pack
but may be easily knockedover.
Transportation
WARNING: Fire hazard. Transporting batteries can
possibly cause fire if the battery terminals inadvertently
come in contact with conductive materials. When
transporting batteries, make sure that the battery
terminals are protected and well insulated from
materials that could contact them and cause a
shortcircuit.
NOTE: Lithium-ion batteries should not be put in
checkedbaggage.
DeWALT
batteries comply with all applicable shipping
regulations as prescribed by industry and legal standards
which include UN Recommendations on the Transport of
Dangerous Goods; International Air Transport Association
(IATA) Dangerous Goods Regulations, International Maritime
Dangerous Goods (IMDG) Regulations, and the European
Agreement Concerning The International Carriage of
Dangerous Goods by Road (ADR). Lithium-ion cells and
batteries have been tested to section 38.3 of the UN
Recommendations on the Transport of Dangerous Goods
Manual of Tests andCriteria.
In most instances, shipping a
DeWALT
battery pack will be
excepted from being classified as a fully regulated Class 9
Hazardous Material. In general, only shipments containing a
lithium-ion battery with an energy rating greater than 100
Watt Hours (Wh) will require being shipped as fully regulated
Class 9. All lithium-ion batteries have the Watt Hour rating
marked on the pack. Furthermore, due to regulation
complexities,
DeWALT
does not recommend air shipping

10
ENGLISH
1 Instruction manual
• Check for damage to the tool, parts or accessories which
may have occurred duringtransport.
• Take the time to thoroughly read and understand this
manual prior tooperation.

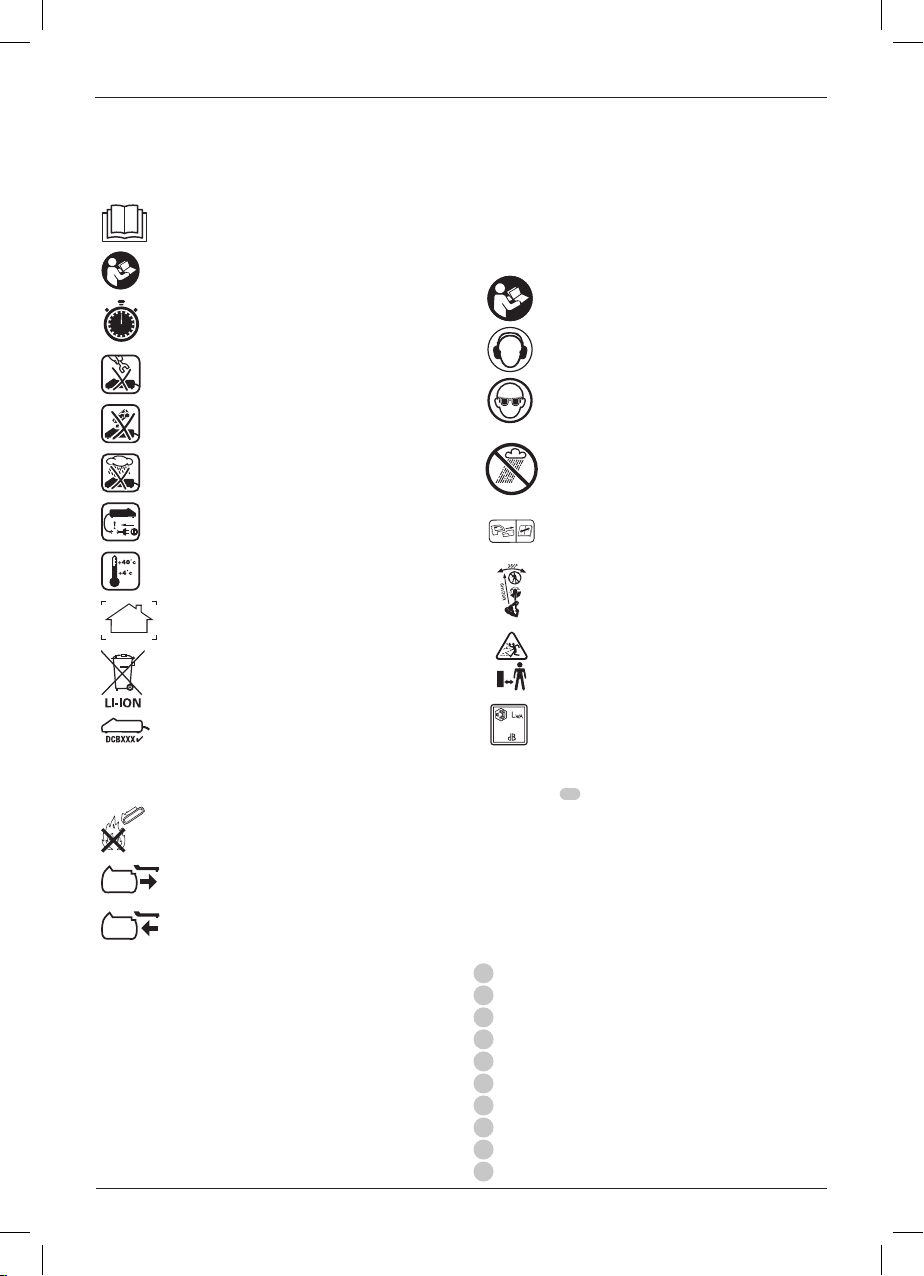

Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual beforeuse.
Wear earprotection.
Wear eyeprotection.
98
Do not expose the tool to rain or high humidity
or leave outdoors while it israining.
98
Switch the tool off. Before performing any
maintenance on the tool, remove the battery
from thetool.
98
Keep people and animals at least 6 m away
from the workarea.
98
Keep bystandersaway.
94
(A) Directive 2000/14/EC guaranteed soundpower.
Date Code Position (Fig.L)
The date code12, which also includes the year of
manufacture, is printed into thehousing.
Example:
2019 XX XX
Year of Manufacture
Description (Fig. A)
WARNING: Never modify the power tool or any part
of it. Damage or personal injury couldresult.
1 Trigger switch
2 Lock-off switch
3 Switch handle
4 Blade guard
5 Bail handle
6 Blade
7 Sheath
8 Battery housing
9 Battery pack
10 Battery release button
Labels on Charger and Battery Pack
In addition to the pictographs used in this manual, the labels
on the charger and the battery pack may show the following
pictographs:
Read instruction manual beforeuse.
See Technical Data for chargingtime.
Do not probe with conductiveobjects.
Do not charge damaged batterypacks.
Do not expose to water.
Have defective cords replacedimmediately.
Charge only between 4 ˚C and 40 ˚C.
Only for indooruse.
Discard the battery pack with due care for
theenvironment.
Charge
DeWALT
battery packs only with
designated
DeWALT
chargers. Charging battery
packs other than the designated
DeWALT
batteries with a
DeWALT
charger may make
them burst or lead to other dangeroussituations.
Do not incinerate the batterypack.
USE (without transport cap). Example: Wh rating
indicates 108 Wh (1 battery with 108 Wh).
TRANSPORT (with built-in transport cap).
Example: Wh rating indicates 3 x 36 Wh
(3batteries of 36 Wh).
Battery Type
The DCMHT563 operates on a 18 volt batterypack.
These battery packs may be used: DCB181, DCB182, DCB183,
DCB183B, DCB184, DCB184B, DCB185, DCB187, DCB189,
DCB546, DCB547, DCB548. Refer to Technical Data for
moreinformation.
Package Contents
The package contains:
1 Hedge Trimmer
1 Li-Ion battery pack (P1 models)

11
ENGLISH
NOTE: The fuel gauge is only an indication of the charge left
on the battery pack. It does not indicate tool functionality
and is subject to variation based on product components,
temperature and end-userapplication.
OPERATION
Instructions for Use
WARNING: Always observe the safety instructions and
applicableregulations.
WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
Proper Hand Position (Fig. F)
WARNING: To reduce the risk of serious personal
injury, ALWAYS use proper hand position asshown.
WARNING: To reduce the risk of serious personal
injury, ALWAYS hold securely in anticipation of a
suddenreaction.
Proper hand position requires one hand on the switch
handle3, with the other hand on the bail handle5.
Switching On (Fig. G)
1. Squeeze and hold the bail handle5 with one hand so
that the front part of the bail handle is pulled back into
the body of the bailhandle.
2. Push the lock-off switch2 forward and squeeze the
trigger switch1. Once the unit is running, you may
release the lock-offswitch.
In order to keep the unit running you must continue to
squeeze the trigger. To turn the unit off, release thetrigger.
WARNING: Never attempt to lock a switch in the
ONposition.
WARNING: Do not cut stems greater than
19mm. Use the trimmer only for cutting normal
shrubbery around houses andbuildings.
Trimming Instructions
Working Position (Fig.F)
Maintain proper footing and balance and do not overreach.
Wear safety goggles, non-skid footwear when trimming.
Hold the unit firmly in both hands and turn the unit on.
Always hold the trimmer as shown in FigureF, with one
hand on the switch handle3 and one hand on the bail
handle5. Never hold the unit by the blade guard4.
Trimming New Growth (Fig.H)
Using a wide, sweeping motion, feeding the blade teeth
through the twigs, is most effective. A slight downward tilt of
the blade in the direction of motion gives the bestcutting.
Intended Use
Your hedge trimmer has been designed for professional
trimmingapplications.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
without supervision.
• This product is not intended for use by persons
(including children) suffering from diminished
physical, sensory or mental abilities; lack of experience,
knowledge or skills unless they are supervised by a
person responsible for their safety. Children should never
be left alone with thisproduct.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
WARNING: Use only
DeWALT
battery packs
andchargers.
Inserting and Removing the
Battery Pack from the Tool (Fig. C–E)
NOTE: Make sure your battery pack9 is fullycharged.
To Install the Battery Pack into the
ToolHandle
1. Align the battery pack9 with the rails inside the tool's
battery housing8.
2. Slide it into the hedge trimmer until the battery pack is
firmly seated in the tool and ensure that you hear the
lock snap intoplace.
To Remove the Battery Pack from the Tool
1. Press the release button10 and firmly pull the battery
pack out of thetool.
2. Insert battery pack into the charger as described in the
charger section of thismanual.
Fuel Gauge Battery Packs (Fig.E)
Some
DeWALT
battery packs include a fuel gauge which
consists of three green LED lights that indicate the level of
charge remaining in the batterypack.
To actuate the fuel gauge, press and hold the fuel gauge
button11. A combination of the three green LED lights will
illuminate designating the level of charge left. When the
level of charge in the battery is below the usable limit, the
fuel gauge will not illuminate and the battery will need to
berecharged.

12
ENGLISH
Cleaning
WARNING: Blow dirt and dust out of the main
housing with dry air as often as dirt is seen collecting
in and around the air vents. Wear approved eye
protection and approved dust mask when performing
thisprocedure.
WARNING: Never use solvents or other harsh
chemicals for cleaning the non-metallic parts of the
tool. These chemicals may weaken the materials used
in these parts. Use a cloth dampened only with water
and mild soap. Never let any liquid get inside the tool;
never immerse any part of the tool into aliquid.
Optional Accessories
WARNING: Since accessories, other than those offered
by
DeWALT
, have not been tested with this product, use
of such accessories with this tool could be hazardous.
To reduce the risk of injury, only
DeWALT
recommended
accessories should be used with thisproduct.
Consult your dealer for further information on the
appropriateaccessories.
Protecting the Environment
Separate collection. Products and batteries marked
with this symbol must not be disposed of with
normal householdwaste.
Products and batteries contain materials that can
be recovered or recycled reducing the demand for raw
materials. Please recycle electrical products and batteries
according to local provisions. Further information is available
at www.2helpU.com.
Rechargeable Battery Pack
This long life battery pack must be recharged when it fails
to produce sufficient power on jobs which were easily done
before. At the end of its technical life, discard it with due care
for our environment:
• Run the battery pack down completely, then remove it
from thetool.
• Li-Ion cells are recyclable. Take them to your dealer or a
local recycling station. The collected battery packs will be
recycled or disposed ofproperly.
Level Hedges (Fig.I)
To obtain exceptionally level hedges a piece of string can be
stretched along the length of the hedge as aguide.
Side Trimming Hedges (Fig.J)
Orient the trimmer as shown and begin at the bottom and
sweepup.
DANGER: KEEP HANDS AWAY FROMBLADES.
WARNING: To guard against injury, observe
thefollowing:
• READ INSTRUCTION MANUAL BEFORE USING. SAVE
INSTRUCTIONMANUAL.
• Check the hedge for foreign objects such as wires
or fences before eachuse.
• KEEP HANDS ON HANDLES. DON’TOVERREACH.
• DO NOT USE UNDER WETCONDITIONS.
CAUTION: BLADE MAY COAST AFTER TURNOFF.
MAINTENANCE
Your
DeWALT
power tool has been designed to operate
over a long period of time with a minimum of maintenance.
Continuous satisfactory operation depends upon proper tool
care and regularcleaning.
WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
The charger and battery pack are notserviceable.
Lubrication (Fig. K)
1. After use, carefully clean the blades with a resinsolvent.
2. After cleaning, apply a light film of lubrication to the
exposedblade.
3. Turn the trimmer vertical with the blades toward the
ground and run the trimmer for a few seconds to fully
disperse thelubrication.
4. Slide the sheath7 over the blade until it snaps into
place as shown in FigureK.

13

14
Belgique et
Luxembourg België en Luxemburg
DeWALT - Belgium BVBA
Egide Walschaertsstraat 16
2800 Mechelen
Tel: NL 32 15 47 37 63
Tel: FR 32 15 47 37 64
Fax: [phone]
www.dewalt.be
[email protected]
Danmark DeWALT (Stanley Black&Decker AS)
Roskildevej 22
2620 Albertslund
Tel: [phone]
Fax: [phone]
www.dewalt.dk
[email protected]
Deutschland DeWALT
Richard Klinger Str. 11
65510 Idstein
Tel: [phone]
Fax: [phone]
www.dewalt.de
[email protected]
Ελλάς DeWALT (Ελλάς) Α.Ε.
EΔΡΑ-ΓΡΑΦΕΙΑ : Στράβωνος 7
& Λ. Βουλιαγμένης, Γλυφάδα 166 74, Αθήνα
SERVICE : Ημερος Τόπος 2 (Χάνι Αδάμ) – 193 00 Ασπρόπυργος
Τηλ: 00302108981616
Φαξ: 00302108983570
www.dewalt.gr
[email protected]
España DeWALT Ibérica, S.C.A.
Parc de Negocios “Mas Blau”
Edificio Muntadas, c/Bergadá, 1, Of. A6
08820 El Prat de Llobregat (Barcelona)
Tel: [phone]
Fax: [phone]
www.dewalt.es
[email protected]
France DeWALT (Stanley Black & Decker France SAS)
62 Chemin de la Bruyère
CS 60105,
69574 DARDILLY Cedex
Tel: [phone]
Fax: [phone]
www.dewalt.fr
[email protected]
Schweiz
Suisse
Svizzera
DeWALT
In der Luberzen 42
8902 Urdorf
Tel: 044 - 755 60 70
Fax: 044 - 730 70 67
www.dewalt.ch
[email protected]
Ireland DeWALT
Building 4500, Kinsale Road
Cork Airport Business Park
Cork, Ireland
Tel: [phone]
Fax: [phone]
www.dewalt.ie
[email protected]
Italia DeWALT
via Energypark 6
20871 Vimercate (MB), IT
Tel: [phone]
39 039-9590200
Fax: [phone]
www.dewalt.it
Nederlands DeWALT
Netherlands BVPostbus 83,
6120 AB BORN
Tel: [phone]
Fax: [phone]
www.dewalt.nl
Norge DeWALT
Postboks 4613
0405 Oslo, Norge
Tel: [phone]
Fax: [phone]
www.dewalt.no
[email protected]
Österreich DeWALT
Werkzeug Vertriebsges m.b.H
Oberlaaerstrasse 248, A-1230 Wien
Tel: 01 - 66116 - 0
Fax: 01 - 66116 - 614
www.dewalt.at
[email protected]
Portugal DeWALT
Ed. D Dinis, Quina da Fonte
Rua dos Malhoes 2 2A 2º Esq.
Oeiras e S. Juliao da Barra, paço de Arcos e Caxias
2770 071 Paço de Arcos
Tel: [phone]
Fax: [phone]
www.dewalt.pt
[email protected]
Suomi DeWALT
PL47
00521 Helsinki, Suomi
Puh: 010 400 4333
Faksi: 0800 411 340
www.dewalt.fi
[email protected]
Sverige DeWALT
BOX 94
43122 Mölndal
Sverige
Tel: [phone]
Fax: [phone]
www.dewalt.se
[email protected]
Türkiye Sanayi ve Ticareet Bakanlığı tebliğince kullanim ömrü 7 yıldır.
Stanley Black & Decker Turkey Alet Üretim San. Tic. Ltd.Şti.
AND Kozyataği - İçerenköy Mah. Umut Sok. AND Ofis Sit. No: 10-12 / 82-83-84
Ataşehir/İstanbul, Türkiye
Tel: [phone]
Faks: [phone]
www.dewalt.com.tr
[email protected]
United Kingdom DeWALT, 210 Bath Road;
Slough, Berks SL1 3YD
Tel: [phone]
Fax: [phone]
www.dewalt.co.uk
[email protected]
Australia DeWALT
810 Whitehorse Road Box Hill
VIC 3128 Australia
Tel: Aust 1800 338 002
Tel: NZ 0800 339 258
www.dewalt.com.au
www.dewalt.co.nz
Middle East Africa DeWALT
P.O. Box - 17164,
Jebel Ali Free Zone (South), Dubai, UAE
Tel: [phone]
Fax: [phone]
www.dewalt.ae
[email protected]
N748512 09/19
