DEZEGA P-30EX User manual

CLOSED-CIRCUIT
COMPRESSED-OXYGEN
SELF-CONTAINED
BREATHING APPARATUS
P-30EX
User manual
EN
P30.00.000 РЭ-EN
R-240P-DС22ТS-EUENEU
R-240P-CС22ТS-EUENEU
R-240P-DС22RS-EUENEU
R-240P-CС22RS-EUENEU
Red. 02.12.2022_V2
0477
Category III
EN 145:1997+A1:2000

COMPLIES WITH:
EN 145:1997+A1:2000, PPE REGULATION 2016/425/EU

TABLE OF CONTENTS
Introduction................................................................................................ 4
1. Accident prevention regulations........................................................ 5
2. Purpose, Design, and Operation Principles
of the Breathing Apparatus ................................................................ 8
3. Specifications ...................................................................................... 9
4. Breathing Apparatus Configuration................................................. 10
5. Preparation for Use ........................................................................... 12
6. Breathing Apparatus Disassembly .................................................. 12
7. Breathing Apparatus Maintenance .................................................. 18
8. Breathing Apparatus Cleaning, Disinfection, and Drying.............. 23
9. Breathing Apparatus Assembly........................................................ 24
10. Checking the Breathing Apparatus ................................................. 25
11. Procedure for Connecting to the Breathing Apparatus................. 30
12. Working in the Breathing Apparatus ............................................... 36
13. Possible Problems and Troubleshooting
of the Breathing Apparatus ............................................................. 38
14. Rules of Storage and Transportation
of the Breathing Apparatus ............................................................. 40
15. Marking .............................................................................................. 41
16. Manufacturer’s Warranty, Service Life ............................................ 41
17. Disposal.............................................................................................. 42
Annex 1..................................................................................................... 43
Annex 2..................................................................................................... 49
Annex 3..................................................................................................... 51

Р-30ЕХ (EN 145:1997+A1:2000) | (PPE Regulation 2016/425/EU: Category III) DEZEGA
4
INTRODUCTION
This User Manual (hereinafter referred to as «Manual») is intended to study the design and the
rules for use of the closed-circuit compressed-oxygen self-contained breathing apparatus P-30EX
(hereinafter referred to as the «breathing apparatus»). It also contains instructions for the proper use
of the breathing apparatus.
The Manual describes the principles of operation, design, rules for preparation of the
breathing apparatus for work as well as a quick procedure for technical condition check and
recommendations for maintenance of the breathing apparatus.
The Manual uses a series of symbols to draw the user’s attention to features, problems, and
dangerous situations as may be encountered in the course of the use and maintenance of the
breathing apparatus.
NOTE!
This symbol indicates additional information about the rules, methods, and recommendations for correct
use of the breathing apparatus.
CAUTION!
This symbol indicates a dangerous situation that, if not eliminated, could result in equipment damage,
injury, or even death of the user or a member of the maintenance personnel.
DANGEROUS!
This symbol indicates an inevitable dangerous situation that, if not eliminated, can lead to a serious
injury or death of the user.

DEZEGA Р-30ЕХ (EN 145:1997+A1:2000) | (PPE Regulation 2016/425/EU: Category III)
5
1. ACCIDENT PREVENTION REGULATIONS
1.1. Safety rules and rules of use
When using the breathing apparatus, the requirements specified in this manual must be observed.
In particular, it is necessary to read and take into account the safety rules and information on the
breathing apparatus use and operation. National regulations and legislation in the country, where the
breathing apparatus is used, also should be taken into account. The breathing apparatus must only
be used for the purposes specified herein.
The breathing apparatus must be regularly inspected and serviced by qualified personnel. Repairs
and regular maintenance of the breathing apparatus may only be performed by service centers
authorized by the manufacturer. Information on the frequency and scope of regulatory work see
Section 7. Breathing Apparatus Maintenance
NOTE!
Breathing apparatuses must be used and maintained by persons who have the appropriate
qualifications. The breathing apparatus must undergo complete disassembly and maintenance
(in accordance with the annual breathing apparatus revision instructions which are only available to
authorized DEZEGA service centers) on a yearly basis.
Only original spare parts must be used for the repair and maintenance of the breathing apparatus.
You may order a catalogue of breathing apparatus parts
and components from your local dealer of ТМ DEZEGA
or download it from the website www.dezega.com
DANGEROUS!
The breathing apparatus is not intended for operation under water. Attempts to use the breathing
apparatus under water may result in serious injury or death.
In the case of short-term accidental immersion of the breathing apparatus into the water (for up
to 15 seconds) with a filled breathing bag and without the lung demand valve operation, lighter
inhalation and an increased exhalation breathing resistance is observed. In the case the lung demand
valve trips after the completion of the inhalation phase, the apparatus continues to supply oxygen
to the breathing bag and to the atmosphere through the relief valve.
When immersing a breathing apparatus in water, observe the following rules:
• try to preserve the horizontal position of the breathing apparatus;
• try to have a full breathing bag and, if possible, avoid deep breaths, which may lead to the
lung demand valve tripping;
• if the lung demand valve trips, make a sharp exhalation to stop the oxygen supply and, upon
removal of the breathing apparatus from water, make 2-3 sharp exhalations.
The breathing apparatus supplies a gas mixture for breathing at a nominal working duration
(hereinafter referred to as the «NWD») for 4 hours and insulates the user from the surrounding
atmosphere that may be contaminated or lacking oxygen for breathing.

Р-30ЕХ (EN 145:1997+A1:2000) | (PPE Regulation 2016/425/EU: Category III) DEZEGA
6
The use of the breathing apparatus is only allowed under the following conditions:
• the user has passed special training and is allowed to work using the breathing apparatus
according to medical indications as established;
• the oxygen cylinder is filled with oxygen up to the operating pressure;
• the absorbent cartridge is filled with absorber;
• a water ice cube is used as a cooling element at ambient temperature above +26 °C;
• the breathing apparatus is regularly serviced and checked in accordance with this Manual
and has no deviations from the parameters specified herein;
• the breathing apparatus undergoes required maintenance by the user or at an authorized
service center once a year.
Actual NWD for a particular user may differ from the nominal NWD due
to the impact of various factors.
The actual NWD may be aected by:
• physical fitness of the user (poor physical fitness of the user may be the reason of increased
oxygen consumption);
• nature of the work performed (the more actively the users work, the more oxygen they
consume);
• emotional state of the user (an anxious or excited user can consume more oxygen);
• condition of the breathing apparatus (poorly serviced or poorly adjusted breathing
apparatuses may have a leak);
• improperly filled absorbent cartridge;
• cylinder pressure before use (if the cylinder is not filled completely, the working time is
reduced proportionally).
DANGEROUS!
In some cases, the actual NWD of the breathing apparatus may be less than 4 hours. Users who
are unfit, stressed-out, of a large build, who work in dicult conditions, as well as uninformed users
or users who do not keep the breathing apparatus in a good condition will spend oxygen much faster.
Ambient
temperature,
°С
Nominal and actual NWD at various pulmonary ventilation
and ambient temperature, not less than:
at 12,5 dm3/min at 30 dm3/min at 60 dm3/min at 85,0 dm3/min
minus (20±2) –75% (180 min)* – –
plus (25±1) 100% (240 min)* 100% (240 min)* 50% (120 min)* 10% (24 min)*
plus (40±1) 25% (60 min)*
plus (60±2) 10% (24 min)*
* In parentheses are the actual NWD.
The nominal and actual NWD are determined by time, in during which the oxygen pressure in the cylinder decreases
up to 1.0 MPa (10 kgf/cm2).

DEZEGA Р-30ЕХ (EN 145:1997+A1:2000) | (PPE Regulation 2016/425/EU: Category III)
7
1.2. Conformity to norms and regulations
The breathing apparatus is manufactured as per the requirements of EN 145:1997+A1:2000
standard as main referred standard, set of design documents U-P30EX.00.000, and contract
procurement documents.
Breathing apparatus parameters are in accordance with the requirements of the
EN 145:1997+A1:2000. In accordance with those standards, the breathing apparatus is a
Self-contained closed-circuit breathing apparatus compressed oxygen with the nominal working
duration (NWD) of 4 hours, and is PPE of category III according to the Regulation 2016/425, that
protects the respiratory organs from non-toxic dust and toxic substances.
The breathing apparatus is of class EN 145/O2/4N.
Notified Body involved in the conformity assessment of PPE – Eurofins Product Testing Italy
S.r.l., Via Courgnè, n.21, 10156 TORINO, ITALY (No. 0477) by who performed the EU type examination
(Module B) and issued the EU type-examination certificate.
EU declaration of conformity is supplied together with goods. Copy of documents is available
by request.
1.3. Manufacturer warranty
The manufacturer guarantees the correct operation of the breathing apparatus and its compliance
with the referred standards and/or requirements set out in the contract documents in case of repairs,
maintenance, inspection, and revision of breathing apparatuses by organizations with appropriate
qualifications and orders from DEZEGA.
Detailed information is given in section 16.
1.4. Information on liability
DEZEGA SP GUVENLIK URUNLERI SAN. VE TIC. A.S. is not liable for damages caused by improper
use of the product or by its use for purposes other than indicated. Only the owner of the breathing
apparatus is responsible for its integrity and use.
In case of violation of the requirements of this user manual or any of its transportation or storage
conditions, the user shall lose the right for compensation and warranty service of the breathing
apparatus.
DEZEGA will not be held liable for any consequences of the use of breathing apparatuses
for purposes not specified herein nor for the consequences of failure to comply with the
recommendations of this Manual.
The manufacturer has the right to make minor constructive changes to the breathing apparatus
design without informing user about them. These minor constructive changes do not aect the
breathing apparatus work or worsen its operational characteristics.
In case of maintenance or repair by the technical service of the user, the owner or the user of the
breathing apparatus shall bear full responsibility for the operation of the breathing apparatus.
NOTE!
The warranty does not apply to the breathing apparatus or it’s parts if the conditions of transportation,
storage and operation were improper due to the fault of the consumer.

Р-30ЕХ (EN 145:1997+A1:2000) | (PPE Regulation 2016/425/EU: Category III) DEZEGA
8
2. PURPOSE, DESIGN AND OPERATION PRINCIPLES
OF THE BREATHING APPARATUS
The breathing apparatus is designed to protect the user’s respiratory system from the harmful eects
of respiration in an IDLH atmosphere during the performance of mine rescue, emergency rescue,
and technical operations in coal mines and other industrial facilities.
The breathing apparatus ensures reliable protection of the human respiratory system in an atmosphere
that contains insucient oxygen or contains toxic gases and coal dust. The breathing apparatus is
designed for operation at an air temperature of -20 °C to +60 °C, relative humidity of up to 100 %
at +40 °C, and atmosphere pressure of 70-125 kPa.
The breathing apparatus is a self-contained device that supplies pure oxygen. The breathing gas
mixture circulates in a closed respiratory circuit. Soda lime CO2absorber absorbs carbon dioxide
contained in a mixture of gases exhaled by the user. In the breathing bag, the gas mixture is enriched
with oxygen from an oxygen cylinder. At low and normal respiration frequency (resting state, walking
at a normal rate), oxygen is supplied to the breathing bag through a constant flow dosing valve. At
an increased breathing frequency, an additional amount of oxygen is fed through the lung demand
valve or the manual bypass valve. The breathing mixture heated by the regeneration reaction passes
through the cooler. In order to reduce the temperature of the inhaled gas mixture (and thereby
minimize the user’s discomfort), as well as during work at an elevated ambient temperature, the
cooling element (a water ice cube) is placed into the cooler of the breathing apparatus. Grinded
ice may be used as a cooling element. The facepiece of the breathing apparatus is represented by
a full-face mask or a mouthpiece with smoke goggles and a headset.
The breathing apparatus is equipped with a signal that trips if the cylinder pressure drops below
5.5 MPa (hereinafter referred to as the «pressure drop signal device»).
The breathing apparatus is also equipped with a device that signals that the cylinder valve is closed
or that there is no oxygen in the system (hereinafter referred to as the «no oxygen signal device»).

DEZEGA Р-30ЕХ (EN 145:1997+A1:2000) | (PPE Regulation 2016/425/EU: Category III)
9
3. SPECIFICATIONS
Nominal working duration, hours 41
Oxygen cylinder capacity, dm32
Pressure in the oxygen cylinder, MPa 20
Useful capacity of the breathing bag, not less, dm35
Continuous oxygen supply, dm3/min 1,4±0,1
Demand valve oxygen supply, dm3/min 802
Bypass oxygen supply, dm3/min 150-603
Weight of soda lime CO2absorber, not less, kg 2,3
Lung demand valve actuation pressure, Pa -100...-3004
Relief valve actuation pressure, Pa 150...400
Signal device actuation pressure, MPa 5,5±0,5
Breathing apparatus dimensions (LxWxH), mm (450х375х165)5±5
Resistance to respiration at inhalation/exhalation,
not more, Pa -300/+5006
Weight of respiratory interface, not more, kg:
- Mouthpiece with a nose clip, headset and goggles
- Full face mask
0,260
0,750
Weight of breathing apparatus
without respiratory interface
Value as per variant
U-P30EX.00.000-08
(R-240P-CC22RS)
U-P30EX.00.000-06
(R-240P-CC22TS)
U-P30EX.00.000-07
(R-240P-DC22RS)
U-P30EX.00.000-05
(R-240P-DC22TS)
Empty, without oxygen, soda lime absorber,
cooling element and a cooler lid, not more, kg 8,65 8,70
Charged, with oxygen, soda lime absorber,
without a cooling element and a cooler lid,
not more, kg 11,65 11,70
Fully charged, with oxygen, soda lime
absorber, cooling element and a cooler lid,
not more, kg 12,45 12,50
Notes:
1. When performing medium-to-heavy work, at ambient temperature of (25 ± 1) °C,
and atmosphere pressure of (100 ± 4) kPa.
2. At the cylinder pressure of 20 to 2 MPa and vacuum pressure of 500 Pa.
3. At the cylinder pressure of 20 to 3 MPa.
4. At a flow rate of 10 dm3/min.
5. Without the harness and breathing hoses
6. In case of pulmonary ventilation: 30 dm3/min.

Р-30ЕХ (EN 145:1997+A1:2000) | (PPE Regulation 2016/425/EU: Category III) DEZEGA
10
4. BREATHING APPARATUS CONFIGURATION
1
7
2
11
10 9 13
1286534
1. Ring...............................................1 pc.
2. Shield................................... ..... .....1 pc.
3. Whistle................................... .. ..... . 1 pc.
4. Shoulder strap......................... .. ....2 pcs.
5. End strap.......................................2 pcs.
6. Belt strap.................................... .. .1 pc.
7. Shoulder shock-absorber...... ... ... ... 1 pc.
8. Belt shock-absorber......... ....................... 1 pc.
9. Oxygen distributing unit........................1 pc.
10. Pressure drop signal device..................1 pc.
11. Cylinder with a valve.............................1 pc.
12. Protective case.....................................1 pc.
13. Tee with a safety valve..........................1 pc.

DEZEGA Р-30ЕХ (EN 145:1997+A1:2000) | (PPE Regulation 2016/425/EU: Category III)
11
23181924 20 21
17
22
16 1415
14. No oxygen signal device..................1 pc.
15. Capillary tube with
a pressure gauge........................ .. ...1 pc.
16. Breathing bag..................................1 pc.
17. Cooler..............................................1 pc.
18. Regenerative cartridge................ ... ..1 pc.
19. Relief valve................................. ..... .1 pc.
20. Breathing valve.......... ....... ..................2 pcs.
21. Breathing hoses with a plug...............1 pc.
22. Full-face mask................ ...... .. ....... ..... 1 pc.
23. Complete set of spare parts...............1 set.
24. Nut............................................... .... ...1 pc.
25. Mouthpiece with a nose clip...............1 pc. *
* Variable positions, supplied with accordance to order and article, see ANNEX 1.
25.1 Headset .............................. .... ...1 pc. *
25.2 Smoke goggles...........................1 pc. *
25.1
25.2 25

Р-30ЕХ (EN 145:1997+A1:2000) | (PPE Regulation 2016/425/EU: Category III) DEZEGA
12
P-30EX available for order in following variations by facepiece and breathing bag material:
U-P30EX.00.000-05 - Full face mask DEZEGA D-VISION. Breathing bag material - rubber-fabric
(article R-240P-DС22ТS);
U-P30EX.00.000-06 - Full face mask DEZEGA D-VISION, and mouthpiece with a nose clip, headset
and goggles. Breathing bag material - rubber-fabric (article R-240P-CС22ТS);
U-P30EX.00.000-07 - Full face mask DEZEGA D-VISION. Breathing bag material - rubber
(article R-240P-DС22RS);
U-P30EX.00.000-08 - Full face mask DEZEGA D-VISION, and mouthpiece with a nose clip, headset
and goggles. Breathing bag material - rubber (article R-240P-CС22RS);
See ANNEX 1 for order details, scope of supply, list of spare parts and accessories available
for order.
You may order a catalogue of breathing apparatus
parts and components from your local dealer of ТМ DEZEGA
or download it from the website www.dezega.com
5. PREPARATION FOR USE
The breathing apparatus distributes to user as a complete assembly without a soda lime and with an
empty oxygen cylinder.
5.1. The first use
Before using the breathing apparatus for the first time, check the integrity of the seals, check
visually that there is no damage and that the product is complete, refill the regenerative cartridge
(see «Filling the Regenerative Cartridge»), install an oxygen-filled cylinder, and test the breathing
apparatus (see «Checking the Breathing Apparatus»).
Always check the integrity of the seals and the conformity of the serial numbers on the breathing
apparatus components to the marks in the Data sheet.
In case of discrepancy between the serial numbers of the breathing apparatus components and the
marks in the data sheet, the breathing apparatus will not be covered by the manufacturer’s warranty.
Disassembly, assembly, equipment, and check of the breathing apparatus using control devices
must be carried out in designated premises with the use «UKP-5» or «Breathing Apparatus
Test Set DEZEGA CheckUp».
Before starting these operations, wash your hands thoroughly with soap and wipe the tools from the
set with rectified technical-grade ethyl alcohol.
DANGEROUS!
To avoid serious injury or death, never allow contact of compressed oxygen with oil, grease, or similar
organic pollutants. This may lead to an explosion or a fire.
6. BREATHING APPARATUS DISASSEMBLY
During the first disassembly, remove the seal from the breathing apparatus body.
CAUTION!
The semi-knock-down disassembly of the breathing apparatus must be carried out without the use of
tools, except where the use of a tool is unambiguously prescribed by this Manual. The use of tools for
the semi-knock-down disassembly and cleaning of the breathing apparatus may damage the breathing
apparatus and cause it to malfunction.

DEZEGA Р-30ЕХ (EN 145:1997+A1:2000) | (PPE Regulation 2016/425/EU: Category III)
13
6.1. Breathing apparatus casing
• Place the breathing apparatus on a solid surface in front of you, press the spring lock, and
disconnect the shoulder ring.
• Place the breathing apparatus horizontally on a flat surface. Press the two spring locks in the
direction of the waist belt with both your thumbs at the same time.
• Open and disconnect the breathing apparatus shield.

Р-30ЕХ (EN 145:1997+A1:2000) | (PPE Regulation 2016/425/EU: Category III) DEZEGA
14
6.2. Oxygen cylinder
Make sure that the oxygen cylinder valve is closed and the connections are not contaminated with
oil or grease.
• Manually loosen the connection between the cylinder valve and the oxygen-distributing unit
and disconnect them.
• Take the cylinder with both hands and remove it by lifting it at the bottom.
CAUTION!
Do not use tools to disconnect the cylinder. Only manual disconnection of the oxygen cylinder is
permitted.
6.3. Breathing system
The breathing system contains breathing hoses, inhalation and exhalation valves, a regenerative
cartridge, a cooler, and a breathing bag.
• Disconnect the breathing bag from the oxygen distributing unit.

DEZEGA Р-30ЕХ (EN 145:1997+A1:2000) | (PPE Regulation 2016/425/EU: Category III)

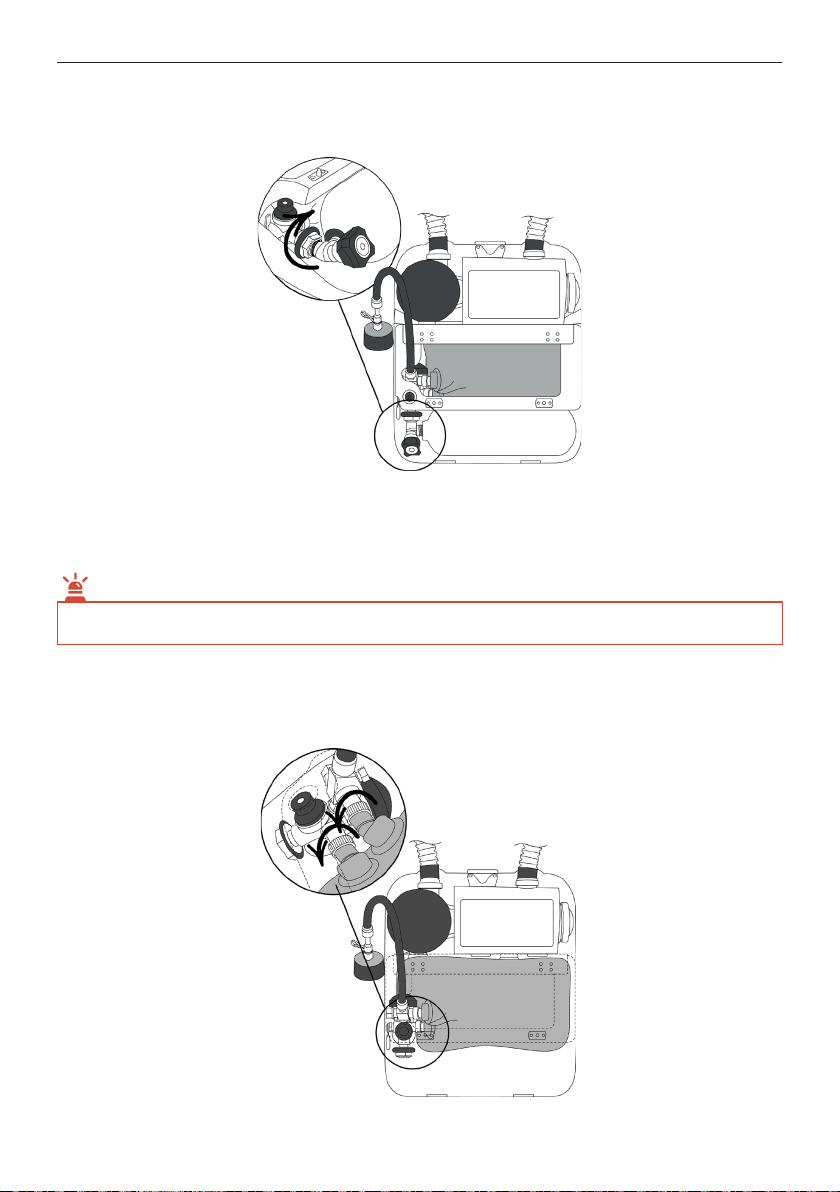

15
• Disconnect the no oxygen signal device pipe fitting from the tee by pulling the clip toward
the oxygen distribution unit.
• Press the regenerative cartridge clip and pull out the entire breathing system by lifting the
cartridge.

Р-30ЕХ (EN 145:1997+A1:2000) | (PPE Regulation 2016/425/EU: Category III) DEZEGA
16
6.4. Breathing hoses
• Disconnect the inhalation and exhalation hoses from the cooler and the regenerative
cartridge, respectively. Pull out the inhalation and exhalation valves.
NOTE!
Inhalation and exhalation valves may only be installed in the position provided by the breathing
apparatus design. It is structurally impossible to switch their positions or to install them
in the reverse position.
• Unscrew a special screw and disconnect the connecting box plug
or the facepiece.
6.5. Breathing bag
• Remove the breathing bag from the cooler and the regenerative cartridge, respectively.

DEZEGA Р-30ЕХ (EN 145:1997+A1:2000) | (PPE Regulation 2016/425/EU: Category III)
17
6.6. Cooler
The regenerative cartridge is connected to the cooler via a bayonet connection.
• Disconnect the cooler by turning it 45° counter-clockwise against the regeneration cartridge
connection axis. Remove the lid.
6.7. Regenerative cartridge
• Unscrew the locking nut and remove the relief valve.

Р-30ЕХ (EN 145:1997+A1:2000) | (PPE Regulation 2016/425/EU: Category III) DEZEGA
18
6.8. Oxygen distribution unit
• If checking or adjusting the oxygen distribution unit becomes necessary, unscrew the screw
with a waisted shank using a screwdriver and disconnect the unit.
7. BREATHING APPARATUS MAINTENANCE
7.1. Filling the regenerative cartridge
The regenerative cartridge must be filled with D-SORB CO2absorber.
CAUTION!
Use only special soda lime absorber manufactured by DEZEGA for filling regenerative cartridges.
Fit the cartridge using the following procedure:
1. Weigh the empty cartridge with a plug with an accuracy of 5 g.
2. Pull the movable partition using a tensioner.
3. Pour soda lime absorber through a sieve with 3 mm holes.
4. Collect the sieved soda lime absorber into a plastic bag and dispose of it (see “Disposal”)
and pour the remaining soda lime absorber into the cartridge.
NOTE!
Fill the regenerative cartridge using a designated device manufactured by DEZEGA.

DEZEGA Р-30ЕХ (EN 145:1997+A1:2000) | (PPE Regulation 2016/425/EU: Category III)
19

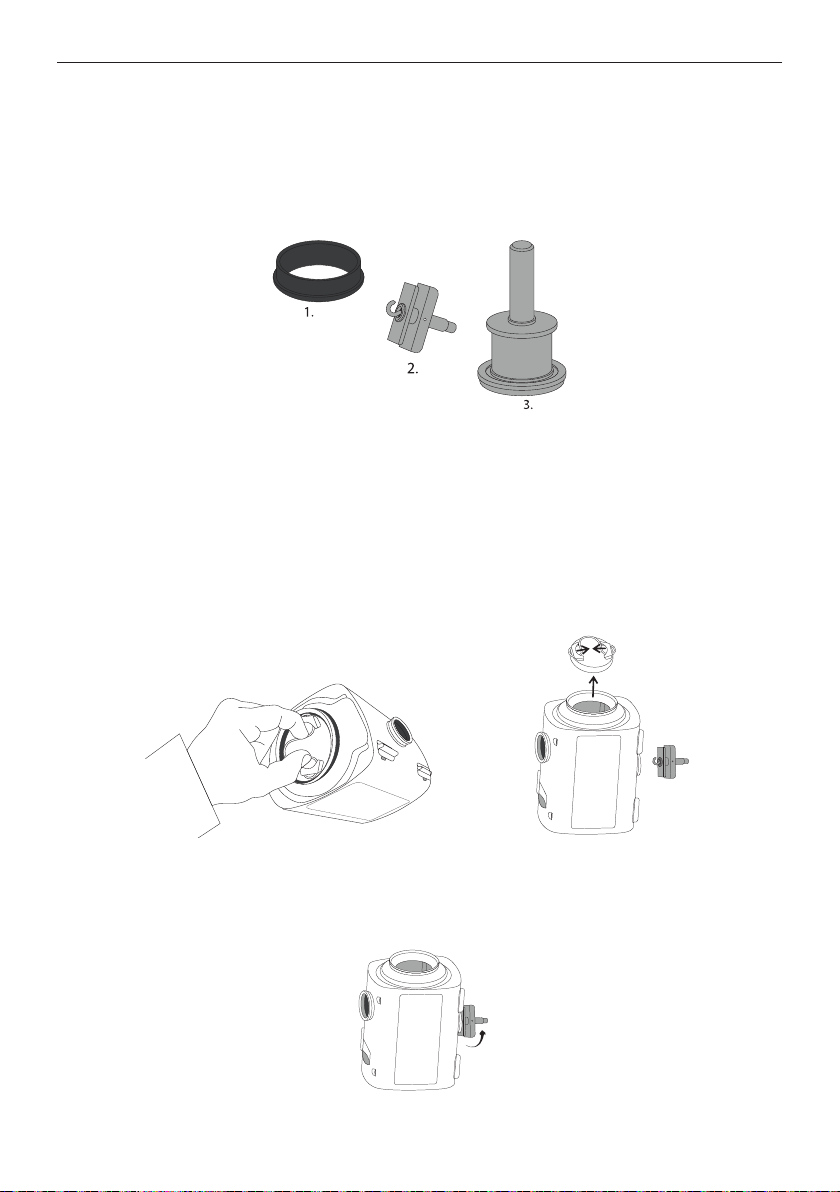

7.2. Regenerative cartridge filling device
The device consists of:
1. A funnel for soda lime absorber;
2. A tensioner for pulling the movable partition;
3. A tamper for compacting soda lime in cartridge.
You may order a catalogue of breathing apparatus parts
and components from your local dealer of ТМ DEZEGA
or download it from the website www.dezega.com.
Fill the regenerative cartridge in two ways:
• using a tamper;
• using a funnel.
7.3. Filling the regenerative cartridge using a tamper
• Press the clips together and remove the regenerative cartridge plug. Make sure no soda lime
absorber remains in the regenerative cartridge.
• Pull the hook of the tensioner through the hole of the regenerative cartridge bottom mesh.
• Spin the nut until the springs are compressed and the partition comes in contact with the
base plates.

Р-30ЕХ (EN 145:1997+A1:2000) | (PPE Regulation 2016/425/EU: Category III) DEZEGA
20
• Install the tamper casing on the cartridge neck and pour in soda lime absorber in three or four
portions, compacting it with a slight tap of the palms on the side of the cartridge casing. After
tapping no longer results in visible compaction, fill in soda lime absorber to about 3/4 of the
tamper casing. Insert the cover with a rod into the case and compact the soda lime absorber
with an energetic hit of the cartridge casing with your palm.
• Pour or remove soda lime absorber until the stock goes all the way down.
• Unscrew the collar nut and remove the tamper from the cartridge. Squeeze the spring lock
of the plug with your thumb and index finger, put it on the cartridge neck and insert both
protruding clip arches under the lower (inner) end of the neck.
• Remove the tensioner. To do this, unscrew the nut and pull the hook out of the loop hole.
7.4. Filling a regenerative cartridge using a funnel
The cartridge may also be filled using a funnel. In this case, when compacting the last portions
of soda lime absorber, slightly press it with your fingers through the neck, while simultaneously
tapping on the side of the cartridge casing with the palm of your other hand. The level of soda lime
absorber must coincide with the edge of the neck.
• Place the funnel on the regenerative cartridge and fill in soda lime absorber in three or four
portions, compacting it with a slight tap of the palms on the side of the cartridge casing.
• After filling, remove the funnel and install the plug on the neck.
After installing the plug (regardless of the regenerative cartridge filling method) remove the remains
of soda lime absorber through the necks by shaking the cartridge. To remove small fractions of soda
lime absorber, blow with air through the necks for 1 min (flow rate: (200-400) l/min).
Weigh the cartridge with an accuracy of 5 g and compare to its weight before filling. The weight of
soda lime absorber must be at least 2.3 kg. Install the relief valve in place and secure it with a collar
nut. When shaking a filled cartridge, there must not be movement and overfilling of the entire weight
of soda lime absorber.
Replace the spare regenerative cartridge as described above but do not install a relief valve on the spare
cartridge. Instead, screw plastic plugs onto the three necks, weigh the cartridge before and after filling,
and seal it. It is recommended to impress the crew, team, department, and the date of cartridge filling
on the seals.
CAUTION!
Do not fill the regenerative cartridge with used, unsieved, or overdue soda lime absorber.
