CM33-EC
CM33-SC
Rev. A+
System Board
Users Manual
46900051
This Manual: http://www.manuallib.com/file/2504586

Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose.The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 2000. All Rights Reserved.
Trademarks
Microsoft®MS-DOS®, WindowsTM, Windows®95, Windows®98,
Windows®98 SE, Windows®ME, Windows®2000 and Windows
NT®4.0 are registered trademarks of Microsoft Corporation. Intel®,
Pentium®III and CeleronTM are registered trademarks of Intel
Corporation. VIA CyrixIII is a registered trademark of VIA
Technologies, Inc. Award is a registered trademark of Award
Software, Inc. Other trademarks and registered trademarks of
products appearing in this manual are the properties of their
respective holders.
Caution
To avoid damage to the system:
 Use the correct AC input voltage range.
To reduce the risk of electric shock:
 Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.
This Manual: http://www.manuallib.com/file/2504586

Battery:
 Danger of explosion if battery incorrectly replaced.
 Replace only with the same or equivalent type recommend by
the manufacturer.
 Dispose of used batteries according to the battery
manufacturers instructions.
Joystick or MIDI port:
 Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
 Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.
This Manual: http://www.manuallib.com/file/2504586

Table of Contents
Chapter 1 - Introduction
1.1 Features and Specifications..................................................................................
1.2 Package Checklist.........................................................................................................
Chapter 2 - Hardware Installation
2.1 System Board Layout .............................................................................................
2.2 System Memory.............................................................................................................

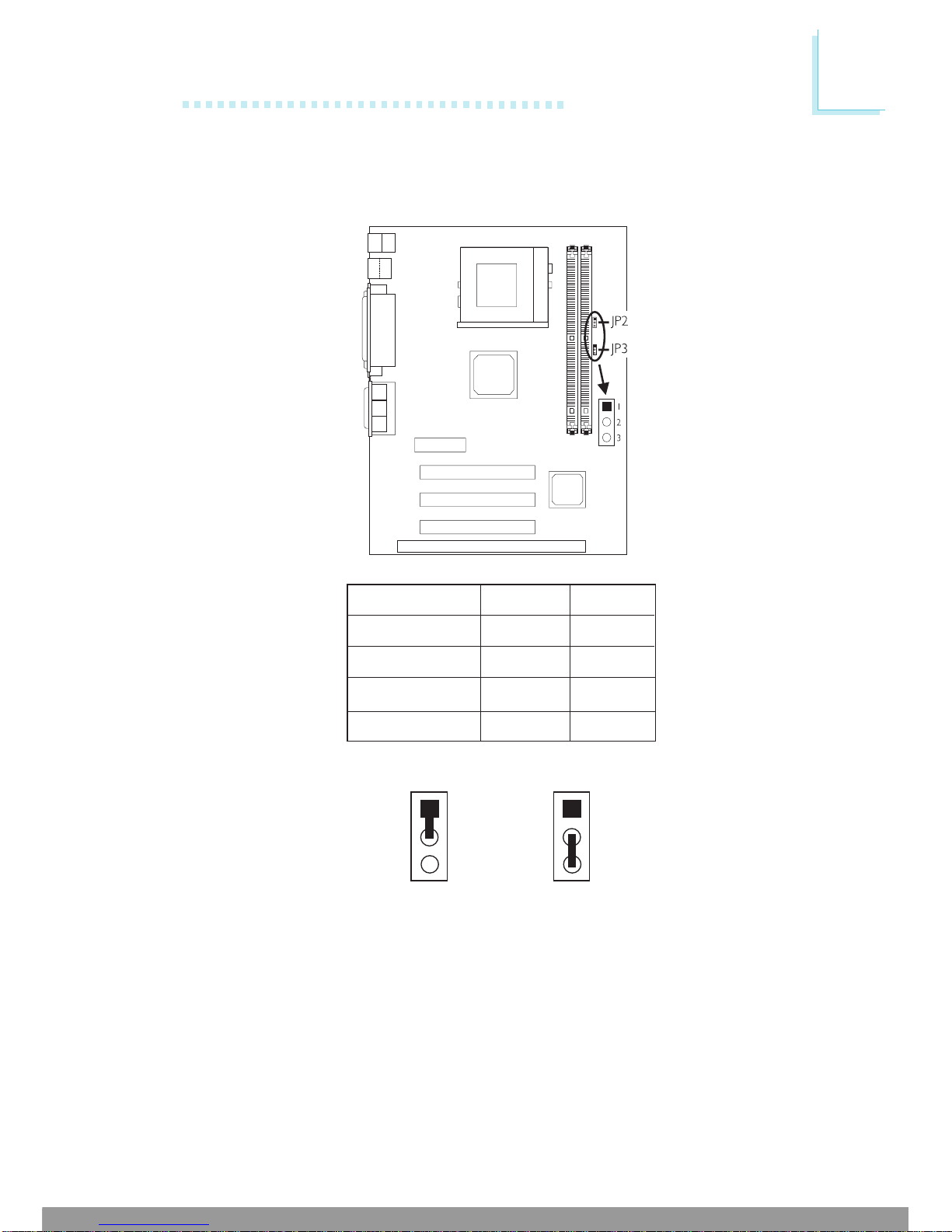

2.3 Jumper Settings for Selecting the CPUs Front Side Bus...............
2.4 Jumper Settings for Clearing CMOS Data..........................................
2.5 Jumper Settings for the Onboard Audio Codec...........................
2.6 Ports and Connectors.............................................................................................
Chapter 3 - Award BIOS Setup Utility
3.1 The Basic Input/Output System.....................................................................
3.1.1 Standard CMOS Features.............................................................
3.1.2 Advanced BIOS Features..............................................................
3.1.3 Advanced Chipset Features ......................................................
3.1.4 Integrated Peripherals.........................................................................
3.1.5 Power Management Setup............................................................
3.1.6 PnP/PCI Configurations....................................................................
3.1.7 PC Health Status...................................................................................
3.1.8 Frequency/Voltage Control............................................................
3.1.9 Load Fail-Safe Defaults.....................................................................
3.1.10 Load Optimized Defaults..............................................................
3.1.11 Set Supervisor Password...............................................................
3.1.12 Set User Password..............................................................................
3.1.13 Save & Exit Setup.................................................................................
3.1.14 Exit Without Saving..............................................................................
6
12
43
43
47
50
53
57
62
65
66
68
68
69
69
70
70
13
14
16
18
20
21
This Manual: http://www.manuallib.com/file/2504586

Chapter 4 - Supported Softwares
4.1 Desktop Management Interface.....................................................................
4.2 VIA Hardware Monitor............................................................................................
4.3 VIA Service Pack..........................................................................................................
4.4 Audio Drivers and Software Application...............................................
4.5 Graphics Drivers............................................................................................................
4.6 Microsoft DirectX 7.0 Driver.............................................................................
4.5 Drivers and Utilities Installation Notes.....................................................
Appendix A - Using the Suspend to RAM
Function
A.1 Using the Suspend to RAM Function........................................................
Appendix B - System Error Messages
B.1 POST Beep.......................................................................................................................
B.2 Error Messages..............................................................................................................
Appendix C - Troubleshooting
C.1 Troubleshooting Checklist....................................................................................
71
74
74
75
76
76
77
82
82
78
84
This Manual: http://www.manuallib.com/file/2504586

Introduction
1
6
1.1 Features and Specifications
1.1.1 Features
Chipset
 VIA®8601A/82C686B (PLE133) - CM33-EC
 VIA®8601A/82C686A (PLE133) - CM33-SC
Processor
The system board is equipped with Socket 370. It is also equipped
with a switching voltage regulator that automatically detects 1.30V
to 2.05V.
 Pentium®III FCPGA 133MHz FSB (533EB-1GHz) or 100MHz
FSB (500E-850E) processor
 CeleronTM 66MHz FSB: FCPGA (566MHz-766MHz) or PPGA
(300A-533MHz) processor
 VIA CyrixIII processor
System Memory
 Up to 1GB using unbuffered PC SDRAM DIMM
 Two 168-pin DIMM sockets
 Uses x64 PC SDRAM, 3.3V
- PC-100 SDRAM DIMM for 100/66MHz FSB processors
- PC-133 SDRAM DIMM for 133/100MHz FSB processors
Chapter 1 - Introduction
DIMMs
2MBx64
4MBx64
8MBx64
Memory Size
16MB
32MB
64MB
DIMMs
16MBx64
32MBx64
64MBx64
Memory Size
128MB
256MB
512MB
This Manual: http://www.manuallib.com/file/2504586

1
Introduction
7
Expansion Slots
The system board is equipped with 3 dedicated PCI slots, 1 ISA
slot and 1 AMR slot. AMR (Audio/Modem Riser) is an interface
designed for installing an audio riser card, modem riser card or
audio/modem riser card that is compliant to the AMR specification.
Onboard Graphics Features
 Integrated rCADE3D 2D/3D/Video accelerator
- Shares 8MB of the system memory
- Optimized Shared Memory Architecture (SMA)
- High quality DVD video playback
 3D rendering features
- 32-bit true color rendering
- MPEG-2 video textures
 2D hardware acceleration features
 Motion video architecture
 Software drivers
- Windows®98/98SE/ME/2000
- Windows NT®4.0
Onboard Audio Features
 Supports Microsoft®DirectSound / DirectSound 3D
 AC97 supported with full duplex, independent sample rate con-
verter for audio recording and playback
ATX Double Deck Ports (PC 99 color-coded connectors)
 Two USB ports
 One NS16C550A-compatible DB-9 serial port
 One DB-15 VGA port
 One SPP/ECP/EPP DB-25 parallel port
 One mini-DIN-6 PS/2 mouse port
 One mini-DIN-6 PS/2 keyboard port
 One game/MIDI port
 Three audio jacks: line-out, line-in and mic-in
This Manual: http://www.manuallib.com/file/2504586

Introduction
1
8
Connectors
 One connector for two additional external USB ports
 One 9-pin connector for one external serial port
 One connector for IrDA interface
 Two IDE connectors
 One floppy drive interface supports up to two 2.88MB floppy
drives
 One ATX power supply connector
 One Wake-On-LAN connector
 One Wake-On-Ring connector
 CPU and chassis fan connectors
 One CD-in internal audio connector
PCI Bus Master IDE Controller
 Two PCI IDE interfaces support up to four IDE devices
 Supports ATA/33, ATA/66 and ATA/100 hard drives (CM33-EC)
 Supports ATA/33 and ATA/66 hard drives (CM33-SC)
 PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up
to 16.6MB/sec.)
 Bus mastering reduces CPU utilization during disk transfer
 Supports ATAPI CD-ROM, LS-120 and ZIP
IrDA Interface
The system board is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices. It
supports peripheral devices that meet the HPSIR and ASKIR
standard.
USB Ports
The system board supports 4 USB ports. Two onboard USB ports
are located at the ATX double deck ports of the board. The J2
connector on the system board allows you to connect the optional
3rd and 4th USB ports. These optional USB ports, which are
mounted on a card-edge bracket, will be provided as an option.
USB allows data exchange between your computer and a wide
range of simultaneously accessible external Plug and Play peripherals.
This Manual: http://www.manuallib.com/file/2504586

1
Introduction
9
BIOS
 Award BIOS, Windows®95/98/2000/ME Plug and Play compat-
ible
 Supports SCSI sequential boot-up
 Flash EPROM for easy BIOS upgrades
 Supports DMI 2.0 function
 2Mbit flash memory
Desktop Management Interface (DMI)
The system board comes with a DMI 2.0 built into the BIOS. The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier. Refer to chapter 4 for instructions on using
the DMI utility.
1.1.2 System Health Monitor Functions
The system board is capable of monitoring the following system
health conditions.
 Monitors CPU/system temperature and overheat alarm
 Monitors VCORE/3.3V/5V/12V/2.5V voltages and failure alarm
 Monitors CPU/chassis fan speed and failure alarm
 Read back capability that displays temperature, voltage and fan
speed
Refer to the PC Health Status section in chapter 3 and the VIA
Hardware Monitor section in chapter 4 for more information.
1.1.3 Intelligence
Dual Function Power Button
Depending on the setting in the Soft-Off By PWRBTN field of the
Power Management Setup, this switch will allow the system to enter
the Soft-Off or Suspend mode.
This Manual: http://www.manuallib.com/file/2504586

Introduction
1
10
Wake-On-Ring
This feature allows the system that is in the Suspend mode or Soft
Power Off mode to wake-up/power-on to respond to calls coming
through an internal or external modem. Refer to Wake-On-Ring
Connector in chapter 2 and Resume On LAN/Ring in the Power
Management Setup section in chapter 3 for more information.
Important:
If you are using a modem add-in card, the 5VSB power source
of your power supply must support a minimum of ≥ 720mA.
RTC Timer to Power-on the System
The RTC installed on the system board allows your system to
automatically power-on on the set date and time. Refer to Resume
On Alarm in the Power Management Setup section in chapter 3 for
more information.
Wake-On-LAN
The Wake-On-LAN function allows the network to remotely wake
up a Soft Power Down (Soft-Off) PC.Your LAN card must support
the remote wakeup function. Refer to Wake-On-LAN Connector in
chapter 2 and Resume On LAN/Ring in the Power Management
Setup section in chapter 3 for more information.
Important:
The 5VSB power source of your power supply must support a
minimum of ≥ 720mA.
This Manual: http://www.manuallib.com/file/2504586

1
Introduction
11
ACPI STR
The system board is designed to meet the ACPI (Advanced
Configuration and Power Interface) specification. ACPI has energy
saving features that enables PCs to implement Power Management
and Plug-and-Play with operating systems that support OS Direct
Power Management. Currently, only Windows®98/2000/ME supports
the ACPI function allowing you to use the Suspend to RAM function.
With the Suspend to RAM function enabled, you can power-off the
system at once by pressing the power button or selecting Standby
when you shut down Windows®98/2000/ME without having to go
through the sometimes tiresome process of closing files, applications
and operating system. This is because the system is capable of
storing all programs and data files during the entire operating session
into RAM (Random Access Memory) when it powers-off. The
operating session will resume exactly where you left off the next time
you power-on the system. Refer to Using the Suspend to RAM
Function in appendix A for more information.
Important:
The 5VSB power source of your power supply must support
≥ 1A.
Virus Protection
Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.
This Manual: http://www.manuallib.com/file/2504586

Introduction
1
12
1.2 Package Checklist
The system board package contains the following items:
þThe system board
þA users manual
þOne card-edge bracket with a serial port
þOne IDE cable for ATA/33, ATA/66 or ATA/100 IDE drives
þOne 34-pin floppy disk drive cable
þOne Main Board Utility CD
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.
This Manual: http://www.manuallib.com/file/2504586

2
Hardware Installation
13
2.1 System Board Layout
Chapter 2 - Hardware Installation
CM33-EC
(VT8601 and VT82C686B)
This Manual: http://www.manuallib.com/file/2504586

2
14
Hardware Installation
CM33-SC
(VT8601 and VT82C686A)
This Manual: http://www.manuallib.com/file/2504586

2
Hardware Installation
15
2.2 System Memory
Warning:
Electrostatic discharge (ESD) can damage your system board,
processor, disk drives, add-in boards, and other components. Perform
the upgrade instruction procedures described at an ESD workstation
only. If such a station is not available, you can provide some ESD
protection by wearing an antistatic wrist strap and attaching it to a
metal part of the system chassis. If a wrist strap is unavailable,
establish and maintain contact with the system chassis throughout
any procedures requiring ESD protection.

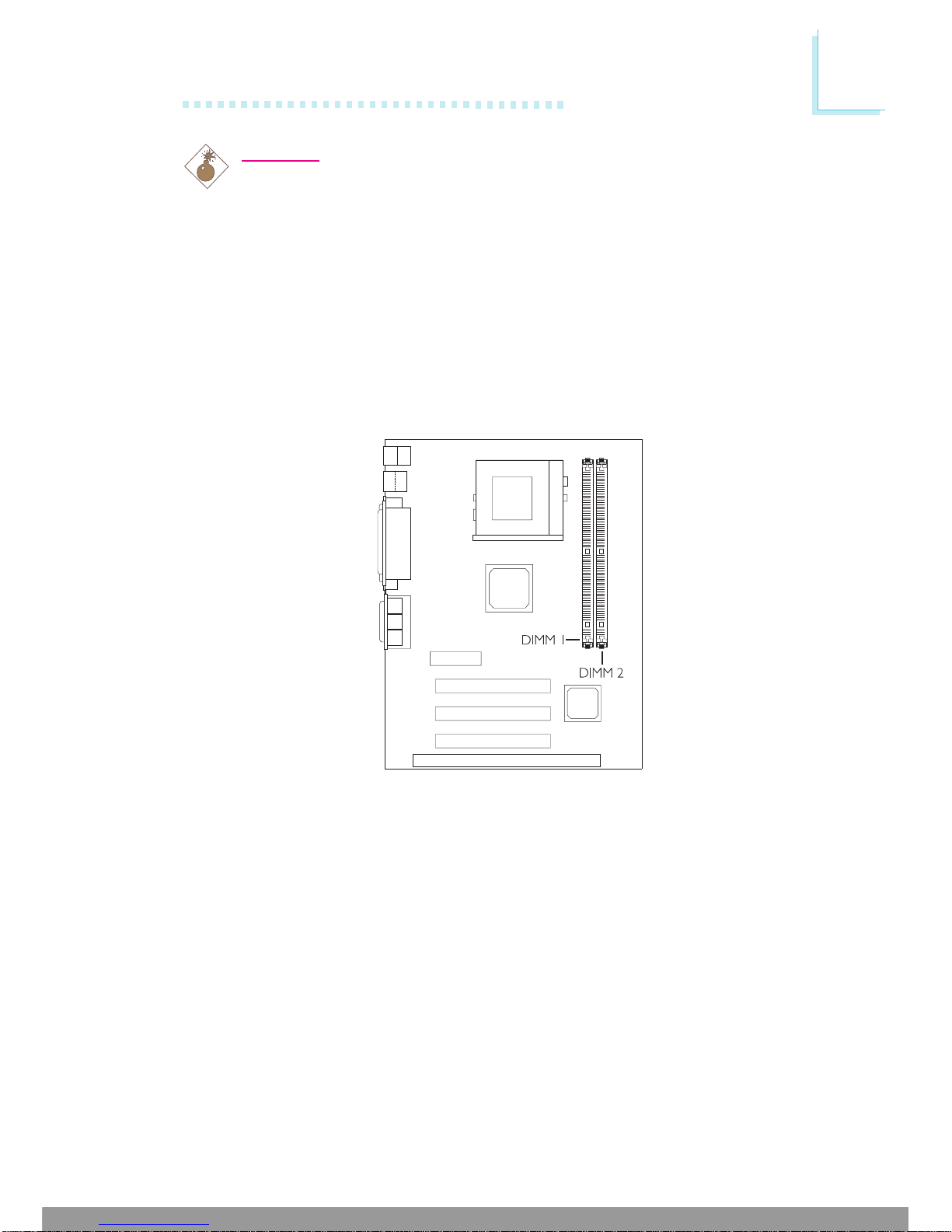

The system board is equipped with two 168-pin DIMM (Dual In-line
Memory Module) sockets that support PC SDRAM DIMM. PC
SDRAM (Synchronous Dynamic Random Access Memory) uses a
fast memory interface technology that includes using the clock on the
chip to synchronize with the CPU clock so that the timing of the
memory chips and the timing of the CPU are synchronized. This
saves time during transmission of data, subsequently increasing
system performance.
Refer to chapter 1 (System Memory section) for detailed
specification of the memory supported by the system board.
This Manual: http://www.manuallib.com/file/2504586

2
16
Hardware Installation

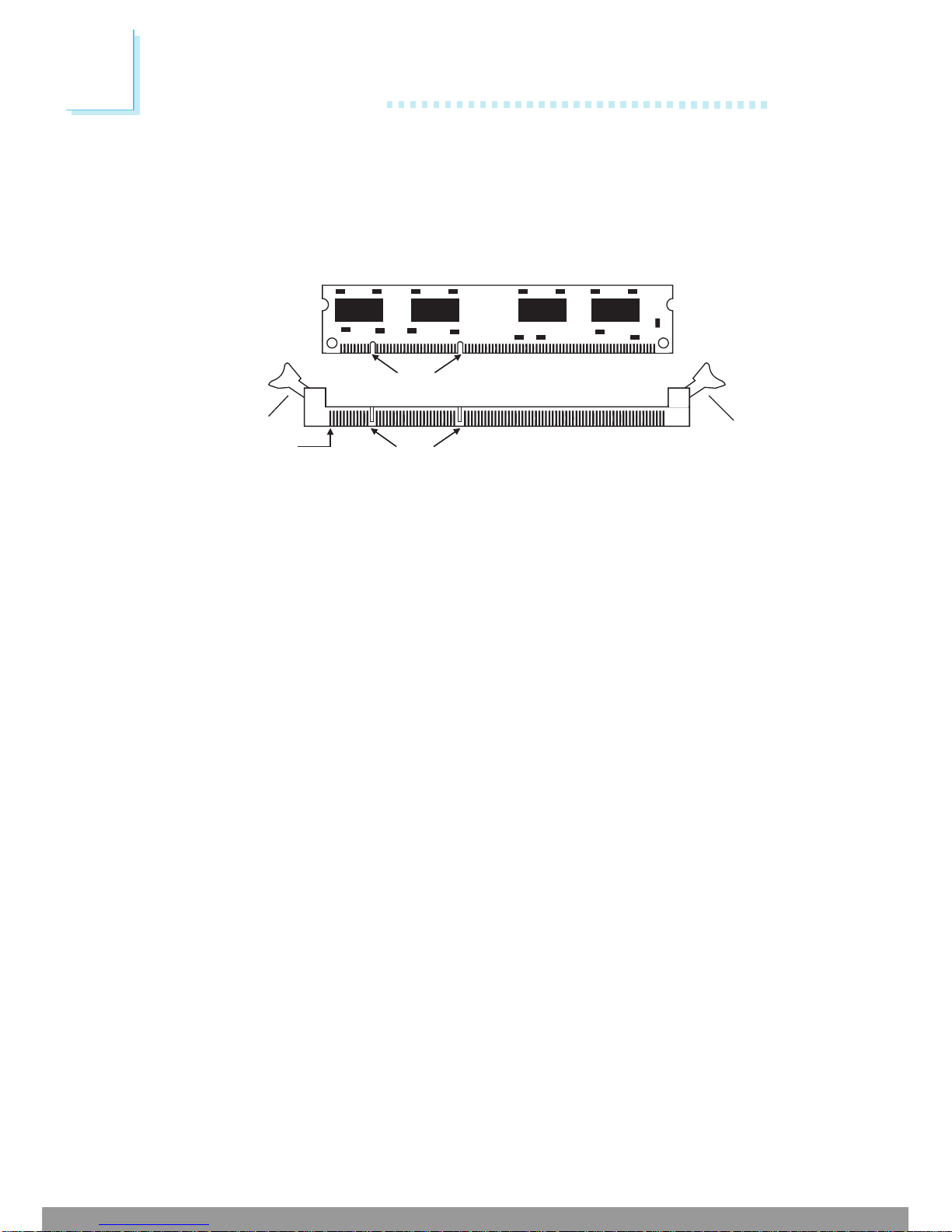

1. Pull the tabs which are at the ends of the socket to the side.
2. Position the DIMM above the socket with the notches in the
module aligned with the keys on the socket.
3. Seat the module vertically into the socket. Make sure it is
completely seated.The tabs will hold the DIMM in place.
Pin 1
Notch
Key
Tab
Tab
2.2.1 Installing the DIM Module
A DIM module simply snaps into a DIMM socket on the system
board. Pin 1 of the DIM module must correspond with Pin 1 of the
socket.
This Manual: http://www.manuallib.com/file/2504586

2
Hardware Installation
17
2.3 Jumper Settings for Selecting the CPUs Front
Side Bus
Auto*
66MHz
100MHz
133MHz
JP2
1-2 On
2-3 On
All Off
All Off
JP3
1-2 On
2-3 On
2-3 On
All Off
* denotes default setting
1-2 On 2-3 On
1
2
3
1
2
3
This Manual: http://www.manuallib.com/file/2504586

2
18
Hardware Installation
CPU Front Side Bus Select - Jumpers JP2 and JP3
The default setting of jumpers JP2 and JP3 is Auto - the system will
automatically run according to the FSB of the processor.
Warning:
Some processors, when overclocked, may result to the
processors or systems instability and are not guaranteed to
provide better system performance. If you are unable to boot
your system due to overclocking, make sure to set these
jumpers back to their default settings.
This Manual: http://www.manuallib.com/file/2504586

2
Hardware Installation
19
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
2.4 Jumper Settings for Clearing CMOS Data
Clear CMOS Data - Jumper JP4
If you encounter the following,
a) CMOS data becomes corrupted.
b) You forgot the supervisor or user password.
c) You are unable to boot-up the computer system because the
processors clock was incorrectly set in the BIOS.
you can reconfigure the system with the default values stored in the
ROM BIOS.
To load the default values stored in the ROM BIOS, please follow
the steps below.
1. Power-off the system and unplug the power cord.
2. Set JP4 pins 2 and 3 to On. Wait for a few seconds and set JP4
back to its default setting, pins 1 and 2 On.
32 1 32 1
This Manual: http://www.manuallib.com/file/2504586
