DFI P5BV3+/e User manual

P5BV3+/e
Rev. A+
System Board
Users Manual
36400830

Copyright
This publication contains information that is protected by copyright. No
part of it may be reproduced in any form or by any means or used to
make any transformation/adaptation without the prior written permission
from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any express
or implied warranties of merchantability or fitness for any particular purpose.
The user will assume the entire risk of the use or the results of the use of
this document.Further,the manufacturer reserves the right to revise this
publication and make changes to its contents at any time, without obligation
to notify any person or entity of such revisions or changes.
All Rights Reserved. © 1998
Trademarks
Microsoft®MS-DOS®, WindowsTM and Windows®95 are registered
trademarks of Microsoft Corporation. Intel and Pentium are registered
trademarks of Intel Corporation.Cyrix 6x86MX and M II are registered
trademarks of Cyrix Corporation. AMD K6 and K6-2 are registered
trademarks ofAdvanced Micro Devices,Inc. IBM is a registered trademark
of International Business Machine Corporation.IDT C6 andWINCHIP2
are registered trademarks of IDT Corporation. Award is a registered
trademark of Award Software, Inc. Other trademarks and registered
trademarks of products appearing in this manual are the properties of
their respective holders.
Caution:
Danger of explosion if battery incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
Dispose of used batteries according to the battery manufacturers
instructions.

FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
 Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.

Table of Contents
Chapter 1 - Introduction
1.1 Features and Specifications......................................................................
1.2 Package Checklist .........................................................................................
Chapter 2 - Hardware Installation
2.1 System Board Layout .................................................................................
2.2 System Memory .............................................................................................
2.3 DIP Switch Settings of the Processors ............................................
2.4 Jumper Settings for Clearing CMOS Data. ...................................
2.5 Jumper Settings for SDRAM Clock (DIMM) ................................
2.6 Connecting the Ribbon Cables and Wires of the Ports
and Connectors .............................................................................................
Chapter 3 - Award BIOS Setup Utility
3.1 The Basic Input/Output System ...........................................................
3.1.1 Standard CMOS Setup .............................................................
3.1.2 BIOS Features Setup ..................................................................
3.1.3 Chipset Features Setup .............................................................
3.1.4 Power Management Setup ......................................................
3.1.5 PNP/PCI Configuration .............................................................
3.1.6 Load Fail-Safe Settings ...............................................................
3.1.7 Load Optimal Settings ..............................................................
3.1.8 Integrated Peripherals .................................................................
3.1.9 Supervisor Password ..................................................................
3.1.10 User Password ...............................................................................
3.1.11 IDE HDD Auto Detection .....................................................
3.1.12 Save & Exit Setup ........................................................................
3.1.13 Exit Without Saving .....................................................................
6
9
25
25
28
32
33
35
37
37
38
41
42
42
43
43
10
11
11
15
16
17

50
50
52
Chapter 4 - Supported Softwares
4.1 Desktop Management Interface .........................................................
4.2 Drivers ...............................................................................................................
Appendix A - Identifying Processors
A.1 Intel Processors .............................................................................................
A.2 Cyrix Processors ..........................................................................................
A.3 IBM Processors .............................................................................................
A.4 AMD Processors .........................................................................................
A.5 IDT Processors .............................................................................................
Appendix B - System Error Messages
B.1 POST Beep .....................................................................................................
B.2 Error Messages ..............................................................................................
Appendix C - Troubleshooting
C.1 Troubleshooting Checklist ........................................................................
44
47
48
48
49
49
49

6
1.1 Features and Specifications
1.1.1 Features
Chipset
 VIAApollo 598MVP AGP system chipset
Processor
The system board is equipped with a switching voltage regulator
that supports 2.0V to 3.5V core voltage for various processors.
 Intel Pentiumprocessor with MMXTM technology-166/200/
233MHz
 Cyrix®6x86MX-PR200/PR233/PR266 and M II-300/333/350/
400
 IBM® 6x86MX-PR200/PR233/PR266/PR300/PR333
 AMD®K6-200/233/266/300 and K6-2/250/266/300/333/350/
400
 IDT®C6-180/200/225/240 and WINCHIP2-200/225/240/266/
300
System Memory
The system board supports 8MB to 256MB of memory. It is
equipped with two DIMM sockets. The 168-pin DIMM sockets use
x64 EDO (60/70ns), SDRAM (10/12/13ns) or PC SDRAM (PC-
100 SDRAM for 100MHz external system bus clock processors),
3.3V.
Chapter 1 - Introduction
DIMMs
1MBx64
2MBx64
4MBx64
8MBx64
16MBx64
Memory Size
8MB
16MB
32MB
64MB
128MB

7
1
Introduction
Level 2 Cache Memory
 512KB pipeline burst, direct map write-back cache installed on
the system board.
Expansion Slots
The system board is equipped with 1 dedicated AGP slot, 2
dedicated PCI slots, 1 dedicated 16-bit ISA slot and 1 shared PCI/
ISA slot. All PCI and ISA slots are bus masters.
Desktop Management Interface (DMI)
The system board comes with a DMI 2.0 built into the BIOS. The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier. Refer to Chapter 4 for instructions on
using the DMI utility.
Connectors
 2 connectors for external USB ports
 1 connector for IrDA interface
 2 serial ports
 1 parallel port
 2 IDE connectors
 1 floppy connector
 1 PS/2 mouse port
 1 PS/2 or AT keyboard port
 1 12-pin standard AT power supply connector
PCI Bus Master IDE Controller
 Two PCI IDE interfaces support up to four IDE devices
 Ultra DMA/33 supported (Synchronous Ultra DMA mode -
data transfer rate up to a maximum of 33MB/sec.)
 PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up
to 16.6MB/sec.)
 Bus mastering reduces CPU utilization during disk transfer
 ATAPI CD-ROM, LS-120 and ZIP supported

8
Introduction
1
IrDA Interface
The system board is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices. It
supports infrared peripheral devices that meet the ASKIR or HPSIR
standard.
USB Ports
The system board is equipped with two connectors for external
USB ports. USB allows data exchange between your computer and
a wide range of simultaneously accessible external Plug and Play
peripherals.
BIOS
 Award BIOS, Windows95 Plug and Play compatible
 Flash EPROM for easy BIOS upgrades
1.1.2 Intelligence
Virus Protection
Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.

9
1
Introduction
1.2 Package Checklist
The system board package contains the following items:
þThe system board
þA users manual
þSerial, mouse and printer port cables
Option 1:
- One card-edge bracket with a 9-pin and 25-pin serial port
cables
- One card-edge bracket with a 25-pin printer port cable and
a PS/2 mouse port cable
Option 2:
- One card-edge bracket with two 9-pin serial port cables
and a PS/2 mouse port cable
- One 25-pin printer port cable for chassis mounting
þOne 40-pin IDE hard disk cable
þOne 34-pin floppy disk drive cable
þOne CD
¨One card-edge bracket with two USB ports (optional)
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

10

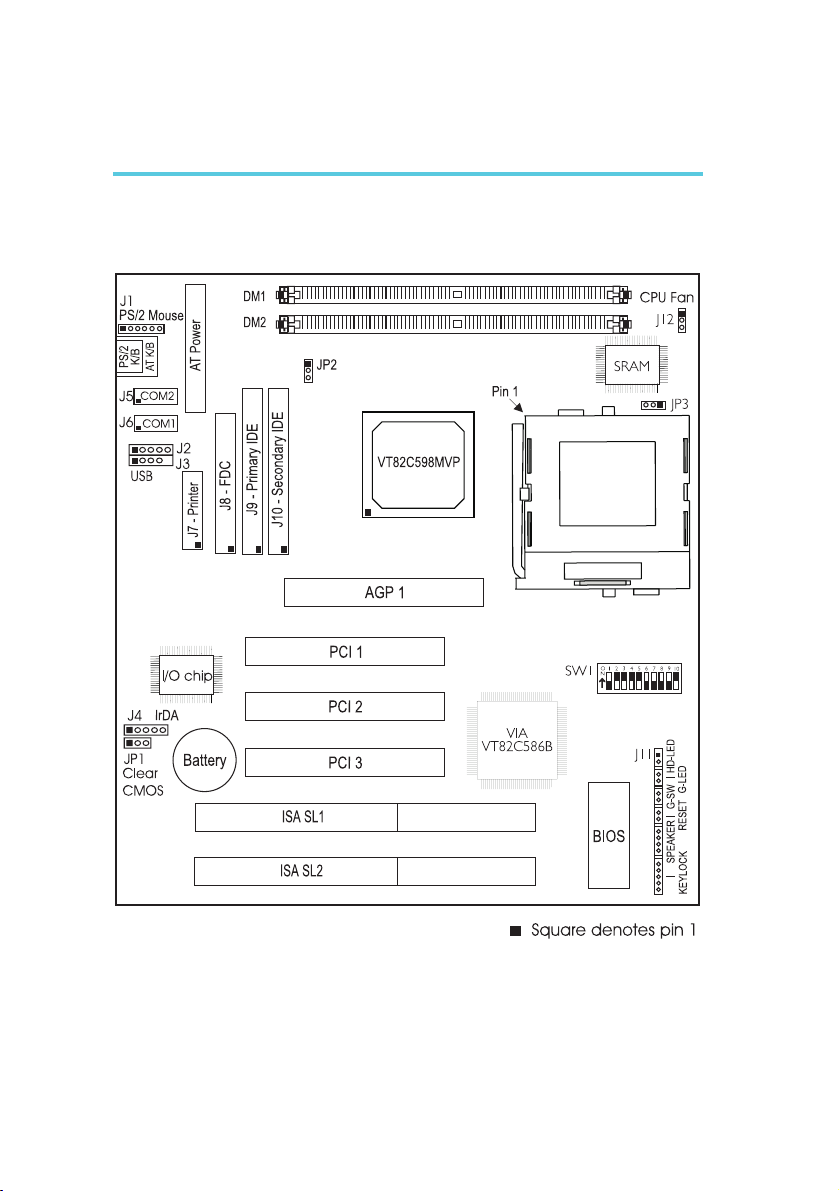

2.1 System Board Layout
Chapter 2 - Hardware Installation

11
2
Hardware Installation
2.2 System Memory
2.3 DIP Switch Settings of the Processors
Make sure SW1 and JP3 are set correctly before applying power or
you may damage the processor or system board. There are 10
switches on SW1. The black rectangle in the diagram denotes the
part that is protruding, the adjustable switch.
In the example on the left:
Switch 1: Off Switch 6: Off
Switch 2: On Switch 7: Off
Switch 3: On Switch 8: Off
Switch 4: On Switch 9: Off
Switch 5: On Switch 10: On

12
2Hardware Installation
DIP Switch Settings for Cyrix Processors
DIP Switch Settings for Intel Processors
Intel Processors SW1: 1-6
MMX166MHz* - 66MHz
- 2.5x
MMX200MHz - 66MHz
- 3x
MMX233MHz - 66MHz
- 3.5x
Intel Processors SW1: 1-6
* Default
DIP Switch Settings for IBM Processors
Cyrix Processors SW1: 1-6 Cyrix Processors SW1: 1-6
6x86MX-PR200 - 66MHz
- 2.5x
6x86MX-PR233 - 75MHz
- 2.5x
6x86MX-PR266 - 83MHz
- 2.5x
M II-300 - 75MHz - 3x
M II-333 - 83MHz - 3x
M II-350 - 100MHz - 3x
M II-400 - 100MHz -
3.5x
M II-300 - 66MHz - 3.5x
IBM Processors SW1: 1-6 IBM Processors SW1: 1-6
6x86MX-PR200 - 66MHz
- 2.5x
6x86MX-PR233 - 75MHz
- 2.5x
6x86MX-PR266 - 83MHz
- 2.5x
6x86MX-PR300 - 75MHz
- 3x
6x86MX-PR333 - 83MHz
- 3x
6x86MX-PR300 - 66MHz
- 3.5x

13
2
Hardware Installation
DIP Switch Settings for AMD Processors
DIP Switch Settings for IDT Processors
AMD Processors SW1: 1-6 AMD Processors SW1: 1-6
K6-200 - 66MHz - 3x
K6-233 - 66MHz - 3.5x
K6-266 - 66MHz - 4x
K6-300 - 66MHz - 4.5x
K6-2/250 - 100MHz -
2.5x
K6-2/300 - 100MHz -
3x
K6-2/266 - 66MHz - 4x
K6-2/333 - 95MHz -
3.5x
K6-2/350 - 100MHz -
3.5x
K6-2/400 - 100MHz -
4x
C6-180 - 60MHz - 3x
C6-200 - 66MHz - 3x
WINCHIP2-200 -
66MHz - 3x
IDT Processors SW1: 1-6 IDT Processors SW1: 1-6
C6-225 - 75MHz - 3x
WINCHIP2-225 -
75MHz - 3x
WINCHIP2-266 -
83MHz - 3x
C6-240 - 66MHz - 4x
WINCHIP2-240 -
66MHz - 4x
WINCHIP2-300 -
100MHz - 3x

14
2Hardware Installation
DIP Switch and Jumper Settings for Core Voltage
Voltage JP3
2.8V
SW1: 7-10
2.9V
2.1V
2.2V 3.2V
3.3V
3.5V
Voltage JP3 SW1: 7-10
2.5V
Warning:
We do not guarantee that 75MHz, 83MHz, 95MHz and 100MHz
external system bus clock processors will work with all types of add-in
cards, DIMM modules or other devices.

15
2
Hardware Installation
2-3 On: Normal
(default)
1-2 On:
Clear CMOS Data
2.4 Jumper Settings for Clearing CMOS Data
Jumper JP1
Clear CMOS Data
If, for some reason, the CMOS
data becomes corrupted, the
system can be reconfigured
with the default values stored
in the ROM BIOS. To load the
default values, power off your
system. Set JP1 pins 1 and 2
to On.Wait for a few seconds
and set JP1 back to its default
setting, pins 2 and 3 On. You
may now power-on your
system.

16
2Hardware Installation
2.5 Jumper Settings for SDRAM Clock (DIMM)
Jumper JP2
SDRAM Clock
JP2 is used to set the SDRAMs
clock according to the CPU
clock or AGP clock. If you are
using PC SDRAM DIMMs, it is
recommended that you set the
SDRAM clock according to the
CPU clock (2-3 On).This setting
will provide better system
performance specially when used
with 75/83/95/100MHz
processors. However, if you
encounter compatibility problems
with PC SDRAM DIMMs or you are using EDO/SDRAM DIMMs,
set the SDRAM clock according to the AGP clock (1-2 On).
2-3 On:
SDRAM CLK = CPU CLK
1-2 On:
SDRAM CLK = AGP CLK
(default)
CPU CLK
60MHz
66MHz
75MHz
83MHz
95MHz
100MHz
SDRAM CLK
60MHz
66MHz
60MHz
66MHz
66MHz
66MHz
AGP CLK
60MHz
66MHz
60MHz
66MHz
66MHz
66MHz
CPU CLK
60MHz
66MHz
75MHz
83MHz
95MHz
100MHz
SDRAM CLK
60MHz
66MHz
75MHz
83MHz
95MHz
100MHz
AGP CLK
60MHz
66MHz
60MHz
66MHz
66MHz
66MHz
1
2
3
1
2
3

17
2
Hardware Installation
2.6 Connecting the Ribbon Cables and Wires of
the Ports and Connectors
2.6.1 Serial Ports
The built-in serial ports are RS-232C asynchronous communication
ports with 16C550A-compatible UARTs that can be used with
modems, serial printers, remote display terminals, and other serial
devices. You can set the serial ports I/O address in the Integrated
Peripherals setup of the Award BIOS.
Connecting the Serial Ports
Two serial port cables
mounted on a card-edge
bracket are provided with the
system board. Connect one
serial port cable to connector
J6 for COM 1 primary serial
port and the other serial port
cable to connector J5 for the
COM 2 secondary serial port.
Make sure the colored stripes
on the ribbon cables are
aligned with pins 1 of
connectors J5 and J6. Mount
the card-edge bracket to the
system chassis.

18
2Hardware Installation
2.6.2 PS/2 Mouse Port
The PS/2 mouse port is a 6-pin connector on the system board.
Attach the 6-pin mouse port cable, which is mounted on a card-
edge bracket, to connector J1. Make sure the red wire on the PS/2
mouse connector is aligned with pin 1 of connector J1. Mount the
card-edge bracket to the system chassis.
Pin
1
2
3
4
5
6
Function
Mouse Data
Reserved
Ground
+5V
Mouse Clock
Reserved
2.6.3 Parallel Port
The system board has a standard printer port for interfacing your
PC to a parallel printer. It supports SPP, ECP and EPP modes. You
can set the ports mode in the Integrated Peripherals setup of the
Award BIOS.
Connecting the Parallel Printer Port
Attach the DB-25 printer port
cable to connector J7 on the
system board. Make sure the
colored stripe on the ribbon
cable aligns with pin 1 of J7.
Use a small nutdriver to
mount the cable into a DB-25
cutout in the system chassis. If
your printer port cable is
attached to a card-edge
bracket, connect the cable to
connector J7 on the system
board and mount the card-edge bracket to the system chassis.

19
2
Hardware Installation
2.6.4 Floppy Disk Drive Controller
1. Install the 34-pin header
connector into the shrouded
floppy disk header (J8) on the
system board. The colored
edge of the ribbon should be
aligned with pin 1 of connector
J8.
2. Install the other 34-pin header
connector(s) into the disk
drive(s). Align the colored edge
of the daisy chained ribbon
cable with pin 1 of the drive edge connector(s).The end-most
connector should be attached to the drive you want to
designate as Drive A.
2.6.5 IDE Hard Disk Interface
1. If you are connecting two
hard drives, install the 40-pin
connector of the IDE cable
into the primary shrouded
IDE header (connector J9). If
you are adding a third or
fourth IDE device, install the
40-pin connector of the other
IDE cable into the secondary
shrouded IDE header
(connector J10).
2. Install the other 40-pin header connector(s) into the device with
the colored edge of the ribbon cable aligned with pin 1 of the
drive edge connector(s).
Note:
Refer to your disk drive users manual for information about
selecting proper drive switch settings.

20
2Hardware Installation
2.6.6 Universal Serial Bus Ports
The system board is equipped with two headers, at locations J2 and
J3 on the system board, for external USB ports. USB allows data
exchange between your computer and a wide range of
simultaneously accessible external Plug and Play peripherals.
You must have the proper drivers installed in your operating system
to use these ports. Refer to your operating systems manual or
documentation.
Adding a Second IDE Hard Drive
When using two IDE drives, one must be set as the master and the
other as the slave. Follow the instructions provided by the drive
manufacturer for setting the jumpers and/or switches on the drives.
We recommend that you use Enhanced IDE or ATA-2, ATA-3 and
Ultra DMA hard drives be from the same manufacturer. In a few
cases, drives from two different manufacturers will not function
properly when used together.The problem lies in the hard drives, not
the system board.
Important:
If you encountered problems while using an ATAPI CD-ROM
drive that is set in Master mode, please set the CD-ROM drive
to Slave mode. Some ATAPI CD-ROMs may not be recognized
and cannot be used if incorrectly set in Master mode.
Pin
1
2
3
4
5
J2
+5V
-Data
+Data
Ground
Ground
J3
+5V
-Data
+Data
Ground
Key
