DFI CW35 Series User manual

CW35 Series
Rev. BA+
System Board
Users Manual
401C0946

Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose.The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 1999. All Rights Reserved.
Trademarks
Microsoft®MS-DOS®, WindowsTM, Windows®95 and Windows®98
are registered trademarks of Microsoft Corporation. Intel®and
CeleronTM are registered trademarks of Intel Corporation. Award is
a registered trademark of Award Software, Inc. Other trademarks
and registered trademarks of products appearing in this manual are
the properties of their respective holders.
Caution:
Danger of explosion if battery incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
Dispose of used batteries according to the battery manufacturers
instructions.

FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
 Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.

Table of Contents
Chapter 1 - Introduction
1.1 Features and Specifications..................................................................................
1.2 Package Checklist.........................................................................................................
Chapter 2 - Hardware Installation
2.1 System Board Layout .............................................................................................
2.2 System Memory.............................................................................................................
2.3 Jumper Settings for Clearing CMOS Data..........................................
2.4 Jumper Settings for Wake-On-Keyboard/Mouse....................................
2.5 Jumper Settings for the Audio Codec......................................................
2.6 Jumper Settings for the Systems Beep Message...........................
2.7 Jumper Settings for the CPUs Front Side Bus................................
2.8 Jumper Settings for the Boot Block Lock/Unlock..........................
2.9 Ports and Connectors.............................................................................................
Chapter 3 - Award BIOS Setup Utility
3.1 The Basic Input/Output System.....................................................................
3.1.1 Standard CMOS Features.............................................................
3.1.2 Advanced BIOS Features..............................................................
3.1.3 Advanced Chipset Features ......................................................
3.1.4 Integrated Peripherals.........................................................................
3.1.5 Power Management Setup............................................................
3.1.6 PnP/PCI Configurations....................................................................
3.1.7 System Health Monitor.....................................................................
3.1.8 CPU Frequency Control..................................................................
3.1.9 Load Fail-Safe Defaults.....................................................................
3.1.10 Load Optimized Defaults..............................................................
3.1.11 Set Supervisor Password...............................................................
3.1.12 Set User Password..............................................................................
3.1.13 Save & Exit Setup.................................................................................
3.1.14 Exit Without Saving..............................................................................
6
13
42
42
46
50
53
59
63
65
66
67
67
68
68
69
69
14
16
18
19
20
22
23
24
25

80
80
Chapter 4 - Supported Softwares
4.1 Desktop Management Interface.....................................................................
4.2 Hardware Doctor Utility........................................................................................
4.3 INF Update for Windows95/98...............................................................
4.4 Installing the Graphics Driver..............................................................................
4.5 Installing the Sound Driver....................................................................................
4.6 Drivers and Utilities Installation Notes.....................................................
Appendix A - Using the Suspend to RAM
Function
A.1 Using the Suspend to RAM Function........................................................
Appendix B - System Error Messages
B.1 POST Beep.......................................................................................................................
B.2 Error Messages..............................................................................................................
Appendix C - Troubleshooting
C.1 Troubleshooting Checklist....................................................................................
70
73
73
74
75
75
76
82

Introduction
1
6
1.1 Features and Specifications
1.1.1 Features
Chipset
 Intel®810-E (CW35-E)
Intel®810 DC-100 (CW35-D)
Intel®810 (CW35-S)
Intel®810-L (CW35-L)
Processor
The system board is equipped with Socket 370 for installing an Intel
CeleronTM processor that is packaged in PPGA (Plastic Pin Grid
Array). It is also equipped with a switching voltage regulator that
automatically detects 1.30V to 2.05V.
 Future Pentium®III FCPGA 133MHz FSB processor (CW35-E)
 Future Pentium®III FCPGA 100MHz FSB processor
 CeleronTM PPGA (300A-533MHz) 66MHz FSB processor
System Memory
 16MB to 256MB/512MB memory using unbuffered DIMMs with
64Mbit/128Mbit technology. (You must use 32MBx64 SDRAM
DIMM to support 512MB memory.)
 Two 168-pin DIMM sockets
 Uses x64 PC-100 SDRAM DIMM, 3.3V
Chapter 1 - Introduction
DIMMs
2MBx64
4MBx64
8MBx64
16MBx64
32MBx64
Memory Size
16MB
32MB
64MB
128MB
256MB

1
Introduction
7
Expansion Slots
The system board is equipped with 3 dedicated PCI slots and 1
AMR slot. AMR (Audio/Modem Riser) is an interface desgined for
installing an audio riser card, modem riser card or audio/modem riser
card that is compliant to the AMR specification.
Onboard Graphics Features
 Graphics memory
- Shares 1MB of the system memory. This is fixed regardless of
the size of the system memory.
- Uses the Dynamic Display Memory (DDM) technology. This
freely changes in size because graphics memory is allocated
from the system memory according to current needs.
- 4MB onboard display cache (CW35-E and CW35-D only)
 Graphics controller
- 100MHz (CW35-D) or 133MHz (CW35-E) super AGP
performance using 4MB display cache memory
- 3D hyper pipelined architecture
- 2D hardware and motion video acceleration
- 9-bit precision hardware motion compensation assistance for
software MPEG2 decode
- Software DVD at 30fps
 2D graphics features
- Resolution: up to 1600x1200 in 8-bit color at 85Hz refresh
- 64-bit blitter with enhancements
- 64x64x3 color transparent cursor
- Arithmetic stretch blitter
 3D graphics features
- 600K-700K tri/sec sustained
- 55Mpixels/sec
- Flat and Gouraud shading
- MIP mapping with bi-linear and anisotropic filtering
- 16-bit color/Z-buffering
- Discrete/strips/fans
- Anisotropic filtering
- Texture compositing, color keying and chroma keying
 Software drivers
- Windows®95/98
- Windows NT®4.0

Introduction
1
8
Onboard Audio Features
 Supports Microsoft®DirectSound
 32-voice wavetable synthesis
 AC97 supported with full duplex, independent sample rate con-
verter for audio recording and playback
 Downloadable sound (DLS) level-1
Compatibility
 Microsoft PC 98 compliant
 VESA Display Power Management Signaling (DPMS)
 VESA DDC2B for Plug and Play monitors
 PCI 2.2, AMR 1.0 and AC 97 compliant
ATX Double Deck Ports (PC 99 color-coded connectors)
 Two USB ports
 One NS16C550A-compatible DB-9 serial port
 One DB-15 VGA port
 One SPP/ECP/EPP DB-25 parallel port
 One mini-DIN-6 PS/2 mouse port
 One mini-DIN-6 PS/2 keyboard port
 One game/MIDI port
 Three audio jacks: line-out, line-in and mic-in
Connectors
 One 9-pin connector for external serial port
 One connector for IrDA interface
 Two IDE connectors
 One floppy drive interface supports up to two 2.88MB floppy
drives
 One 20-pin ATX power supply connector
 One Wake-On-LAN connector
 CPU, chassis and second chassis fan connectors
 One opened chassis alarm connector
 Three CD audio-in connectors (2 Sony and 1 Mitsumi)
 One TAD connector for telephony audio devices

1
Introduction
9
PCI Bus Master IDE Controller
 Two PCI IDE interfaces support up to four IDE devices
 Supports Ultra ATA/33 (CW35-L) or ATA/66 (CW35-E,
CW35-D or CW35-S) hard drives
 PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
 Bus mastering reduces CPU utilization during disk transfer
 Supports ATAPI CD-ROM, LS-120 and ZIP
IrDA Interface
The system board is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices. It
supports peripheral devices that meet the IrDA or ASKIR standard.
USB Ports
The system board is equipped with two USB ports. USB allows
data exchange between your computer and a wide range of
simultaneously accessible external Plug and Play peripherals.
BIOS
 Award BIOS, Windows®95/98 Plug and Play compatible
 Supports SCSI sequential boot-up
 Flash EPROM for easy BIOS upgrades (4Mbit)
 Includes NCR 810 SCSI BIOS
 Supports DMI 2.0 function
Desktop Management Interface (DMI)
The system board comes with a DMI 2.0 built into the BIOS. The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier. Refer to chapter 4 for instructions on using
the DMI utility.

Introduction
1
10
1.1.2 System Health Monitor Functions
The system board is capable of monitoring the following system
health conditions.
 Monitors processor/system temperature and overheat alarm
 One optional temperature sensor for user customization
 Monitors 5VSB/VBAT/1.5V/3.3V/+5V/±12V/processor voltages
and failure alarm
 Monitors the fan speed of the processor fan, chassis fan and
second chassis fan; controls the fan speed of the processor and
chassis fans; and failure alarm
 Automatic fan on/off control
 Read back capability that displays temperature, voltage and fan
speed
 Opened chassis alarm
 Supports CeleronTM processor thermal diode output (real proces-
sor temperature)
Refer to the System Health Monitor section in chapter 3 and the
Hardware Doctor Utility section in chapter 4 for more information.
1.1.3 Intelligence
Automatic CPU/Chassis Fan Off
The CPU and chassis fans will automatically turn off once the system
enters the Suspend mode.
Dual Function Power Button
Depending on the setting in the Soft-Off By PWR-BTTN field of
the Power Management Setup, this switch will allow the system to
enter the Soft-Off or Suspend mode.
External Modem Ring-on
The Modem Ring-on feature allows the system that is in the
Suspend mode or Soft Power Off mode to wake-up/power-on to
respond to incoming calls.

1
Introduction
11
Note:
This feature supports external modem only.
RTC Timer to Power-on the System
The RTC installed on the system board allows your system to
automatically power-on on the set date and time.
Wake-On-LAN Ready
The Wake-On-LAN function allows the network to remotely wake
up a Soft Power Down (Soft-Off) PC.Your LAN card must support
the remote wakeup function.
Important:
If you are using the (1) Suspend to RAM, (2) Wake-On-
Keyboard/Mouse and (3) Wake-On-LAN functions all at the
same time, the 5VSB power source of your power supply must
support a minimum of ≥ 1A. A ≥ 720mA 5VSB power source is
sufficient if you are using only one or two of these functions.
Wake-On-Keyboard/Wake-On-Mouse
This function allows you to use the keyboard or PS/2 mouse to
power-on the system. Refer to Jumper Settings for Wake-On-
Keyboard/Wake-On-Mouse in chapter 2 and Keyboard/Mouse
Power On in the Integrated Peripherals section in chapter 3 for
more information.
Important:
 The power button will not function once a keyboard
password has been set in the KB Power On Password
field of the Integrated Peripherals submenu. You must type
the correct password to power-on the system. If you forgot
the password, power-off the system and remove the
battery. Wait for a few seconds and install it back before
powering-on the system.
 If you are using the (1) Suspend to RAM, (2) Wake-On-
Keyboard/Mouse and (3) Wake-On-LAN functions all at the
same time, the 5VSB power source of your power supply
must support a minimum of ≥ 1A. A ≥ 720mA 5VSB power
source is sufficient if you are using only one or two of these
functions.

Introduction
1
12
AC Power Failure Recovery
When power returns after an AC power failure, you may choose to
either power-on the system manually, let the system power-on
automatically or return to the state where you left off before power
failure occurs. Refer to PWR Lost Resume State in the Power
Management Setup section in chapter 3 for more information.
Year 2000 Compliant
 Supports hardware Y2K function.
 Supports hardware Random Number Generator (RNG) to en-
able a new security and manageability infrastructure for PC.
ACPI
The system board is designed to meet the ACPI (Advanced
Configuration and Power Interface) specification. ACPI has energy
saving features that enables PCs to implement Power Management
and Plug-and-Play with operating systems that support OS Direct
Power Management. Currently, only Windows®98 supports the ACPI
function. ACPI when enabled in the Power Management Setup will
allow you to use the Suspend to RAM function.
With the Suspend to RAM function enabled, you can power-off
the system at once by pressing the power button or selecting
Standby when you shut down Windows®98 without having to go
through the sometimes tiresome process of closing files, applications
and operating system. This is because the system is capable of
storing all programs and data files during the entire operating session
into RAM (Random Access Memory) when it powers-off. The
operating session will resume exactly where you left off the next time
you power-on the system. Refer to Using the Suspend to RAM
Function in appendix A for more information.
Important:
If you are using the (1) Suspend to RAM, (2) Wake-On-
Keyboard/Mouse and (3) Wake-On-LAN functions all at the
same time, the 5VSB power source of your power supply must
support a minimum of ≥ 1A. A ≥ 720mA 5VSB power source is
sufficient if you are using only one or two of these functions.

1
Introduction
13
Virus Protection
Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.
1.2 Package Checklist
The system board package contains the following items:
þThe system board
þA users manual
þOne card-edge bracket with a serial port
þOne IDE cable for ATA/66 IDE drives (CW35-E, CW35-D or
CW35-S)
þOne IDE cable for ATA/33 IDE drives (CW35-L)
þOne 34-pin floppy disk drive cable
þOne Main Board Utility CD
¨One Video Audio Kit CD (optional)
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

2
14
Hardware Installation

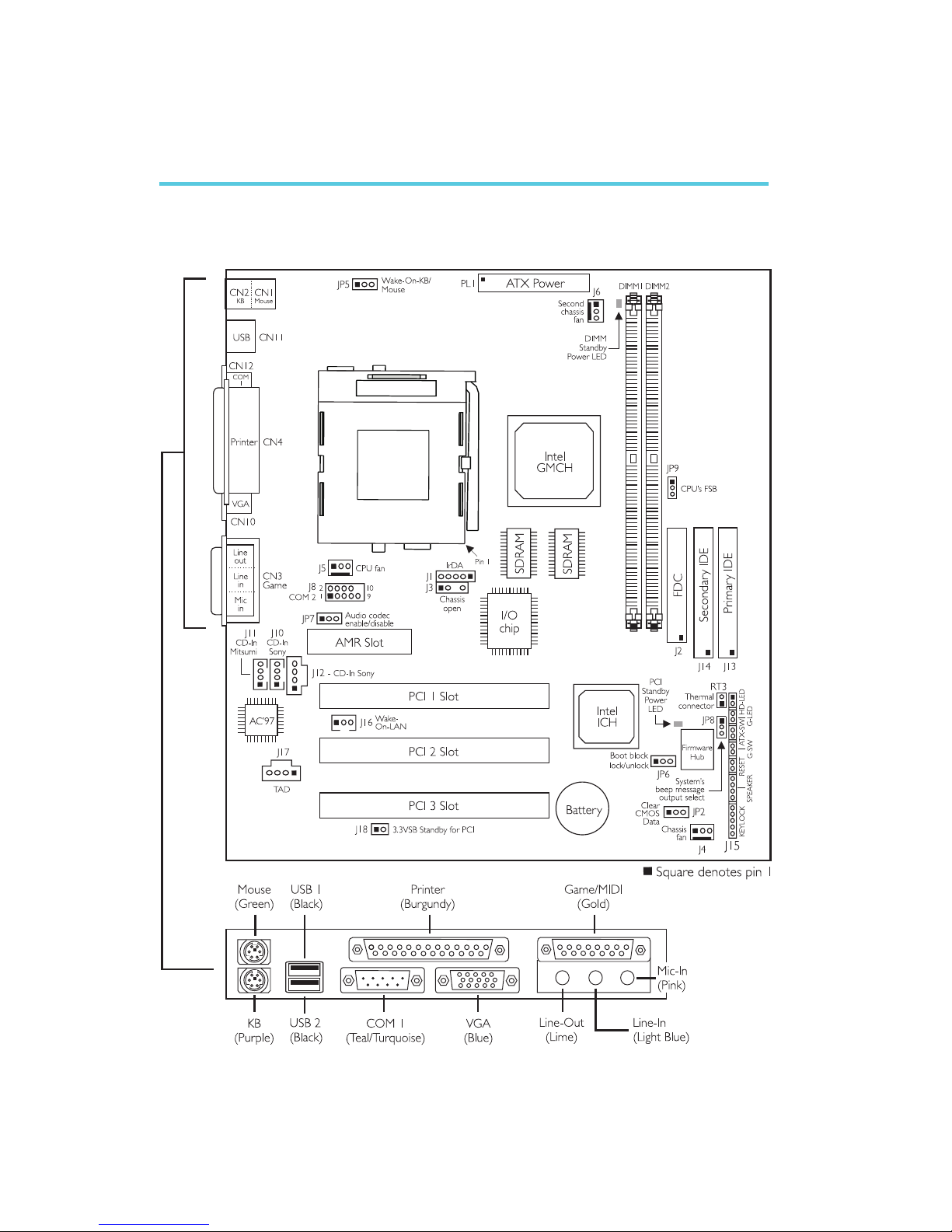

2.1 System Board Layout
Chapter 2 - Hardware Installation
CW35-E or CW35-D

2
Hardware Installation
15
CW35-S or CW35-L
Note:
The illustrations on the following pages are based on the CW35-S or
CW35-L system board, which are boards without SDRAM.

2
16
Hardware Installation
2.2 System Memory
The system board is
equipped with two 168-
pin DIMM (Dual In-line
Memory Module) sockets
that support unbuffered
PC-100 SDRAM DIMM.
PC SDRAM (Synchro-
nous Dynamic Random
Access Memory) is a
fast memory interface
technology that uses the
clock on the chip to
synchronize with the CPU clock so that the timing of the memory
chips and the timing of the CPU are synchronized. This saves time
during transmission of data, subsequently increasing system
performance.
The onboard VGA shares 1MB of the system memory. This is fixed
regardless of the size of the system memory.
Aside from the 1MB shared memory, it also uses the Dynamic
Display Memory (DDM) technology. DDM freely changes in size
because graphics memory is allocated from the system memory
according to current needs.
Refer to chapter 1 for the type of memory supported by the
system board.
Warning:
Electrostatic discharge (ESD) can damage your system board,
processor, disk drives, add-in boards, and other components. Perform
the upgrade instruction procedures described at an ESD workstation
only. If such a station is not available, you can provide some ESD
protection by wearing an antistatic wrist strap and attaching it to a
metal part of the system chassis. If a wrist strap is unavailable,
establish and maintain contact with the system chassis throughout
any procedures requiring ESD protection.

2
Hardware Installation
17
1. Pull the tabs which are at the ends of the socket to the side.
2. Position the DIMM above the socket with the notches in the
module aligned with the keys on the socket.
3. Seat the module vertically into the socket. Make sure it is
completely seated.The tabs will hold the DIMM in place.
Pin 1
Notch
Key
Tab
Tab
2.2.1 Installing the DIM Module
A DIM module simply snaps into a DIMM socket on the system
board. Pin 1 of the DIM module must correspond with Pin 1 of the
socket.
Display Cache (CW35-E and CW35-D only)
The CW35-E and
CW35-D system
boards are each
mounted with 2
SDRAMs that serve as
4MB display cache.The
presence of the display
cache will provide
better system perform-
ance.

2
18
Hardware Installation
2.3 Jumper Settings for Clearing CMOS Data
Jumper JP2
Clear CMOS Data
If you encounter the
following,
a) CMOS data becomes
corrupted.
b) You forgot the super visor
or user password.
c) You are unable to boot-
up the computer system
because the processors
clock/ratio was incorrectly
set in the BIOS.
you can reconfigure the system with the default values stored in the
ROM BIOS.
To load the default values stored in the ROM BIOS, please follow
the steps below.
1. Power-off the system.
2. Set JP2 pins 2 and 3 to On. Wait for a few seconds and set JP2
back to its default setting, pins 1 and 2 On.
3. Now power-on the system.
If your reason for clearing the CMOS data is due to incorrect
setting of the processors clock/ratio in the BIOS, please proceed
to step 4.
4. After powering-on the system, press <Del> to enter the BIOS
setup utility.
5. Select the CPU Frequency Control submenu and press <Enter>.
6. Set the CPU Clock/Spread Spectrum or CPU Ratio field to
its default setting or an appropriate bus clock or frequency ratio.
Refer to the CPU Frequency Control section in chapter 3 for
more information.

2
Hardware Installation
19
123 12 3
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
7. Press <Esc> to return to the main menu of the BIOS setup
utility. Select Save & Exit Setup and press <Enter>.
8. Type <Y> and press <Enter>.
2.4 Jumper Settings for Wake-On-Keyboard/
Wake-On-Mouse
Jumper JP5
Wake-On-Keyboard/Wake-On-Mouse
The Wak e-On-Keyboard/
Wake-On-Mouse function
allows you to use the
keyboard or PS/2 mouse to
power-on the system. By
default, JP5 is disabled. To use
this function, set JP5 to 2-3
On. Keyboard/Mouse Power
On in the Integrated Periph-
erals submenu of the BIOS
must be set accordingly. Refer
to chapter 3 for details.
Warning:
1. If JP5 was enabled with a password set in the KB Power
On Password field, and now you wish to disable the
keyboard password function, make sure to set the
Keyboard/Mouse Power On field to Disabled prior to
setting JP5 to disabled. You will not be able to boot up the
system if you fail to do so.
2. The power button will not function once a keyboard
password has been set in the KB Power On Password
field of the Integrated Peripherals submenu. You must type
the correct password to power-on the system.

2
20
Hardware Installation
2.5 Jumper Settings for the Audio Codec
Jumper JP7
Enable/Disable Audio Codec
This jumper is used to enable or
disable the audio codec (AC97)
on the system board. By default,
the onboard audio codec is
enabled. If you are using the
AMR cards audio codec, set pins
1 and 2 to On. Please refer to
the following table on how the
jumper and the BIOS should be
configured in different situations
or system configurations.
123 123
2-3 On: Enable
(default)
1-2 On: Disable
3. If you are using the (1) Suspend to RAM, (2) Wake-On-
Keyboard/Mouse and (3) Wake-On-LAN functions all at the
same time, the 5VSB power source of your power supply
must support a minimum of ≥ 1A. A ≥ 720mA 5VSB power
source is sufficient if you are using only one or two of these
functions.
123 123
2-3 On: Enable
1-2 On: Disable
(default)
