Display and Keypad description

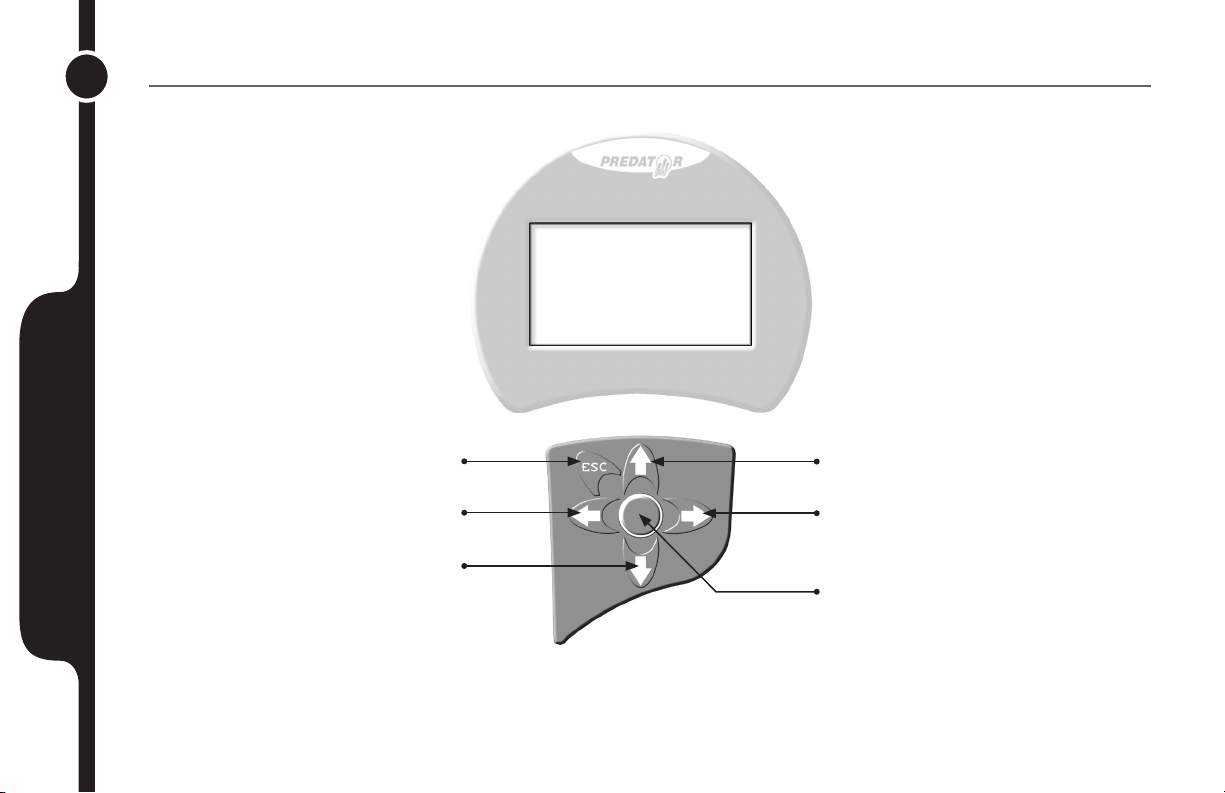

ESC Key: Scroll page back to previous page.
Arrow left: Scroll menu to the left.
Arrow down: Scroll down the menu.
Arrow up: Scroll up the menu.
Arrow right: Scroll menu right.
(Use this key to view entire descriptions)
Enter Key: Select parameter highlighted in menu.
This is a simulation of
the Predator’s screen.
Have the tool in front of
you while reading this
manual !
Display and Keypad
description
4
Back to Table of Contents
5
Back to Table of Contents
Please read through the manual before installing tune in
your vehicle, failure to follow proper instructions can result
in a damaged or disabled PCM (Powertrain Control Module).
User MUST ensure that the factory “stock” tune is in the
vehicle’s PCM before installing the DiabloSport tune.
GM dealer re-flashes are the same as stock factory tune.
Serious engine damage can occur if the Predator tune is
installed over a non-factory/aftermarket performance tune.
Very Important!
Do not perform any operations on Predator (expect live
data diagnostics) while vehicle is running. The vehicle must
be parked and engine OFF.
Before Installation
Before Installing DiabloSport Performance Tune
6
Back to Table of Contents
7
Back to Table of Contents
Performance Tune
Installation
The vehicle MUST be running on 91-93 octane Super Un-Leaded/Premium
grade fuel before installing DiabloSport Performance tune. Amoco or Mobil
Super Un-Leaded/Premium grade fuels are highly recommended.
• Apply parking brake to de-activate daytime running lights.
• Always have all the doors closed while installing
the DiabloSport Performance tune, and remain
closed untill the process is complete.
• Do not activate any electrical accessories while installing
the DiabloSport Performance tune. Ensure that there are
no electronic devices wired or plugged into the vehicle
that can cause a substantial voltage drop when activated
during installation of the DiabloSport Performance tune.
Please contact DiabloSport dealer if uncertain about devices
that are on your vehicle.
• Certain cellular phones or radio equipment might also cause
interference, please remove or turn such devices off.
• Do not try to install tune on a vehicle with a low battery voltage,
charge your battery if necessary.
• Never turn the key “OFF” while Predator is plugged in diagnostic
port unless instructed.
• Do not touch the cable while the Predator is installing the
DiabloSport performance tune.
Preparing Vehicle for DiabloSport Performance Tune Installation
6
Back to Table of Contents
7
Back to Table of Contents
This feature is designed for users with extended knowledge of automotive tun-
ing. Modifying fuel and spark parameters increases risk of detonation/pinging
and can increase risk to the durability of the vehicle.
These parameters, as well as others in the Predator, should only be modified by
an experienced tuner and should not be modified unless necessary.
DiabloSport will not be held responsible for vehicles with modified parameters
since we are not present to monitor the adjusted parameters; therefore we
recommend that this should be left untouched by inexperienced users.
Important note regarding DiabloSport Performance Tune Parameter modification
Performance Tune Parameter
modification
8
Back to Table of Contents
9
Back to Table of Contents
99-02 Chevrolet/GMC 1500/2500/3500 trucks
Chevrolet Tahoe / Avalanche / GMC Yukon / Denali
Cadillac Escalade / Escalade EXT
Driver side underneath dash,
left hand side above
parking brake.
OBD-II Diagnostic port locations
OBD-II Diagnostic
port locations
10
Back to Table of Contents
11
Back to Table of Contents
Due to fact that the GM OnStar system sends transmissions periodically to the vehicle we
suggest that the system should temporarily be disabled during the installation
and modification process.
If the OnStar system is not disabled during install and modification and the system should receive a
transmission in the middle of tune install or backup, the tool will be interrupted and the process will
have to be started over again.
To avoid this problem it is recommended that the system is disabled during tune install, backup and
modification.
To disable the OnStar system, please refer to your ownersí manual and locate the fuse(s) associated
with OnStar. The OnStar system is disabled when the OnStar light is turned off.
On some vehicles it is necessary to remove more than one fuse; this will be indicated by the OnStar
light still on after removal of fuse in the engine compartment fuse panel.
Vehicles equipped with the GM OnStar system
Vehicles equipped with
the GM OnStar system
10
Back to Table of Contents
11
Back to Table of Contents
Turn ignition OFF!
Locate the fuse panel in the engine compartment behind battery on the driver’s side.
Carefully remove cover and locate the SEO 1 fuse (Special Equipment Option Power).
Location may vary from illustration, consult your user manual.
Carefully remove the fuse with the ignition OFF.
Vehicles equipped with the GM OnStar system - Step1
Vehicles equipped with
the GM OnStar system
12
Back to Table of Contents
13
Back to Table of Contents
Turn ignition ON, look and confirm that the OnStar Dash light is turned OFF.
If the light is still ON continue with step 3, if it is OFF continue and install DiabloSport tune.
Step 3
Turn ignition OFF!

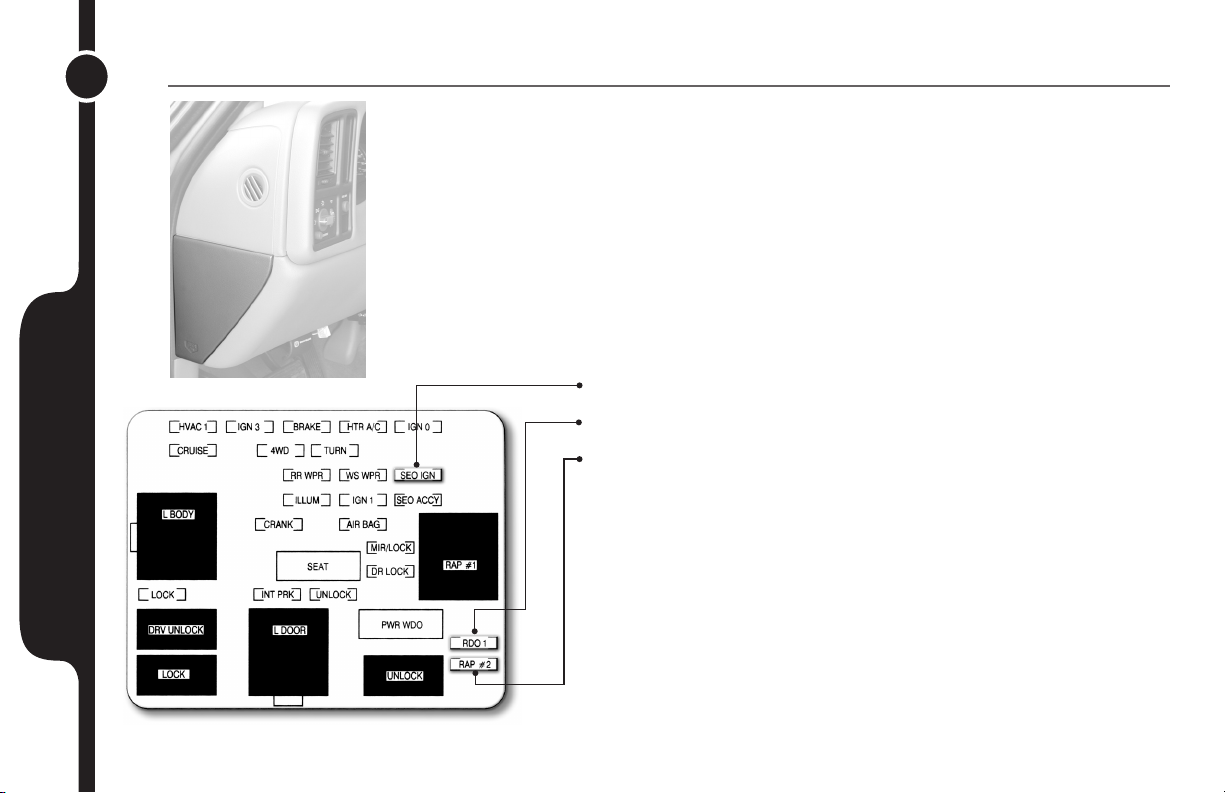

Locate the fuse panel located on the driver’s side dashboard, carefully remove cover
and locate the following fuses:
SEO IGN (Special Equipment Option Power)
RAP 2 (Retained Accessory Power Relay)
RDO 1 (Audio System)
Location may vary from illustration, consult your user manual.
Carefully remove each fuse with the ignition OFF.
Turn ignition ON, look and confirm that the OnStar Dash light is turned OFF.
Continue and install DiabloSport tune.
Vehicles equipped with the GM OnStar system - Step 2 - 3
Vehicles equipped with
the GM OnStar system
14
Back to Table of Contents
15
Back to Table of Contents
• Locate OBD-II diagnostic port on your vehicle. (see reference picture in Section “viii” and “ix”)
• Connect Predator into vehicle’s diagnostic port and turn ignition to on position (DO NOT start the engine); the following screen will be displayed:
Controllers
Tune It will take the user through the process of
programming and modifying the tune for the vehicle.
Diagnostics will take the user through scanning/erasing
and live data monitoring.
Options contains tool options and troubleshooting menus.
Installing a tune
into a vehicle
Installing a tune into a vehicle
*****Controllers*****
Tune it
Diagnostics
Options
Press ESC to go
to the previous
page during
procedures.
14
Back to Table of Contents
15
Back to Table of Contents
Select “Tune It”, read and follow the instructions and disclaimers: Continue by pressing any key
*****Important*****
Apply parking brake
Turn the ignition ON
To turn off daytime
Running lights
Press any key...
*****Disclaimer*****
Predator must be used with
factory tune, otherwise damage
may result to your vehicle. If you
are not sure about your tune,
contact DiabloSport.
Press any key...
Installing a tune
into a vehicle
Installing a tune into a vehicle
16
Back to Table of Contents
17
Back to Table of Contents
Continue by pressing any key Continue by pressing any key
*****Disclaimer*****
Predator tunes must be used
with premium/super-unleaded
fuels only! Failure to do so may
result in damage to your vehicle..
Press any key...
*****Important*****
Read manual carefully
before proceeding in
predator modify
parameters section.
Press any key...
Installing a tune
into a vehicle
Installing a tune into a vehicle
16
Back to Table of Contents
17
Back to Table of Contents
Select the type of Transmission for your vehicle.
Press “Enter” key.
Press “Enter” to continue.
Press “Esc” to return to main menu.
*****Important*****
Do you want to continue?
Press Enter for YES
Press ESC for No
***Transmission Type***
Automatic
Manual
Installing a tune
into a vehicle
Installing a tune into a vehicle
18
Back to Table of Contents
19
Back to Table of Contents
The tool will automatically back up the factory/stock tune.
Please wait until completed. This may take several minutes.
**Vehicle Data Backup**
Please wait...
Saving vehicle data
XX % completed
Backup 100%
Press Any Key to
continue
Vehicle Data Backup
Installing a tune
into a vehicle
Installing a tune into a vehicle
During the backup process the gauges might sweep and various
messages will be displayed in the message center. This is normal so
do not be alarmed.
18
Back to Table of Contents
19
Back to Table of Contents
Turn Ignition Off!
Then press any key
Turn Ignition On!
Then press any key..
Installing a tune
into a vehicle
Installing a tune into a vehicle
The Predator will count down 10sec until it is ok to proceed.
(DO NOT start the engine)
The predator will count down 10sec until it is ok to proceed.
20
Back to Table of Contents
21
Back to Table of Contents
Vehicle Data Backup is now complete. Press any key to continue
Installing a performance tune.
*****Performance*****
Install Performance
Modify Performance
Restore Saved Data
Troubleshooting
Select “Install Performance”…
*Install Performance*
Installing the file
Do you want to continue?
Press Enter for YES
Or Esc for NO.
Installing a tune
into a vehicle
Installing a tune into a vehicle
Table of contents
