Foxwell NT200 User manual

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
1
Table of Contents
1. One-Year Limited Warranty................................ 2
2. Safety Information.............................................. 5
2.1 Conventions Used .................................... 5
2.2 Important Safety Instructions..................... 5
3. Using This Manual ............................................. 7
4. Introduction........................................................ 8
4.1 About OBDII/EOBD .................................. 8
4.2 About the Code Reader .......................... 11
5. OBDII/EOBD Diagnosis ................................... 16
5.1 Reading DTCs........................................ 17
5.2 Clearing DTCs........................................ 18
5.3 Viewing Datastream................................ 20
5.4 Viewing Freeze Data............................... 20
5.5 Reading I/M Readiness Status Data........ 21
5.6 Reading Vehicle Information ................... 24
5.7 Exiting Test............................................. 25
6. Updating the Code Reader............................... 26
7. Troubleshooting............................................... 28

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
2
1. One-Year Limited Warranty
Subject to the conditions of this limited warranty, our company
warrants its customer that this product is free of defects in
material and workmanship at the time of its original purchase for
a subsequent period of one (1) year.
In the event this product fails to operate under normal use,
during the warranty period, due to defects in materials and
workmanship, our company will, at its sole option, either repair or
replace the product in accordance with the terms and conditions
stipulated herein.
Terms and Conditions
1. If our company repairs or replaces the product, the repaired or
replaced product shall be warranted for the remaining time of the
original warranty period. No charge will be made to the customer
for replacement parts or labor charges incurred by our company
in repairing or replacing the defective parts.
2. The customer shall have no coverage or benefits under this
limited warranty if any of the following conditions are applicable:
a) The product has been subjected to abnormal use, abnormal
conditions, improper storage, exposure to moisture or
dampness, unauthorized modifications, unauthorized repair,
misuse, neglect, abuse, accident, alteration, improper
installation, or other acts which are not the fault of our
company, including damage caused by shipping.
b) The Product has been damaged from external causes such
as collision with an object, or from fire, flooding, sand, dirt,
windstorm, lightning, earthquake or damage from exposure
to weather conditions, an Act of God, or battery leakage,
theft, blown fuse, improper use of any electrical source, or
the product was used in combination or connection with
other product, attachments, supplies or consumables not
manufactured or distributed by our company.
3. The customer shall bear the cost of shipping the product to
our company. And our company shall bear the cost of shipping
the product back to the customer after the completion of service
under this limited warranty.
4. Our company does not warrant uninterrupted or error-free
operation of the product. If a problem develops during the limited
warranty period, the consumer shall take the following
step-by-step procedure:

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
3
a) The customer shall return the product to the place of
purchase for repair or replacement processing; contact your
local our company distributor to get further information.
b) The customer shall include a return address, daytime phone
number and/or fax number, complete description of the
problem and original invoice specifying date of purchase and
serial number.
c) The customer will be billed for any parts or labor charges not
covered by this limited warranty.
d) Our company will repair the Product under the limited
warranty within 30 days after receipt of the product. If our
company cannot perform repairs covered under this limited
warranty within 30 days, or after a reasonable number of
attempts to repair the same defect, our company at its option,
will provide a replacement product or refund the purchase
price of the product less a reasonable amount for usage.
e) If the product is returned during the limited warranty period,
but the problem with the product is not covered under the
terms and conditions of this limited warranty, the customer
will be notified and given an estimate of the charges the
customer must pay to have the product repaired, with all
shipping charges billed to the customer. If the estimate is
refused, the product will be returned freight collect. If the
product is returned after the expiration of the limited warranty
period, our company’ normal service policies shall apply and
the customer will be responsible for all shipping charges.
5. ANY IMPLIED WARRANTY OF MERCHANTABILITY, OR
FITNESS FOR A PARTICULAR PURPOSE OR USE, SHALL
BE LIMITED TO THE DURATION OF THE FOREGOING
LIMITED WRITTEN WARRANTY. OTHERWISE, THE
FOREGOING LIMITED WARRANTY IS THE CONSUMER’S
SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED. OUR
COMPANY SHALL NOT BE LIABLE FOR SPECIAL,
INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES,
INCLUDING BUT NOT LIMITED TO LOSS OF ANTICIPATED
BENEFITS OR PROFITS, LOSS OF SAVINGS OR REVENUE,
LOSS OF DATA, PUNITIVE DAMAGES, LOSS OF USE OF
THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, COST
OF CAPITAL, COST OF ANY SUBSTITUTE EQUIPMENT OR
FACILITIES, DOWNTIME, THE CLAIMS OF ANY THIRD
PARTIES, INCLUDING CUSTOMERS, AND INJURY TO
PROPERTY, RESULTING FROM THE PURCHASE OR USE

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
4
OF THE PRODUCT OR ARISING FROM BREACH OF THE
WARRANTY, BREACH OF CONTRACT, NEGLIGENCE,
STRICT TORT, OR ANY OTHER LEGAL OR EQUITABLE
THEORY, EVEN IF OUR COMPANY KNEW OF THE
LIKELIHOOD OF SUCH DAMAGES. OUR COMPANY SHALL
NOT BE LIABLE FOR DELAY IN RENDERING SERVICE
UNDER THE LIMITED WARRANTY, OR LOSS OF USE
DURING THE PERIOD THAT THE PRODUCT IS BEING
REPAIRED.
6. Some states do not allow limitation of how long an implied
warranty lasts, so the one-year warranty limitation may not apply
to you (the Consumer). Some states do not allow the exclusion
or limitation of incidental and consequential damages, so certain
of the above limitations or exclusions may not apply to you (the
Consumer). This limited warranty gives the Consumer specific
legal rights and the Consumer may also have other rights which
vary from state to state.

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
5
2. Safety Information
For your safety, and to prevent damage to the equipment and
vehicles, read this manual thoroughly before operating your
NT200 code reader. The safety messages presented below and
throughout this user’s manual are reminders to the operator to
exercise extreme care when using this device. Always refer to
and follow safety messages and test procedures provided by the
manufacturer of the vehicle or equipment being tested. Read,
understand and follow all safety messages and instructions in
this manual.
2.1 Conventions Used
We provide safety messages to help prevent personal injury and
equipment damage. Below are signal words we used to indicate
the hazard level in a condition.
No.
Signal Word
Hazard Level
1
Indicates an imminently hazardous
situation which, if not avoided, will
result in death or serious injury to the
operator or to bystanders.
2
Indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury to the
operator or to bystanders.
3
Indicates a potentially hazardous
situation which, if not avoided, may
result in moderate or minor injury to the
operator or to bystanders.
2.2 Important Safety Instructions
And always use your code reader as described in the user’s
manual, and follow all safety messages.
Do not route the test cable in a manner that would
interfere with driving controls.
Do not exceed voltage limits between inputs
specified in this user’s manual.
Always wear ANSI approved goggles to protect

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
6
your eyes from propelled objects as well as hot or caustic
liquids. Fuel, oil vapors, hot steam, hot toxic exhaust gases,
acid, refrigerant and other debris produced by a malfunction
engine can cause serious injury or death. Do not use code
reader in areas where explosive vapor may collect, such as in
below-ground pits, confined areas, or areas that are less than 18
inches (45 cm) above the floor.
Do not smoke, strike a match, or cause a spark
near the vehicle while testing and keep all sparks, heated items
and open flames away from the battery and fuel / fuel vapors as
they are highly flammable.
Keep a dry chemical fire extinguisher suitable for
gasoline, chemical and electrical fires in work area.
Always be aware of rotating parts that move at high
speed when an engine is running and keep a safe distance from
these parts as well as other potentially moving objects to avoid
serious injury.
Do not touch engine components that get very hot
when an engine is running to avoid severe burns.
Block drive wheels before testing with engine
running. Put the transmission in park (for automatic transmission)
or neutral (for manual transmission). And never leave a running
engine unattended.
Do not wear jewelry or loose fitting clothing when
working on engine.
Make sure to turn off ignition before connecting or
disconnecting the code reader.

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
7
3. Using This Manual
We provide instructions for the usage of your code reader in this
manual.
Below is a list of conventions we used in the manual.
Safety Information
See Safety Information on page 5-6.
Bold Text
Bold emphasis is used in procedures to highlight selectable
items such as buttons and menu options.
Example:
Use the SCROLL key to select the desired measurement unit.
Bold-Italic Text
Bold-italic text is used in the procedures to highlight the menus
on the code reader screen.
Example:
Use the SCROLL key to select Language from System
Setup screen.
Symbols and Icons
√Check Note
Additional information about the subject in the preceding
paragraph is introduced by a √Check Note.
Example:
√The code reader is set to display English menus by
default.
● Solid Spot
Operation tips and lists that apply to specific tool are introduced
by a solid spot ●.
Example:
System Setup allows you to:
● Select menu languages.
● Change measurement unit.
● Adjust display contrast.
IMPORTANT
IMPORTANT indicates a situation which, if not avoided, may
result in damage to the test equipment or vehicle.
Example:
IMPORTANT Do not soak keypad as water might find its
way into the code reader.

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
8
NOTE
NOTE provides helpful information such as additional
explanations, tips, and comments.
Example:
NOTE Not all data are supported by all vehicles.
Screens
Some help messages, information, and data displayed on the
code reader are also shown in graphical text boxes. The
screens presented are examples only and actual test screens
may vary for each vehicle being tested.
Example:
Arrow Icon
An arrow icon indicates a procedure.
Example:
To change menu language:
1. Use the SCROLL key to select Language from System
Setup screen.
2. Press the YES/NO key to confirm.
4. Introduction
NT200 is developed by the most distinguished mind of the
industry. It is specially designed to read/clear codes, read live
data, retrieve freeze data and request vehicle information on
OBDII/EOBD compliant cars, SUVs, light-duty truck and
mini-vans sold worldwide since 1996.
4.1 About OBDII/EOBD
What is OBD?
The first generation of On-Board Diagnostics or OBD I was
Diagnostic Menu
Read Codes
Erase Codes
Live Data
Freeze Data

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
9
introduced in early 1980's to control engine functions and
diagnose engine problems by vehicle manufacturers. As the
OBDI lacked standardization of protocols and interface, it
allowed different interpretations among vehicle manufacturers.
OBDII, the second generation On-Board Diagnostics, improved
in both capability and standardization, is a system developed in
mid 1990’s by the Society Automotive Engineers (SAE) to
standardize automotive electronic diagnosis. EOBD is European
version of OBDII required in Europe since 2001.
The OBDII standard specifies:
● A generic diagnostic port (Data Link Connector) and
its pinout;
● The protocols and the messaging format;
● A standard list of vehicle parameters identifications;
● A standard list of diagnostic trouble codes (DTCs);
Data Link Connector
The Data Link Connector (DLC) is a standard 16-pin interface
located under the dashboard on the driver's side of the
passenger compartment. If the DLC is not located under the
dashboard as stated, a decal describing its location should be
attached to the dashboard in the area where the DLC should
have been located.
NOTE On some Asian and European vehicles the DLC is
located behind the “ashtray”, which must be removed to
access it, or on the far left corner of the dash. If the DLC
cannot be found, consult the vehicle’s service manual for
the location.

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
10
Diagnostic Trouble Codes (DTCs)
Diagnostic Trouble Codes (DTCs) are faults stored by vehicle
computers when problems that affect engine performance and
emissions are detected. DTCs are used to help identify the
cause of a trouble or troubles with a vehicle, and determine the
fault location(s).

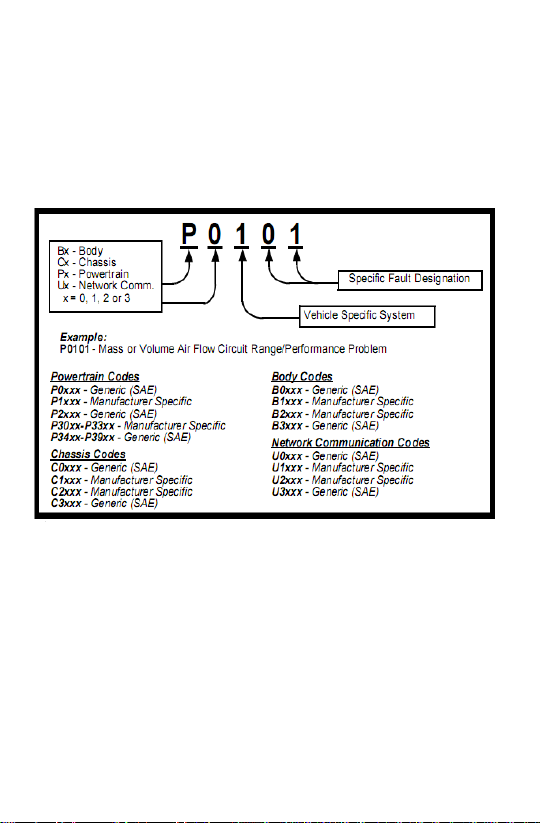

DTCs consist of a five-digit alphanumeric code. Please see
below for the DTCs format and code types.

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
11
4.2 About the Code Reader
Code Reader Controls
A. OBD II Cable - provides communication for vehicle DLC.
B. LCD Display –shows menus, test results and operation tips.
C. YES/NO Key –confirms an action or returns to previous
screen or level.
D. SCROLL Key - moves selection up or down. Also, press it to
enter system setup menu from home screen.
E. USB Port –provides a USB connection for the PC or laptop.
IMPORTANT Do not use solvents such as alcohol to clean
keypad or display. Use a mild nonabrasive detergent and a
soft cotton cloth.
IMPORTANT Do not soak keypad as water might find its
way into the code reader.

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
12
Accessories Included
No.
Part
Description
1
User’s Manual
Provides operation instructions for
the usage of code reader.
2
USB Cable
Provides USB communication for
updates of software and DTCs.
Specifications
No.
Item
Specification
1
Display
Backlit, 128 x 64 pixel display with
contrast adjustment.
2
Working
Temperature
0 to 60℃(32 to 140℉)
3
Storage
Temperature
-20 to 70℃(-4 to 158℉)
4
Power
8-18 Volts powered by vehicle battery
5
Dimensions
(L*W*H)
120*75*20mm (4.7*2.96*0.78in)
6
Weight
300g
Display Indicators
Below is a list indictors used to help navigate through menus.
No.
Indicator
Description
1
$
Indicates the control unit number.
2
Indicates more than one screen of
information is available.
Power
The code reader is powered up by vehicle battery.
√ Refer to Code Reader Does Not Power Up in section 7.2
on page 29 of Troubleshooting if there are problems.
To power up the code reader:

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
13
1. Locate the diagnostic interface on vehicle.
2. Plug in the code reader’s OBDII connector to the DLC.
NOTE A plastic DLC cover may be found on some vehicles.
Remove the cover before plugging the OBD2 cable.
System Setup
System Setup allows you to:
●Select menu languages.
●Change measurement unit.
● Adjust display contrast.
√ System Setup settings remain until change to the
existing setups are made.
To do system setup:
1. Press the SCROLL key to enter System Setup from
home screen.
√Follow on-screen instructions to program the code
reader to meet your specific needs.
Changing Language
√ The code reader is set to display English menus by
default.
To change menu language:
1. Use the SCROLL key to pick Language from System
Setup screen.
2. Press the YES/NO key to confirm.
System Setup
Language
Measurement Unit
Contrast
Exit

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
14
3. Use the SCROLL key to select desired language.
4. Press the YES/NO key to save language setting and
return.
Changing Measurement Unit
√Metric is the default measurement unit.
To change measurement unit:
1. Use the SCROLL key to select Measurement Unit from
System Setup screen.
2. Press the YES/NO key to confirm.
3. Use the SCROLL key to select desired measurement
unit.
System Setup
Language
Measurement Unit
Contrast
Exit
System Setup
Language
Measurement Unit
Contrast
Exit
Language
English
Espanol
Francais

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
15
4. Press the YES/NO key to save measurement setting
and return.
Adjusting Display Contrast
To adjust display contrast:
1. Use the SCROLL key to select Contrast from System
Setup screen.
2. Press the YES/NO key to confirm.
3. Use the SCROLL key to adjust contrast.
4. Press the YES/NO key to save contrast setting and
return.
Exiting System Setup
To quit system setup:
1. Use the SCROLL key to move Exit from System Setup
screen.
2. Press the YES/NO key to confirm and exit.
Measurement Unit
English
Metric
System Setup
Language
Measurement Unit
Contrast
Exit
Contrast
Contrast (30%)
[SCROLL] –Adjust
[YES/NO] –Save

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
16
5. OBDII/EOBD Diagnosis
Diagnostic Menu allows you to:
●Read DTCs.
● Clear DTCs.
● View live datastream.
● View freeze data.
● Retrieve vehicle information.
√ The code reader detects the communication protocol
when it is connected to the vehicle and uses the
protocol throughout the testing till another vehicle is
diagnosed.
√ If the code reader fails to communicate with the vehicle a
“Communication Error!” message displays. Make sure
the OBDII connector is securely attached, and the
ignition key is on. Turn vehicle key to off for 10 seconds,
then on. If problem still exists, refer to “Error Messages”
on page 33 of Troubleshooting.
√ When the code reader links to vehicle, it checks the
status of I/M Monitors, and gives a summary report on
the display as illustrated below.
√ If vehicle is equipped with more than one computer
module (for example a powertrain control module [PCM]
System Setup
Language
Measurement Unit
Contrast
Exit
System Status
Code Found 3
Monitors N/A 4
Monitors OK 4
Monitors INC 3

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
17
and a transmission control module [TCM]), the code
reader identifies them by their identification names (ID)
assigned by manufacturer (i.e. Engine or A/T).
√Use the SCROLL key to select a control module where
the data may be retrieved when more than one module
is detected.
√To view information of other control unit quit current test
and select another module.
5.1 Reading DTCs
The Read Codes function is used to read DTCs (stored
codes), which are used to help identify the cause of a trouble
or troubles with a vehicle, and pending codes from the
vehicle’s control modules.
√ When emission-related or drivability fault occurs the
control module illuminates the malfunction indicator
lamp (MIL).
√ Pending Codes are also referred to as continuous
monitor or maturing codes that indicate intermittent
faults. If the fault does not occur within a certain
number of drive cycles (depending on vehicle), the
code clears from memory. If fault occurs a specific
number of times, the code matures into a DTC and the
MIL illuminates or blinks.
√ This function can be performed with KOEO or KOER.
To read codes from vehicle control modules:
1. Press the YES/NO key to start diagnosis from home
screen.
2. Use the SCROLL key to select Read Codes from
Diagnostic Menu screen.
Control Module
Engine
A/T
Exit

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
18
3. Press the YES/NO key to confirm.
4. View DTCs and their definitions.
√ If no DTCs are present a message stating “No (Pending)
Codes Found” is displayed.
√ If any manufacturer specific or enhanced codes detected,
a “Manufacturer specific codes are found! Press any key
to select vehicle make!” message displays prompting
you to select vehicle make before viewing DTC(s).
√ If manufacturer of the vehicle being tested is not list,
select Other.
5. Press the YES/NO key to return to Diagnostic Menu
screen.
5.2 Clearing DTCs
The Clear Codes function is used to delete DTCs and I/M
Readiness data from vehicle’s control module(s). It may also
erase freeze data, and set monitors to incomplete or not ready.
√ Perform Clear Codes function only after systems have
been checked completely.
√ After servicing the vehicle, erase stored DTCs and verify
no codes have been reset. If a DTC returns, problem
has not been fixed or other faults are present.
√ Depending on which monitor sets a code the vehicle may
$10 1/2
P0101 Generic
Mass or Volume Air
Flow A Circuit Range
/ Performance
Diagnostic Menu
Read Codes
Clear Codes
Datastream
Freeze Data

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
19
need to be driven and the monitor ran before
concluding that the fault is repaired.
√ This function is performed with KOEO. Do not start the
engine.
To erase codes from vehicle control modules:
1. Use the SCROLL key to select Clear Codes from
Diagnostic Menu screen.
2. Press the YES/NO key to confirm.
3. If codes and diagnostic results are to be cleared, use
the SCROLL key to select YES and press the YES/NO
key.
√ If codes and test data not to be deleted, select NO, and a
“Command Cancelled!” message displays prompting to
press any key to return to Diagnostic Menu .
4. Wait a few seconds until a “Codes Cleared!” message
shows indicating codes are cleared successfully.
√ If the code reader fails to clear the codes, a “Clear Error!
Turn Key on with Engine off!” message displays.
5. Wait a few seconds or press any key to return to
Diagnostic Menu .
Diagnostic Menu
Read Codes
Clear Codes
Datastream
Freeze Data
Clear Code
Are You Sure to
Clear Codes?
<YES> NO

NT200 OBDII/EOBD Code Reader User’s Guide_English Version_V1.10
20
5.3 Viewing Datastream
The Datastream function allows real time viewing of the
vehicle’s electronic control unit’s PID data, including sensor data,
operation of switches, solenoids and relays.
To view live datastream:
1. Use the SCROLL key to select Datastrean from
Diagnostic Menu screen.
2. Press the YES/NO key to confirm.
3. View PIDs on code reader. Use the SCROLL key when
more than one screen of information is retrieved.
√ Some vehicle may not support this function, and a “Not
Support This Function!” message display.
4. Press the YES/NO key to return.
5.4 Viewing Freeze Data
The Freeze Data function is used to view freeze frame data, a
snapshot of vehicle operating conditions recorded by the
on-board computer at the time of an emission-related fault.
√ If codes were cleared, freeze data may not be stored in
vehicle memory depending on vehicle.
Diagnostic Menu
Read Codes
Clear Codes
Datastream
Freeze Data
Datastream
DTC_CNT 2
LOAD_PCT % 0.0
ETC ℉171
RPM/min 0
