Diagnostic DM-300 IHB User manual

DM-300 IHB
Automatic upper-arm type
blood pressure and pulse monitor
OPERATING INSTRUCTIONS
0197
5121

THANK YOU FOR BUYING THE BLOOD PRESSURE AND
PULSE MONITOR DM-300 IHB.
The model may be used with irregular pulse ten. If the device detects
irregular pulse rate, the(( )) symbol appears on the display.
NOTE We recommend contacting your physician if the (( )) symbol
appears frequently.
Please carefully read these instructions before the first use of the device. Please
keep the operating instructions. The information contained herein may be needed
in the future. For detailed information about your blood pressure, you should
consult with your doctor. The device should be used solely for its intended
purpose. Read all the instructions before use.

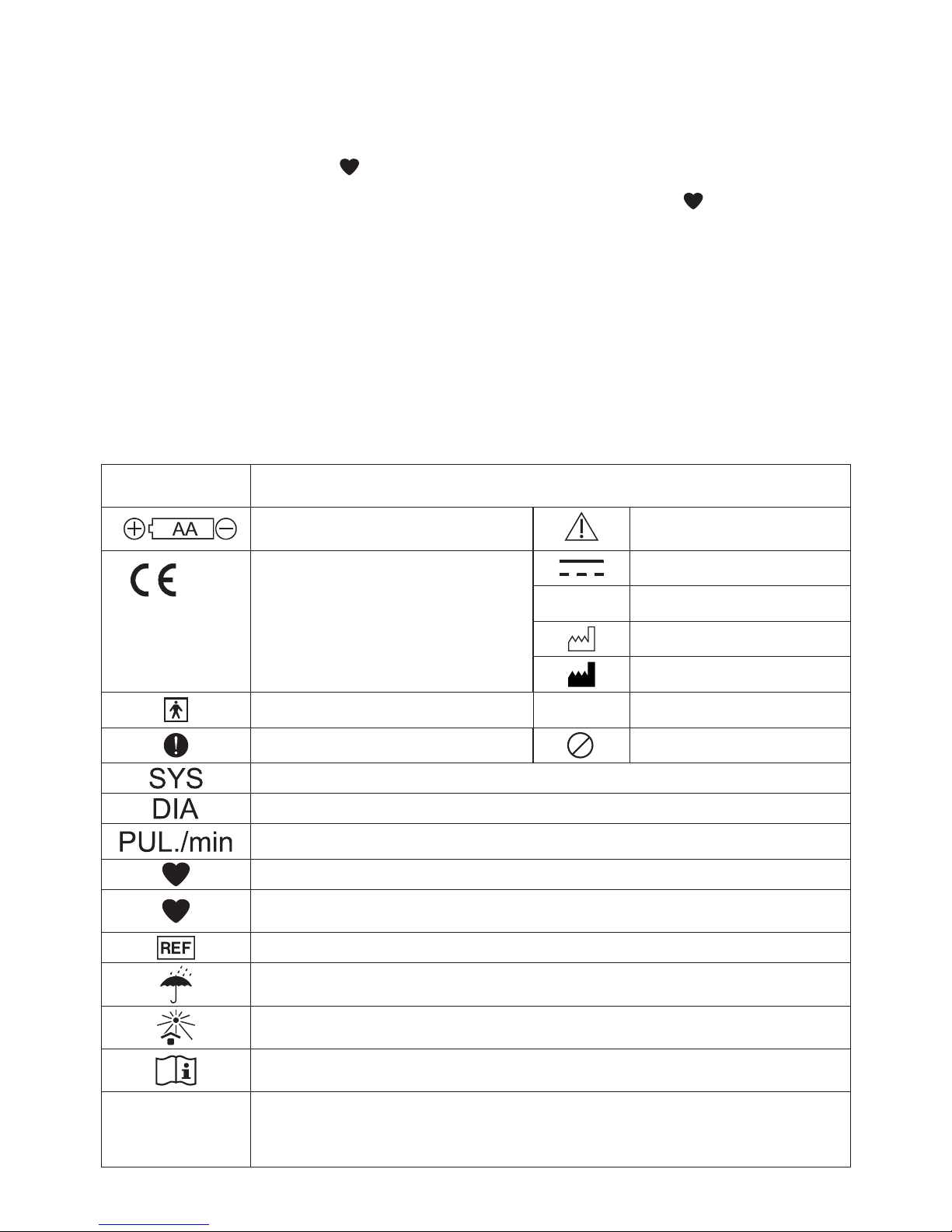

EXPLANATION OF SYMBOLS USED:
Rev.
SYMBOL FUNKCJA/ZNACZENIE
0197
(( ))
Protection against solid objects exceeding the size of 12.5 mm (accidental
touch by finger) Protection against drops of water falling on the enclosure at
an angle of 15 ° relative to the normal position
Date of the last revision
Application part type BF
Compulsory Prohibited
Systolic blood pressure in mmHg
Manufacturer
Diastolic blood pressure in mmHg
Product catalog number
Pulse. Number of beats per minute.
Irregular pulse symbol
Symbol of pulse detected during reading
Symbol attesting
compliance with the
European Union Directive
93/42/ECC for medical
devices
Indication of battery polarity
Serial number
Manufacturing date
Direct current
Protect against moisture
Keep away from sunlight
Read the operating instructions before use
Warning
PAGE 1
SN
IP22

People with serious circulation problems may experience discomfort.
Consult your doctor before use.
The product is designed for use only in accordance with its intended
purpose. Do not use in any other manner.
Do not mix old and new batteries.
The product is not intended for children.
Do not disassemble or attempt to repair the device yourself.
For use only with a recommended power adapter DC 6V, 600mA, 3.6W.
The use of a different power supply may result in electric shock.
Do not use the device near a cellular phone or other devices that
generate strong electrical or magnetic fields, since it can affect the
readings of the device.
If reading results are regularly outside the norm, contact your doctor. Do
not attempt to treat the symptoms yourself without consulting your
doctor.
WARNING
WARNINGS
Precautions regarding batteries
Replace the batteries when the low battery indicator appears on the screen 
Insert batteries observing correct polarity indicated in the battery compartment.
Do not mix different types of batteries. It is recommended to use alkaline
batteries of the long-life type.
If the device is not used for a period longer than 3 months, remove the batteries.
Batteries must be disposed of properly, according to local regulations.
PAGE 2

SET button
Memory button M
+ button
- button
START/STOP button
Air tube
socket
LCD Display
Blood pressure classification indicator
according to the World Health Organization (WHO)
Battery
cover
Power
supply
socket
PRESSURE MONITOR DESIGN
BLOOD PRESSURE MONITOR
PAGE 3

If the cuff is broken or not working,
please install a new cuff.
If a new cuff needs to be used, the plug
connecting the tube with the unit from the old cuff should be used.
CUFF
DISPLAY
PARTS IDENTIFICATION
plug connecting the
air tube with the
blood pressure
monitor
(insert into the air tube socket)
air
tube
metal
buckle
cuff
systolic
pressure
diastolic
pressure
designation
of units
pulse
symbol
number
of the stored
measurement
pulse
low battery symbol
users
/ groups
average measurement value
blood pressure
classification indicator
according to the World Health
Organization (WHO)
symbol irregular pulse symbol
time
date
DM-300 IHB
Ciśnieniomierz
automatyczny do pomiaru
ciśnienia krwi i pulsu na ramieniu
INSTRUKCJA UŻYCIA
0197
REF 5119
the device may
be used with
power adapter
(power adapter as
an option)
The power adapter
is charged additionally
user manual
+ warranty
case
batteries
type AA (1,5V)
4 pieces
cuff size
22-36 cm (M)
blood pressure
monitor
WARNING
PAGE 4

IMPORTANT NOTES ON TAKING MEASUREMENTS
1. For 30 minutes prior to the measurement it is advisable to avoid eating,
exercising or taking a bath.
2. Before taking blood pressure one should sit in a quiet environment for at
least 5 minutes.
3. Do not stand during the measurement. Sit in a comfortable position
while holding the arm evenly in relation to heart.
4. During the measurement, do not talk or move.
5. During the measurement, avoid strong electromagnetic interference, for
example. from microwave oven or cellular phone.
6. Prior to the next reading, wait for at least 3 minutes.
7. Try to measure blood pressure at the same time every day in order to
maintain consistency.
8. Comparison of the measurements is possible only when the readings
were performed on the same arm, in the same position and at the same
time of day.
9. The blood pressure monitor is not recommended for people with severe
arrhythmia.
10. Do not use the device if it is damaged.
BATTERY INSTALLATION AND REPLACEMENT
1. Remove the battery cover from the battery
compartment (according to the direction shown
on the cover).
2. Insert 4 new AA batteries into the compartment
and make sure that all the batteries are
correctly installed observing the correct polarity.
3. Reinstall the battery cover. The cover will be
closed properly when you hear a click.
POWER ADAPTER (OPTIONAL)
1. Connect the plug of the power cord into the power supply connector.
2. Plug the power adapter unit into electrical outlet.
Use power adapter suitable for local mains voltage.
Power adapter specification: 100~240 V, 50/60Hz; output: 6V, min. 600mA
We recommend using only the power adapter supplied by the manufacturer,
model Diagnostic ZID 6-1 (100~240 V, 50/60Hz, 6 V, 1000 mA (1 A))
Do not touch the power adapter with a wet hand.
Do not tangle the wires during usage.
The power adapter is added to the set optionally
(charged additionally) PAGE 5 power
supply

HOW TO USE THE DEVICE
GROUP / USER SELECTION
With the power supply turned off, press the  button, to enter device
settings. The memory group icon starts blinking.
1. Select the memory group
In the device settings mode, you can record the measurement results in 4
different groups. This allows many users to record individual measurement
results (up to 30 per group). Press the  or  button to select the group
setting. Measurement results are automatically recorded in each selected
group.
2. Time/date settings
Press the button  , again to enter the date/time mode. Set
the month using the buttons  or  . Press the  ,button
again to confirm the given month. Set the day, hour and
minute in the same manner. After pressing the button 
each time, the selection will be approved and move to the
next element (month, day, hour, minute).
3. Saved settings
To turn off the device in any settings mode, press the
button  .
NOTE If the device stays idle for 3 minutes, it will automatically save all
the information and turn off.
PAGE 6
WRAPPING THE CUFF
1. Insert the cuff plug in the socket on the left side
of the device. Do not insert the cuff plug in the
socket on the right side of the pressure
monitor. This hole is used exclusively for
optional power supply.
2. Insert the end of the cuff into the metal buckle,
with the velcro facing out.
3. Wrap the cuff approximately 1-2 cm above the
elbow. For best results, wrap the cuff on bare
skin, at heart level.
4. The compression of arm caused by tucked up
sleeve may prevent accurate reading

MEASUREMENT
TURN ON THE POWER
Press and hold the button  until you hear a short beep. All
symbols will appear on the screen for 1 second, and the unit
will carry out a display test. A long beep means that the device
is ready for use.
INCREASING PRESSURE
First, the cuff is inflated up to the initial pressure. If the
systolic pressure of the current user is higher than 190
mmHg, the device will automatically change the inflation to
the proper level.
MEASUREMENT
After the cuff is inflated, the air will be slowly released, in
accordance with the pressure monitor reading. Simultaneously,
the symbol will flash on the display  , indicating heart
rhythm.
DISPLAYING RESULTS
After the end of the measurement, there will be three short
beeps. The screen will display the measurement values for
systolic and diastolic pressure. The indicator of current
measurement will be shown next to the appropriate category
according to the WHO classification.
NOTE
NOTE

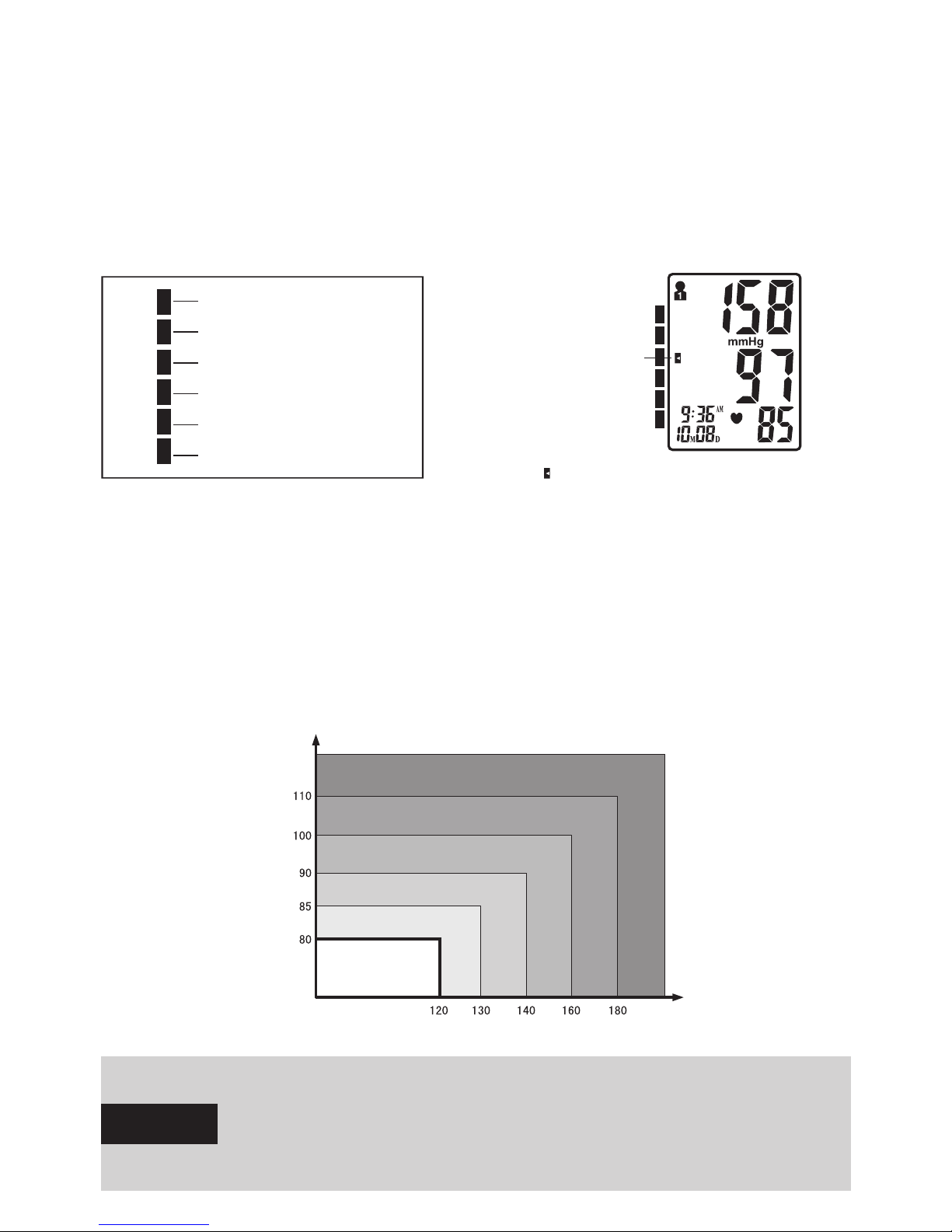

Details on the classification of blood pressure
according to WHO can be found on page 13.
Increasing the pressure will gradually slow down and
stop when the cuff is not properly wrapped on the
upper arm. In such a case, you need to correctly wrap
the cuff and continue by pressing the M button.
During the measurement, you should remain relaxed.
Do not talk or move.
REMEMBER
from the previous measurement, the device will not
work. The symbol  will flash on the screen, until the
pressure in the cuff is equalized.
PAGE 7
REMEMBER

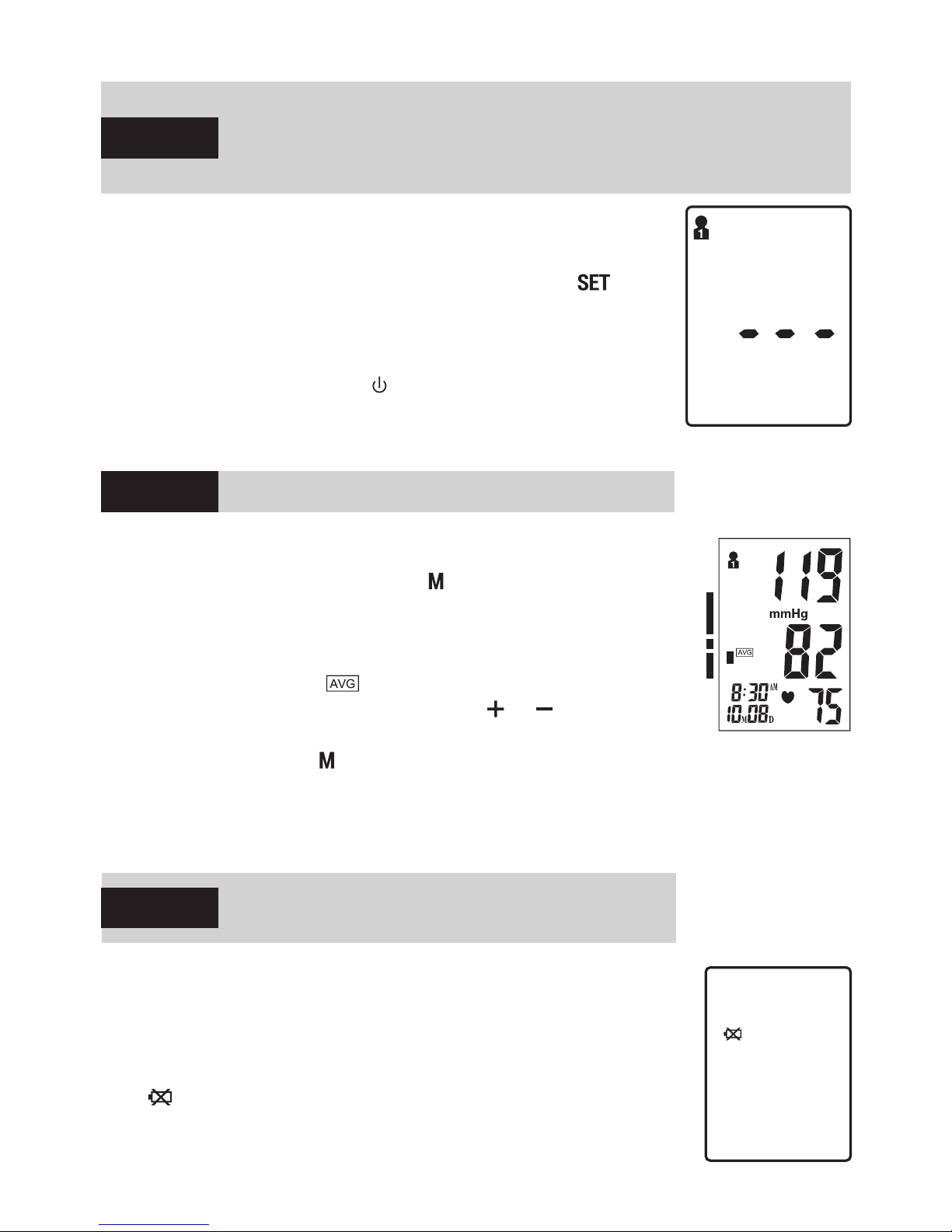

IRREGULAR HEART RATE INDICATOR
If the pressure monitor detects irregular heart rhythm two or more times during the
measurement, together with test results the indicator of irregular heart rate will
appear on the screen " ". Irregular heart rate is the one that is 25% slower or
faster than the average rhythm measured when taking a reading of systolic and
diastolic pressure. If irregular heart beat indicator " " frequently appears together
with results, you should consult your doctor.
DELETING / SAVING MEASUREMENT RESULTS
You can remove your current measurement results, due to the unfavorable
conditions of measurement or for another reason. To delete the result of the
last reading, after the result is displayed, press  . If the result is not
removed, it will be automatically saved along with the date, in the group
memory set earlier.
If the number of measurements exceeds the permissible amount of 30 per
group, the latest measurements are displayed first, and the oldest will be
deleted.
TURNING OFF
The button  is used for turning off the device in any mode. The device
turns off automatically after approximately 3 minutes of inactivity.
CHECKING MEMORY
When the power is off, you can check
the results of earlier measurements.
Press the M button and then you can view
the individual results with using
the  or  buttons.
The result of the latest measurement can be displayed by pressing  . The
result of the oldest measurement can be displayed by pressing the  . After
turning on measurement results, press  or  , to scroll through all the
reading results in memory.
Before the measurement, make sure that the appropriate memory
group was selected.
Jeżeli ciśnienie w mankiecie osiągnie zbyt wysoki poziom, wciśnij
przycisk “ ", aby wyłączyć urządzenie. Po wyłączeniu powietrze
szybko zostanie usunięte z mankietu.
PAGE 8
REMEMBER
REMEMBER

DELETING MEMORY
The memory for the selected group may be deleted in the
memory check mode. Press and hold the button  for
approximately 3 seconds to delete all the stored entries
for the selected group. The device will emit a short beep,
confirming successful operation and then it will go into the
measurement mode. Press  , to turn off the device.
The deleted data cannot be restored.
AVERAGE OF LAST 3 MEASUREMENT
When the device is off, press the  , to activate the screen.
After the conducting internal tests, the screen will display
the results of 3 most recent readings in the last used
group. Together with the corresponding WHO blood
pressure indicator, the  . symbol will be displayed. To go
to the memory check mode, press the  or  . To check
the average results from other groups, select the desired
group before pressing  , with the device on. (See
"Group/user selection" on page 7).
LOW BATTERY INDICATOR
Gdy baterie są na wyczerpaniu aparat nie napompuje
When the device is running out of battery, it will not be
able to properly inflate the cuff and signals the fact with 4
short beeps. Approximately 5 seconds before switching off
the “ ". symbol appears. At this time you should replace
the batteries.
This operation will not cause a memory loss.
In this mode, you can go to test mode, pressing
the "M" button.
NOTE
PAGE 9
Only the results of previous measurements in the last used memory
group will be displayed. To see the results of the measurements in
other groups, first select the desired group, and then turn off the
pressure monitor. (See "Group/user selection" on page 7)
REMEMBER
REMEMBER

Problems Solution
The cuff is to tight or wrapped
incorrectly. Wrap the cuff approx. 1-2 cm
above the elbow. (see page 6)
Invalid measurement
due to body or pressure
monitor movements.
Sit in a relaxed position
with the arm close to the heart.
During the measurement,
do not talk or move. Ensure
that during the measurement
the device is positioned in
a fixed position. (see page 6)
Blood pressure
is beyond the
typical range.
The cuff has not been
properly inflated.
Display
Make sure that the plug connecting
the air tube with the device
is properly inserted.
Possible cause
The pressure during inflation
exceeded 300mmHg.
Exhausted battery symbol Replace all batteries. Do not use
rechargeable batteries.
Thoroughly read the instructions
for use and repeat the
measurement.
Incorrect operation. Thoroughly read the instructions
for use and repeat the
measurement.
PROBLEM SOLVING
PAGE 10
THE DECLARATION AND MANUFACTURER INFORMATION - ELECTROMAGNETIC IMMUNITY
The DEVICE is intended for use in the electromagnetic environment as described below.
The customer or the user of the DEVICE should make sure that it works only in such an environment.
Electromagnetic environment
- information
+/- 6kV
touch
discharge
+/- 8kV
air discharge
+/- 6kV
touch
discharge
+/- 8kV
air discharge
Floors should be wooden, concrete or made
of ceramic tiles. If floors are covered with
synthetic material, the relative
humidity should be at least 30%.
Mains frequency magnetic field should be at
the level characteristic of a regular positioning
in commercial or hospital environment.
Test level
IEC 60601 Fulfilled
level
Immunity tests
Electrostatic discharge
(ESD) in accordance
with IEC 61000-4-2
The magnetic field
of the mains in
accordance with
IEC 61000-4-8.

BLOOD PRESSURE INFORMATION
BLOOD PRESSURE
Blood pressure is the force of blood pushing on artery walls. It is usually
measured in millimeters of mercury (mmHg). Systolic pressure is the
maximum pressure exerted on blood vessel walls at each contraction of the
heart. Diastolic pressure is the pressure exerted on blood vessels when the
heart is expanded, between beats.
A person's blood pressure often changes during the day. Excitement and
tension may cause an increase in pressure, while drinking alcohol and
bathing result in a pressure drop. Some hormones, such as adrenaline
(which is released by the body under stress) may cause narrowing of blood
vessels, which leads to increased pressure.
BLOOD PRESSURE FLUCTUATIONS
Blood pressure may vary up to 30-50mmHg per day. In people with
hypertension, these fluctuations may be even higher. Blood pressure rises
during physical or mental effort and reaches its lowest value during sleep.
It is best to make measurements at the same time every day. Repeated
measurements give the accurate pressure image. When saving
measurement results it is necessary to save the correct date and time of
the measurement
mmHg
200
150
100
Upper curve: systolic pressure Lower
curve: diastolic pressure
50
6 1 2 1 8 2 4
Pora dnia
EXAMPLE: variations during the day (male, 35)
PAGE 11

BLOOD PRESSURE INFORMATION
PRESSURE CLASSIFICATION INDICATOR ACCORDING TO WHO
The DM-300 IHB pressure monitor is equipped with blood pressure
classification indicator on the basis of the World Health Organization (WHO)
guidelines. The illustration below shows measurement results (color-coded
on the monitor screen).
WHAT IS HYPERTENSION AND HOW TO CONTROL IT?
Hypertension is abnormally high blood pressure. You should regularly control
blood pressure in order to detect hypertension as soon as possible, because
disregarded may become the cause of serious diseases such as heart attack
or stroke.
To prevent hypertension, or reduce it: do not smoke, limit your intake of salt
and fats, avoid stress, keep correct weight, exercise regularly.
Do not be overly concerned by the result of one measurement.
A better indication of the blood pressure of the particular person is
ensured by taking readings two or three times, at the same time of
day, for a long time, which enables to learn your normal blood
pressure. If reading results are outside the norm, contact your
doctor
Severe hypertension
Moderate hypertension
Mild hypertension
High – normal
Normal
Optimal
Mild
hypertension
Blood pressure classification indicator
Diastolic
blood
pressure
(mmHg)
Severe hypertension
Moderate hypertension Mild
hypertension
High – normal
Normal
Optimal
Systolic
blood
pressure (mmHg)
REMEMBER

BLOOD PRESSURE
WHAT IS THE DIFFERENCE BETWEEN BLOOD PRESSURE MEASUREMENT AT
HOME AND MEASUREMENTS MADE IN THE DOCTOR'S OFFICE?
Pressure measurements in hospital or doctor's office may cause anxiety
(also called "white coat hypertension") and result in pressure increase up to
25-30 mmHg in comparison with measurement made at home.
Measurement at home reduces any external influences, complements the
measurements made by a doctor and provides a more accurate history of
blood pressure.
WHAT IS THE CAUSE OF DIFFERENT READINGS?
Blood pressure varies throughout the day. A number of factors, such as diet,
stress, incorrect cuff wrapping, etc. may affect blood pressure.
THE CUFF SHOULD BE PUT ON RIGHT OR LEFT ARM? WHAT IS THE
DIFFERENCE?
You can use any arm for measurement, however, in the case of comparing
the results, the same arm must be used. Measurement on the left shoulder
is more precise, because it is closer to the heart.
WHAT IS THE BEST TIME TO TAKE MEASUREMENTS?
Any time when you feel relaxed and do not experience stress.
REMEMBER Incorrect measurement results may be caused by: incorrect
cuff wrapping (make sure that the cuff is not too tight or too
loose. Make sure that the bottom part of the cuff is placed
approximately 1-2 cm above the elbow), incorrect body posture
(remember to keep upright position), feeling anxiety or
nervousness (take 2-3 deep breaths, wait for a few minutes
and repeat the measurement).
PAGE 13

MAINTENANCE
Avoid dropping, hitting, or throwing the
device.
Avoid extreme temperatures.
Do not expose the device
to direct sunlight..
To clean the device use a soft cloth and gently
wipe it with a mild detergent.
Use a damp cloth to remove dirt and detergent
residues.
Cleaning the cuff: do not wash the cuff in water! To
clean the surface, use a soft cloth moistened with
some alcohol to disinfect. To wipe use a damp
cloth (moistened with water). Dry the cuff in the
air at room temperature.
Do not use gasoline, thinners or similar
solvents.
If the device is not used
for an extended period
of time, remove the
batteries.
Do not disassemble the
product.
It is recommended to control the operation of the
device every 2 years.
PAGE 14

PAGE 15
TECHNICAL DATA
DM-300 IHB
Approx. 110mm x 155mm x 70 mm (length x width x height)
-20 - 55°C (-4 - 131°F)
15 - 90% RH
10 - 40°C (50 - 104°F)
15-90% RH
Display LCD Digital Display
Measuring Method Oscillometric Method
Measurement Range Pressure
Pulse
0-300 mmHg
30-180 Pulses/min
Accuracy Pressure ±3 mmHg
Pulse ±5%
Inflation Automatic by Internal Pump
Memory Function Memory 4x30 Sets of Measurement Values
Power Source 4XAA 1,5 V Alkaline Batteries, or power adapter
6 V, min. 600 mA (optional)
Main Unit Weight Approx. 395g (Batteries not included)
Cuff Soft Arm Cuff (22-36 cm)
Operating Environment Temperature
Humidity
Transport and Storage
Environment Temperature
Humidity
Model
Product Description Arm- type fully automatic digital blood pressure monitor
Function Irregular heart beat detection
WHO clasification Indicator
Last 3 results average
Low battery detection
Automatic power-off
Battery life Approx. 2 mounths at 3 tests per day
Unit dimensions
Classification Internal power equipment, type BF, cuff is the applied part
Ingress Protection
Rating
IP 22

SPECIFICATION
This blood pressure monitor complies with European regulations and bears
the mark (0197). This blood pressure monitor is also compatible with the
following standards:
SAFETY STANDARDS:
EN 60601-1 medical electrical equipment - Part 1: General requirements for
safet
EMC STANDARD:
EN 60601-1 Medical electrical equipment - Part 1-2: General requirements
for safety - Collateral standard - Electromagnetic compatibility -
Requirements and tests
PERFORMANCE STANDARDS:
EN 1060-1 Non-invasive sphygmomanometers - General requirements,
EN 1060-3 Non-invasive sphygmomanometers - Supplementary
requirements for electro-mechanical blood pressure measuring systems, EN
1060-4 Non-invasive sphygmomanometers - Test procedures to determine
the overall system accuracy of automated non-invasive
sphygmomanometers,
(Waste electrical and electronic equipment)
Business users should contact with their suppliers and check the terms and conditions
of purchase agreements. This product should not be mixed with other waste from
business activities. This product does not contain hazardous materials.
WARRANTY
The DM-300 IHB blood pressure monitor is covered by a 2-year warranty from the
purchase date. If the device does not work properly, due to damaged elements or
defective manufacturing, we will repair it or replace it for free. This warranty does not
cover damage to the pressure monitor resulting from improper operation. For detailed
information please contact Diagnosis.
PAGE 16
This marking on the product or its related materials indicates that it should not be
disposed of with other household waste at end of life. The used product should be taken to
a waste collection facility. Contains ingredients that are dangerous to the environment.
The correct disposal of the device allows to preserve valuable resources and avoid
negative effects on health and the environment, which may be threatened by
inappropriate handling of waste. If you are in doubt where to return the used product,
contact Diagnosis. Free infoline 800 70 30 11
Rev. 2016.06.15
Instrukcja użycia zestawu w języku angielskim
przygotowana na podstawie polskiej wersji językowej z dnia 2015.09.03
an

1. Diagnosis S.A. grants a warranty:
24 months for DIAGNOSTIC blood pressure monitors and cuffs (excluding pump
assembly)
12 months for nebulizer and pressure monitor accessories
Hardware defects revealed during the warranty period will be rectified free of charge within
2. The purchaser shall be entitled to replace the equipment into the new one free of defects,
when:
the repair has not been made within the time limit set in item 1
an authorized service center found an irreparable manufacturing defect
during the warranty period, 4 repairs were effected, and the equipment still shows
defects that prevent its use in accordance with its intended purpose
The concept of repair shall not include operations related to equipment check and cleaning.
3. The warranty shall not cover: batteries, products with illegible or damaged serial number,
damage due to the operation and storage inconsistent with the instructions for use, ingress of
liquids or foreign bodies, overvoltage of mains, repairs by unauthorized persons and random
events.
4. Faulty equipment should be delivered by the buyer to the address of the main service center
or one of the Authorized Service Centers (listed in the appendix).
5. The warranty for the sold consumer goods shall not exclude, restrict, or suspend the powers
of the buyer resulting from non-conformity of the goods with the contract.
6. The only basis for the warranty rights shall be the warranty card with the date of sale, stamp
and signature of the salesperson. If the card is not completed, filled in wrongly, with traces
of corrections and entries made by unauthorized persons, illegible as a result of damage
- it shall be invalid.
WARRANTY CARD
pieczątka sklepu i podpis sprzedawcy
DEVICE NAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MODEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SERIAL NUMBER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DATE OF SALE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WARRANTY TERMS
Diagnosis S.A.
ul. Gen. W. Andersa 38A,
15-113 Białystok, Polska
Bezpłatna infolinia 800 70 30 11
tel./fax [phone]
www.diagnosis.pl
MAIN SERVICE CENTER
15-182 Białystok, ul. Sielska 2
tel. [phone]
[email protected]
