SHENZHEN PUMP MEDICAL SYSTEM BF1204B User manual

Rev.A1
1
Arm Automatic Blood Pressure Monitor
Instruction Manual
BF1204B
Table of Contents
1. Safety Information...................................................................................................2
1.1 Warning..............................................................................................................................2 
1.2 Contraindications..............................................................................................................3
1.3 Care and maintenance......................................................................................................3
2. Product Feature .......................................................................................................4
3. Pre Measurement.....................................................................................................5
3.1 Battery................................................................................................................................5
3.2 Power Adapter（Optional）............................................................................................6
3.3 System Setting ...................................................................................................................6
4 Take a measurement.................................................................................................7
4.1 Important Noted................................................................................................................7
4.2 Fitting the cuff...................................................................................................................8
4.3 Body posture during measurement..................................................................................8
4.4 Take Measurement............................................................................................................9
4.5 Data Transmission...........................................................................................................10
4.6 Memory............................................................................................................................10
5. Error Indication.....................................................................................................11
6. Trouble Shooting....................................................................................................11
7. Specification ...........................................................................................................12
8．About Blood Pressure..........................................................................................16
8.1 What is Blood Pressure?.................................................................................................16
8.2 What is high blood pressure?.........................................................................................16
8.3 What is morning hypertension (morning surge)? ........................................................17
Reference Standard ...................................................................................................17
Blood Pressure Measurement Chart........................................................................18
Guarantee Card .........................................................................................................18
Explanation of Symbols.............................................................................................19
After-Sale Service.......................................................................................................19

Rev.A1
2
1. Safety Information
1.1 Warning
Self diagnosis and treatment which use measured results may be dangerous. Follow the
instructions of your physician or licensed healthcare provider.
If cuff inflation doesn’t stop, remove the cuff or power off the unit, otherwise, it may result in
a hazard condition.
Only take measurement with the manufacturer supplied cuff or AC adapter, or else it will lead
to inaccurate results.
Do not use the blood pressure monitor when you are close proximity to strong static
electricity or electromagnetic fields, and avoid using the mobile during measurement.
Do not use in combination with a hyperbaric oxygen therapy device, or in an environment
where combustible gas may be generated.
Do not install the unit in the following locations:
- Locations subject to vibration such as ambulances and emergency helicopters.
- A location where there is gas or flame.
- A location where there is water or steam.
- A location where chemicals are stored.
- A location where the unit may easily fall.
Measurements or stores need to take into account environment variables, or else it would lead
to the inaccurate measurement.
When using AC adapter or replacing the batteries, the operator not to touch those parts and the
patient simultaneously.
The battery has positive/negative polarity. If the battery does not connect well to the unit, do
not forcibly connect it.
Do not use Luer lock. If Luer lock connectors are used in the construction of tubing, there is a
possibility that they might be inadvertently connected to intravascular fluid systems, allowing
air to be pumped into a blood vessel.
This product is suitable for use to self- monitoring of blood pressure in home or used by the
licensed healthcare per sonnel in hospital.
Blood pressure measurements determined with the device are equivalent to those obtained by
a trained observer using the cuff/stethoscope auscultatory method, within the limit prescribed
by the American National Standard, Manual, electronic or automated sphygmomanometers.
Keep out of reach of infants, small children, and compromised people who cannot express
their consent. Playing the air tube may result in suffocate children, and Children may swallow
small parts and lead to suffocation.
Children must be supervised to ensure that they are not play with the device.
Use only manufacturer authorized parts and accessories. Parts and accessories not approved
for use with the device may damage the unit.
Be careful not to rest your arm on the air tube. This will restrict the flow of air to the cuff.
Do not measurement too frequent, or else it may result in bruising where the cuff is applied.
Do not apply the cuff over a wound or inflamed area.
The application of the cuff and its pressurization on the arm can cause temporary interference
to blood flow, but it would not result in injury to the patient.

Rev.A1
3
Operation of the device does not result in prolonged impairment of the circulation of the
blood of the patient.
Direct plug is considered as disconnect device, please do not place the equipment in a
difficultly operation position.
When using the device, the patient is an intended operator.
Do not serviced or maintained while in use with the patient.
The patient can perform the maintenance of changing batteries.
1.2 Contraindications
Those who have arrhythmia, diabetes, blood circulation or apoplexy problem, please use
under the physician’s instruction.
Clinical testing has not been conducted on newborn infants and pregnant women. Do not use
in infants and pregnant women.
Do not use the blood pressure monitor for any other purpose except measuring the blood
pressure of human body.
The common arrhythmia such as atria premature beats, premature ventricular and atrial
fibrillation will lead to inaccurate results or error.
1.3 Care and maintenance
Do not attempt to disassemble, repair or modify the blood pressure monitor or hand cuff.
Avoid high temperature, moisture, dust and direct sunlight.
Clean the body with soft dry cloth dipped in a concentration of 75% medical alcohol.
Do not wet or cleaning the cuff with water.
Clean the cuff with soft dry cloth after measurement.
Do not use at extremely high temperature, high humidity, or high altitude. Use only within the
required ambient conditions.
Do not place heavy objects on the AC adapter cable, or allow the unit to sit on the cord.
Do not plug in or unplug the AC adapter with wet hands.
Do not drop or expose the device to heavy shock.
Do not use the unit near large equipment that uses a switching relay for power ON/OFF.
Remove the batteries if the unit will not use for a long time.
The blood pressure monitor has gone through several trials of testing to ensure the
measurement accuracy. The end user should conduct a manufacturer recommended
inspection and calibration annually.
Do not disassemble or modify the structure of the unit and damage the safety performance.
If you need service, please contact the manufacturer, the maintenance should be done by
authorized persons of manufacturer. Maintenance of the necessary technical document,
including the schematics, key components list and etc., will provided by the manufacturer for
maintenance personnel.
Precaution！Please read the enclosed instruction.

Rev.A1
4
2. Product Feature
Indications for use：Measurement of Human Blood Pressure and Pulse Rate for adults in home
or used by the licensed healthcare personnel in hospital.
Body
Fig 1
Cuff (Type BF Applied Part)
Model：BC1000/BC8000
Applicable Arm Circumference:
BC1000: 22cm to 36cm
BC8000:32cm to 44cm
Cuff Label
Fig 2
Note:
Symbol for”TYPE BF APPLIED PART”
Model:BC××××

Rev.A1
5
Display
Fig3
3. Pre Measurement
3.1 Battery
3.1.1 Installation and replacement
1）Remove battery cover
2）Load 4 standard AA alkaline battery as indicated in Fig 4.
Fig 4

Rev.A1
6
3）Install back the battery cover
4）Replace the battery if low battery icon is displayed
If the low battery symbol is display, replace with new batteries, otherwise the
unit will not function properly.
Use 4 same brand 1.5 V AA alkaline batteries.
Do not mix the new and old batteries.
Remove the battery if the unit is to remain unused for an extended period.
Reset the time and date after battery replacement.
3.1.2 Battery Life
Four new LR6 (AA) batteries will last for approximately 200 measurements, if
measurements are taken once a day at room temperature (23°C).
The batteries enclosed in the package are used for demonstration purpose. It is possible
these batteries will therefore not last for 200 measurements.
The battery life can be confirmed in the bottom right of the display. If the low battery
symbol is display, remaining power is low, replace with new batteries.
3.2 Power Adapter（Optional）
1) Connect the AC adapter to the AC adapter connector of the main unit
2) Plug the socket into electric outlet.( Fig 5)
AC adapter model: BPE001
Use the correct adapter designed for your local
voltage (AC 100-240 V)
Do not plug in multiple plugs into same power
outlet.
Power adapter specification: Input: AC 100-240 V ,
50/60Hz, 400mA;Output: 6.0V 0.5A;
Use the manufacturer power adapter only.
Unplug the AC adapter or wires if the device is
damaged.
Do not touch the AC adapter with wet hand.
When operating the unit please do not tangle the
power cords.
3.3 System Setting
3.3.1Setting
1) With monitor power off
2) Press the【S】button into the setting mode, and Year digits blinking
a) Change number
ⅰPress the 【M】button to advance one number
ⅱHold down the 【M】button, the number will change rapidly
AC adapter
AC adapter connector
Electric Outlet
Fig 5

Rev.A1
7
b) Enter the digit of the year number
c) Press the【S】button will proceed to month setting
d) Repeat step a) to c) to set month, day, hour and minutes
3) Unit Conversion (mmHg to kPa)
a) Press the memory button will automatically change the unit conversion either from
mmHg or kPa as shown on Fig 6 or Fig 7.
b) Complete setting, press【ON/OFF】button to exit.
4) Unit with Broadcast.
a) Continues the broadcast setting, press the 【M】button will automatically turn on or
off the broadcast system as shown on Fig 8 or Fig9.
c) Complete setting, press【ON/OFF】button to exit.
Fig6 Fig7 Fig8 Fig9
3.3.2 Memory Data Conversion
The blood pressure monitor is capable to hold 2 sets of memory data. Prior using the blood
pressure monitor, select the correct memory data.
Memory data conversion:
With monitor power off, hold the【ON/OFF】button until the selected Memory
displayed.
Press the【ON/OFF】button will automatically change the memory data conversion
either from Memory 1 or Memory 2.
The machine is complete setting, ready to use.
4 Take a measurement
4.1 Important Noted
Don't eat, drink alcohol, smoke, take a shower or exercise for at least 30 minutes before you
take your blood pressure and don't use any medicines that can raise blood pressure.
Try not to take your blood pressure if you are nervous or upset. If we are nervous, anxious,
or agitated our blood pressure will rise.
Rest for 5～10 minutes before taking a reading. Sit in a comfortable, relaxed position. Don't
move around or talk while taking the blood pressure. Leave your legs in one position, breath
freely and calmly.
The blood pressure cuff should fit over about 3/4 of your upper arm. It should easily go
around the arm and the Velcro should close tightly.

Rev.A1
8
If you can, use the same arm for every reading.
Measuring blood pressure at the same time on different days should give about the same
reading (excluding outside influences like exercise).
Changes in medication or nutritional supplement can alter your result. Please consult your
doctor before taking or stopping medications or supplement.
4.2 Fitting the cuff
1) Plug in the air tube connector into the main unit
2) Wrap the cuff around the upper left arm or upper right arm.
3) Tighten the cuff around the arm, make sure the cuff is approximately 2～3cm ( 1～2 inches)
above the elbow.（Fig10）
Fig10
4) Make sure cuff air tube outlet is facing your finger. Do not over tighten. Approximate
one finger should be able to fit underneath the cuff after tightening.
5) Relax, place the elbow on the desk with palm facing up; the cuff should be level with
your heart. If the cuff doesn’t fit your arm, the reading accuracy may be affected.
Do not bend with the cuff or the air tube.
To detach the cuff, unplug the air tube connector from the main unit
Do not inflate prior fitting the cuff.
Change the cuff, if it there is a leakage or if the cuff is not working properly.
Only use the manufacturer cuff to ensure the measurement accuracy.
4.3 Body posture during measurement
Relax, place the elbow on the desk with palm facing up; cuff should be at the heart level (Fig
11).The reading accuracy may be affected if the cuff is not fitted properly. The arm should be
at the same level of your heart. If your arm is too low, your reading will be too high. If your
arm is too high, your reading will be too low.
Fig11

Rev.A1
9
4.4 Take Measurement
After installing the batteries and wearing the cuff, the unit is ready for measurement:
1) For the most accurate result please relax, do not smoke, take deep breath, speak loudly
or move around during the measurement.
2) Turn on the 【ON/OFF】button; display will lit-up for 1 second as shown on Fig 12.
3) Then the display on switch to Fig 13, a beep sound indicates the monitor has begun
taking the measurement.
4) When the device detects a pulse, the heart symbol will flash as shown on Fig 14. The
cuff inflates, and your pulse and blood pressure measurement is taken.
5) If the cuff is too loose, the cuff self-test symbol will flash for 30 seconds, at this case,
please confirm the cuff is wrapped up correctly, and take the measurement again.
6) When completing the test, the cuff will automatically deflate and the test result will
display on the screen as shown on Fig 15and the device will broadcast the result. And
the LED indication the right of the display and LED light will indicate the level of the
blood pressure. The blood pressure level classification and definition as show in Fig 16.
7) You may turn off the unit or compare with the previous results
8) Automatic shut off in 3 minutes.
9) If a problem occurs during the test, “Err ” will display on the screen.
10) In the end of measurement, “ ” will display on the screen when irregular pulse is
detected.
Fig12 Fig13 Fig14 Fig15

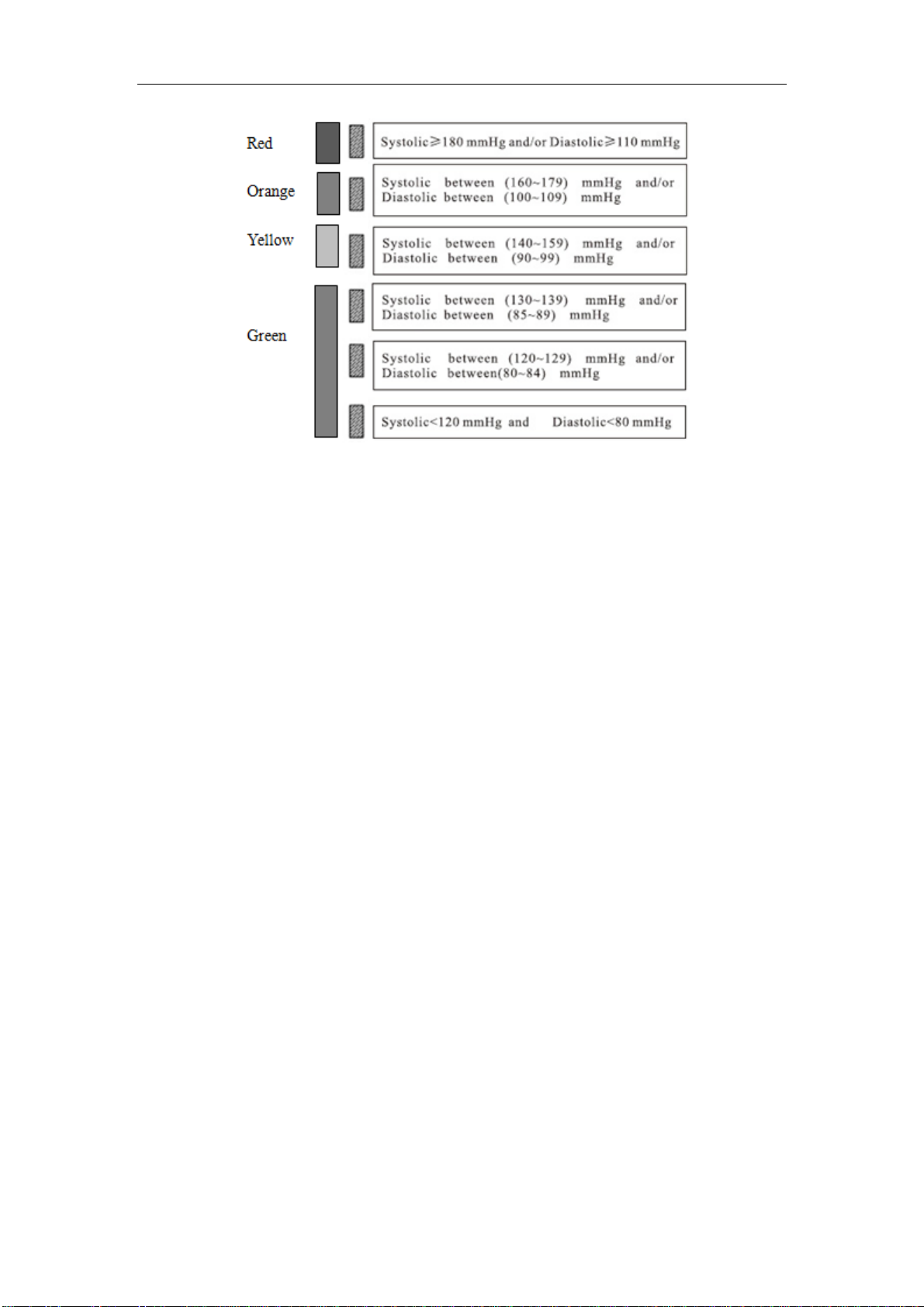

The blood pressure level classification and definition (Fig 16)

Rev.A1
10
Fig 16
Notes:
Do not self-diagnosis according to measurement results. Follow the instructions of your
physician or licensed healthcare provider.
The LED indicator in the right of the display and LED light will indicate the level of the blood
pressure. The red LED light indicates the hypertension, and the green LED light indicates the
normal pressure. The blood pressure level classification and definition as show in Fig 16.
If the device caused any discomfort during measurement or fail to perform as indicated, turn
off the power or discontinue use.
The time of the pressure reduced from 260mmHg (34.67kPa) to 15mmHg (2kPa) does not
exceed 10s.
If cuff inflated up to 300 mmHg (40 kPa) doesn’t stop, please remove the cuff or power off
the unit
4.5 Data Transmission
The Bluetooth is turn on after turn on the 【ON/OFF】button, the device can transmit the data to
the data management system by Bluetooth.
4.6 Memory
The Memory 1 and Memory 2 can hold up to 60 reading each.
1) Memory Review
a) With monitor power off, hold the 【M】button to enter the memory mode.
b) The unit will display the most recent 3 set of data average
c) When holding the【M】button the user can view the data from the most recent date to the
oldest date. When holding the【S】button the user can view vice versa.
d) If the user need to display the other set of memory data please refer to section 3.3.2
e) If the data in memory displays the heart mark, it prompts when measurement the irregular
pulse is detected.
Caution: Continuous holding the 【M】button will delete all the memory.

Rev.A1
11
2) Delete memory data
a) Enter into the memory mode refer to section 3.3.2
b) Press and hold the memory button until the “---” displayed, all the memory data will be
deleted
c) The unit will only delete the present set of memory data; the other set of memory data
will not be affected.
d) The device is not capable of deleting a single data.
e) Press the 【ON/OFF】button exit the memory mode and turn off.
5. Error Indication
List of Error code.
Error Cause How to correct
Cuff
self-test
symbol
Power on, cuff inflation rate is too
low or main unit does not connect
with the cuff.
（1） Reconnect the air tube connector
with the main unit
（2） Cuff or bladder leakage, if
necessary purchased a new one.
（3） Confirm the cuff is wrapped up
correctly (ref 4), retake the
measurement
Er 2
Weak Signal or cuff is too loose Cuff too loose，Confirm the cuff is
wrapped up correctly（ref 4.2）retake the
measurement
Er 3 Heavy shock during the
measurement.
Remain still, retake the measurement (ref
4.1）
Er 5 Bad Signal，moving or talking
during the measurement.
Remain still, retake the measurement (ref
4.1）
Er7 Measurement abnormal. Please retake the measurement.
Lo Low battery power, cannot inflate Change battery（ref 3.1）
6. Trouble Shooting
When the unit encounters malfunction during the use, refer to table below:
Abnormal How to correct
After batteries installation, power
on, no display.
（1）Check batteries polarity。
（2）If still cannot power on, reinstall the batteries or
change new batteries
Measured value are abnormally
high or low
（1）Confirm the cuff is wrapped up correctly。
（2）If the user clothing restricts the normal flow, please
remove the obstructing clothing and retake the
measurement
（3）Relax, place the elbow on the desk with palm facing
up; cuff should align with heart level. Retake the
measurement
Cuff inflation rate is too low or （1） Reconnect the air tube connector with the main unit

Rev.A1
12
does not inflate （2） Cuff or bladder leakage, if necessary purchased a
new one.
Cuff deflates too quickly. （1）Cuff too loose，confirm the cuff is wrapped up
correctly。
Measure value is different from the
hospital or the value is inconsistent
（1） Blood pressure value is varied during the day which
also will affect by the human emotional and physical
condition
（2） Record the variance and consult to the doctor
*If the above suggestion doesn’t remediable, please dial Service Hotline: [phone] for
consultant.
7. Specification
Description Arm automatic blood pressure
monitor Model BF1204B
Display LCD Digital Display Measuring
principle Oscillometric Method
Measurement
Range
Pressure: 0mmHg~280mmHg
（0kPa~37.3kPa）
Pulse: 40 pulse/min ~180 pulse/min
Accuracy
Pressure:±3mmHg （±0.4kPa）
Pulse: ±5%
Memory 2 Memory sets, 60 reading each set. Automatic
power off Unattended 3 minutes
Power source
4 AA alkaline battery
AC Adapter:
Input: AC 100-240 V,
50/60Hz,400mA;
Output : 6.0V d.c. 0.5A;
Battery Life Approx 200 measurements
Protection
against electric
shock
Internally powered ;
Class II for approved AC adapter
Type BF
IP classification IP21
Mode of
operation Continuous Applied part Cuff
Operating
Environment
Temperature：+5℃～+40℃；
Humidity：15%-93%
Pressure: 70.0kPa～106.0kPa
Altitude: ≤3000 m
Storage and
transport
Environment
Temperature：-25℃～+70℃；
Humidity：10%～95%
Pressure:50.0kPa～106.0kPa
Weight 360g（Without batteries）Size 140 mm×116mm×81 mm
Life time
(Body) Body five years or
10000 times Contents ·Cuff(Applicable arm circumference:220mm
to 360mm)

Rev.A1
13
Cuff 10000 times ·AC Adapter（Optional）
·4 AA alkaline batteries
·Storage case (Optional)
·Instruction Manual
AC
Adapter 50000 hours
This unit is intended for home use and the specification may be changed without prior notice.
Disposal
This product must not be disposed together with the domestic waste.
All users are obliged to hand in all electrical or electronic devices, regardless of whether or not
they contain toxic substances, at a municipal or commercial collection point so that they can be
disposed of in an environmentally acceptable manner.
Please remove the battery before disposing of the equipment. Do not dispose of old batteries with
your household waste, but dispose of them at a battery collection station at a recycling site or in a
shop.
Consult your municipal authority or your dealer for information about disposal.
Guidance and manufacturer’s declaration
Guidance and manufacturer’s declaration – electromagnetic emissions
The [EQUIPMENT or SYSTEM] is intended for use in the electromagnetic environment
specified below. The customer or the user of the [EQUIPMENT or SYSTEM] should assure that
it is used in such an environment.
Emissions test Compliance Electromagnetic environment - guidance
RF emissions
CISPR 11 Group 1 The [EQUIPMENT or SYSTEM] uses RF energy
only for its internal function. Therefore, its RF
Important information regarding Electro Magnetic Compatibility (EMC)
With the increased number of electronic devices such as PC’s and mobile (cellular) telephones,
medical devices in use may be susceptible to electromagnetic interference from other devices.
Electromagnetic interference may result in incorrect operation of the medical device and create
a potentially unsafe situation.
In order to regulate the requirements for EMC (Electro Magnetic Compatibility) with the aim to
prevent unsafe product situation, the IEC60601-1-2 standard has been implemented. This
standard defines the levels of immunity to electromagnetic interferences as well as maximum
levels of electromagnetic emissions for medical devices.
This medical device manufactured by pump conforms to this IEC60601-1-2:2007 standard for
both immunity and emissions.
Nevertheless, special precautions need to be observed:
·Do not use mobile (cellular) telephones and other devices, which generate strong electrical or
electromagnetic fields, near the medical device. This may result in incorrect operation of the
unit and create a potentially unsafe situation. Recommendation is to keep a minimum distance
of 7 m. Verify correct operation of the device in case the distance is shorter.
Further documentation in accordance with IEC60601-1-2:2007 is available at pump at the
address mentioned in this user manual.

Rev.A1
14
emissions are very low and are not likely to cause
any interference in nearby electronic equipment.
RF emissions
CISPR 11 Class B The [ME EQUIPMENT or ME SYSTEM] is
suitable for use in all establishments, including
domestic establishments and those directly
connected to the public low-voltage power
supply network that supplies buildings used for
domestic purposes.
Harmonic emissions
IEC 61000-3-2 Class B
Voltage
fluctuations/flicker
emissions
IEC 61000-3-3
Complies
Guidance and manufacturer’s declaration – electromagnetic immunity
The [EQUIPMENT or SYSTEM] is intended for use in the electromagnetic environment specified
below. The customer or the user of the [EQUIPMENT or SYSTEM] should assure that it is used
in such an environment.
Immunity
test IEC 60601 test level Compliance level Electromagnetic environment -
guidance
Electrostatic
discharge
(ESD)
IEC
61000-4-2
±6 kV contact
±8 kV air
±6 kV contact
±8 kV air
Floors should be wood, concrete or
ceramic tile. If floors are covered with
synthetic material, the relative
humidity should be at least 30%. If
ESD interfere with the operation of
equipment, counter measurements
such as wrist strap, grounding shall be
considered.
Electrical fast
transient/burst
IEC
61000-4-4
±2 kV for power
supply lines
±1 kV for
input/output lines
±2 kV for power
supply lines
±1 kV for
input/output lines
Mains power quality should be that of
a typical commercial or hospital
environment.
Surge
IEC
61000-4-5
±1 kV
differential mode
±2 kV common
mode
±1 kV differential
mode
±2 kV common
mode
Mains power quality should be that of
a typical commercial or hospital
environment.
Voltage dips,
short
interruptions
and voltage
variations on
power supply
input lines
IEC
61000-4-11
< 5% UT
(>95% dip in UT)
for 0.5 cycle
40% UT
(60% dip in UT)
for 5 cycles
70% UT
(30% dip in UT)
for 25 cycles
< 5% UT
(>95% dip in UT)
for 5 sec
< 5% UT
(>95% dip in UT)
for 0.5 cycle
40% UT
(60% dip in UT)
for 5 cycles
70% UT
(30% dip in UT)
for 25 cycles
< 5% UT
(>95% dip in UT)
for 5 sec
Mains power quality should be that of
a typical commercial or hospital
environment. If the user of the
[equipment or system] requires
continued operation during power
mains interruptions, it is
recommended that the [equipment or
system] be powered from an
uninterruptible power supply or a
battery.
Power
frequency
(50/60 Hz)
magnetic
field IEC
61000-4-8
3 A/m 3 A/m
Power frequency magnetic fields
should be at levels characteristic of a
typical location in a typical
commercial or hospital environment.

Rev.A1
15
Guidance and manufacturer’s declaration – electromagnetic immunity –
for EQUIPMENT and SYSTEMS that are not LIFE – SUPPORTING
Guidance and manufacturer’s declaration – electromagnetic immunity
The [EQUIPMENT or SYSTEM] is intended for use in the electromagnetic environment
specified below. The customer or the user of the [EQUIPMENT or SYSTEM] should assure that
it is used in such an environment.
Immunity test IEC 60601 test
level Compliance level Electromagnetic environment - guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms
150 kHz to 80 MHz
3 V/m
80 MHz to 2.5 GHz
3V
3V/m
Portable and mobile RF
communications equipment should be
used no closer to any part of the
[EQUIPMENT or SYSTEM], including
cables, than the recommended
separation distance calculated from the
equation applicable to the frequency or
the transmitter.
Recommended separation distance
d = 1.2 p
d = 1.2 p80 MHz to 800 MHz
d = 2.3 p800 MHz to 2.5 GHz
Where P is the maximum output power
rating of the transmitter in watts (W)
according to the transmitter
manufacturer and d is the recommended
separation distance in meters (m).
Field strengths from fixed RF
transmitters, as determined by an
electromagnetic site survey, should be
less than the compliance level in each
frequency range.
Interference may occur in the vicinity of
equipment marked with the following
symbol:
Recommended separation distances between portable and mobile
RF communications equipment and the EQUIPMENT or SYSTEM –
For EQUIPMENT and SYSTEMS that are not LIFE – SUPPORTING
Recommended separation distances between portable and mobile RF communications
equipment and the [EQUIPMENT or SYSTEM]
The [EQUIPMENT or SYSTEM] is intended for use in an electromagnetic environment in which
radiated RF disturbances are controlled. The customer or the user of the [EQUIPMENT or
SYSTEM] can help prevent electromagnetic interference by maintaining a minimum distance
between portable and mobile RF communications equipment (transmitters) and the [EQUIPMENT
or SYSTEM] as recommended below, according to the maximum output power of the
communications equipment.
Rated maximum
output power of
Separation distance according to frequency of transmitter
m

Rev.A1
16
transmitter
W 150 kHz to 80 MHz
d = 1.16 p
80 MHz to 800 MHz
d = 1.16 p
800 MHz to2.5 GHz
d = 2.33 p
0.01 0.12 0.12 0.23
0.1 0.38 0.38 0.73
1 1.2 1.2 2.3
10 3.8 3.8 7.3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the recommended separation
distance d in meters (m) can be estimated using the equation applicable to the frequency of the
transmitter, where P is the maximum output power rating of the transmitter in watts (W) according
to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected
by absorption and reflection from structures, objects and people.
8．About Blood Pressure
8.1 What is Blood Pressure?
Blood pressure (BP) is the pressure exerted by circulating blood upon the walls of blood vessels,
and is one of the principal vital signs.
Two pressures are measured for a blood pressure reading:
Systolic blood pressure is a measure of blood pressure while the heart is beating.
Diastolic pressure is a measure of blood pressure while the heart is relaxed.
8.2 What is high blood pressure?
High blood pressure, also known as HBP or hypertension, is a widely misunderstood medical
condition. Some people think that those with hypertension are tense, nervous or hyperactive, but
hypertension has nothing to do with personality traits. The truth is, you can be a calm, relaxed
person and still have HBP. Let's look at the facts about blood pressure so you can better
understand how your body works and why it is smart to start protecting yourself now, no matter
what your blood pressure numbers are.
By keeping your blood pressure in the healthy range, you are:
Reducing your risk of your vascular walls becoming overstretched and injured
Reducing your risk of your heart having to pump harder to compensate for blockages
Protecting your entire body so that your tissue receives regular supplies of blood that is rich in
the oxygen it needs.
According to World Health organization standard, the blood pressure level classification and
definition as following:
Category Systolic（mmHg）Diastolic（mmHg）
Desirable 120 and 80
Normal 120-129 and/or 80-84
Pre hypertension 130-139 and/or 85-89

Rev.A1
17
Hypertension：≥140 and/or ≥90
Stage 1 Hypertension 140-159 and/or 90-99
Stage 2 Hypertension 160-179 and/or 100-109
Hypertensive Crisis ≥180 and/or ≥110
These categories were defined by the American Heart Association. This chart applies to adults
age 20 and older.
8.3 What is morning hypertension (morning surge)?
Morning high blood pressure or morning surge is defined as the weekly average for morning
blood pressure reading measured within 1 hour to 2 hours after awakening in the morning and
exceeding 135/85mm Hg. Studies have shown that exaggerated morning blood pressure surge is a
risk for cardiovascular events which includes ischemic and hemorrhagic stroke. Cardiovascular
events have been shown to be exaggerated in the morning to coincide with morning high blood
pressure. In fact heart attack, stroke and heart failure have been shown to fall particularly on a
Monday amongst all the other days of the week.
Organ damage and diabetic complications have also been shown to be linked with morning blood
pressure surges just in the same way as small artery disease and multiple cerebral infarcts in elder
members of society. Morning high blood pressure has shown some correlation with initial stage
and progression of atherosclerosis. Patients with well controlled blood pressure may still have
high morning blood pressure and this happens in 50% of the cases. Patients with morning
hypertension have a 78% more chance of stroke compared with 48% of other hypertensive
patients without morning high blood pressure. Morning hypertension has also been associated
with changes in heart size and rhythm. This may lead to heart attack or heart failure.
Morning Hypertension can only detect within 1 hour to 2 hours after awakening, recommended
user monitor their own blood pressure at home.
Reference Standard
·IEC 60601-1:2005+A1:2012 Medical electrical equipment-Part1: General requirements for
safety and essential performance.
·IEC 60601-1-2:2007 Medical electrical equipment – Part1-2: General requirements for basic
safety and essential performance – Collateral standard: Electromagnetic compatibility –
Requirements and tests
·IEC 80601-2-30:2009+A1:2013 Medical electrical equipment – Part 2-30: Particular
requirements for the basic safety and essential performance of automated non-invasive
sphygmomanometers.
·ANSI/AAMI/ISO 81060-2:2009 Non-invasive sphygmomanometers-Part 2:Clinical validation of
automated measurement type

Rev.A1
18
Blood Pressure Measurement Chart
Date Time SYS/DIA Pulse Remark Date Time SYS/DIA Pulse Remark
Guarantee Card
Product Model Product SN
Date of Purchase Distributor
Customer Name Tel
Address
Details of the faults:
Warranty Rule
·The unit of this product is guaranteed by PUMP for a period of 1year after the date of
purchase.
·The guarantee does not cover any of the following:
-- Risks of transport.
-- Damages caused by the operating environment which is not in accordance with the
product requirements.
-- Defects resulting from repair by unauthorized persons.
-- Damages caused by user whom disassemble or modify the structure of the unit and
damage the safety performance.
-- Product guarantee card is not accord with the serial number or the guarantee card is
changed
·This product is medical device, to ensure the accuracy of the product when using it, we
would like to continue to provide you with paid services after the guarantee periods.
SHENZHEN PUMP MEDICAL SYSTEM CO., LTD.
Certificate
Product Name: Arm Automatic Blood Pressure Monitor
Product Model: BF1204B
Inspector:

Rev.A1
19
Explanation of Symbols
Symbol for “batch code”
Symbol for “Date of manufacture”
Symbol for “manufacturer”
0123Symbol for “CE”
Symbol for “Follow operating instructions”
Symbol for “TYPE BF APPLIED PART”
Symbol for “electrical and electronic equipment”
IP21 Symbol for “Against ingress of solid foreign objects: ≥12.5mm diameter;
Against ingress of water with harmful effects: vertical dripping”
Symbol for “AUTHORISED REPRESENTATIVE IN THE EUROPEAN
COMMUNITY”
After-Sale Service
Manufacturing Enterprises：Shenzhen Pump Medical System Co., Ltd.
ADD: 2/F West, M-7 SinosteelBuilding, Maqueling Estate, Hi-Tech Industrial Park, Nanshan
District, Shenzhen 518057, China
Tel：[phone]
Fax：[phone]
Service Line：86-4006 755 009
E-mail：[e-mail]
Shanghai International Holding Corp. GmbH (Europe)
Address: Eiffestraße80, 20537 Hamburg, GERMANY
