Diamond Air DA425HA User manual

DA425HA: 99900682: i19980223
Model DA425HA
Air Compressor
(Dual Cooler - 10GPM)
(Replaces Model 1143)
IOWA MOLD TOOLING CO., INC.
BOX 189, 500 HWY 18 WEST, GARNER, IA 50438
TEL: [phone]
TECHNICAL SUPPORT FAX: [phone]
MANUAL PART NUMBER 99900682

DA425HA: 99900682: ii
PRECAUTIONS
Read before operating your compressor!
19980223
71393886
DANGER
EXPLODINGTANK WILL CAUSE
DEATH, SERIOUS INJURY
OR PROPERTY DAMAGE
● Drain air tank after each use to prevent
moisture build-up and corrosion which
leads to tank failure.
Assure that tank and compressor relief
valves work properly, and are at correct
pressure settings.
DO NOT modify or repair air tank.
NEVER drive vehicle with pressure in air
tank.
●
●
●

DA425HA: 99900682: iii
TABLE OF CONTENTS
PARA TITLE PAGE
GENERAL INFORMATION
INTRODUCTION 1-1
ORDERING INFORMATION 1-1
Section 1. SPECIFICATIONS
1-1. GENERAL 1-1
1-2. SPECIFICATIONS 1-1
Section 2. INSTALLATION
2-1. GENERAL 2-1
2-2. PTO AND PUMP INSTALLATION 2-1
2-2-1. PTO INSTALLATION 2-1
2-2-2. DRIVELINE AND PUMP INSTALLATION 2-2
2-3. COMPRESSOR INSTALLATION 2-2
Section 3. OPERATION
3-1. GENERAL 3-1
3-2. OPERATION 3-1
Section 4. MAINTENANCE & PARTS
4-1. GENERAL 4-1
Section 5. REPAIR
5-1. GENERAL 5-1
5-2. PISTON RING REPLACEMENT 5-1
5-3. OIL PUMP REPLACEMENT 5-2
5-4. CRANKSHAFT AND BEARING REPLACEMENT 5-2
5-5. CLUTCH REPLACEMENT 5-3
5-6. TROUBLESHOOTING 5-4
Section 6. RELAY BOARD OPERATION
6-1. INTRODUCTION 6-1
6-2. OPERATION 6-1
6-2-1. IGNITION “ON” 6-1
6-2-2. REMOTE STARTING THE VEHICLE 6-1
6-2-3. REMOTE ENGINE STOP 6-1
6-2-4. REMOTE ENGINE SPEED (FROM CRANE) 6-3
6-2-5. COMPRESSOR ENGINE SPEED CONTROL(COMPRESSOR ONLY) 6-3
6-2-6. ENGINE SPEED CONTROL(CRANE&COMPRESSOR USED SIMULTANEOUSLY) 6-3
6-3. INSTALLATION 6-7
LIST OF ILLUSTRATIONS
FIGURE TITLE PART NUMBER PAGE
B-1. PTO INSTALLATION 2-1
B-2. DRIVELINE AND PUMP INSTALLATION 2-2
B-3. COMPRESSOR MOUNTING HOLE DIMENSIONS 2-2
ROUTINE MAINTENANCE CHECKLIST 4-1
MOUNTING HARDWARE KIT 51712642 4-2
OPTION-RELAY BOARD KIT 51711092 4-3
COMPRESSOR ASSEMBLY WITH ENCLOSURE 51709571 4-3
DA425 AIR COMPRESSOR 51707079 4-5
OPTIONAL HYDRAULIC INSTALLATION KIT 91707052 4-8
OPTIONAL INSTALLATION KIT WITH CRANE 93710121 4-8
OPTION-AIR FILTER KIT 95709998 4-9
DRIVELINE MOUNTING OPTION 31701761 4-10
REPAIR KITS 4-10
CRANKCASE & CRANKSHAFT ASM 51705811 4-11
COMPRESSOR ASSEMBLY W/O COOLER 51712285 4-12
E-1. PISTON RING ORIENTATION 5-1
E-2. CYL HEAD TORQUE SEQUENCE 5-1
E-3. BEARING HOUSING TORQUE SEQUENCE 5-3
E-4. ROD ALIGNMENT 5-3
E-5. TROUBLESHOOTING CHART 5-4
F-1. BOTTOM VIEW OF RELAY 6-1
F-2. INTERNAL WIRING 6-1
F-3. RELAY BOARD-COMPONENTS & WIRING 6-2
F-4. IGNITION “ON” 6-4
F-5. REMOTE CONTROL HANDLE-TYPICAL 6-4
F-6. REMOTE STARTING OF VEHICLE-IGNITION “ON” 6-5
F-7. SPEED CONTROL-COMPRESSOR ONLY 6-6
F-8. RELAY BOARD (77041378) WIRING INSTRUCTIONS 6-7
19980223

DA425HA: 99900682: iv19980223

DA425HA: 99900682: 1-119950922
1-1. GENERAL
The IMT DA425HA air compressor is a single
stage, air cooled, 4-cylinder, pressure lubricated,
hydraulically driven unit, with a delivery rate of
25 CFM at 100 PSI.
CAUTION
OPERATING THE COMPRESSOR AT PRESSURES
ABOVE 150 PSI WILL SHORTEN THE SERVICE LIFE
AND VOID THE WARRANTY.
INTRODUCTION
This manual provides information on the
installation, operation and repair of the IMT Model
DA425HA Hydraulic Air Compressor.
Three means are used throughout this manual to gain
the attention of operating and service personnel.
They are NOTES, CAUTIONS and WARNINGS
and are defined as follows:
NOTE
A NOTE IS USED TO EITHER CONVEY ADDITIONAL
INFORMATION ORTOPROVIDEFURTHEREMPHASIS
FOR A PREVIOUS POINT.
GENERAL INFORMATION
TO BE COMPLETED BY DEALER
CHASSIS INFORMATION
TRANSMISSION MAKE:
PTO NUMBER:
COMPRESSOR MODEL:
PUMP MAKE:
RESERVOIR CAPACITY:
MODEL:
PTO %:
SERIAL NUMBER:
MODEL:
ENGINE RPM:
COMPRESSOR AND HYDRAULIC PUMP INFORMATION
CAUTION
A CAUTION IS USED WHEN THERE IS THE STRONG
POSSIBILITY OF DAMAGE TO THE EQUIPMENT OR
PREMATURE EQUIPMENT FAILURE.
WARNING
AWARNINGIS USEDWHENTHEREISTHEPOTENTIAL
FOR PERSONAL INJURY OR DEATH.
Operate this equipment with respect and service it
regularly for a safer working environment and
longer equipment life.
ORDERING INFORMATION
When placing orders or requesting assistance, refer
to the information below:
1-2. SPECIFICATIONS
Power Source Hydraulic Motor
Bore 2-5/8"
Stroke 2"
Cylinder Configuration V4
Dimensions 26"L x 18"H* x 18"W
Displacement 37.5 CFM*
Delivery 25 CFM*
Cooling Air
Fan Diameter 14"
Operating Speed 1400 RPM maximum
Lubrication Oil Pump
Oil Capacity 1-1/3 qts
Weight 200 lbs.
Reservoir requirement 12 Gallon minimum
* @ 1400 RPM - 100 PSI
SECTION 1. SPECIFICATIONS

DA425HA: 99900682: 1-219970206 NOTES

DA425HA: 99900682: 2-119930125SECTION 2. INSTALLATION

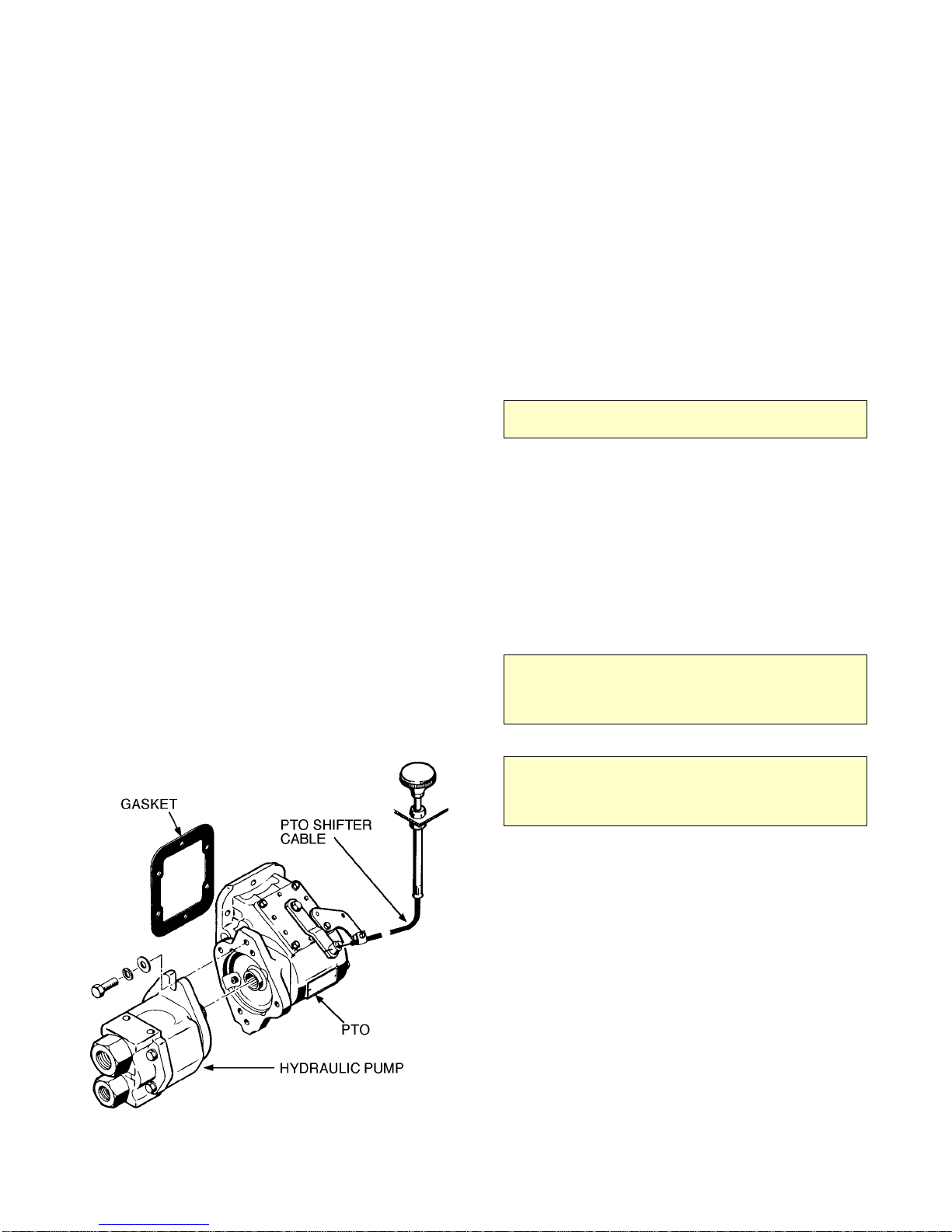

FIGURE B-1. PTO INSTALLATION
2-1. GENERAL
This section pertains to the installation of the IMT
DA425HA compressor, PTO and pump. The
instructions are intended as a guide to assist you with
your particular installation. These instructions will
provide only general information.
2-2. PTO AND PUMP INSTALLATION
The pump may either be installed directly on the
PTO (see Figure B-1) or, as an optional method, it
may be driven by a driveline (see Figure B-2).
2-2-1. PTO INSTALLATION
Power take-off manufacturers provide specific
installation instructions for their products. Those
instructions should be followed when installing a
PTO. Some trucks may require modification of the
transmission cross-member to provide clearance and
the exhaust pipe may need modification. Check with
the PTO manufacturer’s representative for specific
instructions regarding your particular make, model
and year of vehicle. The following instructions are a
guide in this application.
1. If the vehicle is new, drain the transmission oil
into a clean container for reuse. If the vehicle is
used, drain and dispose of the transmission oil
properly.
2. Temporarily install the PTO with the proper
gaskets and only two studs. Snug the PTO down and
check the backlash for maximum allowance of 1/32"
to 1/16". If the backlash is excessive, remove
gaskets and check backlash again until it is
corrected.
3. Remove the PTO and apply Permatex® to the
gaskets. If the holes for the studs are tapped through
the transmission housing, apply Permatex to the
studs and tighten them down. Make certain that the
studs do not interfere with the transmission gears.
CAUTION
AVOID CONTACT OF PERMATEX® WITH
TRANSMISSION FLUID.
4. Install the PTO and gaskets. Torque the nuts to
30 - 35 ft-lbs (4.14 - 4.84 kg-m) for a 6-bolt PTO
and 45 - 50 ft-lbs (6.22 - 6.91 kg-m) for 8-bolt
PTO’s. Recheck the backlash.
5. Install the shifter cable to suit conditions. Always
allow for a slight overshift on lever or knob to
ensure the PTO is fully disengaged.
CAUTION
IT IS IMPORTANT THAT ADEQUATE SPACE BE
ALLOWED FOR FULL ENGAGEMENT OF THE PTO.
MODIFY THE EXHAUST OR OTHER OBSTRUCTIONS
AS NEEDED.
CAUTION
AVOID SHARP BENDS IN THE SHIFTER CABLE. ALL
BENDS SHOULD HAVE AT LEAST A 6" RADIUS.
TIGHTERBENDS WILLCAUSEDIFFICULTOPERATION
OF THE SHIFTER KNOB.
6. Replace the transmission oil. If the PTO is
located below the transmission oil level, an
additional quantity of oil will be required.
7. Start the engine, engage the PTO and allow it to
run for 5 - 10 minutes. Check for leaks, unusual
noise and proper operation.
8. Retorque the mounting bolts.
® REGISTERED TRADEMARK OF PERMATEX CO.,
INC., KANSAS CITY, KANSAS

DA425HA: 99900682: 2-2
WARNING
THE INSTALLER OF THE DRIVELINE MUST INSPECT
THE FINAL POSITION OF THE DRIVELINE TO
DETERMINE WHETHER ITS LOCATION PROVIDES
SUFFICIENT PROTECTION TO AN OPERATOR, OR
OTHER PERSONNEL, FROM HAZARDSASSOCIATED
WITH A ROTATING DRIVELINE. IF PROTECTION IS
INSUFFICIENT, THE INSTALLATION OF A GUARD IS
REQUIRED. IF YOU ARE UNSURE OF METHODS TO
GUARD A ROTATING DRIVELINE, CALL IOWA MOLD
TOOLING CO., INC. FOR INSTRUCTIONS. FAILURE
TO DO SO MAY RESULT IN SERIOUS INJURY OR
DEATH.
19950922
2-2-2. DRIVELINE AND PUMP
INSTALLATION
The pump may be driven as shown in Figure B-2 as
an optional method to the one shown in Figure B-1.
The following steps are a guide in this application.
1. Install the PTO (refer to Paragraph 2-2-1).
2. Loosely bolt the pump mounting bracket (A) to
the adjustable bracket (B) in Figure B-2.
3. Bolt the adjustable bracket to the frame at a
point that will not exceed 48" (122cm) from the PTO
and will not cause a joint angle greater than 3°.
4. Check the pump rotation and install pump, pump
end yoke and PTO end yoke.
5. Size, cut and weld the driveline to the necessary
length. Ensure driveline balance. Allow 1"
(2.54cm) extra for PTO end yoke.
6. Install driveline, lock set screws and lubricate U-
joints.
7. Ensure all mounting bolts are tight.

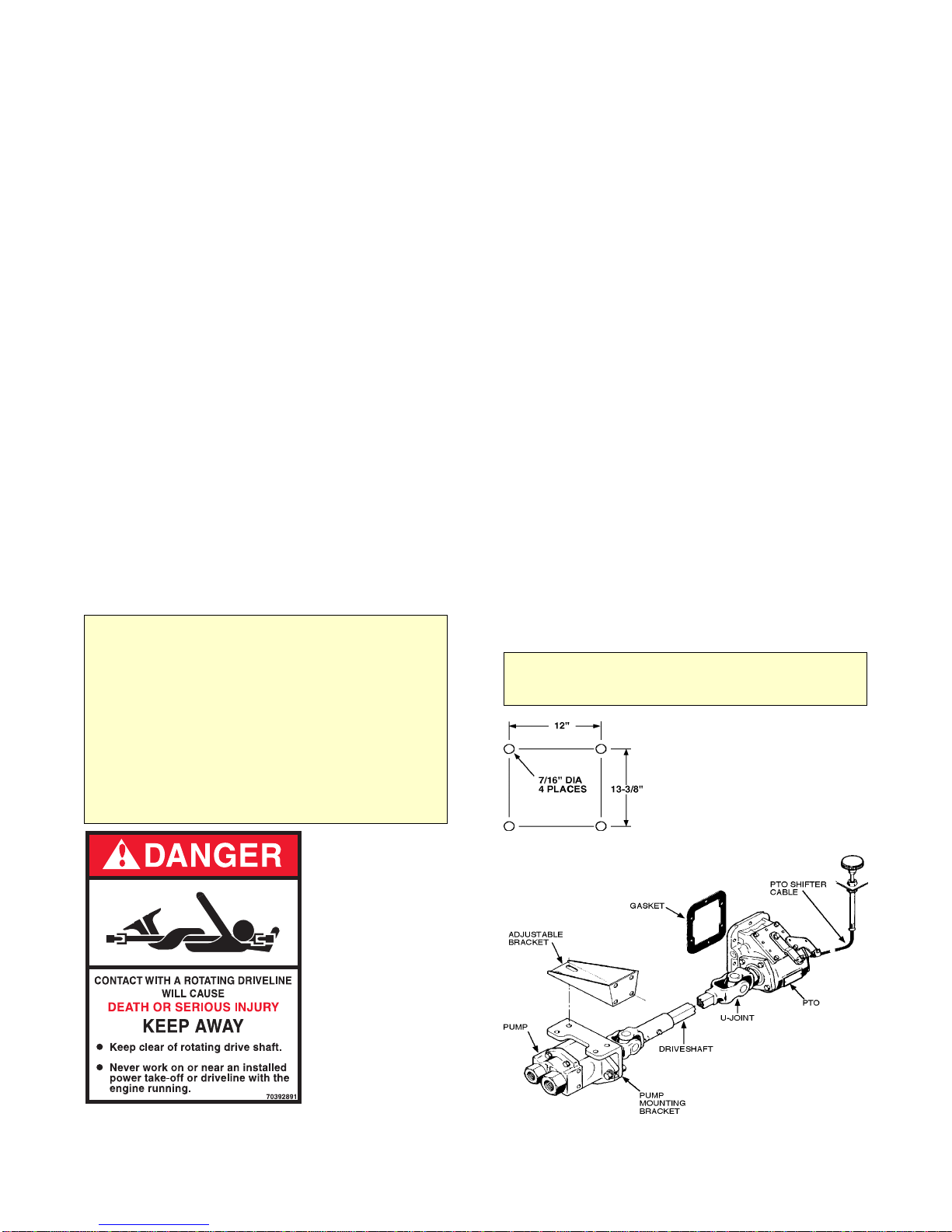

FIGURE B-2. DRIVELINE & PUMP INSTALLATION
2-3. COMPRESSOR INSTALLATION
1. Prepare the mounting location of the compressor
by locating and drilling four (4) holes, 7/16"
diameter, as shown in Figure B- 3.
2. Position the rubber bumpers on these holes and
lift the compressor into place.
3. Using the four (4) 3/8-16x2-1/2" cap screws and
3/8" wraught washers, secure the compressor in
place by inserting the cap screws from below the
mounting surface as shown in Figure D-1.
4. Electrical Connections:
A. Connect the black wire to the vehicle frame
or other suitable ground.
B. Mount the single throw toggle switch in a
convenient location. Connect the red wire from
the compressor switch. Connect the other
terminal of the switch to the fuse holder and then
to a 12-volt power supply as shown in Figure D-
1.
C. The blue wire is to be connected to the speed
control through a relay.
CAUTION
DAMAGE MAY OCCUR IF THE COMPRESSOR IS NOT
CONNECTED TOA SPEED CONTROL.

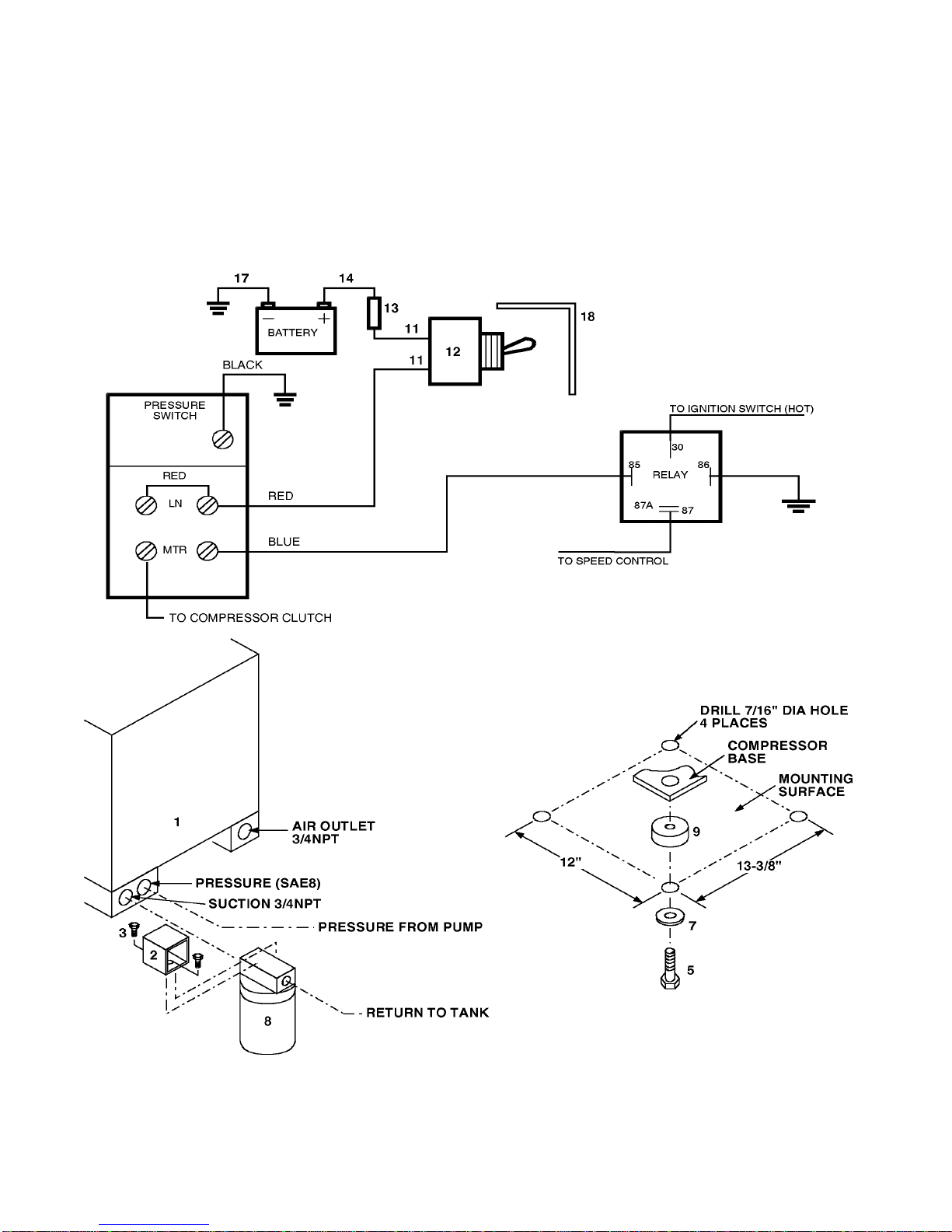

FIGURE B-3. MOUNTING
HOLE DIMENSIONS

DA425HA: 99900682: 3-119950922 SECTION 3. OPERATION
3-1. GENERAL
Each compressor is bench tested under load at the
factory to ensure proper break-in and operation.
While it is not necessary to follow any break-in
procedure, the following checks should be made
before putting the unit into service, as well as,
periodically during use.
1. Before start-up:
A. Check the oil level in the compressor
crankcase with the dipstick on the unit. If oil is
needed, use only IMT’s synthetic compressor oil.
B. Check the air intake filters on each
head to make certain that they are clean and
unobstructed. Dirty filters are a possible cause of
reduced air output.
2. With the compressor engaged:
Adjust engine speed to ensure that compressor
speed does not exceed 1400 RPM (max) under
load.
3-2. OPERATION
To use the compressor, start the vehicle engine and
engage the compressor by operating the compressor
switch.The system will now function automatically.
It will engage the compressor clutch when the air
pressure is below 120 psi, and disengage when the
air pressure reaches 150 psi.
NOTE
ON UNITS WITH MANUAL ENGINE SPEED CONTROL,
THE ENGINE RPM WILL INCREASE WHEN THE
COMPRESSOR CLUTCH DISENGAGES.
CAUTION
OPERATING THIS UNIT IN EXCESS OF 1400 RPM,
WILLVOIDTHEWARRANTY,ANDWILLSHORTENTHE
NORMAL SERVICE LIFE OF THE COMPRESSOR.

DA425HA: 99900682: 3-219930125 NOTES

DA425HA: 4-199900682: 19950922
4-1. GENERAL
The following table is a list of routine maintenance
items, including service intervals. It also includes
a parts list and assembly drawing of the
compressor.
Section 4. MAINTENANCE & PARTS
FIGURE D-1. ROUTINE MAINTENANCE CHECKLIST

DA425HA: 4-2
MOUNTING HARDWARE KIT (51712642)
ITEM PARTNO. DESCRIPTION QTY
1. 51709571 COMPRESSOR 10GPM(see dwg) 1REF
51709573 COMPRESSOR 8GPM (see dwg) 1REF
2. 60110673 FILTER BRACKET 2
3. 72060023 CAP SCR 5/16-18X3/4 HHGR5 4
4. 73052012 FILTER-HYD SUCTION 100-MESH 1
5. 72060050 CAP SCR 3/8-16X2 HHGR5 4
7. 72063003 WASHER 3/8 WRT 4
8. 73052000 FILTER 10-MICRON 1
9. 76391527 RUBBER BUMPER 4
51712642.01: 19940927 10. 77040048 BUTT CONNECTOR 16-14GA 2
11. 77040000 TERMINAL SPD #10 16-14GA 2
12. 77041345 TOGGLE SWITCH 1
13. 77041056 IN-LINE FUSE 20AMP 1
14. 89044233 CABLE 14GA BRN 24"
15. 89044371 CABLE 14GA 3WIRE 25’
16. 77040052 TERMINAL RING 3/8 12-10GA 1
17. 89044274 WIRE 14GA BLK 24"
18. 60103535 SWITCH BRACKET 1
19. 77044237 BULLET PLUG 18-14GA 3
20. 77044238 BULLET PLUG 18-14GA 3

DA425HA: 4-351709571.01: 19980106
OPTION-RELAY BOARD KIT (51711092)
ITEM PARTNO. DESCRIPTION QTY
77041378 RELAY BOARD 1
77041383 RELAY 8
77041100 FUSE 20AMP 1
72601576 SHT MTL SCR #10X1-1/2 4
99900661 INSTALLATION INSTRUCTIONS 1
ITEM PARTNO. DESCRIPTION QTY
1. 52709542 REAR COOLER MTG PLATE 1
3. 72053535 STREET ELBOW 3/4NPT 45° 3
4. 72053645 ADAPTER 3/4MP 3/4FPT SWVL 1
5. 72060046 CAP SCR 3/8-16X1 HHGR5 5
6. 72066000 HOSE CLAMP 1/2-1 1/4 #12 10
7. 60110273 CLUTCH-SGL GROOVE 1
8. 72532832 HOSE FITTING 3/4NPT 3/4HOSE 4
9. 77041369 PRESSURE SWITCH 1REF
11. 89392349 HOSE 3/4 300PSI X 7 1
12. 52707036 BASE 1
13. 70034293 PLUG 3/4NPT 2
14. 70394268 PLUG 1/2STR 1
15. 72053241 PIPE PLUG 1/4NPT HOLHEX 1
16. 72053243 PIPE PLUG 1/2NPT HOLHEX 1
17. 72060025 CAP SCR 5/16-18X1 HHGR5 12
18. 72063050 WASHER 5/16 LOCK 8
19. 72063002 WASHER 5/16 WRT 20
20. 76391173 GROMMET 1
21. 76393038 GROMMET 7/16 1
22. 51707079 COMPRESSOR (SEE DRAWING) 1
23. 70039124 TAG-SYNTHETIC OIL 1
24. 70143495 BREATHER CAP 1REF
25. 72053713 ELBOW 3/4MPT 3/4FPT 90° 1
26. 72053559 REDUCER BUSHING 1-3/4NPT 1
27. 72053819 PIPE CAP 3/8NPT 1
28. 72060048 CAP SCR 3./8-16X1-1/2 HHGR5 10
29. 72063051 WASHER 3/8 LOCK 9
30. 72531856 REDUCER COUPLING 3/4-1/2NPT 1REF
31. 72532555 HOSE FITTING 3/8 3/8 2
32. 89392426 HOSE 3/8 200PSI X 10 1
33. 52713082 FAN SHROUD 1
34. 89044232 WIRE 14GA RED X 3" 1
35. 60350008 HOSE 3/4 100R4 X 31" 1
36. 72531130 ELBOW 1/2STR 90° 1REF
37. 60350007 HOSE 3/4 100R4 X 17 1
38. 89044371 CABLE 14GA 3WIRE 24"
39. 72063003 WASHER 3/8 WRT 10
40. 72053720 ADAPTER 1/4MPT 1/8MPT 1REF
41. 70143157 TUBE ASM 1
42. 77040050 TERMINAL-SPD #10 STUD 6REF
43. 72053458 BARB NIPPLE 3/4NPT 3/4BARB 3
44. 89034176 TUBING 1/4 1REF
45. 72053559 REDUCER BUSHING 1-3/4NPT 4
46. 72531042 ELBOW 1/8-1/4NPT 90° BRASS 1REF
47. 72532358 ADAPTER 3/4MSTR 3/4MJIC 1
ITEM PARTNO. DESCRIPTION QTY
48. 72532360 ADAPTER 1-1/16MSTR 3/4MJIC 1
49. 72533116 ELBOW 3/4MPT 3/4BARB 2
50. 72533117 BARB NIPPLE 1
51. 73054583 RELIEFVALVE 1
52. 60350006 HOSE 3/4 100R4 X 4-1/2 1
53. 52706924 MOTOR MOUNT 1
54. 60015015 FAN 1
55. 60025506 CLUTCH ADAPTER 1
56. 60110379 MOTOR ADAPTER 1
57. 70143145 SPIDER 1
58. 72060030 CAP SCR 5/16-18X2-1/4 HHGR5 4
59. 72053556 ST ELBOW 3/4NPT 90° (part of 62) 1REF
60. 72062038 NUT 7/16-20 HEX ( PART OF 64) 1REF
61. 72062103 NUT 3/8-16 LOCK 6
62. 51713112 PRESSURE SWITCH ASM
(INCL:3,6,8,9,34,36,38,40,42,44,46,59,66,76-79) 1
64. 73051505 MOTOR 10GPM 1
65. 52713084 FRONT ENCLOSURE PANEL 2
66. 72532952 BRASS INSERT 2REF
67. 76392227 GROMMET 1
68. 72661301 POP RIVET .156 2
69. 70029117 IDENT PLACARD 1
70. 89086089 SYNTHETIC OIL 2QTS
71. 70143144 OIL COOLER 2
73. 72601652 MACH SCR 1/4-20X3/4 TRHORXSS 18
74. 72062109 NUT 5/16-18 LOCK 8
76. 51712189 CHECK VALVEASM 1REF
77. 89392349 HOSE 3/4 300PSI X9 1REF
78. 51711410 WIRE ASM 14GA BLK 6" 1REF
79. 77044467 3/16 BULLET RECEPT 16-14GA 1REF
80. 60119135 TOP ENCLOSURE 181.
60119137 PANEL-RH SIDE 1
82. 60119138 PANEL-LH SIDE 1
83. 76393107 O-RING (PART OF 76) 1REF
84. 60106933 CAP (PART OF 76) 1REF
85. 70029468 SHIM (PART OF 76) 1REF
86. 70073017 O-RING (PART OF 76) 1REF
87. 76393085 O-RING (PART OF 76) 1REF
88. 70029593 INSERT (PART OF 76) 1REF
89. 72066426 BALL (PART OF 76) 1REF
90. 72053404 PLUG (PART OF 76) 1REF
91. 72053405 PLUG (PART OF 76) 1REF
92. 89044274 WIRE 14GA BLK (PART OF 62) 1REF
93. 52712190 CHECK VALVE (PART OF 76) 1REF
DA425HA10 COMMPRESSOR ASM W/ENCLOSURE (51709571-1)
CONTINUED ON FOLLOWING PAGE

DA425HA: 4-451709571.02: 19980106
DA425HA10 COMMPRESSOR ASM W/ENCLOSURE (51709571-2)

DA425HA: 4-5

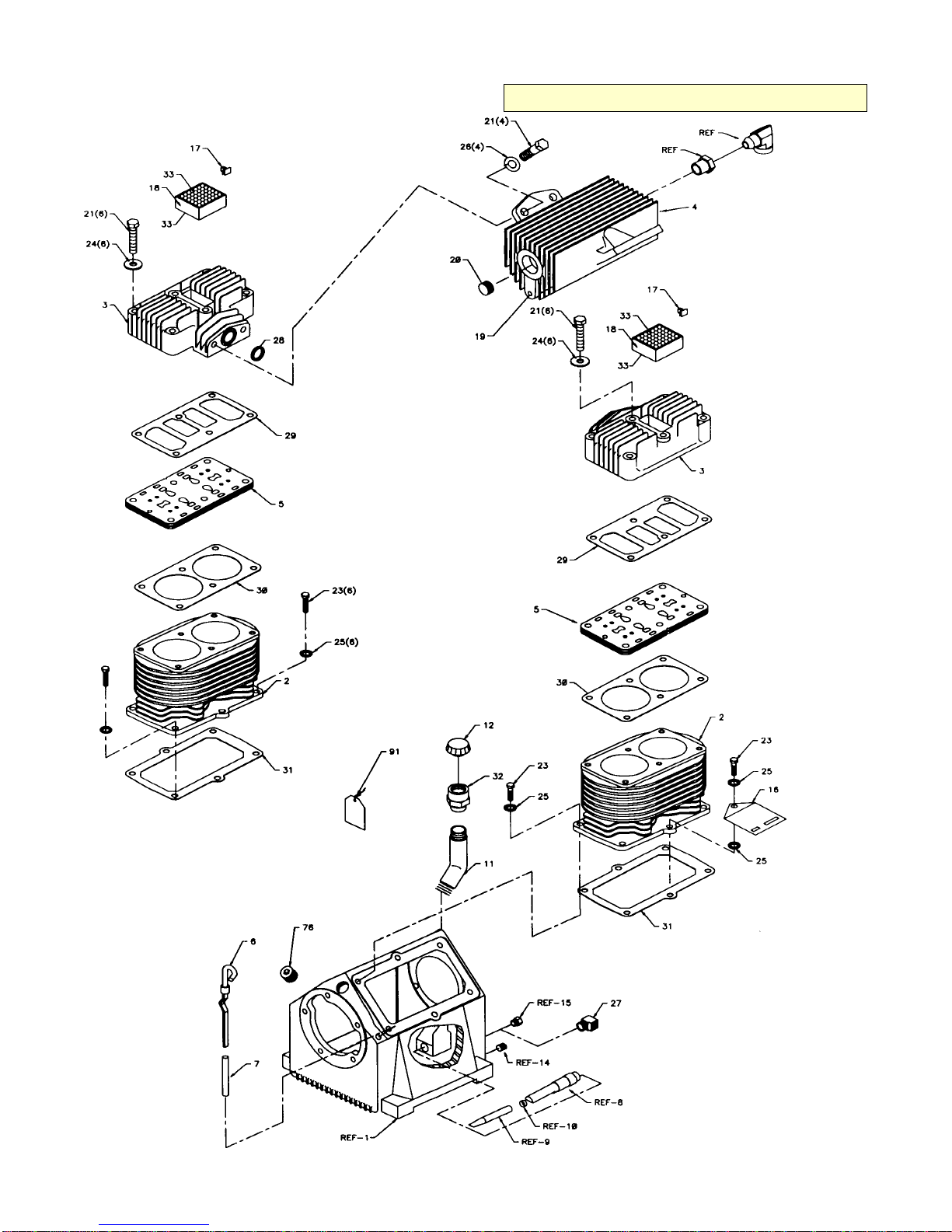

DA425HA AIR COMPRESSOR
(51707079-1)
ITEM PARTNO. DESCRIPTION QTY
1. 60025012 CRANKCASE (PART OF 83) 1REF
2. 60025010 CYLINDER BLOCK 2
3. 60025008 HEAD 2
4. 60025009 PULSATION TANK 1
5. 70073031 REED VALVEASM 2
6. 73731843 DIPSTICK ASM 1
7. 70143153 DIPSTICK TUBE 1
8. 60120238 OIL SCREEN TUBE (PART OF 83) 1REF
9. 60120289 OIL SCREEN (PART OF 83) 1REF
10. 72066008 OIL SCREEN CLAMP (PART OF 83) 1REF
11. 60101507 OIL FILL BREATHER PIPE 1
12. 70143495 BREATHER ASM (INCL:89,90) 1
13. 76393085 O-RING (PART OF 77) 1REF
14. 72053403 PLUG 3/8NPT SH (PART OF 83) 1REF
15. 72053413 PLUG 3/8NPT SQHD(PART OF 83) 1REF
16. 70039300 DECAL - COMPRESSOR PATENT 1
17. 70014626 CLIP-AIR FILTER 8
18. 76039141 FILTER-FOAM 2
19. 73054026 DRAIN COCK VALVE 1/8 1
20. 72053406 PIPE PLUG 1"NPT SH 1
21. 72060032 CAP SCR 5/16-18X2-3/4 HH GR5 12
22. 72060062 CAP SCR 7/16-14X1 HH GR5 4
23. 72060025 CAP SCR 5/16-18X1 HH GR5 12
24. 72063001 WASHER 1/4 WRT 12
25. 70024122 WASHER .33X.50X.03 12
26. 72063052 WASHER 7/16 LOCK 4
27. 72053590 STREET ELBOW 3/8 90° 1
28. 7Q072212 O-RING 2
29. 76039113 VALVE COVER GASKET 2
30. 76039114 CYL BLOCK TOP GASKET 2
31. 76039111 CYL BLOCK BOTTOM GASKET 2
32. 72531856 REDUCER COUPLING 3/4-1/2NPT 1
33. 76393802 FILTER SCREEN 4
38. 72053558 PIPE NIPPLE 3/4NPT X 2 1
39. 72053376 REDUCER BUSHING 1X3/4 1
45. 72661487 DRIVE PIN 1
47. 76039119 SEAL (PART OF 81) 1REF
48. 60025007 FRT BRG HSG (PART OF 81) 1REF
49. 70055011 BEARING-CUP (PART OF 81) 1REF
50. 70055012 BRG-FRT CONE (PART OF 84) 1REF
51. 60101271 CRANKSHAFT 1
52. 72066267 KEY #6 WOODRUFF 1
53. 70055009 CONE BEARING (PART OF 84) 1REF
51707079.01: 19970619
CONTINUED ON FOLLOWING PAGE
ITEM PARTNO. DESCRIPTION QTY
54. 60101269 OIL PUMP COLLAR (PART OF 84) 1REF
55. 72066307 ROLL PIN .16X.44 (PART OF 84) 1REF
56. 70055010 BEARING - CUP (PART OF 82) 1REF
57. 60025005 REAR BRG HSG (PART OF 82) 1REF
58. 70014583 SPRING 1
59. 60101505 PLUNGER TRANSFER BUSHING 1
60. 70051006 OIL PUMP 1
61. 60025006 REAR BRG HSG COVER 1
63. 72053411 PIPE PLUG 1/8NPT SQHD 2
64. 72060731 CAP SCR 5/16-18X3/4 SH
(PART OF 83) 5REF
65. 72060731 CAP SCR 5/16-18X3/4 SH 4
66. 51029296 CONNECTING ROD ASM 4
67. 70029062 PISTON (PART OF 88) 4REF
68. 70014627 PISTON PIN (PART OF 88) 4REF
69. 72066018 RETAINING RING(PART OF 88) 8REF
70. 70014600 OIL RING (PART OF 87) 4REF
71. 70014599 COMPRESSION RING (PART OF 87) 8REF
73. 76039093 PUMP COVER GASKET 1
74. 76039112 FRT BRG HSG GSKT(PART OF 83) 2 REF
75. 72063050 WASHER 5/16 LOCK 1
76. 72053404 PIPE PLUG 1/2 SH 1
81. 51705709 FRT BRG HSG ASM(INCL:47,49)
(PART OF 83) 1REF
82. 51705710 REAR BRG HSG ASM(INCL:56,57)
(PART OF 83) 1REF
83. 51705811 CRANKCASE /CRANKSHAFT ASM 1
84. 51704321 CRANKSHAFT(INCL:50,51,53-55) 1REF
85. 72063050 WASHER 5/16 LOCK (PART OF 83) 5 REF
86. 72060025 CAP SCR 5/16-18X1 HHGR5
(PART OF 83) 5REF
87. 51014947 RING SET-THREE (INCL:70,71) 1
88. 51029285 PISTON ASM 4
91. 70039124 DECAL-OIL FILL 1
92. PULLEY 1REF
93. 77044419 CLUTCH FIELD 1
94. 72066537 J-CLIP 2
95. 70732444 CLUTCH HARDWARE 1
101. 76039144 GASKET-REAR BRG .020 AR
76039143 GASKET-REAR BRG .015 AR
76039094 GASKET-REAR BRG .010 AR
76039092 GASKET-REAR BRG .006 AR

DA425HA: 4-6
DA425HA AIR COMPRESSOR (51707079-2)
51707079.02: 19980106
CONTINUED ON FOLLOWING PAGE

DA425HA: 4-751707079.03: 19970619

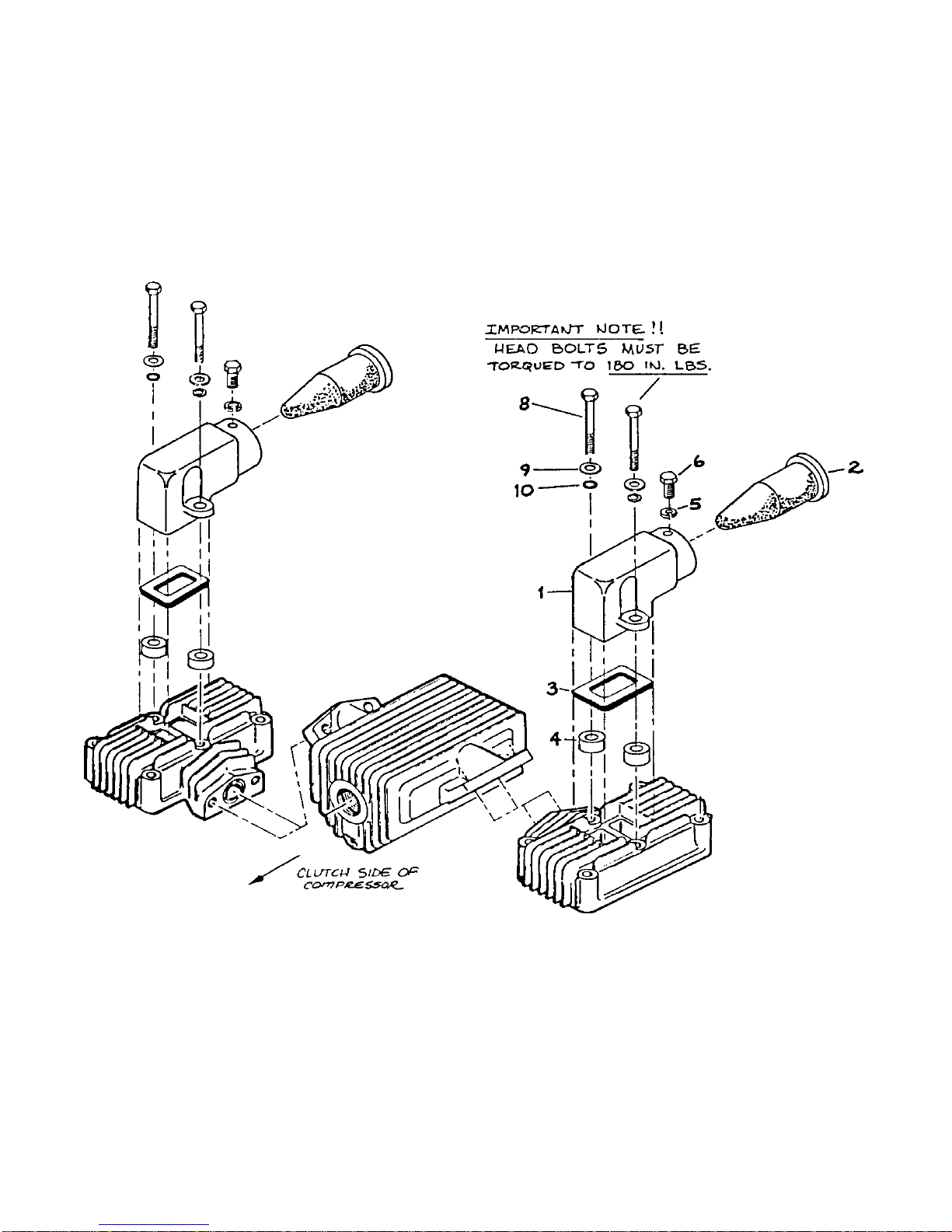

DA425HA AIR COMPRESSOR (51707079-3) CONTINUED ON FOLLOWING PAGE

DA425HA: 4-8
OPTIONAL HYDRAULIC INSTALLATION KIT (91707052)
OPTIONAL INSTALLATION KIT W/CRANE (93710121)
91707052.01: 19970707
ITEM PARTNO. DESCRIPTION QTY
1. 72531427 ELBOW 3/4NPT #12MJIC 1
2. 72053676 ADAPTER 3/4MPT #12MJIC 6
3. 51707317 HOSE ASM 3/4X100 1
4. 51703585 HOSE ASM 1/2X220 FF 1
5. 72053141 PIPE NIPPLE 3/4NPT X CLOSE 1
6. 73054129 GATE VALVE 3/4NPT 1
7. 73052000 RETURN FILTER 10-MICRON 1REF
8. 72053180 REDUCER BUSHING 1-1/4 3/4 1
9. 72532658 ELBOW #8MJIC #8FJIC(not shown) 2
10. 72053377 REDUCER BUSHING 1-1/4 1 3
11. 72431549 BARB NIPPLE 1MPT 1HOSE 3
12. 89039481 HOSE 1" 100R4 14’
13. 72066515 HOSE CLAMP 1" 2-BOLT 4
14. 73054001 GATE VALVE 1NPT 1
15. 72053185 PIPE NIPPLE 1NPT X CLOSE 1
16. 51706446 HOSE ASM 3/4X35 FF 1
17. 51709743 FILTER ASM 100-MESH 1REF
ITEM PARTNO. DESCRIPTION QTY
18. 72532712 BEAD NIPPLE #16MSTR 1" 45° 1
20. 51706981 HOSE ASM 1/2X35 1
21. 72532358 ADAPTER #8MSTR #8MJIC 1
22. 72532666 ELBOW #8MSTTR #8MJIC XLG 1
23. 51704576 HOSE ASM 3/4X72 FF 1
24. 51703945 HOSE ASM 3/4X17 FF 1
25. 72532696 ELBOW #12MJIC #12FJIC SW 1
26. 73054685 ROTARY FLOW DIVIDER(part of 31) 1REF
27. 72532358 ADAPTER (PART OF 31) 3REF
28. 72532376 HOSE FITTING (PART OF 31) 4REF
29. 72532695 TEE MJIC (PART OF 31) 1REF
30. 51711092 KIT-RELAY BRD (PART OF 31) 1REF
31. 93710121 INSTALLATION KIT W/CRANE
(INCL:26-30) 1REF
32. 72532672 UNION-BULKHD #8JIC 1
33. 72533371 UNION-BULKHD #12JIC 1
93710121.01: 19970707

DA425HA: 4-995709998.01: 19950922
OPTION-AIR FILTER KIT (95709998)
ITEM PARTNO. DESCRIPTION QTY
1. 70029546 BREATHER MANIFOLD 2
2. 70048117 AIR FILTER CONE 2
3. 76392274 GASKET 2
4. 60106236 SLEEVE 4
5. 72063049 WASHER 1/4 LOCK 2
6. 72060270 CAP SCR 1/4-28X1/2 HHGR5 2
8. 72060035 CAP SCR 5/16-18X3-1/2 HHGR5 4
9. 72063001 WASHER 1/4 FLAT 4
10. 70024122 WASHER .33X.50X.03 COPPER 4

DA425HA: 4-10
DRIVELINE MTG OPTION (31701761)
ITEM PARTNO. DESCRIPTION QTY
1. POWER TAKE-OFF REF
2. 70058146 ENDYOKE 1
3. 72060578 SET SCR 3/8-16X3/8 HH 1
4. 70058195 DRIVESHAFT ASM 1
5. 70058094 ENDYOKE 1
6. 60101988 MOUNTING BRACKET 1
7. 72063005 WASHER 1/2 WRT 4
8. 72060093 CAP SCR 1/2-13X1/2 HHGR5 4
9. 52703382 PUMP MOUNTING BRACKET 1
10. 72063053 WASHER 1/2 LOCK 8
11. 72062004 NUT 1/2-13 HEX 8
12 HYDRAULIC PUMP REF
13. 72060094 CAP SCR 1/2-13X1-3/4 HHGR5 4
31701761.01: 19950922
REPAIR KITS
GASKET KIT - 51039013
7Q072212 O-RING - CYL HEAD 2
76039092 GASKET-REAR BRG HSG .006 2
76039093 GASKET-PUMP COVER 1
76039094 GASKET-REAR BRG HSG .010 2
76039111 GASKET-CYL BLOCK BOTTOM 2
76039112 GASKET-FRT BRG HSG 2
76039113 GASKET-VALVE COVER 2
76039114 GASKET-CYL BLOCK TOP 2
76039119 SEAL 1
76039143 GASKET-REAR BRG HSG .015 2
76039144 GASKET-REAR BRG HSG .020 2
CHECK VALVE KIT - 51704358
7Q073017 O-RING 1
70029377 CHECK VALVE INSERT 1
70029468 SHIM .53 ID X .94 OD X .005 THK 1
72066426 BALL .594 DIA 1
76393085 O-RING 1
CLUTCH REPLACEMENT KIT - 51712861
60110273 CLUTCH 1
70732444 CLUTCH HARDWARE 1
72044419 CLUTCH ELECTRICAL FIELD 1
72063050 WASHER 5/16 LOCK 1
CRANKSHAFT KIT - 51070708
51705655 CRANKSHAFT ASM
(INCL: KEY & CRANK) 1
70055010 BEARING-REAR CUP 1
70055011 BEARING-FRT CUP 1
70055012 BEARING-FRT CONE 1
70055009 BEARING-REAR CONE 1
72066307 DRIVE PIN 1
60101269 OIL PUMP COLLAR 1
PISTON RING SET - 51014947
70014599 COMPRESSION RING 8
70014600 OIL RING 4
WARNING
THE INSTALLER OF THE DRIVELINE MUST INSPECT
THE FINAL POSITION OF THE DRIVELINE TO
DETERMINE WHETHER ITS LOCATION PROVIDES
SUFFICIENT PROTECTION TO AN OPERATOR, OR
OTHER PERSONNEL, FROM HAZARDS ASSOCIATED
WITH A ROTATING DRIVELINE. IF PROTECTION IS
INSUFFICIENT, THE INSTALLATION OF A GUARD IS
REQUIRED. IF YOU ARE UNSURE OF METHODS TO
GUARD A ROTATING DRIVELINE, CALL IOWA MOLD
TOOLINGCO., INC.FOR INSTRUCTIONS. FAILURETO
DO SO MAY RESULT IN SERIOUS INJURY OR DEATH.
