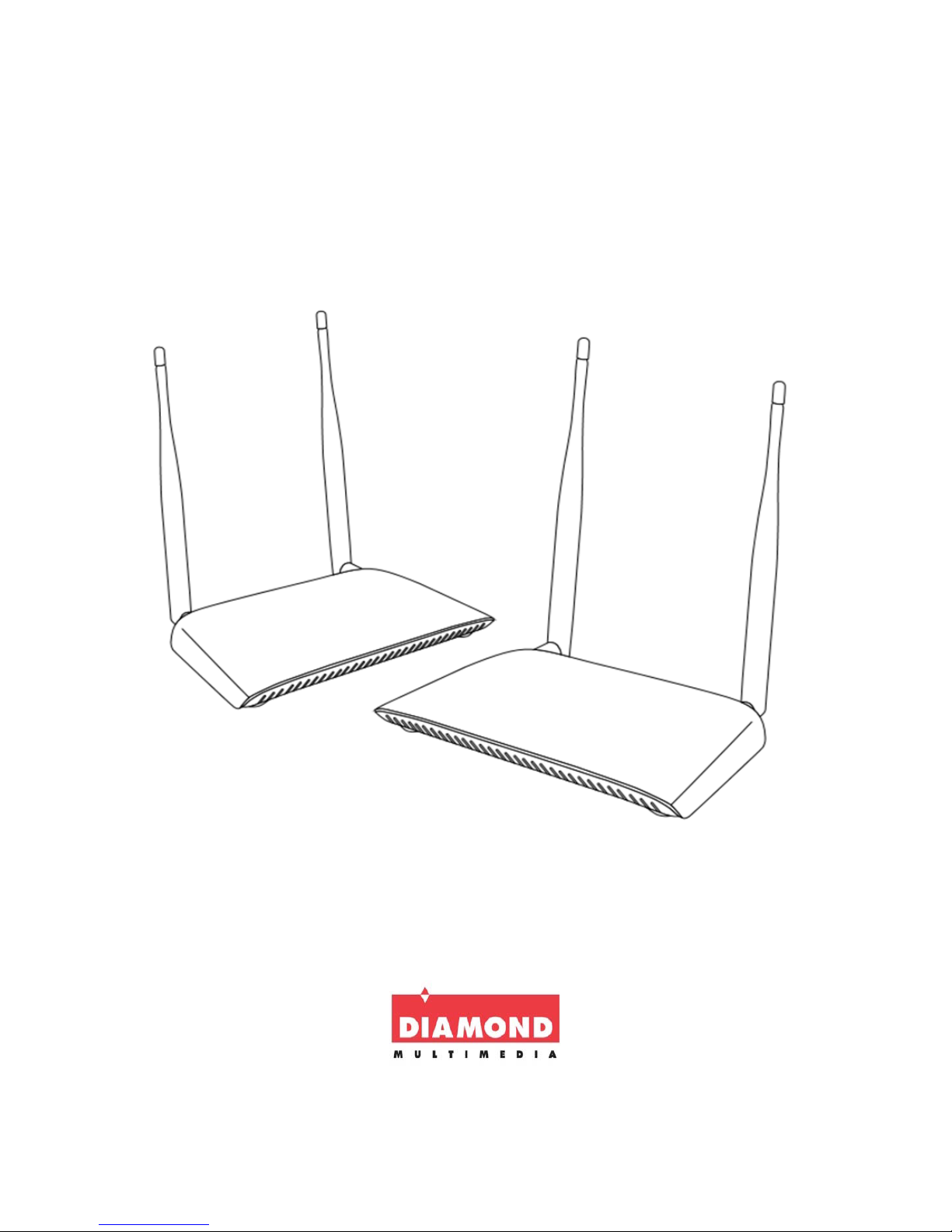

VS200VR Wireless Video Sender
User Guide
Please read this User Manual carefully to ensure proper use of this product

1
Safety Informaon
Safety is Important
To ensure your safety and the safety of others,please ensure you read the Safety
Informaon before you operate this product.
*Posion the cables so that they cannot be walked on or pinched by other items placed on
or against them.
*Do not use this product in humid or damp condions.
*Do not allow this product to get wet.
*Do not place water filled objects such as vases on top of this product.
*Do not place flame sources, such as candles on top of this product.
Cleaning
*Always unplug this product from the mains supply before you clean it.
*Do not use liquid or aerosol cleaners.
*This product should be cleaned with a so, barely damp cloth.
Venlaon
*The slots and openings on this product are for venlaon purposes. Do not cover or block
them as this could cause overheang.
*Never let children push anything into the slots or openings in the case.
Servicing
*There are nouser-serviceable parts in this product.
*If servicing is required, always refer to qualified service technician.
*Always consult the dealer if you are ever in doubt about the installaon, operaon or
safety of this product.

2
Table of Contents
Important Safety Instrucons ............................................................ 1
Table of Contents ................................................................................2
What’s included...................................................................................3
Overview ...........................................................................................4
Panel Illustraon ..............................................................................5-6
Connecon instrucon and Installaon........................................... 7-11
Technical Specificaon ...................................................................... 12
Trouble Shoong ........................................................................ 13-14
Contact.............................................................................................. 14

3

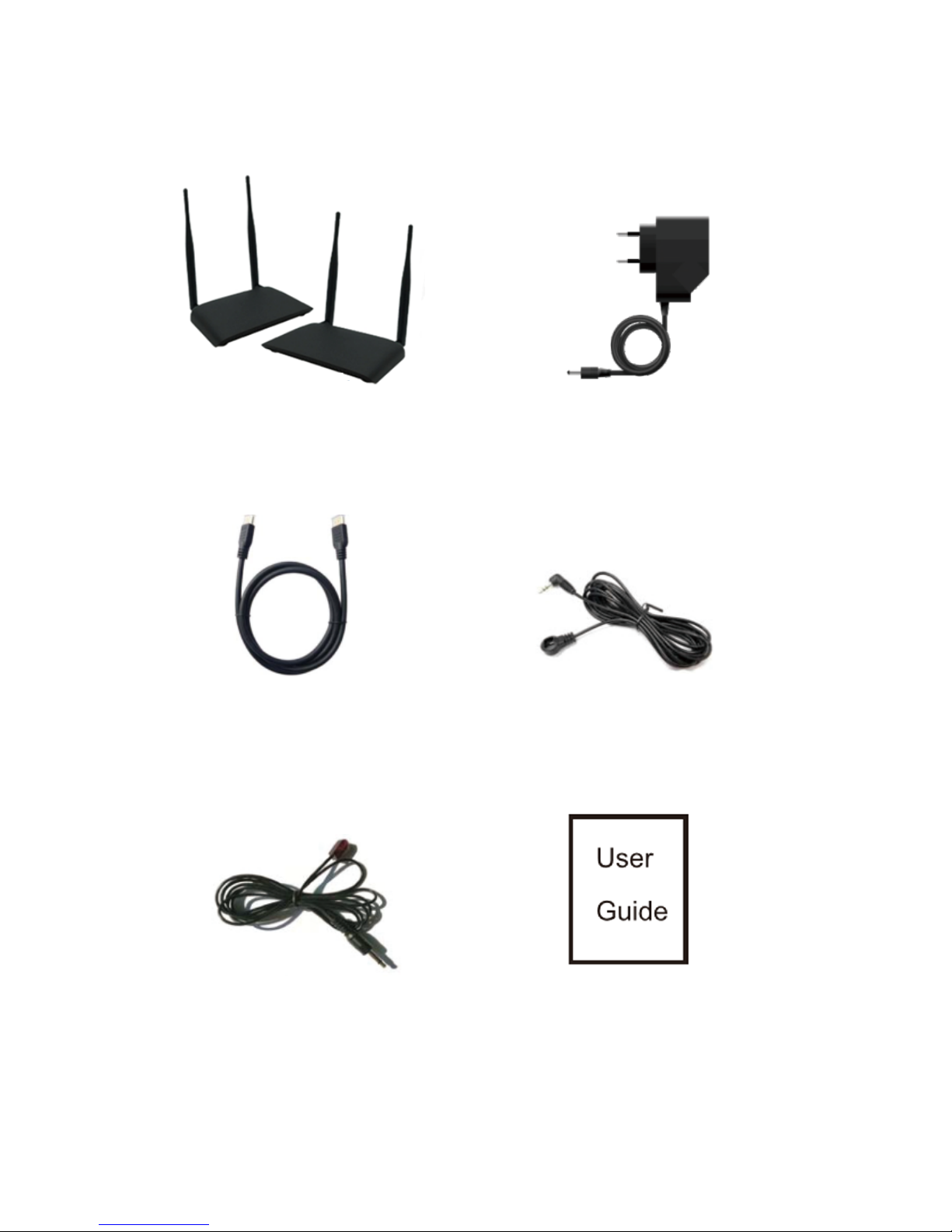

WHAT'S INCLUDED
VS200VR(TX/RX)
HDMI Cable x2 IR Emier Cable(ForTX)
IR Receiver Cable(For RX) Manual
AC/DC Adapter x2

4
OVERVIEW
VS200VR(TX) (TRANSMITTER)
VS200VR(RX) (RECEIVER)
VS200VR wireless video sender is a private protocol-based end-to-end
soluon for interacve, mul-room wireless display andhome video distribuon,
which allows end users to play any video remotely on another screen with no
discernable lag even if the deviceis located in adifferent room.
The product includes a Wireless HDMI Transmier (TX) box and wireless
HDMI receiver (RX) box. Wireless HDMI Transmier (TX) is a wireless HD streaming
device that can wirelessly send video from PC/DVD player/Set top box/game console
to other display. Wireless HDMI Receiver (RX) is a wireless HD streaming device that
can wirelessly receive video sent from TX.
The TX/RX compable with any device with a HDMI output, like set-top box,
DVD & Blu-Ray player, PC, game console. Etc.

5
PANEL ILLUSTRATION

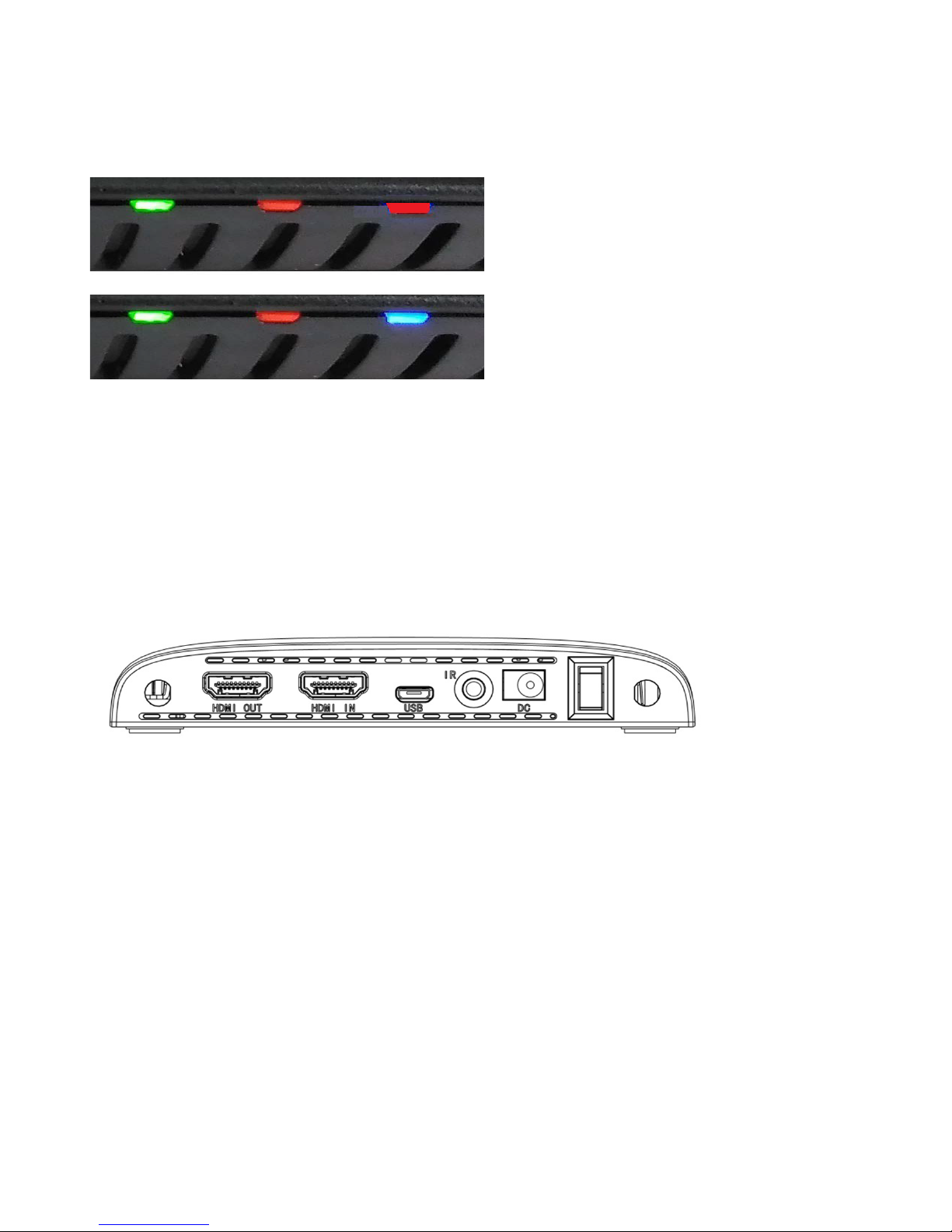

VS200VR(TX) front panel LED Indicators (from right to le)
Blue & Red light (Power indicator):redlight means power is offor abnormal,
blue light meanspower is on & HDMI video source is detected.
Orange (middle): Blinking means TX/RX are unpaired, stable orange light on when paired.
Green (WiFi indicator): Light on when WiFi works, flickering when data transferring.
VS200VR(TX) rear panelconnectors (from right to le)
ON/OFFswitch
POWER: DC in (5V,2.5A)
IR: IR signal extending funcon, to connect the IR emier cable
Micro USB: to connect Keyboard/mouse by USB (microUSB—USB Type A cable not included)
HDMI in: connect anyvideo source by HDMI (PC/DVD Player/receivers/gameconsole…)
HDMI out: connect to TV/display/monitor by HDMI
Green Orange
Green Orange
Red
Blue

6

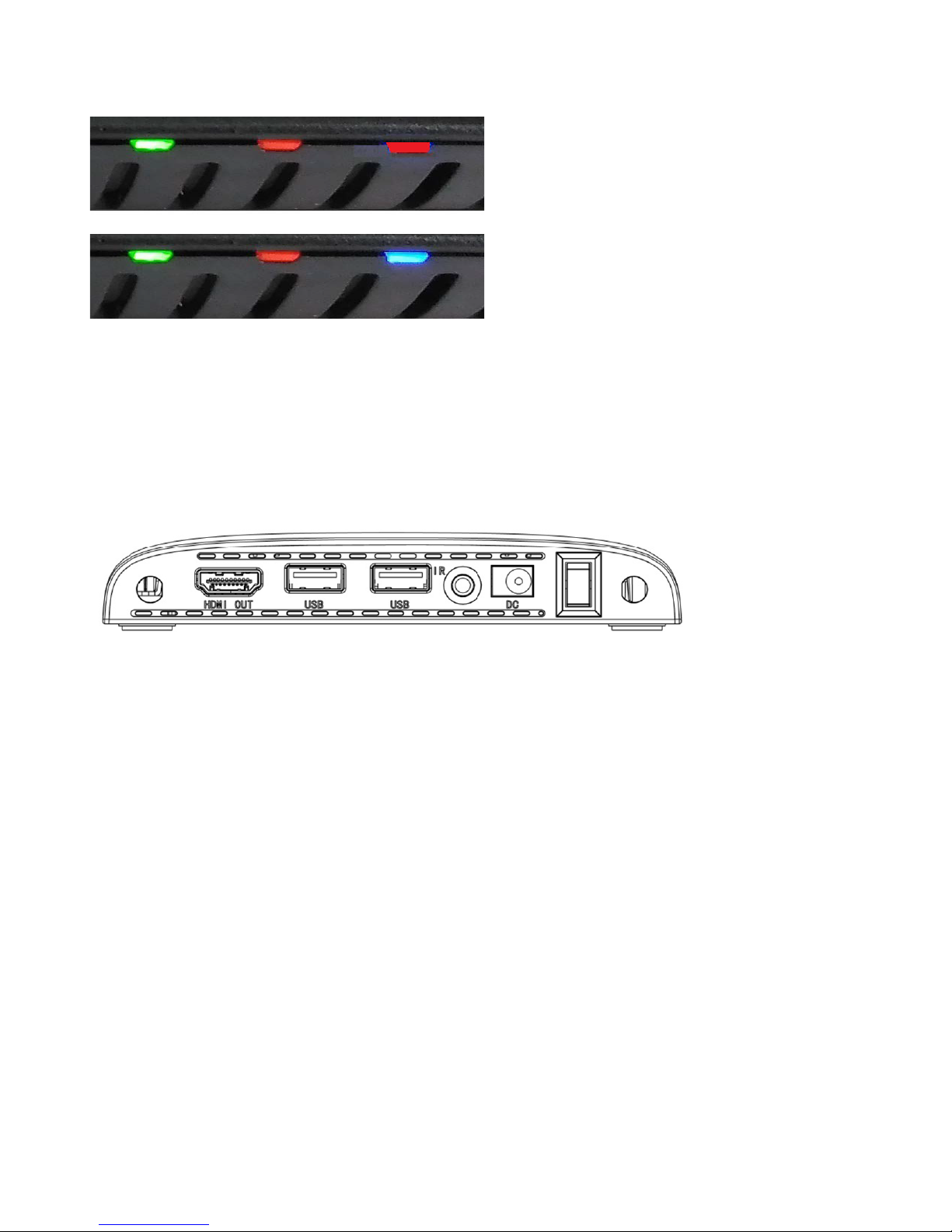

VS200VR(RX) front panel LED Indicators (from right to le)
Blue & Red light (Power indicator):redlight means power is offor abnormal,
blue light meanspower is on & HDMI video source is detected.
Orange (middle): Blinking means TX/RX are unpaired, stable orange light on when paired.
Green (WiFi indicator): Light on when WiFi works, flickering when data transferring.
VS200VR(RX) rear panelconnectors (from right to le)
ON/OFF switch
POWER: DC in (5V,2.5A)
IR: IR signal extending funcon, to connect the IR receiver cable.
USB: Keyboard/mouse signal extending funcon
HDMI out: connect to TV/display/monitor by HDMI
Green Orange
Green Orange
Red
Blue

7
CONNECTION INSTRUCTION
Install VS200VR(TX)
Step1: Connect the power adapter(5V, 2.5A) to TX and wall socket, press power switchto
"ON", the power LED light will turn on red.
Step 2: Connect video source (Receiver, DVD player,PC..) to TX(HDMI In) by HDMI cable
which comes with the package
Step3: Connect TX (HDMI out) to TV through HDMI cable.

8
Install VS200VR(RX)
Step1:Connect the power adapter(5V, 2.5A) to RX and wall socket, press power switch to
"ON", the power LED light will turn on red.
Step 2: ConnectRX (HDMI Out) to TV by HDMI cable which comes with the package
Step 3: Wait around 50 seconds, the video will be sent from TX to RX.
How to control the device in a different room by using remote control
1. Connect the IR emier cable with the TX IR jack, and sck the IR probe in front of the IR
sendor of the video source. (Please find the correct posion of IR sensor of the video source
or the IR signal won't pass through)
2. Connect the IR receiver cable with RX IR jack, and sck the IR probe on TV2.
3. Use the source device remote control aiming at IR receiver probe to control the
source device, the distance between this IR receiver probe and remote control should
be within 5m.

9
How to control the device in a different room by using mouse/keyboard
1. Connect the PC/Android TV Boxto TX byusing a micoUSB—USB Type A cable.
2. Connect the RX USB jack with a mouse or game controller (USB nano receiver)
3. Then you can use the mouse or game controller to control the PC in other room.
Using VS200VR(TX)to connect smartphone:
The TX can send video to any mobiledevice which has WiFi receiving ability
(Android and iOS devices). The APP installed could split the mobilephone screen into two
windows which works with Google Cardboard based VR glasses. So the users can watch
thevideo via VR glasses.
