Diamond Products CARBON SPOT 55 User manual

CARBON SPOT 55 & 55H
EXTRACTORS
OPERATOR'S MANUAL
IMPORTANT: READ OPERATOR'S MANUAL CAREFULLY
Please fill out & return your warranty card!
Diamond Products
www.diamondproductsus.com
Printed in the U.S.A.
DP81710 & DP81720

MACHINE SPECIFICATIONS:
Carbon Spot 55 Carbon Spot 55H
Pump 55 psi, oscillating 55 psi oscillating
Vacuum 2-stage, 90” lift, 97 cfm 2-stage, 90” lift, 97 cfm
Heater N/A 750 watt
Solution Tank Capacity 2.5 Gal 2.5 Gal
Recovery Tank Capacity 2 Gal 2 Gal
Vaccum Shut-off Ball Float Ball Float
Dimensions 28 -5/16”H X 11-1/8” W X
15-1/2” L 28-5/16” H X 11-1/8” W X 15-1/2” L
Weight 22 lbs 24 lbs
Warranty 2 year limited;
lifetime on body & heater 2 year limited; lifetime on body & heater
Warranty Information
Thank you for purchasing a Diamond Products US product. Warranty registration is quick and easy.
Your registration will allow us to serve you better over the lifetime of the product.
To register your product, email your warranty card information to:
[email protected]
Model:
Date of Purchase:
Serial Number:
Dealer:
Address:
Phone Number:
Sales Representative:
Diamond Products
-2-
Operator's Manual

WARNING!
To reduce the risk of personal injury or property
damage, follow these procedures:
• Connect to a properly grounded outlet only.
• Do not operate the machine in an explosive
environment.
•Do NOT use solvents.
• Never add water over 120º F/49 ºC to the
solution tank.
• Do not pick up anything that is burning
or smoking, such as cigarettes, matches,
or hot ashes, or any health endangering
dusts. Do not use to pick up flammable or
combustible liquids such as gasoline or use
in areas where they may be present.
The acceptable use of this machine is
for commercial/professional cleaning, for
example, in hotels, schools, hospitals, offices
and automobiles rather than for personal
housekeeping.
NOTE: Read all instructions before using this
machine. Improper use or misuse of the
machine can result in personal or property
damage.
• To avoid electric shock, do not expose to
rain or snow and keep from extremes in
temperature. Store
in a heated location.
Use the machine indoors. Do not use
outdoors.
• Do not use with damaged cord or plug. If
the machine is not working as it should,
has been dropped, damaged, left outdoors
or flooded with water, return it to a service
center.
• Do not use this machine to dry vacuum
before wet cleaning.
• Do not leave the machine unattended
when it is plugged in. Unplug the unit
from the outlet when not in use and before
servicing.
• Do not allow to be used as a toy. Close
attention is necessary when used near
children.
• Use only as described in this manual. Use
only the manufacturer’s recommended
attachments.
• Do not handle the plug, the cord, or the
machine with wet hands.
• Extension cords must be 14/3 and no
longer than 50 feet. Replace the cord
or plug immediately if the ground prong
becomes damaged.
• Do not put any object into openings. Do
not use with any opening blocked; keep
free of dust, lint, hair, and anything that
may reduce air flow.
• Keep loose clothing, hair, fingers, and all
parts of body away from openings and
moving parts.
• Liquid ejected at the spray nozzle could be
dangerous as a result of its temperature,
pressure, or chemical content.
CRITICAL SAFETY INFORMATION & CAUTIONS
READ ALL!
Diamond Products
-3-
Operator's Manual

YOUR NEW MACHINE:
Diamond Products US thoroughly tests every
machine it sells before it is packaged. When
you receive your new machine, examine the
packaging for signs of shipping damage.
Carefully unpack the machine and inspect it.
If you see evidence of damage to the
container or the contents, contact the
freight carrier immediately.
Additionally, ensure all parts and accessories are
present; if you notice anything missing, contact
your distributor without delay.
NORMAL USE:
The Diamond Carbon Spot 55 and Carbon
Spot 55Hare designed to clean small
areas like furniture, area rugs,
automobiles, and spots in carpets. These
machines are not suited for cleaning the
carpet in an entire room.
CHEMICALS:
The use of clear water in the machine is
recommended, with the use of properly diluted
cleaner applied as a pre-spray on the area to
be cleaned; however, you may mix water and
cleaning chemicals in a bucket -- according to
directions on the chemical label -- and then
pour into the solution tank. If you chose to
use chemicals in the machine, always use a
cleaner with a pH as close to neutral as possible
to avoid premature wear of the pump, seals,
and/or other components. Damage caused by
the use of strong chemicals is not covered by
the warranty.
The use of powder chemicals is discouraged;
unless they are mixed very thoroughly and
rinsed out completely at the end of the job,
powdered cleaners could cause a build-up in the
pump, lines, heater and/or quick disconnects.
Any problem caused by a chemical build-up is
not covered by warranty.
If foaming occurs as you clean, use a defoamer,
either in the recovery tank or on the area being
cleaned, to prevent overflow which can cause
water damage.
TOOLS & ACCESSORIES:
Use only manufacturer’s recommended tools
and accessories. The hand tool is made
from stainless steel and will provide years of
trouble-free use. If the spray valve begins to
leak or if the spray tip gets worn and is no
longer providing a nice even spray pattern,
order a replacement part from your distributor.
The solution line and vacuum hose are made
of durable and long-lasting components and,
with proper care, they both should last for
years. Use a spray silicone to keep the quick
connect couplings moving freely.
CARE & MAINTENANCE:
For optimum performance flush the machine
with clear water at the end of each working
day. Once a month, minimum, run a flushing
compound through the machine to break up
any mineral or chemical build-up that may have
formed from the use of hard water or chemicals.
The vacuum motor and the pump do not require
any scheduled maintenance; however, the
vacuum motor may require replacement brushes
after 700 - 1000 hours.
To help maintain a professional image, clean the
body with an all purpose detergent, and protect
it with automobile interior polish. Lubricate the
wheels, castors, and quick disconnects with an
all purpose, silicone spray.
Diamond Products
-4-
Operator's Manual

Figure 1
Switches
Motor
Compartment
Caster
Recovery
Tank
Latch
Solution
Tank
Handle Vac Hose
Goes Here
Vac Inlet
Filter
Recovery
Tank Latch
Solution
Fill Hole
Solution Hose
Goes Here
VIEWS OF MACHINE
Diamond Products
-5-
Operator's Manual

Figure 2
1. Inspect the machine, hoses and tool for
cleanliness and readiness for use.
2. Release the two latches, grasp the
handle on top of the recovery tank, and
pull the recovery tank up (Figure 1) and
off the solution tank. Set the recovery
tank aside.
3. Fill the solution tank with up to 2 gallons
of clean, warm water. NOTE: do not use
water with a temperature exceeding
120° F (49° C) in the solution tank.
CAUTION: do NOT use solvents. The
Diamond Carbon Spot 55Hhas a built-in
heater that will supply continuous hot
water at the spray tip.
4. Replace the recovery tank back onto the
solution tank and secure both latches.
5. Connect the solution hose to the quick
coupling on the machine and connect
the other end of the solution hose to
your cleaning tool. Push the vacuum
hose onto the vacuum inlet port on the
machine’s recovery tank and the other
end onto the tool.
6. Plug the power cord into a properly
grounded outlet.
7. Turn on the pump (Figure 2, set the
switch to the right to turn on both
the pump and the vacuum and to
the left to turn on only the vacuum.
Middle position is off) and spray
through your cleaning tool and heater
for a few seconds to fill the lines with
water, then turn the switch off.
8. Diamond Carbon Spot 55Honly - Turn
on the heat switch (Figure 2) to allow
the heater two minutes to reach
operating temperature.
9. Pre-spray the area to be cleaned with a
high quality, non-foaming cleaner
mixed to product specifications.
NOTE: if foaming occurs, use a
defoaming agent to prevent damage to
electrical components. Water damage is
not covered by the warranty.
10. Turn on both the pump and vacuum
(Figure 2).
11. Begin cleaning. NOTE: the machine has
a suction shut-off float in the recovery
tank to prevent over-flow. If the suction
stops, turn off the machine, remove and
empty the recovery tank.
12. When the job is finished, empty the
recovery tank and rinse it clean. Remove
any remaining liquid from the solution
tank.
SET-UP AND OPERATING INSTRUCTIONS
Switches
Vac &
Pump
Vac
Heater
non
heated
models
have a
plug here
Diamond Products
-6-

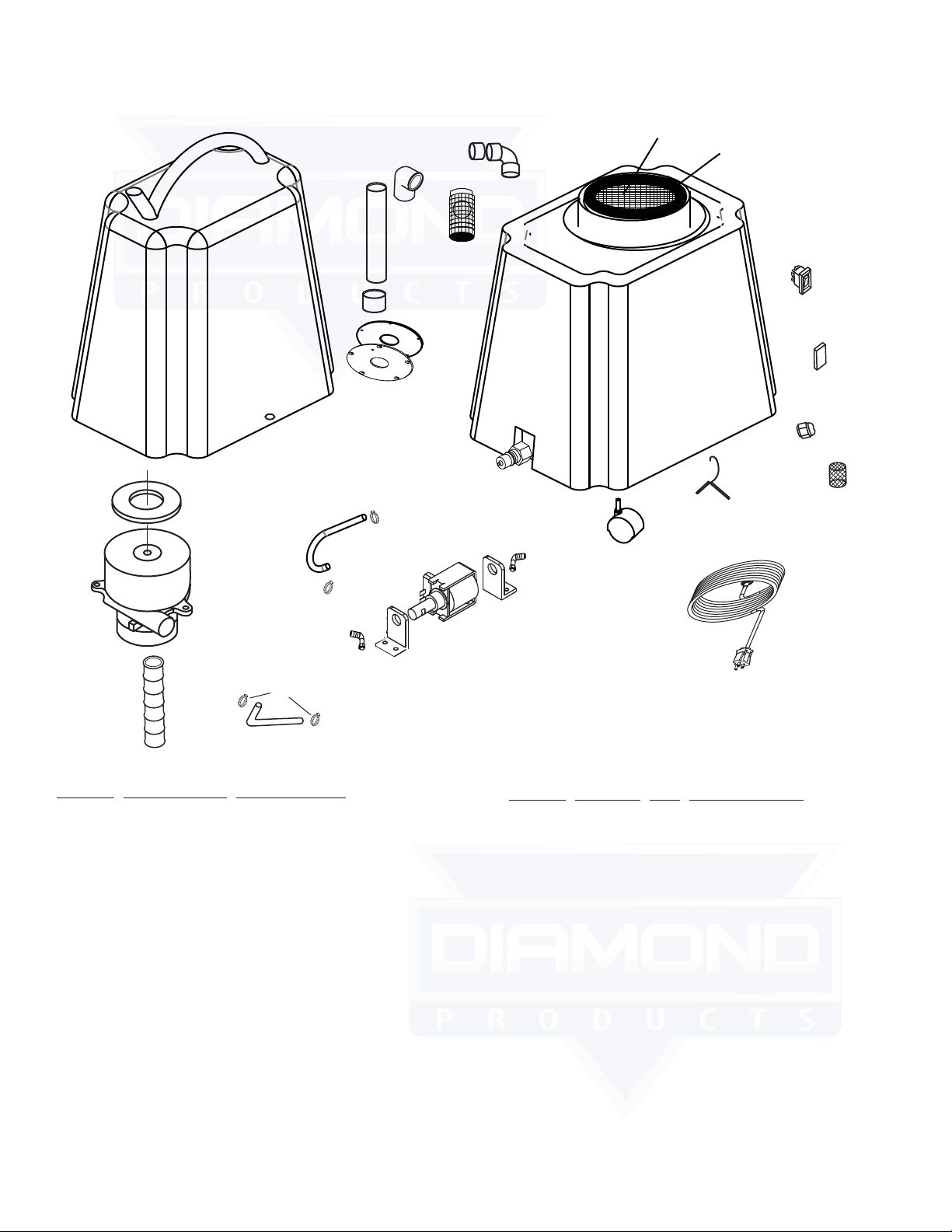

Operator's Manual

33
1
2
34
5
6
7
8
9
10
11
12
40
14
15
16
17
18
24
30
31
32
31
32
27
34
36
37
1 71-00107 1 Tank, recovery, Spotter
2 71-00108 1 Tank, solution, Spotter
3 80-00206 1 Pipe, 1“ X 6.5” PVC
4 80-00039 1 Elbow, 90 degree, PVC
5 80-00220 1 Bushing, 1’“x 1.5” PVC
6 80-00039 1 Elbow, ABS
7 80-00162 1 Ball oat
8 80-00207 1 Coupling, slip t, PVC
9 80-00219 1 Gasket, ball oat plate
10 80-00179 1 Plate, ball oat mounting
11 80-00246 1 Screen, vac inlet, 5”
12 80-00215 1 Gasket,
13 40-00170 2 Hose clamp
14 50-00004 1 Switch, rocker, vacuum & pump
15 50-00034 1 Plug
16 80-00175 1 Cord retainer, for power cord
17 80-00183 1 Filter, pump inlet
18 80-00135 2 Latch
24 50-00002 1 Power Cord, 25 ft
25 80-00227 1 Hose, black, 8”
26 80-00231 1 Hose, Red, measure for length
27 40-00044 4 Hose clamp
30 60-00007 1 Pump, 55 psi
31 80-00163 2 Bracket, pump mounting
32 80-00225 2 Hose barb/elbow, nylon
33 80-00231 1 Hose, red 14.5“
34 80-00120 1 Hose, 2” X 13”, wire supported
35 80-00051 1 Quick disconnect, male
36 51-00002 1 Vac motor, 120V
37 80-00182 1 Gasket, vac motor
40 80-000136 4 Caster
26
Item No. Part No. QTY Description Item No. Part No. QTY Description
35
Carbon Spot Extractor
Diamond Products
-7-

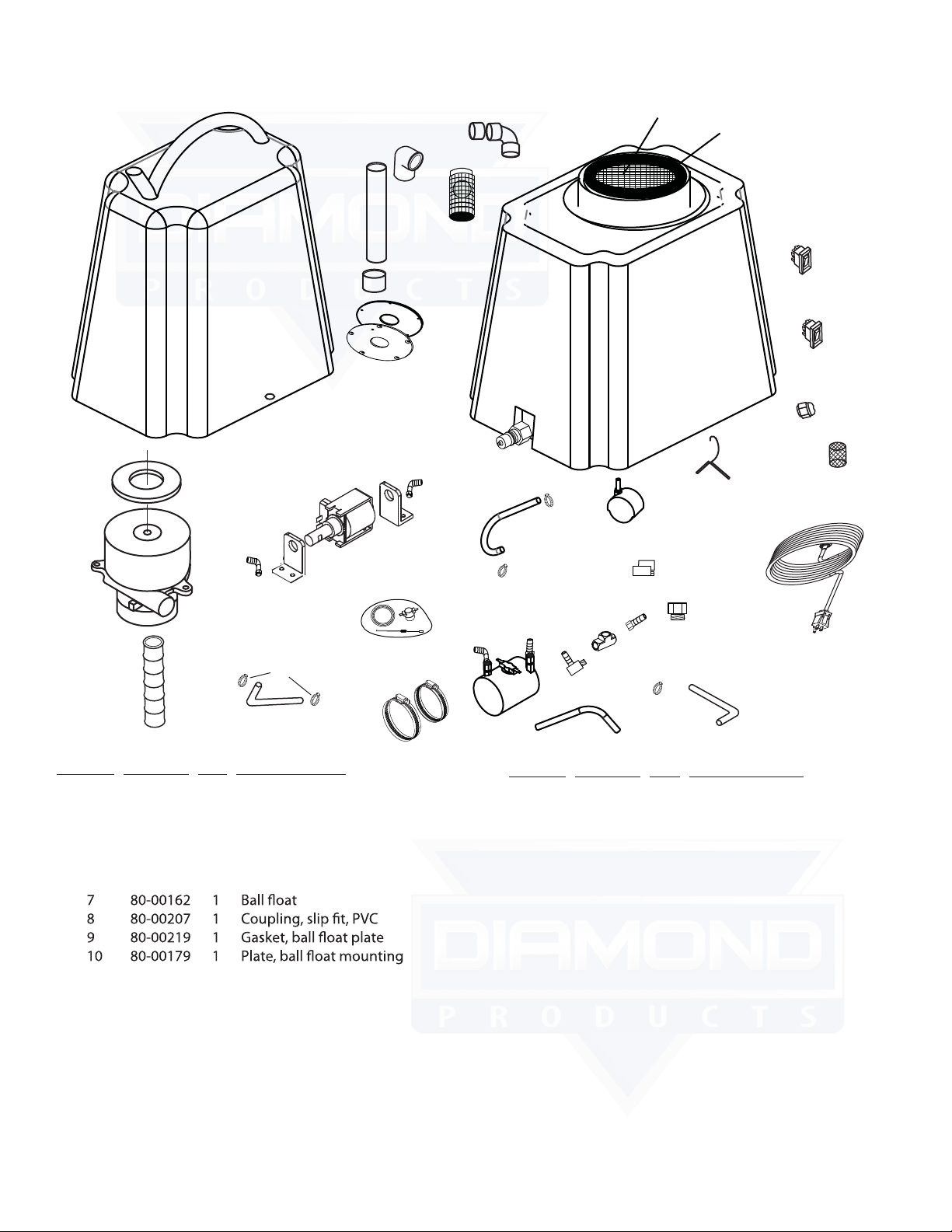

Operator's Manual

26
33
1
2
34
5
6
7
8
9
10
11
12
40
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28A 28B
29
30
31
32
31
32
27
34
36
37
1 71-00107 1 Tank, recovery, Spotter
2 71-00108 1 Tank, solution, Spotter
3 80-00206 1 Pipe, 1“ X 6.5” PVC
4 80-00039 1 Elbow, 90 degree, PVC
5 80-00220 1 Bushing, 1’“x 1.5” PVC
6 80-00039 1 Elbow, ABS
11 80-00246 1 Screen, vac inlet, 5”
12 80-00215 1 Gasket,
13 40-00170 2 Hose clamp
14 50-00004 1 Switch, rocker, vacuum & pump
15 50-00003 1 Switch, rocker, heat
16 80-00175 1 Cord retainer, for power cord
17 80-00183 1 Filter, pump inlet
18 80-00135 2 Latch
19 50-00046 1 Switch, low pressure detection
20 80-00223 1 Bushing, brass
21 80-00226 1 Hose barb, brass
22 80-00236 1 “T”, brass
23 80-00221 1 Elbow, hose barb
24 50-00002 1 Power Cord, 25 ft
25 80-00227 1 Hose, black, 8”
26 80-00238 1 Hose, blue, measure for length
27 40-00044 6 Hose barb
28 70-00010 1 Heater, complete
28A 80-00193 1 Hose barb/elbow, brass
28B 80-00234 1 Hose barb, brass
29 30-00069 1 Heat repair kit
30 60-00007 1 Pump, 55 psi
31 80-00163 2 Bracket, pump mounting
32 80-00225 2 Hose barb/elbow, nylon
33 80-00231 1 Hose, red 14.5“
34 80-00120 1 Hose, 2” X 13”, wire supported
35 80-00051 1 Quick disconnect, male
36 51-00002 1 Vac motor, 120V
37 80-00182 1 Gasket, vac motor
40 80-000136 4 Caster
26
Item No. Part No. QTY Description Item No. Part No. QTY Description
13
35
Diamond Products
-8-
Operator's Manual
Carbon Spot 55H Extractor

79-00003
80-00051
80-00244
80-00245
30-00074
80-00203
80-00009 80-00009
Detail Tool
Detail Tool Hoses
Diamond Products
-9-
Operator's Manual

WARRANTY
This warranty covers the Diamond Carbon Spot 55 and Carbon Spot 55Hagainst
defects in material or workmanship. The warranty is not transferable and is extended
to the original owner, only. This warranty extends for the following time frames/
components/labor, as stated:
• Lifetime from the date of purchase on the plastic housing;
• Two (2) years from the date of purchase on the parts and labor (items that wear with use,
such as filters and seals, are expressly excluded from this warranty).
If a defect in material or workmanship occurs within the warranty period stated above, Diamond
Products US will, at its discretion, repair or replace the defective component at no charge.
This warranty does not cover or apply to damage caused by direct or indirect misuse, abuse,
disassembly, alteration, corrosive chemicals, extremes in temperatures, improper
voltage, inadequate extension cords, fire, flood, negligence, accident, improperly or incorrectly
performed maintenance or repair, failure to perform necessary or recommended maintenance or
repair as stated in the owner’s manual or elsewhere, the use of incorrect filters or lack of filters,
or if the use of this product in not in compliance with the instructions and specifications for use.
Damage is not covered by the product warranty. This warranty does not cover filters. All implied
warranties are limited to the warranty period stated above.
OTHER THAN THE WARRANTIES PROVIDED HEREIN, DIAMOND PRODUCTS US MAKES NO
EXPRESS OR IMPLIED ORAL OR WRITTEN WARRANTIES WITH RESPECT TO THIS PRODUCT OR
THE WORKMANSHIP OF IT, AND ALL WARRANTIES IMPLIED BY LAW, INCLUDING ANY
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO THE DURATION OF THIS WARRANTY. Some states do not allow limitations on how
long an implied warranty lasts, so the above limitations may not apply to you.
DIAMOND PRODUCTS US SHALL IN NO WAY BE LIABLE FOR INJURIES TO PROPERTY OR FOR
INJURY OR DEATH TO PERSONS, OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR
CONSEQUENTIAL DAMAGE ARISING FROM USE OF OUR PRODUCTS. Some states do not allow
the exclusion or limitations of incidental or consequential damages, so the above
limitations or exclusions may not apply to you.
In order to be eligible for service under the warranty, you must do each of the following:
(a) return the warranty registration card (attached) within thirty (30) days of purchase;
(b) write or call for a Returned Material Authorization (RMA) number;
(c) have the serial number of the equipment and the original proof of purchase available.
Contact us at Diamond Products US, [e-mail]
Upon receipt of the product, Diamond Products US will complete an inspection, without
charge, and contact you within 72 business hours to relay the results of our inspection. If our
inspection uncovers a defect, we will repair or replace the part, at our discretion. If the
product fails because of defect or poor workmanship, Diamond Products US will pay for the
cost of shipping the product to Diamond Products US and back to you. If, through our
inspection, we determine that there is no defect in the product, or that the problem resulted
from causes not within the scope of this warranty, the product will be repaired or replaced
only at owner’s request and expense. The owner will pay all shipping costs.
This warranty gives you specific legal rights, and you may have additional rights that
vary from state to state.
Diamond Products
-10-
Operator's Manual

ALWAYS UNPLUG THE MACHINE BEFORE
DISCONNECTING OR CONNECTING ANY
WIRES OR COMPONENTS.
SYMPTOM POSSIBLE CAUSE
No spray
solution tank is empty;
solution hose is not completely connected to machine & tool;
spray tip on tool is plugged;
pump is not running;
pump inlet f lter is dirty or plugged;
Pump not running
no power to pump;
• check outlet for power;
• power to cord or switch is bad;
Low suction
recovery tank not sealed;
damaged vacuum gasket;
dirty vacuum inlet screen;
recovery hose loose or cracked;
No suction
recovery tank is full;
vacuum motor not running;
• check outlet for power;
• power cord is bad;
• bad switch;
• bad vac motor;
TROUBLESHOOTING
Always use original equipment replacement parts.
Contact your distributor for additional information or to arrange for service.
Diamond Products
-11-
Operator's Manual
