Diamond VC600 User manual

VC600 V1.0
VC600 Quick Installation Guidance
Introduction
The VC600 is designed for capturing video from almost any source
such as your Camcorder, VCR and or DVD player (any device that
outputs video through S-Video or composite can be connected to the
VC600).
Features:
 Small form factor USB stick
 Automatically capture and then burn to DVD with one easy step
 Edit and burn your videos to DVD, VCD and SVCD
 Use on your desktop or note book
 Hand held device allows easy record options using the one touch
button
 Supply multi-video and S-video inputs.
System requirement
Intel or AMD CPU 1.4 GHz or higher
256 MB System RAM
Available USB 2.0 port
VGA card supports DirectX9.0
CD-ROM (for installation) DVD reader/Writer for DVD burning
1GB HD space 600MB to 3GB per hour for recording
Microsoft Windows XP with service pack 2, Microsoft Vista
Contents
VC600 capture device
AV cable 3-3
Driver and Application CD
VC600 QIG
- Page 1 -

VC600 V1.0

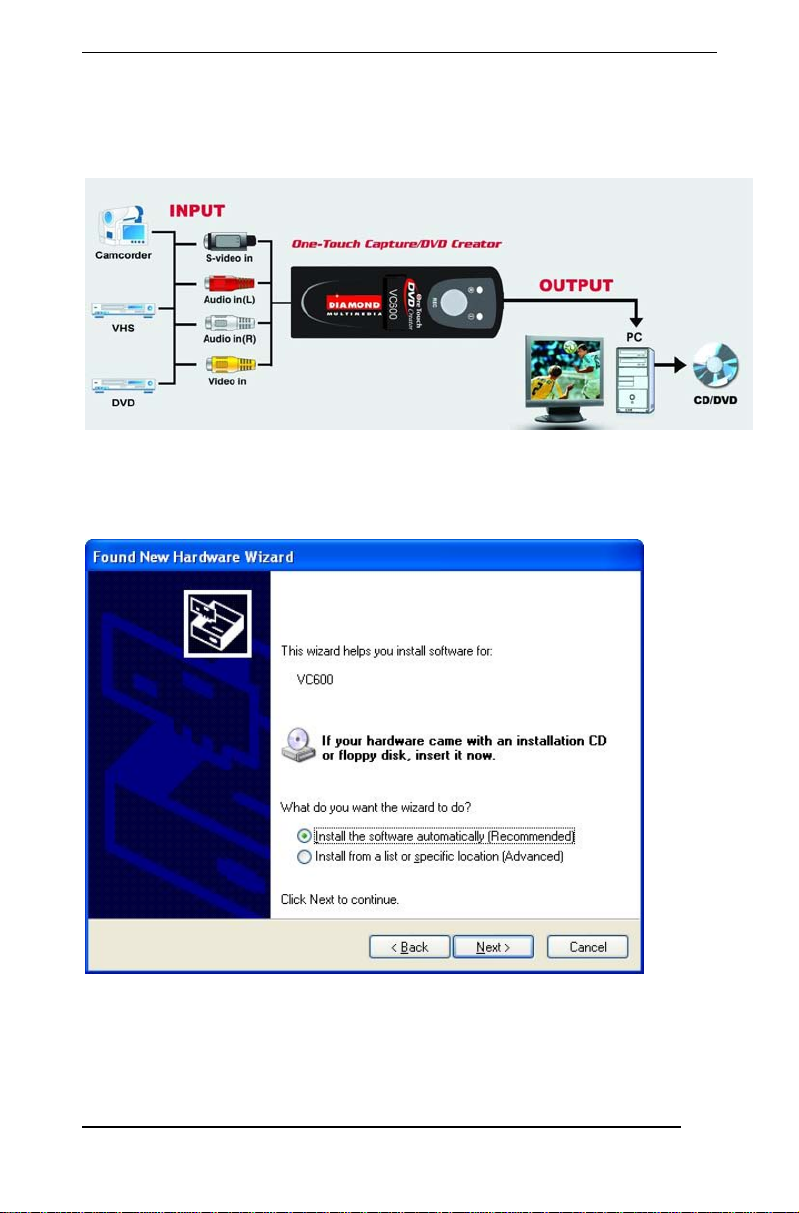

VC600 Connection
Driver and Application Installation
Step1: OS will remind a new hardware-- “New Hardware Device” was
found. Please choose “Cancel”,
- Page 2 -

VC600 V1.0
Step2: When CD is inserted, OS will guide you to the setup
automatically. Click “Install Driver” or run Drive\Setup.exe,
Step3: Click Next to begin the installation.
- Page 3 -

VC600 V1.0

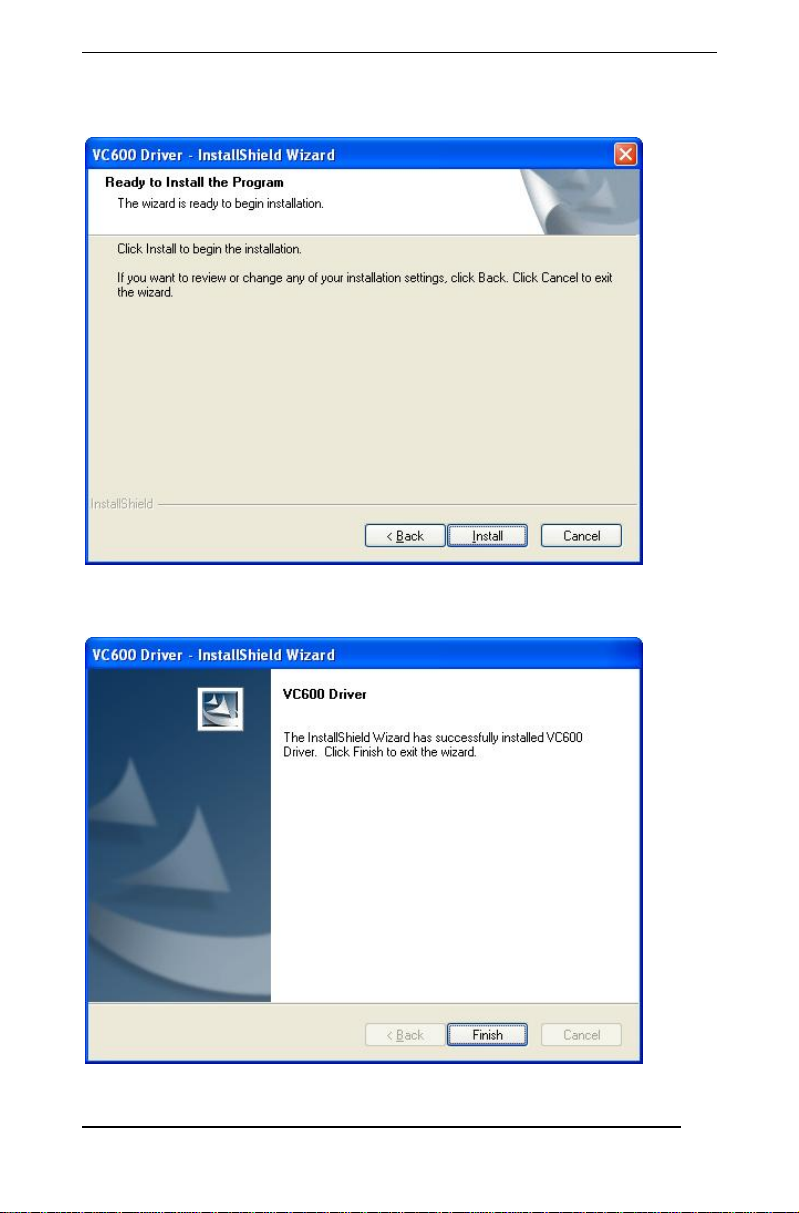

Step4:Click “Install” to continue installation driver
Step5: Click “Finish” to completely install the Driver Software
- Page 4 -

VC600 V1.0

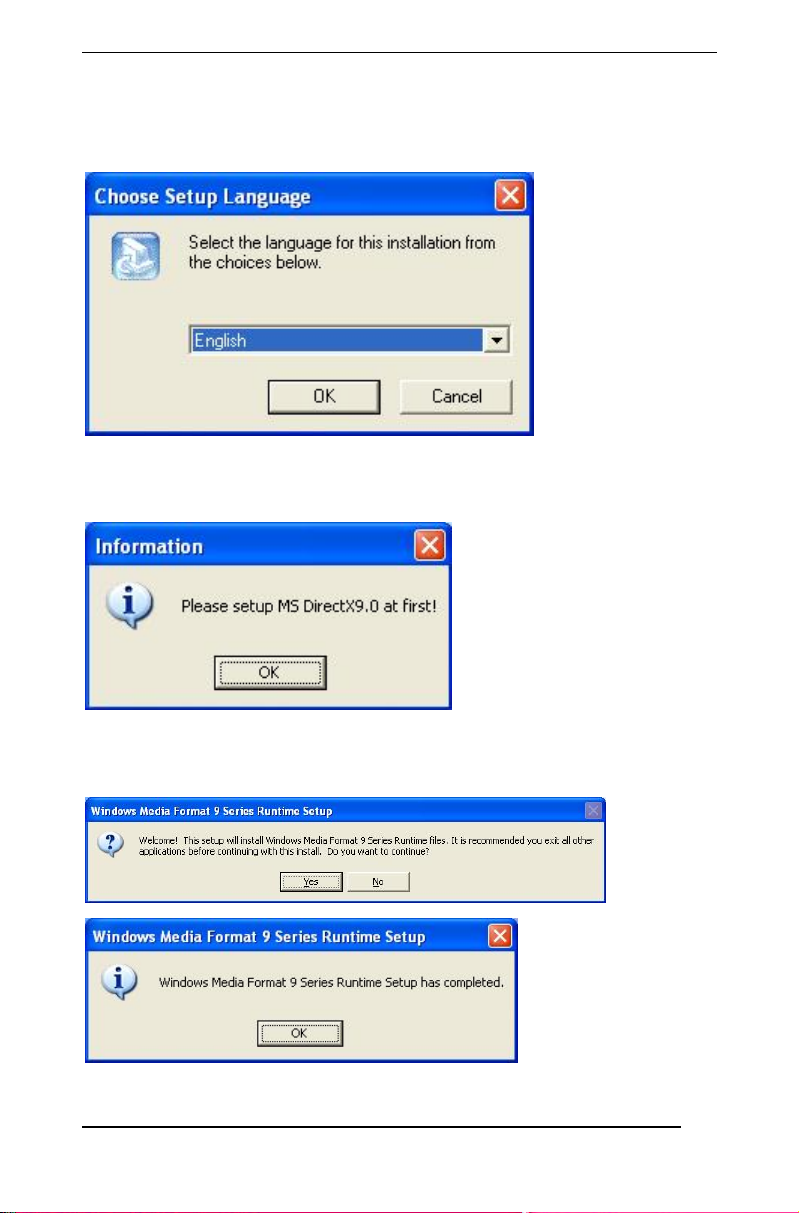

Step 6:Click “Install Software” or run “Soft\Setup.exe” to install
application, Choose your favorite language .
Step7: Please make sure DirextX9.0 installed before application
installation. If not, system will prompt install it automatically
Step8: After install DirextX9.0, Click “yes” to install Window Media
Format9,
- Page 5 -

VC600 V1.0
Step9: After that, click “next”
Step10: Choose install the components, and click “Next”.
- Page 6 -

VC600 V1.0
Step11: Prepare to install One Touch Video Capture click “next”
Step12: Installation start to copy files to destination directory.
- Page 7 -

VC600 V1.0
Step13: System will prompt that system will restart, please click
“Finish”.
Install Honestech VHS to DVD Edit Software.
Step 14: Click “Honestech VHS to DVD” or run “VHS2DVD
\Setup.exe” to install edit software, choose your favorite language.
- Page 8 -

VC600 V1.0
Step 15: Click “next” to continue installation
Step 16: Click “Finish” to completely install the Honestech VHS
to DVD edit Software
- Page 9 -

VC600 V1.0

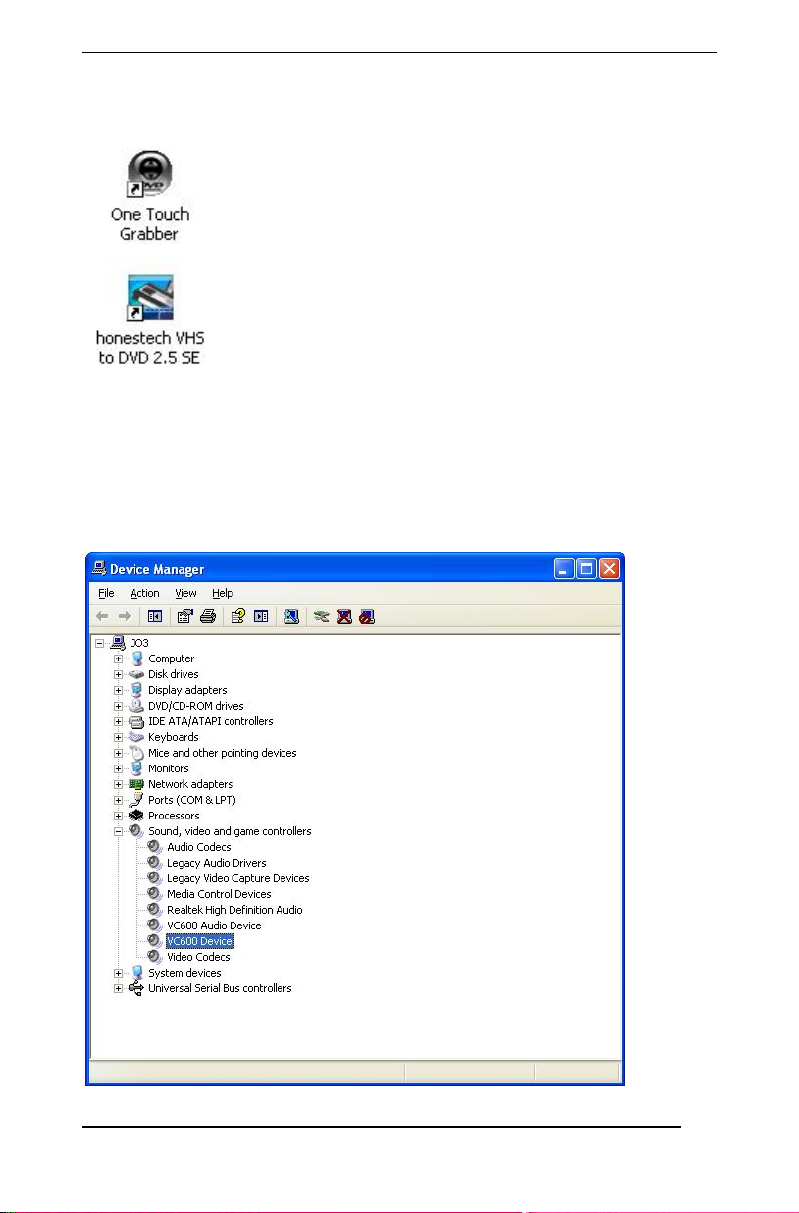

Step17: Icon on your desktop
Step18: When all finished, please check on open the control panel,
select “System”, select ”system properties”, select “Device
Manager”, you can see four new device drivers installed.
VC600 Device
VC600 Audio Device
- Page 10 -

VC600 V1.0

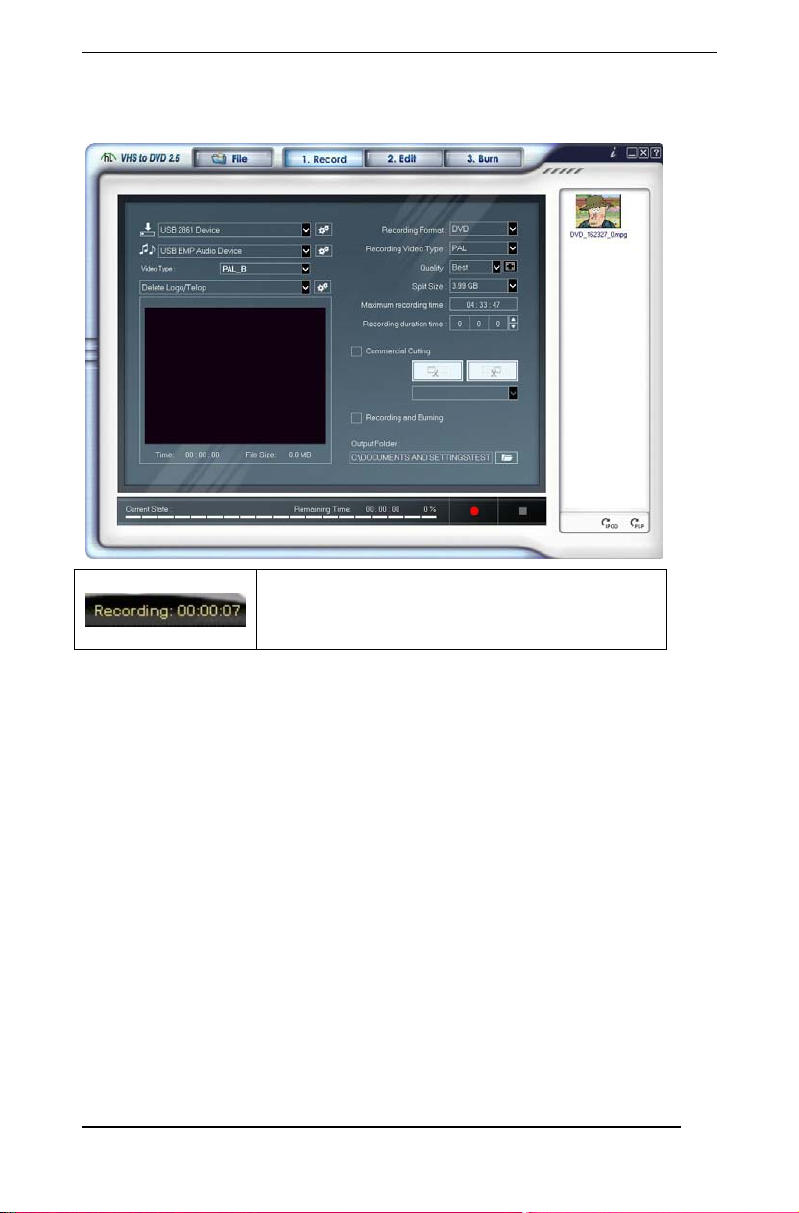

Step19: How to use VHS to DVD, you can get online help.
Status window
- Page 11 -

VC600 V1.0
Technical Support
Diamond Technical Support staff is here to help resolve any issues that
you may be experiencing with the installation. Prior to contacting
technical support please make sure you have the following information
available.
1. Model #: (Printed on the bar code, located on the box)
2. Installation CD Version: (printed on the CD label)
3. The version of Windows that your system is running.
4. The manufacturer and model # of your computer.
5. CPU type and speed (example: Intel Pentium4 2.4GHZ)
6. A complete description of the problem that you are experiencing
including any steps that you have taken to try to resolve the issue.
Technical Support Options
Free Telephone Support
818-357-5165
(long distance rates may apply)
Mon - Fri, 8 - 4:30 PST
http://www.diamondmm.com
----------------------------------------------------------------------------------------
- Page 12 -

VC600 V1.0
One Year Limited Warranty
The warranty described below is extended only to the original buyer and
is not transferable.
PLEASE NOTE THAT THE PRODUCT YOU HAVE PURCHASED IS
DISTRIBUTED AND WARRANTED BY DIAMOND MULTIMEDIA
("DIAMOND") AS DESCRIBED BELOW. QUESTIONS
REGARDING THIS WARRANTY AND WARRANTY CLAIMS
SHOULD BE MADE TO DIAMOND.
Diamond warrants to the original purchaser of the hardware product,
that the product is free from defects in materials or workmanship under
normal use and service for a period of one (1) year from the date of
purchase at retail. All cables and accessories provided with a Diamond
product are warranted to be free from defects in materials or
workmanship under normal use and service for a period of for (90)
ninety days from date of purchase at retail.
Diamond ’s sole obligation under this warranty shall be, at Diamond ’s
option, to: (i) repair the defective product or part; (ii) deliver to customer
an equivalent product or part to replace the defective product. When a
product or part is replaced or exchanged, the item becomes customer’s
property and the replaced or exchanged item becomes Diamond ’s
property. When a refund or replacement product is given, the defective
product becomes Diamond’s property.
Replacement parts or products may be new or include serviceable used
parts with at least the same functional equivalence to the original
product. If, at the time of repair, a product is "out of warranty" or within
the last ninety (90) days of the warranty period, Diamond warrants any
repair for ninety (90) days. All software provided is subject to the terms
of the associated software end-user license agreement.
- Page 13 -

VC600 V1.0
WARRANTY EXCLUSIONSAND LIMITATIONS
THIS WARRANTY IS ONLY APPLICABLE IF PRODUCT
REGISTRATION IS RECEIVED WITHIN 30 DAYS OF THE DATE THE
PRODUCT IS PURCHASED. TO BE ELIGIBLE FOR THIS WARRANTY,
YOU MUST REGISTER AT diamondmm.com. THE ORIGINALSALES
RECEIPT SHOWING THE DATE OF PURCHASE OF THE PRODUCT
IS PROOF OF THE DATE OF PURCHASE. DIAMOND MAY REQUEST
THE ORIGINAL SALES RECEIPT OR A COPY AS PROOF OF DATE
OF PURCHASE.
Diamond does not warrant third party products which Diamond
distributes "AS IS" unless otherwise specified. Third party products may
be warranted by the third party.
Diamond makes no warranty or representation that: (i) the operation of
the product will be uninterrupted or error free; (ii) defects in the product
will be corrected; or (iii) that the product will meet Customer’s
requirements or work in combination with any hardware or software
provided by third parties.
TO THE FULLEST EXTENT ALLOWED BY LAW, THE WARRANTIES,
REMEDIES AND LIMITATIONS CONTAINED HEREIN ARE
EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES,
TERMS OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT
OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE,
INCLUDING WITHOUT LIMITATION, WARRANTIES, TERMS OR
CONDITIONS OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, QUALITY, CORRESPONDENCE WITH
DESCRIPTION AND NON-INFRINGEMENT, ALL OF WHICH ARE
EXPRESSLY DISCLAIMED.
- Page 14 -

VC600 V1.0
DIAMOND WILL NOT BE LIABLE UNDER THIS WARRANTY IF ITS
TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED
DEFECT OR MALFUNCTION IN THE PRODUCT OR SOFTWARE
DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY
THIRD PARTY’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR
TESTING, UNAUTHORIZED ATTEMPTS TO OPEN, REPAIR OR
MODIFY THE PRODUCT OR SOFTWARE, OR ANY OTHER CAUSE
BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT,
FIRE, LIGHTNING, OTHER HAZARDS, OR ACTS OF GOD. THIS
WARRANTY WILL NOT APPLY TO PRODUCTS USED FOR
NUCLEAR RELATED, WEAPONS RELATED, MEDICAL OR LIFE
SAVING PURPOSES.
TO THE FULLEST EXTENT ALLOWED BY LAW, DIAMOND ALSO
EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY,
WHETHER BASED IN CONTRACT OR TORT (INCLUDING
NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT,
SPECIALOR PUNITIVE DAMAGES OFANYKIND, OR FOR LOSS OF
REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATA, OR OTHER FINANCIAL LOSS ARISING
OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE, USE, PERFORMANCE, FAILURE, OR
INTERRUPTION OF ITS PRODUCTS, EVEN IF DIAMOND, ITS
SUPPLIERS OR ITS RESELLER HAS BEEN ADVISED OF THE
POSSIBLITY OF SUCH DAMAGES. DIAMOND ’S SOLE LIABILITY
WITH RESPECT TO ITS PRODUCT IS LIMITED TO REPAIR OR
REPLACEMENT OF THE PRODUCT, AT DIAMOND ’S OPTION. THIS
DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE
AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL FOR
ESSENTIAL PURPOSE.
- Page 15 -

VC600 V1.0
DISCLAIMER: Some jurisdictions may not allow the exclusion or
limitation of incidental or consequential damages for products supplied
to consumers, or the limitation of liability for personal injury, so the
foregoing limitations and exclusions may not apply or may be limited in
their application to you. When implied warranties are not allowed to be
excluded in their entirety, they will be limited to the duration of the
applicable written warranty. This warranty gives you specific legal rights
that may vary depending on the law of the applicable jurisdiction.
OBTAINING WARRANTY SERVICE: Please review the online "help"
resources referred to in the accompanying documentation before
seeking warranty service. If the product is still not functioning properly
after making use of these resources, please access the online help
website at diamondmm.com for warranty instructions or to obtain
warranty services. Some additional charges may apply for phone
support.
