DIG MST550 User manual

INTRODUCTION
Thank you for purchasing the DIG Model MST550 Automatic Micro Sprayer Watering Kit with Bluetooth
Timer. Please take the time to read through the enclosed instructions and follow them step by step. If you
have any questions, please call our customer service line at 1.800.344.2281.
ABOUT YOUR MST550 KIT
Let your landscape thrive with this complete drip watering kit that connects to any outdoor faucet.The
MST550 starter kit includes DIG’s micro sprayers and contains all the parts needed to irrigate up to 550
square feet. Use these guidelines to design and install an efcient low-volume irrigation system that
conserves water and promotes a healthy environment.
INSTALLATION
To start the installation, install two new AA alkaline batteries into the BOHE-BT timer and download the
free DIG BTT app to your smart phone or other smart device.
The timer can be programmed through the app before or after the system is installed. To program the timer,
please follow the timer programming instructions included with the kit.
1.800.322.9146 | FAX: [phone]
DIG CORPORATION THREE-YEAR WARRANTY
DIG CORPORATION warrants these products to be free from defects in material and workmanship for a period of three years from date
of purchase. This warranty does not cover damage resulting from accident, misuse, neglect, modication, improper installation or subjec-
tion to line pressure in excess of 50 lbs. per square inch. This warranty shall extend only to the original purchaser of the product for use
by the purchaser. This warranty shall not cover batteries or any malfunction of the product due to battery failure. The obligation of DIG
CORPORATION under this warranty is limited to repairing or replacing at its factory this product which shall be returned to the factory
within three years after the original purchase and which on examination is found to contain defects in material and workmanship.
DIG CORPORATION SHALL IN NO EVENT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND; THE SOLE
OBLIGATION OF DIG IS LIMITED TO REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION
OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
Unattended use for prolonged periods without inspection to verify proper operation is beyond the intended use of this product, and any
damage resulting from such use shall not be the responsibility of DIG CORPORATION. There are no warranties which extend beyond the
description on the face hereof. In the case of purchase of the product for use other than, for irrigation purposes, DIG CORPORATION hereby
disclaims any implied warranties including any warranties of merchantability and tness for a particular purpose. In the case of the pur-
chase of the product for personal, family or household purposes, DIG CORPORATION disclaims any such warranties to the extent permitted
by law. To the extent that any such disclaimer or implied warranties shall be ineffectual, then any implied warranties shall be limited in
duration to a period of one year from the date of the original purchase for use by the purchaser. Some states do not allow limitation on how
long an implied warranty lasts, so the above limitation may not apply to you. In order to obtain performance under this warranty, the unit
must be returned to the factory, along with proof of purchase indicating original date of purchase, shipping prepaid, addressed as follows:
DIG CORPORATION, 1210 Activity Drive, Vista, CA 92081. Repaired or replaced units will be shipped prepaid to the nam and address sup-
plied with the unit returned under warranty. Allow four weeks for repairs and shipping time. Repair of damaged units not otherwise within
warranty may be refused or done at a reasonable cost or charge at the option of DIG CORPORATION. This warranty gives you specic legal
rights, and you may also have other rights which vary from state to state.
INSTALLATION INSTRUCTIONS
Model MST550
www.digcorp.com
[e-mail]
1210 Activity Drive
Vista, CA 92081-8510
Printed in the USA. We at DIG strongly believe in conservation.
Please recycle whenever possible. 102919 REV A 26-042
CONTENTS
(1) BOHE-BT Bluetooth® Hose End
Timer with 3/4″FHT x MHT
(1) 3/4″ Backow Preventer
with FHT x MHT
part# D45
(1) 3/4″FHT Preset Pressure
Regulator at 25 PSI
part# D46
(1) 3/4″FHT Swivel Adapter
with Screen
part# C34
(1) 1/2″Compression Coupling
part# C33
(1) 1/2″Compression Tee
part# C35
(1) 1/2″Compression Elbow
part# C36
(2) 1/4″Tees
part# H82A
(2) 1/4″Barbs
part# H80A
(1) 50′of 1/2″Polyethylene Drip
Tubing .600″ID x .700″OD
part# B35
(1) 50′of 1/4″Black Micro Tubing
with .170″ID x 250″OD
part# B38P
(2) Hose End Figure "8"
part# F68B
(4) Adjustable Micro Sprayers on Spike
(2) 90°and (2) 180°
part# 309-1B and 308-1B
(1) Adjustable Micro Sprayer on Spike
(1) 360°
part# 300-1B
(4) Adjustable Vortex Sprayers on spike
(4) 360°
part# 410-1B
(1) Hole Punch
part# D44
(5) 1/2″Tubing Holder Stakes
part# R60
(2) Goof Plugs
part# G79B
Automatic Micro Sprayer
Watering Kit
with Bluetooth® Timer

Faucet connection and Head Assembly
Begin by connecting the timer to the outdoor
faucet by turning the female inlet of the timer
clockwise until it is “hand tight”. Then attach the
backow preventer to the hose end timer, and
attach the 25-PSI preset pressure regulator to the
backow preventer. Connect the poly tubing to the
3/4″swivel adapter and attach it to the pressure
regulator by turning clockwise until “hand tight”. Do
not overtighten.
Drip tubing layout
Before installing the 1/2″poly tubing, uncoil the roll
and lay it out in direct sunlight (if possible) for 30
to 40 minutes. This will make it more pliable and
easier to work into the compression ttings during
installation.
Lay out the 1/2″poly tubing and run it next to
as many plants as possible. Secure the tubing
to the soil with the 1/2″drip tubing stakes.
Install the poly tubing in a gentle S curve to
allow for contraction at low to high temperatures.
Connect the 1/2″ drip ttings
Use 1/2″tees (part #C35) and elbows (part #C36)
throughout the layout as needed. To install the 1/2″
compression drip ttings, cut the poly tubing with a
hand pruner, being careful to keep dirt from entering
the line. Hold the tting in one hand and the poly
tubing in the other and force the poly tubing into the
compression tting by moving it from side to side.
Note: Open the faucet and ush out
the poly tubing through the
ends before installing the drip emitters.

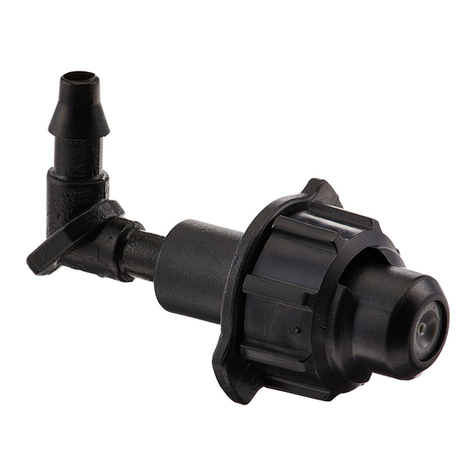

Adjustable micro sprayer on spike
installation
1. Set the micro sprayers in the desired locations.
Place the 360° micro sprayers in the center of the
planted areas, and the 180° micro sprayers on the
perimeter. The 90° sprayers should be installed in
any corner spots if necessary. For full coverage, space
the adjustable micro sprayers 8″ to 12″ apart.
2. Punch a hole in the poly tubing with the punch
tool and push the barb of the micro sprayer assembly
into the hole. Push the spike into the soil, 3″to 4″
deep at the desired location and raise to adjust the
poly riser.
BOHE-BT
Bluetooth® Battery
Powered Hose End
Timer.
Y-Splitter
Optional -
not included
1
2
3
1
2
3
SPECIFICATION
• Operating pressure: 10 to 45 PSI
• Recommended operating pressure: 25 PSI
(use with model D46 25-PSI pressure regulator)
• Recommended spacing: 8-12″apart
• Micro tubing length and size: 50′x 1/4″
• Maximum recommended ow rate:
220 GPH (3.7 GPM)
• Poly tubing length and size:
50′x 1/2″with .600″ID x .700″OD
• Total ow rate for this kit: 197 GPH (3.2 GPM)
Adjustable 360-degree vortex micro sprayer
installation
1. Set the 360-degree vortex micro sprayers in the desired
locations with individual or small groups of plants. Place
the 360° vortex micro sprayers in the center of the planted
areas or about a foot from an individual plant.
2. Uncoil the 1/4″micro tubing and lay it out from the 1/2″
poly tubing to the vortex micro sprayer and cut it to the
desired length.
3. Insert a 1/4″barb into the end of the 1/4″micro tubing,
punch a hole in the poly tubing with the punch tool, and
push the barb into the hole.
4. Connect the barb on the vortex micro sprayer to the end
of the micro tubing and push the stake into the soil at the
desired location, 2″to 3″ deep.
Secure the poly tubing to the soil by installing the 1/2″
stakes every 8 to 10 feet.
Initial system start-up
Turn the water on and ush the line(s); this will ush out
any dirt or debris that may accumulates in the line(s) during
the installation. Close the end of the poly tubing with the
gure "8" hose end (part #F68B).
Test and inspect the system to identify if there are any leaks
in the poly tubing laterals. If there are any leaks from the
barbed ttings or micro sprayers, remove the ttings or
micro sprayers and insert goof plugs (part #G79B) to close
the holes. Reinsert the barb ttings or micro sprayers nearby.
The nal step is to check and adjust the sprayers to cover
the desired area.
Test the system via the app using the manual run and see
that the Bluetooth timer opens and closes via the App.
Program the timer.
WATERING SCHEDULE
Open the faucet for 45 minutes to 1 hour every 2 to 3 days, depending on your location, weather and soil
type. Faster draining, lighter soils will need to be irrigated more frequently than heavy, soils with high
clay content. After a few days, check the soil and the health of the plants, and adjust the watering schedule
as needed.
360°
180°
90°
360 °
Spray Pattern
