Worx Nitro HYDROSHOT WG633E User manual

2 in 1: Portable Power Cleaner/Water Sprayer
WG633E WG633E.X
SAFETY AND OPERATING MANUAL
ORIGINAL INSTRUCTIONS

3
2 in 1: Portable Power Cleaner/Water Sprayer
WG633E WG633E.X
TABLE OF CONTENT
1. SAFETY INSTRUCTIONS
2. COMPONENT LIST
3. TECHNICAL DATA
4. INTENDED USE
5. OPERATING INSTRUCTIONS
6. ATTACHMENT OF ACCESSORIES
7. MAINTENANCE
8. CLEANING/STORAGE
9. ENVIRONMENTAL PROTECTION
10.TROUBLESHOOTING
11. DECLARATION OF CONFORMITY
1. SAFETY INSTRUCTIONS
PRODUCT SAFETY
GENERAL SAFETY
WARNINGS
WARNING: Read all
safety warnings and all
instructions. Failure to follow
the warnings and instructions
may result in electric shock,
re and/or serious injury.
SAVE ALL WARNINGS
AND INSTRUCTIONS FOR
FUTURE REFERENCE.
This machine can be used by
people with reduced physical,
sensory or mental capabilities
or lack of experience and
knowledge if they have
been given supervision or
instruction concerning use
of the machine in a safe way
and understand the hazards
involved.
Machines shall not be used by
children. Children should be
supervised to ensure that they
do not play with the machine.
The appliance is only to
be used with the power
supply unit provided with the
appliance.
This machine is not intended
for use by persons (including
children) with reduced
physical,sensory or mental
capabilities, or lack of
experience and knowledge.
If the supply cord is damaged,
it must be replaced by the
manufacturer, its service
agent or similarly qualied
persons in order to avoid a
hazard.
HIGH PRESSURE CLEANER
SAFETY WARNINGS
- WARNING This machine
has been designed for use
with the cleaning agent
supplied or recommended
by the manufacturer. The
use of other cleaning
agents or chemicals may
adversely affect the safety
of the machine.
- WARNING High pressure
jets can be dangerous if
subject to misuse. The
jet must not be directed

4
2 in 1: Portable Power Cleaner/Water Sprayer
WG633E WG633E.X
at persons, live electrical
equipment or the machine
itself.
- WARNING Do not use the
machine within range of
persons unless they wear
protective clothing.
- WARNING Do not direct
the jet against yourself or
others in order to clean
clothes or foot-wear.
- WARNING Risk of explosion
– Do not spray ammable
liquids.
- WARNING High pressure
cleaner should not be used
by children or untrained
personnel.
- WARNING High pressure
hoses, ttings and
couplings are important for
the safety of the appliance.
Use only hoses, ttings and
couplings recommended by
the manufacturer.
- WARNING To ensure
machine safety, use
only original spare parts
from the manufacturer
or approved by the
manufacturer.
- WARNING Water that has
own through backow
preventers is considered to
be non-potable.
- WARNING The machine
shall be disconnected
from its power source by
removing battery pack
from the machine during
cleaning or maintenance
and when replacing parts or
converting the machine to
another function.
- WARNING Do not use the
machine if battery pack
or important parts of the
machine are damaged,
e.g. safety devices, high
pressure hoses, trigger gun.
- WARNING Always switch
off the disconnecting
switch when leaving the
machine unattended.
- Safety boots, safety gloves,
safety helmets with visors,
hearing protection etc. shall
be worn while operating the
machine.
- There is a danger of the
kickback force and the
sudden torque on the spray
assembly when opening the
trigger gun. Please hold the
nozzles tightly.
ADDITIONAL POWER TOOL
SAFETY WARNINGS
WARNING: Do not use the
appliance without reading the
instruction sheet.

5
2 in 1: Portable Power Cleaner/Water Sprayer
WG633E WG633E.X
- When opening the trigger
gun, there is a danger of
the kickback force and the
sudden torque on the spray
assembly. Please hold the
nozzles tightly.
- WARNING During use of
high pressure cleaners,
aerosols may be formed.
Inhalation of aerosols can
be hazardous to health.
- Disconnect from the
electrical power supply
before carrying out user
maintenance
- WARNING If an extension
cord is used, the plug
and socket must be of
watertight construction.
- WARNING Inadequate
extension cords can be
dangerous. If an extension
cord is used, it shall be
suitable for outdoor use,
and the connection has
to be kept dry and off the
ground. It is recommended
that this is accomplished by
means of a cord reel which
keeps the socket at least 60
mm above the ground.
- The electric supply
connection shall be made
by a qualied electrician
and comply with AS/NZS
3000. It is recommended
that the electric supply to
this machine should include
either a residual current
device that will interrupt
the supply if the leakage
current to earth exceeds 30
mA for 30 ms or a device
that will prove the earth
circuit.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open or
shred cells or battery pack.
b) Do not short-circuit a
battery pack. Do not store
battery packs haphazardly
in a box or drawer where
they may short-circuit each
other or be short-circuited
by conductive materials.
When battery pack is not
in use, keep it away from
other metal objects, like
paper clips, coins, keys,
nails, screws or other small
metal objects, that can
make a connection from
one terminal to another.
Shorting the battery
terminals together may
cause burns or a re.
c) Do not expose battery
pack to heat or re. Avoid
storage in direct sunlight.

6
2 in 1: Portable Power Cleaner/Water Sprayer
WG633E WG633E.X
d) Do not subject battery pack
to mechanical shock.
e) In the event of battery
leaking, do not allow the
liquid to come into contact
with the skin or eyes. If
contact has been made,
wash the affected area with
copious amounts of water
and seek medical advice.
f) Keep battery pack clean
and dry.
g) Wipe the battery pack
terminals with a clean dry
cloth if they become dirty.
h) Battery pack needs to be
charged before use. Always
refer to this instruction and
use the correct charging
procedure.
i) Do not maintain battery
pack on charge when not in
use.
j) After extended periods
of storage, it may be
necessary to charge and
discharge the battery pack
several times to obtain
maximum performance.
k) Recharge only with the
charger specied by Worx.
Do not use any charger
other than that specically
provided for use with the
equipment.
l) Do not use any battery pack
which is not designed for
use with the equipment.
m)Keep battery pack out of
the reach of children.
n) Retain the original product
literature for future
reference.
o) Remove the battery from
the equipment when not in
use.
p) Dispose of properly.
q) Do not mix cells of different
manufacture, capacity, size
or type within a device.
r) Keep the battery away
from microwaves and high
pressure.

7
2 in 1: Portable Power Cleaner/Water Sprayer
WG633E WG633E.X

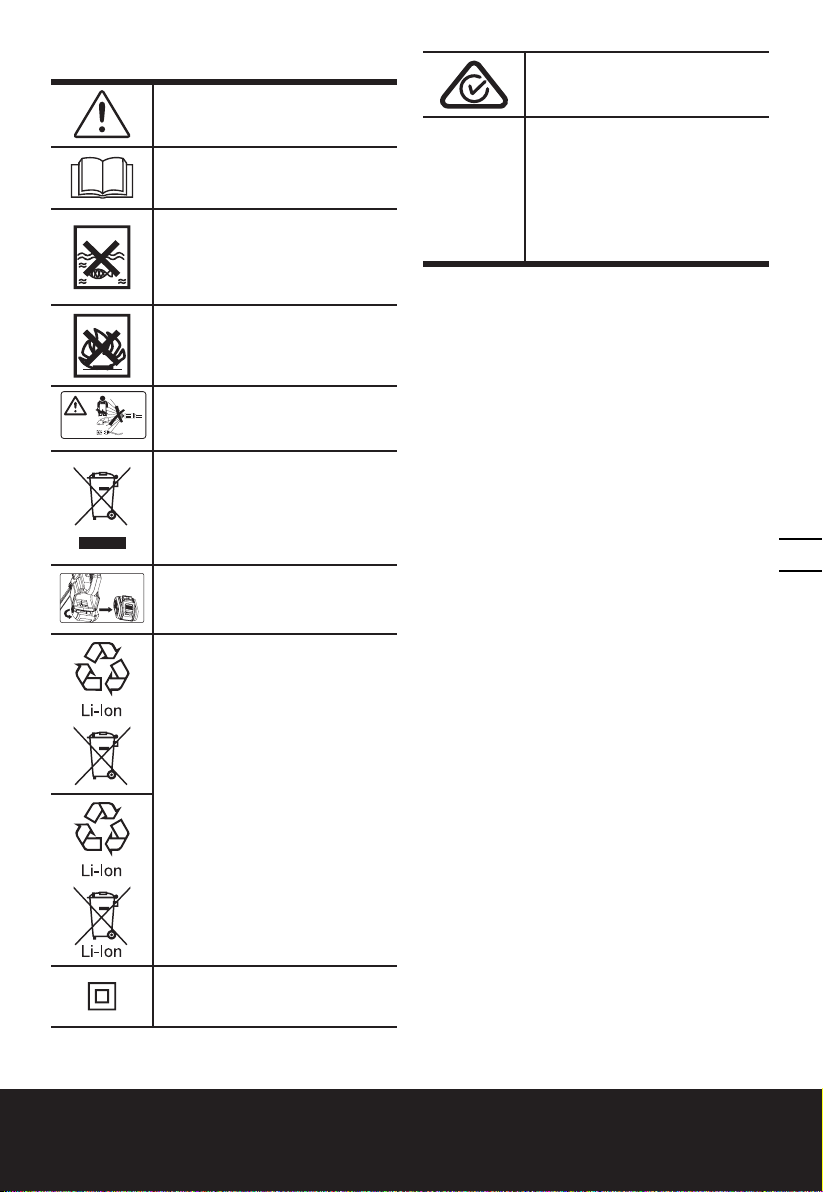

SYMBOLS
Warning
Read operator’s manual
Batteries may enter water cycle if
disposed improperly, which can
be hazardous for ecosystem. Do
not dispose of waste batteries as
unsorted municipal waste.
Do not burn
Warning: Do not direct the jet at
persons, animals and electrical
equipment.
Waste electrical products must
not be disposed of with house-
hold waste. Please recycle where
facilities exist. Check with your
local authorities or retailer for
recycling advice.
Remove battery from the socket
before carrying out any adjust-
ment, servicing or maintenance.
Li-Ion battery This product has
been marked with a symbol
relating to ‘separate collection’
for all battery packs and battery
pack. It will then be recycled or
dismantled in order to reduce
the impact on the environment.
Battery packs can be hazardous
for the environment and for
human health since they contain
hazardous substances.
Double insulation
RCM marking
ABN: Australian Business Num-
ber. By this number, business
information such as entity type,
status, business location etc. can
be found at website http://abr.
business.gov.au.
ABN of Positec Australia Pty
Limited is 14 101 682 357.

15
*
13
*
14
*
18
*
17
*
20
*
21
*
22
*
23
*
16
*
24
*
25
*
19
*
OPTIONAL ACCESSORIES
11 12
910
1
4
3
2
5
6
7
8

100%
0%
D
A3
A2
A1
A4
100%
0%
B1
1
2
121
2

1
2
DC
D1 DD2
B3B2
B4
1
2
Extension lance
sold separately.
Extension lance
sold separately.
1
2
1
2

1
2
E1
FG
DD3
E2 E3

L1*
D K*
L2*
D
J*
I
H
2
1
1
2

2
1
2
1
M*
N1*
N2* N3*
O1
Extension lance
sold separately.
N4*
1
2
1
2

O3
P1 P2
O2
Q2*
Q1*
1
2
1
2

Extension lance sold separately.
T* D
U*
R*
2
1
S*
W
D
V
26
2
1

16
2 in 1: Portable Power Cleaner/Water Sprayer
WG633E WG633E.X

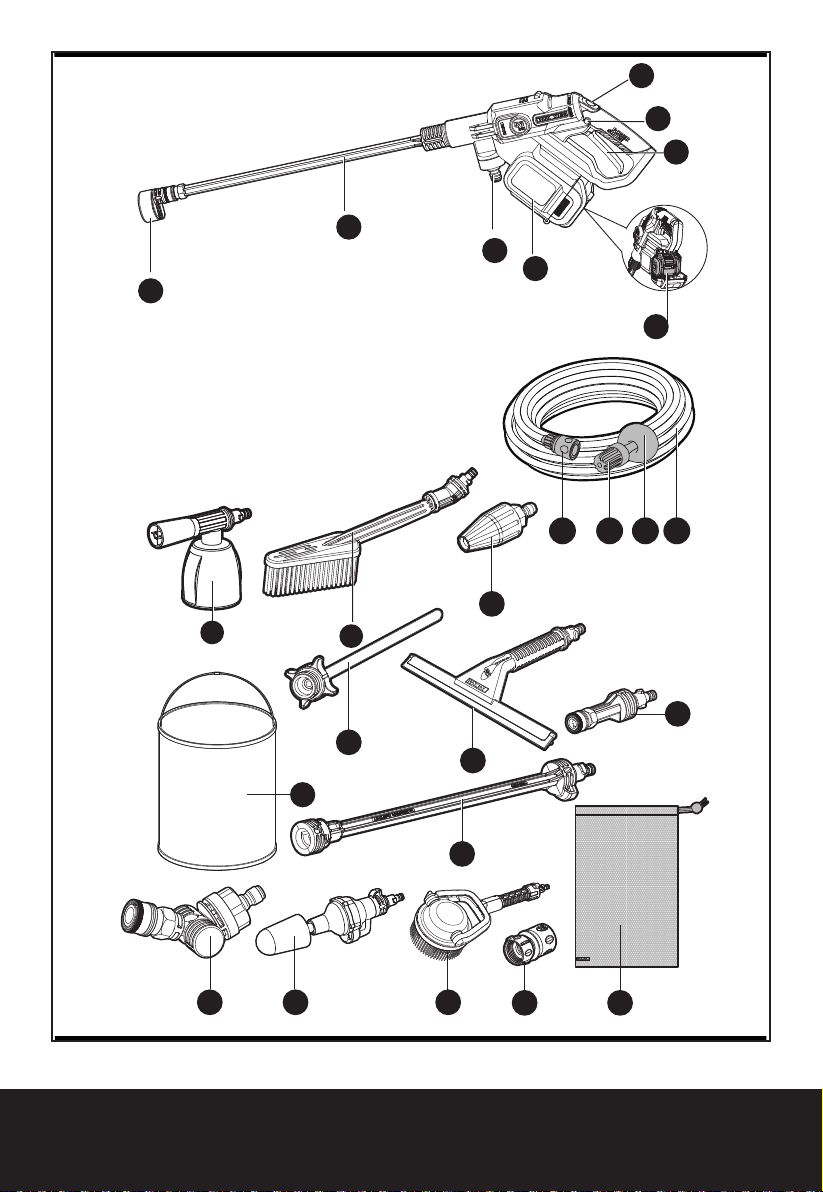

2. COMPONENT LIST
1. HI/LO PRESSURE-SETTING BUTTON
2. LOCK-OFF SWITCH
3. BATTERY PACK *
4. ON/OFF TRIGGER
5. HOSE QUICK-CONNECT ADAPTER
6. WATER-PROOF BATTERY CASE
7. PRESSURE CLEANING LANCE
8. MULTI-SPRAY NOZZLE
9. DRAW-HOSE QUICK-CONNECT
ADAPTER
10. DRAW-HOSE WATER FILTER
11. FLOATER
12. DRAW HOSE
13. SOAP BOTTLE *
14. BRUSH *
15. TURBO NOZZLE *
16. FOLDABLE WATER BUCKET *
17. WATER BOTTLE ADAPTER*
18. SQUEEGEE *
19. SHORT LANCE *
20. EXTENSION LANCE *
21. PIVOTING QUICK CONNECT ADAPTER*
22. ROTARY CLEANING BRUSH *
23. ADJUSTABLE POWER SCRUBBER *
24. QUICK CONNECT ADAPTER
25. CARRY BAG
26. WATER FILTER (SEE FIG. V )
* Not all the accessories illustrated or described are
included in standard delivery.
3. TECHNICAL DATA
Type: WG633E WG633E.X (620-649 - designation
of machinery, representative of battery-powered
washer)
WG633E WG633E.X **
Voltage 20 V Max***
Allowable pressure
Max**** 5.6 Mpa
Rated pressure 3.8 Mpa @high
2.5 Mpa @Eco
Max water ow rate 220 L/hr
Max. inlet water
pressure 0.6 Mpa
Suction height Max 1.5m
Protection degree IPX5
Water temperature Max 40°C
Weight (Bare tool) 1.54kg
** X=1-999,A-Z,M1-M9 there are only used for
different customers, there are no safe relevant
changes between these models.
*** Voltage measured without workload. Initial
battery voltage reaches maximum of 20 volts.
Nominal voltage is 18 volts.
**** Allowable pressure is checked by the following
test: The pressure is increased to 110% of the allowable
pressure, or by 1,5 Mpa for unheated machines, and the
device shall operate.
NOISE DATA
A weighted sound pressure LpA: 78.3dB(A)
KpA 3.0dB(A
A weighted sound power LwA: 89.3dB(A)
KwA 3.0dB(A)
Wear ear protection when sound
pressure is over 80dB (A)
VIBRATION INFORMATION
Typical weighted
vibration ah<2.5m/s2K= 1.5m/s2
WARNING: The vibration emission value during
actual use of the power tool can differ from the
declared value depending on the ways in which the
tool is used dependant on the following examples
and other variations on how the tool is used:
How the tool is used.
The tool being in good condition and well maintained
Using the correct accessory for the tool and ensuring
it is in good condition.
The tightness of the grip on the handles and if any

17
2 in 1: Portable Power Cleaner/Water Sprayer
WG633E WG633E.X
anti vibration accessories are used.
And the tool is being used as intended by its design
and these instructions
.
This tool may cause hand-arm vibration syndrome
if its use is not adequately managed
WARNING: To be accurate, an estimation of
exposure level in the actual conditions of use
should also take account of all parts of the operating
cycle such as the times when the tool is switched off
and when it is running idle but not actually doing the
job. This may signicantly reduce the exposure level
over the total working period.
Helping to minimise your vibration exposure risk.
Maintain this tool in accordance with these
instructions and keep well lubricated (where
appropriate)
If the tool is to be used regularly then invest in anti
vibration accessories.
Avoid using tools in temperatures of 10
o
C or less
Plan your work schedule to spread any high vibration
tool use across a number of days.
SUGGESTED BATTERIES
AND CHARGERS
Category Type Capacity
20V Battery WA3014 4.0 Ah
20V Charger WA3880 2.0 A
We recommend that you purchase your accessories
from the same store that sold you the tool. Refer to
the accessory packaging for further details. Store
personnel can assist you and offer advice.
4. INTENDED USE
This tool is intended for cleaning and watering.
5. OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the
instruction book carefully.
ASSEMBLY & OPERATION
ACTION FIGURE
BEFORE OPERATION
Removing the battery pack See Fig.A1
Installing the battery pack See Fig. A2
Checking the battery condition
NOTE: Fig. A3 only applies for the
battery pack with battery indicator light.
See Fig. A3
Charging the battery pack
More details can be found in charger’s
manual
See Fig. A4
ASSEMBLY
NOTE: The power nozzle has three
working modes: pressure cleaning
lance only, short lance only and short
lance used together with extension
lance.
Working mode 1
Attaching pressure cleaning lance to the
power nozzle
See Fig.
B1
Working mode 2
Attaching short lance to the power
nozzle
See Fig.
B2
Working mode 3
Attaching extension lance to the power
nozzle
Attaching short lance to the extension
lance
See Fig.
B3, B4
Attaching the Multi-spray nozzle
NOTE: When attaching, rotate the
nozzle left and right to make sure the
nozzle is fully seated into position and
gently pull it to make sure it is locked
into position securely.
See Fig. C
Attaching the hose to the power nozzle
NOTE: After the hose is attached, check
the connection by gently pulling upon
the hose. It should not be pulled off.
See Fig.
D1, D2 , D3
OPERATION
WARNING: The supplied battery is
not waterproof. To avoid risk of
battery failure,
protect the battery from water
exposure during use. Store the tool
and battery in a dry place after use.

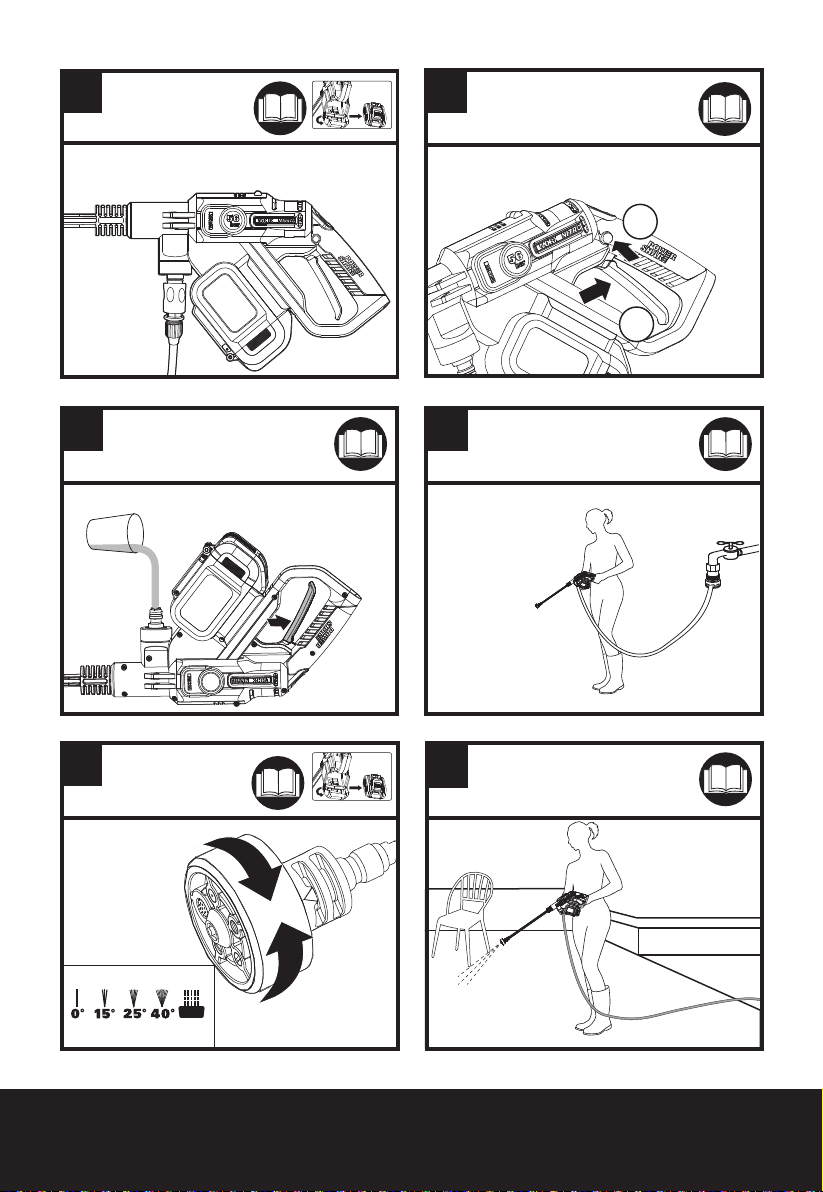

Start
NOTE: At the rst use or after long-term
storage, it is recommended to attach
the tap or inject water into the hose
adapter with the machine turned on, so
as to empty the air. Do not start working
until the water goes up along the hose
and sprays out.
See Fig.
E1,E2,E3

18
2 in 1: Portable Power Cleaner/Water Sprayer
WG633E WG633E.X
Selecting the nozzle pattern
NOTE: Choose a suitable nozzle pattern
according to your work. Spray
patterns 0o, 15o, 25oand 40oare
applicable for cleaning, and the spray
pattern with the symbol is best
suitable for watering.
WARNING: Do not shift the nozzle
pattern when the tool is powered
on.
See Fig. F
Cleaning
WARNING: Do not connect the
machine to water supplies that
are dirty, rusty, muddy, or corrosive.
(Including window cleaning liquids,
plant foods, or fertilizers etc.)
NOTE: If sea water is used, the product
should be rinsed and used with fresh
water after that in order to extend the
life time of the machine.
See Fig.
G, H
Watering See Fig. I
WARNING:Allowable pressure is
checked by the following test: The
pressure is increased to 110% of the
allowable pressure, or by 1,5 Mpa for
unheated machines, and the device
shall operate.
See Fig. W
6. ATTACHMENT OF
ACCESSORIES
A number of accessories have been supplied with
this product and are required for use in different
applications. Do not attempt to use cleaning without
a lance or any accessories attached.
1. Soap bottle (WA4036, sold separately)
Soap bottle provides detergent suds for deeper
cleaning of dirt. It is used in conjunction with power
nozzle. (See Fig. J)
NOTE: Keep the machine connected to water source
when using soap bottle.
2. Brush (WA4048, sold separately)
Brush is for cleaning cars, boats, motorcycles etc. It
is used in conjunction with power nozzle. (See Fig. K)
3. Foldable water bucket (WA4015, sold separately)
Foldable water bucket allows you to connect to water
supply when you are far away from a water source.
When not in use, it can be folded for storage. (See
Fig. L1, L2)

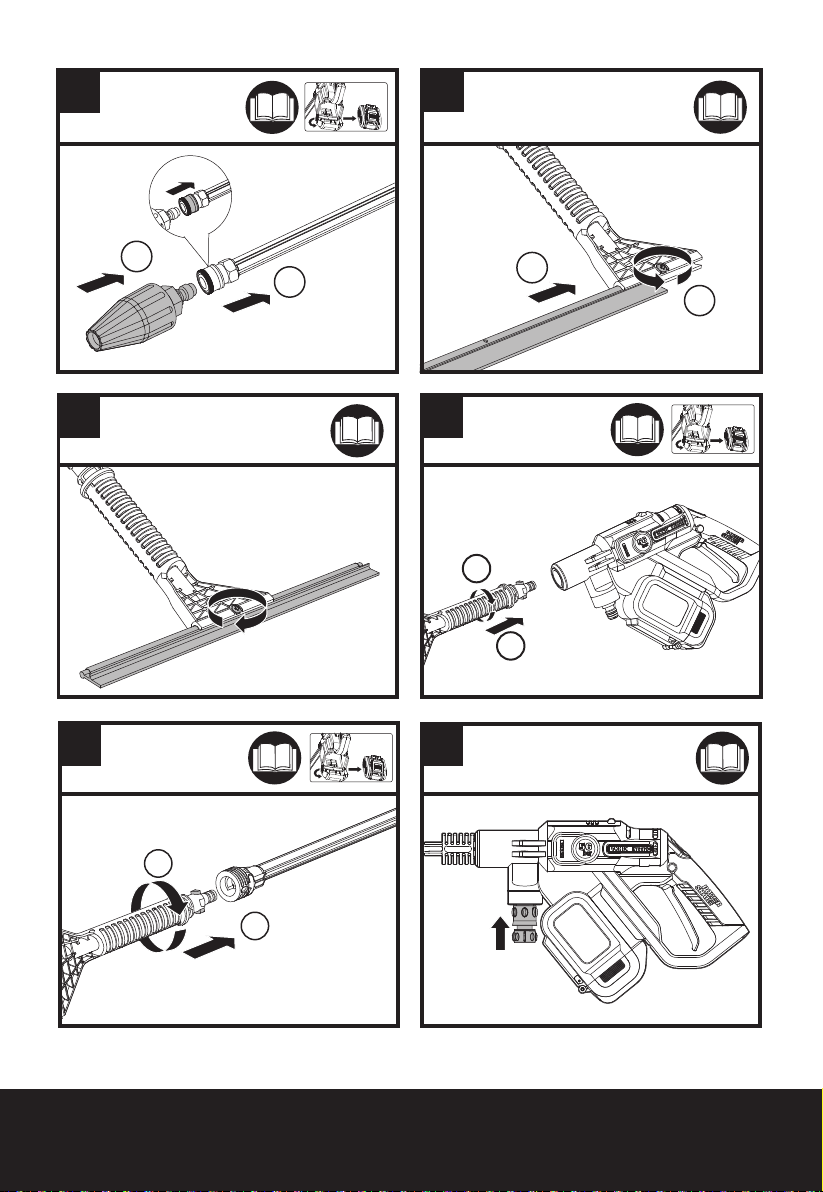

4. Turbo nozzle (WA4037, sold separately)
The turbo nozzle delivers 360° of rotating water,
which cleans a larger area than the 0° water pattern
during the same time period. Recommend to use it
with high pressure setting (See Fig. M)
5. Window squeegee with water sprayer (WA4050,
sold separately)
The window squeegees quick connection easily
snaps into the tool to spray water or wipe off
water from glass or tiled surfaces. Suitable for the
HydroShot power cleaner or the extension lance. (See
Fig. N1, N2, N3, N4)
6. Bottle cap connector (WA4038,sold separately)
The bottle cap connector accessory allows the tool
to directly connect with most 2 Liter bottles with
approximately 1” openings. (NOTE: May not t all
consumable soda and water bottles) (See Fig. O1,
O2, O3)
WARNING: Do not install the bottle cap
connector accessory until it is ready to be used.
The accessories vents will leak liquid, if a bottle is
installed, with the machine lying on a surface.
7. Pivoting Quick Connect Adapter (WA4039, sold
separately)
The Pivoting Quick Connect Adapter allows power
cleaning tips to be fully adjusted up to 180° in any
direction. Ideal for cleaning around hard-to-reach
areas. Suitable for the HYDROSHOTTM power cleaner
and multi-spray nozzle (See Fig. Q1, Q2)

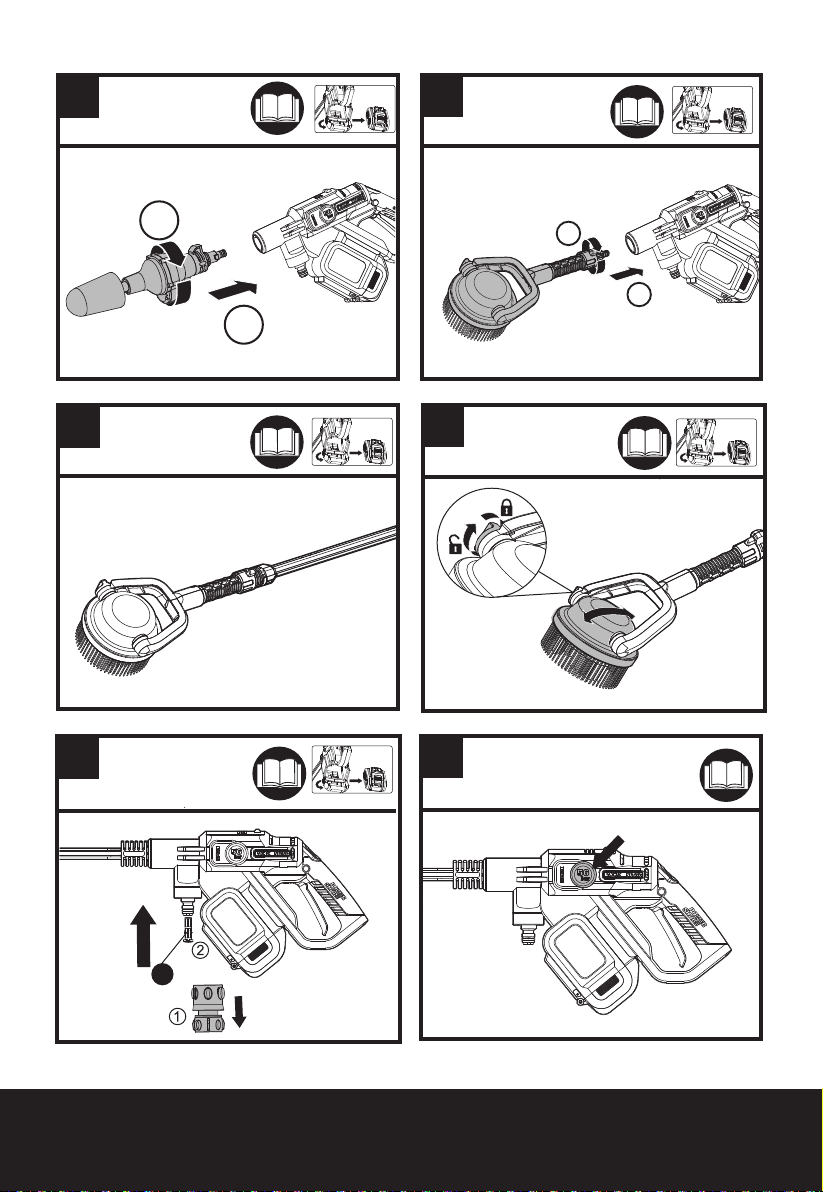

8. Rotary Cleaning Brush (WA4042, sold separately)
The rotary cleaning brush accessory easily snaps into
the tool for cleaning sensitive surfaces and around
tight spaces. Suitable for the HYDROSHOTTM power
cleaner with/without the extension lance installed.
(See Fig. R)
9. Adjustable Power Scrubber (WA1820/WA1821,
sold separately)
The water powered rotary scrubber accessory easily
snaps into the tool for cleaning hard surfaces.
Suitable for the HYDROSHOTTM power cleaner with/
without the extension lance installed. (See Fig. S,
T, U) The soft scrubber (WA1820) is applicable for
sensitive surfaces and the hard bristle scrubber
(WA1821) is applicable for cleaning hard surfaces
(not recommended for cars and surfaces that could
be scratched).
7. MAINTENANCE
Remove the Battery Pack from the tool before
carrying out any adjustment, servicing or
maintenance.
Inspect the product for damaged or worn parts
before each use. Do not operate it if you nd
damaged or worn parts. Contact your supplier or the

19
2 in 1: Portable Power Cleaner/Water Sprayer
WG633E WG633E.X
manufacturer for replacement parts.
Hose lter maintenance
Unscrew the hose lter from the hose and remove
the strainer. Rinse the parts with clean water before
reassembling. (See Fig. P1, P2)
Filter maintenance (See Fig. V)
Rinse it with clean water before reassembling.
NOTE: When retightening the hose adapter, please
tighten securely. Otherwise, it may not draw any
water for proper operation.
WARNING: Any other servicing should be
performed by an authorized service
representative.
8. CLEANING/STORAGE
Before Storage, completely drain all the water from
the machine and hose.
Clean the moulded plastic housing of the machine
using a soft brush and clean cloth. Do not use water,
solvents or polishes. Store in a secure and dry place
out of the reach of children. Do not place other
objects on the product.
Store the machine and the accessories in a frost free
place.
9. ENVIRONMENTAL
PROTECTION
Waste electrical products must not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
local authorities or retailer for recycling advice.

20
2 in 1: Portable Power Cleaner/Water Sprayer
WG633E WG633E.X
10. TROUBLESHOOTING
Symptom Possible causes Solution
Machine turns on but
it does not draw any
water or there is not
sucient pressure.
Hydroshot is being held too high
from the water source.
NOTE: The higher the Hydroshot is
held in the air, the harder the pump
needs to work to draw water (up)
against gravity.
Hold the Hydroshot lower to the ground (less
than 5’ off of the ground) to improve water ow.
Hose lter is blocked. Take out the hose lter and rinse the parts with
clean water. (See Fig. P1, P2)
The users garden hose is not well
connected to the machine.
Check and reattach the garden hose tightly. (See
Fig. D2)
Hose Quick-Connect Adapter gets
loose.
Tighten the hose adapter securely with a wrench.
The lter is missing. (See Fig. R) Contact customer service to request a
replacement part.
The lter screen is blocked. (See
Fig. R) Clean the lter screen regularly.
Pump, hose, or other parts
are frozen due to outside
temperatures.
Wait for the pump, hose or other parts to thaw.
Hose kinks. Straighten out the hose.
An excessive amount of air can be
in the hose and Hydroshot.
If air builds up within the hose or pump, the
water pressure will drop. 1) Hold the Hydroshot
lower to the ground (less than 5’ off of the
ground) to improve water ow.
2) “Pre-ll the draw-hose” completely with water
to ensure all air is removed.
3) Operate the hydroshot without the lance or
nozzle attached to allow a higher volume of
water to quickly and easily ow throw the unit.
Once all air pockets appear to be removed,
reinstall the lance and nozzle.
3) Connect directly to a water spigot with garden
hose to clear all air from the system. Refer to
gures E1, E2, E3.
Multi-spray nozzle
leaks.
The nozzle pattern does not spray
correctly.
Make sure the nozzle pattern symbol aligns with
the indicator mark on tool.
Air built up within the hose or
pump.
Continue to operate the machine for a few
moments until leakage stops. Refer to
comments from above to remove air pockets.
Outlet pressure
increases suddenly. Multi-spray nozzle is blocked.
Clear any visible debris with a small object such
as a paper clip. Replace with a new multi-spray
nozzle.
Machine drains out
water after stopping.
There is water remaining in the
lance and pump after stopping.
Remove batteries and hoses. Press trigger and
rotate the Hydroshot in various directions to
allow all water to drain.
Soap accessory
cannot spray out any
detergent.
Blockage in the soap bottle. Clean it with fresh water.
The machine is not connected to
the water source.
Connect to the water source before turning on
the machine.
