Digisol DG-WN1150N User manual

DG-WN1150N
IEEE 802.11b/g/n Wireless LAN PCI Adapter
User Manual
V1.0
2010-07-02
As our product undergoes continuous development the specifications are subject to change without prior notice

DG-WN1150N User Manual
2
COPYRIGHT
Copyright ©2010 by this company. All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language, in any form or
by any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of this company.
This company makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties, merchantability or fitness for any particular purpose. Any software
described in this manual is sold or licensed "as is". Should the programs prove
defective following their purchase, the buyer (and not this company, its
distributor, or its dealer) assumes the entire cost of all necessary servicing,
repair, and any incidental or consequential damages resulting from any defect
in the software. Further, this company reserves the right to revise this
publication and to make changes from time to time in the contents thereof
without obligation to notify any person of such revision or changes.

DG-WN1150N User Manual
3
FCC warning:
This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to Part 15 of the FCC Rules. These limitations are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into a different outlet from that to which the
receiver is connected.
• Consult your local distributors or an experienced radio/TV technician for
help.
• Shielded interface cables must be used in order to comply with emission
limits
Changes or modifications to the equipment, which are not approved by the
party responsible for compliance could affect the user's authority to operate the
equipment.

DG-WN1150N User Manual
4
FCC Caution
This device and its antenna must not be co-located or operating in conjunction
with any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the authority to operate this equipment.
Federal Communication Commission (FCC) Radiation
Exposure Statement
This equipment complies with FCC radiation exposure set forth for an
uncontrolled environment. In order to avoid the possibility of exceeding the
FCC radio frequency exposure limits, human proximity to the antenna shall not
be less than 20cm (8 inches) during normal operation.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
The equipment version marketed in US is restricted to usage of the channels
1-11 only.

DG-WN1150N User Manual
5
R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 1999/5/EC
OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on
Radio Equipment And Telecommunication Terminal Equipment and the mutual
recognition of their conformity (R&TTE)
The R&TTE Directive repeals and replaces in the directive 98/13/EEC
(Telecommunications Terminal Equipment and Satellite Earth Station
Equipment) As of April 8, 2000.
Safety
This equipment is designed with the utmost care for the safety of those who
install and use it. However, special attention must be paid to the dangers of
electric shock and static electricity when working with electrical equipment. All
guidelines of this and of the computer manufacture must therefore be allowed
at all times to ensure the safe use of the equipment.
EU Countries Intended for Use
The ETSI version of this device is intended for home and office use in Austria,
Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy,
Luxembourg, the Netherlands, Portugal, Spain, Sweden, and the United
Kingdom.
The ETSI version of this device is also authorized for use in EFTA member
states: Iceland, Liechtenstein, Norway, and Switzerland.
EU Countries Not intended for use : None.

DG-WN1150N User Manual
6
Index
CHAPTER 1: Product Information 1-1 Introduction................................ 8
1-2 Precautions.......................................................................................................9
1-3 System Requirements....................................................................................10
1-4 Package Contents...........................................................................................11
1-5 Familiar with your new wireless network card .............................................12
CHAPTER 2: Driver Installation and Configuration................................. 14
2-1 Network Card Installation .............................................................................14
2-2-1 Using Digisol Utility..........................................................................20
2-2-1-1 Scan for Other Wireless Devices ............................................22
2-2-1-2 Connect to an Access Point.....................................................27
2-2-1-3 Add anAccess Point to Profile................................................30
2-2-2 Using Windows Zero Configuration..................................................38
2-3 Profile Management ......................................................................................43
2-3-1 Add a profile.......................................................................................44
2-3-3 Delete an existing profile ...................................................................46
2-3-4 Activate a profile................................................................................47
2-4 Advanced Settings .........................................................................................48
2-5 View Network Statistics ................................................................................50
2-6 WMM Setting................................................................................................51
2-7 WPS Configuration........................................................................................53
2-7-1 WPS Setup - PBC (Push-Button Configuration)................................54
2-7-2 WPS Setup - PIN................................................................................58
2-8 CCX...............................................................................................................60
2-9 Radio On/Off.................................................................................................61
2-10 About ...........................................................................................................62
2-11 On-line Help ................................................................................................63
CHAPTER 3: Soft-AP Function................................................................. 64
3-1 Switch to AP Mode and Basic Configuration................................................64
3-2 Security Setting..............................................................................................68
3-3 Access Control...............................................................................................70
3-4 Mac Table ......................................................................................................72
3-5 Event Log ......................................................................................................73
3-6 Statistics.........................................................................................................74
3-7 About .............................................................................................................75

DG-WN1150N User Manual
7
CHAPTER 4: Appendix.............................................................................. 76
4-1 Specification..................................................................................................76
4-2 Troubleshooting.............................................................................................77
4-3 Glossary.........................................................................................................79

DG-WN1150N User Manual
8
CHAPTER 1: Product Information
1-1 Introduction
Thank you for purchasing DIGISOL DG-WN1150N high-speed wireless
LAN network card! Excepting common wireless standards 802.11b/g,
this wireless network card is also able to access 802.11n wireless
networks - data transfer rate is 150Mbps, and that’s three times faster than
802.11g wireless network!
With easy-to-install PCI interface (a very common expansion port of
computers) plug this wireless network card into any empty PCI slot of
your computer, just that simple!
Other features of this wireless network card including:
 High-efficiency antenna expands the scope of your wireless
network.
 High-speed data transfer rate - Up to 150Mbps.
 WMM function: control the bandwidth required for different
applications.
 Work with IEEE 802.11b/g/n wireless devices.
 Supports major encryption methods like WEP, WPA, and WPA2
encryption.
 WPS configuration - You don’t need an experienced computer
technician to help you to get connected. Utilizing the software
program of the card, you can get your computer connected by
pushing a button or entering an 8-digit code. Pressing the button
on the network card, the WPS connection can be activated as
well.

DG-WN1150N User Manual
9
1-2 Precautions
In order to keep the safety of users and your properties, please follow the
following safety instructions:
1. This wireless network card is designed for indoor use only. DO NOT
expose this network card to direct sun light, rain, or snow.
2. DO NOT put this network card at or near hot or humid places, like
kitchen or bathroom. Also, do not left this wireless network card in the
car in summer.
3. This network card will become hot when being used for long time
(This is normal and is not a malfunction). DO NOT put the network
card on a paper, cloth, or other flammable objects after the network card
has been used for a long time.
4. There’s no user-serviceable part inside the network card. If you found
that the network card is not working properly, please contact your dealer
of purchase and ask for help. DO NOT disassemble the network card by
your self, warranty will be void.
5. If the network card falls into water, DO NOT USE ITAGAIN
BEFORE YOU SEND THE CARD TO THE DEALER OF PURCHASE
FOR INSPECTION.
6. If you smell something strange or even see some smoke coming out
from the network card, switch the computer off immediately, and call
dealer of purchase for help.

DG-WN1150N User Manual
10
1-3 System Requirements
The following system requirements are recommended
 A desktop computer with an available PCI slot.
 An IEEE 802.11b/g/n Access Point (for Infrastructure mode) or another IEEE
802.11b/g/n wireless adapter (for Ad-hoc, peer-to-peer networking mode).
 Windows 2000/XP/Vista or Windows 7.
 100MB of an available disk space.
 CD-ROM drive

DG-WN1150N User Manual
1-4 Package Contents
Before you start to using this wireless network card, please check if
there’s anything missing in the package, and contact your dealer of
purchase to claim for missing items:
1. Wireless LAN PCI adapter
2. 3dBi dipole antenna
3. Quick installation guide
4. Installation software CD (includes User Manual & Driver/Utility)
21
4
3
11

DG-WN1150N User Manual

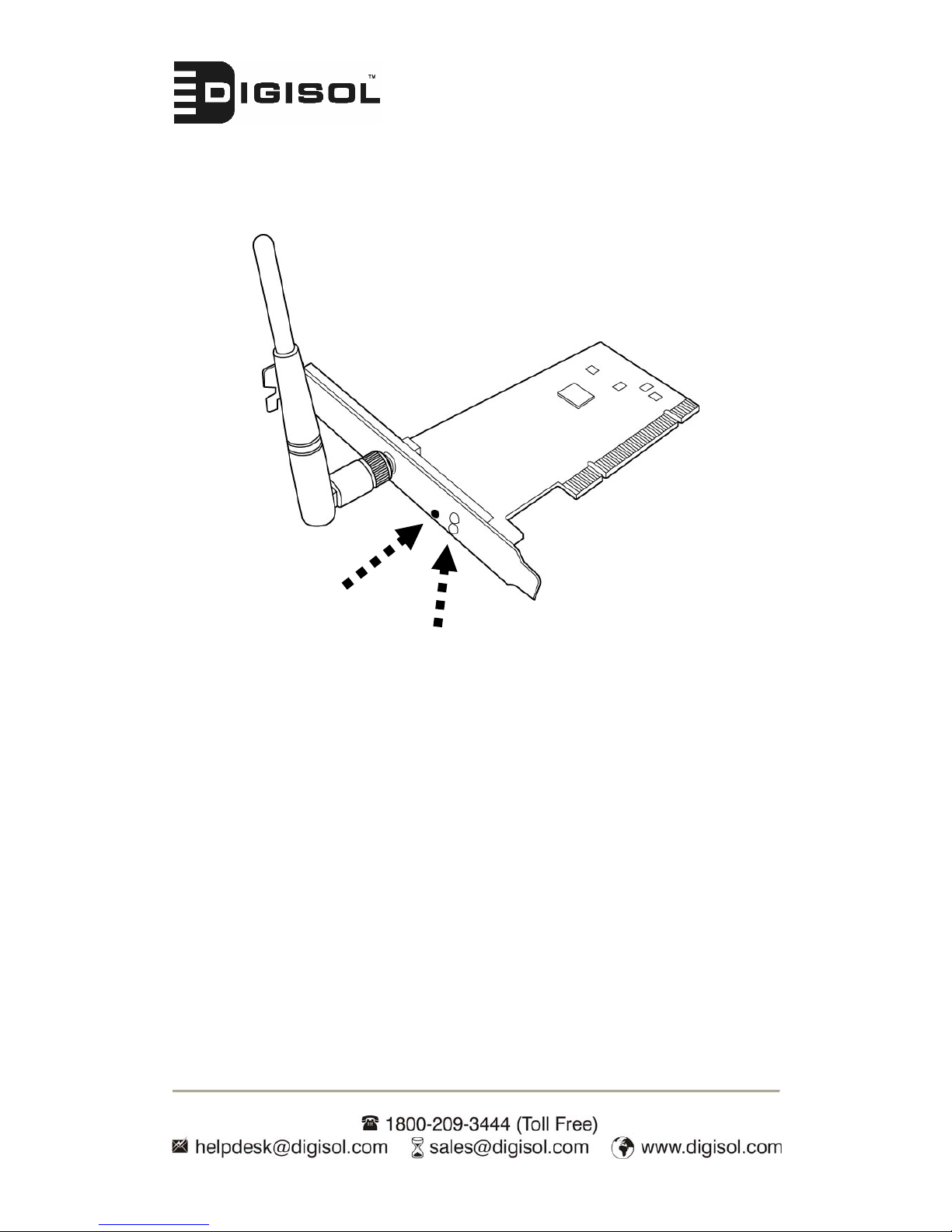

1-5 Familiar with your new wireless network card
1
2
3
1. Antennas
One 3dBi dipole antenna is enclosed with the PCI card. Please secure the
antenna to Reverse SMA connector of the card.
2. WPS Button
Press this button and hold for 3 seconds to start WPS function. When
WPS is enabled, the Link and Tx/Rx LEDs will be steadily on.
12

DG-WN1150N User Manual
13
3. Link and Tx/Rx LED Definitions
LED Name Light Status Description
On Link to a wireless Access PointLink
Off Radio is switched to off.
Blinking Transferring / receiving dataTx/Rx
Off No wireless activity

DG-WN1150N User Manual
CHAPTER 2: Driver Installation and Configuration
2-1 Network Card Installation
Please follow the following instructions to install your new wireless
network card:
1. SWITCH THE COMPUTER OFF, remove the cover and insert the
wireless network card into an empty PCI slot of your computer and
then replace the cover.
14

DG-WN1150N User Manual
2. Install the antenna on the wireless network card, and make sure the
antenna is securely installed. To improve radio reception, please adjust
antenna to the proper position.
3. When you restart the computer, ‘Found New Hardware Wizard’screen
will appear, click ‘Cancel’.
15

DG-WN1150N User Manual
4. Insert device driver CDROM into the CD/DVD ROM drive of your
computer, and execute ‘Setup.exe’ program. Please read the end user
license agreement and click ‘I accept the terms of the license
agreement’then click ‘Next’button, to accept license agreement.
5. It is recommend installing driver and utility if the network card is
installing the first time. If you want to update the driver only,
choose ’Install driver only’. Click ‘Next’to continue.
16

DG-WN1150N User Manual
6. You can choose the configuration tool used to configure the wireless
network card here. It’s recommended to select ‘DIGISOL
Configuration Tool’, which provides full access to all functions of this
wireless network card. If you prefer to use the wireless configuration
tool provided by Windows XP, please select ‘Microsoft Zero
Configuration Tool’ then click ‘Next’.
7. Now you’ll see the following message, please click ‘Install’to start
utility installation. If you see ‘Found New Hardware’message again,
please ignore it and wait.
17

DG-WN1150N User Manual
8. Please wait while the install procedure is running. When you see this
message, please click ‘Finish’to complete the driver installation
process.
9. After installation is complete, wireless configuration utility will be
shown in the desktop of your computer automatically. You will also
see an icon at the lower-right corner of your windows system.
HERE!
When you want to configure your wireless connection, please right
click on this icon, and a popup menu will appear. You can click
‘Launch Config Utility’to start configuration program.
If you want to close the configuration utility, please click ‘Exit’.
18

DG-WN1150N User Manual
Please note that if you stopped config utility by ‘Exit’function, you’ll
not be able to maintain the wireless link to the Access Point you wish
to use. In this case, you can start config utility again by clicking
‘Digisol Wireless Utility’icon from ‘Start’ -> ‘All Programs’->
‘DG-WN1150N 11n Wireless PCI Card Utility’, as shown below.
19

DG-WN1150N User Manual
2-2 Using the Wireless Configuration Utility
There are two ways you can configure your wireless network card to
connect to wireless Access Point: using the Digisol configuration utility
and using built-in windows zero configuration utility.
2-2-1 Using Digisol Utility
Please follow the following instructions to use Digisol configuration
utility to connect to wireless Access Point.
1. Right-click the Digisol configuration utility icon located at lower-right
corner of computer desktop and then clicks ‘Launch Config Utility’.
20
2. Digisol setup utility (Digisol UI) will launch, and begin to scan for all
wireless Access Points automatically.
Menu
Setup
Area
More / Less
button
