Digital Juice SunBurst 288 User manual

USER’S GUIDE

TABLE OF CONTENTS
About The SunBurst SMD LED Video Light 2
Package Contents 2
Using the SunBurst & Its Components 3
SunBurst Controllers & Connectors 5
Technical Data/Specications 6
Cleaning Instructions 6
Troubleshooting 7
Safety Precautions & Warnings 7
Replacement Parts & Accessories 8
Return Policy & Limited Warranty 9

34 5
6
Package
Contents
About the
SunBurst LED-
Light
2
USER’S GUIDE
Congratulations on your purchase of this Digital Juice SunBurst
288 SoftBox SMD LED Video Light. Please read these instructions
carefully before using the unit. Follow the procedures described, in
order to optimize the lifespan and functionality of the components of
this Digital Juice Gear product.
The SunBurst 288 is the perfect
lighting solution for field or studio
production crews who shoot
in variable lighting situations.
Its ability to function as either a
powerful direct or diffused light
source lends to its flexibility to
accommodate different needs for
any project.
The light’s high CRI produces
consistent and superior color
reproduction with no color-shift
when dimming. This makes it
ideal for the most demanding of
photo or video projects.
The durable yet light weight
aluminum design also makes
this light a great portable option
for busy production crews on
the go.

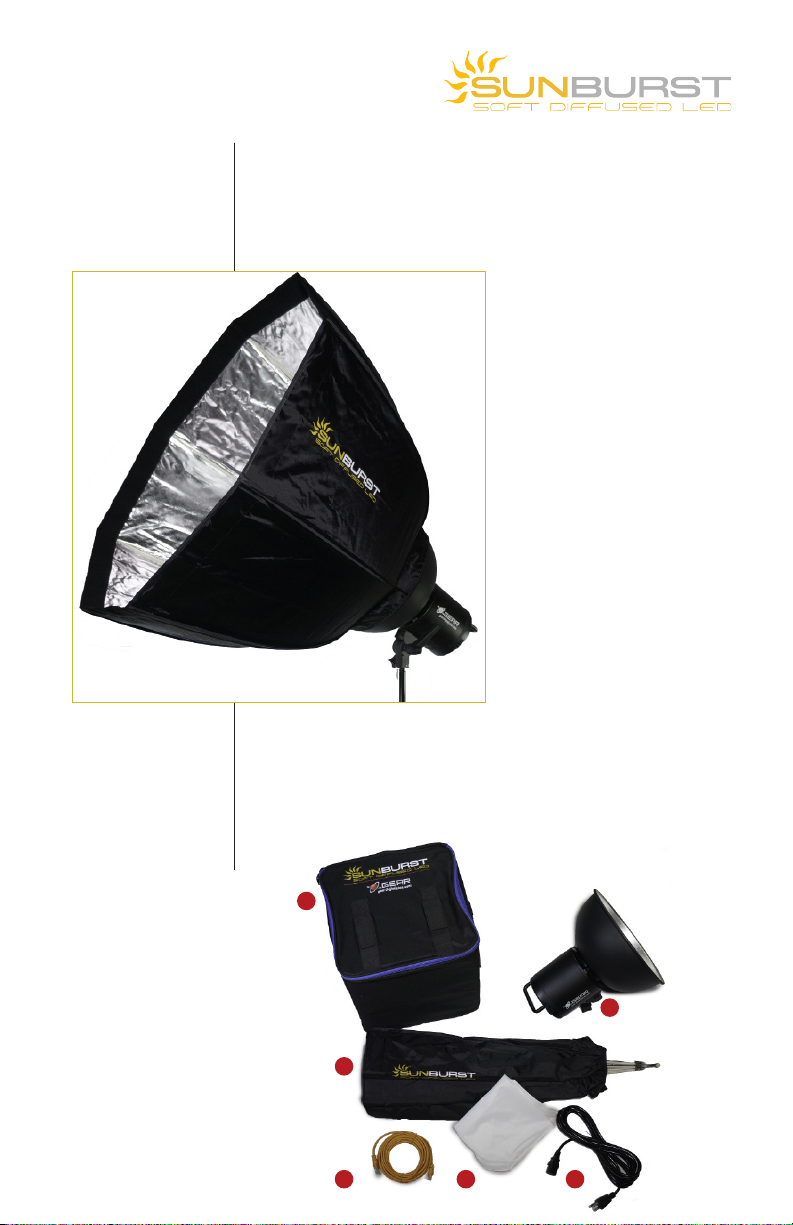

Each light unit (1) comes with an 80cm Magic Octagon Softbox (2),
Softbox front diffuser (3), 5 meter RJ45 cable for use with an optional
DMX controller (4),15ft Power cable (5) and Soft carry case (6).
1
2

Using the
SunBurst & Its
Components
3
USER’S GUIDE
Basic Operation:

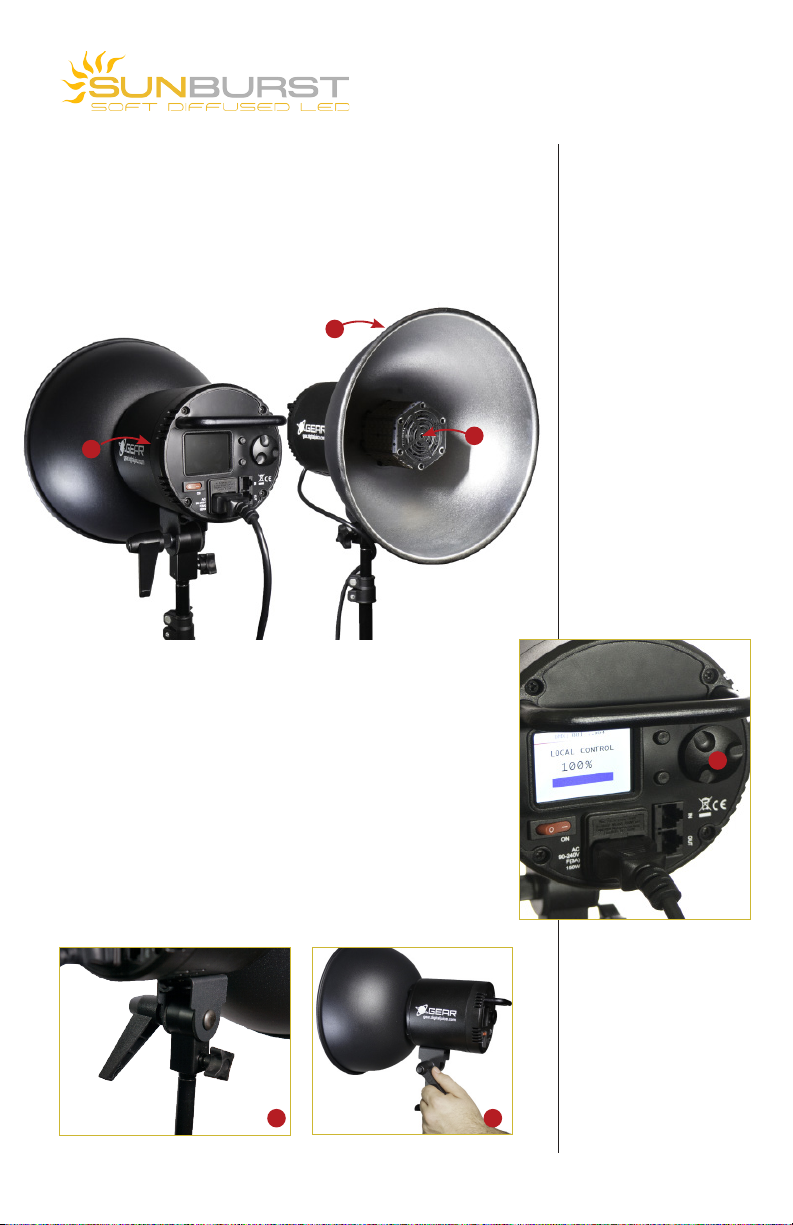

Attach the provided power cable and switch the unit on. Once
initialized the unit will be powered to the lowest brightness.
The SunBurst brightness is adjustable from 0-100% at a color
temperature of 5600k, using the dial. (10) With the addition of the
optional softbox, you can easily switch to a softened diffused light.
10
Adjustable mount:
The integrated adjustable mount allows the SunBurst to be
attached to any industry standard light stand (11) while its adjust-
able quick locking tilt control lets you precisely position and hold
the light’s beam where you need it. (12)
Digital Juice SunBurst Light Fixture:
The lightweight aluminum design of the SunBurst makes it per-
fectly portable for production on-the-go, while its all-metal con-
struction makes it rugged enough to endure life on the road. The
precision engineered reflector (7) shapes The SMD LED fixture
(8) for a uniform direct light. There is an internal self regulated
fan inside which ensures longer life for the LED bulbs and more
stable color temperatures. (9)
9
8
7
1211

4
USER’S GUIDE
Using the
SunBurst & Its
Components
(continued)
14
Softbox:
The SunBurst’s attachable softbox softens and diffuses the light, provid-
ing a larger area of coverage.
To install, secure the
light fixture by placing
on a stand and position
it facing up. (13) With
the soft box collapsed,
screw it in to the center
of the fixture, being
cautious to avoid cross
threading when installing.
(14) Expand the softbox
like an umbrella and lock
it to the open position.
(15) Pull the elastic band
around the housing of
the reflector. (16)
With light and softbox tilted slightly upward, attach the front diffuser with
the velcro on the upper inner edge of the softbox. (17) Continue attach-
ing each side in a circular direction. (18)
13
15
16
18
17

5

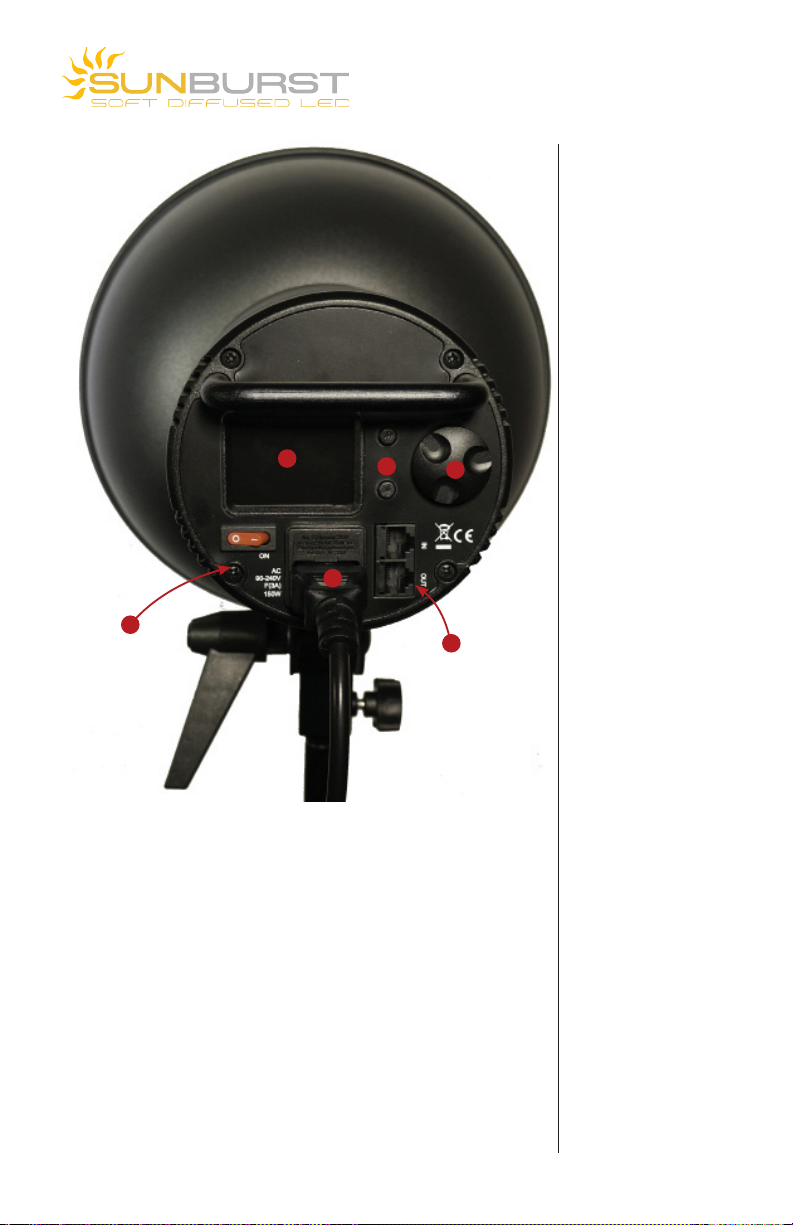

• Power Switch (19): Turns the SunBurst LED light on and off.
• Intensity Dial (20): Adjusts the intensity of the SMD LED bulbs
from 0-100%.
• Soft Buttons (+/-) (21): Allow for Menu selections.
• IEC Power In/Fuse Holder (22): The IEC AC power cable con-
nects to this port and replacable fuse built in.
• RJ45 In/Out (23): For connnection to DMX controller.
• LCD Menu (24): Pushing either Soft Button (21) or Intensity Dial
(20) opens LCD Menu.
USER’S GUIDE
21
22
23
24
SunBurst
Controllers &
Connectors
19
20

6
USER’S GUIDE
MODEL SunBurst LED
Size including reflector, DxL 5.12” x 11.89”
(130mm x 302mm)
Weight (Softbox Included) 5.07lbs (2.3kg)
Illumination (LUX) >18000LM
# SMD LEDs 288
Life Span >50,000h
Color Temperature 5600K
Color Rendering Index (Ra) >95
Beam Angle 60°
Power Type IEC
Operating Voltage AC 90-260v
Construction Aluminum
Technical Data/
Specifications
Care should be taken when cleaning your Digital Juice SunBurst light.
Use a dry microfiber cleaning cloth to wipe dust from the housing and
the LED bulbs when cool. If your light becomes excessively dirty, you
can use a lightly moistened microfiber cleaning cloth to wipe the alu-
minum housing, after first ensuring that the light is disconnected from
any power source. Use of any chemical cleaning solution or detergent
on the SunBurst light or accessories is not recommended.

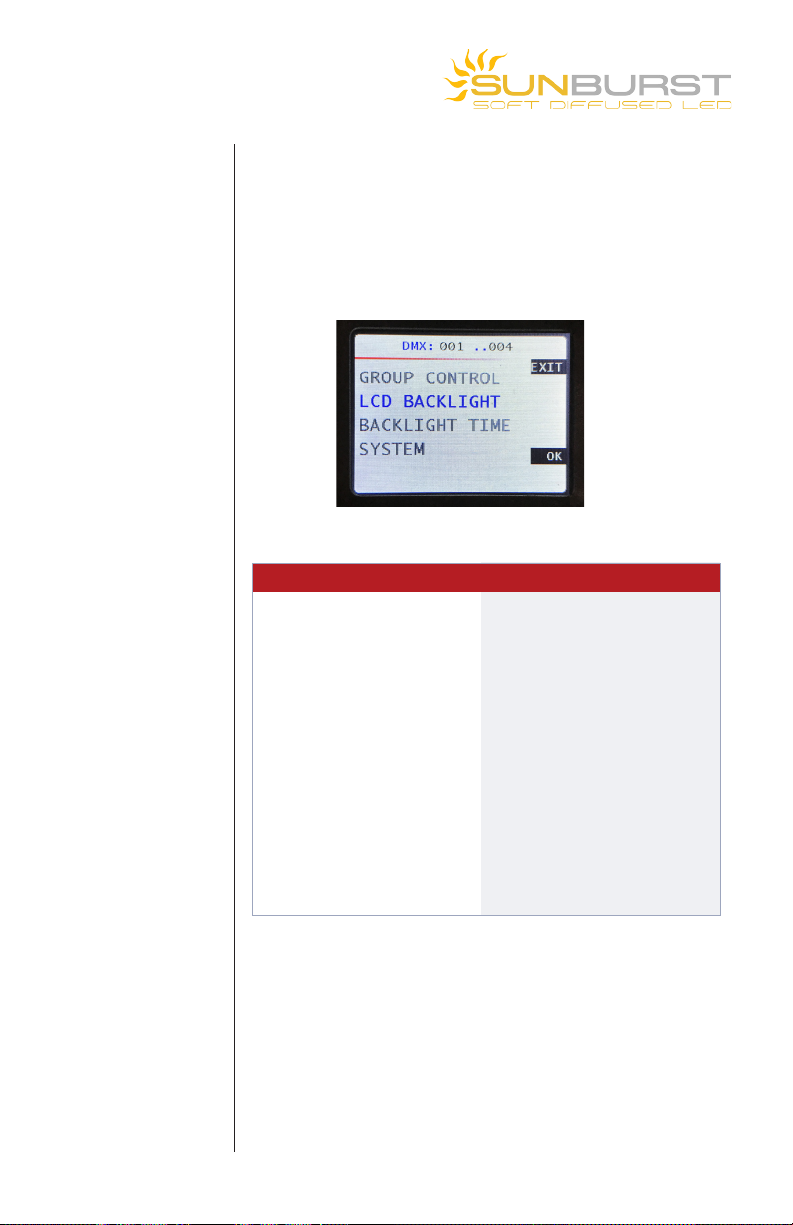

Turn the Intensity Dial (20) to scroll through the Menu options. Use the
Soft Buttons (21) to select your Menu options
• Group Control – for use with multiple light sources.
• LCD Backlight – adjusts brightness of LCD screen.
• Backlight Time – adjusts length of time LCD screen stays ON.
• System – provides basic system information
Cleaning
Instructions
SunBurst
Controllers &
Connectors

7
USER’S GUIDE
PROBLEM
The unit is turned on, but the LED lights do not light up.
SOLUTIONS
•Make sure the power cable is properly connected.
PROBLEM
The unit is making a high pitched noise.
SOLUTIONS
•This is normal as the self regulated fan adjusted its speed to keep the
unit properly cooled.
Troubleshooting
a. To avoid the risk of permanent eye damage, do not look directly
into the light or aim the light directly into another person’s eyes.
b. Light must be used exclusively for intended purposes.
c. Under no circumstances should you open the housing of the light.
Never take the devices apart or undertake modifications. Make sure
that the following safety precautions are expressly followed:
•Do not expose the light to water, fire or severe heat.
•Do not short circuit light—protect from fluids and damp environments and
do not connect via a conductor or reverse polarity.
• Maintainstorage,andlightoperationaltemperatureof32˚F-104˚F(0°-
40°C).
•Avoid dropping or strong physical impacts to the light.
d. Don’t use light if housing or plugs are damaged.
e. If light unit is excessively hot, emits an odor, or changes color
or shape, turn it off immediately and disconnect from any power
source. The device should not be used again and should be im-
mediately returned to Digital Juice.
f. Store unit in a dry and ventilated location, out of reach of children.
g. Use only the supplied AC cable to power your light.
h. Turn light off when not in use to avoid longtime heat generation which
could shorten the service life of the LED bulbs.
Safety
Precautions &
Warnings

8
USER’S GUIDE
The Digital Juice SunBurst LED Light is designed to be maintenance
free and there are no user-serviceable parts on the light fixtures or
accessories. If your light becomes broken or damaged, please do
not attempt to replace or repair the housing or any of the internal
parts.
Replacement and mounting accessories compatible for use with the
SunBurst lights are all available on the website at
gear.digitaljuice.com including:
•Replacement octogon soft box (24).
•Optional DMX controller (25).
•The DJ Gear MiniBurst Stands (26).
Replacement
Parts &
Accessories
24
26
25
