Vari Lite VL3600 User manual

VL3600 PROFILE IP
USER MANUAL

USER MANUAL
WWW.VARI-LITE.COM
VL3600 PROFILE IP
2
INTRODUCTION
OUR GOAL
We are committed to providing you the highest quality in customer service. Our comprehensive resources are
available to help your business succeed and ensure you get the full benefit of being a Vari-Lite customer.
TECHNICAL SUPPORT
Our Service and Support team is tasked with online and field support, repair, demo, commissioning, main-
tenance contracts, and technical training for fixtures and systems. In addition, this team plays a large role in
Systems sales, responsible for administering final commissioning, record-keeping, and organizing services. Refer
to the back cover of this user manual for contacts in your region or visit WWW.VARI-LITE.COM/SUPPORT.
CUSTOMER SERVICE
Customer Service is responsible for boxed goods and spare parts quotations, order entry and fulfilment, project
delivery, lead times, and general account management. They also manage all after sales warranty fulfilment,
RGA, and repairs invoicing in tandem with our After Sales Service & Support team. Visit our website to find a
customer service agent in your region.
ADDITIONAL DOCUMENTATION
Additional product documentation, including DMX maps, software, and photometric reports, is available for
download on our website.
For more information on installing DMX512 control systems, the following publication is available for purchase
from the United States Institute for Theatre Technology (USITT), “Recommended Practice for DMX512: A Guide
for Users and Installers, 2nd edition” (ISBN: 9780955703522).
USITT Contact Information:
USITT
315 South Crouse Avenue, Suite 200
Syracuse, New York 13210-1844 USA
Phone: [phone] or [phone]
Fax: [phone] or [phone]
Website: www.usitt.org
ABOUT THIS DOCUMENT
Read all instructions before installing or using this product. Retain this user manual for future reference.
Additional product information and descriptions may be found on the product data sheet(s) which can be
downloaded from the Vari-Lite website at WWW.VARI-LITE.COM.
This user manual provides necessary information regarding safety, installation, operation and routine mainte-
nance for Vari-Lite VL3600 Profile IP. Familiarizing yourself with this information will help you to get the most
out of your product.
WARNING: It is important to read ALL accompanying safety and installation instructions to avoid damage to
the product and potential injury to yourself or others.
This user manual covers the following model(s):
• VL3600 Profile IP; order code(s) 74817-001, 74817-101, 74817-011, 74817-111

USER MANUAL
WWW.VARI-LITE.COM
VL3600 PROFILE IP
3
SAFETY WARNINGS AND NOTICES
Read this user manual in full before attempting to install, operate or maintain the fixture to which it relates. This
user manual is intended to provide general guidance to such suitably qualified personnel. Installation and opera-
tion of the fixture are to be performed by qualified personnel only.
When using electrical equipment, basic safety precautions should always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
• Fixtures must be installed per the IP rating as marked on the unit. Failure to follow those markings may
cause an unsafe condition and void warranty.
• Use safety tether when mounting.
• Equipment should be mounted in locations and at heights where it will not be readily subjected to
tampering by unauthorized personnel.
• Not for residential use. Do not use this equipment for other than intended use.
• Note distance requirement(s) from combustible materials or illuminated objects. Do not mount near gas
or electric heaters.
• Install only in locations with adequate ventilation. Ensure sure that ventilation slots are not blocked.
• Ensure that the voltage and frequency of the power supply match the power requirements of the
fixture.
• The fixture must be earthed/grounded to the appropriate conductor.
• Do not operate fixture outside the specified ambient temperature range.
• Do not connect the fixture to any dimmer pack.
• The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition
and void warranty.
• Refer service to qualified personnel. This fixture contains no user serviceable parts.
• Prior to first use, carefully inspect fixture to ensure no damage has occurred during shipping.
• Materials used in the manufacturing process can cause strong odors when the product is new. These
odors dissipate over time.
• Prior to each use, carefully inspect power cables and replace any damaged cables.
• Exterior surfaces of the luminaire will be hot during operation. Take appropriate precautions.
• Continuous use of the fixture may shorten the lifespan. Power down the fixture when not in use.
• Do not cycle power on and o repeatedly. Disconnect mains power if the fixture is not used for an
extended period.
• Clean fixtures regularly, particularly when working in a dusty environment.
• Never touch power cables or wires while the fixture is powered on.
• Avoid entangling power wires with other cables.
• In the event of a serious operating problem, immediately discontinue using the fixture.
• It is hazardous to operate luminaires without lens or shield. Shields, lenses, or ultraviolet screens shall be
changed if they have become visibly damaged to such an extent that their eectiveness is impaired, for
example, by cracks or deep scratches.
• Original packing materials can be reused for transporting the fixture.
• Do not look directly at the LED light beam while the fixture is on.
• This is a Class A product. In a domestic environment this product may cause radio interference, in which
case, the user may be required to take adequate measures.
• The light source contained in this luminaire shall only be replaced by the manufacturer or service agent
or similarly qualified person.
SAVE THESE INSTRUCTIONS.
WARNING: Refer to National Electrical Code® and local codes for cable specifications. Failure to use proper
cable can result in damage to equipment or danger to personnel. Caution Against Direct Sunlight Through Front
Lens Assembly

USER MANUAL
WWW.VARI-LITE.COM
VL3600 PROFILE IP
4
CAUTION AGAINST DIRECT SUNLIGHT THROUGH FRONT LENS ASSEMBLY
The design and nature of the front lens assembly in Vari-Lite LLC luminaires is to eciently focus the light ener-
gy from the luminaire’s lamp for maximum light output.
• When the front lens assembly is exposed to direct sunlight or intense light from neighboring fixtures,
the lens will collect and intensify this light and focus it back into the fixture. Intense sunlight or beams
from other fixtures can cause damage to internal assemblies contained within the fixture.
• When fixture is not in use and direct sunlight or other intense light is present, position luminaires so
their front lens assembly it not directly exposed to the light source.
CAUTION AGAINST POWERING LUMINAIRES FROM DIMMER CIRCUITS
It is not recommended to power any Vari-Lite LLC luminaire from a dimmer - even in ‘NONDIM’ mode. Dimmer
and non-dim modules are not suitable sources of power because their output modifies the AC wave form. This
may work for a short time, but eventually results in power problems, luminaire mis-operation and/or failure.
• When using a power distribution rack, do not use dimmer or non-dim modules to power any
Vari-Lite LLC luminaire. Damage to the luminaire can occur.
• Using a dimmer or non-dim module to power your Vari-Lite LLC luminaire will void your luminaire’s
warranty.
CAUTION AGAINST THE USE OF THIRD PARTY PARTS OR ACCESSORIES
• Heat and heat distribution are important factors when operating Vari-Lite LLC luminaires. Vari-Lite LLC
luminaires are designed to dissipate heat eciently and safely. Any blockages or obstructions, such
as aftermarket baes, covers, enclosures, etc. can interrupt the luminaire’s ability to dissipate heat
properly and can damage the luminaire.
• Vari-Lite LLC cannot be responsible for issues arising from non-approved parts and accessories installed
on or used with any Vari-Lite LLC product. Customers of such products should contact the manufacturer
directly for assistance and support.
TRANSPORTING LUMINAIRES
When shipping or transporting luminaires, Vari-Lite LLC recommends that the luminaire(s) be suciently pro-
tected against any (including, but not limited to) shock, vibration, drops, jarring, exposure to the environment,
etc.
Failure to suciently protect any Vari-Lite LLC luminaire during shipping or transportation will result in damage
and void the luminaire’s warranty. Vari-Lite LLC will not be responsible for any shipping damage or breakage of
any product under any circumstances. Vari-Lite LLC will not be responsible for any third party case manufactur-
er’s cases.
NOTE: As with all automated luminaires, proper handling and suitable protective shipping cases should be
used when transporting fixtures to reduce the risk of damage.
TRANSPORTATION AND SHIPPING CASE REQUIREMENTS
Cases to transport Vari-Lite LLC luminaires should meet the following loading requirements:
• Luminaire head, yoke, and enclosure sub-assemblies shall be equally supported and constrained where
no one sub-assembly (head, yoke, or enclosure) fully supports the entire mass of the luminaire.
• The interior of the case shall be of high quality and uniform density foam. The foam shall be of the same
type and density throughout as to equally and uniformly support loading at every contact surface.
• The case shall, when laid on any of its six (6) surfaces, maintain the loading requirements outlined
above.
• All cases not meeting the aforementioned loading requirements, with wheels, shall have markings
on the exterior of the case that the unit is to be transported on it wheels only (e.g. “Case must be
transported and remain [at all times] on its wheels”).

USER MANUAL
WWW.VARI-LITE.COM
VL3600 PROFILE IP
5
COMPLIANCE NOTICE
FCC DECLARATION OF CONFORMITY
This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part
15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
this equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with Vari-Lite Strand system, service, and safety
guidelines, may cause harmful interference to radio communications.
As tested under this standard:
FCC 47CFR 15B clA*CEI
Issued:2009/10/01 Title 47 CFR Part 15 Subpart B Unintentional Radiators Class A
Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user
will be required to correct the interference at his/her own expense.
EU DECLARATION OF CONFORMITY
We, Vari-Lite LLC., 10911 Petal Street, Dallas, Texas 75238, declare under our responsibility for the products
contained herein are in conformity with the essential requirements of the following European Directives and
harmonized standards:
Low Voltage Director (LVD), 2006/95/EC
EN 60589-2-17:1984+A1:1987+A2:1990 used in conjunction with 60598-1:2008/A11:2009
Electromagnetic Compatibility Directive (EMC), 2004//108/EC
EN 55022:2010, EN55024:2010

USER MANUAL
WWW.VARI-LITE.COM
VL3600 PROFILE IP
6
HOW TO OBTAIN WARRANTY SERVICE
A copy of the Limited Warranty card was included in the shipping package for this product.
To obtain warranty service, please contact customer service at 1-214-647-7880, or entertainment.service@
signify.com and request a Return Material Authorization (RMA) for warranty service. You will need to provide the
model and serial number of the item being returned, a description of the problem or failure and the name of the
registered user or organization. If available, you should have your sales invoice to establish the date of sale as the
beginning of the warranty period. Once you obtain the RMA, pack the unit in a secure shipping container or in its
original packing box. Be sure to clearly indicate the RMA number on all packing lists, correspondence, and ship-
ping labels. If available, please include a copy of your invoice (as proof of purchase) in the shipping container.
With the RMA number written legibly on or near the shipping address label, return the unit, freight prepaid, to:
Vari-Lite LLC
Attention: Warranty Service (RMA# ________)
10911 Petal Street
Dallas, Texas 75238
USA
As stated in the warranty, it is required that the shipment be insured and FOB our service center.
IMPORTANT! When returning products to Vari-Lite for repairs (warranty or out-of-warranty) from a country
other than the USA, “Vari-Lite LLC”, must appear in the address block as the Importer of Record (IOR) on all ship-
ping documentation, Commercial Invoices, etc. This must be done in order to clear customs in a timely manner
and prevent returns.

USER MANUAL
WWW.VARI-LITE.COM
VL3600 PROFILE IP
7
FEATURES
1 DESCRIPTION
Download the product datasheet(s) from the Vari-Lite website at WWW.VARI-LITE.COM for the full technical specifications.
VL3600 PROFILE IP
Date:
Type:
Firm Name:
Project:
The Vari-Lite VL3600 PROFILE IP is a large-scale, high output
production profile fixture designed to withstand inclement weather
without compromising on weight and size. Designed at the forefront
of lightweight IP technology, the VL3600 PROFILE IP uses
advancements in mechanical design to ensure that even with an IP65
weatherproof rating, the weight and size remain closer to an IP20
(non-weatherproof) fixture. With a 1000W monochromatic light
engine and producing 85,000 source lumens, the VL3600’s huge
output power is ready to light the show from any distance in any
weather. A dedicated color wheel loaded CRI boost and color
correction filters ensure colors renders beautifully on stage or on
camera. Thanks to a CMY+CTO color wheel mixing system, the
fixture produces a wide range of rich colors while eliminating the
appearance of blades in the lens, improving direct view applications.

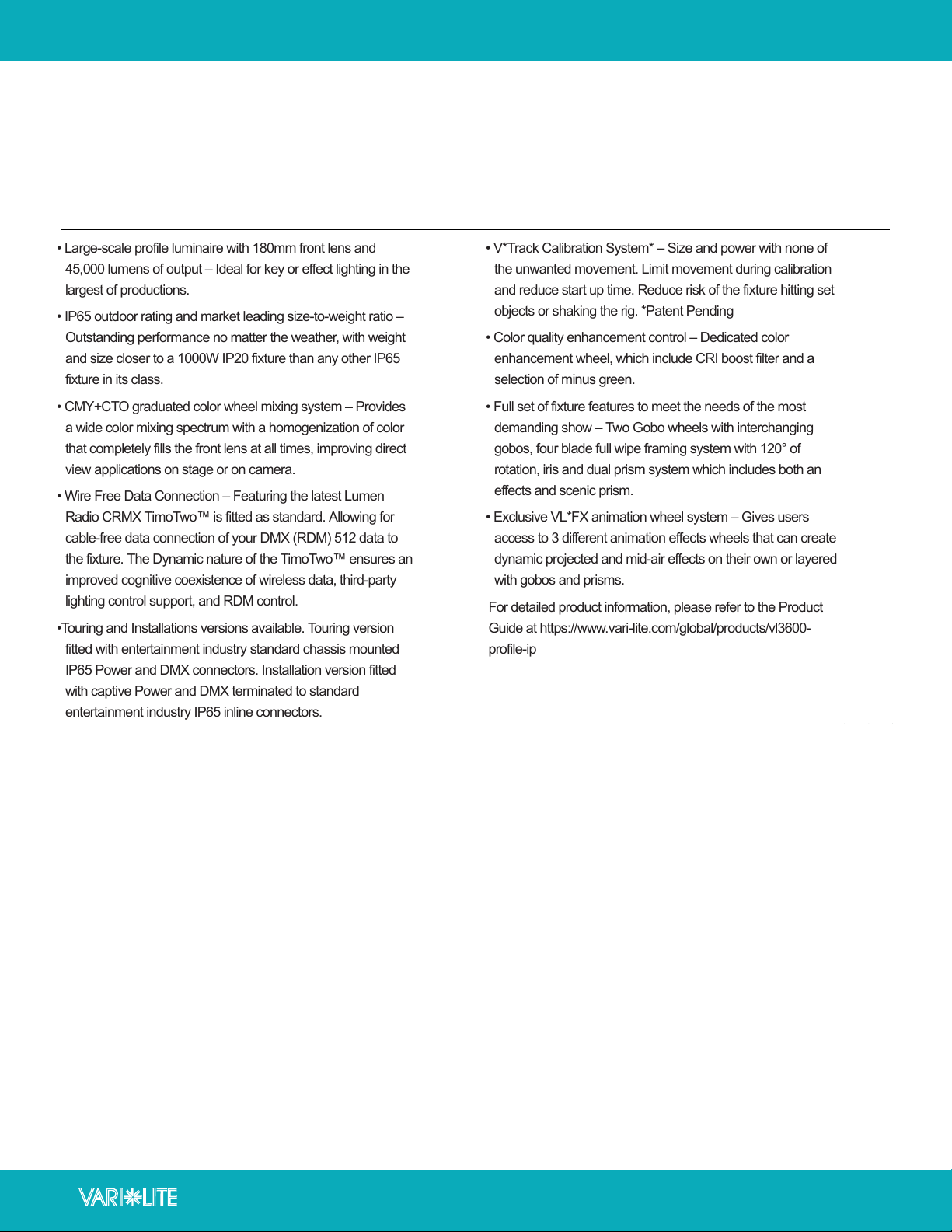

• Large-scale profile luminaire with 180mm front lens and
45,000 lumens of output – Ideal for key or effect lighting in the
largest of productions.
• IP65 outdoor rating and market leading size-to-weight ratio –
Outstanding performance no matter the weather, with weight
and size closer to a 1000W IP20 fixture than any other IP65
fixture in its class.
• CMY+CTO graduated color wheel mixing system – Provides
a wide color mixing spectrum with a homogenization of color
that completely fills the front lens at all times, improving direct
view applications on stage or on camera.
• Wire Free Data Connection – Featuring the latest Lumen
Radio CRMX TimoTwo™ is fitted as standard. Allowing for
cable-free data connection of your DMX (RDM) 512 data to
the fixture. The Dynamic nature of the TimoTwo™ ensures an
improved cognitive coexistence of wireless data, third-party
lighting control support, and RDM control.
•Touring and Installations versions available. Touring version
fitted with entertainment industry standard chassis mounted
IP65 Power and DMX connectors. Installation version fitted
with captive Power and DMX terminated to standard
entertainment industry IP65 inline connectors.
• V*Track Calibration System* – Size and power with none of
the unwanted movement. Limit movement during calibration
and reduce start up time. Reduce risk of the fixture hitting set
objects or shaking the rig. *Patent Pending
• Color quality enhancement control – Dedicated color
enhancement wheel, which include CRI boost filter and a
selection of minus green.
• Full set of fixture features to meet the needs of the most
demanding show – Two Gobo wheels with interchanging
gobos, four blade full wipe framing system with 120° of
rotation, iris and dual prism system which includes both an
effects and scenic prism.
• Exclusive VL*FX animation wheel system – Gives users
access to 3 different animation effects wheels that can create
dynamic projected and mid-air effects on their own or layered
with gobos and prisms.
For detailed product information, please refer to the Product
Guide at https://www.vari-lite.com/global/products/vl3600-
profile-ip

USER MANUAL
WWW.VARI-LITE.COM
VL3600 PROFILE IP
8
CURRENT VERSUS VOLTAGE
TABLE 1 provides the luminaire’s current draw at specific voltages. Total luminaire current is calculated with the
lamp on and all motors sequencing.
2
INSTALLATION & SETUP
POWER AND DATA CABLING REQUIREMENTS
CONNECTING POWER
This fixture requires standard AC power distribution from 120-240VAC, 50/60 Hz. Current required depends on
the AC supply voltage and product model
NOTE: The mating True1 IP 65 compatible connector is supplied; however, you will need to purchase or con-
struct a cable appropriate for your application.
Depending on the application, the luminaire’s AC input cable may require a dierent connector. If required,
install a new connector meeting your requirements using the following wire color code reference:
WARNING: DO NOT connect to three-phase service in countries with 240V power.
BATTERY
ENABLE

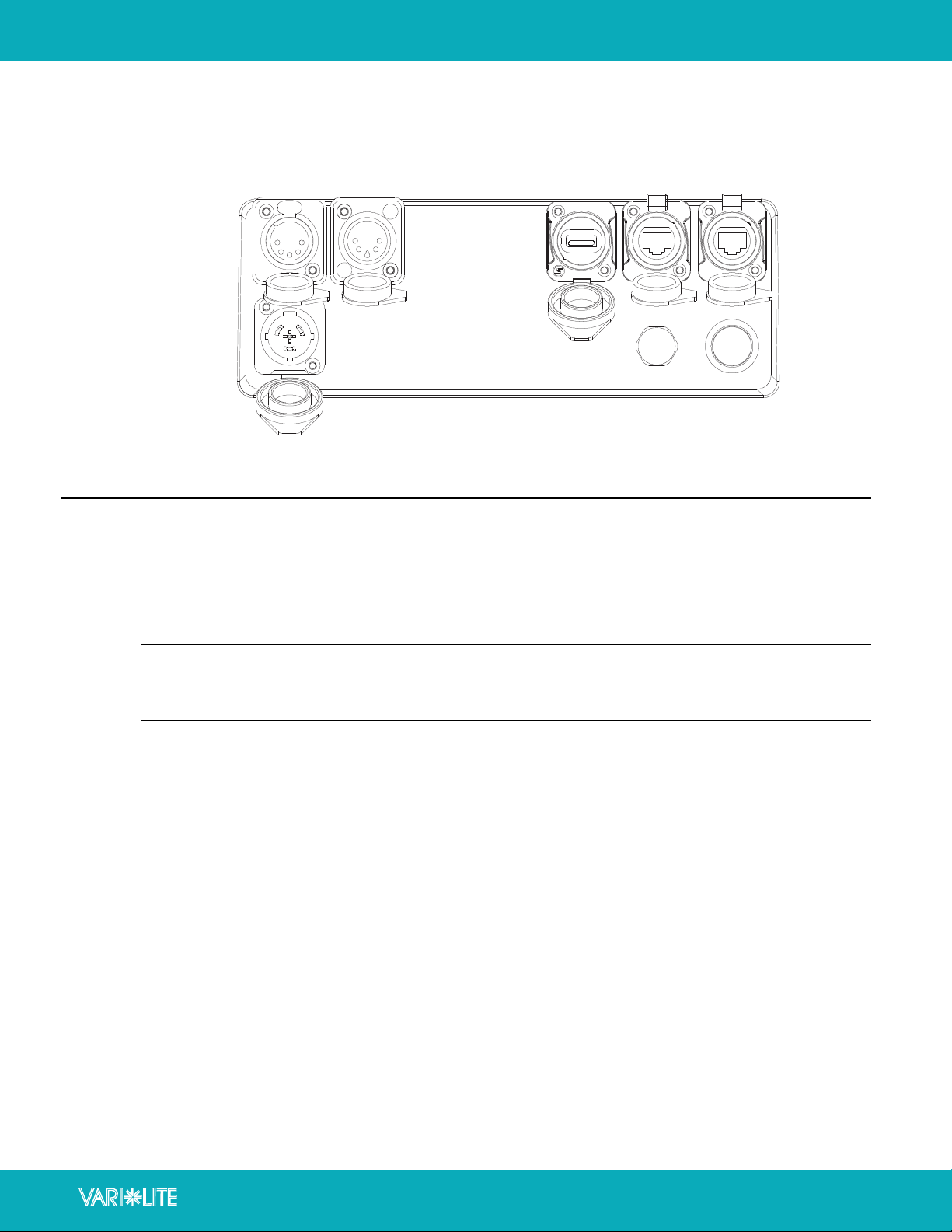

NETWORK 2NETWORK 1USB
AC INPUT
DMX/RDM THRU DMX/RDM IN
WIRE* CONNECTION
Green/yellow AC ground
Blue AC neutral
Brown AC line
* International (Harmonized) Standard
AC VOLTAGE AT 60HZ TOTAL CURRENT
120V 12.66A
180V 8.22A
208V 7.12A
230V 6.32A
240V 6.12A
TAbLE 1. CURRENT VS. VOLTAGE (1000W LED)
CONNECTION PIN
AC neutral X
AC line Y
Ground (earth) G
X
Y
G
CONNECTION PIN
Phase 1 X
Phase 2 Y
Ground (earth) G
For single-phase power from 120-240 volts RMS: For three-phase power at 208 volts RMS:
WARNING! It is the responsibility of the user to ad-
equately protect supply source with a correct size and
type circuit breaker and not overload circuits.
WARNING! It is not recommended to power any
Vari-Lite luminaire from a dimmer - even in ‘NONDIM’
mode. Dimmer and non-dim modules are not suitable
sources of power because their output modifies the AC
wave form. This may work for a short time, but will even-
tually result in power problems, luminaire mis-operation
and/or failure and may void the luminaire’s warranty.

USER MANUAL
WWW.VARI-LITE.COM
VL3600 PROFILE IP
9
DATA CABLE - DMX512/RDM
The luminaire is equipped with two, 5-pin XLR connectors for DATA IN and DATA THRU (out) applications.
DATA IN requires a 5-pin, female XLR connector and DATA THRU requires a 5-pin, male XLR connector. When
purchasing or constructing data cable, it is important that not only the correct cable type be used, but also
quality cable to ensure a reliable DMX512 system. All cable must be IP65 rated or higher. Your cabling should
meet the following USITT DMX specification requirements:
• Suitable for use with EIA485 (RS485) operation at 250k baud
• MUST BE IP65 RATED OR HIGHER - see below
• Characteristic impedance 85-150 ohms, nominally 120 ohms
• Low capacitance
• Two twisted pairs
• Foil and braid shielded
• 24 AWG min. gauge for runs up to 1000 feet (300m)
• 22 AWG min. gauge for runs up to 1640 feet (500m)
NOTE: Microphone type cable and other general purpose, two-core audio or signal cable are not suitable for
use with DMX512.
Refer to the USITT Recommended Practice for DMX512 guide for additional information regarding DMX512
systems.
The XLR 5-pin connectors should be wired as follows:
RECOMMENDED CABLE TYPES/MANUFACTURERS
These are only a few of the suitable cable types. Any quality EIA485, twisted pair, 120 ohm, shielded cable will
also work. Refer to TABLE 2.
Pin/Wire Code to XLR Connectors
Data Thru
Cable Pinout
Male Conn.
Pin 1
Foil &
Braided
Shield
Pin 2
1st
conductor
of 1st
twisted
pair
Data (-)
Pin 3
2nd
conductor
of 1st
twisted
pair
Data (+)
Pin 4
1st
conductor
of 2nd
twisted
pair
Data (-)
Pin 5
2nd
conductor
of 2nd
twisted
pair
Data (+)
Data In
Cable Pinout
Female Conn.
1
2
3
4
51
2
3
4
5
IP65 CONNECTORS
IP65 rated connectors can include, but are not limited to
• NEUTRIK TOP Series
• Seetronic W Series
NOTE: Check cable o-ring and rubber seals prior to use. If damaged or missing required lubricant then the cable
should not be used.

USER MANUAL
WWW.VARI-LITE.COM
VL3600 PROFILE IP
10
TAbLE 2. RECOMMENDED CAbLES
TYPE PAIRS ZΩ* JACKET AWG USE TEMP (°F) TEMP (°C)
BELDEN CABLES
1215A 2150 PVC 26 IBM Type 6 Oce cable 75 24
1269A 2100 PTFE 22 (solid) High Temp, Plenum cable 200 93
8102 2100 PVC 24 UL2919 80 27
8132 2120 PVC 28 UL2919 80 27
8162 2100 PVC 24 UL2493 60 16
82729 2100 PTFE 24 High Temp, Plenum cable 200 93
88102 2100 PTFE 24 High Temp, Plenum cable 200 93
89696 2100 PTFE 22 High Temp, Plenum cable 200 93
89729 2100 PTFE 24 High Temp, Plenum cable 200 93
89855 2100 PTFE 22 High Temp, Plenum cable 200 93
9729 2100 PVC 24 UL2493 60 16
9804 2100 PVC 28 UL2960 60 16
9829 2100 PVC 24 UL2919 80 27
9842 2120 PVC 24 UL2919 80 27
PROPEX CABLES
PC224P 2110 Polyurethane 22 Heavy Duty and Portable 105 41
PC224T 2110 PVC 22 UL2464 105 41
PC226T 3110 PVC 22 UL2464
* Characteristic impedance
TERMINATION CONNECTOR
A XLR termination connector is required at the last luminaire (or “far end of the line”)
to prevent signal reflections. Signal reflections may cancel out the signal at certain line
lengths, resulting in errors. The terminator is also necessary for software downloads and
running tests on multiple luminaires. To construct your own connector, you will need the
following components:
• 5-pin, male XLR connector.
• Two 1/4W 5% 120 ohm resistors.
NOTE: A male termination connector is available as an accessory from Vari-Lite.
Solder resistors across
pins 2 & 3, and 4 & 5
1
2
3
4
5
DATA CABLES - NETWORK/RJ45
The luminaire is equipped with two RJ45 Ethercon compatable connectors. This pair of connectors include a passive
pass-thru that will allow signal to pass even if one unit is powered down. Cables should be Cat5, Cat5e or Cat6 and
should be equipped with IP65 or higher rated etherCON compatible connectors.

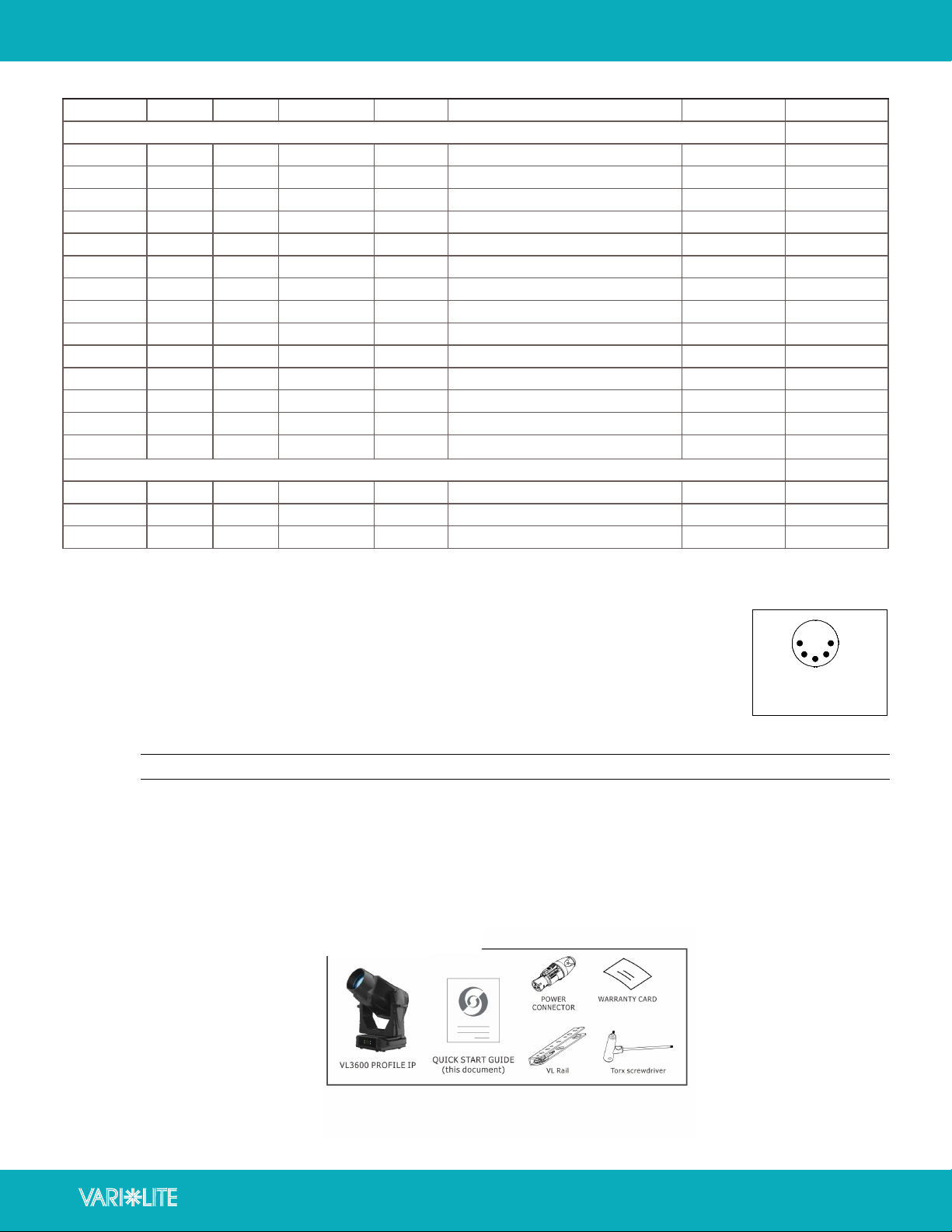

TAbLE 3. INCLUDED ITEMS

USER MANUAL
WWW.VARI-LITE.COM
VL3600 PROFILE IP
11
HANGING THE FIXTURE
The VL3600 Profile IP can be hung horizontally or 45° vertically from any
structure designed to work with the type of load created by this moving
luminaire. Two mounting truss hooks or other mounting hardware are
required. Many compatible truss hooks are available from dierent manu-
facturers for your particular needs.
A minimum of two hooks per luminaire is required. If mounting method
does not use truss hooks, two attachment points, per luminaire, are re-
quired.

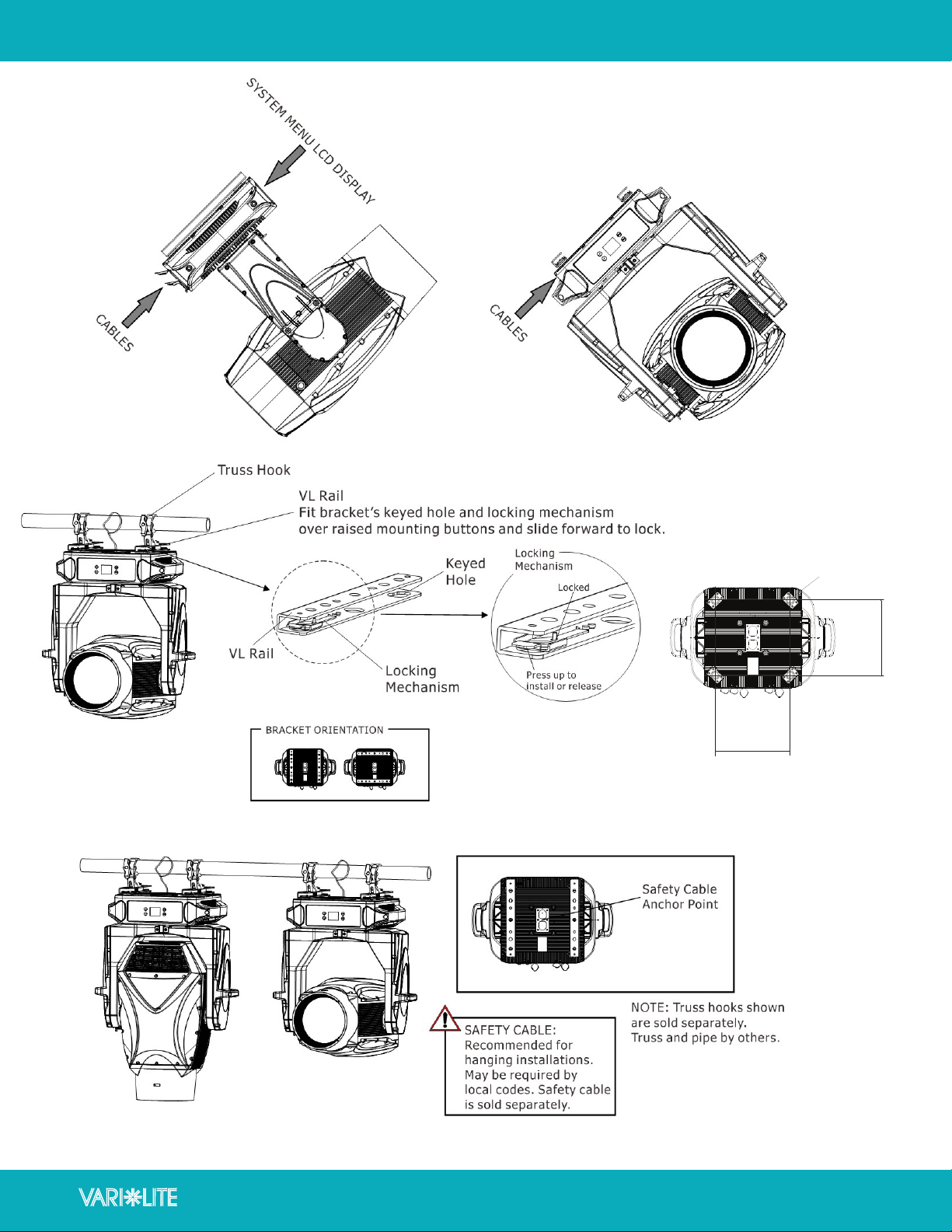

Install mounting hardware and brackets:
Step 1. Install truss hooks (also refer to “Truss Hook Hardware (by oth-
ers)” on page 23) for additional information) on two provided
truss hook brackets as required as shown in Figure 2-7.
NOTE: Various types of truss hooks can be used. The Mega Claw truss
hook (as shown in the example above) as well as many other standard
hooks, can be ordered separately.
TRUSS HOOK HARDWARE (BY OTHERS)
When installing hanging hooks on mounting brackets, Vari-Lite strongly recommends the use of a Belleville
washer when installing a truss hook or claw. The Belleville washer’s size should be approximately 13-25mm (0.5-
1.0 in) diameter. Belleville washers are available in various thicknesses and any of the following thicknesses are
acceptable for the application described: 0.9.mm, 1.0mm, 1.3mm, 1.9mm (0.035-inch, 0.043-inch, 0.050-inch,
0.073-inch).
The washer serves two purposes:
• To spread out the load. When a washer IS NOT used, the bolt head (without a washer) concentrates the
load in a smaller area, creating focused stress on the steel bracket, making premature failure possible. A
steel washer is recommended to spread this load over a larger surface area.
• To keep the bolt in place. The recommended Belleville washer maintains tension in the bolted assembly
and prevents it from vibrating loose.
If a Belleville washer is not available, a regular flat washer measuring in diameter of 25mm (1 inch) minimum can
be used in conjunction with a suitable split lock washer situated between the bolt head and flat washer.
Step 2. Determine required configuration of bracket installation. Brackets may be installed in many dierent
orientations.
Step 3. While pulling up on locking mechanism release, fit keyed holes onto raised mounting buttons at bot-
tom of enclosure. Slide forward and release locking mechanism to lock in place. Ensure brackets are
locked securely.
WARNING: Ensure that the bracket locking mechanism is fully seated after the bracket is installed on the
luminaire.
Installing in Truss:
Step 1. Using two people, lift luminaire into mounting position.
Step 2. Secure in place with truss hook. Ensure truss hook hardware that locks hook in place (e.g. wing bolt) is
properly tightened and that luminaire is fully supported.
Step 3. Attach safety cable (as required) as follows:
a. Loop safety cable at least once around safety cable anchor point rod.
b. Loop safety cable at least once around truss/pipe and secure around pipe.
Step 4. Make sure tilt and pan locks are disengaged so luminaire moves freely.
Step 5. Connect power and data cables.
When the fixture is mounted in a side hanging orientation, you must enable side hang in the menu for proper
operation. To enable side hang, press MENU. Select CONFIG > MOVEMENT > SIDE HANG > ENABLE.
Mount Bracket
Mega Claw
Truss Hook
(not provided)
Truss Hook Hardware
(not provided)

USER MANUAL
WWW.VARI-LITE.COM
VL3600 PROFILE IP
12
254 mm
(10 in)
4x mounting
buttons
254 mm
(10 in)

USER MANUAL
WWW.VARI-LITE.COM
VL3600 PROFILE IP
13
FLOOR MOUNTING
All luminaires included in this manual are designed to sit directly on its base in a floor installation application.
When used in this type of application, be sure to leave enough space around the luminaire to allow proper, unin-
terrupted airflow for cooling and movement.
CONNECTING DATA AND POWER
A maximum of 32 luminaires may be connected in any one DMX data link.
NOTE: This maximum limit applies to the luminaire “daisy chain” only. Your system or console may require few-
er luminaires on a single data link path. Consult your console documentation for more information.
To connect power and data:
Step 1. Connect data cable from console to first luminaire in chain at DATA IN connector.
Step 2. If required, connect additional data cables from DATA THRU connectors to DATA IN connectors of
remaining luminaires in link.
Step 3. At last luminaire in link, install male termination connector at DATA THRU connector. (Luminaires and
other devices on the same DMX chain may not function properly without termination.)
Step 4. Connect AC Input Cable connector to power input source.
Step 5. Dress AC input and data cables and secure them so that they will not interfere with luminaire head
and yoke movement.

USER MANUAL
WWW.VARI-LITE.COM
VL3600 PROFILE IP
14
POWERING UP
POWER-UP PROCEDURE
When AC power is applied, the luminaire immediately begins a calibration sequence. Pan and Tilt will either
move direct to the home position or to the current DMX values depending on menu settings. The internal color
and beam mechanisms will also move through a full range of motion. After calibration, the luminaire head will
either stop at its “home” position (which positions the pan axis at mid-rotation and the head parallel to the yoke
with the lens pointing away from the luminaire enclosure) or move to its current DMX-defined position if DMX
data is present. All internal mechanisms also move to their “home” or DMX-defined positions.
CAUTION: Before applying power, be sure the luminaire is hung (or positioned), and the pan and tilt locks are
disengaged, so that the head and yoke can move freely without restriction.
To power up:
Step 1. At each luminaire, apply power connecting the power cable to the unit.
Step 2. Luminaire automatically steps through calibration and stops at “home” position (only if DMX is not
present).
ADDRESSING
PROGRAM STARTING ADDRESS
The address setting for DMX console controlled systems is entered using the Menu Display. The luminaire retains
the DMX address even if power is removed.
DMX ADDRESS
To set, edit, and save a DMX address:
Step 1. Press [MENU].
Step 2. Press [UP] / [DOWN] arrows until Address appears. Press [ENTER].
Step 3. Use [UP] and [DOWN] arrow buttons to scroll through all available starting address.
Step 4. Once correct starting address is selected, press [ENTER] to set..
NOTE: The luminaire has an auto lock function on the Menu Display. To unlock, while touching the ENTER but-
ton, touch UP -> DOWN -> UP -> DOWN if unit is sitting. If hanging, while touching the ENTER button, touch
DOWN -> UP -> DOWN -> UP.
PROGRAM STARTING ADDRESS WITHOUT CALIBRATION
It is possible to bypass the calibration sequence and go directly to the Menu Display programming in order to
pre-program an address setting.
To program starting address without calibrating luminaire:
• Power the luminaire on. As soon as the display says ‘Calibrating’ touch and hold the MENU button.
• After a few seconds, release the menu button and then program address as in Program Starting Address
above.
NOTE: The luminaire will require a reset to restore control.

USER MANUAL
WWW.VARI-LITE.COM
VL3600 PROFILE IP
15
Program starting address in Battery Mode:
• To activate menu in Battery Mode when the fixture is not connected to a power source, touch and hold
the MENU button, and at same time press and hold the battery enable button on the rear. Once the
screen boots you can release both and access menu normally. Pressing the MENU button from the top
level or home screen will shuto display.
BATTERY
ENABLE
NETWORK 2NETWORK 1USB
AC INPUT
DMX/RDM THRU DMX/RDM IN
TRANSPORTING
When shipping or transporting luminaires, Vari-Lite recommends that the luminaire(s) be suciently protect-
ed against any (including, but not limited to) shock, vibration, drops, jarring, exposure to the environment,
etc.
Failure to suciently protect any Vari-Lite luminaire during shipping or transportation will result in damage
and void the luminaire’s warranty. Vari-Lite will not be responsible for any shipping damage or breakage of
any product under any circumstances. Vari-Lite will not be responsible for any third-party case manufactur-
er’s cases.
NOTE: As with all automated luminaires, proper handling and suitable protective shipping cases should be
used when transporting fixtures to reduce the risk of damage. For more information, please refer to Vari-Lite
technical notice (TN-235) “Transportation and Shipping Case Requirements” in the “Support” area of the
Vari-Lite web site.
TRANSPORTATION AND SHIPPING CASE REQUIREMENTS
Cases to transport Vari-Lite luminaires should meet the following loading requirements:
• Luminaire head, yoke, and enclosure sub-assemblies shall be equally supported and constrained
where no one sub-assembly (head, yoke, or enclosure) fully supports the entire mass of the luminaire.
• The interior of the case shall be of high quality and uniform density foam. The foam shall be of the
same type and density throughout as to equally and uniformly support loading at every contact
surface.
• The case shall, when laid on any of its six (6) surfaces, maintain the loading requirements outlined
above.
• If using the provided SIP, ensure it fits securely into the case.
• All cases not meeting the aforementioned loading requirements, with wheels, shall have markings
on the exterior of the case that the unit is to be transported on it wheels only (e.g. “Case must be
transported and remain [at all times] on its wheels”).

USER MANUAL
WWW.VARI-LITE.COM
VL3600 PROFILE IP
16
VL*FX WHEEL
The eects wheel oers 3 images.
NOTE: VL*FX Wheel images can only be changed by an authorized service center.
COLOR WHEEL
The VL3600 Profile IP contains two fixed color wheels. One holds the normal fixed colors and the second the
color adjustments (CRI Booster, 1/4 and 1/2 Minus Green and CTB).
NOTE: Fixed colors can only be changed by an authorized service center.
3 OPERATION
Color Wheel 1 Color Adjustment
Color Wheel 2
SLOT DMX RANGE CENTER
1 32 - 63 48
2 64 - 95 80
3 96 - 127 112
4 128 - 159 144
5 160 - 191 176
6 192 - 223 208
SLOT DMX RANGE
1 31 - 60
2 61 - 90
3 91 - 120
4 121 - 180

USER MANUAL
WWW.VARI-LITE.COM
VL3600 PROFILE IP
17
GOBO WHEEL
The VL3600 Profile IP accommodates glass gobos. There are two wheels, with Gobo Wheel 1 oering 10 fixed
gobos plus one open position and Gobo Wheel 2 oering 7 rotatable, indexable gobos plus one open position.
GOBO
SLOT DMX RANGE CENTER OF
121 - 41 31
242 - 62 52
363 - 83 73
484 - 104 94
5105 - 125 115
6126 - 146 136
7147 - 167 157
8168 - 188 178
9189 - 209 199
10 210 - 230 220
CAUTION: VL3600 Profile IP accepts glass gobos only. Use of metal gobos in these luminaires may damage
gobo assembly and will void the luminaire warranty.

USER MANUAL
WWW.VARI-LITE.COM
VL3600 PROFILE IP
18
GOBO
SLOT
INDEX ROTATION MEGA STEPPING
DMX RANGE CENTER OF
IMAGE DMX RANGE CENTER OF IMAGE DMX RANGE CENTER OF IMAGE
16 - 10 846 - 50 48 86 - 90 88
211 - 15 13 51 - 55 53 91 - 95 93
316 - 20 18 56 - 60 58 96 - 100 98
421 - 25 23 61 - 65 63 101 - 105 103
526 - 30 28 66 - 70 68 106 - 110 108
631 - 35 33 71 - 75 73 111 - 115 113
736 - 40 38 76 - 80 78 116 120 118
GOBO DIAMETER IMAGE AREA DIAMETER GLASS THICKNESS CARRIER REQUIRED?
27mm 17.5mm 1.1mm Yes
Compatible carriers for gobos are shown below.
Rgobo Carrier
303300235
Rgobo Carrier
with Magnet
3033002536
Fixed Gobo
Carrier
3033002537
Rotate Gobo Carrier
with Magnet
3033002536
Rotate Gobo Carrier
303300235
Fixed Gobo
Carrier
3033002537

USER MANUAL
WWW.VARI-LITE.COM
VL3600 PROFILE IP
19
REMOVE AND INSTALL LUMINAIRE COVERS
WARNING: This procedure should only be performed by authorized service personnel. Refer to the VL3600
Profile IP Service Manual for additional details.
VL3600 Profile IP luminaires require special attention when the removal of any covers is required. The seals
must be inspected, and care taken when replacing the covers.
WARNING: Failure to follow instructions may cause damage to unit and void warranty. Only authorized ser-
vice personnel should attempt.
To remove head covers:
Step 1. Remove power from luminaire.
Step 2. Using a Torx T-20 driver (one is supplied with each luminaire) remove the 14 x M4x12mm SHCP T20
screws at each cover. There is no need to remove the waterproof silicon gasket.
NOTE: There is a tether connecting the covers to the luminaire. If removing, use caution when re-attaching to
avoid damage to threads.
To replace head covers (See Fig below):
Step 1. If gasket has been removed, inspect the groove and remove any residue. Place the flat side of the IP
sealing gasket inward and the rounded side outward.
Step 2. Align the gasket with the groove and install it, again with the flat side in the groove. The rounded
side should protrude out of the groove about 1mm.
Step 3. Install 1 x M4x12mm SHCP T20 screw into position 9 two-thirds of the length.
Step 4. Install 2 xM4x12mm SHCP T20 screws into positions 8 and 10 two-thirds of the length.
Step 5. Install 1 x M4x12mm SHCP T20 screw into position 2 two-thirds of the length.
Step 6. Install 2 x M4x12mm SHCP T20 screws into positions 1 and 3 two-thirds of the length.
Step 7. Install the remaining M4x12mm SHCP T20 screws into positions 4,5,6,7,11,12,13 and 14 two-thirds of the
length.
Step 8. Tighten positions 7 and 14 to 20 kgf.cm (1.96 Nm / 1.45 lbf.ft)
Step 9. Tighten positions 4 and 11 to 20 kgf.cm (1.96 Nm / 1.45 lbf.ft)
Step 10. Tighten all remaining positions 1,2,3,5,6,8,9,10,12,13 to 20 kgf.cm (1.96 Nm / 1.45 lbf.ft)
WARNING: If the gasket has any damage or ‘dents’ it must be replaced.
Flat side Rounded side

USER MANUAL
WWW.VARI-LITE.COM
VL3600 PROFILE IP
20
REPLACE A ROTATING GOBO

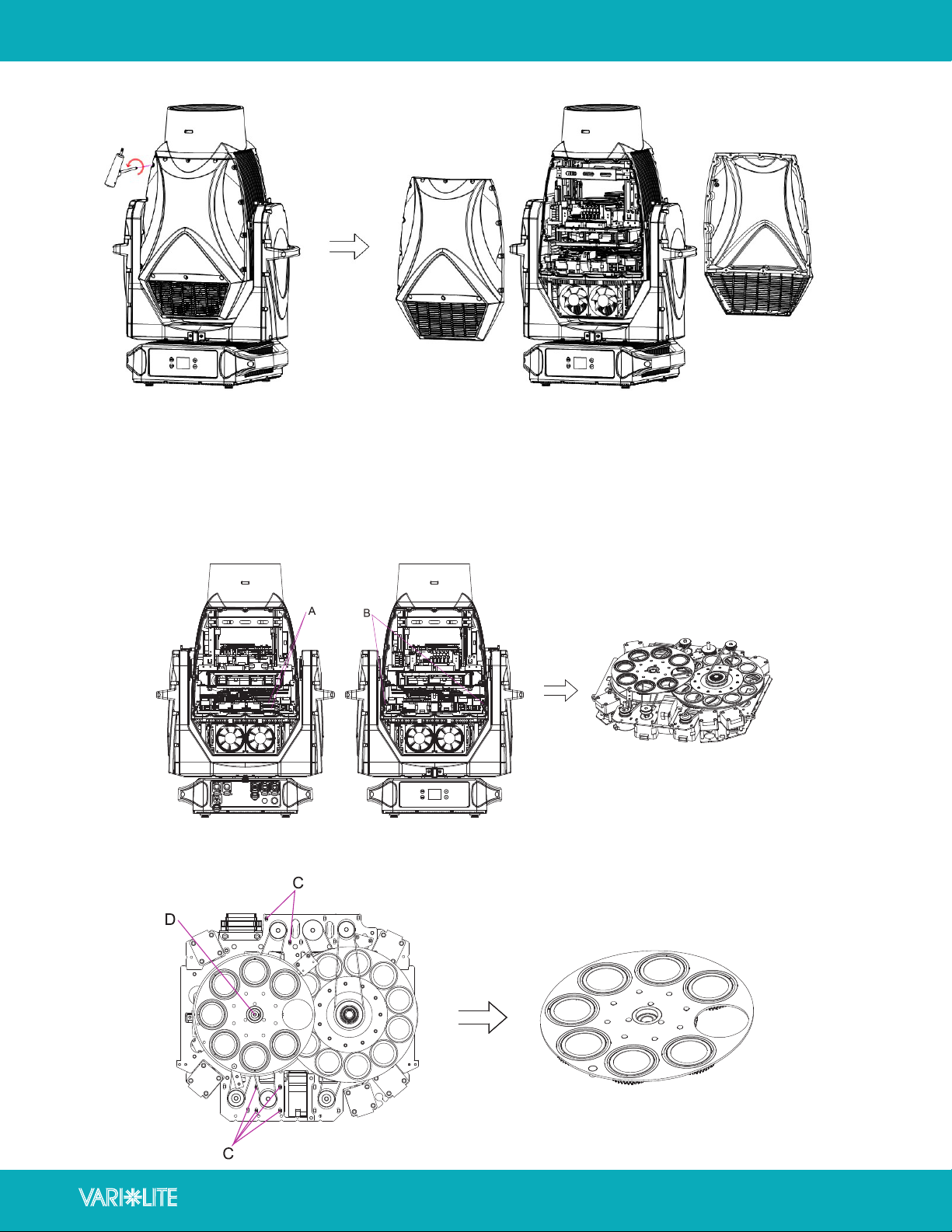

To replace a rotating gobo (see below):
Step 1. Remove power from luminaire.
Step 2. Remove top and bottom head covers as described on previous page.
Step 3. Remove the 4 screws and disconnect the DB Plug at A.
Step 4. On the other side, remove the 2 screws at B and remove the gobo/color assembly.
Step 5. Press down on the edge of the rotating gobo carrier you wish to remove and slowly pull out.
