roblight FL 1300 XT-2 C User manual

User manual
FL 1300 XT-2 C

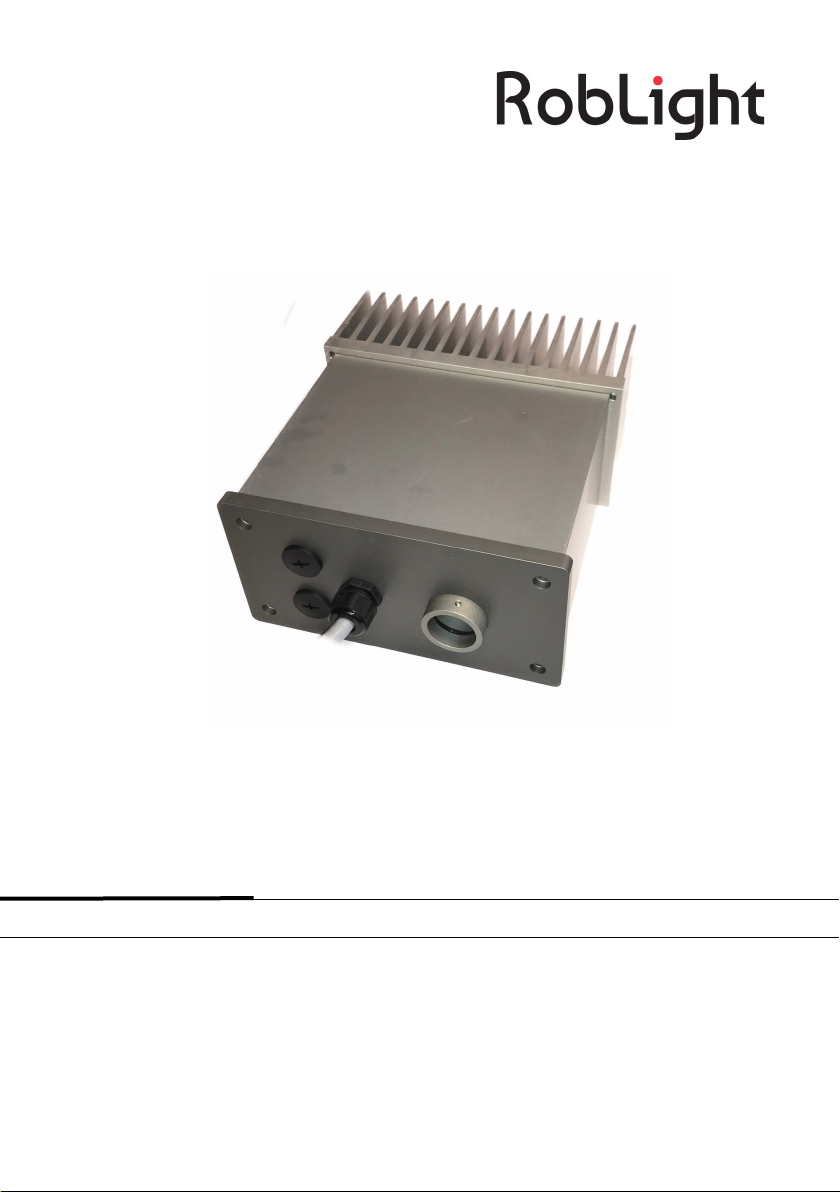

The RobLight FL 1300 XT-2 RGBWDMX light generator is designed for outdoor use
with special water proof PMMA fibre harness Ø28 mm. It can be used in all installa-
tions set-ups, including closed compartments if limits for max ambient temperature
are followed.
Introduction
Product overview/unboxing
1 FL 1300 XT-2 RGBW DMX
1 User manual
1 Allen key
Installation instructions
Follow the installation instructions to ensure
• Safe operation
• Full functionality
• Stated expected lifetime
• Uninterrupted illumination

This device has built in high power phosphor converted blue leds. The light source
is grouped in Risk Group 2.
Warning
Do not look into the light port when lit.
Beware of placing highly light absorbing material directly in front of the port or a
fibre. The extremely high intensity will increase the temperature in the material.
Using non RobLight harnesses in this light generator is at its own risk.
Ensure that the polyconnector is undamaged and clean before using the light gener-
ator in retrofit RobLight installations.
Beware that when the light generator is operated at max ambient temperature the
surface temperature can exceed 40°C.
The light generator is only tested with RobLight polyconnector end.
The warranty label is not to be broken under ANY circumstances. If broken the
warranty is terminated.
Warranty label
Risk group 2
CAUTION.
Possibly hazardous optical radiation emitted from this
product. Do not stare at the operating lamp. May be
harmful to the eye.

General
Light port Ø28 mm
Fibre type PMMA
Material Aluminium, POM and other
Dimensions (L x H x W) 260 x 110 x 216 mm
Weight (total) 5.0 kg
Safety CE, RoHS
Environmental
Protection rating IP 68
Thermal protection NTC Sensing
Cooling Natural convection
Ambient temperature -10° to 40°C
Driver/electrical
Driver External LED driver constant current, 4 channels
Supply voltage (mains) 100-240V 50/60Hz
Driver expected lifetime 50.000 hours (@TC = 65°C)
Total power consumption Up to 95W
Dimmer systems applicable DMX
Light source
Applied LED Nichia
LED expected lifetime >35.000 hours @Ta = 40°C
Special LED RGBW 4000K, Tunable white
Technical data

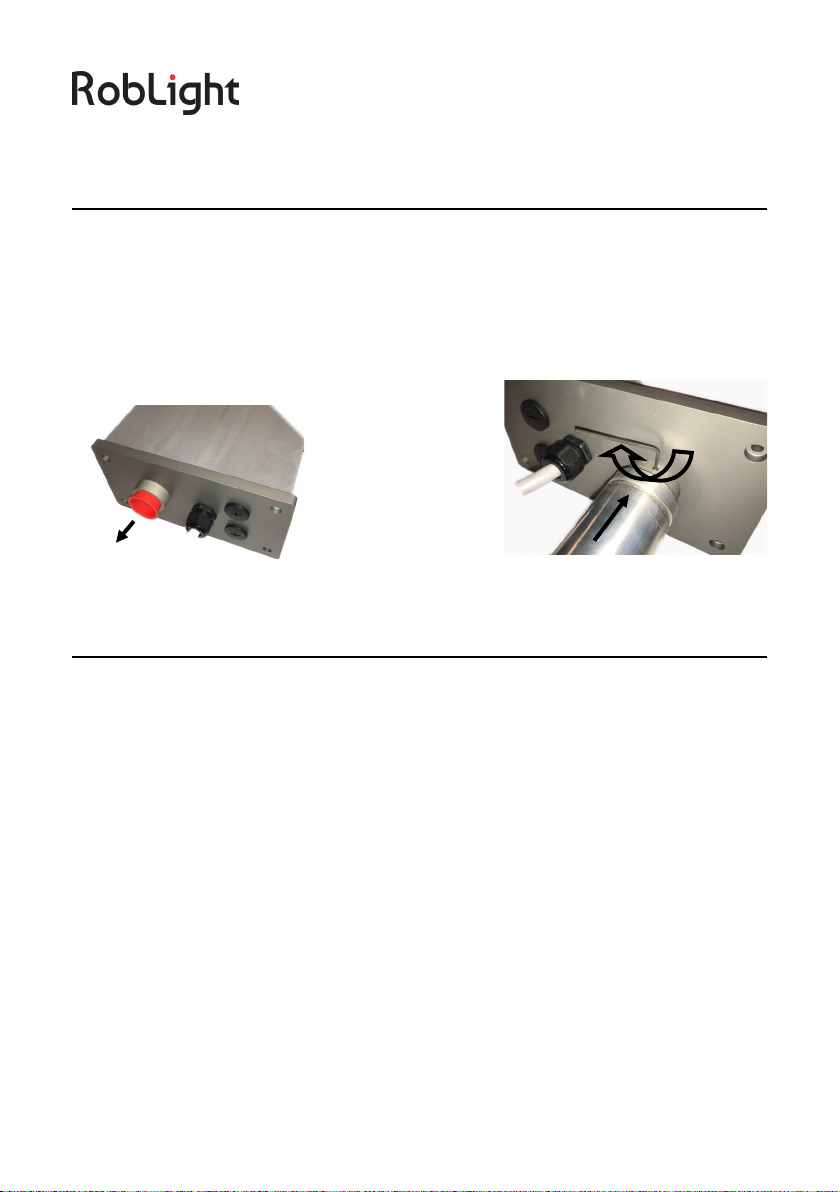

a) Remove cap from the light port
b) Check that the end face of the polyconnector is clean and undamaged
c) Insert the polyconnector fully in the light port
d) Tighten the screw onto the light port with an Allen key
e) Ensure all installation and ventilation requirements are met
f) Connect the supply cord to the mains
WARNING!
Remove cap before
turning on.
Installation instructions
Ch 1 : Red
Ch 2: Green
Ch 3: Blue
Ch 4: Wihte
DMX protocol

Vertical mounting
This light generator should not be mounted with light port downwards. At high am-
bient temperature the operational lifetime of the internal components and harness
will be reduced.

MAX AMBIENT TEMPERATURE 40°C.
Recommendations: (should always be tested in a mock up)
Secure enough space to allow natural heat transmission through surfaces.
Surfaces should not be isolated.
Cooling air for the polyconnector can not be obstructed in any way, as it is essential
to avoid damage to the harness.
General minimum distance from the light generator to any enclosing surface 15 cm
(excluded mounting surface).
Installing adjacent light generators
Recommendation:
Minimum 30 cm distance between adjacent light generators to ensure enough free
cooling air.
If multiple rows, use offset to avoid vertical rows. Minimal free distance between
rows 40 cm.
MAX AMBIENT TEMPERATURE 40°C.
Closed compartments

Accessories / Spare part
Part name Description Item no.
DMX 512 Sunlite con-
trol unit USB 0160 0302
Factory DMX address-
ing 9903 0071
DMX control unit pro-
gramming per hour 9903 0070

The effectiveness of the active cooling device is greatly diminished if the cooling
fins and the air intake is blocked or polluted with dust or dirt. This will reduce the
expected lifetime of the product.
The dust must be removed on a regular basis. Interval depending on the environ-
ment.
A brush, vacuum cleaning or light compressed air can be used for the cleaning.
This light source is not supposed to be otherwise serviced, if used as recommended.
If the product is not performing as specified, use the troubleshooting guide. If you
need further assistance, please contact RobLight.
Maintenance, spare parts and repairs

Application notes
The light generator is an electronic device and must be handled accordingly. The
different components will have different factors influencing the practical lifetime.
The most important factor for this system is the condition of the surrounding air
(temperature and cleanliness). The data we have stated and the expected lifetime
of the key components, are at the temperatures that the suppliers have performed
during their standardized tests in clean environments.
The light generator is designed to run at max ambient temperature, but the longest
usable operation is achieved with lower temperatures.
Although there is thermal protection built into this device, it is only a safety device
and should not be used as a measurement device to test if the light generator is
running at a tolerable surrounding temperature.
The polyconnector is the most stressed part of this system.
Care should be taken to ensure that the fibre ends are 100% clean and free from
dust and grease (fingerprint will do damage.). See www.rob-light.com for recom-
mendations to clean fibre ends.
Running the light generator at too high temperatures will not only risk damage to
the light source but also to the fibre harness.
CLEAN AIR
KEEP COOL

Troubleshooting
If problems are not solved using this guide, please contact RobLight A/S.
Problem Trace the problem Solution
No light
Check the power Connect the power cord properly/ Turn
on the device
Check the tempera-
ture.
Check it is installed according to the
instructions.
Check the dimming Unplug. Unplug the dimmer system
from the driver. Turn on the power.
Light switches
on and off
Check the operating
conditions of the
light generator
Check it is installed according to the
instructions.
Check active cool-
ing system.
Remove dirt and dust from light gene-
rator.
Problem Trace the problem Solution
No light
Check the power Connect the power cord properly
Turn on the device
Check the tempera-
ture
Check if it is installed according to the
instructions
Check the dimming
Unplug the light generator. Unplug the
dimmer system from the driver. Turn
on the power
Light switches
on and off
Check the operating
conditions of the
light generator
Check if it is installed according to the
instructions
Check the cooling
system
Remove dirt and dust from the light
generator

RobLight accepts no responsibility for possible errors in catalogues, brochures and other printed material.
RobLight reserves the right to alter or discontinue its products without notice. © 2019 RobLight A/S
RobLight A/S, Nordhavnsvej 1A, DK-9900 Frederikshavn
T: [phone], E: [e-mail]
www.rob-light.com
99082183, 11-10-2022, Rev. 1.0
