Digital Watchdog Starlight B1363TIR User manual

Starlight B1363TIR
11192010
User Manual Version #2:
Camera with ICON Menu

PRECAUTIONS
Do not open or modify.
Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages.
Do not put objects into the unit.
Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
Be careful when handling the unit.
To prevent damages, do not drop the camera or subject it to shock or vibration.
Do not install near electric or magnetic fields.
Protect from humidity and dust.
Protect from high temperature.
Be careful when installing near the ceiling of a kitchen or a boiler room, as the temperature may rise to high levels.
Cleaning
To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.
Mounting Surface
The material of the mounting surface must be strong enough to support the camera.
TROUBSHOOTING
Before sending your camera for repair, check the following or contact our technical specialist.
No VIDEO
Check the coaxial cable and make sure it is connected securely.
Check the lens’ iris adjustment at the menu setup of the camera.
Check the power supply and make sure the camera has the proper voltage and current.
Out-of-Focus VIDEO
Check the clear dome cover and the lens for dirt or fingerprints. Use a soft cloth and gently clean.
Check the lens manual focal and zoom adjustment. Field test monitor is recommended.
FCC COMPLIANCE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to Provide reasonable protection against harmful interference .when the equipment is operated in a residential environment. This equipment
generates, uses, and radiates radio frequency energy; and if it is not installed and used in accordance
with the instruction manual, it may cause harmful interference to radio communications.
WARNING: Changes or modifications are not expressly approved by the manufacture.

FEATURES
1/3” Sony Super HAD II CCD
High Resolution 560 TV Lines
3.3 ~ 12mm Varifocal Auto Iris Lens
100ft Range IR with Intelligent Camera Sync
True Day & Night / TDN5 (Electro Magnetic Mechanism)
Star-Light (Super Low Light Technology)
DRC (Dynamic Range Compressor)
Dark spots in images particularly become more visible without overexposing the bright spots to create one perfect image.
3D-DNR (3D Digital Noise Reduction)
Produces less noise and more color during low-light application.
HME (Highlight Mask Exposure)
Masks overly exposed light to produce a true video image of any environment.
BLC (Back Light Compensation)
Programmable Privacy Zone (6) & Motion Detection
Easy Icon Driven OSD Menu with Built-In Joystick
Auto Sensing 12VDC or 24VAC with Line Lock
No Fog or Condensation under Any Weather Condition

Power Wire Maximum Distance
Wire Gauge 12VDC 24VAC
24 AWG 80ft 323ft
22 AWG 128ft 513ft
20 AWG 203ft 815ft
18 AWG 323ft 1295ft
16 AWG 514ft 2056ft
14 AWG 816ft 3264ft
12 AWG 1295ft 5183ft
10 AWG 2057ft 8228ft
DIMENSION (mm) & POWER REQUIREMENT
POWER REQUIREMENT:
12VDC @1A
24VAC @ .500mA
COAXIAL CABLE TYPE
MAXIMUM DISTANCE
RG59/ U 750feet
RG6/U 1,000feet
RG11/U 1,500feet

INSTALLATION AND ADJUSTMENT
Included with DW Bullet Camera:
1. User Manual
2. Mounting Template
3. Two Security L-Key
4. Secondary BNC Cable for a Field Monitor
5. Four (4) Screws and Four (4) Dry Wall
Anchors
1
2
3
4
5

CONTROL BOARD

LENS ADJUSTMENT
1. Rotate Zoom lever with the supplied Allen Key.
2. Rotate Focus lever with the supplied Allen Key.

COLOR
WB MODE AWC / ATW / MANUAL / PUSH LOCK
R-Y GAIN 0 ~ 100
B-Y GAIN 0 ~ 100
DAY & NIGHT
Day & Night Mode
AUTO / COLOR / BW / EX-CONT
COLOR ----

BW : Switching from color to BW; if the number is higher, the camera will only switch during a super low light condition.
BW ----

COLOR : Switching from BW to color; this number should always be lower than COLOR to BW
Read Time: Time interval to switch from Color to Black-and-White
COLOR
B&W: (BURST:OFF/ON) When the burst is OFF will make less noise
C-SUP Color Suppression :Color will be reduced at low illumination, if the C-SUP Level is higher.
0 ~ 100 (Not Available when DNR is On.)
A-SUP Aperture Suppression: The sharpness of the edges will be reduced at low illumination, if A-SUP Level is higher.
0 ~ 100 (Not Available when DNR is On.)
EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET
EXPOSURE
LENS DC (0~100) / MANUAL / VIDEO. (DC Lens is recommended.)
SHUTTER 1/160 /1/100 / FLC / 1/250 ~ 10000 / SENS-UP x2 ~ x250
BLC OFF / ON
BLC (Back Light Compensation)
AGC HIGH / MIDDLE / LOW / OFF
AGC (Auto Gain Control)
MAX-DR OFF / ON (0 ~ 20) (Electronic Wide Dynamic Range)
STAR-LIGHT AUTO (x2 ~ x250) / OFF (x32 is recommended.)
EXIT JUMP EXIT / SAVE&EXIT / FACTORY RESET

FUNCTION
MIRROR OFF / MIRROR / V-FLIP / ROTATE
SHARPNESS 0 ~ 31
GAMMA 0.05 ~ 1.00 / USER
FREEZE OFF / ON
NEGATIVE OFF/ ON
3D-DNR OFF / LOW / MIDDLE / HIGH
3D-DNR (3D Digital Noise Reduction)
D-ZOOM OFF / ON (x1.0 ~ x32 PTZ)
SLC OFF / ON
SLC (Side Light Compensation)
HME OFF / ON
HME (Highlight Masking Exposure)
DIS OFF / ON
DIS (Digital Image Stabilizer)
EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET
MOTION
(OMNI-Focus Lens Only)
MOTION OFF / ON
SET WINDOW
ALL SET (Set the Entire Screen)
ALL CLEAR (Clear the Entire Screen)
SENSITIVITY (1 ~ 120)
SHOW INDICATOR (OFF / ICON / TRACE)
DELAY OUT (1 ~ 15)
Motion Alarm Zoom-In Delay
EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

PRIVACY
MASK 1 OFF / ON
MASK 2 OFF / ON
MASK 3 OFF / ON
MASK 4 OFF / ON
MASK 5 OFF / ON
MASK 6 OFF / ON
EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET
SETUP
CAMERA ID 0 ~ 255
TITLE OFF / ON
DPC OFF / AUTO
DPC (Dead Pixels Cancellation)
MONITOR CRT / LCD
LANGUAGE English, Japanese, Chinese
BAUDRATE 2400 / 4800 / 9600 / 14400 / 19200 / 38400.
Protocol is Pelco-D (fixed cannot be changed; hardcoded into the DSP)
OMNI LENS OFF / 1 ~ 10 (for OMNI-PLUS CAMERA only)
EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

SYNC
SYNC INTERNAL / AUTO
V-PHASE 0 ~ 199
EXIT JUMP EXIT / SAVE & EXIT / FACTORY SET
EXIT
EXIT Exit the menu
SAVE&EXIT Exit the menu and save the setting
FACTORY SET Reset the menu setting to factory default

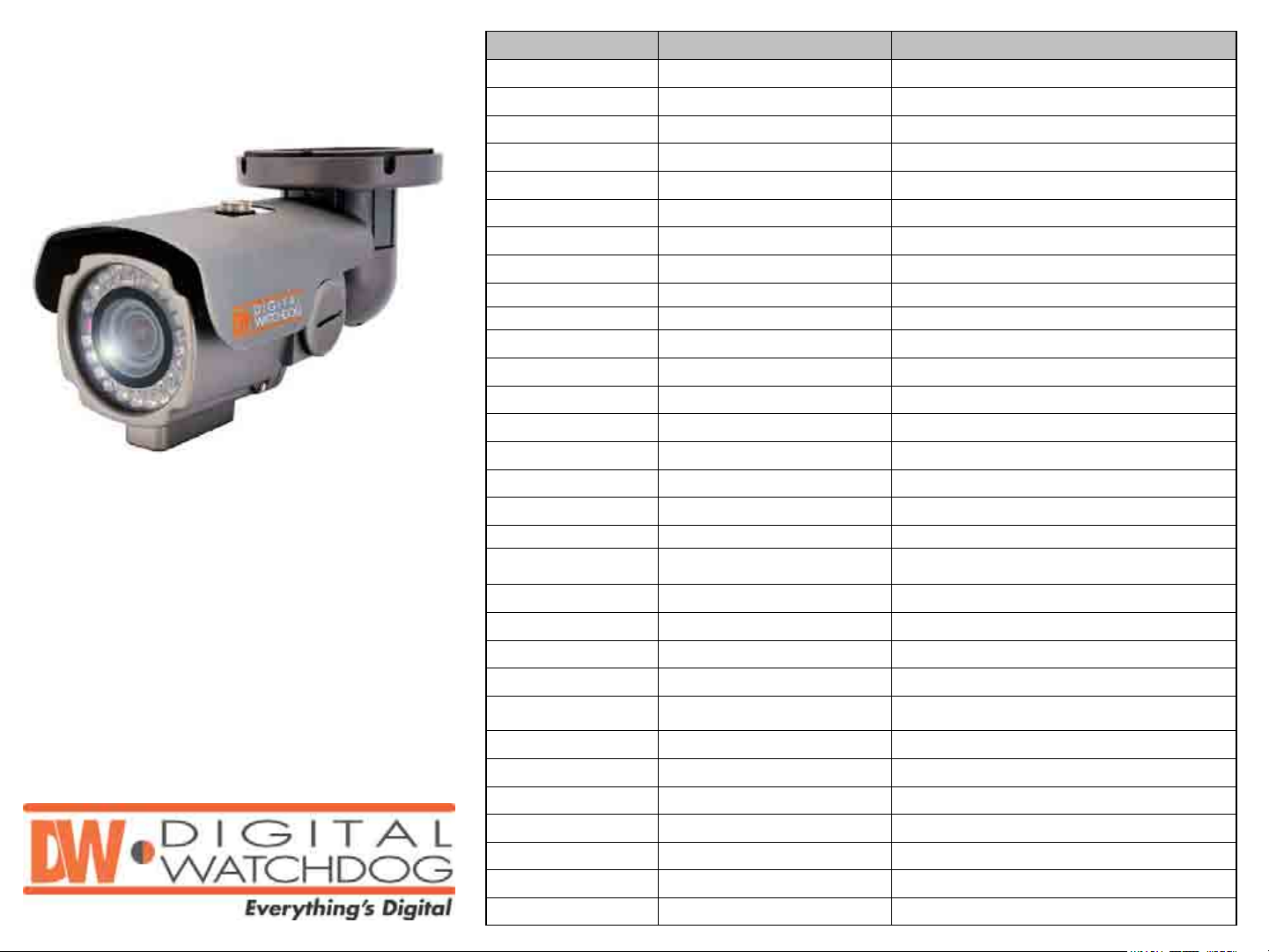

SPECIFICATIONS:
5436 W Crenshaw St. Tampa, FL 33634
Tel: [phone]
Fax: [phone]
www.Digital-Watchdog.com
[e-mail]
Technical Support Hours: Monday-Friday
8:30am to 8:00pm Eastern Time
Camera TYPE Color / BW B1363TIR
Mount 3D Bracket
Image Device Super HAD II CCD
Size 1/3"
Pixels-Total 811(H) x 508 (V)
Pixels-Effective 768(H) x 494 (V)
Scanning System 525 line, 2:1Interlace
Horizontal Frequency Internal Mode 15,734Hz
Vertical Frequency Internal Mode 59.94Hz
Min. Scene Illumination IR-LED On 0.0 Lux
IR Distance 100ft Range
Functions BLC ON / OFF
AGC HIGH / MIDDLE / LOW /OFF
DRC OFF / INDOOR / OUTDOOR
Mirror OFF / MIRROR / V-FLIP / ROTATE
STAR-LIGHT AUTO (x2 ~ x250) / OFF
3D-DNR OFF / ON (0~100)
HME OFF / ON
Privacy Zone 6 Programmable Zone / Size
Lens Focal Length 3.3~12mm Varifocal Auto Iris Lens
Resolution Horizontal 560 TV Lines [Color]; 580 TV Lines [BW]
Video Output VBS 1.0Vp-p VBS 1.0Vp-p(75 Load)
S/N Ratio S/N Ratio 50dB
OSD OSD YES
Environmental Conditions Operating Temperature -10℃~ +55℃(14℉~ 131℉)
Humidity Less than 90%
Power Power Requirement 12VDC / 24VAC
Power Consumption 1.96 [W] / 2.2 [W] LED Off; 4.3 [W] / 3 [W] LED On
Physical Specifications Dimensions 85.4 x 234 mm
Weight 1.4lbs
Nema Type IP66
Certifications FCC, RoHS, CE

Starlight B1363TIR
Bullet Camera
11192010
User Manual Version #1:
Camera without ICON Menu
ABOUT MANUAL
Before installing and using the camera, please read this
manual carefully.
Be sure to keep it handy for future reference.

CAMERA SETTINGS
SETUP
LENS [DC] -Brightness (DC Lens is recommended.)
Manual. Shutter is available.
SHUTTER
FLK (Flicker Free)
ESC (Electronic Shutter Control) -Brightness Adjustment
Manual Adjustment
WHITE BALANCE
ATW 1800K ~10500K (ATW is recommended).
Manual Adjustment
AWC (Auto White Balance)
BACKLIGHT OFF / LOW / MIDDLE / HIGH
AGC NORMAL / HIGH / OFF (When the AGC is Off, DNR is not available.)
DNR LOW / MIDDLE / HIGH / OFF
SENS-UP AUTO x2 ~ x128 / OFF
SPECIAL
CAMERA ID OFF / ON
DAY NIGHT AUTO / BW / EXTERNAL / COLOR
SYNC INTERNAL / LINE
MOTION DETECTION OFF / ON
PRIVACY OFF / ON
MIRROR OFF / ON
SHARPNESS OFF / ON Level Adjustment
RESET
RETURN Return to main setup.

SPECIFICATIONS:
5436 W Crenshaw St. Tampa, FL 33634
Tel: [phone]
Fax: [phone]
www.Digital-Watchdog.com
[e-mail]
Technical Support Hours: Monday-Friday
8:30am to 8:00pm Eastern Time
Model B1363TIR (Day & Night)
Mount 3D Bracket
Image Device 1/3" Super HAD CCD
Pixels-Total 811(H) x 508(V)
Pixels-Effective 768(H) x 494(V)
Scanning System 525 line, 2:1Interlace
Horizontal Frequency Internal
Mode 15,734Hz
Vertical Frequency Internal
Mode 59.94Hz
Min. Scene
Illumination F1.5 0.3 Lux [TDN: 0.001 Lux]
OSD Controls Day & Night AUTO / COLOR / B/W
Sens-up AUTO / OFF
DNR OFF / LOW / MIDDLE / HIGH
AGC OFF / LOW / MIDDLE / HIGH
AWB ATW / AWC / Manual
Motion Detection ON / OFF (Area / Sensitivity )
Mirror ON / OFF
Privacy Zone 4 Programmable Zone / Size
Lens Focal Length Pan-Focus Lens [3.3 ~ 12mm (3.6x Optical)]
Resolution Horizontal 540 TV Lines [at TDN (B/W) :570 TV Lines]
Video Output VBS 1.0Vp-p VBS 1.0Vp-p(75 Load)
S/N Ratio S/N Ratio 50dB
Environmental
Conditions Operating Temperature -10℃~ +55℃(14℉~ 131℉)
Humidity Less than 90%
Power Power Requirement 12VDC/24VAC
Power Consumption 12VDC: 410mA (LED OFF), 737 (LED ON),1A (Heater ON)
24VAC: 308mA (LED OFF), 478 (LED ON), 500mA
(Heater ON)
Physical
Specification Dimensions(H x L) 85.4 x 217.5mm
Nema Type IP66
Weight 2.3 lbs
Certifications CE, FCC, RoHS Certified
