digitalview 21.5" HD VideoFlyer VF-215WHD User manual

VIDEO FLYER 21.5”
(VF-215WHD, VF-215WHD-OF)
Manual
Version 1.1

Page 2 of 15
Revision History
Amendment Date
Version
September 2010
V1.0
December 2010
V1.1

Page 3 of 15
Table of Contents
1 Introduction ....................................................................................4
2 System ...........................................................................................5
3 Instructions.....................................................................................6
3.1 Preparation .............................................................................6
3.2 Compact Flash ........................................................................6
3.3 Powering On ...........................................................................7
3.4 Autoplay / Manual Playback at power startup.............................7
3.5 Playback modes ......................................................................7
3.6 Configuration mode .................................................................8
4 Touch Screen Operation ...................................................................9
4.1 Touch segments ......................................................................9
4.2 Configuration mode ............................................................... 10
5 Dimensions ................................................................................... 11
6 Specification ................................................................................. 13

Page 4 of 15
1Introduction
The Digital View 21.5” HD VideoFlyer is a self-contained LCD display and network
digital media player for continuous (looped) play of HD 1080p video stored on a
CF (Compact Flash) memory card. The unit comprises a widescreen 21.5” color
TFT LCD, a built in speaker and optional touch screen. A range of other
accessories and factory installed customization options are also available, these
are not be covered in this manual.
Please note that a certain level technical knowledge and experience is assumed, if
you have difficulties please contact your sales representative or Digital View
support, contact details are available on http://www.digitalview.com/contact-us
IMPORTANT USAGE NOTE
This equipment is for use by system developers and integrators. The
manufacturer accepts no liability for damage or injury caused by the use of this
product. It is the responsibility of the developer, integrators or other users of this
product to:
•Ensure that all necessary and appropriate safety measures are taken.
•Obtain suitable regulatory approvals as may be required.
•Check power settings to all component parts before connection.
DISCLAIMER
There is no implied or expressed warranty regarding this material.

Page 5 of 15

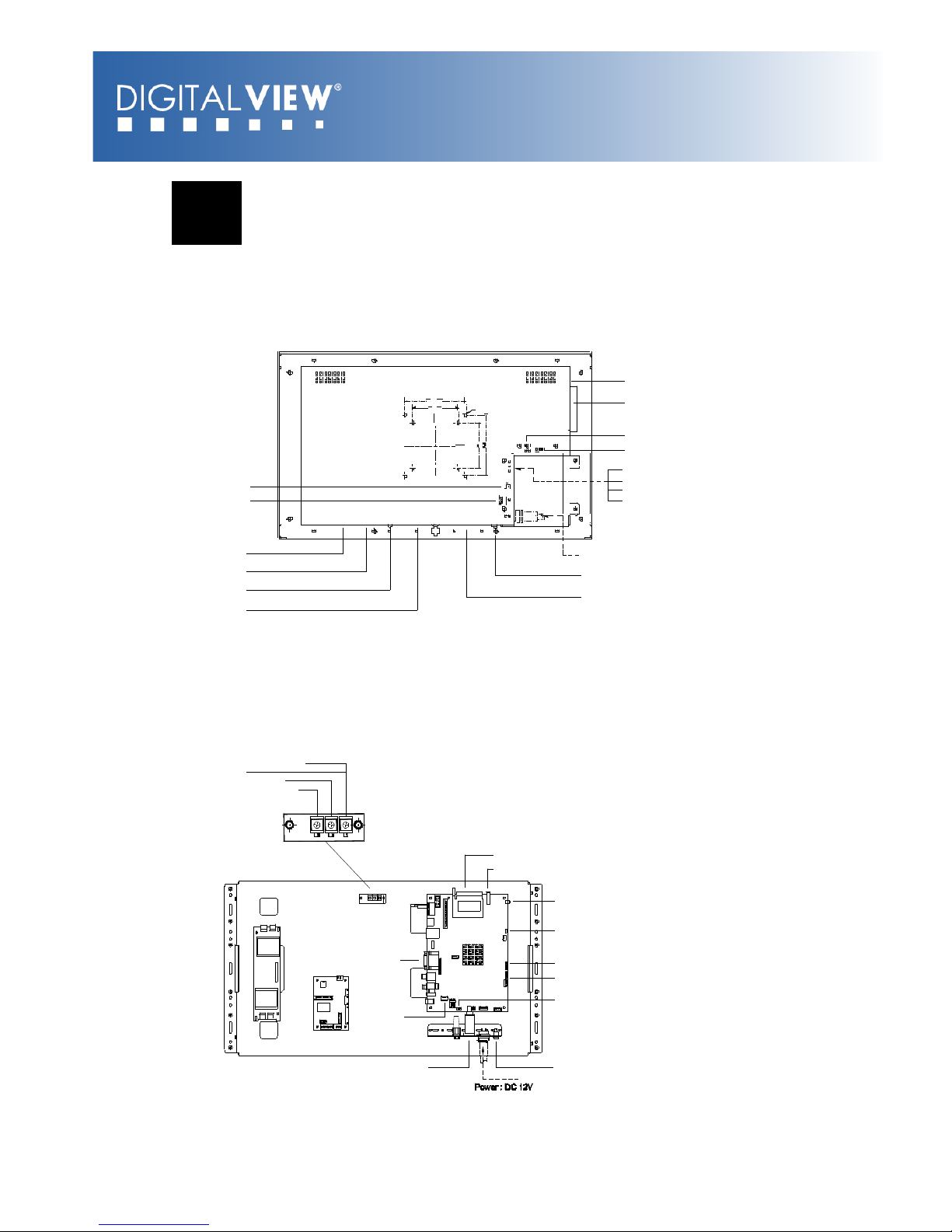

2 System
21.5” HD VideoFlyer (VF-215WHD)
A robust metal housing with powder coating:
Remote Ext. (#1 - #8)
Power LED
CF Card compartment
USB port
Speaker (L)
Speaker (R)
On/O ff switch
LAN
IR sensor
Line out
(S tereo phone jack)
L1 (B utton 8) + power up - Config menu
L1 (B utton 8) - Select
L2 (B utton 7) - + / S ave and exit
L3 (B utton 6) - - / Save and exit
1. COM port
2. Coaxial (option)
Volume Control
8x
M 4-Threadholes
VES A75
M 4
Power: DC 12V
VES A100
100
75
21.5” HD Openframe (VF-215WHD-OF)
Aluminum frame with mounting holes for mounting:
CF Card socket
USB connector
Power/Status LED connectors
IR sensor
Botton/ Touch connector (#9 - #16)
Botton/ Touch connector (#1 - #8)
RS-232 port
Speaker out
Auto Power On
Default set to “Auto Power on”
Pin1 & Pin 2: Close (Power on)
Pin1 & Pin 2: Open (Power o ff)
On/o ff SwitchRJ-45
L1 (Button 8) +power up - Config menu
L1 (Button 8) -Select
L2 (Button 7) - + / Save and exit
L3 (Button 6) - - / Exit without save

Page 6 of 15
3 Instructions
CAUTION: Never connect or disconnect parts of the system when the system is
powered up as this may cause serious damage.
3.1 Preparation
Digital View VideoFlyers are designed to be as plug and play as possible requiring
the minimum of setup for use. The following describes the operation of the
standard version, there are however a number of options available and these may
affect the preparation required.
Main components:
•VideoFlyer unit
•AC power supply
•Compact Flash card
•DV Studio 2*
*Note: DV Studio is a free utility from Digital View that allows you to organize your digital
media into playlists and schedule including interactive functionality. This software can be
downloaded from http://www.digitalview.com/products/av-software
3.2 Compact Flash
The Digital View VideoFlyer uses standard Compact Flash cards to store the
media (video, still images, audio) for playback. The following are key points to
note:
•The format of the digital media stored on the Compact Flash needs to
meet certain standards as per the specifications for this device as
summarized in section 6.
•Media files can be stored on the Compact Flash in two ways:
oPlaylist mode: Using Digital View’s DV Studio software which
enables creation of a playlist with a number of options for
controlling media playback.
oSimple play mode: Using a PC copy function to transfer files onto
the Compact Flash.
•All content files must be stored within a folder name MEDIA. (i.e. /Media/)
Additional notes regarding the playback modes are shown below.

Page 7 of 15
3.3 Powering On
•Install the Compact Flash card, however to reduce the risk of errors it is
advised to have the power off when removing or installing a Compact
Flash card.
•Connect the provided external AC power supply unit.
•Power on the unit using the on/off switch, the power LED should come on.
(Note: In Openframe version (VF-215WHD-OF), the power is default to “Auto on”.)
See the following section for Power On options.
3.4 Autoplay / Manual Playback at power startup
The Digital View VideoFlyer supports AutoPlay or manual playback modes at
power startup
AutoPlay: This is the default mode for the unit. This means that upon power-on
video will start playing in accordance with a playlist (if DV Studio was used to
transfer the media files to the Compact Flash card) or in alpha-numeric order (if
the media files were simply copied to the Compact Flash card).
Manual Playback: Only available as a setting in DV Studio. In Manual Playback
mode, after power up press any button and the first track in the Playlist set in DV
Studio will play.
3.5 Playback modes
Playlist mode, i.e. using DV Studio:
•When operating in playlist mode, both project file (*.prj) and playlist file
(*.pll) must be present on the Compact Flash card. These are used to
control the sequence for all video tracks. If playback does not run as
expected please check that these files are present on the Compact Flash
card.
•The project and playlist file are created using DV Studio software. Using
this software, you can set simple sequences or complex sequences
including “jump track“ or “next track” actions. The software can also
program buttons with different functions like “play”, “stop”, “pause”,
“mute”, “previous”, “next” and “volume”.

Page 8 of 15
Simple play mode, i.e. files copied to Compact Flash without using DV Studio:
•In simple play mode, the user just copies all video files (.mpg) or JPEG
files (.jpg) onto the Compact Flash card. The VideoFlyer will play these
files in alphabetical sequence.
•For JPEG files, the play time is determined by the last digit of the filename.
(For example: APPLE5.mpg, where “5” means the track will be displayed
for 5 seconds.) Note: Do not use the same filename on both MPEG and
JPEG.
Note: Make sure all capital letters in a filename defined in playlist are consistent
with the filename on CompactFlash card. All filenames should be in 16+3 format
and avoid using any characters like “~”, “_”, “-“, etc. All content files must be
stored within a folder name MEDIA. (i.e. /Media/)
3.6 Configuration mode
In OSD configuration mode, you may use push buttons (L1, L2 and L3) or 8-
segmented touch screen to operate.
To enter OSD configuration mode, hold touch segment #8 (or L1) and power on
until the OSD menu screen is shown as follows:
Push button
(L1/L2/L3)
Configur ation Mode
MAC: 000562010406
K er nel Ver s ion : V 2.83 .0 1.10
V er s ion : V 1.08 .1 0 R P -50 0
V olu me: 1 6
TZ:+0 Y Y :09 MM: 11 D D :19 hh:15 mm:54 s s :50
OS D : ON Da talog : ON
S y s te m Mes s ag e: ON
S av e an d E x it
7
8
1
8 -se gme n t Tou ch scr e en
2
3
4
5
6
L1
L2
L3
Press button L1 (or #8 touch segment) to select option
Press button L2 / L3 (or #6 /#7 touch segment) for change value
Press button L2 (or #7 touch segment) to confirm ‘SAVE and EXIT”

Page 9 of 15
4 Touch Screen Operation
(only applicable in touch screen option)
4.1 Touch segments
The VideoFlyer’s button control can be performed via touch screen for panel sizes
of 21.5” (Fig. 1)
Fig.1 8-buttons for LCD screen sizes 21.5”
Button function settings
Each button function can be programmed with the DV Studio software to perform
a DVD type player mode function or specific track select function.
The DV Studio software is available separately.

Page 10 of 15
4.2 Configuration mode
To enter OSD configuration mode, hold touch segment #8 and power on until the
OSD menu screen is shown as follows:
Configuration Mode
MAC: 000562010406
Kernel Version: V2.83.01.10
Version: V1.08.10 RP-500
Volume: 16
TZ:+0 YY:09 MM: 11 DD:19 hh:15 mm:54 ss:50
OSD: ON Datalog: ON
System Message: ON
Save and Exit
7
8
1
8-key Button
8-segment Touch screen
2
3
4
5
6
Press button #8 touch segment to select option
Press button #6 / #7 touch segment for change value
Press button #7 touch segment to confirm ‘SAVE and EXIT”

Page 11 of 15
5 Dimensions
516 66. 2
3630. 219. 7 19.7
3838 440
516
8x
M 4-Threadholes
VES A75
M 4
Power: DC 12V
VES A100
100
75
476.6 V iew Area
V iew Area = 476. 6 x 268. 1mm
VideoFlyer 21.5” (VF-215WHD)

Page 12 of 15

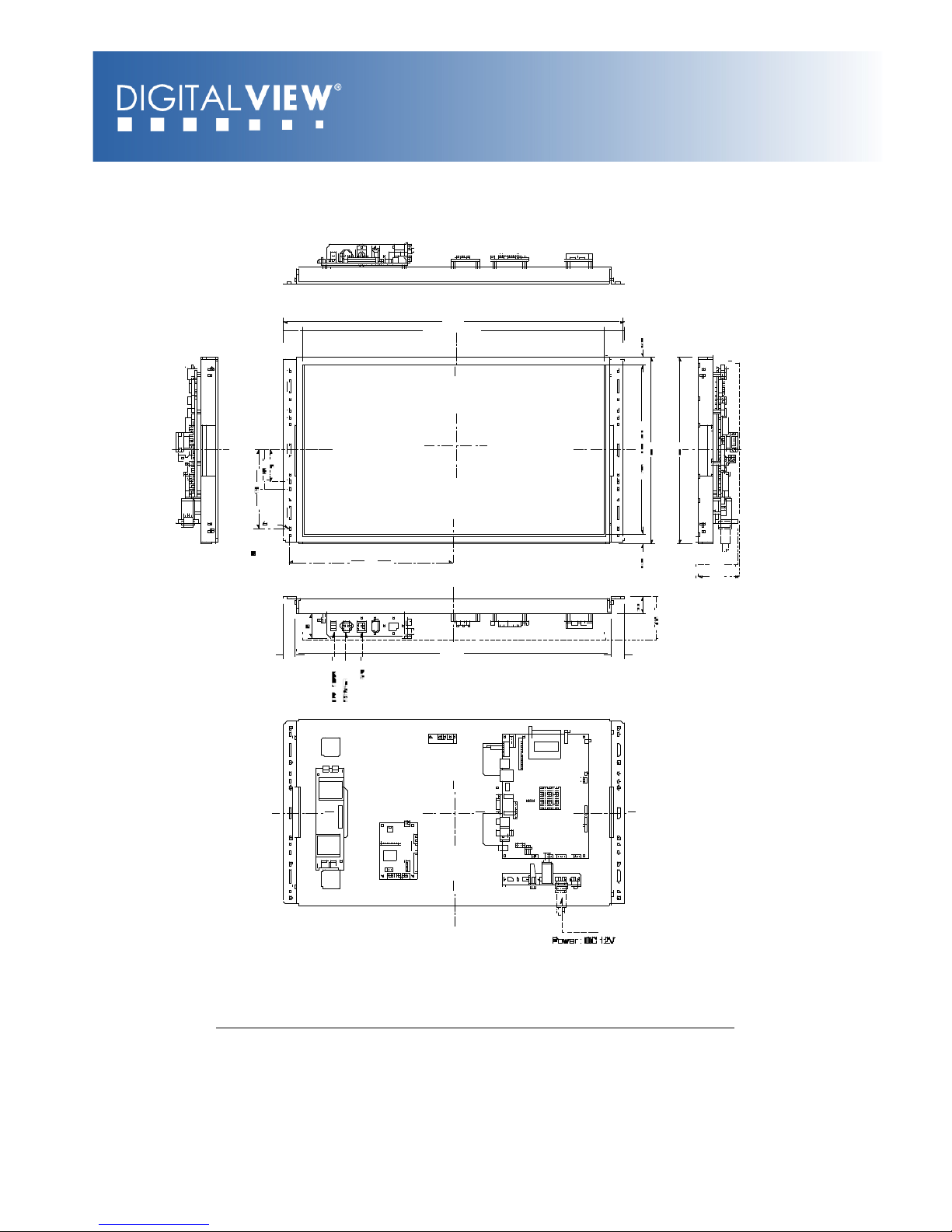

476.6 View Area
31.7 31.7
20.4
499.220.4
260 63.5
66.5
540
typ
4.5
4.5holes
12x
for user mount ing
VideoFlyer 21.5” HD Openframe (VF-215WHD-OF)

Page 13 of 15
6 Specification
Playback video format
1. MPEG-1 video (Video-CD), MPEG-2 video (DVD),
MPEG-4 (DivX, H.264)
2. JPEG picture
Video storage
CompactFlash memory cards
LCD display
Color TFT
Screen size
21.5” (Diagonal)
Screen active area
476.6(H) x 268.1(V) mm
Panel resolution
1920(H) x 1080(V)
Brightness
300 cd/m2
Contrast ratio
1000 : 1
Viewing angle
160/170 (Vertical/Horizontal)
Audio output
Internal speakers x 2 (2W) [for VF-215WHD]
Stereo phone jack [for VF-215WHD]
Playback Functions
Standard playback : Play, Stop, Pause, Repeat,
Previous, Next Track, Volume
Programmable playback : Loop, Auto and Program
mode
I/O
USB port – Content update
COM port – 9600, n81
IR remote control – Playback control
Remote Ext. – External button connection (#1 - #8)
Volume control
RJ-45 LAN port
Options
Table stand
Compact Flash card
IR remote handset
Power input
DC 12V
Dimensions
516(W) x 66.2(D) x 308(H) mm [for VF-215WHD]
540(W) x 64.3(D) x 296(H) mm [for VF-215WHD-OF]
Weight
5kg [for VF-215WHD]
3.5kg [for VF-215WHD-OF]
Environmental
Operating temperature : 0oC to 50oC
Relative humidity : 5%-95% relative humidity
(Non-condensing)

Page 14 of 15
WARRANTY
The products are warranted against defects in workmanship and material for a period of one (1) year
from the date of purchase provided no modifications are made to it and it is operated under normal
conditions and in compliance with the instruction manual.
The warranty does not apply to:
•Product that has been installed incorrectly, this specifically includes but is not limited to cases
where electrical short circuit is caused.
•Product that has been altered or repaired except by the manufacturer (or with the
manufacturer’s consent).
•Product that has subjected to misuse, accidents, abuse, negligence or unusual stress whether
physical or electrical.
•Ordinary wear and tear.
Except for the above express warranties, the manufacturer disclaims all warranties on products
furnished hereunder, including all implied warranties of merchantability and fitness for a particular
application or purpose. The stated express warranties are in lieu of all obligations or liabilities on the
part of the manufacturer for damages, including but not limited to special, indirect consequential
damages arising out of or in connection with the use of or performance of the products.
CAUTION
Whilst care has been taken to provide as much detail as possible for use of this product it cannot be
relied upon as an exhaustive source of information. This product is for use by suitably qualified
persons who understand the nature of the work they are doing and are able to take suitable
precautions and design and produce a product that is safe and meets regulatory requirements.
SAFETY INSTRUCTION
Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, laundry
tub, in a wet basement or near a swimming pool.
LIMITATION OF LIABILITY
The manufacturer’s liability for damages to customer or others resulting from the use of any product
supplied hereunder shall in no event exceed the purchase price of said product.
TRADEMARKS
The following are trademarks of Digital View Ltd:
Digital View
Video Flyer

Page 15 of 15
CONTACT DETAILS
USA: Digital View Inc.
18440 Technology Drive
Building 130
Morgan Hill, CA 95037
Tel: [phone] Fax: [phone]
Sales: [e-mail]
EUROPE: Digital View Ltd
6 Marylebone Passage
London
W1W 8EX
UK
Tel: (44) (0)20 7631 2150 Fax: (44) (0)20 7631 2156
Sales: [e-mail]
ASIA: Digital View Ltd
16th Floor Millennium City 3
370 Kwun Tong Road
Kwun Tong
Hong Kong
Tel: [phone] Fax: [phone]
Sales: [e-mail]
Specifications subject to change without notice
Document No. 9178600-10 © Digital View Ltd 2010
