LG L1900JQ User manual

EUT Type: 19” LCD Monitor
FCC ID: BEJL1900JQ
Test Report No.: GETEC-E3-07-022
FCC Class B Class II Permissive Change
APPENDIX H
: USER’S MANUAL

Make sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for future reference.
See the label attached on the product and quote this information to your
dealer when you require service.
User’s Guide
L1900J
L1900R
L1900E

A1
This unit has been engineered and manufactured to ensure your personal
safety, however improper use may result in potential eletrical shock or fire
hazards. In order to allow the proper operation of all safeguards
incorporated in this display, observe the following basic rules for its
installation, use, and servicing.
On Safety
Use only the power cord supplied with the unit. In case you use another power
cord, make sure that it is certified by the applicable national standards if not being
provided by the supplier. If the power cable is faulty in any way, please contact the
manufacturer or the nearest authorized repair service provider for a replacement.
The power supply cord is used as the main disconnection device. Ensure that the
socket-outlet is easily accessible after installation.
Operate the display only from a power source indicated in the specifications of
this manual or listed on the display. If you are not sure what type of power supply
you have in your home, consult with your dealer.
Overloaded AC outlets and extension cords are dangerous. So are frayed power
cords and broken plugs. They may result in a shock or fire hazard. Call your service
technician for replacement.
Do not Open the Display.
There are no user serviceable components inside.
There are Dangerous High Voltages inside, even when the power is OFF.
Contact your dealer if the display is not operating properly.
To Avoid Personal Injury :
Do not place the display on a sloping shelf unless properly secured.
Use only a stand recommended by the manufacturer.
To Prevent Fire or Hazards:
Always turn the display OFF if you leave the room for more than a short period
of time. Never leave the display ON when leaving the house.
Keep children from dropping or pushing objects into the display's cabinet
openings. Some internal parts carry hazardous voltages.
Do not add accessories that have not been designed for this display.
During a lightning storm or when the display is to be left unattended for an
extended period of time, unplug it from the wall outlet.
Important Precautions

A2
Important Precautions
On Installation
Do not allow anything to rest upon or roll over the power cord, and do not place
the display where the power cord is subject to damage.
Do not use this display near water such as near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming pool.
Displays are provided with ventilation openings in the cabinet to allow the release
of heat generated during operation. If these openings are blocked, built-up heat
can cause failures which may result in a fire hazard. Therefore, NEVER:
Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
Place the display in a built-in enclosure unless proper ventilation is provided.
Cover the openings with cloth or other material.
Place the display near or over a radiator or heat source.
Do not rub or strike the Active Matrix LCD with anything hard as this may scratch,
mar, or damage the Active Matrix LCD permanently.
Do not press the LCD screen with your finger for a long time as this may cause
some afterimages.
Some dot defects may appear as Red, Green or Blue spots on the screen.
However, this will have no impact or effect on the display performance.
If possible, use the recommended resolution to obtain the best image quality for
your LCD display. If used under any mode except the recommended resolution,
some scaled or processed images may appear on the screen. However, this is
characteristic of the fixed-resolution LCD panel.
On Cleaning
Unplug the display before cleaning the face of the display screen.
Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display
screen because over-spraying may cause electrical shock.
On Repacking
Do not throw away the carton and packing materials. They make an ideal
container in which to transport the unit. When shipping the unit to another
location, repack it in its original material.
On Disposal
The fluorescent lamp used in this product contains a small amount of mercury.
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of
your local authority.

A3
Connect with a computer.
Using the Computer
1. Connect the signal cable. When attached, tighten the thumbscrews to secure
the connection.
2. Use after connecting power cable to AC-DC power adapter and
inserting it into outlet (Voltage is automatically controlled.)
Connecting with DVI-Analog signal input cable
Connecting with DVI-Digital signal input cable
Wall-outlet type
PC-outlet type
3
4
1
2
AC-DC
power
adapter
L1900E L1900J L1900R
AA
BB
1
23
4
AA
BB
1. Product color represented here may differ from actual product color that customer purchased.
2.Connect to multi-tab (with 3-conductor) with built in ground line or connect directly to power outlet on
grounded wall.
Tip

A4
Connecting the Display
3. Touch button on the front switch panel to
turn the power on. When monitor power is
turned on, the 'Self Image Setting
Function' is executed automatically.
(Only Analog Mode)
NOTE
‘ Self Image Setting Function’? This function provides the user with optimal display
settings.When the user connects the monitor for the first time, this function automatically
adjusts the display to optimal settings for individual input signals. Press Adjust Forte
Manager Program
--> Picture --> Tracking --> Auto Setup if screen adjustment is needed
while using the product or if you want to operate this function manually, or, run Options of
Forte Manager Program
--> PreSet Provided When Delivered.
Otherwise, you may execute the ‘Factory Default Preset’ option on the OSD adjustment
menu. However, be aware that this option initializes all the menu items except
‘LANGUAGE’.
To adjust angle of the product ~ ~
11.. Adjust location of head section comfortable to use.
Tilt Range : 0˚~20˚
Do not put your hand (finger) between head section and stand section when adjusting angle of screen.
Your hand (finger) may get caught or wounded.
Head section
Stand section

Install Forte Manager program.
A5
This software requires Microsoft Internet Explorer 6.0 or greater.
* Be sure to install Forte Manager program..
* What is Forte Manager program? To change or adjust Tracking, Brightness,
Contrast or Position, Resolution, Sharpness, Preset use or select Forte
Manager program.
Install monitor driver file of Users Guide CD provided before installing Forte
Manager program.
* Please refer to 'Monitor Driver Installation Guide' to install monitor driver.
Install Forte Manager program.
1) Close all other applications before installing Forte Manager program.
2) Installation screen appears automatically when Forte Manager CD-ROM is inserted.
3) Forte Manager Install Shield Wizard start screen appears.
4) Select [Installation Language].
5) Click "Next" when Installation Wizard screen appears.
6) Click "Next" after selecting "I agree to the license contract clauses."
7) Click "Next" after selecting a function to install.
8) Click "Install."
9) Installation status screen appears.
10) Click "Complete." Reboot system for the normal operation.
11) Forte Manager execution icon is created on background screen when installation is
completed.
■■Forte Manager Program Installation Procedure
1
2
Tip
Tip
*Select [Execution] after pressing [Start] button when installation screen does not appear automatically.
**Select OK after entering D:
￦ SETUP.EXE (assumed CD-ROM Drive is D:.)

A6
Install Forte Manager program.
■Forte Manager Program Function
- Tracking, Brightness, Contrast , Resolution , Position, Sharpness,
Wizard, Preset
f-Engine
- MOVIE, TEXT, NORMAL, USER
Color
- Color Temp. RGB, Color Cailbration
Options
- Perferences, Power Indicator, Asset Management
Support
- Update, Help, Asset Id, Version
To change or adjust Tracking, Brightness, Contrast or Position, Resolution,
Sharpness, Preset use or select Forte Manager program.

A7
Control Panel Functions
Front Panel Controls Rear
L1900E
To turn on/off the power indicator manually ~ ~
Select Options of Forte Manager Program Menu -> Power Indicator -> On/Off to
manually turn on/off the power indicator.
Control Function
Power Button
Product may be turned on when you touch the button,
and turned off when you touch it once again.
* Check power pilot lamp after touching it.
Power Indicator
Power indicator is blue or red when the product is on,
and it automatically blinks in Sleep mode(Energy
Saving.)
Tip

A8

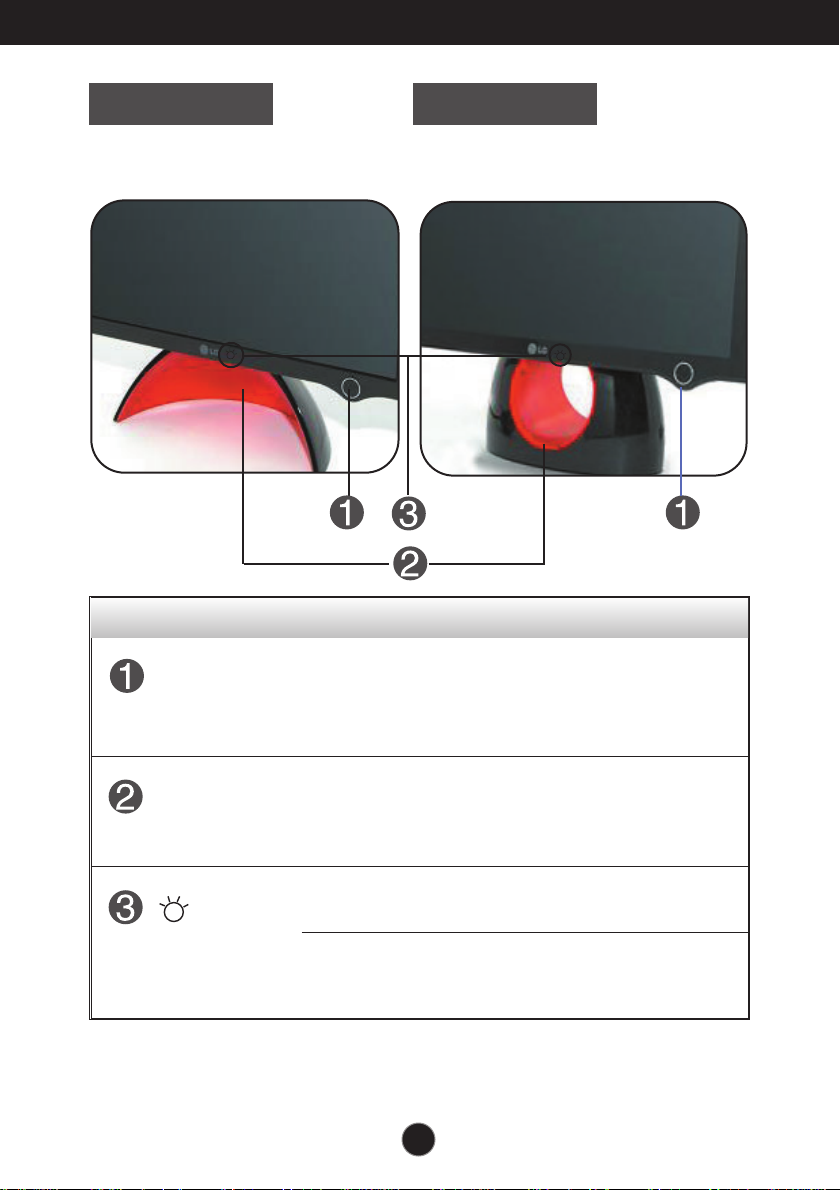

Control Panel Functions
Front Panel Controls
L1900J L1900R
Control Function
Power Button
Product may be turned on when you touch the button,
and turned off when you touch it once again.
Power Indicator
Power indicator is blue or red when the product is on, and dark
-> bright mode is repeated automatically in
Sleep
mode(Energy Saving.)
[L1900J]
Touch the lower part of the figure to adjust brightness
[L1900R]
Touch the lower part of the figure to turn on/off the power
indicator.

A9
Troubleshooting
No image appears
Check the following before calling for service.
No image appears
Is the power cord of the
display connected?
Does power indicator
blink or from dark to
bright mode is
repeated?
Do you see an "OUT
OF RANGE" message
on the screen?
Do you see a "CHECK
SIGNAL CABLE
"message on the
screen?
Check and see if the power cord is connected
properly to the power outlet.
If the display is in power saving mode, try moving
the mouse or pressing any key on the keyboard
to bring up the screen.
Try to turn on the PC.
This message appears when the signal from the
PC (video card) is out of horizontal or vertical
frequency range of the display. See the
'Specifications' section of this manual and
configure your display again.
This message appears when the signal cable
between your PC and your display is not
connected. Check the signal cable and try again.

A10
Troubleshooting
Display image is incorrect
Display Position is
incorrect.
On the screen
background, vertical bars
or stripes are visible.
Any horizontal noise
appearing in any image or
characters are not clearly
portrayed.
The screen color is mono
or abnormal.
The screen blinks.
Press Adjust of Forte Manager Program --> Picture
--> Tracking-->Auto Setup to adjust screen
automatically to the optimal condition, which fits to the
current mode.
Configure by directly adjusting Adjust of Forte
Manager Program --> Picture--> Position if
adjusted condition is dissatisfactory
Press Adjust of Forte Manager Program --> Picture
--> Tracking-->Auto Setup to adjust screen
automatically to the optimal condition, which fits to the
current mode.
Remove vertical lines by adjusting Adjust of
Forte Manager Program --> Picture -->
Tracking -->Clock, if adjusted condition is
dissatisfactory.
Press Adjust of Forte Manager Program -->
Picture --> Resolution --> Preferred to adjust
screen automatically to the optimal condition, which
fits to the current mode.
Adjust by selecting Adjust of Forte Manager
Program --> Picture --> Tracking -->
Phase if adjusted condition is dissatisfactory.
Check Control Panel --> Display --> Settings and
adjust the display to the recommended resolution or
adjust the display image to the ideal setting. Set the
color setting higher than 24 bits (true color).
Check Control Panel --> Display --> Settings and
adjust the display to the recommended resolution or
adjust the display image to the ideal setting. Set the
color setting higher than 24 bits (true color).
Check if the signal cable is properly connected and
use a screwdriver to fasten if necessary.
Make sure the video card is properly inserted in the
slot.
Set the color setting higher than 24 bits (true color) at
Control Panel - Settings.
Check if the screen is set to interlace mode and if yes,
change it to the recommend resolution.
Make sure the power voltage is high enough, It has to
be higher than AC100-240V 50/60Hz.

A11
Troubleshooting
Have you installed the display driver?
Have you installed the
display driver?
Do you see an
"Unrecognized monitor,
Plug&Play (VESA DDC)
monitor found"
message?
Be sure to install the display driver from the
display driver CD (or diskette) that comes with
your display. Or, you can also download the
driver from our web site: http://www.lge.com.
Make sure to check if the video card supports
Plug&Play function.

A12
Specifications
NOTE
Information in this document is subject to change without notice.
19 inches (48.19cm) Flat Panel Active matrix-TFT LCD
Anti-Glare coating
19 inches viewable
0.294mm pixel pitch
Horizontal Freq. 30 - 83kHz (Analog)
30 - 71kHz (Digital)
Vertical Freq. 56 - 75Hz (Automatic)
Input Form Separate TTL, Positive/Negative
SOG (Sync On Green)
Digital
Signal Input DVI - Analog connector
DVI - Digital connector
Input Form
RGB Analog (0.7Vp-p/75ohm), Digital
Max DVI Digital: VESA 1280 x 1024@60Hz
D-sub Analog: VESA 1280 x 1024@75Hz
Recommend VESA 1280 x 1024@60Hz
DDC 2B
On Mode : 39W
Sleep Mode ≤2W
Off Mode
≤1W
Width
41.65 cm / 16.39inches
Height 42.89 cm / 16.88 inches [L1900E]
43.20 cm / 17.00 inches [L1900R], [L1900J]
Depth
14.45 cm / 5.68 inches [L1900E]
14.84 cm / 5.84 inches [L1900R]
11.34 cm / 4.65 inches [L1900J]
Net 5.8 kg (12.79 lbs) [L1900E]
6.8 kg (14.99 lbs) [L1900R]
5.54 kg (12.21 lbs) [L1900J]
Tilt 0˚~20˚
12V 3.0A
DVE. DSA-0421S-12 1
Operating Conditions
Temperature 10˚C to 35 ˚C
Humidity 10 % to 80 % non-Condensing
Storage Conditions
Temperature -20˚C to 60 ˚C
Humidity 5 % to 90 % non-Condensing
Attached( O ), Detachable ( )
Attached( ), Detachable ( O )
Wall-outlet type or PC-outlet type
Display
Sync Input
Video Input
Resolution
Plug&Play
Power
Consumption
Dimensions
&Weight
(with tilt stand)
Til tRange
Power Input
AC/DC Adapter
Environmental
Conditions
Tilt Stand
Signal cable
Power cord

A13
Specifications
Preset Modes (Resolution)
Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)
1
2
3
4
5
6
7
8
9
10
11
*12
**13
640 x 350
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1152 x 870
1152 x 900
1280 x 1024
1280 x 1024
31.469
31.468
31.469
37.500
37.879
46.875
49.725
48.363
60.023
68.681
61.805
63.981
79.976
70
70
60
75
60
75
75
60
75
75
65
60
75
VGA
VGA
VGA
VESA
VESA
VESA
MAC
VESA
VESA
MAC
VESA
VESA
VESA
Indicator
On Mode
Sleep Mode
Off Mode
Blue or Red
Automatic blinking
0ff
LED Color
MODE
On Mode
Sleep Mode
Off Mode
Blue or Red
From dark to bright
mode is repeated
0ff
LED Color
MODE
* Recommend Mode
** Only Analog Mode
[L1900E]
[L1900J,L1900R]

A14
Specifications

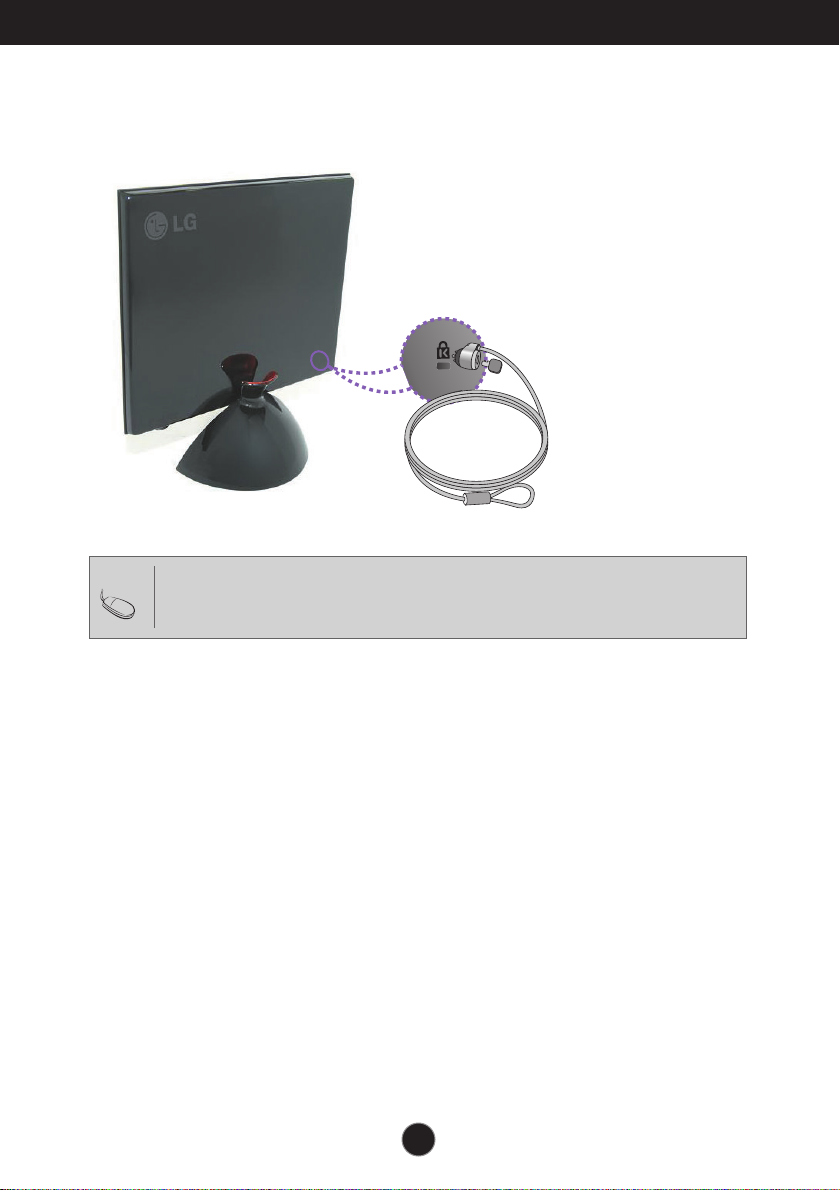

Kensington Security
Kensington Security Slot
Connected to a locking
cable that can be purchased
separately at most computer
stores
Product color represented here may differ from actual product color that
customer purchased.
Tip

Digitally yours

Regulatory information
Regulatory information

Regulatory Information cont.
FCC Compliance Statement
This equipment has been tested and found to comply
within the limits of a Class B digital device pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio
frequency energy and if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio
or television reception (which can be determined by
turning the equipment on and off), the user is encouraged
to try to correct the interference by using one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
the receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Caution: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user's (or your) authority to operate the equipment. Only
peripherals (digital input/output devices, terminals, printers,
etc.) certified to comply with the Class B limits may be
attached to this monitor. Operation with non-certified
peripherals is likely to result in interference to radio and TV
reception. Only shielded signal cables may be used with
this System.
Canadian DOC Notice
This Class B digital apparatus meets all requirements of
the Canadian Interference-Causing Equipment
Regulations. Cet appareil numérique de la classe B
respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
CE Conformity Notice (for Europe)
Products with the “CE” Marking comply with the EMC
Directive(89/336/EEC) and LOW VOLTAGE Directive
(73/23/EEC) issued by the Commission of the European
Community.
Compiance with these directives implies conformity to the
following European Norms :
• EN 55022 ; Radio Frequency Interference
• EN 55024 ; Electromagnetic Immunity
• EN 61000-3-2 ; Power Line Harmonics
• EN 61000-3-3 ; Voltage Fluctuations
• EN 60950 ; Product Safety
Low Radiation Compliance (MPR II)
This monitor meets one of the strictest guidelines available
today for low radiation emissions, offering the user extra
shielding and an antistatic screen coating. These
guidelines, set forth by a government agency in Sweden,
limit the amount of emission allowed in the Extremely Low
Frequency (ELF) and Very Low Frequency (VLF)
electromagnetic range.
TCO95 (TCO95 applied model only)
Congratulations!
You have just purchased a TCO’95 approved and labelled
product! Your choice has provided you with a product
developed for professional use. Your purchase has also
contributed to reducing the burden on the environment and
to the further development of environmentally-adapted
electronic products.
01
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.

Regulatory Information cont.
02
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an
established method for encouraging the adaptation of
goods and services to the environment. The main problem
as far as computers and other electronic equipment are
concerned is that environmentally harmful substances are
used both in the products and during their manufacture.
Since it has not been possible so far for the majority of
electronic equipment to be recycled in a satisfactory way,
most of these potentially damaging substances sooner or
later enter Nature.
There are also other characteristics of a computer, such as
energy consumption levels, that are important from both
the working and natural environment viewpoints. Since all
types of conventional electricity generation have a
negative effect on the environment (acidic- and climatic-
influencing emissions, radioactive waste, etc.), it is vital to
conserve energy. Electronic equipment in offices
consumes as enormous amount of energy, since it is often
routinely left running continuously.
What does the environmenal labelling involve?
This product meets the requirements for the TCO’95
scheme, which provides for international environmental
labelling of personal computers. The labelling scheme was
developed as a joint effort by the TCO (The Swedish
Confederation of Professional Employees),
Naturckyddsföreningen (The Swedish Society for Nature
Conservation), and NUTEK (The National Board for
Industrial and Technical Development in Sweden), and
SEMKO AB (an international certification agency).
The requirements cover a wide range of issues:
environment, ergonomics, usability, emission of electrical
and magnetic fields, energy consumption and electrical
and fire safety.
The environmental demands concern, among other things,
restriction on the presence and use of heavy metals,
brominated and chlorinated flame retardants, CFCs
(freons), and chlorinated solvents. The product must be
prepared for recycling, and the manufacturer is obliged to
have an environmental plan, which must be adhered to in
each country where the company implements its
operational policy.
The energy requirements include a demand that the
computer and/or display, after a certain period of inactivity,
shall reduce its power consumption to a lower level, in one
or more stages. The length of time to reactivate the
computer shall be reasonable for the user.
Labelled products must meet strict environmental
demands, for example, in respect of the reduction of
electric and magnetic fields, along with physical and visual
ergonomics and good usability.
The following is a brief summary of the environmental
requirements met by this product. The complete
environmental criteria document may be ordered from:
TCO Development Unit
Linnegatan 14, S-11494 Stockholm, Sweden
FAX [phone]
E-mail (Internet): [email protected]
Current information regarding TCO’95 approved and
labelled products may also be obtained on the Internet
using the address: http://www.tco-info.com/
TCO’95 is a co-operative project between:
Environmental requirements
Brominated flame retardants are present in printed circuit
boards, cabling, casings, and housings, and are added to
delay the spread of fire. Up to 30% of the plastic in a
computer casing can consist of flame-retardant
substances. These are related to another group of
environmental toxins, PCBs, and are suspected of giving
rise to similar harm, including reproductive damage in fish-
eating birds and mammals. Flame retardants have been
found in human blood, and researchers fear that they can
disturb fetus development.
Bio-accumulative1TCO’95 demands require that plastic
components weighing more than 25 grams must not
contain flame retardants with organically bound chlorine or
bromine.
Lead can be found in picture tubes, display screens,
solder, and capacitors. Lead damages the nervous
system and in higher doses causes lead poisoning. The
NUTEK
Naturskydds
föreningen
Närings- och teknikutvecklingsverket
SEMKO
