Digitus DN-16047 User manual

1
DIGITUS®Plug&View
IP Cameras
Quick Installation Guide.
(QIG)

2
Safety Precautions
Only use the Plug&View IP camera within the specified
temperature range for this camera
When not in use, store the product in a clean and dry place in
temperatures between 0°C and 40°C
Do not cover the camera
Do not let the camera come into contact with liquids (except
outdoor cameras with IP66 protective cover)
Plug&View IP cameras do not replace adult supervision.
Safeguard the health of your children, family members or pets by
regularly looking after them
Ensure that the indoor IP cameras are only used inside. These
cameras are not intended for outdoor use and can be damaged.
In this case use the specified outdoor models
Install the Plug&View IP cameras in close proximity to an easily
accessible wall outlet. Ensure that the power cord is not under
tension or stretched
Position the Plug&View IP cameras within the range of your Wi-Fi
router and ensure that there are no obstacles between camera
and router, which could interfere with the Wi-Fi signal

3
Protect the Plug&View IP cameras from electrical and other HF
devices generating interferences (microwaves, mobile phones,
etc.)
Keep camera, network cable and power cord outside the reach of
children, since these components can be dangerous
Only use the supplied power adapter.
Never try to repair Plug&View IP cameras yourself. Repair and
maintenance work must be carried out by specialists.
In case of problems contact our customer service.
Observe all applicable laws regarding camera monitoring. The
Plug&View IP cameras are intended for private use at home.
Inform your family members, relatives and domestic helpers in
your household with regard to video monitoring. Ensure that
public areas and your neighbors’ properties cannot be seen.

4
Personal Information
Read and accept the privacy policy for using the DIGITUS®
Plug&View systems under http://plug-view.com/privacy-policy-
for-platform-apps/.
Select a password with a high degree of safety for your
Plug&View account to protect it from unauthorized access.
The password should contain at least 8 characters; we
recommend case-sensitive letters and alphanumeric characters.
Furthermore, the standard password of the camera should be
changed to avoid unauthorized access here as well.
Live stream, push notification and further services are
available via a cloud server. Despite backup solutions, system
stability and bandwidth management the uninterrupted
availability of the system cannot be guaranteed.
What's in the box
1 x Plug&View IP camera
1 x Power supply with cable
1 x Quick Installation Guide
1 x CD with utilities
Optional:
1 x Ethernet cable
1 x Ceiling/Wall mount
1 x Removable antenna*
*The following cameras are equipped with a removable antenna:
DN-16029, DN-16039, DN-16043, DN-16048, DN-16049
Thank you for choosing a Plug&view IP-camera, which can be up-
and-running quick and easy without complicated network settings.
EN

5

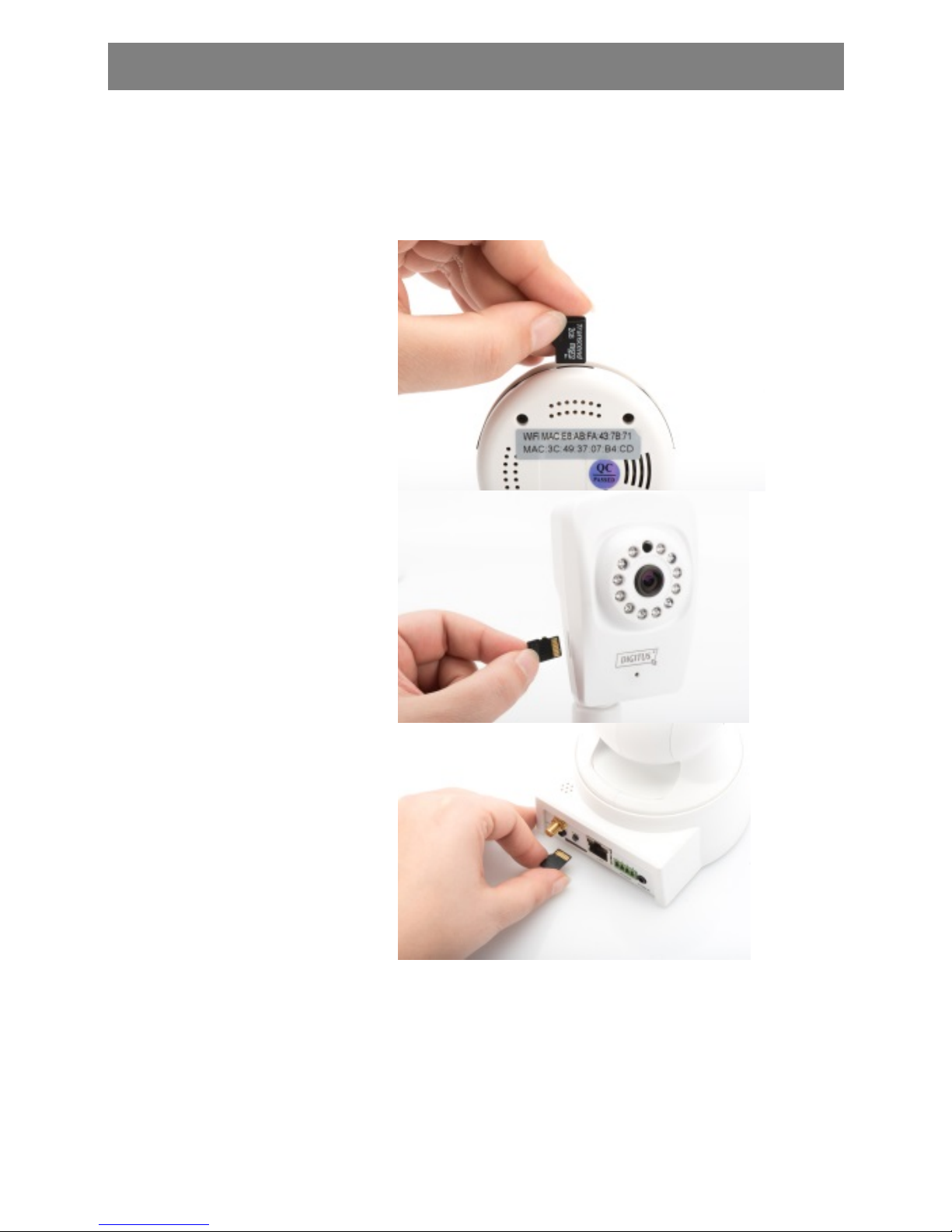

Install MicroSD Card
DIGITUS®indoor Plug&View cameras can be equipped with a
microSD card for recording.
Check installation option by means of the installation illustration.
DN-16047
Install the SD card as
illustrated, with the
golden contacts
towards the camera
lens.
DN-16046
Install the SD card as
illustrated, with the
golden contacts
towards the camera
lens.
DN-16029
Install the SD card as
illustrated, with the
golden contacts up.

6
Camera Connections
LAN:
Connect the camera to the
LAN port of your router.
Reset:
Press and hold the Reset
button for 10 seconds after
starting the camera to reset the
camera to default settings.
Power:
Connect the supplied power
cord to supply the camera with
power.
MicroSD:
Insert a microSD card for local
storage.
Mic: Microphone (Audio In).
Audio output:
Connect an external speaker
via the 3.5mm audio cable.
WPS:
Press and hold the WPS button
for 3 seconds after starting the
camera to activate WPS mode.
Alarm:
Pin1: Alarm input
Pin2: Ground
Pin3: Not in use
Pin4: NO
Antenna port
WPS button
Network port
DC SV power supply
Reset
Alarm input/output
MicroSD card slot
A
udio outpu
t
Network port
Audio output
WPS DC 5V power supply
MicroSD card
slot
MicroSD card slot
Reset
Reset
DC 5V power suppl
y

7
Camera Connections
DIGITUS®outdoor Plug&View cameras are equipped with a special
cable.
Check installation option by means of the installation illustration.
Reset button:
Press and hold this
button for 10 seconds
after the camera is
connected and ready-
to-use. This resets the
camera to default
settings.
Network cable:
Connect the network
cable to you router on
the network to establish
Internet connection.
DC 12V power
connection:
Connect the external
power adapter to
supply the camera with
power.
LED status indicator:
The blue LED status
indicator shows if the
camera is supplied with
power.
For models DN-16039, DN-16043 and DN-16048 power can be
supplied directly to the camera via the network cable in connection
with a PoE injector or PoE switch.

8

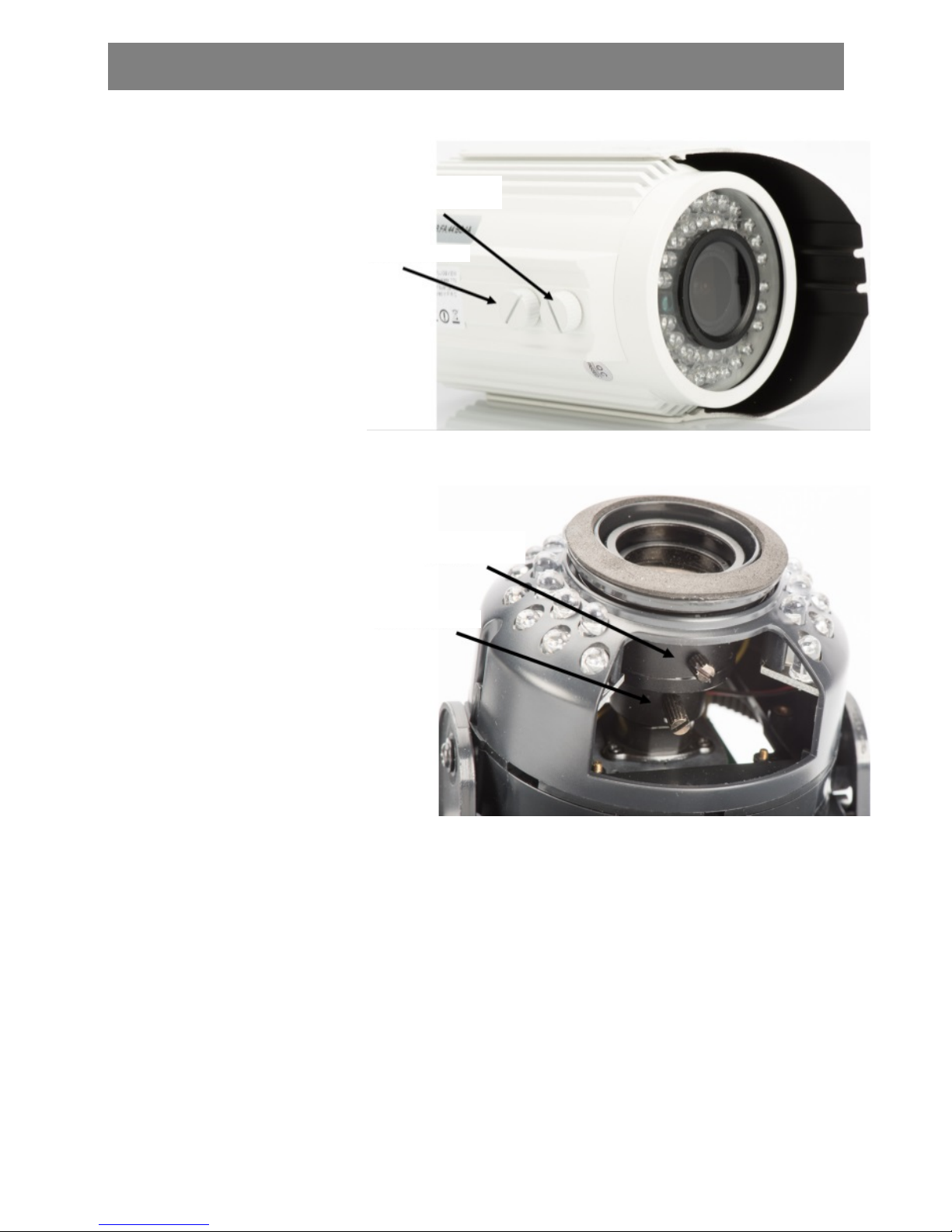

Lens Settings
DN-16039
DN-16043
You can adjust focus
and sharpness via
manual controls.
Use the camera live
image to adjust
focus and
sharpness as
required.
Set focus (angle)
Set sharpness
Set focus (angle)
Set sharpness

9
1. Preparation
Before you can use your IP camera, some preparations must be
taken care of.
Connect antenna
Plug the wireless antenna into the connector and tighten the
mounting bolts.
Insert SD-card
The Plug&View IP cameras support MicroSD cards with up to 32
GB storage capacity, which you can buy at your resellers. Pictures
or videos taken with your IP camera are then stored on this card.
If your camera has an external port and does not have existing
internal memory, insert your MicroSD card into the corresponding
slot until it firmly snaps into place.
Connect power supply
Plug the cable of the enclosed power supply into the "Power"
connection of the camera.
Connect camera to router (e.g. AVM Fritz!Box,
Telekom Speedport etc.)*
Connect one end of the supplied network cable to the LAN port of
the camera. Connect the other end of the network cable to one of
the connectors marked as 'LAN' on the back of your router. Some
routers have only one LAN connection, others have multiple
connections. Your router must have a working Internet connection.
*You can skip this point with the access point mode of the cameras.
For DN-16047 this point must be skipped.

10
2. Setting up the Plug&View User Account
In order to use your Plug&View camera and to have a video image
at any time and anywhere, you need to register your camera in a
Plug&View user account. The setup and control can both be done
from your Smartphone/tablet as well as from a PC.
2.1 Create a user account with your
Smarthpone/tablet
If you have an Apple
®
iOS device, then you will find our "DIGITUS
®
Plug&View" App in the Apple App Store
®
. For Smartphones and
tablets running on Google Android OS you can find our "DIGITUS
®
Plug&View"-App in the Google™ Play Store.
In the search field of the respective App Stores
®
enter "Digitus" or
"DIGITUS Plug&View".
Apple App Store
®
Google™ Play

11
In the Search results the "DIGITUS
®
Plug&View"-
App will be marked with this symbol.
Then install the App on your mobile device.
Start the App on your tablet or on your Smartphone. You have
2 options to create your account:
1. If you already have a Google account, you can use your Google
account to use your plug&View App, or
2. You directly create a new Plug&View account with an individual
user name and password.
1. Sign in with Google
account
Click on "Google account".
Then you can use your
Google Mail address and
password to log in.
Or
2. Create new account with
Plug&View
Click on "Create Account".

12

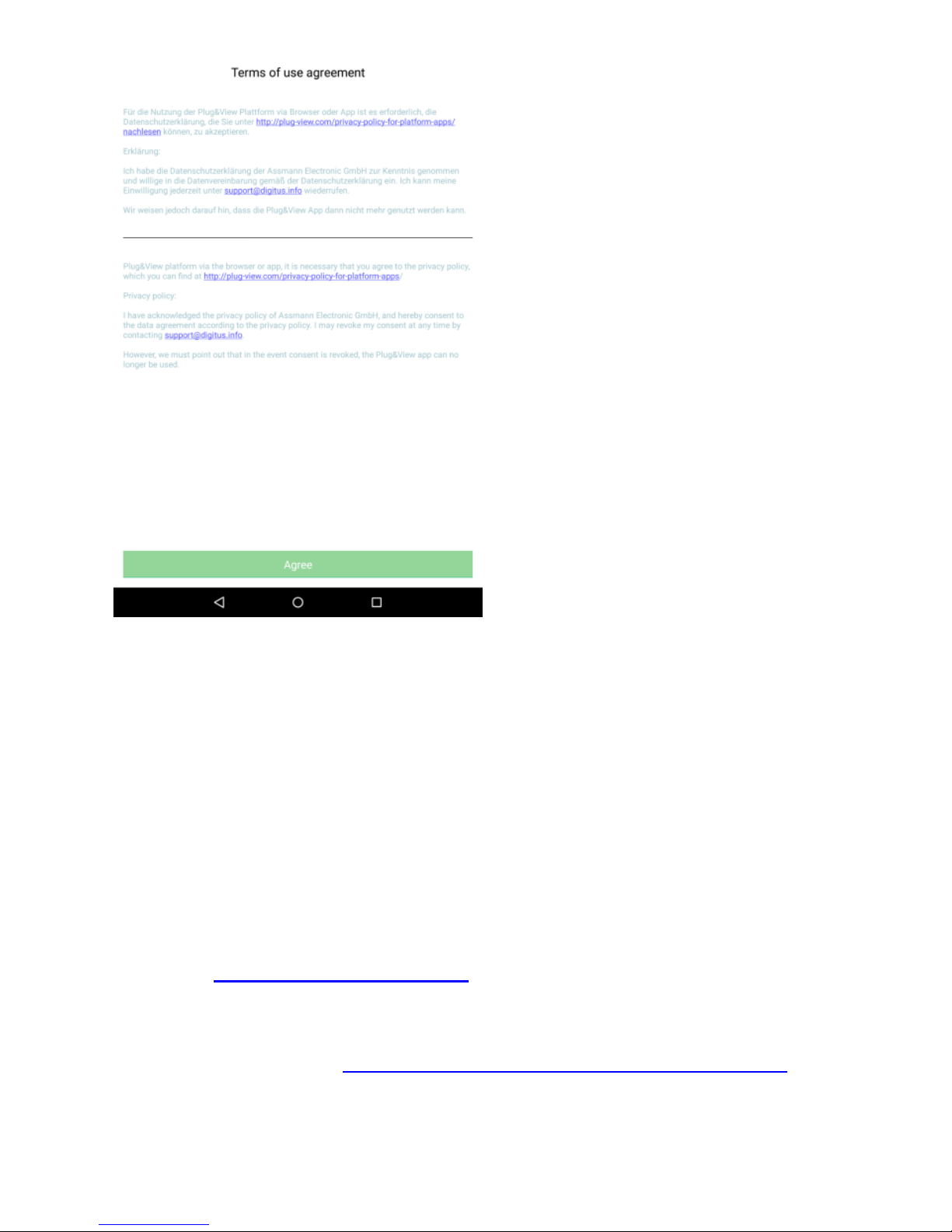

Accept the privacy policy for
using the DIGITUS®Plug&View
system.
On the next page, please
choose a user name, a
password, and confirm your e-
mail address.
Then tap on "Apply" to your Plug&View Account to create. Next you
will receive an e-mail with instructions on how to unlock your account.
Then log into the App with "Login" using your user name and
password. Now you can add your camera to the account (proceed to
item 3).
2.2 Create user account with your PC
For using the Plug&View system on a PC, Java add-on must be
installed.
Install the current Java version if you do not have Java installed on
your PC (http://www.java.com/de/).
Check if you have the latest version if you already have Java
installed on your PC (www.java.com/de/download/installed8.jsp).

13
Please visit the website http://plug-view.com/.
Then right click on "Login | My camera administration".
1. Sign in with Google account
Click on "Google Login". Then you
can use your Google Mail address
and password to log in.
Or
2. Create new account with
Plug&View
Click on "Create Account".
Please complete the information
on the next page and confirm
your entries with "Apply". Next
you will receive an e-mail with
instructions on how to unlock
your account. On the login page
you can then log in with your
user data and add your camera.
Use this point if you want to connect the camera to your wireless
network directly in access point mode.
For DN-16047 this point must be carried out.
Skip to step 4 if your camera is connected to your router via LAN
cable.

14
3. Connect Plug&View IP Camera Via Wi-Fi
3.1 With Smartphone/tablet
Open the Wi-Fi settings on your
smartphone/tablet.
Search for available wireless
networks in the immediate vicinity.
The camera will be displayed as a
wireless network with its model
number and the last 6 characters of
its MAC address.
Connect your smartphone/tablet to the IP camera via the Wi-Fi
connection.
After smartphone/tablet are
connected to the camera you can
continue the Plug&View app
installation. Open the Plug&View
app.

15
The Plug&View app detects
connection to a Plug&View camera
operated in access point mode and
prompts you to select the Wi-Fi
network, to which the camera is to
be connected.
Available networks in the vicinity will
be indicated. Please select here the
network, with which the camera
should be connected. If your network
is not displayed, the camera may
need to be repositioned.
ATTENTION: Hidden SSID´s, meaning hidden Wi-Fi networks,
are not supported by the camera. Please make your network
visible, if you want to install your camera into one of these.

16

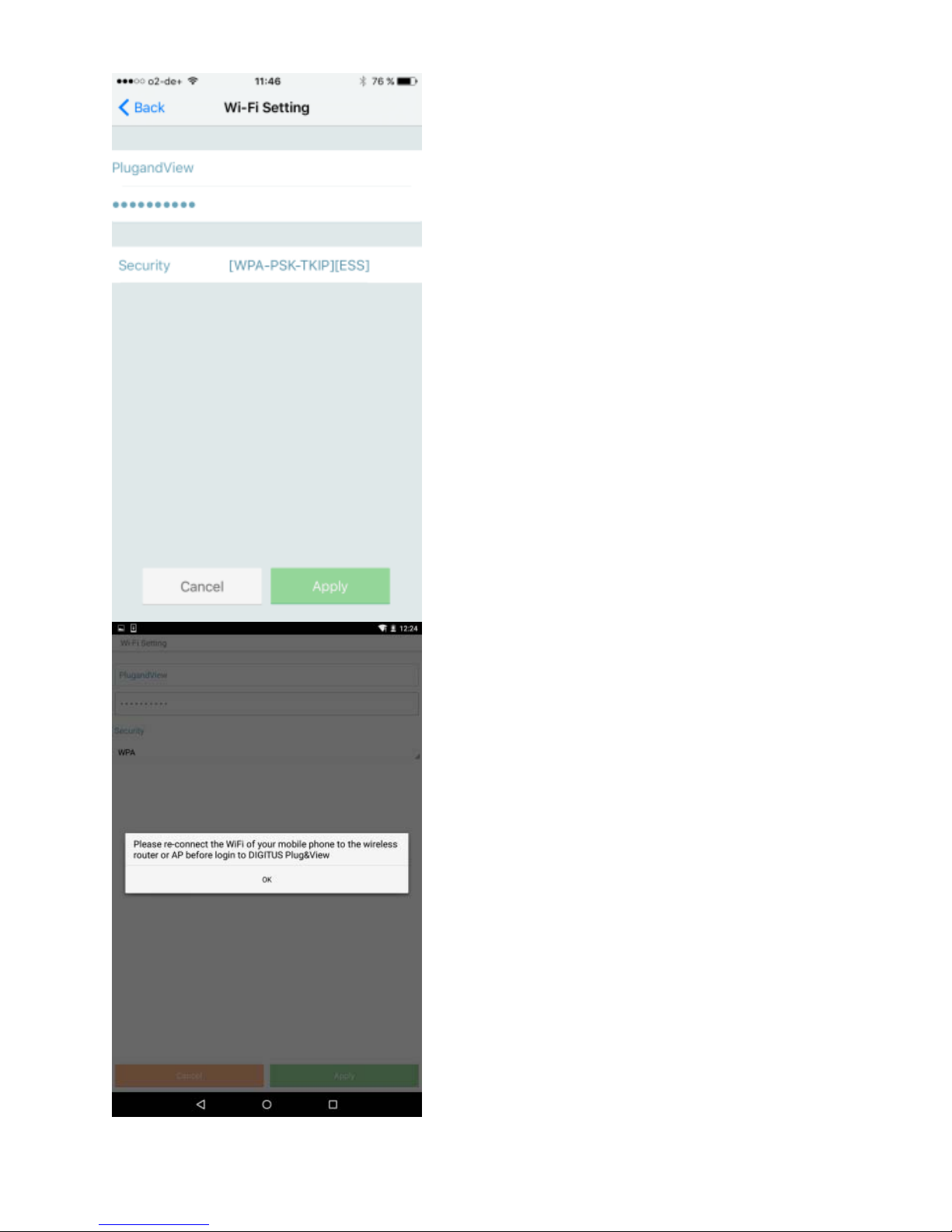

Enter the network password in the
password field, with which your Wi-
Fi network is encrypted and
confirm the input with OK.
Under Android operating systems
you are prompted after successful
connection to reconnect your
Smartphone/Tablet to your Wi-Fi
network again.
As a rule, this will happen
automatically. Should this not be
the case, please go to your
Smartphone/Tablet Wi-Fi settings
and connect to your Wi-Fi network
there.

17
4. Add Plug&view IP camera
4.1 With Smartphone/tablet
Press "+" to add a new
camera during the first
Plug&View camera
installation.
Navigate to settings (cogwheel icon
top right) and tap on "Add camera"
if there are already cameras. This is
easily done by scanning the QR-
code with your Smartphone/tablet
or through manual entry of the
activation data.
The following devices are suitable for scanning the QR-code: Apple
iPhone®, Apple iPad®, Android-Smartphone, Android-tablet (with
integrated rear camera).
The MAC-address, the activation code, and the QR-code can be
found on the last page of this guide.
Note: The Android version of the mobile device should be at least
2.3.5 or higher.
Adding the camera by scanning the QR-Codes

18
On the next page, select the
option "Scan QR code".
The QR code scan function of
your mobile device is
activated.
For scanning the QR code, you may have to move the device
several times backwards and forwards, until the code is recognized.

19
Adding the camera though manual input of MAC-
address and activation code
The MAC-address and the activation code are located on the last
page of this guide. Navigate to "Manual input" after selecting "Add
camera" in the Plug&View app.
Enter the alphanumeric combination, which you find under "MAC".
Then enter your activation code and click "Apply".

20

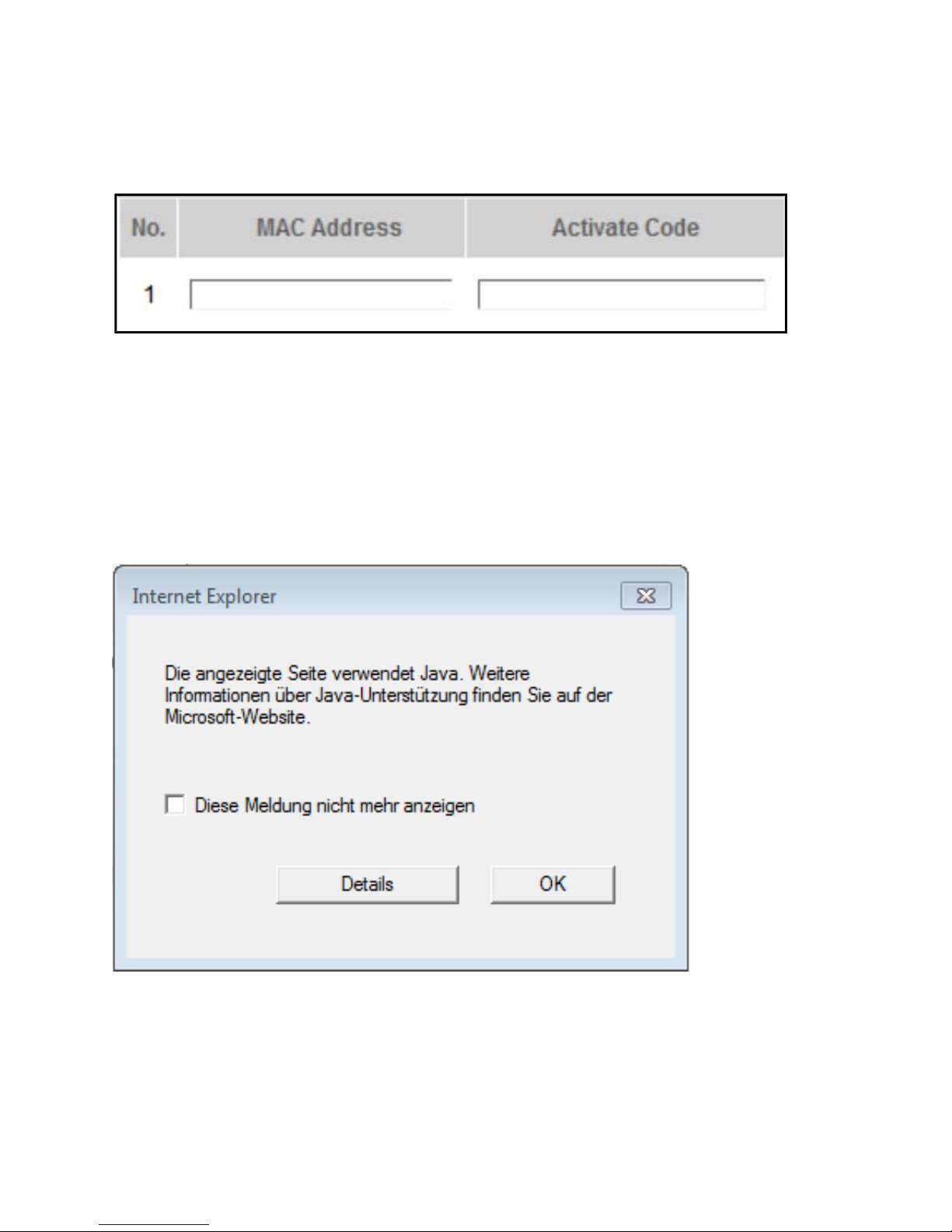

4.2 Add the camera to the PC via the Browser
After the first login into your camera administration on
"http://www.plug-view.com", you will be routed automatically to the
registration page for the MAC-address and the activation code.
If you see a message telling you that the page uses Java, please
click on "Details" and follow the instructions on the next screen to
install Java on your computer. This is a precondition for using the
video capabilities of the web site. After the successful installation of
Java, reload the web page.
Should the security settings of your PC display a warning
message after the Java installation , agree to run Java by clicking
on OK.
