DIHL VC-HH600-BLUE User manual
USER GUIDE
1.
2.
3.
Please read the instructions and warranty information carefully before use and keep
them handy for future reference.
The appliance may only be operated in accordance with these instructions.
Specifications, design and dimensions are subject to change without prior notice.
Handheld Vacuum Cleaner
VC-HH600-BLUE
For household use only
Contents
Introduction
Parts Included
Important Safeguards
Using the Appliance
Cleaning
Technical Specifications
Troubleshooting
Environmental Info and Support
1
1
2, 3
4
5
6
6
7
1
Introduction
Congratulations on your new purchase and thank you for choosing Dihl.
Your new vacuum cleaner is powerful and compact which provides fast and effective cleaning of
carpets, upholstery and hard floors. The cordless feature takes the hassle out of vacuuming the stairs
and those hard to reach areas.
The power cable has a reach of 7m which, along with the hose and wand, will make those
hard-to-reach areas effortless. With bagless technology, you can empty the vacuum cleaner with just
one click!
Handheld Vacuum Cleaner
VC-HH600-BLUE
PARTS INCLUDED
Floor brush
Floor brush position
Telescopic extension release button
Telescopic extension
Air inlet
Body
Dust tank release switch
On / off switch
2-in-1 brush tool
Dust tank empty lever
Removable filter housing
Removable dust pan
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
12
3
10
5
9
4
7
11
8
12
6
2
Warning! The hazards or unsafe practices below could result in appliance damage,
serious personal injury, or death.
IMPORTANT SAFEGUARDS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Before plugging in the appliance to charge, check that the electrical rating shown on the rating plate
corresponds with your household electricity supply.
Do not charge if the power cord or plug is damaged.
Do not handle the plug or appliance with wet hands.
Never immerse the appliance or power cord in water or splash water onto the appliance to avoid the
risk of a short circuit or electric shock.
Avoid damaging the power cord or plug by doing the following:
Do not place near heating elements.
Do not modify, bend, twist or pull.
Do not place heavy objects on top, or bundle the power cord.
Do not pull on the power cord when removing the plug from the socket.
Children should be under supervision to ensure that they do not play with the appliance.
Never clean the appliance with any acidic or alkaline liquids to avoid electric shock or appliance
damage.
Keep all packaging materials such as plastic bags, cartons and styrofoam out of reach of children.
If the power cord is damaged, it must be replaced by a professional repair centre or similarly qualified
person in order to avoid hazard.
Any servicing should be performed by an authorised service representative. Do not attempt to
disassemble, repair or modify the appliance.
Please use an independent power socket (not attached to a multiple socket adapter) with a UK mains
voltage of 220 to 240 V.
Do not use the appliance on people or animals.
Do not vacuum the following:
Hot ash or embers.
Large or sharp objects.
Water or other liquids.
Flammable, combustible, or explosive, materials or gases.
Toner dust from printers or photocopiers, nor conductive dusts such as those from power tools.
Do not use the filter when wet, make sure it is completely dry to avoid damaging the appliance.
The plug must be removed from the socket outlet before cleaning or maintaining the appliance.
Clean the plug regularly with a dry cloth.
All users of this appliance must read and understand these safety precautions before operating to
avoid personal injury or damage to the appliance.
3
1.
2.
3.
4.
5.
IMPORTANT SAFEGUARDS
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
This appliance is designed for household use only. It is not suitable for commercial / industrial use, or for
any other cleaning purposes.
Do not block the suction inlet or vent on the appliance.
Do not sit on the appliance.
Hold the carrying handle when using or storing.
Ensure that the dust filter is regularly cleaned to preserve the suction of the appliance.
Do not use the appliance without the dust container and filter position.
If the appliance cuts out, turn it off and check the dust tank and filters, as they may be full or clogged.
Check for any other obstructions in the floor brush or telescopic extension tube. After removing the
obstruction, leave the appliance to cool down until the thermal cut-out resets (approximately 60
minutes, depending on the surrounding ambient temperature); you can then use the appliance again.
Do not use the appliance near any inflammable or hazardous materials.
Keep the appliance away from heat sources. For example, radiators, fires, direct sunlight, etc.
The use of accessories which are not recommended by Dihl may result in fire, electric shock, or personal
injury.
Unplug the appliance from the power socket when not in use.
If you do not intend to use the appliance for a long period of time, clean it, then put back into the
original packaging to prevent the electrical components from being damaged by moisture or other
factors.
Keep these instructions somewhere safe.
Never use any accessories or parts from other manufacturers, or that Dihl does not specifically
recommend.
If you use any such accessories or parts, your warranty is invalidated.
This appliance is intended for household use only.
Failure to observe these cautions may result in damage to the appliance and will invalidate your
warranty.
Warning
USING THE APPLIANCE
Plug the appliance into a socket and press the ON/OFF button. Be careful not to trap the cable under
furniture or doors etc.
Fit the telescopic extension into the air inlet.
Push the crevice/brush tool onto the end of the telescopic extension, or onto the end of the accessory
attachment nozzle if the telescopic extension is not in use.
Select which attachment is to be used by rotating the head to either the crevice or the brush settings.
Turn on the cyclonic vacuum cleaner by pressing the on / off switch.
1.
2.
3.
4.
1.
2.
3.
4.
1.
2.
3.
4.
4
Attach the telescopic extension to the air inlet.
Push the floor brush attachment onto the end of the
telescopic extension.
Adjust the telescopic extension tube to the required
length by pressing the telescopic extension tube button
and sliding out the tube.
Select which position on the floor brush is required for the
floor type by pressing the switch forwards or backwards.
Switching it forwards lifts the brushes for use on carpet,
and switching it backwards lowers the brushes for
Using the Floor Brush
Using the Crevice Tool
Press the on / off button to turn off the appliance.
Unplug the power cord.
Use one hand to hold the air inlet, and use another hand to hold the
handle of the vacuum cleaner while pressing the dust tank release switch.
Pull the hand that is holding the air inlet up to separate the dust tank from
the vacuum cleaner.
Pull the dust tank upwards to remove it; do not pull it directly away from
the vacuum cleaner.
Emptying the Dust Tank
CLEANING THE APPLIANCE
Turn off and unplug the appliance before cleaning or maintaining.
Wipe the external surface of the appliance with a soft, damp cloth and allow to dry thoroughly.
Do not use any detergents or harsh cleaning agents to clean any parts of the appliance.
Remove the dust container lid using the arrows as a guide and remove the inner filter holder as in Fig 1 & Fig 2
below.
Remove the black sponge filter from the filter holder as in Fig 3.
Clean both parts of the filter by gently tapping them into a dustbin.
Insert black sponge filter back into the filter holder.
Replace filter and holder back into the top of the dust container, using arrows as a guide where it was
removed from.
To replace the cassette system, remove the separator from the clear plastic cassette as in Fig 4 and remove
any excess dust.
1.
2.
3.
4.
5.
6.
7.
8.
9.
5
It is important to clean your filters regulary. Failure to do so will lead to loss of suction in the
appliance. Follow these simple steps to keep your vacuum working efficiently.
If the sponge filter is heavily soiled it can be rinsed with warm water. You will need to allow
at least 24 hours drying time before using the appliance again.
If the vacuum cleaner has lost suction or is not picking up small items,
this indicates that the filters need cleaning. This needs to be done on a
regular basis to keep your vacuum cleaner in tip-top condition.
Fig 1 Fig 2 Fig 3 Fig 4
TECHNICAL SPECIFICATIONS
TROUBLESHOOTING
Important Notice
6
VC-HH600-BLUE
600 W
Handheld Vacuum Cleaner
220–240 V
0.8 LCapacity
Model
Product Name
Voltage
Rated Power
Loss of suction
The appliance
will not switch on
Problem Possible Cause Solution
The thermal cut-out device
tripped
Full or clogged dust tank
Clogged extension tube
Clogged floor brush
Dirty filters
Extension tube not inserted
correctly
Empty the dust tank
Check for blockages
Check for blockages
Clean the dust tank and filter
Check the extension tube
connection. Clean the dust tank
and filters
Turn off the appliance. Allow to
cool so that the thermal cut-out
device resets itself.
Clean the dust tank and filter
Should you run into any problem operating this product, use the table below to troubleshoot. If the problem
persists, contact Dihl or your retailer.
The above table lists the most common problems regarding the operation of your product, with possible causes
and solutions.
Should there be any product malfunction or breakdown, DO NOT repair it yourself. Contact Dihl or your supplier /
retailer if you are within your warranty period, or a professional repair centre if not.
IN NO EVENT SHALL DIHL OR YOUR SUPPLIER / RETAILER BE LIABLE TO YOU OR ANY OTHER PARTY FOR ANY DIRECT,
INDIRECT, GENERAL, SPECIAL, INCIDENTAL, CONSEQUENTIAL, EXEMPLARY, OR OTHER DAMAGES, ARISING FROM
THE USE OR INABILITY TO USE THIS PRODUCT (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR INJURY, LOSS OF
PROPERTY OR PROFITS, AND BUSINESS INTERRUPTION) OR FROM ANY BREACH OF WARRANTY, EVEN IF DIHL OR THE
SUPPLIER / RETAILER HAS BEEN ADVISED OF THE POSSIBLITY OF SUCH DAMAGES. IN NO CASE SHALL DIHL’S OR THE
SUPPLIER’S / RETAILER’S LIABILITY EXCEED THE AMOUNT YOU PAID FOR THE PRODUCT.
Specifications, design and dimensions are subject to change without prior notice.
7

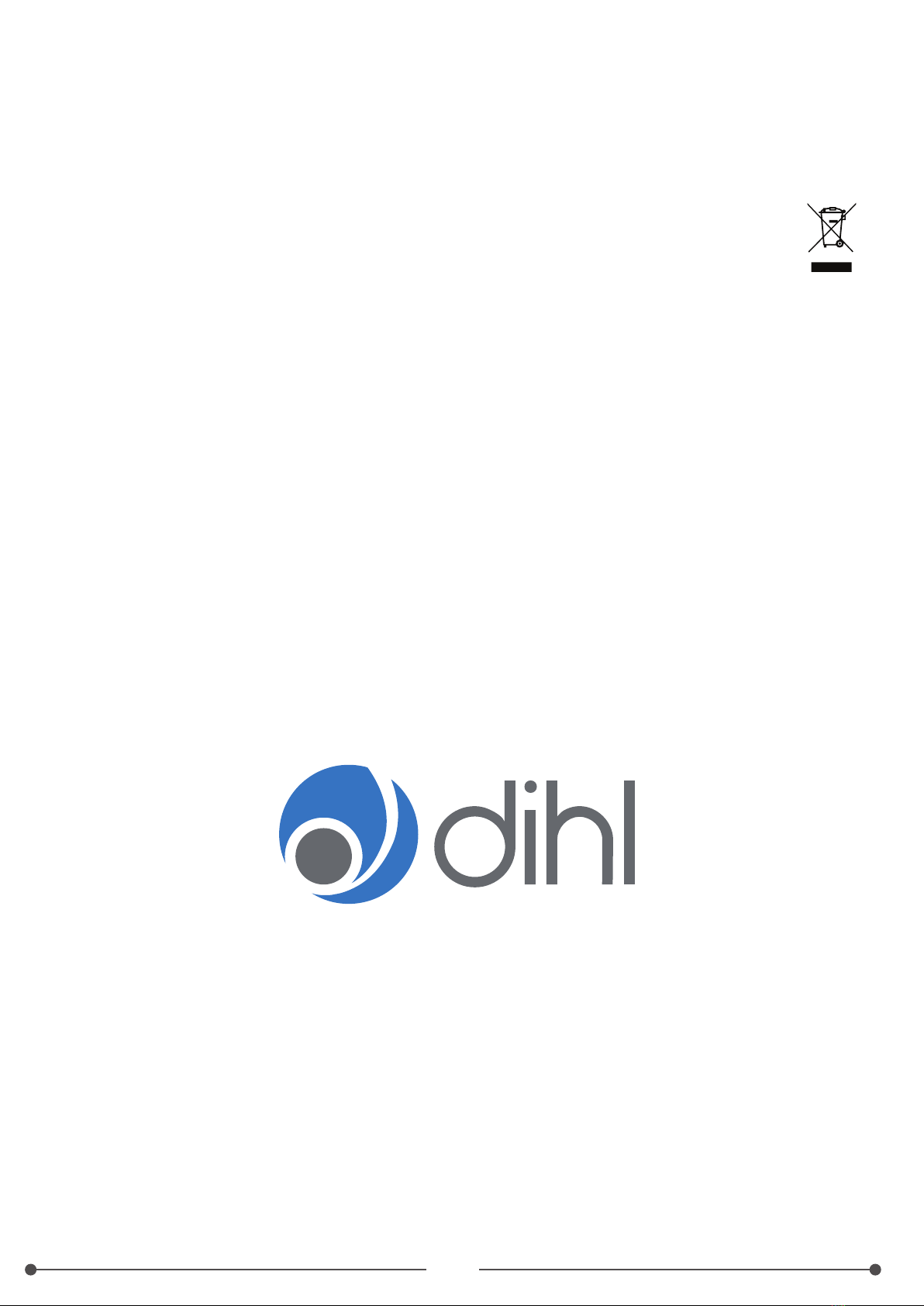

Do not throw away the appliance with the normal household waste at the end of its life; hand it in at
an official collection point for recycling. By doing this, you help to preserve the environment.
Environmental Info
Warranty
Your new Dihl product is supplied with a warranty of 12 months from the date of purchase.
The product must be used in the manner indicated within this manual.
Any abuse of any parts of the product will invalidate the warranty.
you have purchased your item from another retailer, please contact them directly.
Support
To view our entire product range, visit
www.dihl.co.uk
