diLUSSO OV608SDS User manual

Side Opening Door
Built-in Oven
OV608SDS
Installation and Operating Manual

Page 1
Version 1.0May 2021
CONTENTS
Important Notes ------------------------------------------------------------------------------------------------Page 2
Installation Instructions ----------------------------------------------------------------------------------------Page 3
Technical Specification--------------------------------------------------------------------------------------------Page 5
About the Oven-----------------------------------------------------------------------------------------------------Page 5
Oven Timer / Clock ------------------------------------------------------------------------------------------------Page 5
Setting Local Time -------------------------------------------------------------------------------------------------Page 6
Setting the Timer --------------------------------------------------------------------------------------------------Page 6
Program Cooking ---------------------------------------------------------------------------------------------------Page 6
Oven Cooking Function -------------------------------------------------------------------------------------------Page 7
Oven Cooking & Cooking Time ---------------------------------------------------------------------------------Page 9
Cleaning and Maintenance ------------------------------------------------------------------------------------Page 10
Warning ------------------------------------------------------------------------------------------------------------Page 16

Page 2
Version 1.0May 2021
Important Notes
Dear Customer
Thank you for choosing our product. This appliance is easy to use; however please read this handbook carefully before
installing and operating it. Herein, you will find the correct method of installation and tips for best use and
maintenance of the product.
Do not use the oven door handle while moving the appliance, such as to move it out from the packing box.
This appliance is designed to be handy for any adult to use at home. Do not allow children to play with it. Children
need to be supervised when the product is in operation so that they do not go near the oven and touch the hot
surfaces.
Do not touch the heating elements inside the oven.
This product must be connected in accordance with current electrical regulations. A fixed wiring installation is to
be done only by an authorised electrician.
Before maintenance or cleaning of the product, disconnect the appliance from the mains and wait for the oven
to cool down first.
For any repairs, always contact authorised Customer Service Centre and ask for original spare parts. Repairs by
untrained people may lead to damage and void the warranty.
Power Connection:
THE APPLIANCE MUST BE CONNECTED IN ACCORDANCE WITH CURRENT ELECTRICAL RULES AND REGULATIONS.
INSTALLATION IS TO BE DONE ONLY BY AN AUTHORISED ELECTRICIAN.
WARNING: THIS APPLIANCE MUST BE EARTHED
Main connection can also be made by fitting a single phase 15amp switch with a minimum gap between the contacts
of 3mm.
Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
(Blue)
(Yellow Green)
(Brown)

Page 3
Version 1.0May 2021
Before connecting to the mains, make sure that:
The electric meter, safety valve, feeding line and socket are adequate to withstand the maximum load required
(refer to product data label for maximum load)
The supply system is regularly earthed, according to the regulations in force.
The isolation switch can easily be reached after the oven is installed.
After connection to the mains, check that the supply cable does not overheat.
Never use reductions, shunts, adaptors that can cause overheating or burning.
The supply cable must be positioned so that it does not exceed 50°C above room temperature at any point of its
length.
The manufacture shall not liable for any direct or indirect damage caused by faulty installation. The installer must
ensure that the product installation and connection complies with the local and general regulation in force.
Installation Instruction
Important!
Unplug the oven before performing installation or maintenance
Fit the appliance into its surround (beneath a work-top) by inserting screws into the 2 holes that can be seen in
the frame of the oven when the door is open.

Page 4
Version 1.0May 2021
The sides and the face surface where the oven is to be installed should be milled to allow sufficient air intake and
circulation around the oven, to avoid causing any damage to the furniture.
Ensure the oven is secured firmly in place as described above, and insulate electrical connections in order to
avoid contact with metallic parts. Any protective parts must be secured so that they can only be removed with
the use of tools. The adhesive joining the rolled sections to the cabinet has to withstand temperatures no lower
than 120°C to avoid deformations or instability.
For the most efficient air circulation, the oven should be fitted according to the dimensions shown. The rear
panel of the cabinet must be removed so that air can circulate freely. The cabinetry above and below the oven
should also have a minimum 70mm rear cavity to ensure sufficient airflow.
Do not switch on the appliance before it has been fully and correctly installed.
Before using the oven, we suggest to:
Remove the special film covering the oven door glass (if there is any)
Heat the empty oven at max. temperature for 45 minutes. This is to remove any unpleasant smell caused by
working residues.
Carefully clean the internal cavity of the oven with soapy water and rinse it.
IMPORTANT!
When the oven is in operation, hot surfaces might occur at the oven door. Make sure children do not go near the oven
when it is in use.

Page 5
Version 1.0May 2021
Technical Specifications
Product : OV608SDS
Voltage : (220 – 240) Vac
Frequency : 50Hz
Maximum Power : 2700-3220W
Oven Capacity : 70 litres
About The Oven
The OV608SDS oven offer large capacity of 67L and 8 cooking functions. User can do cooking on several shelves at a
time or cook in large quantity which the traditional ovens do not allow.
In order to cool down the external temperature of the oven, a cooling fan blows a stream of air between the control
panel and the oven door.
Oven Timer/Clock

Page 6
Version 1.0May 2021

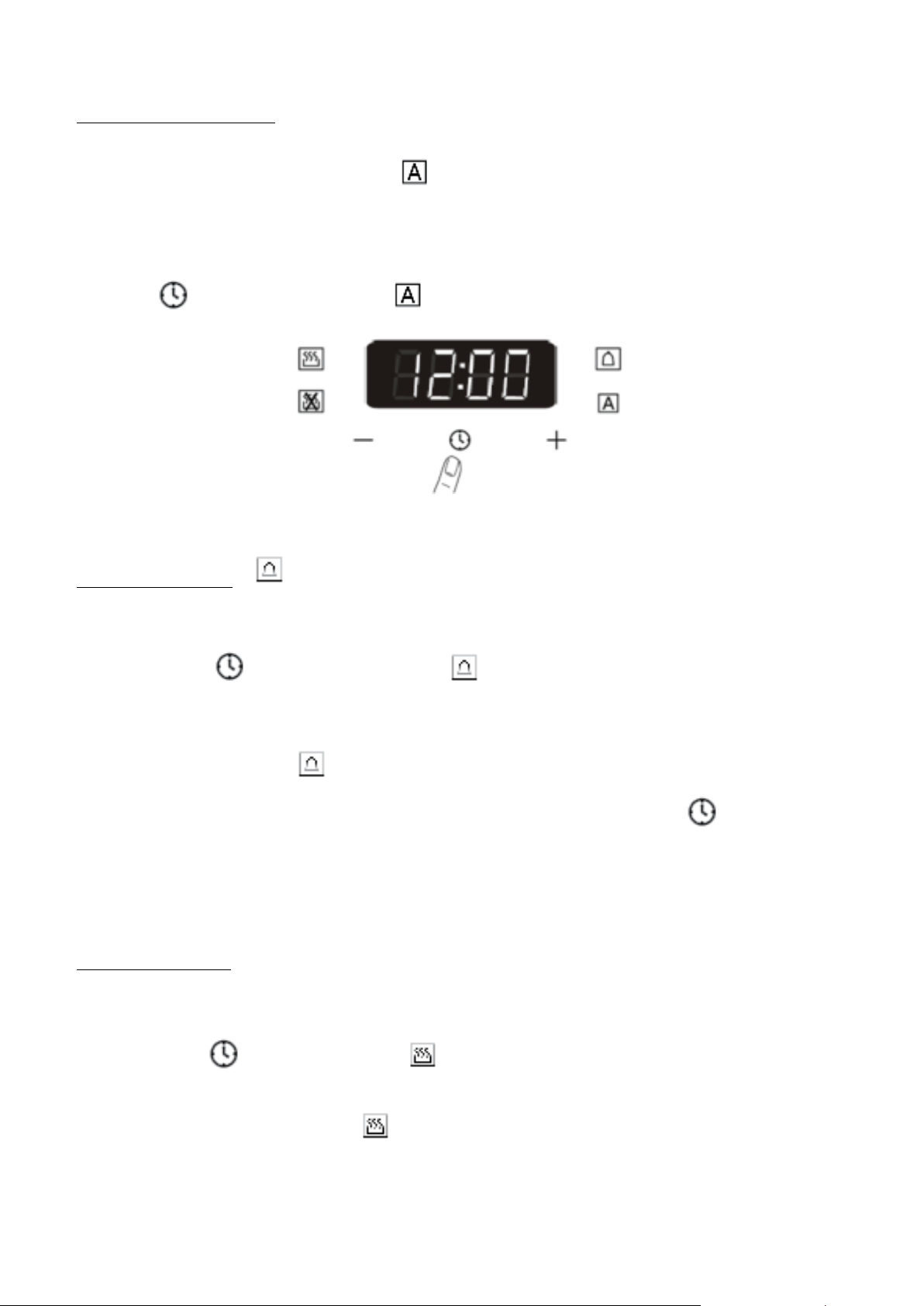

Setting the Local Time
Note : The oven only operates after the local time has been set.
When the oven is first connected to power, icon flashes automatically.
•Use the “+” and “-” button to increase or decrease the value in order to set the local time.
•Wait for approximately 5 seconds, flashing stops and local time is set. The oven is now ready to use.
The local time setting may only be changed while the oven is in standby mode, and not working. To change the local
time, press button a few times until icon flashes, and set the time by using the “+” and “-” button.
Setting the Timer
This function does not interrupt cooking and does not affect the oven; it is simply used to activate the buzzer when
the set amount of time has elapsed.
•Press the button a few times until the icon begin to flash.
•Use the “+” and “-” button to increase or decrease the value in order to set the alarm. Maximum setting
range is to 2 hour 30 min.
•Timer is set when the icon is no more flashing and stay lit up. Display will now show the remaining
time. Display will show in seconds if the countdown is less than 1 minute. Press button to see the
local time. When this period of time has elapsed, the buzzer will ring for 2 minutes. Press any button to
cancel to buzzer.
Program Cooking
A cooking function can be selected before or after programming takes place.
Setting Cooking Duration
•Press the button a few times until icon begin to flash.
•Use the “+” and “-” button to increase or decrease to set the cooking duration.
•Cooking duration is set when the icon is no more flashing and stay lit up. Local time is displayed.
•When the set time has elapsed, the oven will stop cooking and the buzzer rings for 2 minutes. Press any
button to cancel the buzzer.

Page 7
Version 1.0May 2021
Setting End Time for Cooking
Cooking duration is set beforehand : Time Delay Function
•Press the button a few times until the symbol begins to flash, use the “+” and “-” button to
increase or decrease to set the cooking end time.
•Both and icons are lit up. Local time is shown on the display.
•The cooking end time must be greater than “local time + cooking duration”. However, it should not exceed
“local time + 23hour 59min”. The oven will start cooking automatically when the local time reaches “cooking
end time – cooking duration”.
•When the set time has elapsed, the oven will stop cooking and a buzzer rings. Press any button to cancel
the buzzer.
Cooking duration is not set beforehand : End Time for Cooking Function
•Press the button a few times until the symbol begins to flash, use the “+” and “-” button to
increase or decrease to set the cooking end time.
After cooking, oven display will be off if there is no operation for more than 5 minutes. Press any key
to activate the control panel.
Oven Functions
All functions will start working after the temperature is set by using the temperature knob.
Defrost – The fan operates without the heating elements. Can be used to defrost frozen food. The required
time for defrosting depends on the type and quantity of food, and the room temperature. Always check
food packaging for instructions.
Conventional – The traditional way of cooking, using the bottom and top heating elements to provide heat
from above and below. It is ideal for pastries and for slow cooking at a low temperature.

Page 8
Version 1.0May 2021
Fan Forced – The circular heating element and the fan comes into operation. Heat is distributed evenly to
all levels. Several dishes can be cooked on different shelves. Fan forced mode is ideal for baking, cooking
large serves of food and cooking different dishes together.
Half Grill – The inner top heating element operates. Provides direct heat to the top surface of the food. It is
suitable for small portions of foods, e.g. toast. Keep oven door closed when in use.
Full Grill – Both outer and inner part of the top heating element operates. It is more suitable for grilling
larger portions of foods than the half grill function, e.g. sausages, steaks, fish. Keep oven door closed when
in use.
Full Grill + Fan – Both inner and outer part of the top heating element operates with fan assistance. The fan
disperses the radiant heat from the elements. Suitable for browning food, whilst keeping it moist. The door
must be closed whilst grilling.
Bottom Heating + Fan – Bottom heating element operates with fan assistance. It is perfect for dishes with a
pastry base and filling, such as custard tarts. It is also suitable for heating precooked foods, or to sterilize
preserving jars.
Top + Bottom Heating + Fan – Provides even heating with the top and bottom element and the fan operating
s simultaneously. Food will be browned on top and heated from bottom.
Practical hints to save energy
The oven can be switched off several minutes before cooking end; the residual temperature is enough to complete
cooking. Open the oven door only when it is absolutely necessary; to check the cooking phase, look through the glass
door (the inner cavity light is always on).
Pieces of general advice
The oven offers various kind of heating:
1. The conventional heating for the cooking of special roasts
2. The fan forced heating for the cooking of cakes, biscuits and similar.
If the fan heating is chosen, it is recommended to take advantage of it by cooking on more levels to prepare a complete
menu, to save time and energy.
Fan heating
By this function a continuous circulation of warm air is created, suitable for the cooking on multiple levels. The oven
will reach the preset temperature in a very short time.
Conventional heating (the upper and lower heating element operate)
It is especially suitable for the cooking of game and as well as for the cooking of bread and sponge cakes.
It is advisable to place food into the oven after preheating it.

Page 9
Version 1.0May 2021
Grill Cooking (the two upper heating elements works)
To cook with the grill, pre-heat the oven for about 5 minutes. During grill operation the heat comes from above; and
its suitable for thin cuts meat and for toasts. The table shows some examples of cooking times and shelf positions.
The cooking times vary according to the type of food, its homogeneity and volume.
Cooking Of Pastry
The air circulation of the oven assures an instantaneous and uniform heat distribution. More trays can be inserted
into the oven together with the pastries, taking care not to use the top level. Together with the pastry, other foods
can be cooked at the same time (fish, meat, etc.), provided they can be cooked at the same temperature.
GRATINATING (use either the inner upper element or both inner outer upper elements)
“Gnocchi alla romana”, polenta pasticciata, rice, lasagnas, noodles and vegetables dressed with béchamel are typical
preparation for this type of cooking.
Pizza or Focaccia
Use a light aluminium tray with a maximum diameter of 30cm, placing it on top of the rack supplied. If the pizza has
a lot of toppings, it is recommended to add the mozzarella cheese on top of the pizza halfway through the cooking
process.
Cooking Time
The table shows some examples for the adjustment of the thermostat and of the cooking time.
*The cooking times can vary according to the type of food, its homogeneity and volume.
*For the beef, veal, pork and turkey roasts, with bones or rolled, add about 20 minutes to the times shown in the
table.
*The times indicated in the table refer to the cooking of one dish only; for multiple dishes, the cooking times should
be increased by 5-10 minutes.
Nature of food Oven Temp.°C Time Minutes
General 220--250 Relative to Qty
Long-cooking roast
225--250
50--60
Fowl (duck) 210--250 150--180
Poultry
225--250
50--60
Game 200--225 Relative to Qty
Fish 180--200 20--25
Pastries
160--200
60--70

Page 10
Version 1.0May 2021
Food Qty.
Kg
Temp.
°C
Pre-heat time in
minutes
Time in
min.
Veal cutlet 1 250 5 8--10
Lam cutlet 1 250 5 12--15
Liver
1
250
5
10--12
Chopped meat
roulades
1 250 5 12--15
Veal heart 1 250 5 12--15
Roast in the net
1
250
5
20--25
Half-chicken
1
250
5
20--25
Fish filet 1 250 5 12--15
Stuffed tomatoes 1 250 5 10--12
Cleaning and Maintenance
Caution: Prior to cleaning or maintenance, always disconnect the power supply.
Make sure that steamer cleaner is not used.
Check the oven rubber seal condition on a regular basis. Clean it if necessary. Avoid using abrasive cleaners. Should
it be damaged, contact the nearest after sales service centre.
Never line aluminium foil at the bottom of oven, as this will cause heat accumulation and lead to damage the oven
enamel.
1) CLEANING OF STAINLESS STEEL
In order to have your oven retains its new appearance; regular cleaning and care should be performed to protect the
s/steel finishes.
Never use gritty or abrasive sponges. Stubborn stains can be removed by soaking in hot water, standard stains can be
removed by applying a clean cloth soaked in soapy water before spillage becomes cold or dries up. Acidic materials
like vinegar and citric juices etc can damage the most resistant surfaces. If a spill occurs wipe it immediately.
Note : Use only damp cloth to clean the stainless steel panel with printed wording. Stainless steel cleaners and
similar products may remove the print.
2) OVEN CLEANING
Oven spillages should be cleaned straight away. Leaving it will cause burning and smoking inside the chamber of oven
the next time oven is used. Leaving spillage’s can cause permanent damage to the enamel thus making it extremely
hard to remove in the future. A non-caustic cleaner is recommended to clean the chamber of the oven. Do not use
abrasive scourers, sponges, cleaning products. Wipe out oven regularly and properly while oven is still warm with hot
soapy water and a soft cloth.

Page 11
Version 1.0May 2021
3) TOP HEATING ELEMENT
This element must never be sprayed with any detergents. A damp cloth and a bottlebrush can be used to clean the
roof of the oven and the element itself. Never soak the element and always dry it after cleaning as not doing so can
lead to deterioration. This area should be cleaned regularly as cooking fats spit up and stick to the ceiling and the
element which will burn and smoke, giving out unpleasant odours.
4) LOWER GRILL
Support the front of the grill element while removing the screws retaining the element. Lower the front of the element
carefully to the rest position. When cleaning the oven, pay attention so that not apply any forces to the grill element.
When the cleaning is completed, carefully remove all cleaning chemicals and water from the grill element. Raise the
front of the element into position and secure with the screws.
NEVER USE THE OVEN WITH THE GRILL ELEMENT HANGING DOWN!
5) CLEANING OF OVEN DOOR
Clean the glass door by using damp cloth and dry it. Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the oven glass door as they may scratch the surface and cause glass shattering.

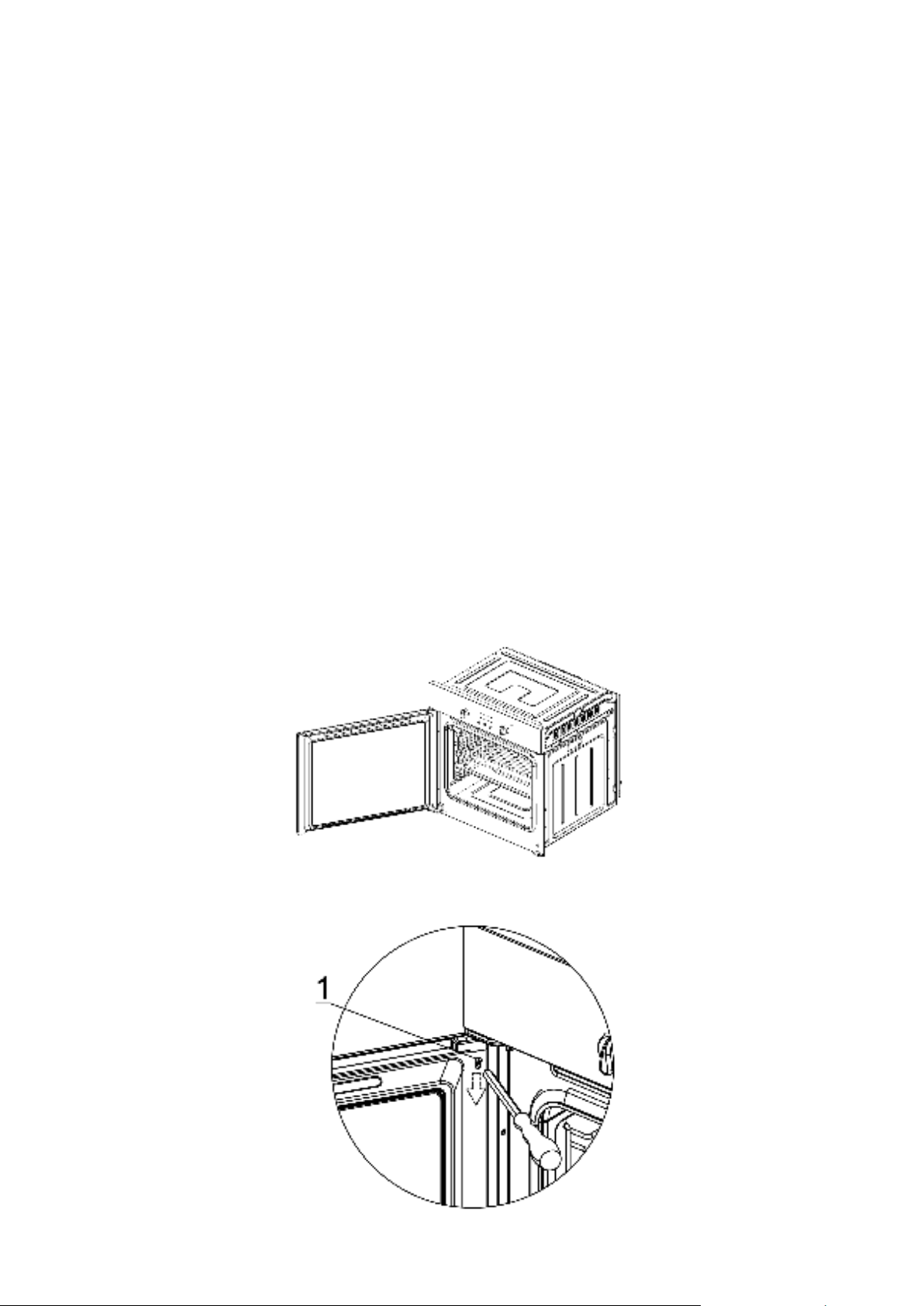

6) REMOVING THE OVEN DOOR
To make it easier to clean the oven chamber, the oven door could be removed.
Open the oven door widely as shown in the figure below.
Loosen up screw 1 and push it downwards, and pull the door out from the top fix support.

Page 12
Version 1.0May 2021
Take the door out from the bottom fix support directly.
The side opening door is completely separated from the oven.
7) ASSEMBLE THE OVEN DOOR (CHANGING THE DOOR OPENING SIDE)
After the door is removed from the oven, if the user wishes to change the door opening side, then tighten the opposite
side screw 1 at the upper position, and loosen up screw 2.

Page 13
Version 1.0May 2021
Prepare to assemble the door to the opposite door spindle. At this moment, screw 2 is downwards and screw 1 is
upwards.
Assemble the door at the bottom fix support first, insert lever 5 to bottom fix support 6.
Assemble the door to the top fix support. Tighten screw 1 to the upper position with screwdriver.

Page 14
Version 1.0May 2021
Door direction change is completed.

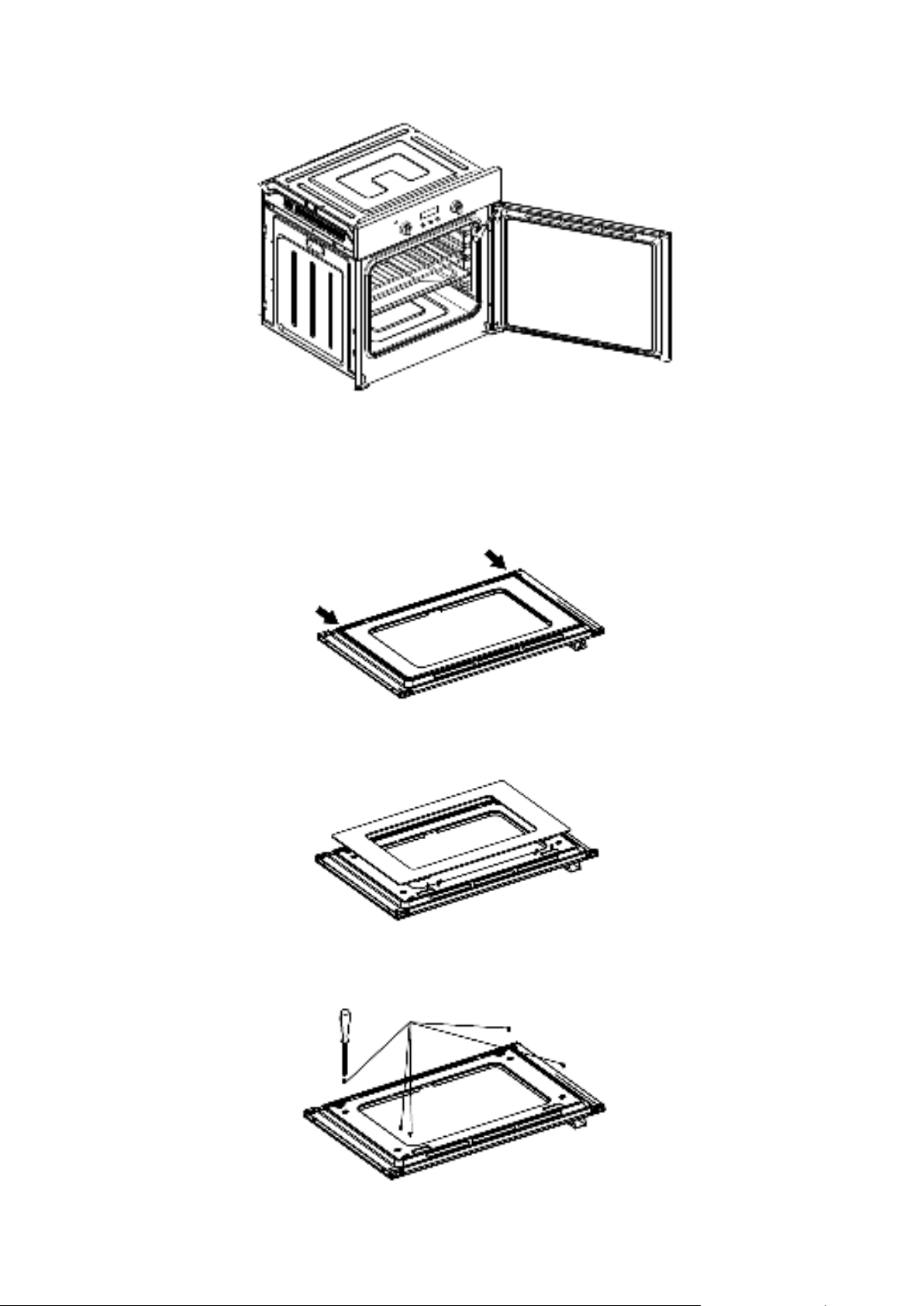

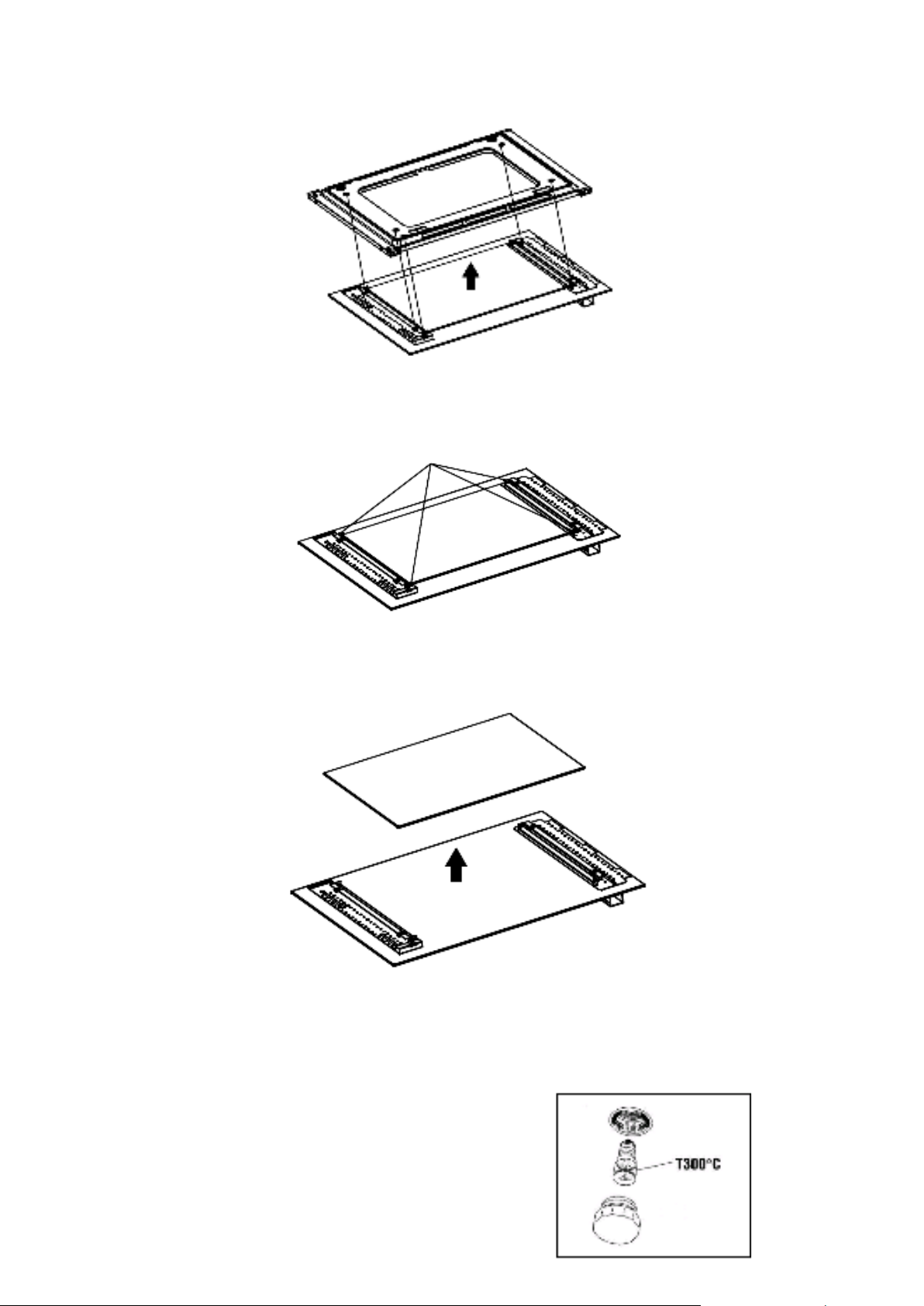

8) REMOVING THE DOOR GLASSES
Use a flat screwdriver to pry open the inner of the oven door.
Remove the inner glass.
Loosen up the 5 screws on the door frame

Page 15
Version 1.0May 2021
Remove the door frame.
Pry open the 4 fixing pieces on the glass holder bracket.
Remove the middle glass.
9) REPLACING THE OVEN BULB
Once the oven has been electrically disconnected, unscrew the glass protection cap and the bulb, replacing it with
another one suitable for high temperature 300°C.
It should be fit below points:
Voltage: 220-240Vac Power: 15W E14
Reassemble the glass cap and reconnect the oven.

Page 16
Version 1.0May 2021
Choose which shelf to use with the telescopic arms. Pay
attention to the direction in which the telescopic arms is to be
extracted. Position joint B and the joint C on the frame.
Secure the two frames with the guide rails using the holes
provided on the oven walls. The holes for the left frame are
situated at hole F1, F2, and the right frame at hole D1, D2.
Finally fit the frames on spacers A.

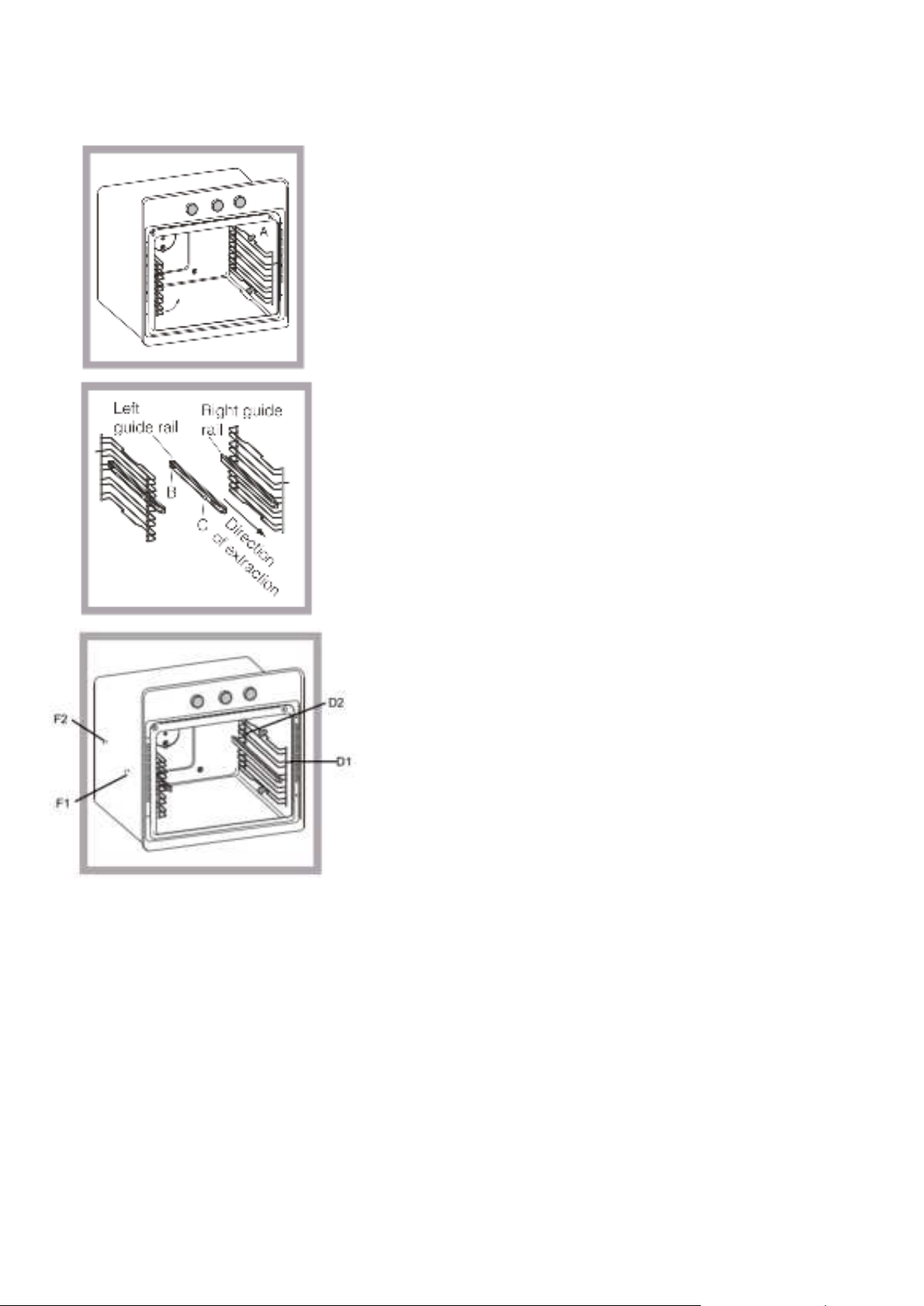

10) TELESCOPIC RACKS ASSEMBLY
To assemble the telescopic arms :
Warning:
1. Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electrical shock.
2. Accessible parts may become hot during use. Young children should be kept away.
3. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch
the surface, which may result in shattering of the glass.
4. Steam cleaner is not to be used.
5. Fixed wiring must be protected.
6. The door should be situated more than 85 mm above floor after installation of the oven.
7. Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
8. When it is in use the appliance becomes hot. Care should be taken to avoid touching heating elements inside
the oven.
Remove the two frames, lifting them away from spacers A

Page 17
Version 1.0May 2021
9. Surfaces of storage drawer can get hot.
10. The oven must be switched off before removing the guard and that, after cleaning, the guard must be replaced
in accordance to instructions.
11. The control panel is only to be connected to the heating units specified in order to avoid possible hazards.
12. This product must not be disposed with the domestic waste. It has to be disposed at an authorised bin for
recycling the appliances.
13. This appliance is not intended for use by person (including children) with reduced physical, sensory or mental
capabilities or lack of experience and knowledge, unless they have been given supervision or instruction
regarding the use of the appliance by personnel who is responsible for their safety.
14. Always make sure the knobs are in the “0” position when the appliance is not in use.
Dear Customer,
To protect the surrounding furniture cabinets, after cooking is completed, the cooling fan may stay on until the oven has
cooled down sufficiently. If you have had the oven on for hours at a time, this fan might stay on for up to 60 minutes after
you turn off the oven.
