Dipeng DP-300 User manual

Instruction Manual
Thermometer & Disinfector
DP-300
- Thank you for purchasing the Dipeng DP-300 Thermeometer &
Disinfector.
- For your safety and enjoyment, please read this manual thoroughly
before use.
- Please retain this manual for further reference.
- For specific information about your own temperature, CONSULT
YOUR DOCTOR.
The illustrations in the manual are merely design sketchs，for
demonstration purposes only.
Notified

- Conducting self-diagnosis based on the measurement
results and/or treatment can be dangerous. Please follow
the instrustions of your doctor.
- Do not use this unit other than for measuring the human
body temperature.
- Do not use the unit to measure any item with a temperature
higher than 80℃(176.0℉）.
- Please do not insert figer or any sharp object into the probe
lens, this may cause damage to the probe lens and/or
inaccurate readings.
- Do not disassemble, repair, or modify the unit.
- Most disinfectants are volatile, please consum in time to avoid
decrease in efficacy.
- If there is a significant difference in temperature between the
places where the unit is stored and where the unit is going to
be used, please allow at least 30 minutes before use.
- The nozzles are consumables, please replace as instructed to
avoid uneven spray or shortfall.
- When the probe lens becomes dirty, wipe it lightly with a soft
dry cloth or a cotton swab. Do not wipe the probe lens with
tissue paper or acid/alkaline liquid.
- Please do not drop or stand on the unit, also avoid
strong vibration or collision.
- This unit is a wallmounting type or need to be held securely in
place before use. Stand loose may result in personal injuries or
proporty damage.
- During measurement, make sure that no mobile phone is
within 30cm of the unit, this may casuse an inaccurate
reading.
- Do not operate this unit near pleces that have strong
electrostatic or emit electromagnetic wave, this may result in
incorrect operation of the unit and/or cause an
inaccurate reading.
Important Safety Information
These safety instructions must be strictly followed in use to avoid personal
injuries and property damage are as follows:
Warning

Screws And Nuts Nozzles
Rack For Wall Mounting Funnel Key
AC Adaptor
1.Overview
ON/OFF
Power Supply Socket
Display
Indicator LED
Nozzle
Waste Tray
2. Before Using
2 .1Included Accessories
2 .2 Accessories List
AC Adaptor Pcs1 12VDC 2A )/ （Max
SpecificationQuantityItem
Rack For Wall Mounting 155 35*1mm*
Screws And Nuts *M5 35mm
Pcs1
Sets3
Nozzles
6*6*8mmPcs5
Funnel *70 70mmPcs1
Instruction Manual 118*165mm
Pcs1

Power Supply Socket
LED
Switcher On “|”
3. How To Use
3.1 Plug the power supply into the power socket on the side of the
unit, turn the switch to “|”. A ” ”will soon appeal on the screen,
and the indicator LED with breathing light cirulates in green.

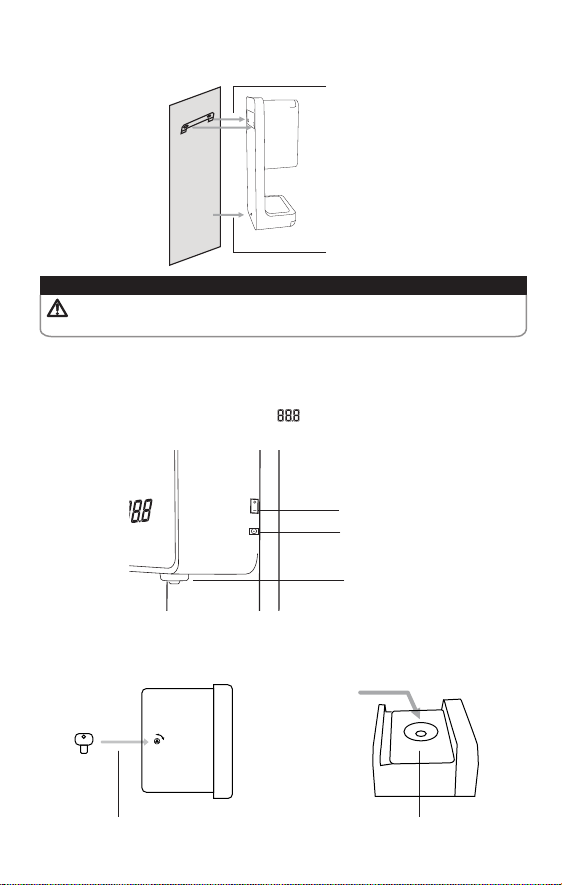

2.3Installation
Anti-Dismantle Screw Position
Lock Position
3.2 Use the key provided to unlock the top lid of the unit and remove
the lid. Remove the cap of the inner container. Fill the container with
adequate amount of disinfection liquid. Replace the cap and the lid,
lock the lid with the key, keep the key in a safe place for future refill.
Rotate The Key To Unlock Remove The Cap And Fill
- If doubt in readings, please adjust measuring popsture and take
few more readings for comparison.
Notified

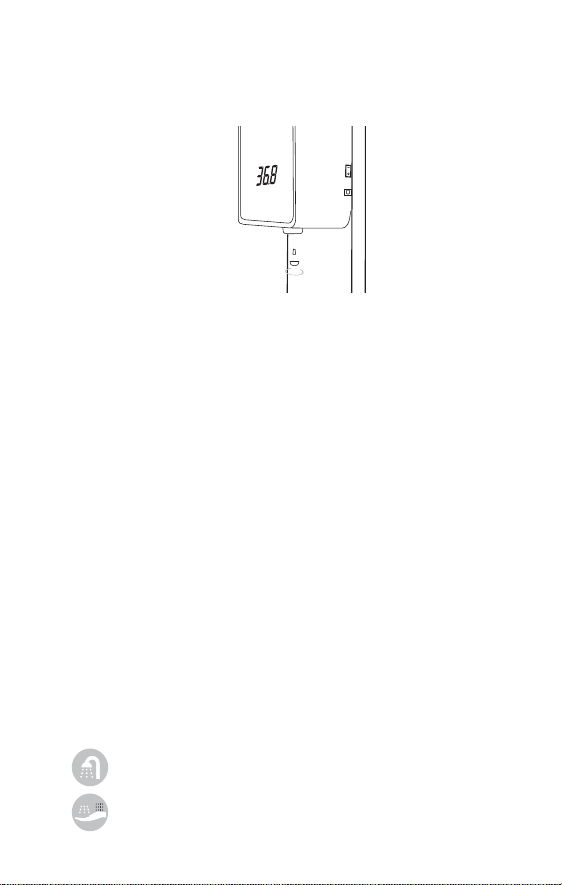

*Black Dotted Line Is Measure Area
3.3 To Take Temperature And Disinfect Hands
3.3.1 To begin the procedure, reach both hands beneath the nozzle, make
sure the inner side of the wrist is uncovered and exposed under the
breathing light. Hold the position for more than 2s until the temperature
result is displayed on the screen, then the nozzle will spray disinfectant for
1-2s, the procedure completed.
3.3.2 When the temperature result is below 32℃(89.6℉), a “ ” sign will be
displayed on the screen with the breathing light flashing in red.
3.3.3 When the temperature result is ranging between 37.5℃~42℃(99.5℉
~107.6℉), the breathing light will flash in red. When the temperature result
is above 42℃(107.6℉), only a “ ” sign to be displayed on the screen.
Please only use the specified types of disinfection liquid.
Notified

4. Replacing Nozzle
4.1 When uneven spray or blockage occur, please replace the nozzle.
Simply rotate the nozzle cap to unlock.
5. About Human Body Temperature
Knowing One’s Normal Temperature
In order to make a correct judgement on whether an individual is having a fever, it is
important to understand what is the normal temperature range.
Body temperature refers to the stable temperature of the inner body(also known as
core body temperature). While temperature measurements at the armpit or mouth
provides surface temperature values, holding the thermometer steadily at the
measurement point for approx. 10 minutes provides a temperature measurement
more closely representing that of core body temperature.
Since inner wrist temperature measurement involves no bodily support of the
thermometer, the resulting measured temperature is typically lower than that of the
armpit or mouth. However, since the inner wrist has blood vessels that are much less
prone to vascular constriction(a natural function of body temperature adjustment), it
is supposedly a better measurement area for determining core body temperature,
even in a lower temperature environment.
(Note that temperature measured at the inner wrist may still be influenced by other
conditions, such as sweating, or wind from an air conditioner, etc. It is therefore
advised to perform measurement in as stable an environment as possible.)
Body temperature varies from person to person, and will also vary according to the
time of the day. In addition, body temperature also varies depending on which part of
the body is being measured. In order to learn one’s normal temperature range, please
follow at least one of the following suggestions:
- Measure with the same unit.
- Measure at the same place.
- Measure at the same time of day.
- Be calm and relaxed.
For Accuracy
About Body Temperature
Please do not measure immediately after shower, bath or hand washing.
Please dry and wait for a few minutes.
Please stay still during the temperature measurement, until the result is
displayed on the screen.

Please do not measure immediately after intense exercise, or immediately
after exposure to strong sunlight or sweating.
Please make sure the measuring area (inner wrist) is not covered by clothes,
jewelry or watch etc., for an accurate reading.
6. Specification
Thermometer Chips Melexis thermopile temperature measurement
Thermometer Distance 3 5cm-
Temperature Correction Self-calibration
Disinfectant Mode Infrared sensor probe
Power Supply DC 12V 2A/
Thermometer Accuracy ± . ℃(±32.54
℉) 0 3
Recognition Speed <3S
Store Environment
Working Environment
Store Temperature
Working Environment
Hardware
Indoor (avoid direct sunlight)
Temperature: 0℃-35℃（32℉-95℉)
Humidity: 10%-90%(No condensation)
Among 25℃(77℉) （No condensation)
FCC WARNING
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should
be installed and operated with a minimum distance of 20cm(7.9 inches) between the
radiator and your body for 2.4GHz operations: Use only the supplied antenna.

Manufacturer:
Dipeng Appliances(Guangzhou) Co.,LTD
Manufacturer’s Address:
1-4F, Unit 108, Building 12, 96 Lixin 12th
Road, Xintang Town, Zengcheng District,
Guangzhou, Guangdong, P.R.China
Tel: [phone]
-Not using the original adaptor(or
not the correct voltage). -Use the original adaptor;
-Plug in properly and make sure the
power supply is in order.
7. Troubleshooting
Please refer to the table below for common issues/solutions.
if the problem persists, please contact you local customer
service for help.
-Adaptor or the power plug gone
loose.
- Re-plug the power plug;
- Turn on the switch.
- Please avoid direct sunlight on the
unit, or the accuracy of the
thermometer might be compromised;
-If the ambient temperature changed
dramatically,or the unit has been
moved from indoor to outdoor and
vice versa, please allow some time for
the thermometer components to
adapt.
-For details, please refer to 5. About
Human Body Temperature
Do not remove hands away from
the sensing area immediately after
temperature measurement and wait
for the spray to take place.
Hands are not reached into the
sensing area.
Cannot be
powered on to
ready stage
Spray not
functioning
properly
The power plug is not plugged in
properly, or the switch is not on.
The nozzle is partially blocked. Check whether the disinfection liquid
needs a refill; if negative, replace
nozzle.
Abnormal results
- The unit is exposed to direct
sunlight;
- The ambient temperature
varies greatly;
- Individual factors.
*If you wish to learn more about Dipeng products, please visit our website: www.vision1999.com
for more information.
Issue Possible Causes Solutions
Made In China
