DIR Maximus User manual

INSTRUCTIONMANUAL
Maximus
7113
®

Dimension 198*69*87cm 78”*27 1/4”*34 1/4”
19 1/4”*26”
Load Capacity 200kg 441lb
284lb
379lb
N.W 129kg
G.W 172kg
Height 49～66cm
Padding SPONGE
Leather PU/PVC
UK USA
Name Picture QTY
Headrest
1
Faucet
1
Shower
1
Relift
Pumps
1
Pins
2
Anchoring 4
Rubber pad 1
Wrench 1

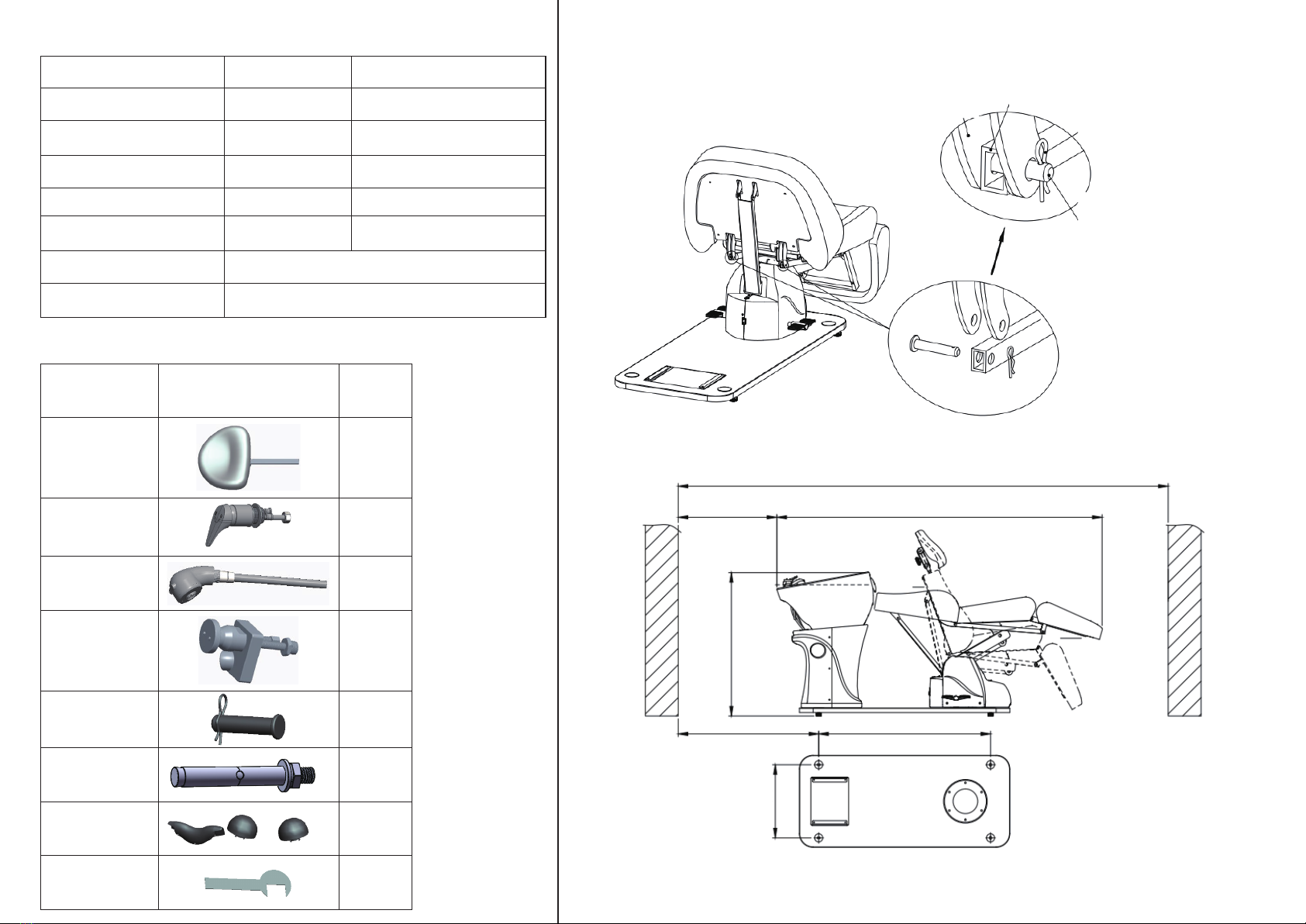

● Technical data：
● Accessories Parts：
● Position of Anchoring
● Assembly instruction :
● Install connecting rod of back rest
Frame carrier Foot Frame
B clip
Flat pin
117 1/4”/298cm
23 5/8”/60cm
34 1/4”/87cm
33 1/2”/85cm 41”/104.5cm
17 1/4”/44.5cm
78”/198cm

nut
gasket
screw
● Anchoring Assemble
Open the cover of stainless steel,then install anchoring
● Install rubber padding
① Cover the button then rubber padding would be installed
② Round rubber padding clip into the right hole
● Assembling the basin
① Take off the cover of basin’s base before assemble above parts
② Install shampoo chair, unscrewing the nut,then aim the
install hole to four screws on the underframe,then screw nut
tight
Stainless steel cover
Anchoring
Rubber padding
Round Rubber padding
Pillow Bracket
Pillow rack

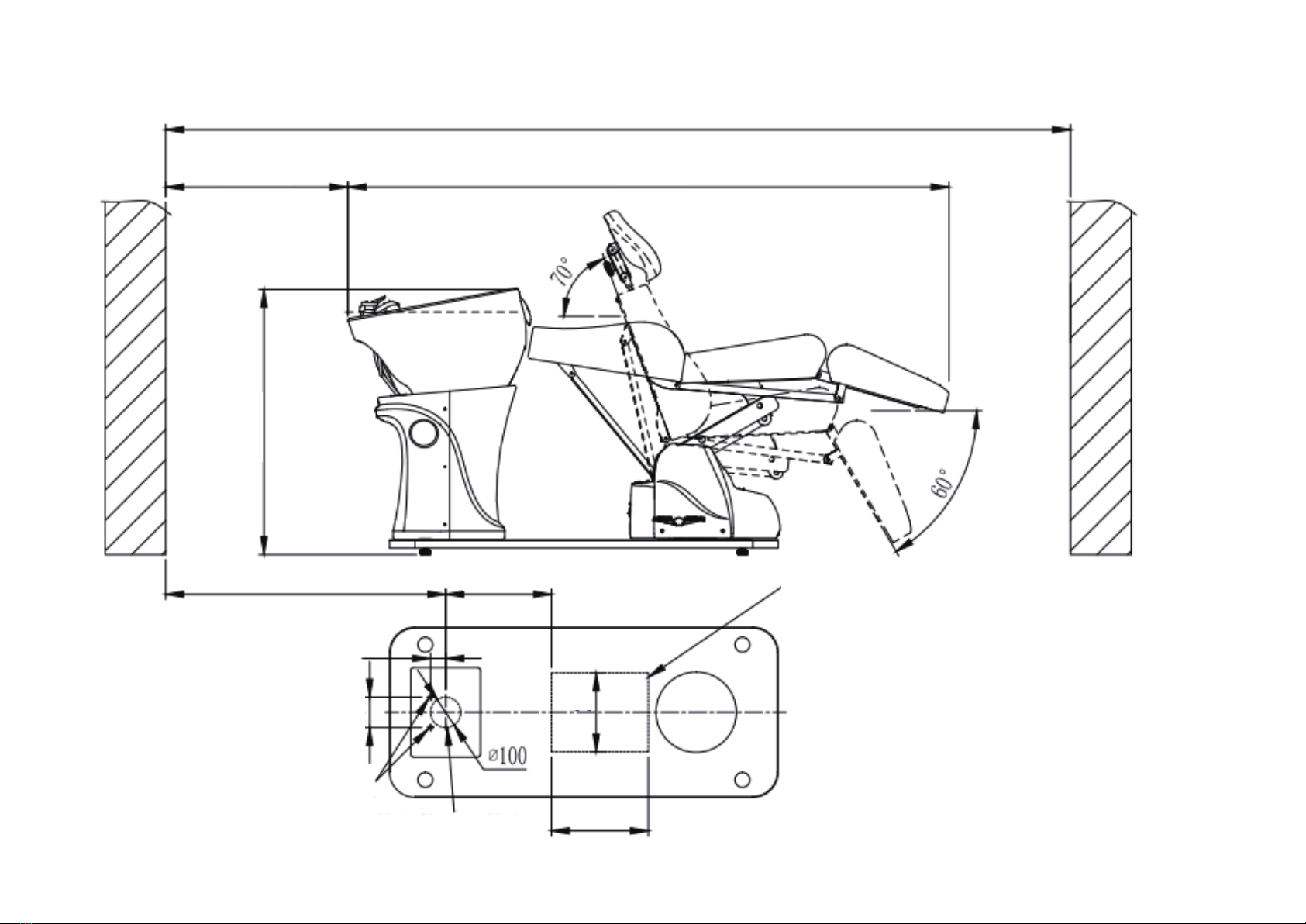

● Schematic diagram of faucet &connector box
Dia of Outlet pipe Φ100
Inlet pipe of cold and hot water
Socket Area(PS:The power plugs could not
30mm higher than floor)
117 1/4”/298cm
23 5/8”/60cm
34 1/4”/87cm
36 1/4”/92cm 13 3/4”/34.8cm
12 1/2”/32cm
4”/10cm
10 1/2”/26cm
2”/5cm
78”/198cm

● Faucet installation ● Shower and valve installation
Disassembly pipe
of hot and cold water Faucet
Rubber Washer
Pipe of cold and hot water
Copper nut
Fauce
install
Note:Pipe of cold &hot water must
connect to the hole below switch
mark of cold and hot water
Connector of inlet pipe for
cold and hot water
Cold pipe
switch mark of cold and hot
water
Hot pipe
Copper nut
Rubber Washer
Shower
Performing
Screw
Connector of outlet water
for faucet
Water pipe connected to
outlet of faucet(another
side connect to shower
pedestal inlet
Water pipe connected to
outlet of shower pedestal
Shower connect to outlet
water of pedestal
inlet water of pedestal
Water pipe connected to inlet
of faucet(another side
connect to shower pedestal
outlet )

● Outfall installation
After assemble above parts ,put the back cover of basin base
● Switch and foot control

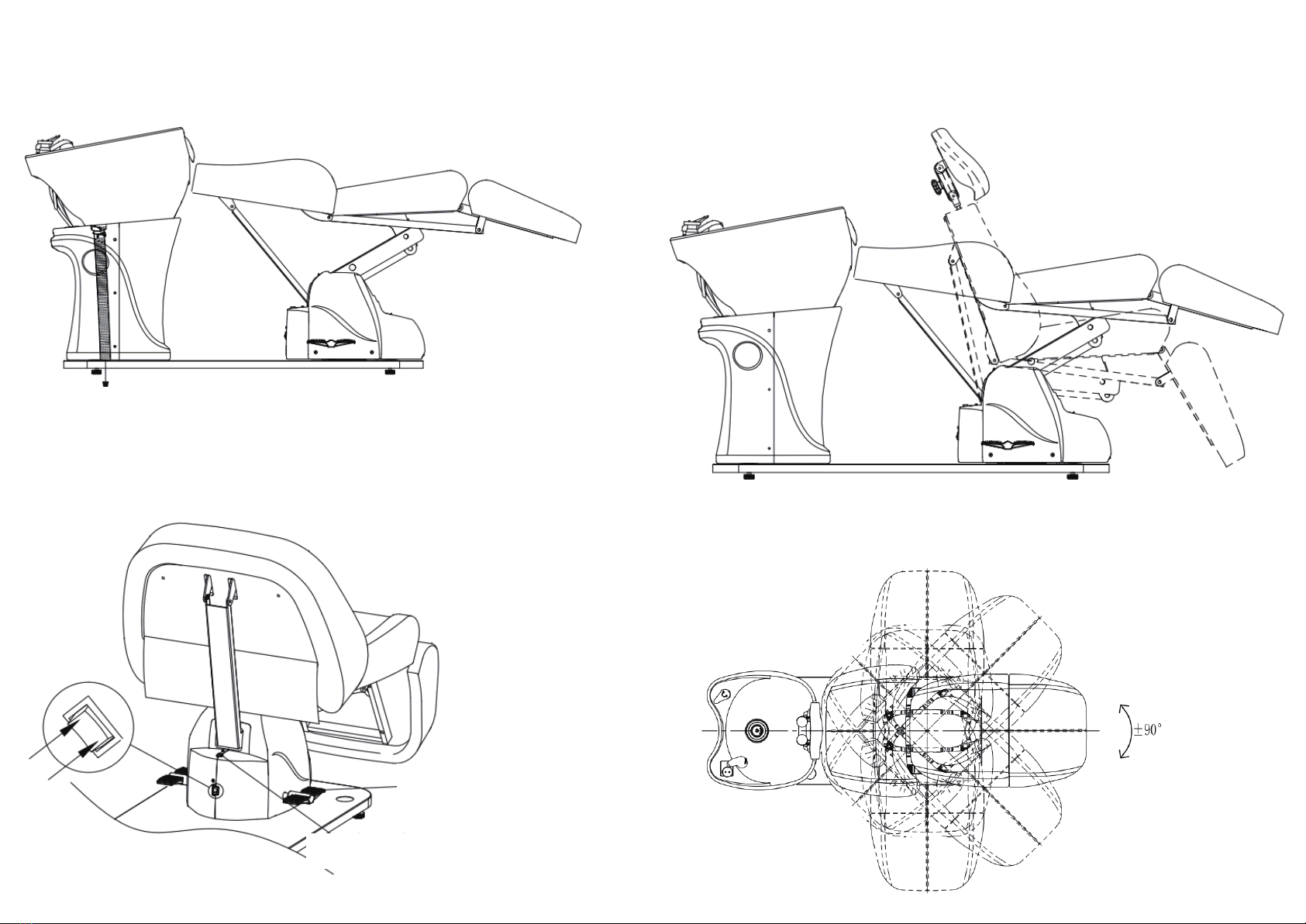

● Height Adjusted
Power on ,press switch, power indicator light up, step on “up”side
of foot control, whole bed raise up, step on “down”side, whole
bed decline.
● Rotation function
Push forward ,then the bed could be clockwise/anticlockwise
rotated
Outfall
Power indicator
Foot control

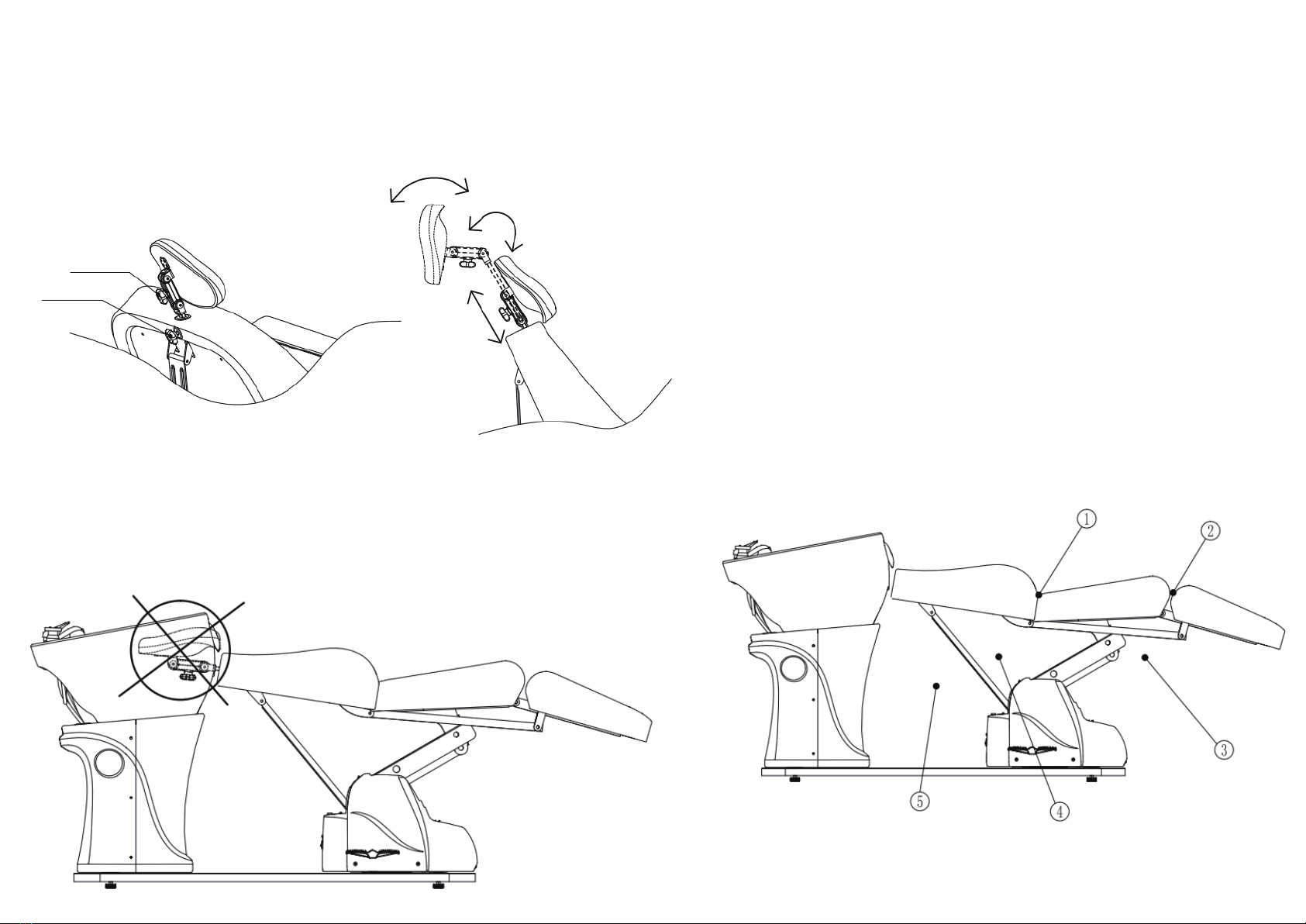

● Headrest
Adjust the knob B to adjust height of headrest or disassem-
bly headrest; Adjust the knob A to rotate or turn over the
angle of headrest
● Notice:
Because this bed is work with 3 wire power cables, in order to
making it working properly, it has to insert to 3 holes powder
socket with ground wire.
All plugs, buttons and cables couldn’t be soak in the water
or other liquid.
Press control keys to adjust the height of whole bed. Forbid
putting the hand, foot or head into position ①②③ when using
the foot control to adjust the height of bed, as below picture.
Stop using if plugs, buttons or cables damaged.
Please note that the frequency should be 6 min/h when using
the electric rod of this bed
Only allow to be maintained by professional workers.
PS:After insert headrest , pls take care of the headrest when
raise up the bed , in case basin get damaged .
Knob A
Knob B

● Precautions
1. Someone with osteoporosis or heart problem should not
use this massage chair.
2. Women being pregnant or in menstruation should not
use this massage chair.
3. Someone inured or with disabilities should not use this
massage chair.
4. Children under 14 years old without any supervision
and someone unconscious
should not use this massage chair.
5. Breakages of the power cable and plug should be
eliminated before it’s normally used.
Breakages should be dealt with by someone professionals
or service providers.
6. The voltage should accord with the safety voltage
before it’s officially used.
And the wrong voltage may lead to the breakdown of the
product.
7. Wet hand is not allowed to touch power to avoid shock.
8. The product should not plug in before it’s already
installed.
9. The power cable should be put away so that pedestrian
will not trip up and fall.
10. The appearance of the product should cleaned by the
use of the soft towel with
diluted neutral detergent.
11. It should be unplug when it’s not used.
12. Do not dismount this product without any authorization.
Please inform the official service providers to deal with the
maintenances
● Maintenance
1. Daily cleaning
You can wipe out the dust by using soft dry towel.
2. Eliminating the heavy dirt
As we all know, it is hard to eliminate the heavy dirt by using
normal dry towel. In this
case, you can use soft towel with diluted neutral detergent to
clean it first. And then you
can use dry towel to scrub.
3. It’s prohibited to use benzene, diluent, gasoline or other
solvent
These solvents may damage the leather or it may cause the
corrosion of the products’
appearance.
4. Storage and operating environment
Don’t put the product under the strong sunlight and mois-
ture environment.
Otherwise it may cause the damages of the product.
5. It is allowed to use this product under the temperature
from -5°c to 50°c and the humidity from 45% to 85%.

● Malfunction Diagnosis
If you meet malfunction when using this product, please try the below malfunction diagnosis and eliminated
operation.
◆ When the improvement which is not effect on the product’s basic structures, we won’t inform in addition.
Problem Reason may cause Solution
No reaction for the bed
when press the control key
Whether the remote control switch
start or not Restart the remote control
Whether the control key reach to
end position. Try other control keys
Whether the plug inserts well or not Pull out the plug and insert it again
Whether each connecting plug for
transformer insert well or not Pull out the plug and insert it again
Bed body,
Abnormal noise,
shocking
Screw loose Tighten all screws
The powder light off Fuse wire burning -out Replace the fuse wire
Remote light off Remote line could not tight well or
remote broken
Tighten plug if still couldn’t work,
then change the remote control
