DirectConnect DCC5H User manual

H
He el lp pi in ng g y yo ou u a ac ch hi ie ev ve e y yo ou ur r i in ns st ta al ll la at ti io on n n ne ee ed ds s! !
D
Di ir re ec ct t C Co on nn ne ec ct t ®
is one of the largest manufacturers of products specifically for the custom installation
of audio, video, security, telecom and data networking industry.
O
Ou ur r e ex xt te en ns si iv ve e p pr ro od du uc ct t l li in ne e
offers items in the categories of bulk wire and cable, connectors, installation hardware,
interconnect cables, distribution panels, a/v transceivers, cameras, media servers,
baluns, mounts, tools and wall plates—virtually everything a custom installer needs!
S
Si in nc ce e 1 19 99 96 6, , D Di ir re ec ct tC Co on nn ne ec ct t®
has offered unique products that provide solutions to everyday installation headaches.
How do we come up with these ideas? By listening to you, the professional, who battles
in the field and is looking for someone on the front line he can rely on.
DirectConnect®
Houston, Texas 77027
Phone [phone]
Would it make your day to know that someone is waiting to hear from you?
We are. Your DirectConnect
®
representative is ready to take your call.
Or if you prefer, contact us online at …
http://www.directconnecthome.com
H
Hi ig gh h S Sp pe ee ed d H HD DM MI I™ ™
S
Si in ng gl le e C Ca at t5 5e e/ /6 6
E
Ex xt te en nd de er r
D
DC CC C5 5H H.16245
HIGH SPEED HDMI™ SINGLE CAT5E/6 EXTENDER
USER MANUAL
DirectConnect®has been working on solutions for custom installers /
system integrators who cannot get the range needed from HDMI™
cables. This high-performance DirectConnect® Extender via
CAT5e or CAT6 with cross stand inside UTP cable is the ideal
solution for professional home theater installers and home theater enthusiasts. This
solution uses a single Cat5e/6 cable as transmission media. HDMI™ cables become
extremely expensive and potentially unreliable at long length. They are typically difficult
to install with stiff heavy wire needed to overcome signal loss at longer distances. This
HDMI™ Extender allows installers to use standard Cat5e or Cat6 with cross stand inside
UTP cable to extend 1080P HDTV signals up to 164 feet (50 meters). It not only exceeds
the limitations of the most HDMI™ cables but also the use of CAT5e/6 cables permits
installers the flexibility and convenience of crimping custom cable lengths.
The use of HDMI™Extenders with distribution amplifiers (splitters) offer unlimited
solutions for multiple HDTV display devices in retail andshow environments.
Plug and play: Installs in seconds, no extensive configuring required
Auto-adjustment of feedback, equalization, and amplification.
Supports highest video resolution 1080p, HDMI™ and IEEE-568B standard
Supports 8-bit per channel (24 bit all channel) deep color
Video amplifier bandwidth: 165MHz/1.65Gbps per channel (4.95Gbps all channel)
Single Cat5e/6 UTP cable with cross stand inside, can substitute an HDMI™
cable to achieve long distance transmission up to 164 feet (50 meters).
Supports uncompressed 2 channel audio such as LPCM
Supports compressed audio such as DTS Digital, Dolby Digital
(Including DTS-HD and Dolby True HD)
IMPORTANT:If you do not understand correct installation instructions,
please consult your installation specialist.
The Finest Name in Audio/Video Products and Accessories
8 / 8

T
Th ha an nk k y yo ou u f fo or r c ch ho oo os si in ng g D Di ir re ec ct tC Co on nn ne ec ct t®
®
P Pr ro od du uc ct ts s
D
De ea ar r C Cu us st to om me er r
Thank you for purchasing this DirectConnect®product. For optimum performance
and safety, please read these instructions carefully before connecting, operating, or
adjusting this product. Please keep this manual for future reference.
Table of Content
1.0 Specifications ……………………………… 3
2.0 Features ……………………………………… 4
3.0 Package Contents…………………………… 4
4.0 Connect and Operate……………................. 4
4.1 Panel Descriptions………………………..…… 5
4.2 Connection Diagram ……………................. 5
4.3 Connection Diagram ……………................. 5
5.0 Troubleshooting……………………… 6
5.1 Non-HDCP Compliant Devices ………… 6
6.0 Limited Warranty…………………………... 7
Liability Statement
1. Every effort has been made to ensure that this product is free of defects.
DirectConnect®cannot be held liable for the use of this hardware or any
direct or indirect consequential damages arising from its use. It is the
responsibility of the user of the hardware to check that it is suitable for
his/her requirements and that it is installed correctly. All rights reserved. No
parts of this manual may be reproduced or transmitted by any form or means
electronic or mechanical, including photocopying, recording or by any
information storage or retrieval system without the written consent of the
publisher.
2. DirectConnect®reserves the right to revise any of its hardware and software
following its policy to modify and/or improve its products where necessary or
desirable. This statement does not affect the legal rights of the user in any
way.
3. All third-party trademarks and copyrights are recognized.
IMPORTANT:If you do not understand correct installation instructions,
please consult your installation specialist
* DirectConnect® is a registered trademark.
*HDMI™ is a registered trademark
*UL®is as registered trademark of Underwriters Laboratories.
6.0 LIMITED WARRANTY
Should any consumer product from DirectConnect®fail due to defects in materials
or workmanship within two years from the date of the original sale to the end-user,
DirectConnect®guarantees replacement of the defective product at no cost. Freight
charges for the replacement unit will be paid by the customer. A copy of the invoice
showing the item number and date of purchase (proof-of-purchase) must be submitted
with the defective unit to constitute a valid in-warranty claim.
Units that fail after the warranty period has expired may be returned to the factory
for repair at a nominal charge, if not damaged beyond the point of repair. All freight
charges for out-of-warranty returns for repair are the responsibility of the customer.
Units returned for repair must have a Return Authorization Number assigned by
DirectConnect®.
This is a limited warranty and is not applicable for products which, in our opinion,
have been damaged, altered, abused, misused, or improperly installed.
DirectConnect®makes no other warranties either expressed or implied, including
limitation warranties as to merchantability or fitness for a particular purpose.
Additionally, there are no allowances or credits available for service work or
installation performed in the field by the end user.
T
Th ha an nk k y yo ou u f fo or r c ch ho oo os si in ng g D Di ir re ec ct tC Co on nn ne ec ct t®
®
p pr ro od du uc ct ts s
IMPORTANT:If you do not understand correct installation instructions,
please consult your installation specialist
* HDMI™is a registered trademark.
* DirectConnect® is a registered trademark.
*DPL Rating™ is a registered trademark.
*UL®is as registered trademark of Underwriters Laboratories.
2 / 8
7 / 8

2.0 FEATURES
This high-performance DirectConnect® Extender via CAT5e or CAT6 with cross
stand inside UTP cable has many benefits and features that enable it to perform in a
superior manner. Among those benefits and features you will find:
HDMI™ cable length is fixed and unchangeable after it is produced. HDMI™
connectors can only be soldered or terminated by the professional
manufacturers that produce them, the installer and/or users cannot modify by
themselves. However Cat5e or Cat6 with cross stand inside UTP cable is
readily available and may be processed easily by the installer and /or end user.
HDMI™ cables are not easy to bend and the connectors are large to pull
through conduit and the wall. However, Cat5e/6 cable has no such problems.
Uses Cat5e or Cat6 with cross stand inside UTP cable to substitute for HDMI™
cable to achieve long distance transmission without signal loss.
Auto-adjustment of feedback, equalization and amplification.
Supports up to1080p, uncompressed 2 channel audio, and IEEE-568B standard.
3.0 PACKAGE CONTENTS
Before attempting to use this DirectConnect®unit, please check the packaging and
make sure the following items are contained in the shipping carton:
DirectConnect®HDMI™ Extender One (1) Transmitter and one (1) Receiver
Two (2) 5 Volt DC Power Adapters
User's Manual
Note: Please retain the original packing material in case you need to return the unit. If you
find any items missing, contact DirectConnect®immediately (800.531.3224). Please have
the model number, serial number, and invoice available for reference when you call.
4.0 CONNECTION AND OPERATUION
1) Connect the HDMI™signal source to the sender unit input port (HDMI™IN)
* Please refer to connection diagram section (P a ge 5) .
2) Connect a single Cat-5e or Cat6 with cross stand inside UTP cable between
the transmitter and receiver units. Please use EIA/TIA-568 termination (T568B).
3) Connect the HDMI™ display device to the receiver unit output port (HDMI™OUT)
4) Insert the DC side of the 5v power supply into the transmitter and receiver
before connecting to the wall outlet. Then connect the AC side of the power
supply into the wall outlet (ideally the AC power should be surge suppressed and filtered).
Attention: Insert/Remove cables gently & avoid twisting/kinking your HDMI™ cables.

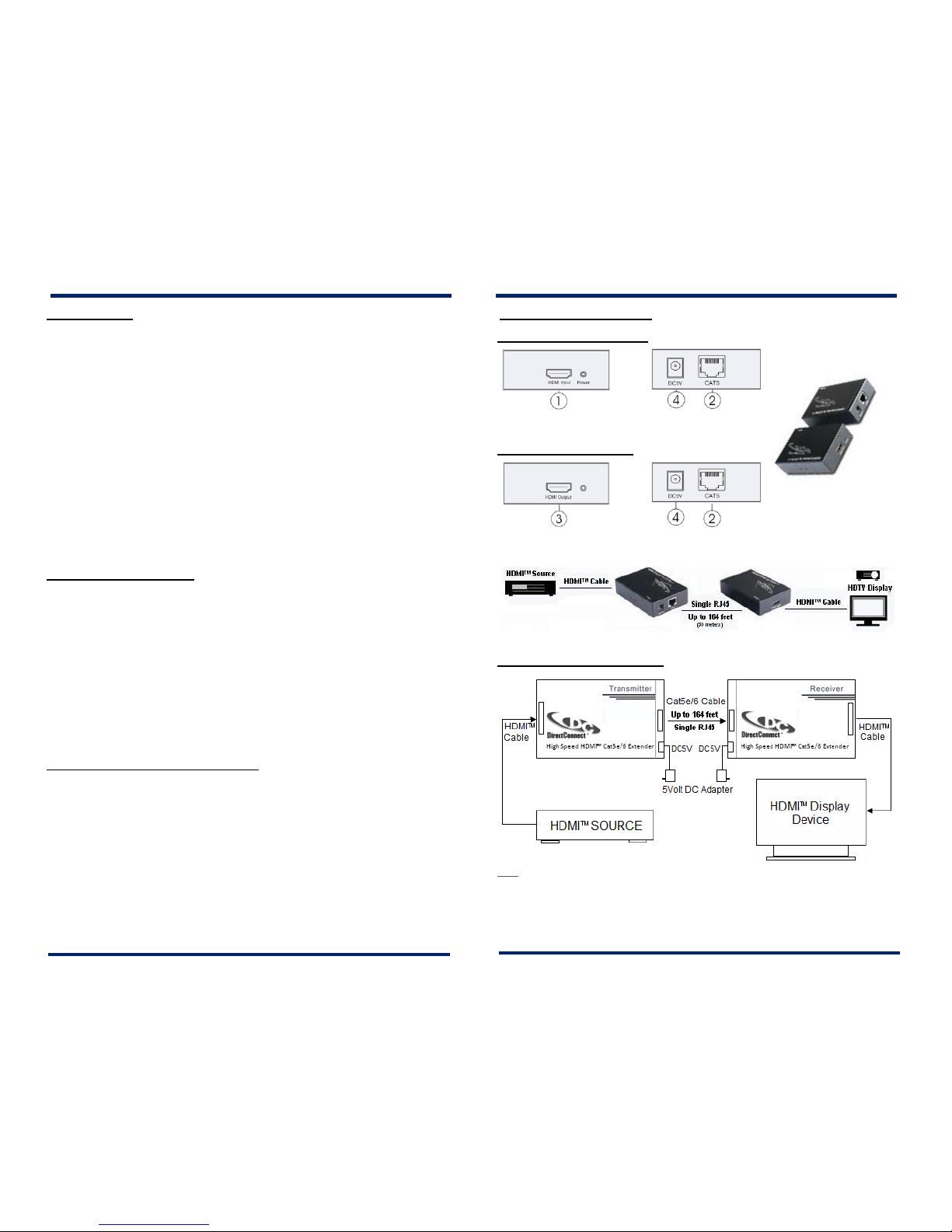

4.1 PANEL DESCRIPTIONS
HDMI™ Extender Transmitter
1 -HDMI™ Input 2 - Cat5 Output
4 - DC Power Input
HDMI™ Extender Receiver
3 - HDMI™ Output 2 –Cat5 Input
4 –DC Power Input
Please use EIA/TIA-568 termination (T568B) and do not apply DC power to unit until all connections are complete.
4.2 CONNECTION DIAGRAM
1080P Single Cat6 164 feet (50 meter)
Note: In order to achieve the highest transmission quality, please choose unshielded Cat5e or Cat6
and terminate with metal RJ-45 connectors . Higher-resolutions and longer transmission distances
require low skew cables for the best performance.
1. The cables with lower quality will not achieve the perfect transmission effect and long distance.
2. Theoretically the function of this product is normal when adopting short distance transmission.
If this product cannot transmit long distance, there may be quality problems in the transmission cables.
5 / 8
4 / 8
Please Note: HDMI™ Cable length
should be 6 feet or less

5.0 TROUBLESHOOTING
If this DirectConnect®product does not appear to be functioning, please make
certain that the source and the destination device connected to the unit are
functioning correctly. If other problems exist please check the conditions below carefully.
In the event of problems, first make certain that the single Cat5/6 cable is not longer than
specifications. Next, make certain that the HDMI™ Extenders are receiving power.
If all is well in these areas, remember that HDMI™ devices communicate with one
another so the source devices and destination device must be fully HDMI™ capable. If
you experience problems using the HDMI™Extender, you should attempt to determine
what is wrong by attaching each of the source devices –one at a time –directly to the
destination device using the same cables you are using with the expanded system.
This is a way of determining if the problem is due to bad cables or a problem with the
other devices. If you are unable to obtain a signal using this simplified path, double
check the cables, the source device(s) and/or the destination device.
CONDITION
POSSIBLE SOLUTIONS
No display image/LED light on
Extender Receiver is OFF
Is the power adapter connected? If a power strip is used, is
the ON/OFF switch set to “ON” position?
No display image/LED light ON
Transmitter & Receiver are ON
Is the display unit turned on? Is the display unit set to the
correct video input? Are your HDMI™and/ or Cat5e/6
cables damaged? Are the cables connected properly?
Please refer to the connection diagram.
Image without sound
Note: That units connected with a DVI
adapter will not have sound –
DVI is a video-only connection
standard
1- Check the display unit’s volume
2- Turn off the HDMI™source (DVD, PS3 etc.) and power on
again. If there is still no sound, then:
3- Unplug the power adapter on the Extender transmitter
and receiver unit for 10 seconds and then plug in again.
4- Repeat step 2 again if still not working.
Note: Some devices not HDMI™certified may have compatibility problems.
Poor picture quality
(snow, sparkles, banding, etc)
Examine the HDMI™and/or Cat 5e/6 cable and replace with
new cables if possible. To ensure that the extender units
are operating correctly, test with the shortest HDMI™ and/or
Cat 5e/6 cable possible. Longer or inferior/ damaged cables
will compromise image quality. Use only Cat5e/6 UTP cable
with cross stand inside for the best results possible.
DO NOT open the HDMI™extender boxes. There are no user repairable parts inside.
Once opened, DirectConnect®is not responsible. For other problems, please
contact DirectConnect®at 800.531.3224. http://www.directconnecthome.com
5.1 NON-HDCP-COMPLIANT DEVICES
If a DVI device does not appear to work, make certain that the device is HDCP-compliant. A
non-HDCP-compliant DVI device will not work with a signal that has HDCP encoding present.
Notice: DirectConnect®reserves the right to make changes in the hardware, packaging
and/or any accompanying documentation without prior written notice.
1.0 SPECIFICATIONS
Signal Inputs/Output
Signaling rates
1.65Gpbs x 3
Signal Inputs/Output
Input Video Signal
0.5-1.0 volts p-p
Input DDC Signal
5 volts p-p (TTL)
Maximum Single Link Range
1920X1080P
Output Video
HDMI™+ HDCP1.0/1.1
Video format supported
DTV/HDTV
480i/576i/480p/576p/720p/1080i/1080P
Digital Signal I/O
HDMI™ Compliance
Yes - standard
Operating Frequency
Frequency
Up to 165MHz
Vertical Frequency Range
50/60Hz
Video Amplifier Bandwidth
1.65Gpbs/165MHz
Resolutions (HDTV)
Interlaced(50&60Hz)
480i,576i,1080i
Progressive(50&60Hz)
480p,576p,720p,1080p
Mechanical
Size(H-W-D)
3.94 ‖x 2.56―x 0.98‖ (100 x 65 x 25mm)
Weight(Net)
13.58oz. (385grams)
Warranty
Limited Warranty
2 Year Parts and Labor
Environmental
Operating Temperature
320F - 1580F (-00C + 700C)
Operating Humidity
10% to 85 % RH (no condensation)
Storage Temperature
140F - 1760F (-100C + 800C)
Storage Humidity
5% to 90% RH (no condensation)
Power Requirement
5 Volt DC Power Adapter
5V DC@2A Power Consumption: 5 Watts maximum
Accessories
(2) 5 Volt DC Power Adapter UL,CE, & FCC
100-240v, 50-60Hz to 5.0vdc, 2000mA
User Manual
English Version
Note: Specifications are subject to change without notice
3 / 8
6 / 8
