Make sure you have all of the following information from your dealer:
A clear copy of the sales receipt, showing the following:
➤Date of purchase
➤Your full name and address
➤Authorized dealer's company name and address
➤Type of alarm installed
➤Year, make, model, and color of the automobile
➤Automobile license number
➤Vehicle identification number
➤All security options installed on automobile
➤Installation receipts

1
© 2003 directed electronics, inc.
lliimmiitteeddlliiffeettiimmeeccoonnssuummeerrwwaarrrraannttyy..........ii
ttrraannsscceeiivveerrddiiaaggrraamm................................22
ssttaannddaarrddttrraannsscceeiivveerrccoonnffiigguurraattiioonnss........33
wwhhaattiissiinncclluuddeedd......................................44
iimmppoorrttaannttiinnffoorrmmaattiioonn............................44
warning! safety first . . . . . . . . . . . .5
system maintenance . . . . . . . . . . .7
your warranty . . . . . . . . . . . . . . . .8
fcc/id notice . . . . . . . . . . . . . . . . .8
caution . . . . . . . . . . . . . . . . . . . . .9
ttrraannsscceeiivveerrffuunnccttiioonnss..............................99
standard button configurations . . .9
standard icon configurations . . . .11
function button configurations . .15
rreemmootteeooppeerraattiioonn..................................1177
system signal paging features . . . .17
uussiinnggyyoouurrssyysstteemm................................1188
active arming . . . . . . . . . . . . . . . .18
passive arming . . . . . . . . . . . . . . .19
vehicle protection . . . . . . . . . . . .20
warn away® response description 21
triggered response description . . .21
arming/disarming while driving .23
multi-level security arming . . . . .24
disarming . . . . . . . . . . . . . . . . . .25
high security disarm . . . . . . . . . .26
disarming without a transceiver . . . .
(emergency override) . . . . . . . . . .26
silent mode . . . . . . . . . . . . . . . . .28
panic mode . . . . . . . . . . . . . . . . .28
valet mode . . . . . . . . . . . . . . . . . .29
remote start . . . . . . . . . . . . . . . . .30
valet take-over . . . . . . . . . . . . . . .32
setting the clock . . . . . . . . . . . . .33
temperature check mode . . . . . . .34
ssaaffeettyyffeeaattuurreess........................................3344
starter anti-grind circuitry . . . . . .34
disabling the remote start system .35
over and under rev protection . . .35
shut down inputs . . . . . . . . . . . .36
nuisance prevention circuitry . . .36
ddiiaaggnnoossttiiccss............................................3377
arming diagnostics . . . . . . . . . . .37
disarming diagnostics . . . . . . . . .38
system status chirps . . . . . . . . . . .38
table of zones . . . . . . . . . . . . . . .39
interpreting zone diagnostics . . . .40
ccooddeehhooppppiinngg........................................4411
oowwnneerrrreeccooggnniittiioonn................................4422
rraappiiddrreessuummeellooggiicc................................4422
ppoowweerrssaavveerrmmooddee................................4433
pprrooggrraammmmiinnggooppttiioonnss..........................4433
sseeccuurriittyy&&ccoonnvveenniieenncceeeexxppaannssiioonnss......4466
gglloossssaarryyoofftteerrmmss..................................4499
nnootteess....................................................5511
ttaabblleeooffccoonntteennttss

2© 2003 directed electronics, inc.
ttrraannsscceeiivveerrddiiaaggrraamm
3
10
12
13
19
1
29
27
25
23
21
31
2
8
5
7
6
14
11
17 18
16
9
22
20
28
26
24
30
15
4

3
© 2003 directed electronics, inc.
ssttaannddaarrddttrraannsscceeiivveerrccoonnffiigguurraattiioonnss
1 Vehicle Interior Temperature Indicator
2 Numeric Display
3 AM/PM Indicator
4 Alarm Clock Mode Indicator
5 Timer Function Indicator
6 Transmit Range Indicator
7 Transmission Indication
8 Vibrate/Beep Mode Indicator
9 Power Saver Mode Indicator
10 Remote Start Timer Mode Indicator
11 No Function
12 Vehicle Page Mode Indicator
13 Full Trigger Shock Sensor Indicator
14 Hood/Trunk Open or Trigger Indicator
15 Parking Light Indicator
16 Door Open or Trigger Indicator
17 Arm/Lock Button
18 Disarm/Unlock Button
19 Remote Start Indicator
20 Hood/Trunk Open or Trigger Indicator
21 Panic Mode Button
22 Valet Mode Indicator
23 Remote Start Safety Shutdown Indicator
24 Battery Level Indicator
25 Auxiliary Button
26 Temperature-Controlled Remote Start Indicator
27 Silent Arm/Disarm Mode Indicator
28 Full Trigger Alert Indicator
29 Arm/Disarm Indicator
30 Function Button
31 Celsius/Fahrenheit Indicator

wwhhaattiissiinncclluuddeedd
➤Control module
➤A.S.K. Receiver
➤One four-button two-way transceiver
➤One four-button transmitter
➤Stinger™ DoubleGuard® two-stage shock sensor
➤Revenger™ Soft Chirp™ six-tone programmable siren
➤Red status LED indicator light
➤Push-button Valet® switch
➤Your warranty registration
➤FailSafe® Starter Kill
➤Shut-down toggle switch
iimmppoorrttaannttiinnffoorrmmaattiioonn
Congratulations on the purchase of your combination remote
start alarm system. Due to the complexity of this system, it must
only be installed by an authorized dealer. Installation of this
product by anyone other than an authorized dealer voids the
warranty. All dealers are provided with a preprinted dealer certif-
icate to verify authorization.
By carefully reading this Owner's Guide prior to using your
system, you will maximize the use of this system and its features.
You can print additional or replacement copies of this manual by
accessing our web site at www.directed.com.
4© 2003 directed electronics, inc.

warning! safety first
The following safety warnings must be observed at all times:
➤Due to the complexity of this system, installation of this product
must only be performed by an authorized Directed dealer.
➤When properly installed, this system can start the vehicle via
a command signal from the transceiver. Therefore, never
operate the system in an enclosed area or partially enclosed
area without ventilation (such as a garage). When parking in
an enclosed or partially enclosed area or when having the
vehicle serviced, the remote start system must be disabled
using the installed toggle switch. It is the user's sole respon-
sibility to properly handle and keep out of reach from chil-
dren all transceiver to assure that the system does not unin-
tentionally remote start the vehicle. TTHHEEUUSSEERRMMUUSSTT
IINNSSTTAALLLLAACCAARRBBOONNMMOONNOOXXIIDDEEDDEETTEECCTTOORRIINN
OORRAABBOOUUTTTTHHEELLIIVVIINNGGAARREEAAAADDJJAACCEENNTTTTOOTTHHEE
VVEEHHIICCLLEE..AALLLLDDOOOORRSSLLEEAADDIINNGGFFRROOMMAADDJJAACCEENNTT
LLIIVVIINNGGAARREEAASSTTOOTTHHEEEENNCCLLOOSSEEDDOORRPPAARRTTIIAALLLLYY
EENNCCLLOOSSEEDDVVEEHHIICCLLEESSTTOORRAAGGEEAARREEAAMMUUSSTTAATT
AALLLLTTIIMMEESSRREEMMAAIINNCCLLOOSSEEDD..These precautions are
the sole responsibility of the user.
warning! THIS SYSTEM PROVIDES REMOTE NOTI-
FICATION OF SECURITY SYSTEM TRIGGER
EVENTS. CONTACT POLICE OR SECURITY PER-
SONNEL IMMEDIATELY. NEVER CONFRONT A
CAR THIEF OR VANDAL.
➜
5
© 2003 directed electronics, inc.

➤Use of this product in a manner contrary to its intended
mode of operation may result in property damage, personal
injury, or death. (1) Never remotely start the vehicle with the
vehicle in gear, and (2) Never remotely start the vehicle with
the keys in the ignition. The user must also have the neutral
safety feature of the vehicle periodically checked, wherein
the vehicle must not remotely start while the car is in gear.
This testing should be performed by an authorized Directed
dealer in accordance with the Safety Check outlined in the
product installation guide. If the vehicle starts in gear, cease
remote start operation immediately and consult with the
authorized Directed dealer to fix the problem.
➤After the remote start module has been installed, contact your
authorized dealer to have him or her test the remote start
module by performing the Safety Check outlined in the
product installation guide. If the vehicle starts when performing
the Neutral Safety Shutdown Circuit test, the remote start unit
has not been properly installed. The remote start module must
be removed or the installer must properly reinstall the remote
start system so that the vehicle does not start in gear. All instal-
lations must be performed by an authorized Directed dealer.
OOPPEERRAATTIIOONNOOFFTTHHEERREEMMOOTTEESSTTAARRTTMMOODDUULLEEIIFF
TTHHEEVVEEHHIICCLLEESSTTAARRTTSSIINNGGEEAARRIISSCCOONNTTRRAARRYYTTOO
IITTSSIINNTTEENNDDEEDDMMOODDEEOOFFOOPPEERRAATTIIOONN..OOPPEERR--
AATTIINNGGTTHHEERREEMMOOTTEESSTTAARRTTSSYYSSTTEEMMUUNNDDEERR
TTHHEESSEECCOONNDDIITTIIOONNSSMMAAYYRREESSUULLTTIINNPPRROOPPEERRTTYY
DDAAMMAAGGEEOORRPPEERRSSOONNAALLIINNJJUURRYY..YYOOUUMMUUSSTTIIMMMMEE--
6© 2003 directed electronics, inc.

DDIIAATTEELLYYCCEEAASSEETTHHEEUUSSEEOOFFTTHHEEUUNNIITTAANNDDSSEEEEKK
TTHHEEAASSSSIISSTTAANNCCEEOOFFAANNAAUUTTHHOORRIIZZEEDDDDIIRREECCTTEEDD
DDEEAALLEERRTTOORREEPPAAIIRROORRDDIISSCCOONNNNEECCTTTTHHEE
IINNSSTTAALLLLEEDDRREEMMOOTTEESSTTAARRTTMMOODDUULLEE..DDIIRREECCTTEEDD
WWIILLLLNNOOTTBBEEHHEELLDDRREESSPPOONNSSIIBBLLEEOORRPPAAYYFFOORR
IINNSSTTAALLLLAATTIIOONNOORRRREEIINNSSTTAALLLLAATTIIOONNCCOOSSTTSS..
system maintenance
This system needs no specific maintenance beyond transceiver
battery replacement. The transceiver is powered by a 1.5V AAA
battery.

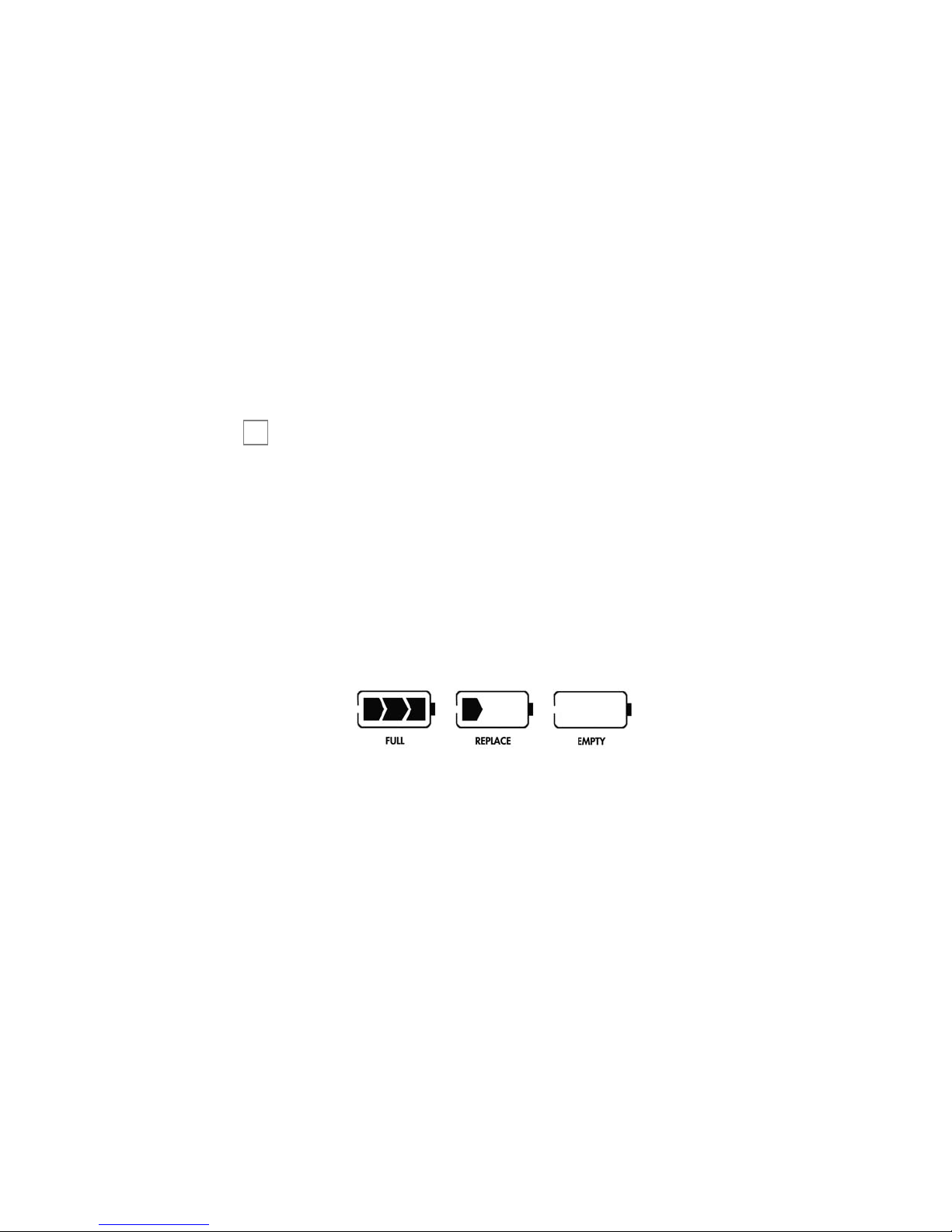

The Battery Level indicator has three level indicators that serve as
a visual indication of battery charge. When the battery reaches a
low charge level that requires replacement, the transceiver will
generate a single notification chirp, and the Battery Level indi-
cator will flash continuously.
Battery Replacement
Gently pull the battery cover release tab, then slide the door
down to expose the battery and remove the expired battery. Place
the new battery into the transceiver observing the correct
polarity. When power is returned the transceiver will light all
icons in the LCD and generate all beeper tones once.
➜
7
© 2003 directed electronics, inc.

your warranty
Your warranty registration must be completely filled out and
returned within 10 days of purchase. Your product warranty
will not be validated if your warranty registration is not returned.
Make sure you receive the warranty registration from your dealer.
It is also necessary to keep your proof of purchase, which reflects
that the product was installed by an authorized dealer.
fcc/id notice
This device complies with Part 15 of FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause
undesirable operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate this device.
DRW-372
Tested to Comply
with FCC Standards
Directed Electronics, Inc. 554 Series
➜
➜
8© 2003 directed electronics, inc.

caution
This product is designed for fuel-injected, automatic transmis-
sion vehicles only. Use of this product in a standard transmission
vehicle is dangerous and contrary the product's intended use.
ttrraannsscceeiivveerrffuunnccttiioonnss
The transceiver buttons are used to send commands to the
system. The descriptions below reflect the standard configuration
for this system. The buttons can be custom configured for the
user’s specific needs by the installer.
standard button configurations
Button
The System Arm/Lock and Multi-Level Security Arming func-
tions are controlled by pressing this button for one second.
Button
The System Disarm/Unlock and High Security Disarm functions
are controlled by pressing this button for one second.
Button
Channel 2 output is controlled by pressing this button for three
seconds. Hold the button down continuously while accessing
Channel 2 output.
Button
The panic feature is controlled by pressing this button for two
➜
➜
9
© 2003 directed electronics, inc.

seconds. Press again to disable panic mode.
Button
The LCD backlighting will turn on when pressed for less than one
second; when held for more than five seconds the transceiver will
enter adjustment mode allowing the setting of the clock, timer
mode, and audible melody selection. For more information, please
refer to the Function Button Configurations section of this guide.
and Buttons
The remote start function of the system is controlled by pressing
these buttons simultaneously for one second.
and Buttons
When pressed simultaneously these buttons activate remote start
timer mode, engaging the remote start function every 24 hours.
and Buttons
When pressed simultaneously these buttons display the internal
temperature of the vehicle on the LCD.
and Buttons
When pressed simultaneously with the system armed, the system
enters temperature auto start mode and automatically remote starts
the vehicle if the temperature inside the vehicle drops below
0 degrees Fahrenheit.
note: Disarming the system while in temperature auto start
mode will cause the system to exit this mode.
10 © 2003 directed electronics, inc.

and Buttons
The numeric display toggles between the time of the day and the
alarm clock when these buttons are pressed simultaneously.
and Buttons
Press these buttons simultaneously to activate the parking timer.
Each additional press will toggle through the available options
(10 min., 20 min., 30 min., 1 hour, 1.5 hours, 2 hours, and off).
and Buttons
When pressed simultaneously these buttons toggle between beep
notification and vibrate notification.
and Buttons
When pressed simultaneously these buttons activate battery saver
mode, which will drop power consumption on the transceiver
battery to zero when the alarm is inactive or disarmed.
standard icon configurations
Icon
The vehicle interior temperature icon displays the temperature of
the inside of the vehicle when prompted.
Icon
The numeric display icon will show the hours and minutes.
Icon
The AM/PM icon indicates the time before or after noon.
Icon
➜
11
© 2003 directed electronics, inc.

The alarm clock mode icon indicates that the alarm clock mode
is active.
Icon
The timer function icon flashes during timed functions
including parking timer.
Icon
The transmit range indicator icon stays visible as long as the
system is within operating range.
Icon
The remote transmission indicator icon displays when the trans-
ceiver is transmitting a signal.
Icon
The vibrate/beep mode icon appears when the transceiver is set
to vibrate mode.
Icon
The power saver mode can be turned on or off with the trans-
ceiver. This icon displays the status.
Icon
The remote start timer mode icon indicates the 24-hour
autostart feature is active and automatically remote starts 24
hours from the time activated.
Icon
The VRS mode icon has no function.
12 © 2003 directed electronics, inc.

Icon
The vehicle page mode icon displays when the alarm module is
paging the transceiver.
Icon
The full trigger shock sensor icon indicates that the shock sensor
has been triggered by a hard shock.
and Icons
The hood/trunk open or trigger icon illuminates when the hood
or trunk trigger has been activated or the hood or trunk is open,
and bypasses those zones until it is closed.
Icon
The parking light icon will flash twice when armed or disarmed.
The icon also flashes during WarnAway and at the beginning and
end of remote start cycles.
Icon
The door open or trigger icon illuminates when the door trigger
has been activated or the door is open, and bypasses that zone
until it is closed.
Icon
The remote start icon indicates when the vehicle is remotely
started.
Icon
The valet mode icon appears when the system is in valet.
13
© 2003 directed electronics, inc.

Icon
The remote start safety shut down icon indicates the vehicle may
be in gear or other unsafe condition inhibiting remote start oper-
ation.
Icon
The battery level icon indicates the level of power remaining in
the battery.
Icon
The temperature-controlled remote start icon indicates that the
system has entered the temperature remote start mode and auto-
matically starts the vehicle if the temperature of the vehicle drops
below 0 degrees Fahrenheit.
Icon
The silent arm/disarm icon appears when the system has been
armed or disarmed in the silent mode.
Icon
The full trigger alert icon illuminates when the security system
has been triggered by a heavy impact, door trigger violation,
optional sensor violation, or a hood/trunk trigger.
Icon
The arm icon appears when the vehicle is armed and locked. The
disarm icon appears when the vehicle is disarmed and unlocked.
14 © 2003 directed electronics, inc.

Icon
Celsius/Fahrenheit icon indicates the current mode of the
displayed temperature either in Celsius or Fahrenheit.
function button configurations AAuuddiibbllee
FFuunnccttiioonnBBuuttttoonnIIccoonnIInnddiiccaattiioonn
Lamp On
(10 sec)
Power-Saver Mode* +Melody
Beep/Vibrate Mode +4 Vibrations/
1 Beep
Time Adjust for 5 Seconds 2 Beeps
Mode (hour)**
Time Adjust 1 Time***
Mode (min)**
Alarm Clock 2 Times***
Set Mode (hour)**
Alarm Clock 3 Times***
Set Mode (min)**
Alarm Clock Music 4 Times*** 5 Selections
or Power on Music 1/2/3/4/5
Selection**
Alarm Clock Adjust 5 Times***
Mode (on/off)**
Timer Count Down 6 Times***
Adjust Mode
(hour)**
Timer Count Down 7 Times***
Adjust Mode
(min)**
➜
15
© 2003 directed electronics, inc.

Timer Count 8 Times*** 5 Selections
Down Ending Melody 1/2/3/4/5
Selection 1**
RS Timer Count 9 Times***
Down Mode (on/off)*
Remote Start On 10 times*** 5 Selections
Melody Selection 2 1/2/3/4/5
10 Min Parking + 1 Time Melody
Count Down Mode
20 Min Parking + 2 Times Melody
Count Down Mode
30 Min Parking + 3 Times Melody
Count Down Mode
60 Min Parking + 4 Times Melody
Count Down Mode
90 Min Parking + 5 Times Melody
Count Down Mode
120 Min Parking + 6 Times Melody
Count Down Mode
Parking Count Down + 7 Times Melody
Off Mode
Alarm Clock Mode + Melody
On/Off****
Celsius/Fahrenheit + +
or
Melody
Select Mode
* This function will operate in the disarmed state only.
** The button will advance the selection upward. The but-
ton will advance the selection downward or select the off setting.
*** Be sure to hold down for five seconds prior to entering
timer clock adjust mode operation.
16 © 2003 directed electronics, inc.

**** Press once to have the alarm clock on. Press twice to have the
alarm clock off.
rreemmootteeooppeerraattiioonn
The 554 remote start system operates at 434 MHz and incorpo-
rates Directed’s proprietary A.S.K. out-board two-way transceiver.
The high frequency combined with Binary Data communication
achieves superior range with two-way communication.
system signal paging features
A page is the signal the control module sends to the transceiver as
confirmation of receipt of a command or alarm system status.
When the transceiver receives a page it will generate a page notifi-
cation to the user (notifications are audible beeps or transceiver
vibration) and the LCD icons will display the current system status.
Command Page
When a command (arm/disarm, remote start, or auxiliary
channel) from the transceiver is sent and received, the system will
send a command page back to confirm receipt.
➜
17
© 2003 directed electronics, inc.
