Directed Nanocam+ NCP-DVRW2S User manual

USER MANUAL
Your Safety. Our Priority

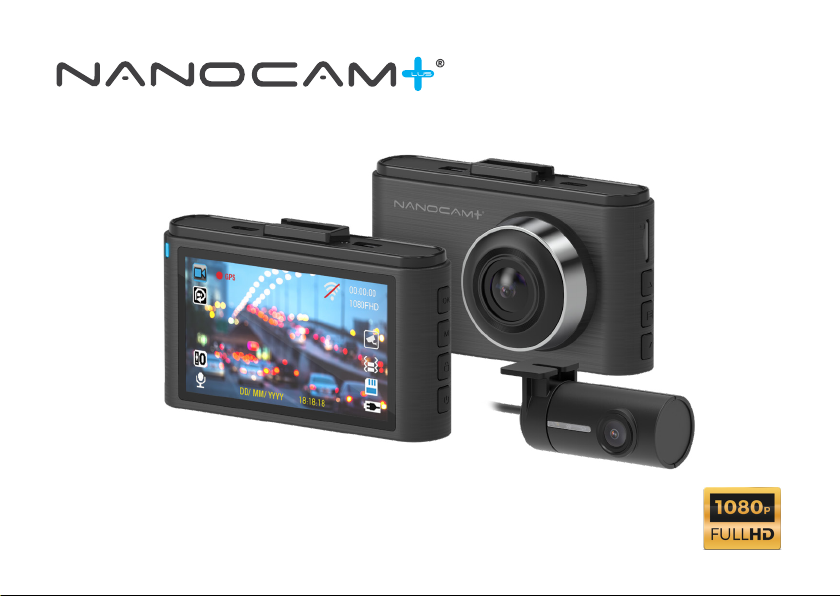

Full HD Front & Rear Dash Camera
with 3.0 IPS Screen + WIFI
NCPDVRW2S

3
CONTENTS
1.0 WELCOME TO NANOCAM.........................................................................................................7
2.0 BEFORE USE  CAUTION .........................................................................................................7
2.1 INFORMATION ABOUT THE BATTERY .......................................................................................7
2.2 NOTES ON INSTALLATION.........................................................................................................8
3.0 PACKAGE CONTENTS..............................................................................................................9
4.0 PRODUCT OVERVIEW ............................................................................................................10
5.0 GETTING STARTED................................................................................................................11
5.1 SETTING UP THE MICRO SD CARD IN YOUR DASH CAMERA................................................11
5.2 INSTALLING YOUR DASH CAMERA .........................................................................................11
5.3 ADJUSTING THE CAMERA POSITION......................................................................................12
5.4 INSTALLING THE REAR CAMERA............................................................................................13
5.4.1 REAR CAMERA WIRING DIAGRAM ..........................................................................................14
5.4.2 REAR CAMERA .........................................................................................................................14
5.5 CONNECTING TO POWER ........................................................................................................15
6.0 POWERING THE DASH CAMERA ON / OFF.............................................................................15
6.1 AUTO POWER ON/OFF .............................................................................................................15

4
6.2 MANUAL POWER ON................................................................................................................15
6.3 POWER OFF ..............................................................................................................................16
7.0 RESET THE DASH CAMERA...................................................................................................16
8.0 PLAYING BACK VIDEO ON A COMPUTER OR LAPTOP PC....................................................16
9.0 INFORMATION ON YOUR DASH CAMERA SETTINGS .............................................................16
9.1 THE MODE BUTTON:................................................................................................................17
10.0 TAKING STILL PHOTOS .........................................................................................................17
11.0 LOCKED RECORDING.............................................................................................................18
12.0 SCREEN INTERFACE .............................................................................................................19
13.0 FUNCTION: VIDEO MODE.......................................................................................................20
13.1 VIDEO RESOLUTION:................................................................................................................20
13.2 LOOP RECORDING ...................................................................................................................21
13.3 MICROPHONE...........................................................................................................................21
13.4 LANE DEPARTURE WARNING SYSTEM LDWS .....................................................................22
14.0 FUNCTION: PHOTO MODE .....................................................................................................22
14.1 RESOLUTION ............................................................................................................................23
14.2 PHOTO QUALITY .......................................................................................................................23

5
14.3 EXPOSURE................................................................................................................................24
14.4 ISO SENSITIVITY.......................................................................................................................24
14.5 CONTRAST ...............................................................................................................................24
14.6 SHARPNESS ............................................................................................................................25
14.7 SATURATION ............................................................................................................................25
14.8 LEVELS ....................................................................................................................................26
15.0 FUNCTION: PLAYBACK MODE ...............................................................................................26
15.1 VOLUME ....................................................................................................................................27
15.2 DELETE.....................................................................................................................................27
15.3 LOCKING AND UNLOCKING PHOTO AND VIDEO FILES .........................................................28
16.0 FUNCTION: GENERAL SETTINGS ..........................................................................................28
16.1 KEYPAD TONE ..........................................................................................................................29
16.2 SET THE TIME...........................................................................................................................29
16.3 TIME FORMAT ..........................................................................................................................30
16.4 DATE FORMAT ..........................................................................................................................30
16.5 GPS STAMP...............................................................................................................................31
16.6 LANGUAGE ..............................................................................................................................31
16.7 FLICKER....................................................................................................................................31

6
16.8 SCREEN SAVER ........................................................................................................................32
16.9 GSENSOR ................................................................................................................................32
16.10 MOTION DETECTION ................................................................................................................33
16.11 FACTORY RESET.......................................................................................................................33
16.12 FORMATTING THE INSERTED MICRO SD CARD.....................................................................34
16.13 FIRMWARE VERSION FW VERSION.......................................................................................34
16.14 CONNECTING WIFI ..................................................................................................................35
17.0 APP FUNCTIONS ...................................................................................................................37
17.1 VIDEO PLAY BACK....................................................................................................................37
17.2 VIDEO DOWNLOAD ...................................................................................................................38
17.3 SHARING A FILE ON SOCIAL MEDIA.......................................................................................39
18.0 WARRANTY TERMS & CONDITIONS ......................................................................................40
19.0 NOTES ...................................................................................................................................44

7
1.0 WELCOME TO NANOCAM
Thank you for purchasing a NanoCam Dash Camera. Our product has been designed to be
a valuable addition to your vehicle, certain to make your driving experience safer and more
enjoyable. Our products, like most after-market safety Dash Cameras, are innovations intended
to be used to compliment the driver experience but not to replace the actual, physical, manual
function of the person driving the vehicle.
Please read through these instructions before attempting to install this product.
Please regularly check our website for the latest manual and product updates at
www.nanocamplus.com.au or www.nanocamplus.co.nz
2.0 BEFORE USE  CAUTION
• Always use your Dash Camera within your countries’ current road laws.
• Dash Cameras with radio frequencies and unventilated spaces with direct sunlight can
damage the unit.
• It is normal for the Dash Camera to get warm during use.
• It is important to set the time and date before you use this Dash Camera.
• Dash Camera notifications are suggestions only, please drive to the actual conditions.
• This Dash Camera is for non-commercial use.
2.1 INFORMATION ABOUT THE BATTERY
•
The Dash Camera will only work in your vehicle when connected via the provided 12/24V

8
adaptor. This Dash Camera is fitted with a Super capacitor, which is similar to a battery but
functions differently. It has not been designed to be used as the camera’s built-in battery.
• Incorrect charging can damage the internal battery and will consequentially void the warranty.
• Never dismantle, expose, or manually replace the internal battery.
• Do not dispose of the Dash Camera in fire.
• Dispose of the Dash Camera observing local regulations and with the environment in mind.
2.2 NOTES ON INSTALLATION
To get the best results from your Dash Camera, please be aware:
• The Dash Camera should be installed near the rear-view mirror, top centre of the
windshield.
• Ensure the lens is within range of the windscreen wiper so it is not obstructed by rain.
• Fingerprints on the lens can result in unclear videos or photos and should be cleaned
with a microfibre cloth.
• Do not install the Dash Camera on a tinted window. It can damage the tint film and
reduce the quality of the Dash Camera's recordings.
• Clean the windscreen thoroughly before affixing the mount to maintain the adhesive.
• To position the Dash Camera accurately, we suggest you power-on the Dash Camera
and test the playback image on screen first, prior to removing the mount's 3M tape.
This way you can easily relocate the unit until you have found the optimal spot.

9
3.0 PACKAGE CONTENTS
3M Mount User Guide 7M Rear Camera Cable
Dash Camera Rear Camera 12/24V Adapter

10
4.0 PRODUCT OVERVIEW
2
1
5
11
6
16
3
4
13 14 15
12 9
7
10
8
1. Micro SD card slot*
2. Up Button ( )
3. Menu Button ( )
4. Down Button ( )
5. Reset
6. Microphone
7. Rec/OK Button
8. Mode Button
9. Lock Recording Button ( )
10. ON/OFF Power Button ( )
11. Speaker
12. Lens
13. Mini USB power socket
14. Slot for fixing 3M Mount
15. Rear Camera connector slot
16. Display Screen
*Note: Micro SD card is not included
and must be purchased separately.

11
5.0 GETTING STARTED
Before you start, the Dash Camera will need a Micro SD card installed.
The Dash Camera will also need to be installed into your vehicle and connected to your power
source to operate.
5.1 SETTING UP THE MICRO SD CARD IN YOUR DASH CAMERA
A Micro SD card will be required, class 10 or higher (you will need to purchase separately)
• The Micro SD card will need to formatted before use (see instructions on page 34).
• Insert the Micro SD card only when the Dash Camera is powered OFF.
To insert the Micro SD card properly:
• Turn off the Dash Camera and point the screen towards you.
• Insert the Micro SD card into the slot on the left-hand side of the Dash Camera. Push
the Micro SD card in until a slight click is heard, and it feels secure.
In order to remove the Micro SD card:
• Turn off the Dash Camera and push the Micro SD card in, until a click is heard.
This indicates the Micro SD card has been released and can be pulled out with your fingers.
5.2 INSTALLING YOUR DASH CAMERA
• Clean the inside of your windscreen and select a place to mount your Dash Camera.
• Remove the protective stickers from the Dash Camera and the 3M mount.

12
• Press the mount base firmly against the windscreen and hold for 30 seconds.
• Insert the power cable adaptor into the Dash Camera power socket.
NOTE:
• It is recommended that the Dash Camera is installed behind your vehicle’s rear-view
mirror.
• Please ensure the camera view is not obstructed by any window tint or any other objects.
5.3 ADJUSTING THE CAMERA POSITION
• Loosen the knob and adjust the Dash Camera vertically and/or horizontally.
• Tighten the knob to make sure the Dash Camera is securely locked in place.

13
5.4 INSTALLING THE REAR CAMERA
• Clean the inside of your rear window and select a place to mount your rear camera.
• Remove the protective film from the rear camera base bracket.
• Select either the top or the bottom of the rear window to position the rear camera and
press down on the base of the bracket by hand for 30 seconds to ensure that the sticker
adhesive has attached to the car window.
Connect the rear camera to the Dash Camera using the cable provided. Either run the cable
through the roof lining or under the carpet underlay as shown on page 14. The rear camera
can rotate 360° degrees depending on the position and type of installation method required.
Method 1: Thread the rear camera cable along the top of the roof lining and connect it to the
Dash Camera.
Method 2: Lift up the car carpet and run the rear camera cable along the underlay of the
carpet and connect it to the Dash Camera. Adjust the camera by rotating the barrel until it
captures the entire road.

14
5.4.1 REAR CAMERA WIRING DIAGRAM
5.4.2 REAR CAMERA
Both Dash Cameras will instantaneously start recording after the Dash Camera is powered ON.
Both Front and Rear Camera images will now be displayed on your Dash Camera's 3.0"
Screen, and you can switch between each screen using the UP key.
The Camera Display can switch between cameras and show the following:
• Full front camera view
• Full rear camera view
Rear Camera 8M Rear Camera Cable

15
• Half front and half rear view
• Full front with small window for rear view
• Full rear with small window for front view
5.5 CONNECTING TO POWER
Only use the included 12/24V Power Adaptor to power the Dash Camera.
• Once the Dash Camera is securely installed on your vehicle’s windscreen, plug the
12/24V power adaptor into your vehicle’s cigarette lighter.
• Run the cable along your vehicle’s console and windscreen and plug the USB Micro plug
into the Dash Camera. (See image on page 12).
6.0 POWERING THE DASH CAMERA ON / OFF
6.1 AUTO POWER ON/OFF
When the Dash Camera is correctly installed and connected to your vehicle’s 12/24V power
supply, the Dash Camera will automatically power up and start recording when the vehicle
accessories are activated.
6.2 MANUAL POWER ON
Hold the Power Button on the side of the Dash Camera until the NanoCam Plus start-up
screen appears.

16
6.3 POWER OFF
Ensure the Dash Camera has stopped recording and press the Power Button. Wait 10
seconds before turning it back on.
7.0 RESET THE DASH CAMERA
Restarting the Dash Camera can help when the unit isn’t functioning as it should. To restart the
Dash Camera, with a flattened paper clip press the small button on its underside.
8.0 PLAYING BACK VIDEO ON A COMPUTER OR LAPTOP PC
To playback video files on your PC, remove the Micro SD from the Dash Camera and connect it
directly to your PC using a USB Micro SD card reader, a built-in card reading slot or a Micro SD/SD
card converter (also not included).
Once the Micro SD card is connected, a folder named ‘removable storage Dash Camera,’ should
appear. By transferring and saving files onto your computer, often playback of your recordings is
quicker and smoother.
9.0 INFORMATION ON YOUR DASH CAMERA SETTINGS
Before using the Dash Camera, it is critical that you insert and format your Micro SD card and
set the Time and Date via the Dash Camera’s settings (instructions to do this are on page 29/30).
FUNCTION, MODE AND USAGE NOTES:
• Menu options can not be used while the camera is recording, so please cancel recording
first.
• The Time and Date will be stamped onto your footage using the Date Stamp setting.

17
• When the Dash Camera is connected (via the supplied adaptor) to your vehicle’s 12/24V
power supply, it will automatically power on and begin recording.
• At first, the Dash Camera functions will be unresponsive and will take a moment to start
recording. Please note, when your vehicle is off, the Dash Camera will also stop recording.
• Because of how some vehicles are wired, recording may continue when the engine is off.
You can remove the power adaptor or manually turn off the Dash Camera to avoid this.
9.1 THE MODE BUTTON:
The Mode Button is on the right-hand side of the Dash Camera and is marked with an "M".
• The Mode Button is used to switch the Dash Camera function from Video to Camera
mode, which can take still photos.
10.0 TAKING STILL PHOTOS
To take still Photos with the Dash Camera, you will need to stop recording and adjust the mode
settings by following these steps:
• Press the OK Button to press 'stop the Dash Camera recording'.
• Press the Mode Button located on the RIGHT side of the Dash Camera to enable the photo
function.
• To take a photo, press the OK Button.
• To revert to Video recording mode, press the Mode Button again.
NOTE: The Dash Camera must be connected to power to take still photos.

18
11.0 LOCKED RECORDING
Locked Recording saves the current video file and protects it from being overwritten. To
manually create a Locked Recording follow the instructions below.
• During recording push the Button.
NOTE:
• If the G Sensor function is enabled and a collision is detected, the Dash Camera will
automatically trigger the Emergency Recording and lock the current video file. Please
refer to the section titled G Sensor to learn more.
• An Emergency Recording file is created as a new file, which will be locked to avoid being
overwritten by normal Loop Recording. If the inserted Micro SD card becomes full with
Emergency Recording files, the message “SD Card Full” will appear on the screen and the
oldest emergency file will be automatically deleted to make room for a new recording.
• If your Micro SD card becomes full of Emergency Recordings that you wish to keep, please
save them to your PC for future reference.

19
12.0 SCREEN INTERFACE
18
9
11
10
12
13
5 7
2
3
4
14 15
6
1. Video Mode
2. Loop Recording
3. Exposure
4. Microphone / Mute
Recording
5. Recording Indicator
6. GPS
7. WIFI
8. Recording Time
9. Resolution
10. Park Mode
11. G Sensor
12. Micro SD Card
13. Charging
14. Date
15. Time

20
13.0 FUNCTION: VIDEO MODE
The four function keys control the drop down MENU options from the top of the LCD screen.
In Video Mode, users can select:
Video Recording | Loop Resolution | Microphone | Lane Departure Warning System (LDWS).
• These options allow users to manage video recording, microphone, lane departure and
loop recording functionalities.
• To access this section, refer to the top panel function keys.
• Video Mode is the first icon.
• Use the MENU Button on the LEFT side of the camera to toggle through function keys
and press OK when Video Mode is highlighted.
• Now the drop-down MENU box can be activated.
Press DOWN to choose either:
Video Recording | Loop Resolution | Microphone | Lane Departure Warning System (LDWS)
• When your preference is highlighted BLUE press OK.
• This will open this particular settings options.
13.1 VIDEO RESOLUTION:
Resolution settings impact the quality of a video recording. A higher resolution will capture
more detail in a recording, but will result in a larger file.
To customise Video Resolution, please follow the instructions on the next page:
