WELCOME!
Congratulations on your purchase. Use this user manual to learn about your new
vacuum’s great features. Find out how to assemble, use and maintain your vacuum
cleaner in this easy to follow manual.
PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
If you have any questions, please email [email protected] to get in contact.

USER MANUAL 3
IMPORTANT SAFETY INSTRUCTIONS
FOR INDOOR USE ONLY
WARNING
When using an electrical appliance, basic precautions should
always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
Failure to follow the warnings and instructions may result in
electric shock, re and/or serious injury.
USING THE VACUUM CLEANER
•DO NOT use the vacuum
cleaner outdoors. For
household use only. Store
indoors.
•DO NOT vacuum up hard or
sharp objects such as glass,
nails, screws or coins that
could damage the vacuum
cleaner.
•DO NOT vacuum liquids, use
on wet surfaces or immerse
in water as this could cause
damage to the vacuum
cleaner.
•DO NOT vacuum anything
ammable, burning or
smoking such as cigarette
ends, matchsticks or ashes.
•DO NOT use the vacuum
cleaner to clean your pets or
any animal.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:
•Keep the vacuum cleaner
moving over the carpet surface
at all times to avoid damaging
the carpet bres.
•Keep the vacuum cleaner and
accessories away from hot
surfaces like hobs, cookers or
microwave ovens.
•Always unplug the vacuum
cleaner immediately if it
malfunctions.
•DO NOT use this vacuum
cleaner if it has been dropped,
damaged, left outdoors,
submerged in water or is not
working as it should.
•DO NOT use the vacuum
cleaner in an enclosed space
lled with explosive, toxic or
ammable vapours.

DIRTDEVIL.CO.UK4
IMPORTANT SAFETY INSTRUCTIONS
FOR INDOOR USE ONLY
PLUG AND CORD
•DO NOT use with a damaged
cord or plug.
•DO NOT pick up or pull the
vacuum cleaner by the cord.
•Take care that the cord is not
kinked, pinched, pulled around
sharp corners or run over.
•Ensure the cord does not
come into contact with heat
sources or become a trip
hazard.
•When unplugging the vacuum
cleaner from the wall socket,
pull by the plug, not the cord,
holding the socket with your
other hand.
AIRFLOW, FILTERS AND
ATTACHMENTS
•DO NOT use without lters
and bin in place.
•Always turn o and
unplug the vacuum cleaner
before changing lters or
attachments.
•If when using, suction
appears to be reduced, turn
o and unplug the vacuum
cleaner and clean all of the
lters.
•DO NOT use if the airow
is restricted. If the air paths
or the oor nozzle become
blocked, turn o and unplug
the vacuum cleaner. Clear all
obstructions before powering
on again.
•Use genuine Dirt Devil lters
and attachments only. Using
non-genuine accessories may
cause damage to the vacuum
cleaner.
•When cleaning lters, ensure
that they are completely
dry and undamaged before
replacing them back into the
vacuum cleaner.
PERSONAL SAFETY
•This machine is not intended
to be used or cleaned by
persons with reduced physical,
sensory or mental capabilities,
or lack of experience or
knowledge, unless they
have been given instructions
concerning the machine by
a person legally responsible
for their safety. They should
be supervised whilst using
the machine. Children shall
not use, clean or play with
this machine, which when
not in use should be secured
out of their reach. Keep the
vacuum cleaner out of reach
of children.
•Packing material must not
be used for playing. There is a
danger of suocation.

USER MANUAL 5
IMPORTANT SAFETY INSTRUCTIONS
FOR INDOOR USE ONLY
•Never leave the vacuum
cleaner connected to the
mains without supervision.
•Keep the oor nozzle away
from hair, face, ngers,
uncovered feet or loose
clothing when the vacuum
cleaner is working or plugged
in.
•DO NOT use with wet hands.
USER MANUAL GUIDANCE
•Keep this user manual in a
safe place.
•Failure to comply with this
user manual can lead to
serious injuries or damage to
the vacuum cleaner. We take
no responsibility for damage
due to failure to comply with
this user manual.
AUTOMATIC THERMAL CUT OUT
A safety thermostat inside
the cleaner protects the
motor from overheating if the
airways or lters are clogged.
If the appliance suddenly stops
working during operation,
switch o and unplug
immediately. Allow the motor
to cool for an hour, empty the
dust bin and thoroughly clean
the lters and airways. Plug in
the vacuum again and switch
on. The vacuum should now
operate normally.

DIRTDEVIL.CO.UK6
WHAT TO EXPECT FROM YOUR
USER MANUAL
Your user manual contains lots of handy information about your Dirt Devil appliance. Please have a read and
keep it somewhere safe for future reference. Here’s what you can expect from the dierent user manual
sections.
GETTING TO KNOW YOUR
DIRT DEVIL APPLIANCE
The diagrams of your appliance on this page
allow you to familiarise yourself with your
machine. Doing so will make the information in
the rest of the user manual clearer and help you
to source the right replacement spare parts or
accessories.
ASSEMBLING YOUR
APPLIANCE
When you rst take your appliance out of its box,
there will be some simple setup required to get it
ready to use. The information in this section tells
you the steps you need to take before using your
new machine for the rst time.
USING YOUR
APPLIANCE
It’s important to use your machine correctly to
avoid any damage to either the appliance itself
or your oors. Get to know features, settings and
the dos and don’ts of using your machine so it’s
cleaning to its maximum potential.
MAINTAINING YOUR
APPLIANCE
Every appliance needs a bit of routine
maintenance from time to time. Learning how to
recognise the dierent parts of your machine to
maintain and how to look after them will enable
your appliance to last longer.
TROUBLESHOOTING
If you encounter any issues with your appliance,
the troubleshooting section in this user manual
is the rst place you can turn. Here you will nd
information about potential problems as well as
the solutions to resolve them.
SPECIFICATION
If you want to know any of the specics about
your machine including model number, weight,
capacity and input voltage, head over to the
specication page in this user manual for a
full list.
PARTS LIST AND CONTACT DETAILS
Need a replacement part for your machine? The list on this page shows you all of the spare parts
available for your model. You’ll also nd our full contact information here in case you need to get in
touch for any reason.

USER MANUAL 7
GETTING TO KNOW YOUR VACUUM
CLEANER
FEATURES
SPARE PARTS
Main hose
Part no. DVLS00035
3-in-1 tool
Part no. DVLS00036
HEPA pre-motor lter
Part no. DVLS00041
Brush roll
Part no. DVLS00046
Drive belt
Part no. DVLS00032
Pet tool
Part no. DVLS00023
Visit dirtdevil.co.uk
to order
Handle
Dust Bin
Main Hose
Pet Tool
3-in-1 Tool
Main Hose Handle
Internal Hose
HEPA Pre-Motor Filter
Top Cable Latch
Dust Bin Release Button
Air Outlet
Floor Head
Power Button Wheel
Power Cord

DIRTDEVIL.CO.UK8
2
13
1
2
2
13
1
2
Before assembling or disassembling attachments, ensure the upright vacuum is not plugged into the mains
supply and is switched o.
1. Remove the dust bin before installing handle.
Push the handle onto the vacuum body, and use
a Phillips screwdriver to secure it with the screw
provided. IMPORTANT: The handle must be
inserted rst before replacing dust bin.
3. Place the short hose end
onto the connector (left hand
side if looking at the back of the
vacuum), and rotate clockwise
to lock.
4. Push the main hose handle
into the connector, and place
the 3-in-1 tool onto the storage
holder in front of the main hose
handle.
5. Twist the quick release cord
hook to release the power cord.
2. Place the dust bin back onto the machine
and push until it clicks into place.
ASSEMBLING YOUR VACUUM
CLEANER
ASSEMBLING YOUR LIGHTWEIGHT PET UPRIGHT

USER MANUAL 9
8
1
2
12
8
1
2
12
8
1
2
12
2. Step on the brush cover and
pull back on handle, to engage for
operation.
3-in-1 tool Pet tool
When changing the attachments ensure the upright vacuum is switched o.
1. The 3-in-1 tool with brush allows for vacuuming
in narrow and hard-to-reach places. Push the
locking tab in to remove the brush accessory. Use
the soft bristles for dusting surfaces, and reverse
the attachment to use as an upholstery tool.
2. The pet tool gives oors and furniture a deeper
clean in homes with pets. It is specically designed
to tackle areas heavily soiled with pet hair.
1. Plug in your machine and push
power button to switch ON/OFF.
3. To maintain optimal
performance, please empty dust
bin when debris reaches MAX
FILL line.
USING YOUR VACUUM
CLEANER
USING YOUR LIGHTWEIGHT PET UPRIGHT
USING THE ATTACHMENTS
1
2
3

DIRTDEVIL.CO.UK10
USING THE ATTACHMENTS
1. Remove the main hose handle from the
machine. Always ensure the vacuum is in upright
(parked position) when using the main hose.
2. The rotating brush is lifted clear of the oor
surface while the vacuum is parked upright. To
prevent possible ooring damage, do not tilt the
vacuum forwards or sideways while using the
main hose.
3. For stairs, position the cleaner with the rear
wheels against the stair tread (vacuum cleaner
facing away from the stairs), and use the
attachments to clean each step.
4. The main hose is ready to use alone, or t the
3-in-1 tool or pet tool to suit the cleaning tasks.
9
Remove the hose handle from
the machine. Always ensure the
vacuum is in upright (parked
position) when using the hose.
The rotating brush is lifted clear
of the floor surface while the
vacuum is parked upright. To
prevent possible flooring damage,
do not tilt the vacuum forwards
or sideways while using the hose.
For stairs, position the cleaner with
the rear wheels against the stair
tread (vacuum cleaner facing away
from the stairs), and use the
attachments to clean each step.
The hose is ready to use alone, or fit
the 3-in-1 crevice tool to suit the
cleaning task.
9
Remove the hose handle from
the machine. Always ensure the
vacuum is in upright (parked
position) when using the hose.
The rotating brush is lifted clear
of the floor surface while the
vacuum is parked upright. To
prevent possible flooring damage,
do not tilt the vacuum forwards
or sideways while using the hose.
For stairs, position the cleaner with
the rear wheels against the stair
tread (vacuum cleaner facing away
from the stairs), and use the
attachments to clean each step.
The hose is ready to use alone, or fit
the 3-in-1 crevice tool to suit the
cleaning task.
USING YOUR VACUUM
CLEANER

USER MANUAL 11
REMOVING AND EMPTYING THE DUST BIN
Ensure the vacuum is switched o before emptying the dust bin.
10
Removing and emptying
the dust canister
Press dust canister
release button to
remove the dust
canister.
Hold dust canister over
rubbish bin and unclip
the lock on the bottom
of the canister, allowing
the dust to empty.
Close the base of the
dust canister, align the
canister base back onto
the machine and push
until it clicks back
into place.
WARNING: If the filter or hose is clogged, the motor may shut down in
order to protect itself from overheating. If this occurs, unplug the
vacuum, clean the filter and inspect the hoses and canister for clogging.
Allow hour for the unit to fully cool down before resuming use.
Checking for blockages
Inspect the lower tube and nozzle and
remove any dirt and debris.
The lower hose can be removed from
the nozzle if needed.
Remove the main hose by rotating the
connector to unlock, and check for
blockages in the hose and elbow connector.
Remove the dust canister, and follow the steps
on the next page for cleaning.
10
Removing and emptying
the dust canister
Press dust canister
release button to
remove the dust
canister.
Hold dust canister over
rubbish bin and unclip
the lock on the bottom
of the canister, allowing
the dust to empty.
Close the base of the
dust canister, align the
canister base back onto
the machine and push
until it clicks back
into place.
WARNING: If the filter or hose is clogged, the motor may shut down in
order to protect itself from overheating. If this occurs, unplug the
vacuum, clean the filter and inspect the hoses and canister for clogging.
Allow hour for the unit to fully cool down before resuming use.
Checking for blockages
Inspect the lower tube and nozzle and
remove any dirt and debris.
The lower hose can be removed from
the nozzle if needed.
Remove the main hose by rotating the
connector to unlock, and check for
blockages in the hose and elbow connector.
Remove the dust canister, and follow the steps
on the next page for cleaning.
10
Removing and emptying
the dust canister
Press dust canister
release button to
remove the dust
canister.
Hold dust canister over
rubbish bin and unclip
the lock on the bottom
of the canister, allowing
the dust to empty.
Close the base of the
dust canister, align the
canister base back onto
the machine and push
until it clicks back
into place.
WARNING: If the filter or hose is clogged, the motor may shut down in
order to protect itself from overheating. If this occurs, unplug the
vacuum, clean the filter and inspect the hoses and canister for clogging.
Allow hour for the unit to fully cool down before resuming use.
Checking for blockages
Inspect the lower tube and nozzle and
remove any dirt and debris.
The lower hose can be removed from
the nozzle if needed.
Remove the main hose by rotating the
connector to unlock, and check for
blockages in the hose and elbow connector.
Remove the dust canister, and follow the steps
on the next page for cleaning.
1. Press dust bin release button
to remove the dust bin.
1. Inspect the lower tube and nozzle and remove any dirt and
debris.
2. The internal hose can be removed from the nozzle if
needed.
3. Remove the main hose by rotating the connector to unlock,
and check for blockages in the hose and elbow connector.
4. Remove the dust bin, and follow the steps on the next page
for cleaning.
2. Hold dust bin over your rubbish
bin and unclip the lock on the
bottom of the bin, allowing the
dust to empty.
3. Close the base of the dust bin,
align the bin’s base back onto the
machine and push until it clicks
back into place.
WARNING
If the lter or main hose is clogged, the motor may shut down in order to protect itself from
overheating. If this occurs, unplug the vacuum, clean the lter and inspect the hoses and bin for
clogging. Allow 1 hour for the unit to fully cool down before resuming use.
CHECKING FOR BLOCKAGES
10
Removing and emptying
the dust canister
Press dust canister
release button to
remove the dust
canister.
Hold dust canister over
rubbish bin and unclip
the lock on the bottom
of the canister, allowing
the dust to empty.
Close the base of the
dust canister, align the
canister base back onto
the machine and push
until it clicks back
into place.
WARNING: If the filter or hose is clogged, the motor may shut down in
order to protect itself from overheating. If this occurs, unplug the
vacuum, clean the filter and inspect the hoses and canister for clogging.
Allow hour for the unit to fully cool down before resuming use.
Checking for blockages
Inspect the lower tube and nozzle and
remove any dirt and debris.
The lower hose can be removed from
the nozzle if needed.
Remove the main hose by rotating the
connector to unlock, and check for
blockages in the hose and elbow connector.
Remove the dust canister, and follow the steps
on the next page for cleaning.
MAINTAINING YOUR VACUUM
CLEANER

DIRTDEVIL.CO.UK12
11
Cleaning the filters
Before starting any cleaning, ensure the upright vac is not plugged into
Wash with water every month , allow at least 24 hours to dry and
make sure it is dry thoroughly before re-using
1. Remove the
dust canister.
2. Push the
release button,
open the dust
canister and
clean all parts of
the dust canister.
3. Open the dust
canister filter lid
located on top
of the canister.
4. Remove the
dust canister foam
and HEPA filter.
Shake and tap the
foam and HEPA
filter over a bin to
remove any exces s
dust.
5. 6. Allow filter to
dry for 24 hours
before putting
back into
vacuum cleaner.
7.
11
Cleaning the filters
Before starting any cleaning, ensure the upright vac is not plugged into
Wash with water every month , allow at least 24 hours to dry and
make sure it is dry thoroughly before re-using
1. Remove the
dust canister.
2. Push the
release button,
open the dust
canister and
clean all parts of
the dust canister.
3. Open the dust
canister filter lid
located on top
of the canister.
4. Remove the
dust canister foam
and HEPA filter.
Shake and tap the
foam and HEPA
filter over a bin to
remove any exces s
dust.
5. 6. Allow filter to
dry for 24 hours
before putting
back into
vacuum cleaner.
7.
CLEANING THE FILTERS
Before starting any cleaning, ensure the upright vacuum is not plugged into the mains supply and is switched
o.
Wash the lter with water every month. Allow at least 24 hours to dry and make sure it is thoroughly dry
before re-inserting it into the appliance.
1.Remove the dust bin.
5. Use cold running
water (no detergents) to
wash both parts of the
lter.
2.Push the release
button, open the dust
bin and clean all parts of
the dust bin.
6.Allow lter to dry for
24 hours before putting
back into the vacuum
cleaner.
3.Open the dust bin
lter lid located on top
of the bin.
7. Lift out the assembly for the transparent dust bin,
and then untwist the lter from the central tube to
remove for cleaning dirt and debris as needed. Follow
steps in reverse to reassemble.
4.Remove the dust bin
foam and HEPA pre-
lter. Shake and tap the
foam and HEPA pre-lter
over a bin to remove any
excess dust.
MAINTAINING YOUR VACUUM
CLEANER

USER MANUAL 13
CLEANING THE FILTERS
Carefully remove any string, hair or debris located on the
brush roll. You can use a tool such as a small knife, seam
ripper or scissors to remove and cut any hair or string.
WARNING
Turn o and unplug vacuum cleaner before performing maintenance to the vacuum cleaner.
DO NOT operate without lter installed
DO NOT wash dust bin in the dishwasher
DO NOT install lter if it is damp
CAUTION
DO NOT turn the appliance on when the dust bin is removed. In order to keep the suction force
optimised, the dust bin and lters must be cleaned regularly.
CLEANING THE BRUSH ROLL
12
DO NOT operate without filter installed
DO NOT wash dust canister in the dishwasher
DO NOT install filter if it is damp
CAUTION: Do not turn the appliance on when the dust canister is
removed. In order to keep the suction force optimised, the dust canister
and filters must be cleaned regularly.
WARNING: and unplug vacuum cleaner before performing
maintenance to the vacuum cleaner.
CLEANING BRUSH ROLL
Carefully remove any string, hair or debris
located on the brush roll.You can use a tool
such as a small knife or scissors to remove
and cut any hair or string.
MAINTAINING YOUR VACUUM
CLEANER

DIRTDEVIL.CO.UK14

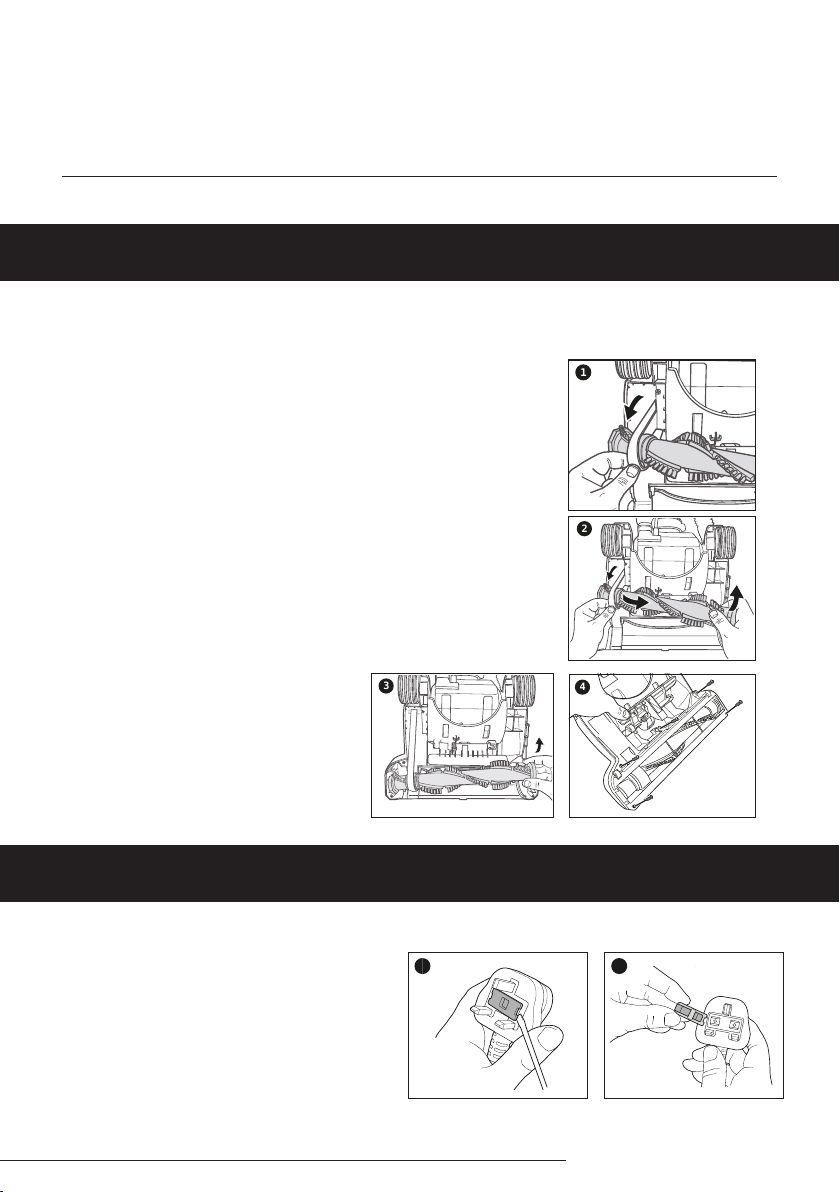

MAINTAINING THE BRUSH ROLL
You should check your cleaner’s brush roll and drive belt regularly for wear or damage. You should also clean
the brush and brush ends by removing string, hair and carpet bres. These can wrap around the brush and
hamper its ability to eectively clean your carpet. Also remove any debris that has accumulated under the
brush cover.
1. Turn o the vacuum and unplug from the electrical socket.
2. Place the vacuum upside down with brush roll facing upwards.
3. Remove the six screws as shown with a small Phillips screwdriver (see gure 1).
4. Lift o brush cover (see gure 2). It will unclip from the securing lug on the front of the housing.
5. Grasp oor brush at both ends and remove by lifting out (see gure 3).
6. Clean string, hair and other debris from oor brush, motor pulley, and drive belt (see gure 4).
7. Check air passageway for obstructions. Remove debris from this area. When nished cleaning, reposition
oor brush and drive belt. Turn oor brush by hand several times in the direction of the motor pulley. If
properly installed, the drive belt will align itself on oor brush. Then replace the brush cover and re-install the
six screws (see gure 5)
MAINTAINING YOUR VACUUM
CLEANER
13
• Do not clean the vacuum cleaner, components or accessories using
petrol or any other flammable liquid or solvents, etc.
• Clean only the outside of the vacuum cleaner.
• Use only a moist cloth and mild detergent for cleaning the vacuum
cleaner, components and accessories.
and accessories with a dry cloth.
• Do not place accessories, tools or components in a dishwasher.
Bush Roll
You should check your cleaner’s brush roll and drive belt regularly for
wear or damage. You should also clean the brush and brush ends by
removing string, hair and carpet fibres. These can wrap around the
remove any debris that has accumulated under the brush cover.
2
4 5
31
Remove
Six Screws
vacuum and unplug from electrical outlet.
Place vacuum upside down with brush roll facing upwards.
Remove the six screws as shown with a small Phillips screwdriver
(see image 1).
Lift off brush cover(see image 2).
Grasp floor brush at both ends and remove by lifting out(see image 3).
Clean string, hair and other debris from floor brush, motor pulley, and
drive belt(see image 4).
Check air passageway for obstructions. Remove debris from this area.
When finished cleaning, reposition floor brush and drive belt. Turn
floor brush by hand several times in the direction of the motor pulley.
If properly installed, the drive belt will align itself on floor brush. Then
replace the brush cover and re-install the six screws （see image 5)
MAINTENANCE

USER MANUAL 15
14
Changing the fuse
1. Only use a 13 amp fuse.
2. To change the fuse, place a
screwdriver into the recess of the plug
cover and pull the fuse holder upward
until it’s free.
3. Slide the fuse out and pop in the
replacement.
4. Slot the fuse holder back into the
recess and push down until it locks
into place.
Replacing The Drive Belt
Check the drive belt carefully for wear, cuts and stressed areas. If the
drive belt appears worn, you will need to replace
it. To remove the drive belt, read the instructions
and follow the drawings below:
The drive belt is not included as spare part, contact Customer Service
helpline on the back page if a replacement is needed.
1. Grasp the old drive belt and remove from
motor shaft. Discard old drive belt.
2. Loop new drive belt over motor shaft and
stretch other end over floor brush in the
space provided between the bristles.
3. Place ends of floor brush down into slots on
sides as shown. Turn floor brush by hand
several times in the direction of the motor
shaft. If properly installed, drive belt will align
itself on floor brush.
4. Replace brush cove r and
six screws.
1
2
34
Replace Brush
Cover and
Six Screws
14
Changing the fuse
1. Only use a 13 amp fuse.
2. To change the fuse, place a
screwdriver into the recess of the plug
cover and pull the fuse holder upward
until it’s free.
3. Slide the fuse out and pop in the
replacement.
4. Slot the fuse holder back into the
recess and push down until it locks
into place.
Replacing The Drive Belt
Check the drive belt carefully for wear, cuts and stressed areas. If the
drive belt appears worn, you will need to replace
it. To remove the drive belt, read the instructions
and follow the drawings below:
The drive belt is not included as spare part, contact Customer Service
helpline on the back page if a replacement is needed.
1. Grasp the old drive belt and remove from
motor shaft. Discard old drive belt.
2. Loop new drive belt over motor shaft and
stretch other end over floor brush in the
space provided between the bristles.
3. Place ends of floor brush down into slots on
sides as shown. Turn floor brush by hand
several times in the direction of the motor
shaft. If properly installed, drive belt will align
itself on floor brush.
4. Replace brush cover and
six screws.
1
2
34
Replace Brush
Cover and
Six Screws
14
Changing the fuse
1. Only use a 13 amp fuse.
2. To change the fuse, place a
screwdriver into the recess of the plug
cover and pull the fuse holder upward
until it’s free.
3. Slide the fuse out and pop in the
replacement.
4. Slot the fuse holder back into the
recess and push down until it locks
into place.
Replacing The Drive Belt
Check the drive belt carefully for wear, cuts and stressed areas. If the
drive belt appears worn, you will need to replace
it. To remove the drive belt, read the instructions
and follow the drawings below:
The drive belt is not included as spare part, contact Customer Service
helpline on the back page if a replacement is needed.
1. Grasp the old drive belt and remove from
motor shaft. Discard old drive belt.
2. Loop new drive belt over motor shaft and
stretch other end over floor brush in the
space provided between the bristles.
3. Place ends of floor brush down into slots on
sides as shown. Turn floor brush by hand
several times in the direction of the motor
shaft. If properly installed, drive belt will align
itself on floor brush.
4. Replace brush cove r and
six screws.
1
2
34
Replace Brush
Cover and
Six Screws
REPLACING THE DRIVE BELT
CHANGING THE FUSE
Make sure the vacuum is switched o and unplugged rst.
Check the drive belt carefully for wear, cuts and stressed areas.
If the drive belt appears worn, you will need to replace it. To remove
the drive belt, read the instructions and follow the drawings below:
1. Grasp the old drive belt and remove from motor
shaft. Discard old drive belt.
2. Loop new drive belt over motor shaft and stretch
other end over oor brush in the space provided
between the bristles.
3. Place ends of oor brush down into slots on sides
as shown. Turn oor brush by hand several times in
the direction of the motor shaft. If properly installed,
drive belt will align itself on oor brush.
4. Replace brush cover and six screws.
1. Only use a 13 amp fuse.
2. To change the fuse, place a screwdriver into the
recess of the plug cover and pull the fuse holder
upward until it’s free.
3. Slide the fuse out and pop in the replacement.
4. Slot the fuse holder back into the recess and
push down until it locks into place.
MAINTAINING YOUR VACUUM
CLEANER
2 3

DIRTDEVIL.CO.UK16
TROUBLESHOOTING
Problem Solution
Low suction power
1.Empty the dust bin and clean the lters.
2.Check for blockages in the airpath: nozzle hose and
connector, main hose, and the elbow connector between
the hose and dust bin.
3.Remove any hair/threads from the brushroll, and check
it is rotating correctly.
Vacuum is dicult to push on
certain carpets
There is a exible sealing strip on the oorhead behind
the brushroll opening. Pinch one end to lift it slightly,
and slide out of the oorhead sideways from one end to
remove. This will make the cleaner easier to push over
plush carpet.
Vacuum cleaner switches o
during use
The thermal cutout has activated as the airow is
restricted. Unplug the vacuum, empty the dust bin, clean
lters and check for blockages. Allow the motor to cool
for 1 hour before resuming use.
Strange sound/smell Switch o and unplug. Check that nothing has become
caught in the brushroll in the oorhead. If the brushroll
is jammed by an object or build up of hair or debris, this
may damage the belt. Remove the cover and inspect the
belt; replace if needed.
To reduce the risk of shock and unintended operation, turn o power and unplug from the mains
before servicing.
In any other case or if the solution explained above did not solve the problem, please contact us at
[email protected]
WARNING
CONTACT US

USER MANUAL 17
SPECIFICATION
WARNING: The above data has been supplied by the manufacturing plant and tested in laboratory
conditions. The actual situation may vary according to the use environment. All product specications are
subject to change without notice.
DISPOSAL
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your local authority for recycling advice.
UNBOXING
During transportation, packaging was used to protect the appliance against any damage. After unboxing,
please dispose of all packaging in a way that will not cause damage to the environment.
IMPORTANT! During unboxing, keep the packaging materials (polyethylene bags, polystyrene pieces, etc.) out
of reach of children.
This appliance complies with the following UK & European Directives:
Electrical Equipment (Safety) Regulations 2016
Electromagnetic Compatibility Regulations 2016
Low Voltage Directive (LVD) 2014/35/EU
Electromagnetic Compatibility Directive (EMCD) 2014/30/EU
Model UP04
Power 400W
Capacity 3L
Weight 4.7kg
Main hose length 3m
Cord length 6.3m
Sound 78.5dB
Dimensions (LxWxH) 31 x 30 x 106cm
Filter type HEPA
Input voltage 220-240V
Current 50Hz

DIRTDEVIL.CO.UK18
NOTES

USER MANUAL 19
NOTES

DIRTDEVIL.CO.UK20
This appliance has a 1-year warranty as standard. To extend your warranty
for 1 additional year, please visit dirtdevil.co.uk and register your appliance.
VISIT DIRT DEVIL WEBSITE
www.dirtdevil.co.uk
CONTACT US
0333 400 0653
[email protected]
Connect House,
Small Heath Business Park, Talbot Way,
Small Heath, Birmingham,
B10 0HJ
United Kingdom
Pet tool
- Part no. DVLS00023
Drive belt
- Part no. DVLS00032
Cord with plug
- Part no. DVLS00034
Main hose
- Part no. DVLS00035
3-in-1 tool
- Part no. DVLS00036
Internal hose
- Part no. DVLS00037
Dust bin
- Part no. DVLS00038
Dust bin lid (bottom)
- Part no. DVLS00039
Dust bin (top)
- Part no. DVLS00040
HEPA pre-motor lter
- Part no. DVLS00041
Cyclone
-Part no. DVLS00042
Top cable latch with screw
- Part no. DVLS00043
HEPA post-motor lter
- Part no. DVLS00044
Motor lter cover
- Part no. DVLS00045
Brush roll
- Part no. DVLS00046
Wheel bar with clip
- Part no. DVLS00047
Back wheels (pair)
- Part no. DVLS00048
Base plate
- Part no. DVLS00049
Handle with screw
- Part no. DVLS00050
SPARE PARTS
Replacement parts below are available for your appliance model.
Please visit dirtdevil.co.uk to place your order.
Pictures are for illustration purposes only and may dier from the actual product. We are constantly striving to improve our
products and the specications contained herein are subject to change without notice. Made in China. DIRT DEVIL is a registered
trademark of Techtronic Cordless GP and is used under licence by Connect Distribution Services Ltd.
Dirt Devil shall not be held liable for any damage caused by improper use of the product.
