Display Dr Pepper Football Display User manual

Page 1
JOB 17895
Dr Pepper Football Display - Assembly Instrucons
A
1
Body A
B
1
Body B
C
7
Shelf (A1-A3, B1-B4)
D
1
A - Boom Tray
E
1
A - Boom Tray Liner
F
1
B - Base
G
1
Base Tray
H
1
Topper
I
1
Base Tray Liner
J
8
Support Bar
K
2
B - Base Supports
L
6
Fastener
1Assemble all (C) Shelves by folding as shown. 2Assemble (D) A - Boom Tray by folding as
shown, and insert (E) A - Boom Tray Liner. 3Assemble the (G) Base Tray by folding as shown.
5Square up (A) Body A so it stands; the boom
flaps should fold under and inward. 6Insert assembled (D) A - Boom Tray and
secure to (A) Body A with x4 (L) Fasteners.
4Fold the (H) Topper as shown to assemble.
8Install (C) Shelves A1 - A3 in the locaons
shown below by inserng the tabs at the
back of the shelf into the top slot in the (A)
Body A.
9Lock the (C) Shelves into place by folding the
tabs at the back down and inserng them
into the boom slot in the (A) Body A.
7Install (J) Support Bars by inserng into the
slots inside the (A) Body A.
DG
A
A
C
H
J
D
A A A
For customer service or parts, please call our toll free number 1-866-308-8368 or email [email protected].
E
L
CC
A1
A3
A2
Scan the QR code or visit the web address directly to view the assembly video: displaybuilds.com/instrucons_17895

A
1
Body A
B
1
Body B
C
7
Shelf (A1-A3, B1-B4)
D
1
A - Boom Tray
E
1
A - Boom Tray Liner
F
1
B - Base
G
1
Base Tray
H
1
Topper
I
1
Base Tray Liner
J
8
Support Bar
K
2
B - Base Supports
L
6
Fastener
B
B B

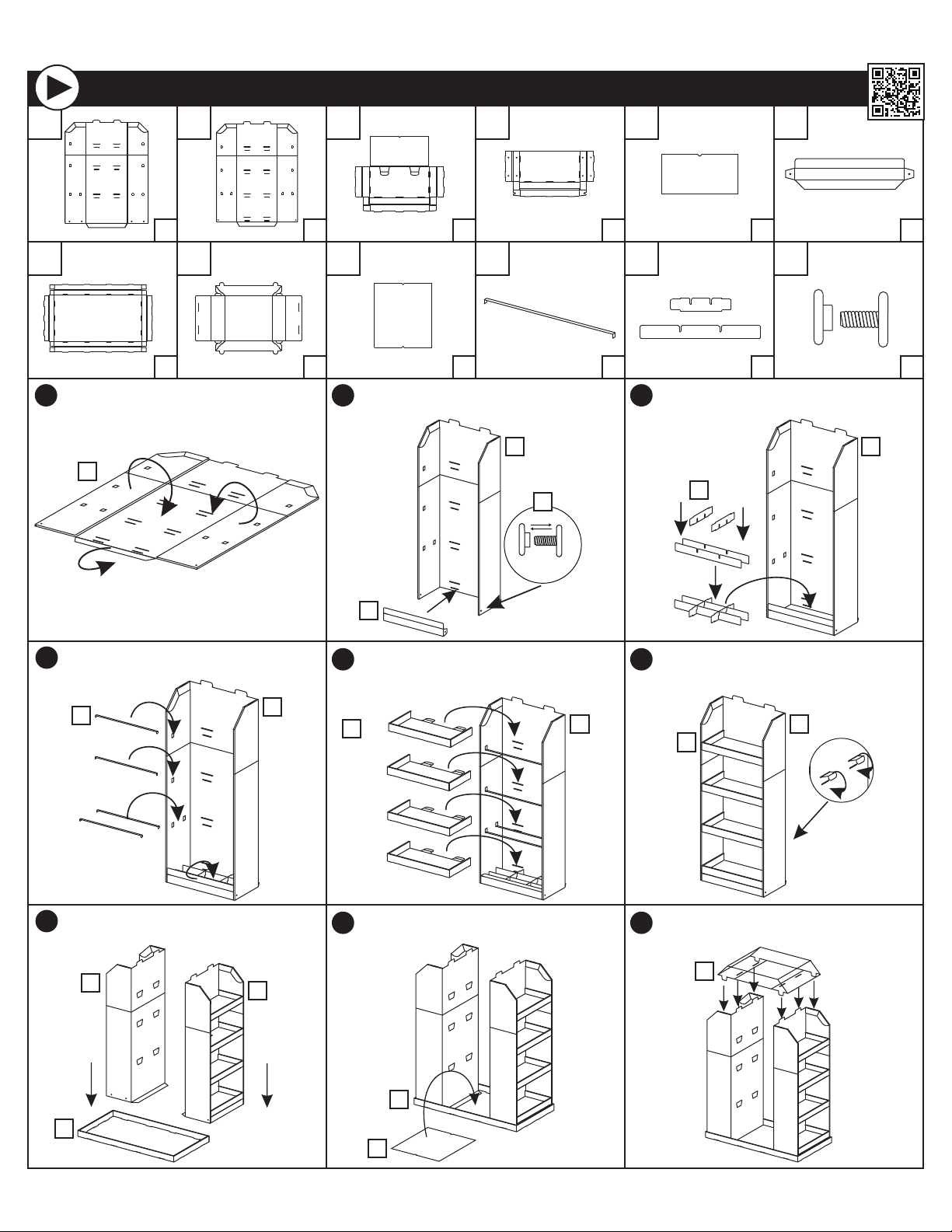

Page 2
JOB 17895
Dr Pepper Football Display - Assembly Instrucons
For customer service or parts, please call our toll free number 1-866-308-8368 or email [email protected].
10 Square up (B) Body B so it stands; the boom
flaps should fold under and inward. 11 Insert (F) B - Base as shown and secure to (B) Body B with x2 (L) Fasteners. 12 Assemble the (K) B - Base Supports as shown and insert into the boom of the display.
14 Install (C) Shelves B1 - B4 in the locaons
shown below by inserng the tabs at the
back of the shelf into the top slot in the (B)
Body B.
15 Lock the (C) Shelves into place by folding the
tabs at the back down and inserng them
into the boom slot in the (B) Body B.
13 Install (J) Support Bars by inserng into the
slots inside the (B) Body B.
17 Insert the (I) Base Tray Liner into the (G) Base
Tray in the center. 18 Aach assembled (H) Topper by inserng the
tabs as shown into the slots in each display.
16 Insert both assembled displays as shown into
the (G) Base Tray.
F
B
B
C
C
B
J
AB
G
G
I
K
L
B2
B3
B1
B4
H
Scan the QR code or visit the web address directly to view the assembly video: displaybuilds.com/instrucons_17895

JOB 17895
Page 3For customer service or parts, please call our toll free number 1-866-308-8368 or email [email protected].
1. DO NOT discard the box or original packaging.
In the case of damaged goods caused by shipping, photo evidence will be required.
2. Take photos of the box & markings.
A photo of the markings (text) on the side of the box is required for all cases in which a replacement part is
needed. This helps to idenfy the item number and ensures the correct parts are pulled.
3. Take photos of damage (if applicable).
A photo of the damaged part(s) is always required to file a claim and expediently process the replacement
part. Please make sure you keep the box even if it is damaged.
4. Send an email with the images requested.
Email a descripon of the claim along with the images required above at displaybuilds.com/contact or
directly to [email protected]. Call our toll-free number 1-866-308-8368 for further assistance.
Dr Pepper Football Display - Assembly Instrucons
MISSING PARTS / DAMAGE CLAIM INSTRUCTIONS
Scan the QR code or visit the web address directly to view the assembly video: displaybuilds.com/instrucons_17895
